Delphinidin inhibits angiogenesis through the suppression of HIF-1α and VEGF expression in A549 lung cancer cells

Introduction

Angiogenesis is the formation of new blood vessels. It is essential for the delivery of nutrients and oxygen to tumor cells that are distant from existing blood vessels. Angiogenesis is involved in the pathogenesis of many diseases such as cancer, atherosclerosis, and diabetic retinopathy (1–3). It plays an especially important role in tumor growth, metastasis, and invasion. The development of angiogenesis is associated with a poor tumor prognosis (4). To initiate tumor angiogenesis, angiogenic growth factors, including vascular endothelial growth factors (VEGFs), fibroblast growth factors, and platelet-derived growth factors, must be secreted (5). Among angiogenic growth factors, VEGF is highly specific and plays a crucial role in the angiogenesis of tumors (6). VEGF is induced by various pathophysiological conditions, including low oxygen tension (hypoxia), and several growth factors, such as epidermal growth factor (EGF), transforming growth factor α and β, and insulin-like growth factor 1 (7). Hypoxia, the prime stimulus of angiogenesis, enhances stabilization of hypoxia-inducible factors (HIFs) and their binding to VEGF promoter elements. Activated HIF induces VEGF transcription (8).

HIF-1α is an oxygen-dependent transcription factor that plays an important role in cellular adaptation to hypoxia and in tumor progression. It is composed of the HIF-1α subunit and the HIF-1β subunit (9). HIF-1α expression is regulated by oxygen pressure, whereas HIF-1β expression is unaffected by changes in oxygen tension (3). In addition, HIF-1α is overexpressed in more than 70% of solid human tumors (10,11). Oxygen-dependent prolyl hydroxylases catalyze polyubiquitinylation by the von Hippel-Lindau (VHL) protein E3 ligase complex and consequent HIF-1α degradation in normoxic conditions (12). In hypoxia, HIF-1α is not degraded due to a block in prolyl hydroxylation. Stabilized HIF-1α forms an active complex with HIF-1β in the nucleus and activates the transcription of target genes such as VEGF by binding to the promoter region of hypoxia-response elements (HREs) (13).

In addition to hypoxia, HIF-1α expression is induced by cytokines, hormones, and growth factors that stimulate tyrosine kinase receptors (5). One of these cytokines, EGF, also increases the HIF-1α level by activating EGF receptor (EGFR) signaling in normoxic conditions. EGF-stimulated HIF-1α expression is regulated by various signal transduction pathways, such as the phosphatidylinositol-3-kinase (PI3K)/Akt signaling pathway and the p38, c-Jun N-terminal protein kinase, and extracellular signal-regulated protein kinase (ERK), which all belong to the mitogen-activated protein kinase (MAPK) family signaling pathway (14,15). It is widely known that EGF-induced phosphorylation of mammalian target of rapamycin (mTOR) leads to HIF-1α protein synthesis through regulation of p70S6 kinase 1 (p70S6K) and eukaryotic initiation factor 4E-binding protein 1 (4E-BP1) (10).

Delphinidin, a polyphenol that belongs to the group of anthocyanidins, is abundant in many pigmented fruits (berries and dark grapes) and vegetables (eggplants and tomatoes). Delphinidin has anti-inflammatory, antioxidant, anti-proliferative, and antitumor activities in a variety of cancer cells (16,17). It was recently reported to have inhibitory effects on angiogenesis (18) and to prevent hypoxia-induced activation of nuclear factor-κB (NF-κB), and Akt inhibition (19). Delphinidin also decreases downstream signaling cascades crucial for endothelial cell tube formation through VEGFR-2 inhibition (20). However, there is no information concerning the molecular mechanisms underlying the VEGF-related anti-angiogenic effects of delphinidin in lung cancer cells.

In this study, we investigated the inhibitory effects of delphinidin on HIF-1α and VEGF expression in human lung adenocarcinoma A549 cells. We found that delphinidin specifically inhibits EGF-induced VEGF expression by blocking HIF-1α protein expression, without regulating HIF-1α mRNA expression. Additionally, delphinidin appeared to reduce HIF-1α protein synthesis by inhibiting the ERK and Akt/mTOR/p70S6K signaling pathways.

Materials and methods

Cell culture and materials

A549 (human lung adenocarcinoma cells), NCI-H460 (human lung adenocarcinoma cells, MCF-7 (human breast carcinoma cells), and PC3M (human prostate cancer cells) were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). A549 cells were cultured in RPMI-1640 medium (Gibco, Grand Island, NY, USA) supplemented with 10% fetal bovine serum (FBS) and incubated at 37°C in a humidified atmosphere containing 5% CO2. Delphinidin was obtained from Cayman Chemical Co. (Ann Arbor, MI, USA).

Cell viability assay

Cells were plated in 96-well culture plates at a density of 1×104 cells/well in RPMI-1640 culture medium and allowed to attach for 24 h. The media were then discarded and replaced with 100 µl of new medium containing various concentrations of delphinidin and cultured for 24 h. A WST-1 assay kit (Cayman Chemical Co.) was added to each well. The amount of formazan deposits was quantified according to the supplier's protocol after 4 h of incubation with WST-1 test solution at 37°C in a 5% CO2 incubator.

Western blot analysis

A549 cells were pre-incubated for 24 h, then stimulated with CoCl2 (200 µM) and EGF (20 ng/ml) in the presence of delphinidin. After incubation, the cells were collected and washed twice with cold PBS. The cells were lysed in a lysis buffer [50 mM Tris-HCl (pH 7.5), 150 mM NaCl, 1% Nonidet P-40, 2 mM EDTA, 1 mM EGTA, 1 mM NaVO3, 10 mM NaF, 1 mM dithiothreitol, 1 mM phenylmethylsulfonyl fluoride, 25 µg/ml aprotinin, and 25 µg/ml leupeptin] and maintained on ice for 30 min. The cell lysates were obtained via centrifugation, and the protein concentrations were determined using a protein assay kit. Aliquots of the lysates were separated on 12% SDS-polyacrylamide gel and transferred onto a nitrocellulose transfer membrane (Whatman, Dassel, Germany) with a glycine transfer buffer [192 mM glycine, 25 mM Tris-HCl (pH 8.8), 20% methanol (v/v)]. After blocking the nonspecific site with 1% bovine serum albumin (BSA), the membrane was incubated overnight with a specific primary antibody at 4°C. The membrane was then incubated for an additional 1 h with a peroxidase-conjugated secondary antibody (1:1,000; Vector Laboratories, Inc., Burlingame, CA, USA) at room temperature. The immunoactive proteins were detected using an enhanced chemiluminescence (ECL) western blot analysis detection kit (Advansta, Inc., Menlo Park, CA, USA).

Reverse transcription-polymerase chain reaction (RT-PCR)

Total RNA was extracted from cells using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). Reverse transcription was carried out using a commercial kit (SuperScript II RNase H-reverse transcriptase; Invitrogen) and total RNA (1 µg) from A549 cells, according to the manufacturer's instructions. The sequences of the primers were as follows: for HIF-1α, 5′-CTCAAAGTCGGACAGCCTCA-3′ (sense) and 5′-AATGAGCCACCAGTGTCCAA-3′ (antisense); for VEGF, 5′-CTACCTCCACCATGCCAAGT- 3′ (sense) and 5′-TCTCTCCTATGTGCTGGCCT-3′ (antisense); for β-actin, 5′-GCCATCGTCACCAACTGGGAC-3′ (sense) and 5′-CGATTTCCCGCTCGGCCGTGG-3′ (antisense). PCR products were visualized using 1% agarose gel electrophoresis with ethidium bromide staining.

Enzyme-linked immunosorbent assay (ELISA)

Cells were plated in 6-well culture plates at 2×105 cells/well in RPMI-1640 culture medium and treated with various concentrations of delphinidin for 12 h in the presence of EGF. The VEGF levels in the culture supernatant were determined by ELISA using the VEGF ELISA development kit (R&D Systems, Inc., Minneapolis, MN, USA) according to the manufacturer's instructions.

Luciferase reporter gene assay

The ability of delphinidin to inhibit HIF-1α transcription was determined by the reporter gene assay dependent on the HRE. In brief, at 50–80% confluency, A549 cells were co-transfected with pGL3-HRE-luciferase, which contained six copies of HRE derived from the human VEGF gene, and pRL-CMV (Promega Corp., Madison, WI, USA), which encoded Renilla luciferase (Rluc) under the control of a constitutive promoter, using Lipofectamine Plus reagent (Invitrogen) according to the manufacturer's instructions.

Real-time polymerase chain reaction (PCR)

Total RNA was extracted from the cells with TRIzol reagent (Invitrogen), and reverse-transcriptase reactions were performed with a commercial kit (SuperScript II RNase H-reverse transcriptase; Invitrogen) using 50 µg/ml RNA. Quantitative PCRs were conducted on a real-time PCR system (LightCycler; Roche Diagnostics, Basel, Switzerland) with a commercial kit (SYBR-Green with low ROX; Enzynomics, Daejeon, Korea) in a reaction mixture containing diluted cDNA (1/5) as a template and the real-time PCR primers. The sequences of the primers were as follows: for HIF-1α, 5′-CTCAAAGTCGGACAGCCTCA-3′ (sense) and 5′-AATGAGCCACCAGTGTCCAA-3′ (antisense); for VEGF, 5′-CTACCTCCACCATGCCAAGT-3′ (sense) and 5′-TCTCTCCTATGTGCTGGCCT-3′ (antisense); for β-actin, 5′-ACAGGAAGTCCCTTGCCATC-3′ (sense) and 5′-AGGGAGACCAAAAGCCTTCA-3′ (antisense). The relative mRNA expression levels were normalized to the value of β-actin for each reaction.

Matrigel plug assay

C57BL/6N mice (male, 6 weeks) were purchased from Samtako (Osan, Korea) and maintained in pathogen-free conditions. A549 cells at subconfluence were harvested, washed with PBS, and re-suspended in serum-free medium. Aliquots of cells (3×106) were mixed with 0.5 ml of Matrigel in the presence or absence of EGF (200 ng/ml) and delphinidin. Immediately, the mixture was subcutaneously injected into mice. The mice were sacrificed when tumors were visible, and the Matrigel plugs were carefully separated from adjacent tissue and photographed.

Hemoglobin concentration measurement

The separated Matrigel plugs were excised, and then were placed in cold PBS at 4°C overnight to liquefy the Matrigel. Specimens were subjected to centrifugation at 14,000 rpm and the supernatants were collected. The hemoglobin content was determined using Drabkin's reagent kit (Sigma Chemical Co., St. Louis, MO, USA), as previously described (21). All surgical and experimental procedures used in this study were approved by the Institutional Review Board Committee at Daegu Catholic University Medical Center which conforms to the US National Institutes of Health Guidelines for the Care and Use of Laboratory Animals.

Statistical analysis

All results are representative of at least three independent experiments performed in triplicate. The statistical significance between experimental and control values was calculated using a one-way ANOVA test.

Results

Delphinidin inhibits CoCl2- and EGF-induced HIF-1 expression in various cancer cells

HIF-1 is a master regulator of numerous genes involved in cell survival, adaptation to hypoxia, metabolism, and angiogenesis (22). Before investigating the inhibitory potential of delphinidin (Fig. 1A), the cytotoxic effects of delphinidin were examined by the WST-1 assay. Delphinidin did not significantly affect the viability of A549 or NCI-H460 lung cancer cells at the indicated concentrations (Fig. 1B). Delphinidin did not show any cytotoxic effects at concentrations of up to 40 µM; therefore, 10, 20 and 40 µM delphinidin was used in the subsequent experiments. To determine if delphinidin inhibits HIF-1α expression, we investigated the HIF-1α and HIF-1β protein levels under various conditions using western blot analysis. CoCl2 (200 µM) and EGF (20 ng/ml) treatment greatly induced HIF-1α protein expression levels in the various cancer cells. Delphinidin dose-dependently decreased CoCl2-stimulated HIF-1α protein expression in the A549 (lung carcinoma), NCI-H460 (lung carcinoma), MCF-7 (breast carcinoma), and PC3M (prostate cancer) cells. In particular, at a concentration of 40 µM, delphinidin completely abrogated HIF-1α protein expression. However, CoCl2 and delphinidin did not affect HIF-1β protein expression (Fig. 1C). Under the EGF-induced conditions, delphinidin decreased HIF-1α protein expression without affecting HIF-1β protein expression (Fig. 1D). As the inhibitory effects of delphinidin on CoCl2- and EGF-stimulated HIF-1α protein expression in A549 cells was higher than that in the other cell lines, A549 cells were used in the subsequent experiments.

Figure 1. Inhibitory effects of delphinidin on hypoxia-inducible factor (HIF)-1α expression. (A) Chemical structure of delphinidin. (B) A549 and H460 cells were treated with the indicated concentrations of dephinidin for 24 h. Cell viability was determined by a WST-1 assay. The data represent the means ± SE of three separate experiments. (C and D) The indicated cancer cell lines were pretreated with delphinidin for 1 h, and then induced by CoCl2 or epidermal growth factor (EGF) treatment for 6 h. The nuclear extracts were subjected to western blot analysis using antibodies against HIF-1α and HIF-1β.

Delphinidin inhibits CoCl2- and EGF-induced VEGF transcription levels and HRE promoter activity

VEGF, the main target gene of HIF-1α, directly participates in angiogenesis (23). To determine if the decrease in HIF-1α expression by delphinidin affects VEGF expression, the VEGF mRNA levels were evaluated using RT-PCR. Delphinidin dose-dependently decreased the VEGF mRNA levels under the CoCl2- and EGF-stimulated conditions (Fig. 2A). Moreover, treatment with 40 µM delphinidin dramatically reduced the VEGF mRNA levels in both conditions.

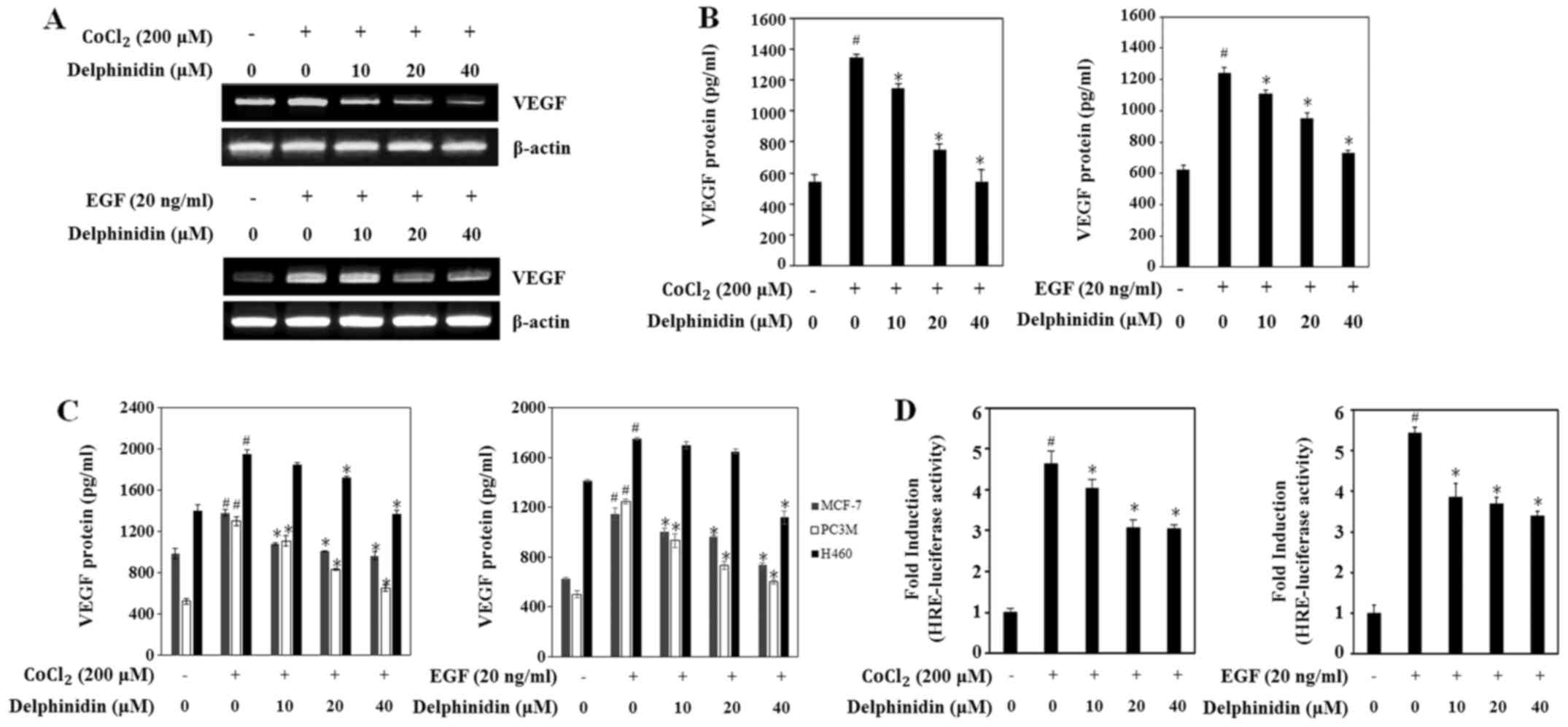

Figure 2. Inhibitory effects of delphinidin on CoCl2- and epidermal growth factor (EGF)-induced vascular endothelial growth factor (VEGF) expression. (A) RT-PCR analysis of VEGF mRNA was carried out using total RNA prepared from A549 cells incubated with CoCl2 or EGF treatments for 12 h in the presence of the indicated concentrations of delphinidin. (B and C) VEGF protein expression was evaluated by ELISA in culture supernatant of cells after incubation with CoCl2 or EGF treatment in the presence or absence of the indicated concentrations of delphinidin. (D) A549 cells were transiently co-transfected with a reporter gene, pGL3-HRE-Luciferase, and pRL-CMV as a reference. Following incubation for 24 h, the cells were incubated with CoCl2 or EGF treatment in the presence or absence of the indicated concentration of delphinidin for 12 h. The data represent the means ± SD of three independent experiments (#p<0.05 as compared to control; *p<0.05 as compared to CoCl2 and EGF-treated control).

Next, we examined the effects of delphinidin on the secretion of the VEGF protein in CoCl2- and EGF-stimulated conditions via ELISA assay. Secretion of VEGF protein was significantly increased by up to 2-fold in cells treated with CoCl2 or EGF compared with untreated cells (Fig. 2B). Delphinidin treatment dose-dependently decreased the secretion of VEGF protein in the CoCl2- and EGF-stimulated A549 cells. Because delphinidin inhibited HIF-1α protein expression in various cancer cells, we sought to confirm that delphinidin regulated VEGF secretion in the other cancer cell lines. In MCF-7 and PC3M cells, CoCl2- and EGF-stimulated VEGF protein secretion was also decreased by delphinidin in a dose-dependent manner (Fig. 2C). Although non-treated H460 cells secreted high levels of VEGF protein, treatment with 40 µM delphinidin decreased CoCl2- and EGF-induced VEGF protein secretion levels when compared with the non-treated H460 cells. These results suggest that the inhibitory effect of delphinidin on VEGF protein production is regulated by decreasing the VEGF mRNA level in CoCl2- and EGF-stimulated conditions in various cell lines.

The binding of HIF-1 to HRE in the VEGF promoter is a predominant enhancer of VEGF production (13). Thus, to investigate if delphinidin suppresses HRE promoter activity by decreasing HIF-1α protein expression, we performed an HRE promoter reporter gene assay. A549 cells were co-transfected with the pGL3-HRE-luciferase and β-galactosidase-luciferase plasmids for 24 h and then treated with the indicated concentration of delphinidin for 12 h. HRE promoter activity was increased up to 4.5-fold in the CoCl2-stimulated cells compared with the untreated cells (Fig. 2D). Delphinidin dose-dependently decreased CoCl2-stimulated HRE promoter activity. In addition, EGF-induced HRE promoter activity was increased up to ~5-fold compared with the untreated cells and was rapidly decreased after treatment with 10 µM delphinidin. These results showed that the inhibitory effects of delphinidin on VEGF transcriptional activity are related to the regulation of HRE promoter activity by inhibiting HIF-1α expression.

The inhibitory effects of delphinidin on CoCl2- and EGF-induced HIF-1α expression are not related to transcriptional levels

To determine if delphinidin decreased HIF-1α protein expression by regulating the HIF-1α mRNA levels, we examined the effects of delphinidin on CoCl2- and EGF-induced HIF-1α transcriptional activity using real-time PCR. CoCl2 and EGF treatment did not induce HIF-1α mRNA levels (Fig. 3A). Furthermore, delphinidin treatment did not change the HIF-1α mRNA level in CoCl2- or EGF-stimulated A549 cells. In addition, the results of the RT-PCR assay showed that delphinidin did not affect the HIF-1α mRNA levels (Fig. 3B). These results showed that HIF-1α mRNA levels were not responsible for the inhibition of HIF-1α protein expression by delphinidin in the CoCl2- and EGF-induced conditions. Next, to determine the effect of delphinidin on HIF-1α protein proteasomal degradation, proteasome inhibitor MG132 was used. MG132 significantly increased HIF-1α protein accumulation (Fig. 3C). Delphinidin also inhibited MG132-induced HIF-1α, which suggests that delphinidin did not appear to affect the proteasomal degradation of the HIF-1α protein. Therefore, we anticipated that the inhibitory effects of delphinidin on CoCl2- and EGF-induced HIF-1α protein expression are regulated by a synthesis pathway.

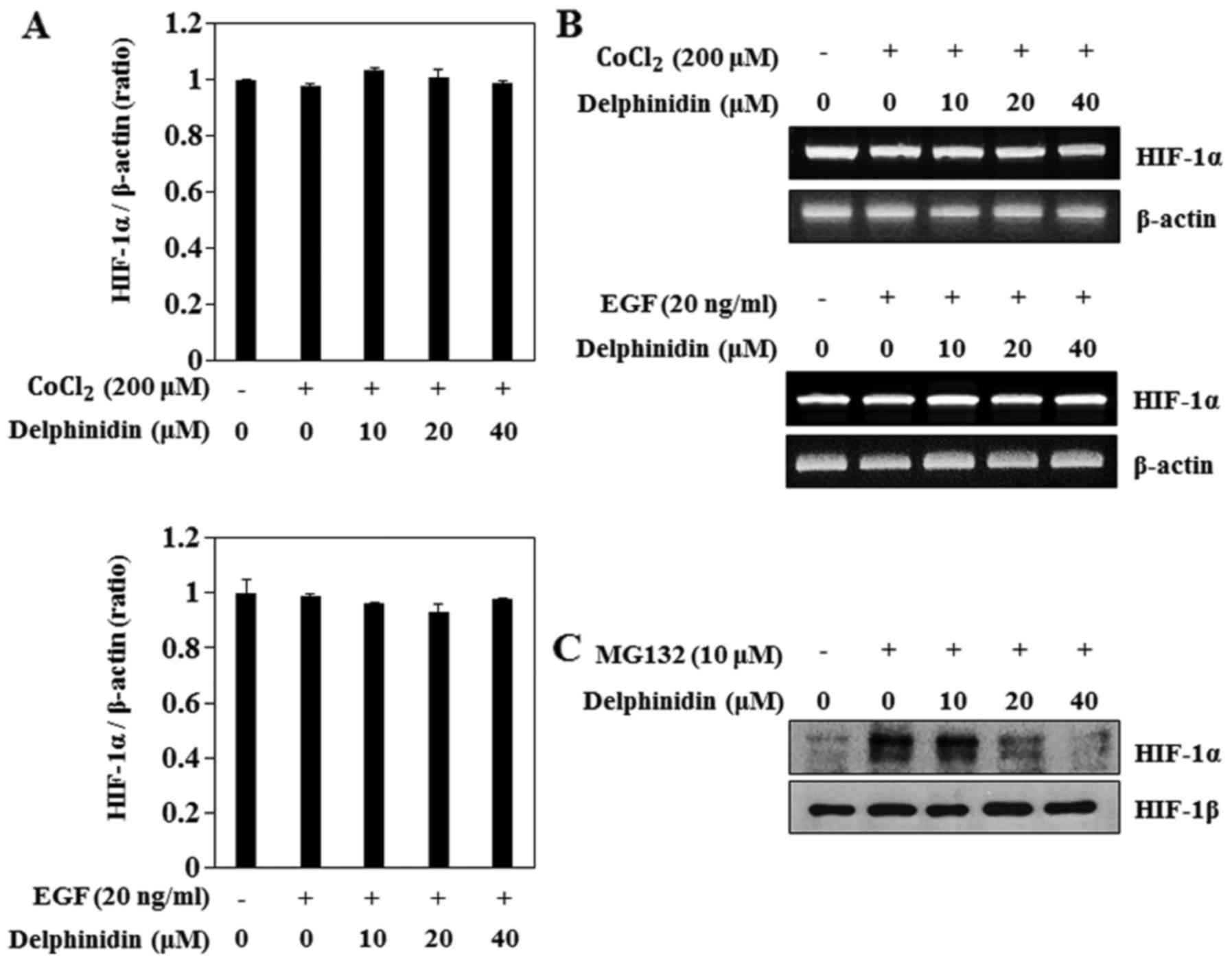

Figure 3. Inhibitory effects of delphinidin on hypoxia-inducible factor (HIF)-1α mRNA expression in A549 cells. (A) A549 cells were treated with delphinidin for 24 h. Relative mRNA for HIF-1α after normalization with β-actin expression determined by quantitative PCR is shown. The data represent the means ± SD of three independent experiments. (B) RT-PCR analysis of HIF-1α mRNA was carried out using total RNA. A549 cells incubated with CoCl2 or EGF treatments for 12 h in the presence of the indicated concentrations of delphinidin. (C) A549 cells were pretreated with delphinidin, for 1 h, and then induced by MG132 treatment for 6 h. The nuclear extracts were subjected to western blot analysis using antibodies against HIF-1α and HIF-1β.

Delphinidin inhibits CoCl2- and EGF-induced HIF-1α expression by blocking the ERK and PI3K/Akt/mTOR/p70S6K signaling pathways in A549 cells

The MAPK and Akt/mTOR pathways are associated with the regulation of HIF-1α protein synthesis at the translational levels (24,25). Thus, to confirm that MAPK, Akt, and mTOR pathway activity is related to CoCl2- and EGF-induced HIF-1α protein expression, A549 cells were exposed to various kinase inhibitors. PD98059 (a MEK inhibitor), wortmannin (a PI3K inhibitor), and rapamycin (an mTOR inhibitor) blocked CoCl2-induced HIF-1α expression, similarly to delphinidin (Fig. 4A). By contrast, SB203589 (a p38 inhibitor) did not affect HIF-1α protein expression in A549 cells. In EGF-stimulated cells PD98059, wortmannin, and rapamycin also blocked HIF-1α expression (Fig. 4B). These results indicate that CoCl2- and EGF-induced HIF-1α protein expression is regulated by the ERK, PI3K and mTOR pathways, whereas the p38-mediated pathways are not involved.

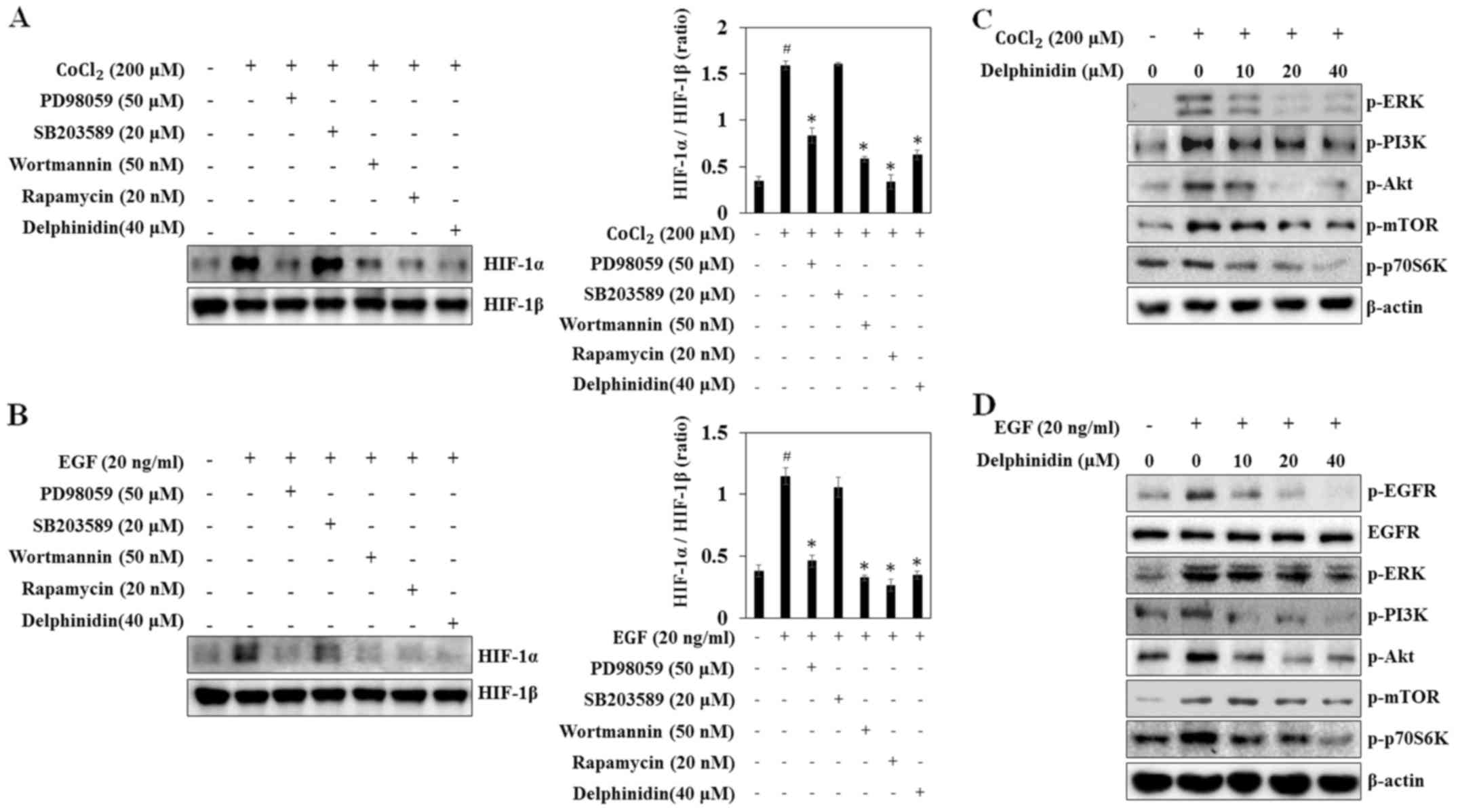

Figure 4. Inhibitory effects of delphinidin on CoCl2- or epidermal growth factor (EGF)-induced phosphorylation of EGFR, extracellular signal-regulated protein kinase (ERK), phosphatidylinositol-3-kinase (PI3K), Akt, mammalian target of rapamycin (mTOR), and p70S6 kinase (p70S6K) in A549 cells. (A and B) A549 cells were pretreated with delphinidin, PD98059, SB203589, wortmannin, or rapamycin for 30 min, and then induced by CoCl2 or EGF treatment for 6 h. The nuclear extracts were subjected to western blot analysis using antibodies against HIF-1α or HIF-1β. (C and D) A549 cells were pretreated with the indicated concentrations of delphinidin for 1 h, followed by incubation with CoCl2 or EGF for 10 min. The phosphorylated levels of EGFR, ERK, PI3K, Akt, mTOR, and p70S6K were determined by western blot analysis.

To determine the mechanisms underlying HIF-1α inhibition by delphinidin, the phosphorylated forms of ERK, PI3K, Akt and mTOR were detected via western blot analysis. The phosphorylation of ERK, PI3K, Akt, mTOR and p70S6K were increased at 10 min after CoCl2- and EGF-treatment, while delphinidin reduced phosphorylation of ERK, PI3K, Akt, mTOR, and p70S6K in CoCl2-stimulated A549 cells (Fig. 4C and D). Similarly, delphinidin dose-dependently inhibited EGF-induced phosphorylation of ERK, PI3K, Akt, mTOR, and p70S6K. Phosphorylation of tyrosine residue 1068 (Tyr1068) of EGFR is part of the initial activation process and these phosphotyrosine residues subsequently serve as docking sites for intracellular signaling molecules (26). Thus, to determine if the inhibition of HIF-1α protein synthesis was mediated by the downregulation of the EGFR tyrosine residue, the effect of delphinidin on the phosphorylation of EGFR (Tyr1068) was determined. The results showed that delphinidin inhibited EGF-induced EGFR phosphorylation. These results suggest that delphinidin suppresses HIF-1α protein synthesis by the inhibiting EGFR-dependent and -independent activation of the ERK and PI3K/Akt/mTOR/p70S6K signaling pathways.

Delphinidin inhibits tumor angiogenesis in vivo

To further determine if delphinidin inhibits angiogenesis by blocking the expression of HIF-1α and VEGF, we performed a Matrigel plug assay in vivo. Matrigel plugs mixed with only cancer cells did not induce blood vessel formation. New blood vessel formation was induced by EGF-treated cancer cells (Fig. 5A). Delphinidin considerably suppressed EGF-induced angiogenesis, and it was almost completely abrogated upon treatment with 80 µM delphinidin. Moreover, delphinidin dose-dependently reduced the EGF-increased hemoglobin content (Fig. 5B). These results indicate that delphinidin is an angiogenesis inhibitor and an antitumor therapeutic agent in human lung adenocarcinoma A549 cells.

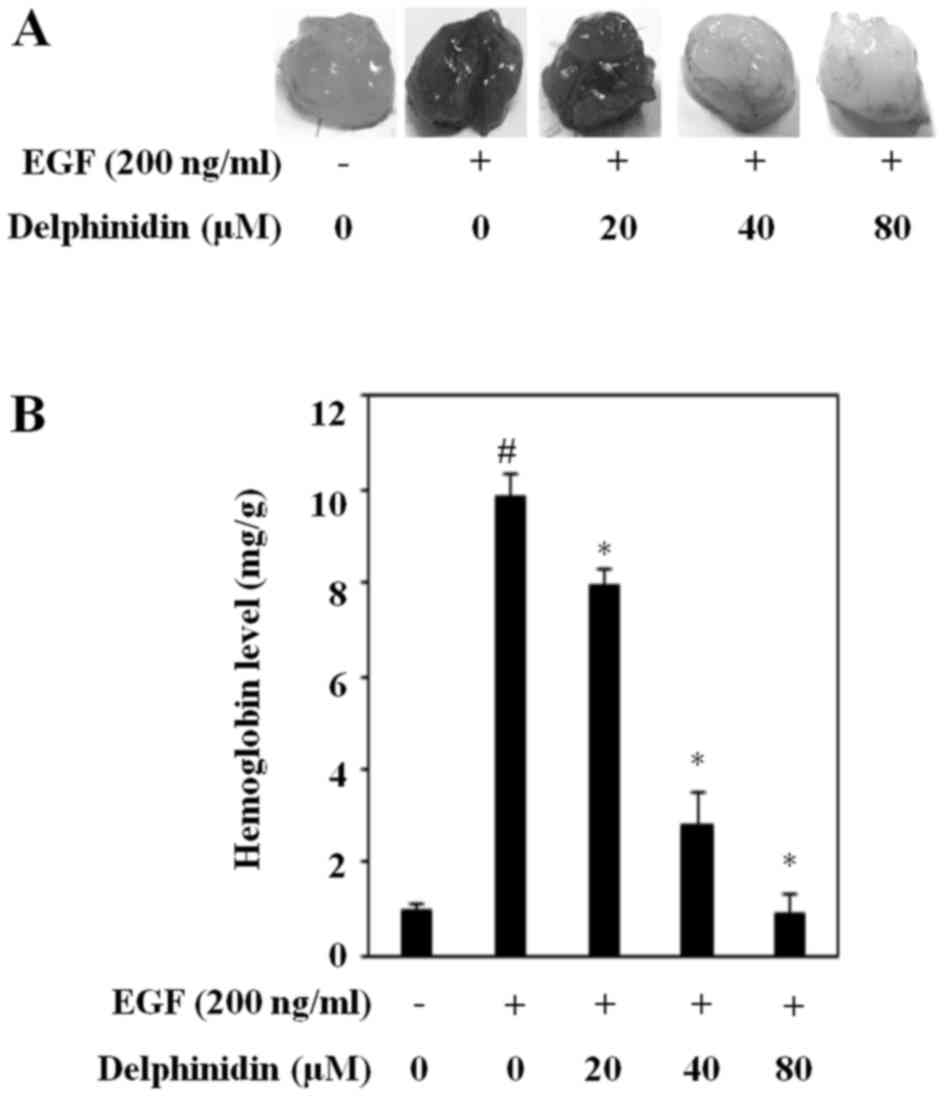

Figure 5. Inhibitory effects of delphinidin on tumor angiogenesis in vivo. (A) 57BL/6N mice were subcutaneously injected with Matrigel (500 µl) and A549 cell (3×106) mixture with the indicated drugs. The mice were euthanized 7 days after implantation, and the Matrigel plugs were removed and photographed. (B) The amounts of hemoglobin in the Matrigel plugs were quantified using a Drabkin agent. The data represent the means ± SD of three independent experiments (#p<0.05 as compared to the control; *p<0.05 as compared to the EGF treatment).

Discussion

Natural dietary polyphenolic compounds prevent cancer due to their multitude of biological activities (27). Delphinidin, a polyphenol that belongs to the group of anthocyanidins, has potent antioxidant, anti-proliferative, and anti-angiogenic properties in various cells (28). It was reported that delphinidin exerts an inhibitory effect on angiogenesis (18). It also inhibits endothelial cell proliferation and cell cycle progression through transient activation of ERK1/2 (16). However, there is no information about its ability to regulate angiogenesis via HIF-1α-dependent signaling pathways.

Tumor cells promote angiogenesis through an oxygen-sensing mechanism by regulating angiogenic and anti-angiogenic factors under hypoxic conditions (29). Cellular adaptation to hypoxia is associated with several transcriptional factors, such as activator protein-1, NF-κB, and HIF-1 (3). Among the transcriptional factors, activation of HIF-1, which is composed of the HIF-1α and HIF-1β subunits, increases cell proliferation and invasion in cancers, such as lung and prostate cancer (30,31). HIF-1α expression is regulated not only by hypoxia but also by ions. Among ions, CoCl2 has been used both in vivo (32) and in vitro (33) to mimic hypoxic conditions (33). It stabilizes HIF-1α by inhibiting HIF-1α-specific prolyl hydroxylase, leading to the impaired binding of the VHL protein to HIF-1α and prevention of its proteasomal degradation (34,35). In addition, HIF-1α expression is regulated by EGF, which increases HIF-1α translation by stimulating EGFR in normoxia. Therefore, we investigated the inhibitory effects of delphinidin on HIF-1α and VEGF expression in EGF- and CoCl2-stimulated lung cancer cells.

HIF-1α protein expression was effectively increased in the CoCl2- and EGF-induced conditions. Delphinidin markedly decreased the stimulated HIF-1α protein expression without having toxic effects on lung cancer cells (Fig. 1). Previous studies reported that treatment with delphinidin for 24 h does not have cytotoxic effects on lung cancer cells or normal cells (17,36), suggesting that the inhibitory effects of delphinidin on HIF-1α protein expression are not related to cell cytotoxicity. To investigate the possible pathway by which delphinidin inhibits HIF-1α expression, we evaluated the effect of delphinidin on the phosphorylation of various kinases. HIF-1α protein synthesis is induced by EGF-induced PI3K/Akt and mTOR signaling pathways (15). mTOR controls the translation of various genes, by regulating two important downstream substrates, p70S6K and 4E-BP1 (37,38). Phosphorylation of p70S6K induces HIF-1α protein synthesis by controlling HIF-1α mRNA translation within the 5′ untranslated region (39). In addition, ERK1 directly phosphorylates the carboxy-terminal domain of HIF-1α in hypoxia conditions (40). Therefore, to confirm the mechanism involved in the HIF-1α regulation by delphinidin, we used the inhibitors of MAPK, PI3K and mTOR. Similar to the effect of delphinidin, PD98059, wortmannin, and rapamycin decreased both the CoCl2- and EGF-induced HIF-1α protein expressions. On the other hand, the treatment of the cells with SB203589 did not change the HIF-1α protein expression in the CoCl2-stimulated condition. In the EGF-stimulated condition, only SB203589 did not influence HIF-1α protein expression (Fig. 4). These findings indicate that the CoCl2- and EGF-induced HIF-1α protein expression levels were regulated through the ERK, Akt, and mTOR signaling pathways. In addition, we found that delphinidin inhibits the phosphorylation of ERK, PI3K, Akt, mTOR, and p70S6K. These results corresponded with the previous findings that delphinidin inhibits HER2 and ERK1/2 signaling with growth inhibition and apoptosis in breast cancer cells (41) and that delphinidin inhibits EGF-induced activation of PI3K and phosphorylation of Akt at Ser473 (28). In addition, delphinidin decreased EGF-induced EGFR phosphorylation at Tyr1068. EGFR phosphorylation (Tyr1068) generates a motif for Grb2/SH2 domain binding, which initiates ERK activation (26), suggesting that delphinidin suppresses EGF-induced ERK by inhibiting EGFR phosphorylation. However, because delphinidin decreased CoCl2- as well as EGF-induced HIF-1α protein expression, regulation of the ERK, PI3K, Akt, mTOR, and p70S6K signaling pathways plays a major role in the inhibitory effect of delphinidin on HIF-1α protein synthesis.

VEGF is a major mediator of angiogenesis, which induces tumor growth, metastasis, and invasion by delivering oxygen and nutrients to cancer cells (42). As expected, delphinidin significantly decreased both CoCl2- and EGF-induced VEGF mRNA expression and VEGF secretion and dose-dependently decreased CoCl2- and EGF-induced HRE promoter activity (Fig. 2). Additionally, delphinidin markedly suppressed EGF-stimulated new blood vessel formation. These results suggest that delphinidin can be clinically used as an angiogenesis inhibitor in cancer therapy.

In conclusion, this study found for the first time that delphinidin suppresses HIF-1α protein expression. The inhibitory effects of delphinidin on VEGF transcriptional activity and tumor angiogenesis may be related to HIF-1α protein synthesis by suppression of the ERK, mTOR, and p70S6K pathways in both the CoCl2- and EGF-induced conditions. Therefore, this study demonstrated that delphinidin may be useful as a new anti-angiogenic agent in lung cancer.

Acknowledgements

This study was supported by a grant of Xavier, Catholic University of Daegu (2015).

Glossary

Abbreviations

Abbreviations:
