Suppression of heat shock protein 27 expression promotes 5-fluorouracil sensitivity in colon cancer cells in a xenograft model
- Ryohei Hayashi
- Yoshiyuki Ishii
- Hiroki Ochiai
- Atsushi Matsunaga
- Takashi Endo
- Hirotoshi Hasegawa
- Yuko Kitagawa
- Corresponding author:
- Yoshiyuki Ishii [ email@example.com ]
Published online on: Wednesday, July 25, 2012
- Pages: 1269-1274 DOI: 10.3892/or.2012.1935
Over the last few decades, systemic chemotherapy for colon cancer has markedly changed worldwide. Combinations of 5-fluorouracil (5-FU) with other cytotoxic agents, such as oxaliplatin and irinotecan, have improved the prognosis of patients with advanced colon cancer. Furthermore, the addition of molecular-targeted agents, such as anti-VEGF antibody (bevacizumab) and anti-EGFR antibody (cetuximab/panitumumab), have resulted in dramatic improvements in the survival of patients with advanced colon cancer and are currently regarded as first-line chemotherapy regimens (1–4). Although 5-FU is still a key drug in these regimens, the inherent or acquired resistance to 5-FU in colon cancer is a critical problem. A number of studies have reported that 5-FU metabolism-related factors, such as thymidylate synthase (TS), folate co-factors, dihydropyrimidine dehydrogenase (DPD) and orotate phosphoribosyltransferase (OPRT), are associated with the response to or toxicity of 5-FU (5–8). However, there are still no reliable biomarkers for the sensitivity or resistance to 5-FU chemotherapy.
Mammalian heat shock proteins (HSPs) have been classified into four main families based on their molecular weights: HSP90, HSP70, HSP60, and small HSPs (15–30 kDa), including HSP27. These proteins are well known as molecular chaperons in protein-protein interactions, as anti-apoptotic proteins and contributors to cell survival (9,10). Many studies have reported that HSP27 expression contributes to the malignant properties of cancer cells, including tumorigenicity, treatment resistance, and apoptosis inhibition (11–15). In colon cancer, certain studies have reported that HSP27 expression participates in the resistance to doxorubicin or irinotecan in vitro (16,17), and HSP27 has recently been considered as a prognostic marker in clinicopathological studies (18–20). Our previous study also indicated that HSP27 expression participates in the degree of resistance to 5-FU, a key drug for the treatment of colorectal cancer, in experiments performed in vitro (21). In the present study, we sought to clarify whether HSP27 can be used as a clinical biomarker for 5-FU chemotherapy or as a treatment target for 5-FU resistance using a xenograft model.
Materials and methods
Drug, cell lines and cell culture conditions
The anticancer drug, 5-FU, was purchased from Kyowa Hakko Kogyo Co., Ltd. (Tokyo, Japan). The human colon cancer cell line, HCT116, was obtained from the American Type Culture Collection (Rockville, MD). The cells were grown in Roswell Park Memorial Institute (RPMI)-1640 medium (Gibco, MA). Each culture was supplemented with 10% fetal bovine serum (CSL Ltd., Melbourne, Australia) and 1% penicillin/streptomycin. The cells were cultured at 37°C with 5% CO2.
Stable transfection with short hairpin RNA (shRNA)
An oligonucleotide for a short hairpin RNA targeting the human HSP27 site (5′-UAGCCAUGCUCGUCCUGCCUU-3′) was designed (21), so as to contain 5′-BamHI and 3′-EcoRI overhangs. The annealed oligonucleotide was then ligated into a linearized U6 promoter-driven vector (pSIREN-DNR-DsRed-Express Vector; Clontech, Mountain View, CA). As the negative control, an oligonucleotide for a scrambled shHSP27 (5′-ACGUAAGGCGCGUAACGGGTT-3′) containing 5′-BamHI and 3′-EcoRI overhangs was also constructed and ligated to the pSIREN vector.
For transfection, HCT116 cells expressing high levels of HSP27 under normal culture conditions were plated in 6-well plates at a density of 1×106 cells per well and allowed to grow overnight. The cells were transfected with a mixture of 5 μg of siRNA-encoding plasmids (the HSP27 target sequence plasmid and the negative control plasmid) and 20 μl of Lipofectamine 2000 (Invitrogen Life Technologies, Inc., Carlsbad, CA) in 2 ml of serum-free medium, according to the manufacturer’s instructions. After incubation at 37°C for 6 h, the medium was replaced with fresh growing medium. The transfected cells, containing a red fluorescent protein, were verified by visualization in living cells using fluorescence microscopy. Some of the transfected clones with different levels of HSP27 expression were monoclonally obtained and named HCT116-shRNA/HSP27-1 to -4. The control cells, HCT116-scramble/HSP27 and HCT116-mock cells, were established in a similar manner.
Quantitative real-time PCR (qRT-PCR) analysis of 5-FU metabolic enzymes
Total RNA was extracted from the cells in each group, and qRT-PCR analysis was performed using a fluorescence-based, real-time detection method [ABI PRISM 7900 Sequence Detection System (TaqMan); Applied Biosystems, Foster City, CA]. The mRNA expression of DPD, OPRT and TS was analyzed in the transfected cells that were either treated or not with 5-FU (1.28 μg/ml) in culture medium for 24 h. The enzyme expression levels of the transfected cells were assessed relative to the levels of the gene transcript in the mock transfected cells (interest/β-actin). The sequences of the primers and probes were as follows: DPD: 51F (19 bp), AGGACGCAAGG AGGGTTTG; 134R (20 bp), GTCCGCCGAGTCCTTACTGA; probe-71T (29 bp), CAGTGCCTACAGTCTCGAGTCTGCC AGTG. OPRT: 496F (25 bp), TAGTGTTTTGGAAACTG TTGAGGTT; 586R (20 bp), CTTGCCTCCCTGCTCTCTGT; probe-528T (27 bp), TGGCATCAGTGACCTTCAAGCCC TCCT. TS: 764F (18 bp), GCCTCGGTGTGCCTTTCA; 830R (17 bp), CCCGTGATGTGCGCAAT; probe-785T (21 bp), TCGCCAGCTAC GCCCTGCTCA. β-actin: 592F (18 bp), TGAGCGCGGCTACAGCTT; 651R (22 bp), TCCTTAA TGTCACGCACGATTT; probe-611T (18 bp), ACCACCA CGGCCGAGCGG. The 25-μl PCR reaction mixture contained 600 nmol/l of each primer, 200 nmol/l each of dATP, dCTP and dGTP, 400 μmol/l of dUTP, 5.5 μmol/l of MgCl2 and 1X TaqMan buffer A containing a reference dye (all reagents were supplied by Applied Biosystems). The PCR conditions were 50°C for 10 sec and 95°C for 10 min, followed by 42 cycles at 95°C for 15 sec and 60°C for 1 min.
Western blot analysis
Total cell lysates were extracted with lysis buffer with standard methods. The quantity of cell lysates was determined using a Bio-Rad DC protein assay kit (Bio-Rad Laboratories, Hercules, CA), and 20 mg of lysates in total were resolved in Ready Gel (Bio-Rad Laboratories) and transferred to an Immuno-Blot™ polyvinylidene fluoride membrane (Bio-Rad Laboratories). The membrane was blocked in phosphate-buffered saline (PBS) containing 5% non-fat milk powder for 2 h at room temperature, then incubated at 4°C overnight with 1:2000-diluted anti-human HSP27 mouse monoclonal antibody (G3.1; Lab Vision Corp., Fremont, CA) or 1:5000-diluted anti-human β-actin mouse monoclonal antibody (AC74; Sigma, St. Louis, MO). The membranes were incubated for 30 min with a 1:5000-diluted horseradish peroxidase-conjugated anti-mouse immunoglobulin G (IgG) (Promega Corp., Madison, WI). Bound complexes were detected using the ECL-Plus reagent (Amersham Biosciences Corp., Cardiff, UK) according to the manufacturer’s instructions. The density of the band was measured using NIH imaging (Scion) software and normalized to β-actin. Each experiment was performed in triplicate.
Female nude mice with a BALB/cA genetic background were purchased from CLEA Japan Co. Ltd., Tokyo, Japan. The mice were maintained under specific pathogen-free conditions using an Isorack in our experimental animal center and fed sterile food and water. Six- to eight-week-old mice weighing 20–22 g were used for the experiments. To analyze the effect of HSP27 knockdown against 5-FU treatment, HCT116-mock, HCT116-scramble/HSP27, and HCT116-shRNA/HSP27 cells (3×106 cells per injection), which were resuspended in 100 μl of PBS, were injected into the subcutaneous tissues of the bilateral dorsum of ether-anesthetized mice using a 1-ml syringe and a 27-gauge tuberculin needle (Terumo Co., Tokyo, Japan). The tumors were measured (length and width) twice a week using a sliding caliper by the same observer. When the inoculated tumors reached 5 mm in length, 5-FU (200 μl saline solution) was administered intraperitoneally at a dose of 60 mg/kg on days 1, 5 and 9 (n=5 mice per group). As the control, saline (200 μl) was also administered intraperitoneally (n=5 mice). The estimated tumor volume (EV) was calculated as EV = length × width2 × 1/2. EV was plotted against the day since 5-FU treatment initiation to derive a xenograft growth curve. All the mice were sacrificed at three weeks after the initial treatment. Tumors were collected and fixed in 4% paraformaldehyde (Sigma) at room temperature for 24 h before processing for sectioning and immunohistochemical staining or the preparation of tumor lysates for western blot analysis. All animal studies were conducted in accordance with the institutional guidelines approved by the Animal Care and Use Committee of our university.
Anti-human HSP27 rabbit polyclonal antibody (Stressgen Bioreagents Corp., Victoria, BC, Canada) was used for the immunohistochemical staining of the tumors from the mice. Immunohistochemical staining was performed according to the standard streptavidin-biotin peroxidase complex method using a Histofine™ SAB-PO[M] kit (Nichirei, Tokyo, Japan). Briefly, deparaffinized sections were placed in methanol containing 1% hydrogen peroxide for 15 min to block endogenous peroxidase activity. After washing with PBS, the sections were incubated with anti-HSP27 antibody (1:100 diluted in PBS) overnight at 4°C in a moist chamber, and then incubated with biotinylated goat anti-rabbit IgG and peroxidase-conjugated streptavidin (Stressgen Bioreagents Corp.) for 30 min each at room temperature. After a final washing with PBS, the sections were immersed in a PBS solution containing 0.02% 3,3′-diaminobenzidine and 0.1% hematoxylin and mounted in balsam.
Detection of caspase-3 activities for apoptosis analysis
The transfected cells were treated with or without 5-FU (1.28 μg/ml) in the culture medium for 24 h. The caspase-3 activities were then measured using an ApoAlert Caspase-3 Colorimetric assay kit (Clontech), according to the manufacturer’s instructions. The cells (2×106) were centrifuged at 400 × g for 5 min. After the extraction of the cell lysates using cell lysis buffer, the supernatants were centrifuged for 10 min at 4°C to precipitate the cellular debris and were then incubated with reaction buffer/dithiothreitol (DTT) mix for 30 min on ice and caspase-3 substrate for 1 h at 37°C. The samples were read at 405 nm on a microplate reader.
Each value was expressed as the mean ± standard deviation. Statistical analysis was performed using the Student’s t-test or the Mann-Whitney U test. The regression analysis was performed using the Statistical Package for Social Sciences (SPSS) 13.0J for Windows (SPSS, Chicago, IL). P<0.05 was considered to indicate a statistically significant difference.
5-FU sensitivity of shRNA/HSP27-transfected cells in vitro
The 5-FU-resistant colon cancer cells, HCT116, were transfected with HSP27 shRNA ligated to the pSIREN-DNR-DsRed-Express vector (shRNA/HSP27-transfected cells), scrambled shRNA ligated to the pSIREN vector as the control (scramble/HSP27-transfected cells), or an empty vector (mock-transfected cells). Transfected cells with various HSP27 expression levels were obtained by cloning (Fig. 1; shRNA/HSP27-1 to -4). To evaluate the 5-FU sensitivity, the transfected cells were first treated with 5-FU in vitro, and then the IC50 of each transfectant was measured using an MTT assay. A significant correlation between the HSP27 protein levels and the IC50 of 5-FU was observed (Fig. 2; R=0.931, P=0.0039).
HSP27 protein expression in the shRNA-transfected cells. The 5-FU-resistant colon cancer cells, HCT116, were transfected with shRNA of HSP27. Western blot analysis showed different suppression levels of HSP27 in the transfected cells (shRNA/HSP27-1 to -4). Relative expression levels of HSP27 were assessed by measuring the densities of the bands using NIH image software, and normalized to β-actin.
Correlation between HSP27 expression and 5-FU sensitivity (IC50) in the shRNA-transfected cells. A significant correlation between HSP27 protein expression and 5-FU sensitivity (IC50) by MTT assay was observed in the transfected cells.
5-FU sensitivity of shRNA/HSP27-transfected cells in xenograft model
To evaluate the 5-FU sensitivity in the xenograft model, the transfected cells were injected into the subcutaneous tissues of the bilateral dorsum of ether-anesthetized mice. When the inoculated tumors reached 5 mm in length, 5-FU was administered intraperitoneally at a dose of 60 mg/kg on days 1, 5 and 9 (n=5 mice per group). Saline (200 μl) was also administered intraperitoneally in the control group (n=5 mice). The EV following 5-FU treatment was significantly suppressed in the mice injected with the shRNA/HSP27-transfected cells, compared to those injected with the scramble/HSP27- and mock-transfected cells (Figs. 3 and 4).
5-FU sensitivity of the HSP27/shRNA-transfected cells in a xenograft model. Cells (3×106) were inoculated in the dorsal subcutaneous tissues of nude mice. When the inoculated tumors reached 5 mm in length, 5-FU (60 mg/kg/200 ml saline solution) was administered intraperitoneally on days 1, 5 and 9 (black line). Estimated tumor volumes were calculated until 21 days from initial administration of 5-FU. As the control, saline (200 ml) was also administered intraperitoneally (dotted line). (A) Mock-transfected cells. (B) Scramble/HSP27-transfected cells. (C) shRNA/HSP27-1-transfected cells. (D) shRNA/HSP27-2-transfected cells.

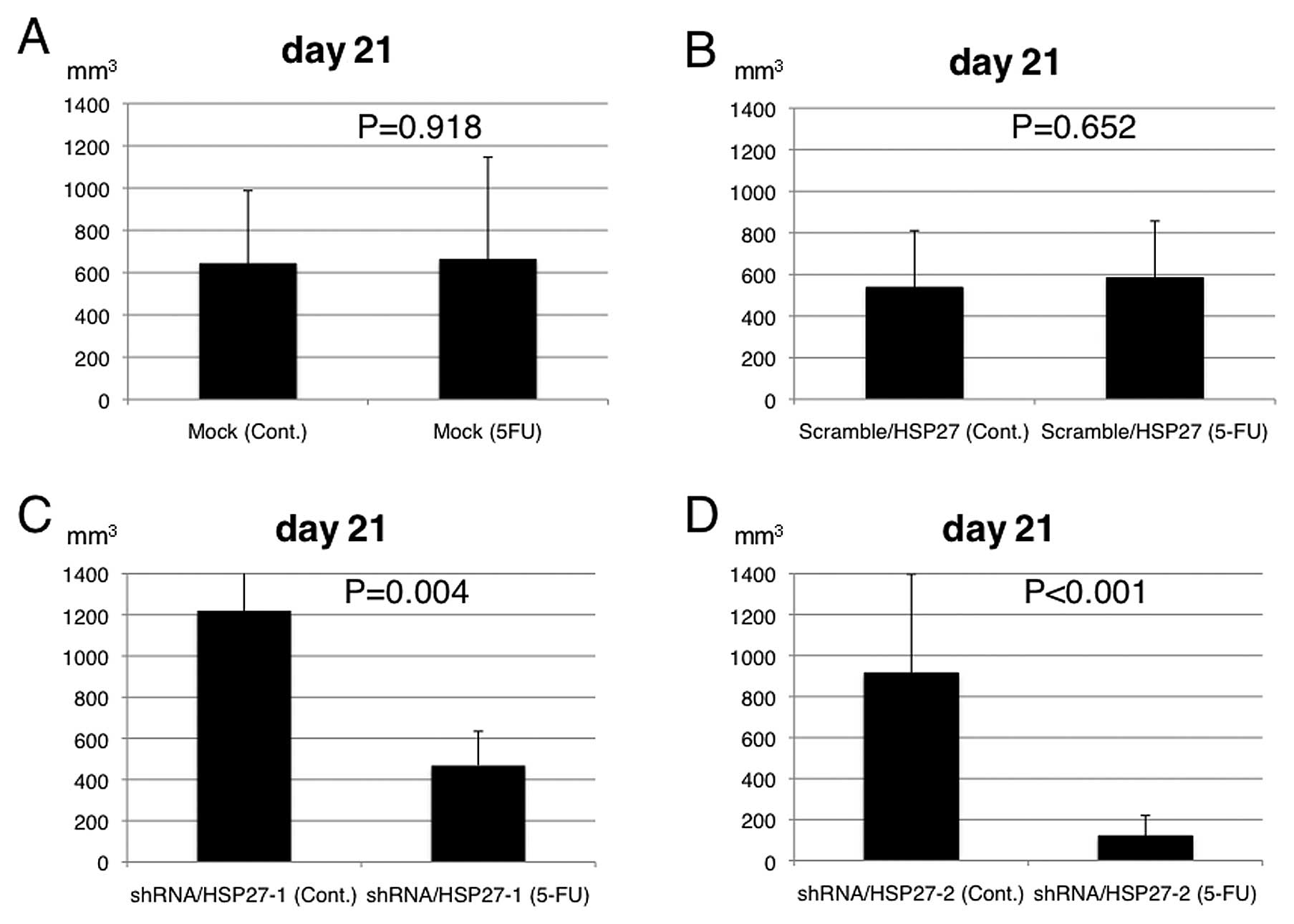

5-FU sensitivity of the HSP27/shRNA-transfected cells on day 21 in the xenograft model. Estimated tumor volumes were calculated on day 21 after the intraperitoneal injection of 5-FU. 5-FU (60 mg/kg/200 ml saline solution) was administered intraperitoneally on days 1, 5 and 9. As the conrol, saline (200 ml) was also administered intraperitoneally. (A) Mock-transfected cells. (B) Scramble/HSP27-transfected cells. (C) shRNA/HSP27-1-transfected cells. (D) shRNA/HSP27-2-transfected cells.
Immunohistochemistry of the tumors in the xenograft model showed high expression levels of HSP27 in the mock- and scramble/HSP27-transfected cells, but not in the shRNA/HSP27-transfected cells (Fig. 5).
Histology images of the inoculated tumors. Immunohistochemical staining with the anti-HSP27 antibody revealed high expression levels in the mock- and scramble/HSP27-transfected cells, but not in the shRNA/HSP27-1-transfected cells. (A) Mock-transfected cells. (B) Scramble/HSP27-transfected cells. (C) shRNA/HSP27-1- transfected cells. Bar, 50 mm.
Expression of 5-FU metabolic enzymes in shRNA/HSP27-transfected cells
To evaluate whether HSP27 expression levels affect the principal 5-FU metabolic enzymes (TS, DPD and OPRT) in the transfected cells treated with 5-FU, a qRT-PCR analysis of 5-FU metabolic enzymes was performed. These enzyme expression levels were assessed relative to the levels of the gene transcript in the mock-transfected cells as the control. Although no significant differences in the mRNA expressions of the three metabolic enzymes were observed between the shRNA/HSP27-transfected cells and the mock- or scramble/HSP27-transfected cells, the expression of DPD and OPRT was higher in the shRNA/HSP27-transfected cells (Fig. 6). Under the same conditions with 5-FU treatment, apoptosis induction was more frequently observed in the shRNA/HSP27-transfected cells than in the mock- or scramble/HSP27-transfected cells (Fig. 7).
mRNA expression levels of principal 5-FU metabolic enzymes in the shRNA/HSP27-transfected cells. mRNA expression levels of the three enzymes were assessed relative to the levels of the gene transcript in the mock-transfected cells as the control. (A) TS mRNA expression. (B) OPRT mRNA expression. (C) DPD mRNA expression.
Apoptosis induction by 5-FU treatment in the shRNA/HSP27 transfected cells. Caspase-3 activities were measured on a microplate reader at 405 nm using the ApoAlert Caspase-3 Colorimetric assay kit. White bar, no treatment condition as the negative control; black bar, 5-FU treatment condition; OD, optical density.
The inherent or acquired resistance to 5-FU-based chemotherapy remains a critical issue in colorectal cancer treatment. Consequently, the identification of biomarkers for chemo-sensitivity or resistance, such as the K-RAS and B-RAF mutation status for anti-EGFR antibody, is important for personalized chemotherapy and the avoidance of unsuitable chemotherapy and adverse events. In addition, the identification of a new treatment strategy for patients with resistance to chemotherapy is required to improve the survival of colorectal cancer patients.
HSP27 has been widely recognized as a stress-activated, ATP-independent cytoprotective chaperone that is associated with a number of functions, including chemoresistance in several cancers. In colorectal cancer, HSP27 has been reported as a clinical prognostic factor or as a factor of irinotecan resistance in experiments performed in vitro (17–20). Our previous study also reported that the overexpression of HSP27 reduced 5-FU sensitivity and the suppression of HSP27 expression reduced 5-FU resistance in experiments performed in vitro using colon cancer cells (21). Furthermore, in prostate and bladder cancer cells, the inhibition of HSP27 expression reportedly enhanced drug sensitivity in xenograft models (22–24). Thus, HSP27 is considered to be a predictor of cancer prognosis or a treatment target for several cancers; however, the role of HSP27 in colorectal cancer, including chemoresistance, remains uncertain due to the lack of evidence in xenograft models. Recently, a phase I/II clinical trial of monotherapy using the antisense oligonucleotide (ASO), OGX-427, which inhibits HSP27 expression, in patients with prostate, bladder, ovarian, breast, or non-small cell lung cancer, but not colorectal cancer, was carried out in the United States and Canada, and the therapy proved to be feasible and effective [J Clin Oncol 28 (Suppl): S15, abs. 3077, 2010]. Accordingly, the purpose of this study was to verify that HSP27 can also serve as a target for the treatment of colorectal cancer.
The present study demonstrates that the suppression of HSP27 expression in HSP27 high-expressing colon cancer cells reduces resistance to 5-FU chemotherapy in a xenograft model, and that the induction of apoptosis caused by the suppression of HSP27 expression, which many studies have reported, may be connected to 5-FU sensitivity. Our findings are consistent with the findings of several studies that link HSP27 and chemoresistance in different cell types. Collectively, this evidence suggests a role of HSP27 in the mediation of 5-FU resistance in colon cancer cells. HSP27 may also serve as a reliable target for the clinical treatment of colon cancer in patients with chemoresistance.
5-FU is well known to induce apoptosis in colon cancer cells, predominantly through the mitochondrial pathway, involving the release of cytochrome c and the subsequent activation of the upstream initiator, caspase-9, and the downstream effector, caspase-3 (25–27). We confirmed that the suppression of HSP27 expression was associated with the induction of apoptosis in colon cancer cells treated with 5-FU. Consequently, HSP27 may function as a negative regulator of the cytochrome c-dependent activation of procaspase-3, as previously reported (28). However, whether HSP27 is associated with 5-FU metabolic enzymes, remains unknown. We then analyzed the correlation between HSP27 expression and the principal 5-FU metabolic enzymes, such as TS, DPD and OPRT. The mRNA expression of DPD and OPRT was higher after 5-FU treatment in the shRNA/HSP27-transfected cells that had a high sensitivity to 5-FU comapred to the control cells, although the difference was not significant. Changes in the TS mRNA expression levels were not clearly observed in the shRNA/HSP27-transfected cells. DPD mediates 5-FU degradation by catabolizing 5-FU to fluoro-5,6-dihydrouracil. The enzyme OPRT directly converts 5-FU to 5-fluorouridine-5′-monophosphate and inhibits normal RNA or DNA synthesis in tumor cells. TS is inhibited by 5-fluoro-2′-deoxyuridine-5′-monophosphate (FdUMP) derived from 5-FU, leading to the inhibition of DNA synthesis. Consequently, high TS levels in tumor tissues are considered to be associated with the low efficacy of 5-FU treatment. In consideration of the functions of these enzymes, shRNA/HSP27-transfected colon cancer cells (with a suppressed HSP27 expression) may promote 5-FU metabolism by increasing the expression of DPD and OPRT to remove 5-FU from the cytoplasm, in order to enable cell survival.
In conclusion, this study suggests that the suppression of HSP27 expression in colon cancer cells promotes 5-FU sensitivity by inducing apoptosis, while also accelerating 5-FU metabolism to avoid cell death. Further investigation, such as an HSP27 functional study examining HSP27 phosphorylation activity and signal regulation, may lead to novel treatments for colorectal cancer.
