Screening of kinase inhibitors targeting BRAF for regulating autophagy based on kinase pathways

Introduction

Autophagy refers to a series of biochemical processes in eukaryotic cells involving ‘self-digestion’ by degrading their own cytoplasm and organelles. Under nutritional deficiency, starvation or anoxia, autophagy is described as a pathway capable of promoting cell survival (1). Under these conditions, it is essential for autophagy to provide energy for cells. A previous study indicated that autophagy is associated with the effects of antitumor agents on tumor cells. Subsequently, tumor cells overcome nutritional deficiency and hypoxia by autophagy and are therefore protected from entering the apoptotic pathway (2).

One of the important factors for the poor prognosis of tumors is their tolerance to radiotherapy and chemotherapy. Recently, it was found that autophagy is one of the mechanisms involved in the resistance of tumors to chemotherapy (3). Autophagy inhibitor, chloroquine, improves the sensitivity of human lymphoma cells to apoptosis inducers, and thus it is considered to treat tumors by combining autophagy inhibitors and apoptosis inducers (4). Tumor cells grow in low-vascularized environments by autophagy and the treatment of tumors may be elucidated by inhibiting autophagic activities. Li et al(5) found that the inhibition of autophagy may improve the sensitivity of intestinal cancer cells to fluorouracil (5-FU). Therefore, it is of great importance to identify anti-tumor agents that target the molecular mechanisms of autophagy.

According to the concept of bioinformatics and network pharmacology, theoretically, if the inhibition of autophagic genes (or gene knockout) prevents autophagy, agents inhibiting the same genes may also suppress autophagy (6). At present, there are ~500 biological targets for therapeutic agents and it is estimated that human genome data may contain ~5,000–10,000 novel targets, which is 10- to 20-fold higher than currently known targets. It is not difficult to obtain a number of novel agents, which may be 10-fold higher than the currently available drugs if genomic data are sufficiently mined (7). The present study screened differentially expressed protein kinases during autophagy using bioinformatics and constructed the kinase-kinase inhibitor regulatory network. The aim therefore was to explore kinase inhibitors capable of arresting autophagy with potential research values.

Materials and methods

Data resources

Data of gene expression chip analysis of starve-induced autophagy was obtained from the Gene Expression Omnibus (GEO) database at the intersection set of GSE2435 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE2345) and GSE31040 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE31040) as shown in Table I. The CEL data compression package of microarray was downloaded in the supplementary file of GEO and decompressed into another folder for further use. Moreover, the original data for the sample in TXT format was also downloaded.

Table I Summary of the two data series from the GEO database.

Table I

Summary of the two data series from the GEO database.

Series	Samples	Group	Experimental design	Array platform	References
GSE2435	GSM45796	Autophagy-6 h-1	Human B-lymphoblastoid cell line after 6 h and 24 h of starvation	GPL570 HG-U133-Plus-2 Affymetrix Human Genome U133 Plus 2.0 Array	Proc Natl Acad Sci USA, 2005 PMID: 15894616 (8)
	GSM45797	Autophagy-24 h-1
	GSM45798	Autophagy-24 h-2
	GSM45799	Control-6 h-1
	GSM45800	Control-24 h-1
	GSM45801	Control-24 h-2
GSE31040	GSM769043	Autophagy-48 h-1	Human lymphoblastoid cell lines after 48 h of starvation	GPL570 HG-U133-Plus-2 Affymetrix Human Genome U133 Plus 2.0 Array	Age (Dordr) 2011 PMID: 21904824 (9)
	GSM769045	Autophagy-48 h-2
	GSM769049	Autophagy-48 h-3
	GSM769042	Control-48 h-1
	GSM769044	Control-48 h-2
	GSM769048	Control-48 h-3

Microarray data processing

mRNA microarray in the present study was performed as follows: Three samples from Homo sapiens were prepared under ‘Control’ and ‘Autophagy’ conditions, RMA algorithm was used to calculate the expression level and MAS algorithm was used to calculate the detection call. The probe numbers showing low expression levels were filtered using a P-value for a minimum of two detection calls to preserve any group of samples, and human HGNC gene abbreviation was used to unify the gene names. LIMMA differential gene screening algorithm was used to screen for the upregulated and downregulated genes under ‘Autophagy’ conditions relative to ‘Control’ conditions, and differential multiples, P-value and FDR values were calculated. P<0.05 was considered to indicate differentially expressed genes.

The differentially expressed genes were screened by selecting the intersection set of GSE2435 and GSE31040, and the differentially expressed protein kinases were screened according to a ‘protein kinase database’ (http://kinasource.co.uk/Database/substrates.html).

Gene ontology (GO) enrichment analysis and cluster analysis on differentially expressed kinases

GO-BP (biological process) enrichment analysis was performed using DAVID software (10). Gene sets for further analysis were submitted to the DAVID database (http://david.abcc.ncifcrf.gov/), corresponding gene designators were simultaneously selected, human whole genome was ticked off as the background genes, the ‘Functional Annotation Tool’ was used as the analytical tool and the results for GO-BP enrichment analysis were obtained (P<0.05). Each GO-BP term and corresponding differentially expressed kinases were selected, and cytoscape software (version 2.6.3) was used to construct a visualized network to connect the kinases with their corresponding functions.

The differentially expressed protein kinases were identified to serve as the candidates for hierarchical cluster analysis using Cluster2.2 and TreeView3.2 software (11). The ratios of the coexpressed candidate kinases were transformed into log2%, the distance was measured by means of Pearson correlation and cluster analysis was performed with single linkage clustering.

Construction of the kinase-gene interaction network

The protein-protein interaction (PPI) network was obtained from the HPRD database (http://www.hprd.org/), with 36,874 lines and 9,453 nodes being included in the network. The differentially expressed genes for analysis were projected into the PPI network and the correlation pairs in which the two interacting genes were differentially expressed were reserved, thus the sub-network was obtained. The differentially expressed kinase genes for further analysis were projected into the sub-network, the correlation pairs in which the differentially expressed kinases and the differentially expressed genes were interacting were reserved and thus the kinase-gene interaction network was obtained.

Screening of kinase inhibitors that regulate autophagy

An Excel file of 194 kinase inhibitors was established based on a database (http://www.selleckbio.com/servlet/DownloadServlet?fileName=Selleck-Kinase-Inhibitor-Library.xlsx). In the literature mining approach, Perl language software (www.perl.com) was used to write a program of literature mining. The Excel files of ‘differentially expressed kinases’ and ‘kinase inhibitors’ were imported to the ActivePerl 5.16.2 software, and the literature information was obtained from the National Library of Medicine’s PubMed database (http://www.ncbi.nlm.nih.gov/pubmed/). The scope of the retrieval included titles and abstracts of all the articles in the PubMed database database. Valuable articles were identified by manual screening and we constructed the regulatory network by Cytoscape (version 2.6.3).

The name of each screened kinase inhibitor and ‘Autophagy’ were input into Pubmed for searching and the kinase inhibitors were divided into 3 groups (0, 1–10 and >11) according to the number of retrieved references.

Results

Differentially expressed kinases and their function

In total 13,234 genes were detected in GSE2435 and 2,783 differentially expressed genes were screened. A total of 14,442 genes were detected in GSE31040 and 2,369 differentially expressed genes were screened. A total of 544 genes were allocated in the intersection set for the differentially expressed genes screened out from GSE2435 and GSE31040.

Among the 544 differentially expressed genes, 19 genes encoding protein kinases were screened out (as shown in Table II), of which 11 genes were upregulated and 8 genes were downregulated. The 11 upregulated genes were used as targets for further intervention by kinase inhibitors.

Table II Differentially expressed protein kinase of starve-induced autophagic cells.

Table II

Differentially expressed protein kinase of starve-induced autophagic cells.

			P-value
Gene symbol	Gene ID	Gene name	GSE2435	GSE31040	Regulation
CLK4	826442	CDC-like kinase 4	0.006853	0.016876591	Up
NEK9	821660	NIMA (never in mitosis gene a)-related kinase 9	0.047605	0.018157559	Down
TLK2	809721	Tousled-like kinase 2	0.010894	0.007442178	Up
RIOK3	815805	RIO kinase 3 (yeast)	0.016673	0.028184311	Up
TBCK	811953	TBC domain-containing protein kinase-like	0.01651	0.007265638	Down
BRD2	773220	Bromodomain containing 2	0.010431	0.004012674	Up
PRKCH	774932	Protein kinase C, eta	0.005525	0.008714029	Down
CSNK1A1	791771	Casein kinase 1α1	0.007338	0.042396721	Up
IRAK4	807982	Interleukin-1 receptor-associated kinase 4	0.024849	0.029144612	Down
HIPK1	787073	Homeodomain interacting protein kinase 1	0.005074	0.005330583	Up
TRIB3	822826	Tribbles homolog 3 (Drosophila)	0.010471	1.33E-05	Up
BRD4	799732	Bromodomain containing 4	0.040358	0.012603665	Up
EIF2AK2	824980	Eukaryotic translation initiation factor 2-α kinase 2	0.002633	0.00920921	Down
CDK2	803206	Cyclin-dependent kinase 2	0.030362	0.011442217	Down
BRAF	821298	V-raf murine sarcoma viral oncogene homolog B1	0.01214	0.016176288	Up
PASK	811281	PAS domain containing serine/threonine kinase	0.003506	0.00239591	Down
CLK1	823347	CDC-like kinase 1	0.000355	0.000302227	Up
TXK	810008	TXK tyrosine kinase v-akt murine thymoma	0.00019	0.001451441	Up
AKT1	791692	Viral oncogene homolog 1	0.033324	0.011637129	Down

Results of the GO-BP enrichment analysis (Fig. 1) revealed 19 kinases were mainly associated with functions, such as protein amino acid phosphorylation (GO:0006468), phosphorylation (GO:0016310), phosphorus metabolic process (GO:0006793), phosphate metabolic process (GO:0006796), protein amino acid autophosphorylation (GO:0046777, intracellular signaling cascade (GO:0007242), protein kinase cascade (GO:0007243) and peptidyl-serine phosphorylation (GO:0018212).

Figure 1 GO-BP enrichment analysis of the 19 differentially expressed protein kinases.

A visualized network was constructed to exhibit the correlation between kinases and GO-BP terms, results showed all kinases were associated with ‘phosphorus metabolic process’, ‘phosphorylation’ and ‘protein amino acid phosphorylation’, which indicated that these kinases were important in the process of phosphorylation. In addition, BRAF, IRAK, TXK and AKT1 were also associated with ‘protein kinase cascade’ and BRAF, IRAK, TXK, AKT1, HIPK1, PRKCH and TLK2 with intracellular signaling cascade; suggesting that these kinases should be further studied (Fig. 2).

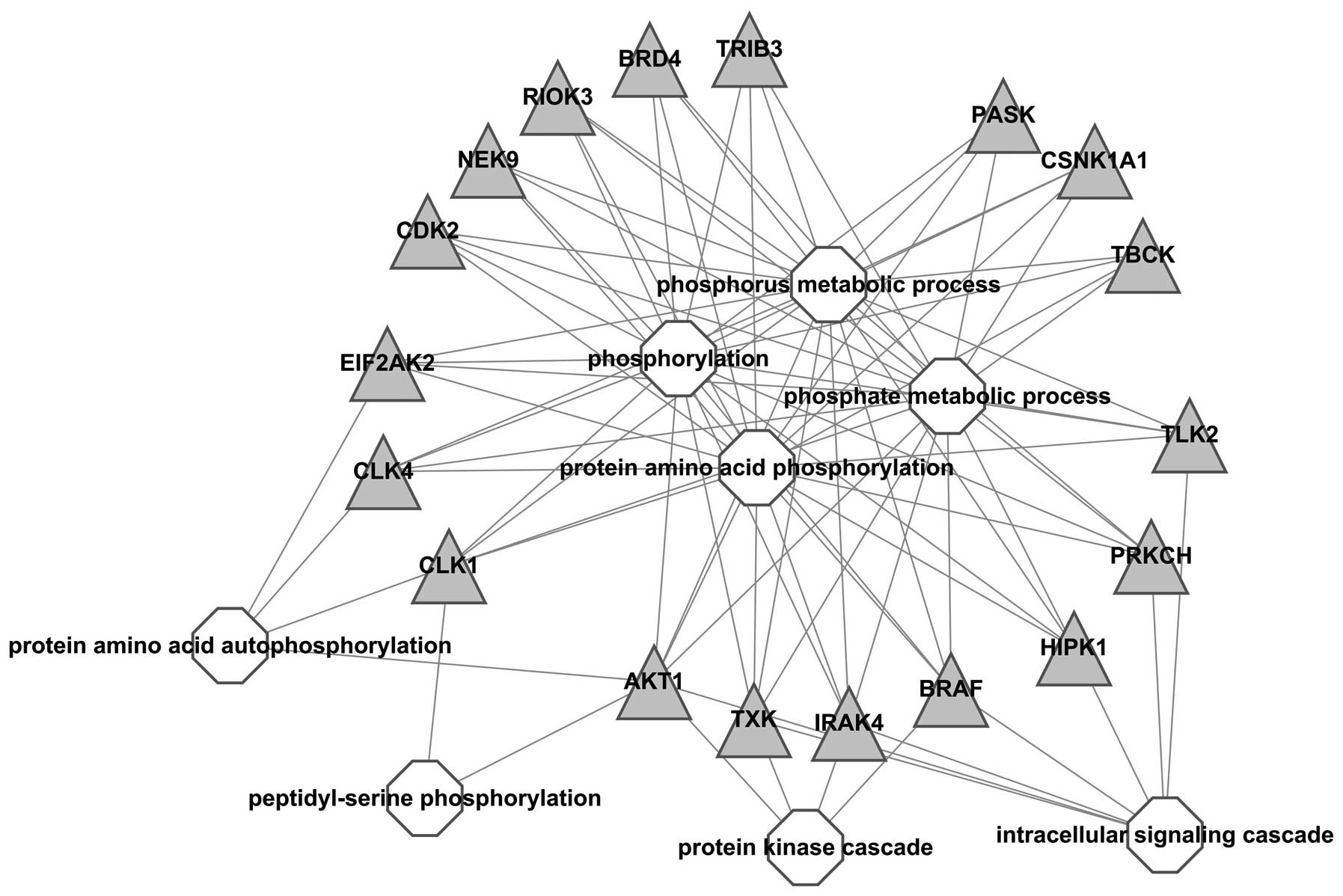

Figure 2 Network of GO-BP term and their corresponding protein kinases. The triangular-shaped nodes refer to protein kinases and the octagon-shaped nodes refer to GO-BP terms.

Cluster analysis (Fig. 3) of these 19 kinases indicated that the expression of 11 kinases were upregulated (BRD4, TRIB3, BRD2, TLK2, HIPK1, CLK4, RIOK3, BRAF, TXK, CSNK1A1 and CLK1) and these should be potential targets for further study. Among them, BRAF, was closely associated with RIOK3, and HIPK1 with CLK4, therefore regulation of one kinase may induce synchronic changes of its correlated kinase.

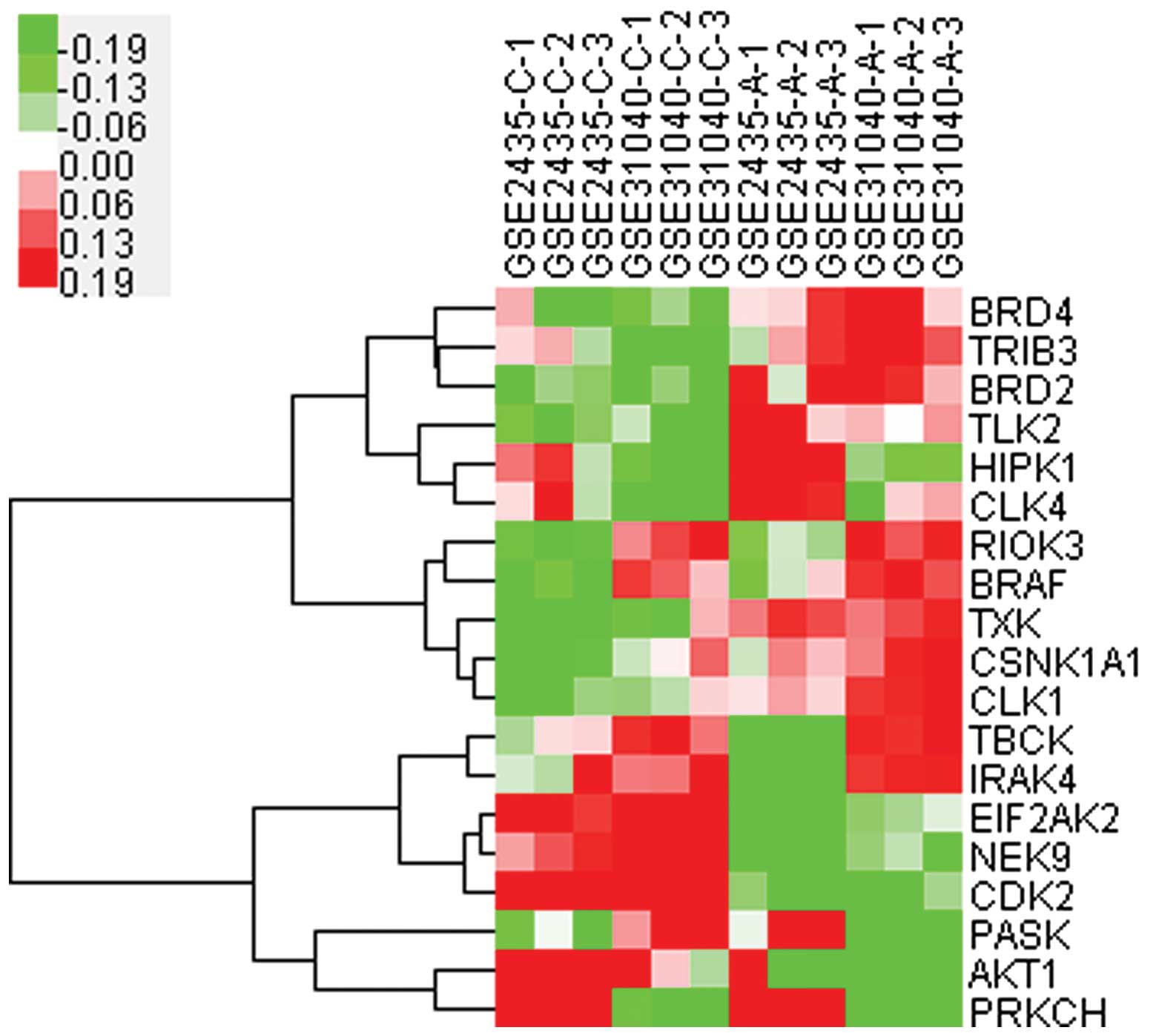

Figure 3 Cluster analysis of the differentially expressed protein kinases.

Role and function of BRAF in regulating autophagy

As shown in Fig. 4, the network constructed based on the PPI network showed that BRAF interacted with the differentially expressed genes, such as CASP3, FAS, GRB2, HLA-A, HLA-G, HRAS, ICAM1, IFNAR1, IFNAR2, KRAS, MAP2K1, MAP2K2, MAPK1, NFATC1, NFATC4, NRAS, PIK3CA, PIK3CB, PIK3CD, PIK3R1, PLCG1, PRF1, PRKCA, PRKCB, PTPN11, RAC1, RAF1, SOS1, TNF and TNFRSF10D. The enrichment analysis of these differentially expressed genes annotated the function of BRAF; however, it may be presumed that the inhibition of BRAF may have caused the synchronized alteration of these genes.

Figure 4 Network of the differentially expressed protein kinases (left) and the network of BRAF and its interacting genes (right). The triangular-shaped nodes refer to protein kinases and the elliptical-shaped nodes refer to differentially expressed genes.

GO-BP enrichment analysis showed that the function of these BRAF-associated genes were mainly involved in biological processes, such as ‘apoptosis’ (GO:0006915), ‘programmed cell death’ (GO:0012501), ‘regulation of apoptosis’ (GO:0042981), ‘regulation of programmed cell death’ (GO:0043067), ‘regulation of cell death’ (GO:0010941), ‘cell death’ (GO:0008219), ‘induction of apoptosis by extracellular signals’ (GO:0008624), ‘negative regulation of apoptosis’ (GO:0043066), ‘negative regulation of programmed cell death’ (GO:0043069), ‘negative regulation of cell death’ (GO:0060548), ‘induction of apoptosis’ (GO:0006917), ‘induction of programmed cell death’ (GO:0012502), ‘positive regulation of apoptosis’ (GO:0043065 ), ‘positive regulation of programmed cell death’ (GO:0043065) and ‘positive regulation of cell death’ (GO:0010942), which infer that the regulation of BRAF may effect the mechanisms of cell death (Figs. 5 and 6).

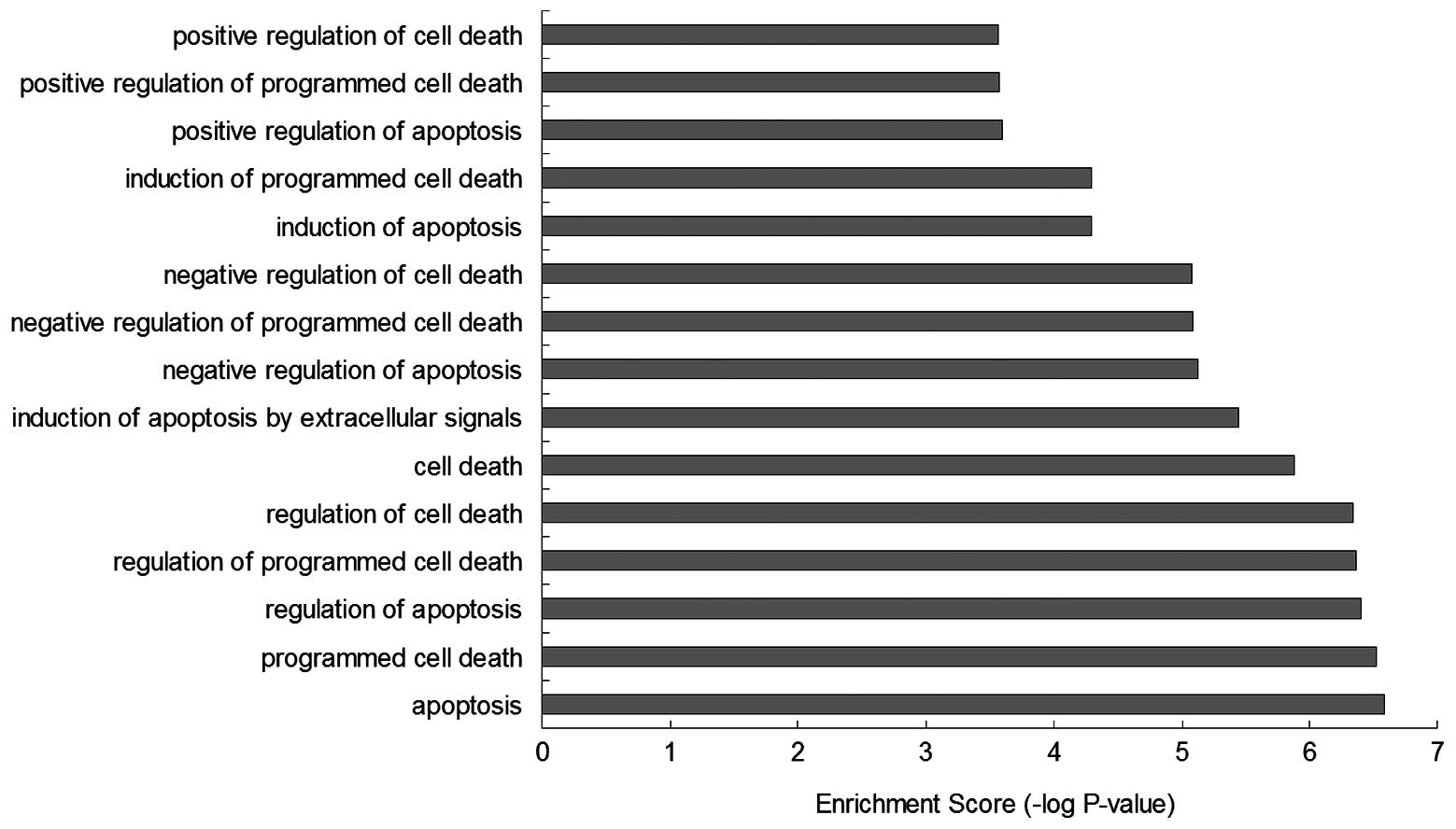

Figure 5 GO-BP enrichment analysis of the differentially expressed genes that interacted with BRAF.

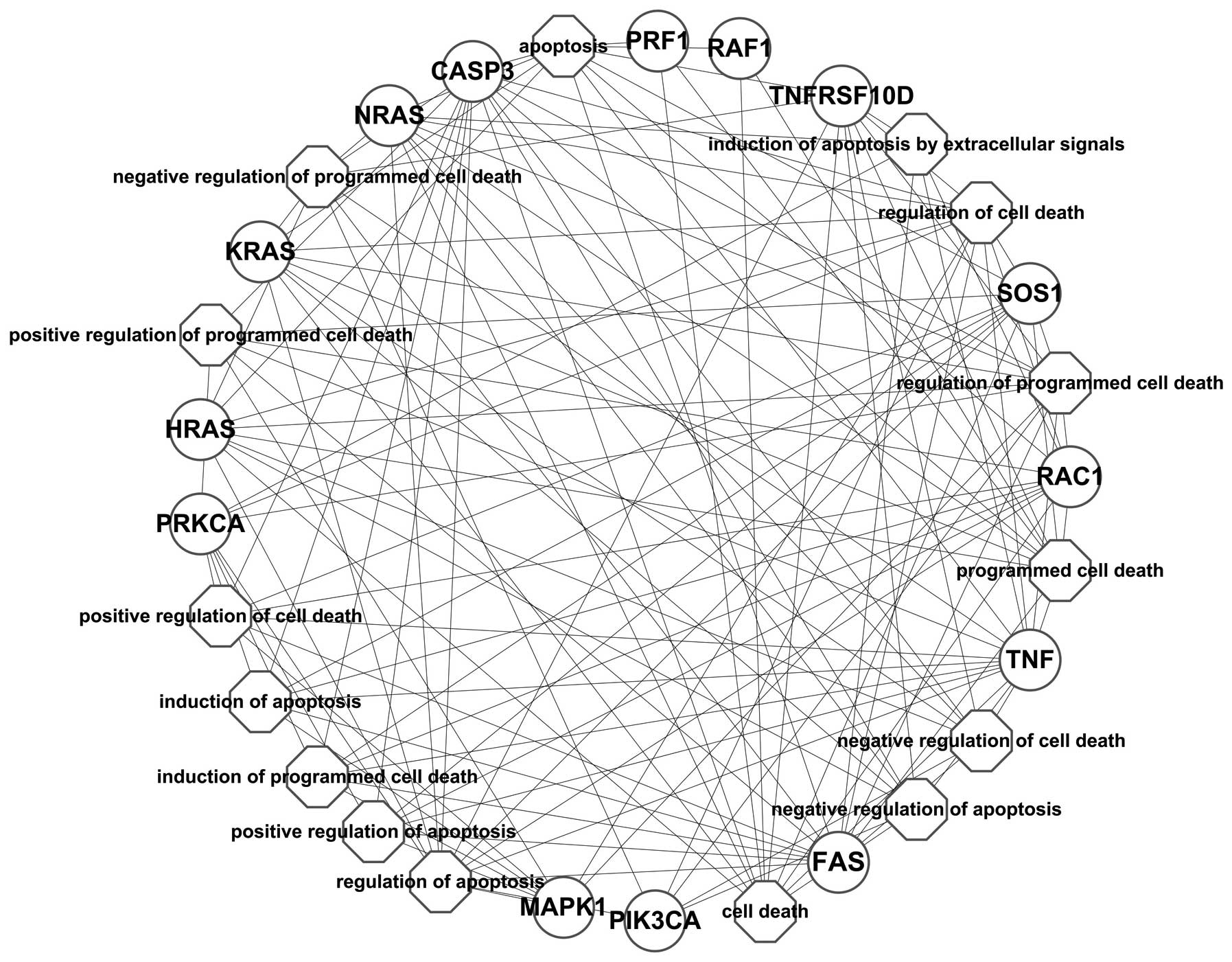

Figure 6 Network of GO-BP term and their corresponding BRAF interacting genes. The elliptical-shaped nodes refer to BRAF interacted differentially expressed genes, and the octagon-shaped nodes refer to GO-BP terms.

Screening result of BRAF-targeting kinase inhibitors

It was found by constructing the kinase-kinase inhibitor regulatory network (Fig. 7) that SB, PP-121, Torisel, PD98059, imatinib, CI-1040, roscovitine, everolimus, dasatinib and lapatinib simultaneously regulated BRAF, AKT4 and CDK2, while AKT4 and CDK2 were downregulated; thus these kinase inhibitors were excluded. Vandetanib and PD0325901 simultaneously inhibited BRAF and CDK2, therefore these two kinase inhibitors were also excluded. Crizotinib, pelitinib, PI-103, BEZ235, sunitinib and AZD8055 simultaneously inhibited BRAF and AKT1, thus these 6 kinase inhibitors were also excluded. The remaining 16 kinase inhibitors specifically suppressed BRAF, among which 39 references and 2 references reported that sorafenib and regorafenib regulated autophagy, respectively, while there was no report for GDC-0879, RAF265, afatinib, selumetinib, PD318088, axitinib, TAK-733, GDC-0980, GSK2126458, PLX-4720, AS703026, trametinib, GDC-0941 or PF-04217903 of regulating autophagy. This finding indicated that these kinase inhibitors are potential targets for further investigation on the regulations of autophagy.

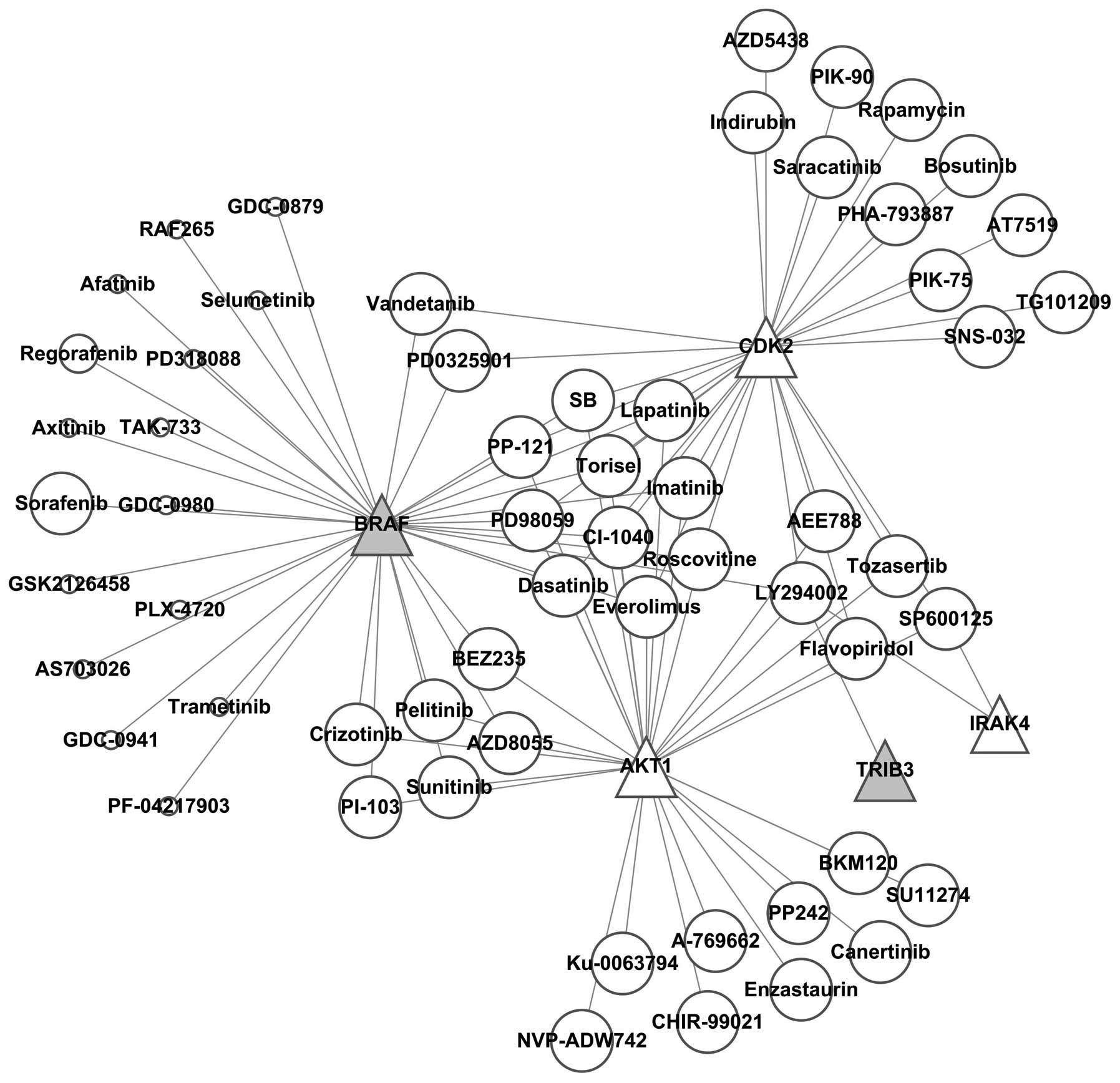

Figure 7 Network of kinase inhibitors and their corresponding protein kinases. Each triangular-shaped node refers to protein kinases, and the elliptical-shaped nodes refer to kinase inhibitors. The large elliptical-shaped node means >11 reports regarding the regulation of autophagy by this kinase inhibitor were identified, the middle one refers to 1–10 reports, the small one refers to no reports in PubMed.

Discussion

A number of anti-tumor treatments may induce autophagy (12). It was found that in breast cancer cells, tamoxifen and other estrogen receptor antagonists induced autophagy (13). Chemotherapy at varied doses may result in autophagy at different degrees in breast cancer cells, colorectal cancer cells and prostate cancer cells (14). Autophagy of tumor cells may be induced during treatment on spongiocytoma using arsenic trioxide, temozolomide and rapamycin (15), treatments on ovarian cancer using resveratrol (16) and treatments on cervical cancer using histone deacetylase (17). Therefore, it has been estimated that the therapeutic alliance of autophagic inhibitors may improve therapeutic efficacy and prognosis (18). Mathew et al(19) demonstrated from animal testing that the inhibition of autophagy may aid anti-tumor therapy. They indicated that a large concentration of tumor cells died following cytotoxic treatment, while autophagy promoted resilience and hibernation of tumor cells, and autophagy inhibitors may directly eliminate these cells. When the autophagy inhibitor, chloroquine, was used in combination with alkylating agents, satisfactory therapeutic efficacy was obtained (20). The phenomenon of the induction of apoptosis by autophagy inhibitors was observed in previously mentioned studies (21); therefore, sensitization may be induced in anti-tumor treatments if autophagy inhibitors were used in combination to block the autophagic pathway. However, only a limited number of autophagy inhibitors are available for current clinical application, including bafilomycin and chloroquine (22).

Numerous molecules are involved in autophagy and the regulatory mechanisms are extremely complex. The majority of regulatory mechanisms remain unclear; however, a number of efforts have been made for exploration and many signaling molecules are shared in regulating autophagy and apoptosis. The determined signaling molecules involved in regulating autophagy include cytokine, MAPK and mitochondrial signaling for which most of the signals exert regulatory functions by mTOR kinase (23).

Molecular switches accurately control proteins during cascade reactions for a series of signaling transduction processes in cells by activation or deactivation mechanisms. Among the cascade reactions for a series of signaling transduction processes, positive and negative feedback mechanisms complementing each other are essential for accurate control, thus the function of molecule switches is influential (24). The proteins involved in signaling transduction processes include protein kinases and GTP-binding proteins. Protein kinases control the activities of 30% of the proteins in cells, which are associated with almost all of the cell functions (25). Protein kinases are particularly important for intracellular signaling transduction and implementation of complex cell functions, such as cell division and death. The core function of kinases in controlling cell behaviors subsequently caused them to be considered as targets for treating multiple diseases and thus they have been extensively investigated. In addition, in contrast to gene transfection and RNA interference, a number of small molecular compounds are capable of effectively regulating kinase activities (26). They have been commercialized and it is of practical significance to introduce them to switch autophagy, which may realize the transformation of laboratory achievements to clinical application, and meets with the concepts of translational medicine. Therefore, the present study examined the factors regulating autophagy. In total, 544 differentially expressed genes were screened using the genome-wide expression profile microarray in 2 groups of autophagy models induced by starvation, among which 11 upregulated protein kinases were used as the targets for intervention by kinase inhibitors. Among the upregulated kinases, BRAF and TRIB3 were found to have corresponding specific inhibitors in the kinase-kinase inhibitor regulatory network. Moreover, numerous inhibitors were available for BRAF (27) and thus BRAF was analyzed.

BRAF is one of the three isoforms of RAF and it is an important transduction factor in the MAPK pathway (28). The MAPK signaling pathway is one of the most important signaling pathways in cells, it exists in most cells and transmits extracellular stimuli into cells or even nuclei. It has important functions in inducing proliferation, differentiation, transformation, apoptosis and other biological reactions (29). Extracellular signals stimulate ERK and RAS, and RAS further activates RAF and phosphorylates MAPK kinase (MEK1/MEK2). ERKs are translocated into the nucleus, phosphorylated cytosolic proteins and certain nuclear transcription factors, such as c-FOS, c-JUN, ELK-1, c-MYC and ATF2; therefore, they are involved in the regulation of cell proliferation and differentiation. ERKl/2 is activated by the MAPK pathway by survival signals and promotes autophagy by PI3K via mTOR (30). Shimada et al(31) indicated that endoplasmic reticulum stress may induce autophagy by activating the MAPK signaling pathway. To determine the functions of BRAF, the present study constructed a correlation network between BRAF and the differentially expressed genes regulated by BRAF. GO-BP enrichment analysis on these differentially expressed genes showed that their major functions were associated with cell death and apoptosis; therefore, regulation of BRAF may result in significant effects on the mechanisms of cell death. Results of the present study have shown that RIOK3 was closely associated with BRAF by cluster analysis. RIOK3 was very important for maintaining normal physiological function of cells, and RIOK3 depletion may result in cell death or significant abnormality in physiological function. Shan et al(32) reported that RIOK3 may be involved in the regulation of apoptosis by coordinating caspase-10, caspase-2 and NF-κB activation, indicating that RIOK3 may be closely associated with cell death.

The present study has demonstrated by constructing the kinase-kinase inhibitor regulatory network, that certain kinase inhibitors had multiple targets, and may inhibit downregulated genes (AKT4 and CDK2) and simultaneously inhibit upregulated genes (BRAF), thus off-target side-effects may occur and should be excluded. Of the 16 included specific kinase inhibitors functioning on BRAF, sorafenib was previously confirmed to be capable of regulating autophagy, while regorafenib had also been reported. However, no report was available on the regulation of autophagy by afatinib, selumetinib, PD318088, axitinib, TAK-733, GDC-0980, GSK2126458, PLX-4720, AS703026, trametinib, GDC-0941 and PF-04217903. Thus, these kinase inhibitors are potential targets for investigating the regulation of autophagy in the future.
