A pilot study of mobile digital colposcopy in Japanese patients with cervical intraepithelial neoplasm
Affiliations: Department of Gynecologic Oncology, Saitama Medical University International Medical Center, Hidaka, Saitama 350‑1298, Japan
- Published online on: August 9, 2021 https://doi.org/10.3892/mco.2021.2370
- Article Number: 207
Copyright: © Sato et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
This article is mentioned in:
More than half a million women are diagnosed with cervical cancer (1). Introduction of the Pap smear test has markedly decreased the mortality rate of cervical cancer, but cervical cancer is the fourth most common female malignancy worldwide and is still one of the leading causes of death worldwide (1-5). Incidence and mortality vary widely with geographic location, and ~90% of cervical cancers occur in low-income and middle-income countries that lack organized screening and HPV vaccination programs (1). To reduce cervical cancer mortality, each management step - vaccination, screening, colposcopy, and treatment - is essential (1,4,5). Among these, colposcopy is frequently performed as a detailed examination after an abnormal screening result (6,7). Colposcopy is a visual examination, in which acetic acid is applied to the cervix and then the cervix is visualized using magnification through a colposcope. In Japan, colposcopy and consecutive biopsy are performed for such patients as with abnormal cytology or normal cytology and high-risk HPV infection.
Digital colposcopy built around a smartphone is becoming common, and this has advantages for telemedicine and data sharing by taking advantage of smartphone characteristics (8-12). Also, digital colposcopy is considered to be promising in that it can rapidly and relatively inexpensively screen the patients (11). However, digital colposcopy itself is not allowed in clinical practice in Japan. If digital colposcopes can be shown to be comparable to traditional colposcopes, then they can be useful to reduce the regional disparity through telemedicine and data sharing mentioned above. Also, efficient data collection may be contributed for development of deep learning solutions (13). For this reason, in this study we investigated the feasibility of using a mobile digital colposcope that incorporates a smartphone, in comparison with a traditional colposcope, in a population of Japanese patients.
Materials and methods
This study was approved by the Institutional Review Board of Saitama Medical University International Medical Center (approval no. 19-026, 12/Jun/2019; Hidaka, Japan). Patients who underwent colposcopy at Saitama Medical University International Medical Center between July 2019 and February 2020 were enrolled in the study. The subjects were women aged 21-65 years old who were referred for colposcopy following the standard of care. The exclusion criteria were pregnancy, prior history of cervical cancer, prior history of a cervical excisional procedure, and hysterectomy. Written informed consent was obtained from all subjects. A total of 40 patients (52 tests) were included in the study. Some patients were tested two times through follow-up. The clinical background of the patients is shown in Fig. 1. The median age was 46 (range, 27-65) years (Fig. 1A). Cytology results are shown in Fig. 1B. Colposcopy was performed at initial visit, just before conization (preoperative examination), or if abnormal cytology was detected.
Patient background. (A) Age (years). (B) Cytology results in the same period as colposcopy. Saitama Medical University International Medical Center (Hidaka, Japan) is a comprehensive cancer center, which is why most of the patients required a treatment intervention for HSIL or more. Cytology and colposcopy are usually performed at the same time, which is why some results were NILM. NILM, negative for intraepithelial lesion or malignancy; ASC-US, atypical squamous cells of undetermined significance; LSIL, low grade squamous intraepithelial lesion; ASC-H, atypical squamous cells cannot exclude HSIL; HSIL, high grade squamous intraepithelial lesion.
A standard colposcopy procedure was performed using a conventional colposcope (Kolposkop 150 FC, Carl Zeiss), after which an image of the cervix was captured using a mobile digital colposcope that incorporated a smartphone (Eva Colpo, MobileODT) (10-12). All images were collected before biopsy. The Zeiss colposcope was attached to a digital camera, but examiners mainly used the binoculars for visualization. The images stored from the mobile digital colposcope were evaluated after two weeks or more by the examiner who had also performed the conventional examination. The wait period of two weeks was used to ensure that the examiner would no longer remember their initial clinical impression and allow a fair comparison between the methods.
The diagnosis and site chosen for biopsy based on conventional colposcopy were compared with those that would have been determined using the digital images. Diagnoses were classified as normal, cervical intraepithelial lesion (CIN) 1, CIN2, CIN3, invasive cancer, adenocarcinoma in situ (AIS), and unsatisfactory colposcopic findings (UCF). Diagnoses that matched between conventional and digital colposcopy were defined as the ‘same’, and others were defined as ‘different’. Biopsy sites were compared by dividing the cervix into twelve clockface regions. If the actual (from conventional colposcopy) and assumed (from digital colposcopy) biopsy sites matched, they were defined as the ‘same’; if the sites differed by one clockface region, they were defined as ‘almost the same’; and all others were ‘different’. The pathological findings were confirmed by biopsy or conization, and the pathological diagnosis was confirmed by pathologists.
JMP 15 (SAS Institute, Inc.) was used for statistical analysis. A paired t-test was used to compare the means of matched rates between pathological diagnosis and colposcopy diagnosis. The data are presented as the mean ± standard deviation. P<0.05 was considered to indicate a statistically significant difference.
A representative image from digital colposcopy is shown in Fig. 2A. The match rates of the actual and assumed biopsy sites (Fig. 2B) were ‘same’ 61%, ‘almost the same’ 16%, and ‘different’ 23%. A comparison of diagnoses using conventional and mobile digital colposcopy (Fig. 3A) gave match rates for diagnoses (Fig. 3B) of ‘same’ 75% and ‘different’ 25%. Cases with diagnoses from visual examination that were ‘different’ in Fig. 3A are shown in Table I. Sample size was too small to carry out any statistical analysis such as chi-square test. It seemed that diagnoses of conventional colposcopy were more matched to pathological diagnoses than those of digital colposcopy in ‘different’ populations, however, overall matched rates between pathological diagnosis and colposcopy diagnosis were 55.7±6.9% (conventional colposcopy) and 46.1±6.9% (digital colposcopy). And there were no significant differences (t-test, P=0.33).
Digital colposcopy. (A) Representative image of digital colposcopy. (B) Match rate for actual (from conventional colposcopy) and assumed (from digital colposcopy) biopsy sites. The match rates of the actual and assumed biopsy sites were 61% for ‘same’, 16% for ‘almost the same’ and 25% for ‘different’.

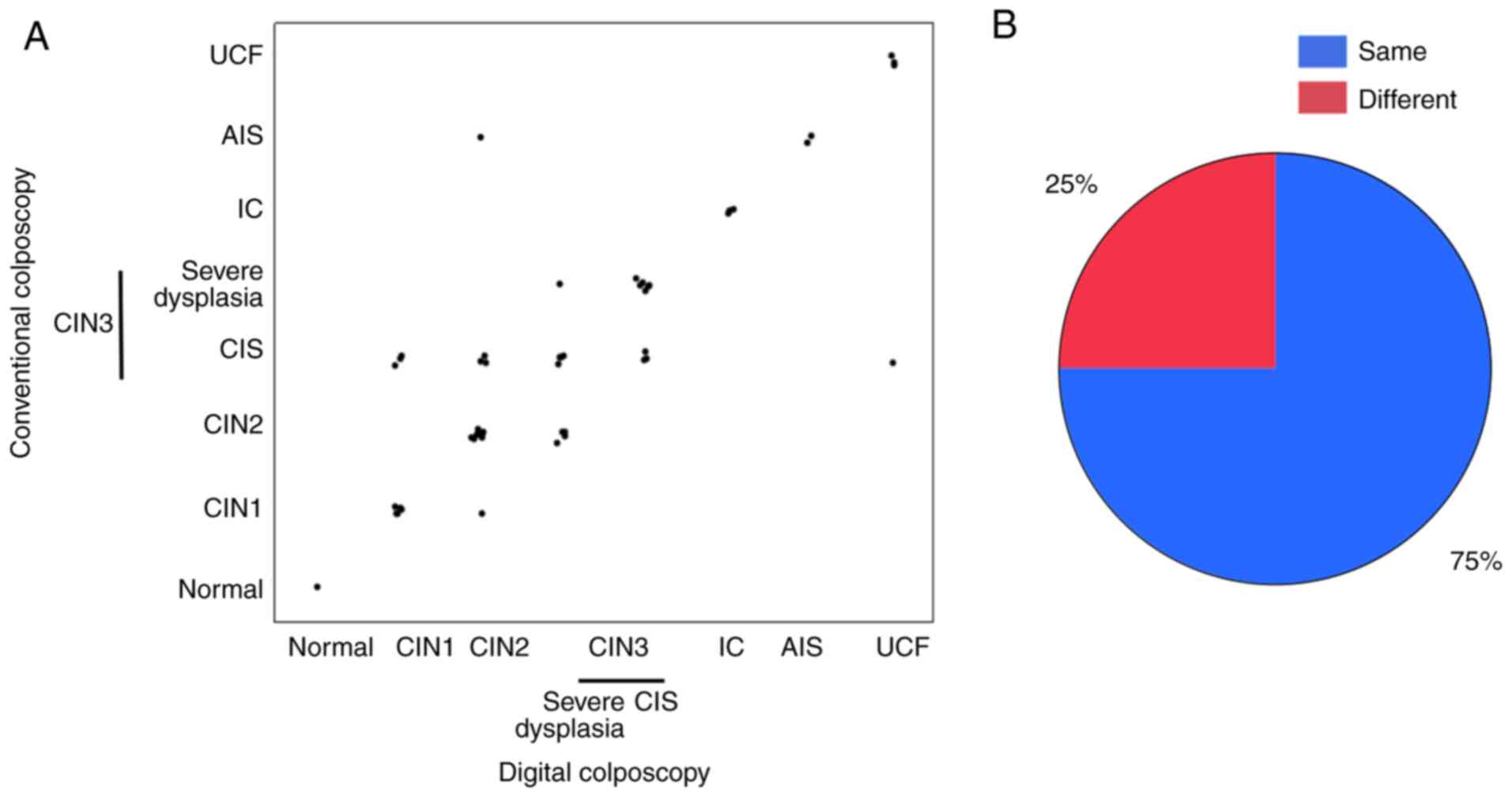

Comparison of diagnoses using conventional and digital colposcopy. (A) Diagnoses from conventional and digital colposcopy. (B) Match rate of diagnoses. A comparison of diagnoses using conventional and mobile digital colposcopy gave match rates for diagnoses of ‘same’ (75%) and ‘different’ (25%). CIN, cervical intraepithelial neoplasia; AIS, adenocarcinoma in situ; UCF, unsatisfactory colposcopic findings; CIS, carcinoma in situ; IC, invasive cancer.
Digital colposcopy built around a smartphone is becoming common, and this has advantages for telemedicine and data sharing by taking advantage of smartphone characteristics (10-12). However, digital colposcopy itself is not approved in Japan. In this study, we investigated the feasibility of mobile digital colposcopy using a smartphone for visualization, image capture, and management in Japanese patients undergoing cervical screening. To our knowledge, this is the first such study in a Japanese population.
As shown in Figs. 2 and 3, the results from ≥75% of cases were equivalent between mobile digital colposcopy and conventional colposcopy. There is a study in Japan that reported the possibility of using smartphones to perform colposcopy, and our results are consistent with the report (14). The mobile digital colposcope used in this study has been approved by the Food and Drug Administration (FDA) and is in use in a number of Western countries (10-12). These suggest that mobile digital colposcopy was not inferior to conventional colposcopy even in Japanese population.
Our institution is a comprehensive cancer center, which is why most of the patients required a treatment intervention for HSIL or more (Fig. 1). As such, there could be a selection bias in patient enrollment. In addition, we seldom perform HPV testing because it does not always contribute to the decision for the treatment.
Another limitation is that the study included only a limited number of cases, and further validation at multiple centers is required.
Cases in which the results were ‘different’ in diagnosis were shown in Table I. Pathological CIN3 should not be recognized as CIN2 by colposcopy, because treatment may be delayed. As mentioned in the Results, overall matched rates between pathological diagnosis and colposcopy diagnosis were 55.7±6.9% (conventional colposcopy) and 46.1±6.9% (digital colposcopy). And there were no significant differences (t-test, P=0.33). These data suggested that digital colposcopy was not inferior to conventional colposcopy as a screening examination. Still, our primary focus was not to compare the pathological diagnosis and the diagnosis from digital colposcopy, but rather to compare the visual findings from conventional 3D colposcopy and mobile digital colposcopy. The study protocol was that in the examination using conventional colposcopy the clinician could adjust their view of the cervix and could also observe the lesion through the period, whereas only one image was captured by mobile digital colposcopy. Capture of additional images may have resulted in an even higher correlation rate.
Although the higher resolution of conventional colposcopy was helpful in observing the lesion in detail, we concluded that digital colposcopy was not inferior to conventional colposcopy as a screening test, and that this method provides sufficient details for judging the biopsy site or diagnosis using acetic acid processing. We further speculate that digitally captured images of the cervix can be used to train a machine learning algorithm. Indeed, we previously reported the possibility of deep learning application to colposcopy, using an image of only 150x150 pixels (13). This resolution can easily be achieved by a mobile digital colposcope incorporating a smartphone. Therefore, we hope this form of digital colposcopy can be applied to clinical practice and data collection in multiple centers.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
MS, DS, KF and KH designed the study. MS and DS analyzed the patient data and were major contributors in writing the manuscript. MS, DS, MH, SS and MM acquired the patient data. AO, AY, AK and HY interpreted the data. MS, DS, KF and KH confirm the authenticity of all the raw data. All authors read and approved the final manuscript.
Ethics approval and consent to participate
The study was approved by the Institutional Review Board of Saitama Medical University International Medical Center (approval no. 19-026; 12/Jun/2019; Hidaka, Japan). Written informed consent was obtained from all subjects.
Patient consent for publication
Written informed consent for publication from each patient was obtained.
The authors declare that they have no competing interests.
