Intake of black-vinegar-mash-garlic enhances salivary release of secretory IgA: A randomized, double-blind, placebo-controlled, parallel-group study
Affiliations: Kenkoukazoku Co., Ltd., Kagoshima 892‑0848, Japan, Umeda Oak Clinic, Osaka 530‑0057, Japan, Nihonbashi Sakura Clinic, Tokyo 103‑0025, Japan, Department of Applied Biological Science, Tokyo Noko University, Tokyo 183‑8509, Japan
- Published online on: May 20, 2016 https://doi.org/10.3892/br.2016.687
- Pages: 63-67
This article is mentioned in:
Garlic (Allium sativum) is a plant closely associated with onion, shallot and leek. For thousands of years, it has been used as a medicinal agent for prevention and treatment of diseases due to its potential effects, which include antimicrobial, antithrombotic, hypolipidemic, antiarthritic, hypoglycemic, immunomodulatory and antitumor activities (1–5). Kurozu is a type of traditional Japanese black vinegar made from unpolished rice. During its manufacturing processes, saccharification, ethanol fermentation and acetic fermentation occur in one pot. Due to its appearance, the vinegar is known as black vinegar. Previous studies have suggested the benefits of black vinegar, including antioxidant, hypotensive and antitumor effects (6–9). Black-vinegar-mash-garlic is a food produced by pickling garlic in black vinegar mash and allowing further fermentation thereafter. The extracts of the whole fermentation product are rich in amino acids, organic acids, vitamins and minerals, and are commercially distributed as a health supplement.
Diet can be one of the factors that modify immune responses (10). Our preliminary investigation suggested that the intake of black-vinegar-mash-garlic-containing food (the commercial brand ‘Jukusei Kurozuninniku Premium’) enhanced the immune function as represented by stimulation of secretory immunoglobulin A (sIgA) release in the saliva (data unpublished). Salivary sIgA is synthesized as dimeric IgA by plasma cells in salivary glands and constitutes a section of the first line of defense against pathogen invasion (11). It can serve as a marker reflecting the immune function in the intraoral and upper respiratory tract (12). Increasing evidence suggests the potential use of salivary sIgA to predict mucosal and systemic immunity (13). In the present study, the effect of black-vinegar-mash-garlic-containing food on salivary sIgA release was investigated in a randomized, double-blind, placebo-controlled, parallel-group trial.
Materials and methods
The test articles, placebo food and black-vinegar-mash-garlic-containing food (active food) were produced by Kenkoukazoku Co., Ltd. (Kagoshima, Japan). The ingredients of the test articles are shown in Table I. Subjects were administered 6 capsules (a total of 2.49 g) of either the placebo or active food every day for 8 weeks during the test period. The dose of black-vinegar-mash-garlic-containing food was defined based on its recommended daily intake.
A randomized, double-blind, placebo-controlled, parallel-group study was conducted at two centers, Yaesu Sakura-dori Clinic (presently Nihonbashi Sakura Clinic, Tokyo, Japan), and Umeda Oak Clinic (Osaka, Japan), under the supervision by the principle investigators Dr Takayuki Azuma (Yaesu Sakura-dori Clinic) and Dr Norimasa Sato (Umeda Oak Clinic). The study was conducted between May and October 2014. The study conformed to the principles of the Declaration of Helsinki and was approved on April 24, 2014 by the institutional review board of the incorporated medical institution of Aiseikai Aisei Hospital Ueno Clinic (Tokyo, Japan) on the basis of the protocol and information on the test study. The study was registered as the ID no. UMIN000013933 (Effects of food containing Kurozu Moromi and garlic powder on immune function: A randomized, double blind, placebo-controlled study) at the UMIN Clinical Trials Registry, Japan.
The details of this study were disclosed to subjects prior to the start of the study, and the investigators obtained informed consent from each subject. The candidates underwent pretrial testing (life style questionnaire, health check, somatometry, physical examination, fasting blood tests, urinalysis, salivary sIgA determination and T-cell subset analysis) and began documenting the pretrial lifestyle. As outlined in Fig. 1, 60 subjects (34 males and 26 females) were included out of 120 subjects who underwent pretrial testing. The major criteria for inclusion of subjects were those with a moderately slow rate of salivary sIgA release and with their age between 30 and 60 years. Inclusion criteria for the study were: i) Males or females whose ages were between 30 and 60 years; ii) those with a moderate rate of salivary sIgA release. Exclusion criteria for the study were: i) Those who habitually consume foods rich in black vinegar or garlic; ii) those who habitually take health food or a supplement that may enhance immune function; iii) those with a case history of an allergic disease such as pollinosis, allergic rhinitis, asthma, atopic dermatitis and allergic conjunctivitis; iv) those who are receiving a treatment that will affect this study such as desensitization therapy; v) those who have been receiving within 1 month before the entry to this study or are planning to receive dental or intraoral treatment; vi) those who have dental or intraoral trouble; vii) those who have been engaged in shift work or heavy physical work; viii) those who habitually undergo hard exercise such as long distance running; ix) those who have difficulties undergoing testing in this study, such as sampling of saliva; x) those who have suffered from any disease or who require any medication; xi) those who are suffering from or have a case history of disease such as diabetes mellitus, liver disease, kidney disease, heart disease, or disease that affects corticoid secretion; xii) those who may be liable to allergies in response to the test article; xiii) those who are judged inappropriate as participants from the pretrial test; xiv) those who are planning to get pregnant or nurse a baby during this study; xv) those who have been participating in any other clinical trial within 1 month or who are planning to do such after agreeing informed consent of joining this study; xvi) those who are judged inappropriate as participants from the answers to the lifestyle questionnaire; xvii) those who are judged inappropriate as participants from the view of the principle investigators. The selected candidates were assigned to the placebo food group (n=30) or active food group (n=30) based on random number tables. The allocation was performed by Mr. Yoshihisa Kibune (TTC Co., Ltd., Tokyo, Japan) and was concealed from the subjects, the investigators and the researchers who recruited and assessed the participating subjects. The participants ingested the placebo or active food every day for 8 weeks and noted the time and amount of their test article intake, as well as their use of pharmaceuticals. At weeks 4 and 8 of the study, participants underwent a health check, somatometry, physical examination, salivary sIgA determination and T-cell subset analysis. At week 8, participants also underwent fasting blood tests and urinalysis.

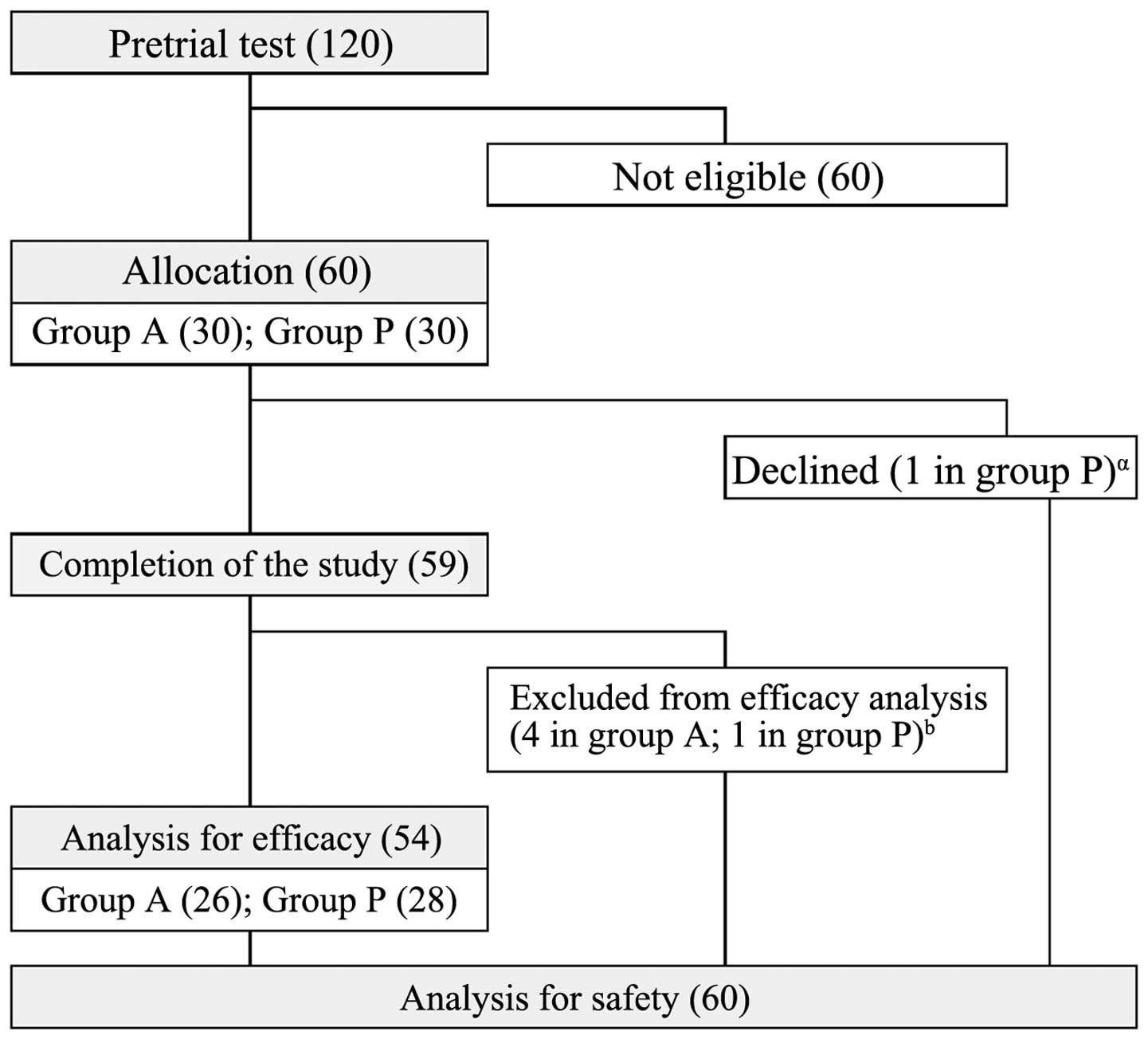

Flowchart of the study population selection. The figures in the parentheses denote the number of subjects. The inclusion of the subjects was judged by the principle investigators. In group A, subjects consumed black-vinegar-mash-garlic-containing food (active-food), and in group P, subjects consumed placebo food. aPersonal circumstances; bfalling under the exclusion criteria for efficacy analysis.
During this trial, the principal investigators and their assistants directed the participants with respect to the following points: i) No change to lifestyle, including diet, alcohol consumption, exercise and sleeping; ii) avoid over-exercise, abstemious eating or overeating; iii) no change to exercise habits; iv) no consumption of health food, dietary supplement, lactic acid bacteria beverage, yogurt, kimchi or lactobacillus preparation; v) log the name and dose when a participant uses pharmaceuticals; vi) consume the specified amount of the test article and to log the time and amount of the intake every day; vii) avoid alcohol consumption and ingestion of pharmaceuticals on the day before testing, and avoid hard exercise on the day and the day before testing; ix) to finish eating a meal by ~10:00 p.m. and thereafter not to take any meal other than warm water until the end of testing; x) to go to bed by 12:00 p.m. on the day before testing; xi) to brush teeth without using toothpaste on the day and the day before testing; and xii) to avoid smoking following toothbrushing until the end of the testing on that day.
The primary outcome measure was the rate of salivary sIgA release, and the secondary outcome measure was distribution of T-cell subset population [percentages of cluster of differentiation 4+ (CD4+) and CD8+ T cells in peripheral blood lymphocytes, as well as the ratio of CD4+ T cells to CD8+ T cells].
Measurements of salivary sIgA
Subjects rinsed their mouth twice and gargled twice with 150 ml of water for each time before testing. After sitting for 15 min, subjects underwent sampling of their saliva using a Salisoft (Sarstedt, Numbrecht, Germany) for 120 sec. The amount of saliva recovered was recorded, and the salivary concentration of sIgA was determined by immunonephelometry according to the standard laboratory protocol of the BML Inc. (Tokyo, Japan).
T-cell subset analysis
The cell surface CD4 and CD8 antigens on peripheral blood lymphocytes were analyzed by flow cytometry using fluorescent-labeled monoclonal antibodies specific for the respective cell surface antigens (cat. nos. 340133 and 347313, respectively; BD Biosciences, Tokyo, Japan) according to the standard laboratory protocol of the LSI Medience Corporation (Tokyo, Japan).
All the measured values are expressed as the mean ± standard error, or as indicated, the error bars may represent the standard error of the mean. For comparison of the values in the placebo and active food groups, χ2 test (for gender) or unpaired Student's t-test (for others) were employed, and P<0.05 was considered to indicate a statistically significant difference.
In total, 60 subjects were enrolled and randomly allocated to each of the 2 groups: Group P in which participants received placebo food, or group A in which participants received black-vinegar-mash-garlic-containing food (Fig. 1). The subjects ingested 6 capsules of the respective test article every day. One participant in group P excluded themselves from the study at day 4. The remaining 59 participants completed the study. However, 5 subjects were judged to fall into exclusion criteria and were eliminated from the efficacy analysis for the following reasons: Diagnosed as diabetes mellitus (n=1 in group A), lifestyle change due to hospitalization for lumbar disc herniation (n=1 in group A), and long-term cold that may affect sIgA release (n=2 in group A and n=1 in group P). Thus, the data obtained with 54 participants (n=26 in group A and n=28 in group P) were used for the efficacy analysis (Fig. 1).
The background data of the participants who were subjected to efficacy analysis are shown in Table II. No significant difference was observed in the values between groups A and P for each item, including the rate of salivary sIgA release and T-cell subset population.
Effects of black-vinegar-mash-garlic-containing food intake
In group A, the rate of salivary sIgA release was significantly high (P=0.028) compared to that in group P at week 4 of the study (Fig. 2). The rate in group A at week 8 was also higher than that in group P. The time course of the changes from the pretrial values suggested a trend of elevation of the rate of sIgA secretion following the intake of active test article (black-vinegar-mash-garlic-containing food) (Fig. 2). No significant difference was observed between groups A and P in the population distribution of CD4+ and CD8+ peripheral lymphocytes following the test article consumption (Table III).

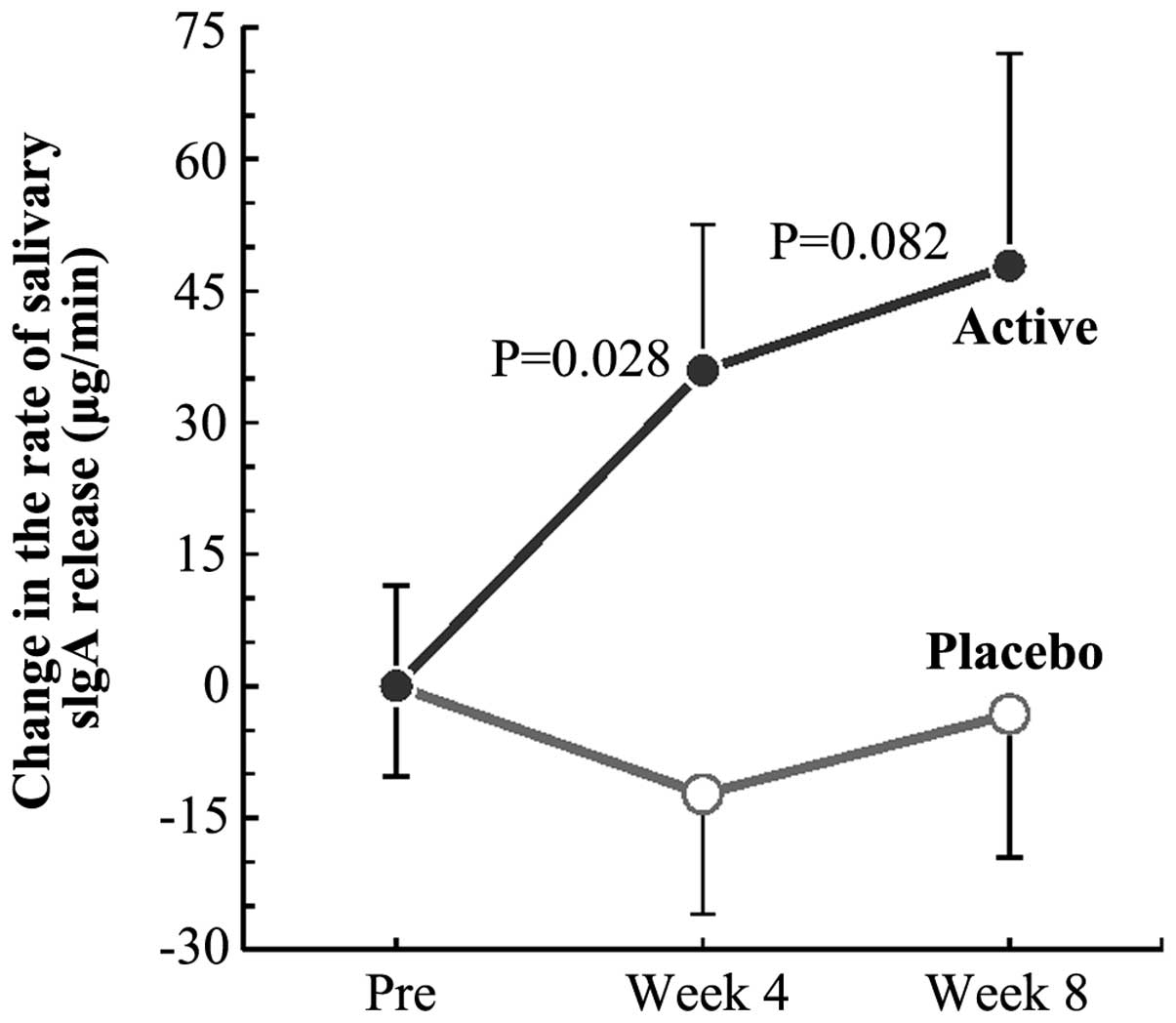

Time course of the effect of the intake of black-vinegar-mash-garlic-containing food on the rate of salivary sIgA release. The change in the rate of salivary sIgA release following the initiation of daily intake of test article, placebo food or black-vinegar-mash-garlic-containing food (active), is shown. Values obtained at weeks 4 and 8 for each subject were subtracted by the respective value in the pretrial test. Each value represents the mean ± standard error of the mean (n=28 for placebo food group and 26 for active food group). sIgA, secretory immunoglobulin A.
Effect of the intake of black-vinegar-mash-garlic-containing food on the distribution of T-cell subset population.
There was one serious adverse event, the herniation of the lumbar disc, with a subject in group A. Since its emergence was accidental associated with exercise, the principle investigator judged this case unrelated to the test article consumption. There were certain other non-serious adverse events during this study. Except for one observation in one subject in group P, which was a stomach ache that relieved following cessation of test article intake and was judged associated with the test article intake, the other events were judged by the principle investigators to be unrelated to test article consumption.
The present study aimed to investigate the immunomodulatory effect of the intake of black-vinegar-mash-garlic-containing food, which has been commercially distributed as a health food since February 2012. Following this, <93 million capsules have been consumed. The results in the present study demonstrated that the subjects who ingested the black-vinegar-mash-garlic-containing food for 4 weeks had a significantly higher rate of salivary release of sIgA compared to those who consumed the placebo food. Thus, it is suggested that the intake of black-vinegar-mash-garlic-containing food is beneficial in enhancing intraoral mucosal immunity.
sIgA constitutes a major mucosal immune effector molecule and provides an important first line of defense against pathogens, such as Streptococcus mutans and Porphyromonas gingivalis (14,15). Luminal sIgA is postulated to interfere with pathogen adherence to mucosal epithelial cells and promote intracellular neutralization of pathogens. IgA-secreting cells differentiate in lymphoid tissues associated with mucosa (15). The majority of the IgA-secreting cells reside in the gut mucosa. Increasing evidence suggests that the migration of antibody-secreting cells to the gut is important in conferring protective immune responses (16). The test food used in the present study was provided as a capsule, and the gastrointestinal tract was the first tissue to be exposed to the ingredients it contained. Thus, it is likely that the immune system in the gastrointestinal tract is first stimulated by the intake of black-vinegar-mash-garlic-containing food, and this may in turn affect salivary sIgA release through migration of the antibody-secreting cells to the intraoral mucosal tissues.
In conclusion, the present findings indicate that the intake of black-vinegar-mash-garlic-containing food stimulates intraoral immune function. There was no adverse event associated with the consumption of the food. Further investigations, including in vitro experiments and animal studies, may reveal the essential ingredient molecule and mechanism of its action involved in this immunomodulatory action.
YN is an employee of Kenkoukazoku Co., Ltd., which provided the research expenses to TTC Co., Ltd. YN was not involved in the interpretation of the results, and did not influence the outcomes at any stage of the clinical trial. A randomized, double-blind, placebo-controlled, parallel-group study was conducted with the aid of a fund from the Kenkoukazoku Co., Ltd.
Bayan L, Koulivand PH and Gorji A: Garlic: A review of potential therapeutic effects. Avicenna J Phytomed. 4:1–14. 2014.PubMed/NCBI
Schäfer G and Kaschula CH: The immunomodulation and anti-inflammatory effects of garlic organosulfur compounds in cancer chemoprevention. Anticancer Agents Med Chem. 14:233–240. 2014. View Article : Google Scholar : PubMed/NCBI
Kyo E, Uda N, Kasuga S and Itakura Y: Immunomodulatory effects of aged garlic extract. J Nutr. 131:1075S–1079S. 2001.PubMed/NCBI
Lamm DL and Riggs DR: Enhanced immunocompetence by garlic: Role in bladder cancer and other malignancies. J Nutr. 131:1067S–1070S. 2001.PubMed/NCBI
Shimoji Y, Tamura Y, Nakamura Y, Nanda K, Nishidai S, Nishikawa Y, Ishihara N, Uenakai K and Ohigashi H: Isolation and identification of DPPH radical scavenging compounds in Kurosu (Japanese unpolished rice vinegar). J Agric Food Chem. 50:6501–6503. 2002. View Article : Google Scholar : PubMed/NCBI
Nanda K, Miyoshi N, Nakamura Y, Shimoji Y, Tamura Y, Nishikawa Y, Uenakai K, Kohno H and Tanaka T: Extract of vinegar ‘Kurosu’ from unpolished rice inhibits the proliferation of human cancer cells. J Exp Clin Cancer Res. 23:69–75. 2004.PubMed/NCBI
Fukuyama N, Jujo S, Ito I, Shizuma T, Myojin K, Ishiwata K, Nagano M, Nakazawa H and Mori H: Kurozu moromimatsu inhibits tumor growth of Lovo cells in a mouse model in vivo. Nutrition. 23:81–86. 2007. View Article : Google Scholar : PubMed/NCBI
Sugiyama S, Kishi M, Fushimi S, Oshima Y and Kajimoto O: Hypotensive effect and safety of brown rice vinegar with high concentration of GABA on mild hypertensive subjects. Jpn Pharmacol Ther. 36:429–444. 2008.
