A nomogram‑based immunoprofile predicts clinical outcomes for stage II and III human colorectal cancer
- Authors:
- Published online on: October 14, 2021 https://doi.org/10.3892/mco.2021.2419
- Article Number: 257
-
Copyright: © Wang et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
Abstract
Introduction
The prognosis of patients with colorectal cancer (CRC) after surgical resection is based on the American Joint Committee on Cancer (AJCC)/International Union Against Cancer (UICC)-TNM staging system (1,2). However, this anatomy-based system gives useful but insufficient prognostic information, particularly for prognosis assessments in patients with UICC stage II and III CRC (2-5).
In numerous solid tumor types, such as CRC, accumulating studies have indicated that the invasion of immune factors, depending on the type, density and location of infiltration (6) in the tumor microenvironment, has a profound impact on the prognosis of cancer patients (7-10). Specifically, a high density of adaptive immune cells infiltrating the core and invasive margin of the tumor was associated with a favorable prognostic effect for disease-free survival and overall survival (OS) in patients with early and advanced-stage CRC (11,12). Thus, an immunoscore based on the density and location of CD3/CD8+ lymphocytes was used as a supplementary component for CRC classification (13).
However, the tumor immune microenvironment is complex and involves multiple immune cell types (14), as well as co-signaling molecules and immunomodulatory factors (15,16), which may produce both pro- and antitumor functions. Multiple immune effector cells, such as CD8+TIL or CD4+TIL, and immunosuppressive cells, such as regulatory T (Treg) cells or myeloid-derived suppressor cells (MDSCs), are reportedly present at the tumor site (14). Immune cell subtypes have demonstrated differential prognostic value depending on the histological type of cancer (17). In melanoma, as well as colorectal and breast cancer, high CD8+TIL infiltration was strongly correlated with favorable clinical outcome (8). However, the role of Treg cells in CRC is controversial, as Foxp3+Treg infiltration indicated favorable prognosis in certain studies (18-21). Furthermore, MDSCs are a heterogeneous collection of immature myeloid cells that exhibit pathological activation and display potent immunosuppressive activity in the tumor microenvironment (22). Recently, the prognostic value of MDSCs was studied in different types of cancer (23-25), but the prognostic significance of tumor-infiltrating MDSCs in CRC has remained to be fully determined.
To promote or suppress T-cell activation, co-signaling molecules may be classified as co-stimulators or co-inhibitors (15). Programmed cell death 1 (PD1)/PD1 ligand 1 (PD-L1), the most extensively studied co-inhibitors, initiated a new wave of cancer immunotherapy (26). Within the past several years, PD1 or PD-L1 inhibitors have been successively approved as first- or second-line therapies for various solid and hematological tumors, including metastatic CRC with mismatch-repair-deficiency or microsatellite instability-high (27,28). Furthermore, co-inhibitors such as lymphocyte-activating 3 (LAG3) and T-cell immunoglobulin mucin family member 3 (TIM3), as well as co-stimulators tumor necrosis factor receptor superfamily, member 4 (OX40) and inducible T-cell costimulator (ICOS), either alone or in combination with the PD1/PD-L1 pathway, have been tested in clinical trials for various advanced malignancies, including CRC (16,29). However, the prognostic value of these co-signaling molecules remains controversial and has remained to be fully elucidated. Another factor of interest is indoleamine 2,3-dioxygenase 1 (IDO1), an immunomodulatory factor expressed in immune cells and various tumor cells (TCs) that potently mediates immunosuppressive effects in cancer (30). Whether IDO1 expression in different cells offers prognostic value for CRC warrants investigation.
Recently, a visualized nomogram model was developed for a variety of cancer types, which involved more parameters and had better survival prediction ability than TNM staging (24,31,32). Thus, a wide range of immune markers may be used to establish an accurate immunoprofile to evaluate the prognosis of patients with CRC. In the present study, the infiltration of four immune cell types (CD8+TIL, CD4+TIL, Foxp3+Treg and CD33+MDSC), as well as the expression of four co-inhibitors (PD1/PD-L1/TIM3/LAG3), two co-stimulators (OX40/ICOS) and the immunomodulatory factor IDO1 were evaluated in CRC. Subsequently, the independent prognostic impact of the above variables was ascertained and a nomogram-based immunoprofile for CRC was established. The nomogram-based immunoprofile system provides diagnostic accuracy in the prognosis of clinical outcomes and is a useful supplement to TNM staging for patients with stage II/III CRC. It is expected that the present results will improve the ability of clinicians to distinguish different clinical outcomes in patients with CRC and the same TNM stage, particularly for TNM stage II/III patients.
Materials and methods
Study population and selection criteria
A retrospective study was performed on a primary cohort of 96 patients who underwent surgical resection of primary CRC at the First Medical Centre of Chinese PLA General Hospital (Beijing, China) between April 2010 and November 2013, with a mean follow-up time of 63.1±23.7 months. The inclusion criteria were as follows: No history of neoadjuvant treatment, complete resection of colorectal tumors, histologic diagnosis of colorectal carcinoma and administration of standardized combination chemotherapy if relapsed. The exclusion criteria were as follows: Other malignancies, missing clinicopathological and follow-up information, and perioperative mortality. Using the same criteria, from January 2009 to May 2010, an independent validation cohort of consecutive patients with CRC (n=153), who were followed up for a mean of 50.4±26.8 months, was evaluated at Qingyang People's Hospital (Qingyang, China). All patients were classified using the AJCC 8th TNM staging system. These studies complied with ethical approval processes and were approved by the institutional review board the Chinese PLA General Hospital (Beijing, China). The clinical characteristics of the two cohorts are summarized in Table I.
Immunohistochemistry (IHC) and pathologic assessment
IHC staining of immune cell markers (CD4, CD8, Foxp3 and CD33) and other immunological markers (PD-L1, PD1, LAG3, TIM3, OX40, ICOS and IDO1) was performed as described previously (24), with slight modifications. In brief, after antigen retrieval and blocking of endogenous peroxidase, as well as blocking of non-specific binding sites, 3-µm-thick tissue sections were incubated with specific primary antibodies at 4˚C overnight. Subsequently, the sections were incubated for 30 min with HRP-labeled rabbit/mouse secondary antibody (Gene Tech) at 37˚C. The primary antibodies used for IHC are listed in Table SI.
Immunostaining results were examined by two pathologists independently blinded to any information on the clinicopathological features of the patients using a semi-quantitative score. The relative percentage of positive cells for each marker was calculated using the mean value of five randomly selected high-magnification (x200) fields on full slides. The analysis of CD33 and the immunological markers, such as LAG3, TIM3, OX40 and ICOS, was performed on the entire tumor region (e.g., parenchyma and mesenchyme). The other markers (CD4/CD8/Foxp3/PD-L1/PD1/IDO1) were assessed in both the tumor parenchyma and mesenchyme regions. The assessment of PD-L1 in the tumor parenchyma distinguished the TCs and immune cells (ICs). For statistical analyses, the optimal cutoff value for each marker was determined using the minimum P-value, which was calibrated using the X-Tile tool (33). Each marker was stratified into dichotomous variables (high vs. low) and a calibrated KM analysis was recorded (Table SII).
Multiplex IHC (mIHC) and evaluation of staining
Measurement of CD8, CD33 and CK (separated tumor tissue) was performed by mIHC using the Opal iterative staining protocol according to the manufacturer's protocol (Akoya Biosciences) and previously published methods (24,34). In brief, pretreatment of mIHC sections was performed as in the IHC assay described above and antigen retrieval was performed by microwave heating. Subsequently, sections were subjected to CD33, cytokeratin (CK) and CD8 Opal iterative staining and Opal 520, Opal 570 and Opal 620 (Akoya Biosciences) were applied to each antibody. Nuclei were counterstained with DAPI (Akoya Biosciences). The primary antibodies used for mIHC are listed in Table SI.
MIHC slide images were captured using the Vectra platform (Perkin-Elmer) and analyzed using inForm software version 2.2.1 (Akoya Biosciences). To better achieve the multispectral unmixing of mIHC fluorescence signals, the images of single stained slides of each marker were used to create a spectrum library and those of unstained slides were used to extract tissue autofluorescence. The quantification of positive cells for each marker was performed using the minimum region signal threshold in the inForm software automated counting tool. Measurements were recorded as the mean value of five randomly selected high-magnification (x200) fields on full slides. For CD8+TIL, signals from tumor parenchyma (CK-positive) and mesenchyme (CK-negative) were counted. For CD33+MDSCs, the levels were assessed in whole tumor regions (e.g., parenchyma and mesenchyme). Similarly, the minimum P-value of CD8+TIL and CD33+MDSC in mIHC was set as the optimal cutoff value.
Statistical analysis
Values are expressed as the mean ± standard deviation. Statistical calculations were performed using SPSS Statistics (version 22; IBM Corporation) and GraphPad Prism (version 7; GraphPad Software, Inc.). The χ2 test was used to examine the categorized variables. For continuous variables, the Mann-Whitney U test was used. The correlation between the expression levels of each marker was determined using the Spearman coefficient and the correlation matrix was subjected to unsupervised hierarchical clustering. OS was defined as the time from surgical resection to last contact. The Kaplan-Meier method and log-rank test were used to evaluate OS. The univariate and multivariate Cox proportional hazards model was used to adjust the independent risk factors. Statistical significance was set at P<0.05 (two-tailed).
Using the rms package in R version 3.6.1, a visualized nomogram based on the results of the Cox model analysis was developed using data from the primary cohort. The primary cohort served as the internal validation group for the nomogram, while external validation of the nomogram was performed using the validation cohort. The nomogram's model performance was quantified using Harrell's concordance index (C-index). Internal validation of the nomogram was performed using the bootstrap method and a relatively unbiased estimate was acquired through 1,000 repetitions. The predictive accuracy and recognition capacity of the nomogram using the internal and external validation cohorts was assessed by calculating the C-index and calibration curve. To facilitate clinical practice, the nomogram was simplified and an immunoprofile based on the nomogram was constructed. Finally, the receiver operating characteristic (ROC) curve of the immunoprofile and TNM stage system were compared in patients with stage II/III CRC.
Results
Patient clinical characteristics in both cohorts
The basic clinical and pathological features of the patients with CRC from the two cohorts are listed in Table I. No significant differences in clinical characteristics between the two cohorts were observed (Table I). At the time of diagnosis, in the primary cohort, the median age was 62.5 (range, 24-90) years, 63 (65.6%) patients were male, and in the validation cohort, the median age was 66 (range, 22-95) years, of which 89 (58.2%) patients were male. In the present study, most patients presented with locally advanced stages of the disease (TNM stage II and III), accounting for 83.3% (80/96) in the primary cohort and 88.9% (136/153) in the validation cohort. Postoperative adjuvant therapy was as follows: Patients with TNM stage I entered the follow-up period directly after curative surgical resection, whereas most patients with TNM stage II/III received close surveillance and capecitabine or 5-FU-based standard adjuvant chemotherapy. Advanced patients were given systemic treatment. The patients of the two cohorts were followed up for at least 5 years.
CRC immune markers Infiltrating ICs

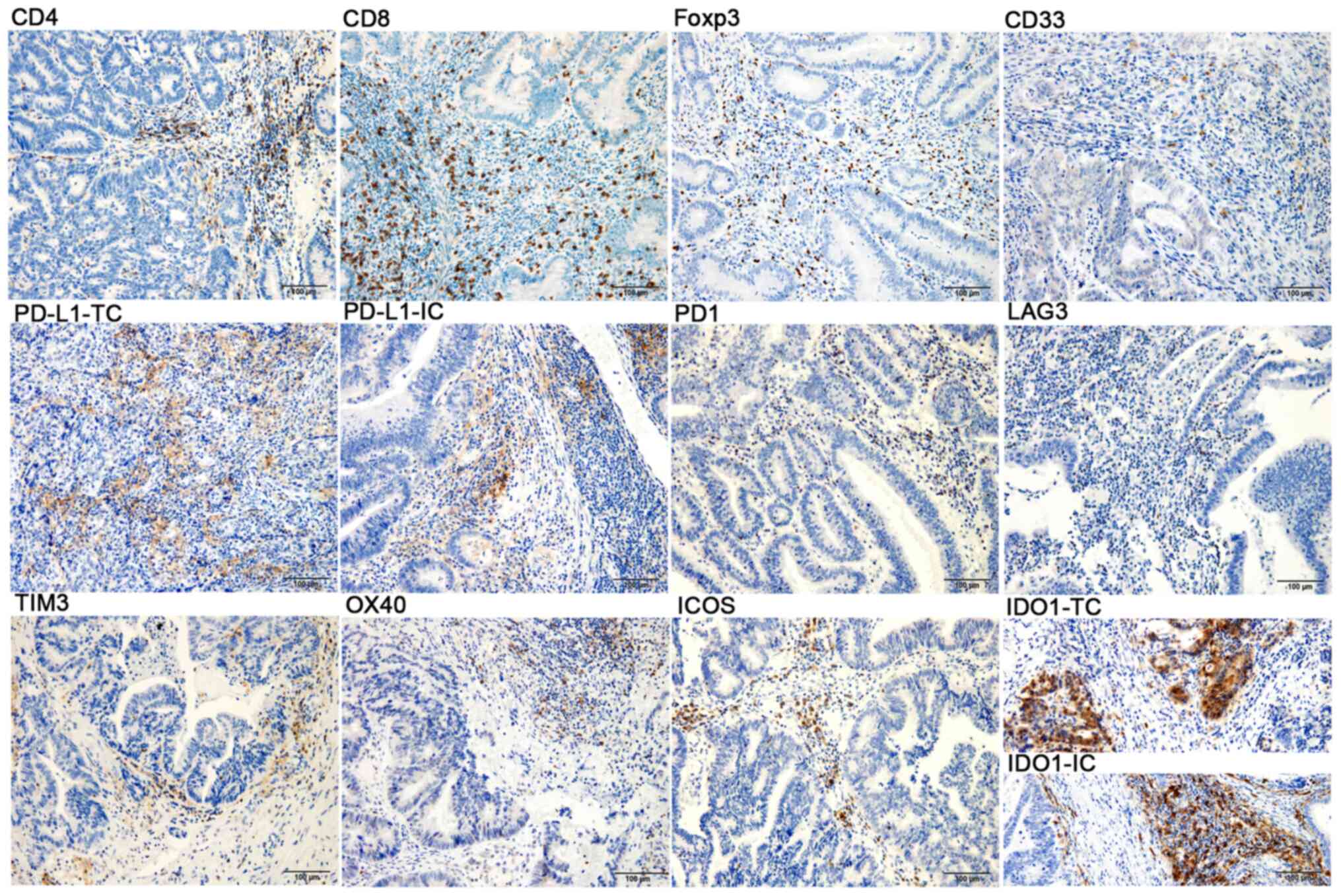

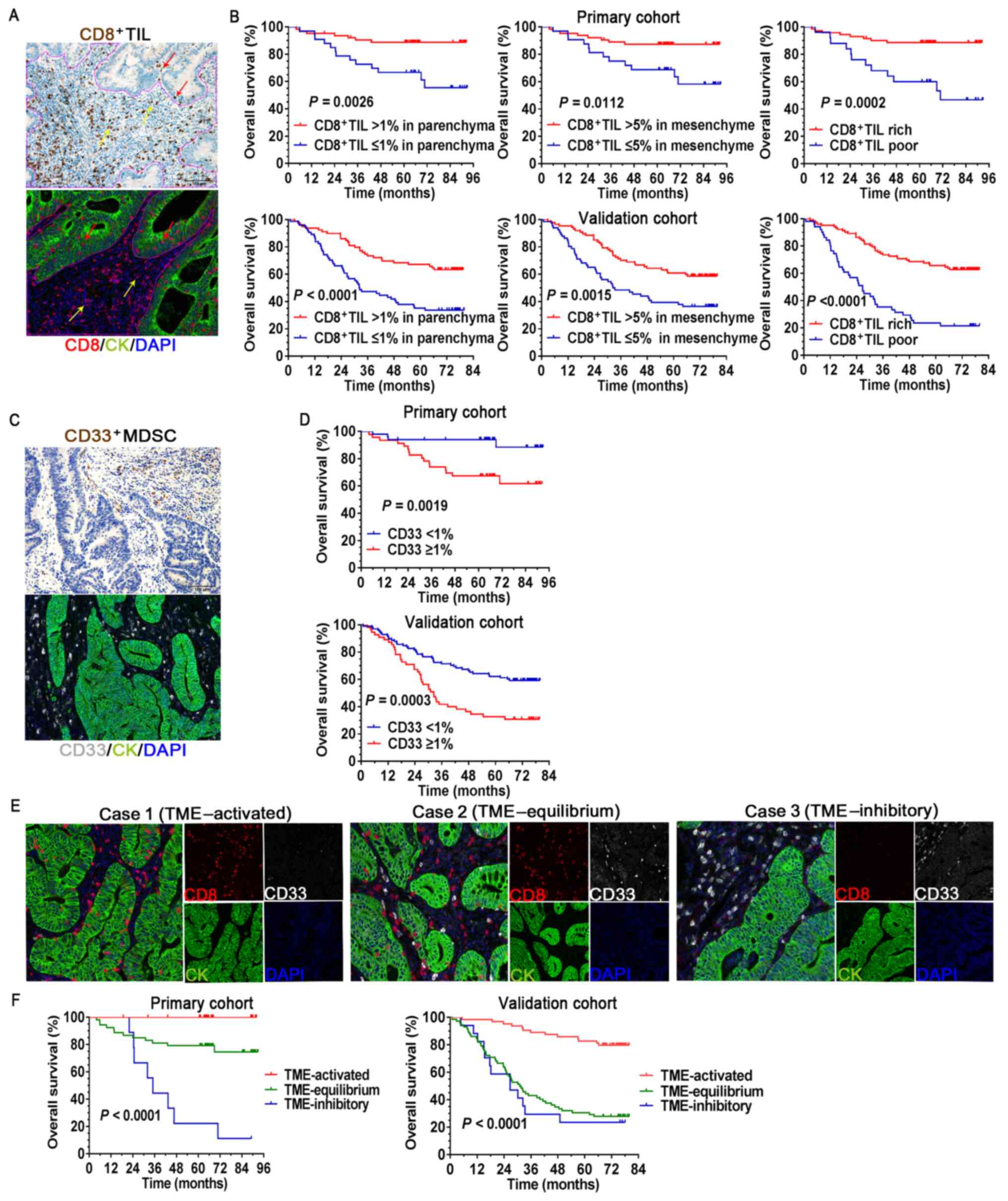

Infiltration of CD4+TILs, CD8+TILs, Foxp3+Tregs and CD33+MDSCs at the CRC tumor in situ was observed (Fig. 1, upper panel). In CRC, the location and density of the four tumor-infiltrating ICs were heterogeneous. As presented in Fig. 1, the compositions of CD4+TILs, CD8+TILs and Foxp3+Tregs were different in the tumor parenchyma and mesenchyme regions. These ICs, particularly CD4+TIL and CD8+TIL, were markedly higher in the tumor mesenchyme than in the tumor parenchyma. Immunopositives in the tumor parenchyma and mesenchyme were described as ‘(P)’ and ‘(M)’, respectively. In the primary cohort, 85% of patients (82/96; P) and 97% of patients (94/96; M) had at least 1% CD8+TIL infiltration. A total of 26% of patients (25/96; P) and 100% of patients (96/96; M) had at least 1% CD4+TIL infiltration. Furthermore, 21% of patients (20/96; P) and 97% of patients (94/96; M) had at least 1% Foxp3+Treg infiltration. Furthermore, the infiltration of CD33+MDSCs was relatively sparse in the tumor mesenchyme and parenchyma. Thus, the analysis of CD33+MDSCs was performed in the entire tumor region and at least 1% CD33+MDSC infiltration was noted in 48% of patients (46/96) (Table SII).
Expression of co-signaling molecules and immunomodulatory factors. The expression levels of PD-L1, PD1, LAG3, TIM3, OX40, ICOS and IDO1 were examined in the CRC tumors in situ by IHC (Fig. 1, middle and lower panels). Overall, the expression rate of PD-L1 in tumor parenchyma was low, with only seven patients (7/96) expressing ≥1% PD-L1 in TCs, and only one case (1/7) with 5% PD-L1 in ICs, whereas 70% (67/96) of the patients had at least 1% PD-L1 expression in the tumor mesenchyme. At least 1% PD-1 expression was observed in 21% of patients (20/96; P) and 60% of patients (58/96; M). The positive expression was defined as ≥1% expression in ICs. The expression of LAG3, TIM3, OX40 and ICOS was 8% (8/96), 43% (41/96), 59% (57/96) and 79% (76/96), respectively. Furthermore, IDO1 was observed in both TCs and ICs. When considering ≥1% to indicate positive staining, it was observed that 36% of patients (35/96) exhibited IDO1 expression in TCs, while 89% of patients (85/96) expressed IDO1 in ICs.
Correlation between tumor-infiltrating ICs and co-signaling molecules or immunomodulatory factors. According to the mechanisms governing tumor immunology, ICs may be regulated by the expression of activated and inhibited molecules, which may shift the immune response toward anti-inflammatory profiles or escaped antitumor immunity. Thus, the correlation between CD8+TIL, CD4+TIL, Foxp3+Treg, CD33+MDSC and PD-L1, PD-1, LAG3, TIM3, OX40, ICOS and IDO1 was analyzed (Fig. S1). The densities of CD8+TIL, both in the tumor parenchyma and mesenchyme, were significantly correlated with the expression of PD-L1 (P), PD1 (M), TIM3, OX40 and ICOS (all P<0.001) and increased along with CD4+TIL (M) and Foxp3+Treg (M) (all P<0.001). By contrast, CD33+MDSCs were associated with the infiltration of CD4+TIL (P<0.001) and expression of TIM3 (P=0.016). In addition, CD4+TIL (M) and Foxp3+Treg (M) were also positively correlated with the expression of PD-L1 (P), PD1 (M), TIM3, OX40, ICOS and IDO1 (all P<0.001). These correlations may reflect a highly activated immune microenvironment in CRC.
Association between immune markers and clinical outcomes Infiltrating ICs and clinical outcomes
The relationship between the patients' OS and CD4+TIL, CD8+TIL and Foxp3+Treg expression in the tumor parenchyma and mesenchyme was evaluated. The survival curves indicated that the favorable prognosis of patients with high densities of CD8+TIL, both in the tumor parenchyma and mesenchyme according to IHC and mIHC staining, was statistically significant compared to those with low CD8+TIL (Fig. 2A and B). The densities of CD8+TIL in both tumor regions were analyzed in combination, with poor infiltration defined as ≤1% CD8+TIL in the parenchyma, together with ≤5% CD8+TIL in the mesenchyme, whereas other combinations were regarded as rich infiltration (Figs. 2B and S2). In both cohorts, the CD8+TIL rich groups were significantly associated with prolonged patient survival (P=0.0002 in the primary cohort and P<0.001 in the validation cohort; Fig. 2B). The favorable prognostic effect mentioned above was not observed in the parenchyma, mesenchyme or whole tumor region for either CD4+TIL or Foxp3+Tregs (Fig. S3A). Of note, the analysis of CD33+MDSC revealed that a high density of CD33+MDSCs resulted in a significantly unfavorable prognosis compared to low CD33+MDSC in both cohorts of patients with CRC (P=0.0019 in the primary cohort and P=0.0003 in the validation cohort; Fig. 2C and D).
Next, the prognostic value of the different proportions of the CD8+TILs and CD33+MDSCs when they appeared simultaneously in the CRC microenvironment was analyzed (Fig. 2E and F). Tumors with rich CD8+TILs in the TME (TME-activated) were associated with favorable survival, whereas tumors with high CD33+MDSC (TME-inhibitory) were associated with poor clinical outcomes. Near-equal infiltration of CD8+TIL and CD33+MDSCs tended to indicate an equilibrium TME, in which the patients had inferior survival compared to those with an activated TME. However, no significant differences were observed between TME-equilibrium and TME-inhibitory in the validation cohort. These data highlight the importance of defining a good scoring system to assess the status of TME in CRC.
Co-signaling molecules or immunomodulatory factors and clinical outcomes. Among the six co-signaling molecules examined, only PD1 (P) and PD1 (M) were significantly associated with favorable OS (P=0.0421 and P=0.0197, respectively), whereas PD-L1 (P), PD-L1 (M), LAG3, TIM3, OX40, ICOS, IDO1 (P) and IDO1 (M) were not significantly associated with any outcome (Fig. S3B and C). To further assess the prognostic significance of PD1, PD1 (P) and PD1 (M) were defined, with ≥1% as PD1+TIL-rich and the others as PD1+TIL-poor. Similarly, PD1+TIL-rich cells were significantly associated with prolonged patient survival (P=0.0459; Fig. S3B). IDO1 was observed to be expressed by TCs and ICs (Fig. 1, lower panels) and Kaplan-Meier survival analyses suggested that no statistically significant differences were present between groups with high and low IDO1 expression levels in the different cells (Fig. S3C).
Construction and validation of the nomogram-based immunoprofile Independent prognostic factors
First, the hazard ratio of the clinical parameters and immune markers was analyzed in the primary cohort using a univariate regression model. As presented in Table II, among the clinical characteristics, only pathologic T stage, N stage and TNM stage were associated with increased risk of death and OS (Fig. S4A-C). Subsequently, TNM stage and immunological markers with P<0.1 in the univariate analysis were incorporated into a Cox proportional regression model for multivariate analysis (Table II). It was determined that CD8 (HR=0.201; 95% CI: 0.056-0.727; P=0.014), CD33 (HR=4.565; 95% CI: 1.428-14.592; P=0.010) and TNM stage (II vs. IV, HR=0.129; 95% CI: 0.034-0.498; P=0.003) exhibited independent prognostic value for OS in patients with CRC.

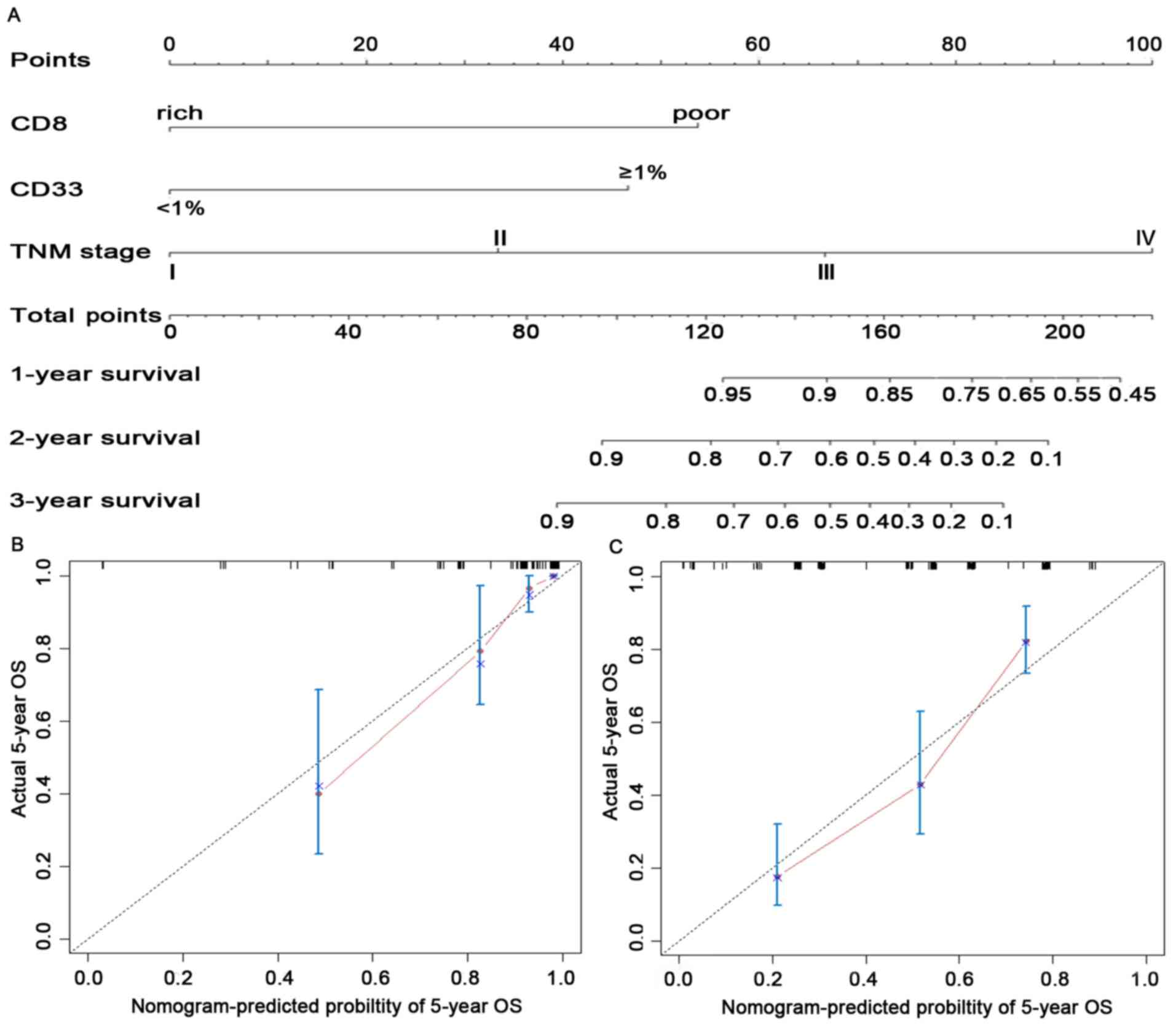

Construction of the nomogram-based immunoprofile and validation. Although both CD8+TIL and CD33+MDSC had independent prognostic significance in the multivariate analyses (Table II), they were reported to have functionally opposite effects during the antitumor immune responses in patients with CRC (11,35), preventing their use for accurate prediction of survival. Therefore, a comprehensive immunoprofile nomogram for predicting survival was created using the independent prognostic variables (Fig. 3A). The C-index for the predicted OS was 0.861 (95% CI: 0.796-0.925) in the internal validation and 0.759 (95% CI: 0.714-0.804) in the external validation cohort. The calibration plot for the probability of 5-year OS between the actual observed survival and the prediction by the nomogram was in good accordance in the primary cohort (Fig. 3B) as well as in the validation cohort (Fig. 3C).
To facilitate clinical application, a recent study by our group proposed modifying a nomogram into a simple immunoprofile system based on a nomogram for patients with esophageal cancer (24). In the present study, an immunoprofile for patients with CRC was developed. In the immunoprofile system, 0, 1, 2 and 3 points corresponded to stages I, II, III and IV, respectively. The points for CD8-poor and CD33+MDSC ≥1% were between stage II and III in the nomogram; thus, 1.5 points was assigned in the immunoprofile. Next, each patient was assigned an immunoprofile index by adding the values of CD8 and CD33. Patients with different immunoprofile indices had variant clinical outcomes: Patients with a high immunoprofile index had unfavorable OS; patients with the lowest immunoprofile index had the highest OS; other patients had intermediate clinical outcomes (Fig. S4D).
Comparison of the predictive accuracy for OS between the immunoprofile and TNM staging systems. The ability of the immunoprofile to identify differences in patients at the same TNM stage was further investigated. As presented in Fig. 4A, all patients (n=249) were divided into two risk subgroups based on their immunoprofile for CD8+TIL and CD33+MDSCs, regardless of TNM stage, using a value of 1.5 as the cutoff. During the observation period, 86.7% of patients with an immunoprofile index <1.5 were still alive and only 43.7% of cases were still alive in the high immunoprofile index (≥1.5) group. The immunoprofile system was able to separate patients at the same tumor stage into different risk subgroups (Fig. 4B-E), particularly for TNM stages II (P<0.0001) and III (P=0.0002), where significant separation was noted in these patients.
For the patients at stage II/III (n=216), the predictive accuracy for OS between the immunoprofile and TNM stage system was compared by ROC curve analysis. The area under the ROC curve (AUC) of the immunoprofile and TNM staging system was 0.702 (95% CI: 0.636-0.762) and 0.613 (95% CI: 0.0544-0.0678), respectively (Fig. 4F). The Z-statistic value of the pairwise comparison of ROC curves was 1.995, exhibiting a statistically significant difference (P=0.046). These results demonstrated that the immunoprofile provided a more accurate prognosis for patients with stage II/III CRC compared with the TNM staging system.
Discussion
Cancer has traditionally been defined with a cellular-centered vision, but this is being replaced by a holistic vision that includes the microenvironment (36). The immune microenvironment has an important role in the evolution of tumors (37), and the immune components within the microenvironment have a crucial impact on the clinical outcomes for tumor patients (8). CRC is a chronic mucosal inflammatory-related malignancy (2). Pagès et al (13) first established an immunoscore in CRC that included only CD3/CD8 adaptive lymphocytes and did not consider immunosuppressive markers. In the present study, to improve the application of immune parameters in the prognosis assessment of patients, for the first time, the density and location of 11 immunological markers in situ was simultaneously analyzed and an immune-related prognostic nomogram for patients with CRC was constructed. To facilitate routine clinical usage and discriminate the nomogram system from the previous immunoscore algorithm, the system of the present study was modified and defined as an ‘immunoprofile’. The present results indicated that the immunoprofile system had a good predictive performance. The AUC for predicting OS in patients with stage II/III was 0.702, significantly better than that for the TNM II/III stage (AUC=0.613) (Z-value=1.995, P=0.046).
The present immunoprofile model utilized tumor-infiltrating CD8+TIL and CD33+MDSCs, which are significantly associated with clinical outcomes for CRC. CD8+T lymphocytes are the most important immune effector and have a central role in eliminating TCs (38). The prognostic role of CD8+TIL as the most robust immune biomarker has been reported in various cancer types (8,17). The results of the present study are consistent with those of previous reports (11,39) in terms of high CD8+TIL infiltration being associated with improved patient survival and being an independent prognostic factor according to multivariate analyses. Furthermore, the distribution of CD8+TILs in the human tumor regions was not random, which corroborated reports that infiltration to specific regions varies according to the different tumor types (6,40,41). In the present study, it was observed that the increased density of CD8-TILs in the parenchyma was more essential for the prognosis of CRC. Compared with CD8+TILs infiltrating the mesenchyme, CD8+TILs in the parenchyma exerted a greater antitumor immune response. Correlation analysis suggested that infiltration of CD8+TIL was significantly correlated with the expression of PD-L1, PD-1, TIM3, OX40 and ICOS. The PD-1/PD-L1 pathway has an important role in inhibiting the immune response and controls the induction and maintenance of immune tolerance in the tumor microenvironment (42). TIM3, another inhibitive immune checkpoint molecule, is expressed in CD8+T cells and is thought to be involved in T-cell differentiation and activation, and its persistence may be associated with an exhaustion status (43). OX40 is a co-stimulatory molecule, which, if in contact with the OX40 ligand expressed by antigen-presenting cells, promotes the proliferation of CD4+ and CD8+T cells and the survival of antigen-specific memory T cells (44). Evidence suggests that OX40 expression improves the prognostic significance of CD8+T-cell infiltration in CRC (45). ICOS is another T-cell co-stimulatory molecule. ICOS is expressed on activated T cells, memory T cells and regulatory T cells. Similarly, ICOS binds to its ligand (ICOSL), which regulates T-cell proliferation and survival, as well as stimulates the production of cytokines (46). Thus, these T-cell inhibitory and activating receptors modulate the balance between immune tolerance and immune response in the CRC tumor (29). However, these co-inhibitors and co-stimulators are expressed simultaneously or at different times on CD8+T cells, resulting in different phenotypes (47). The relationship between these phenotypes and the prognosis of patients with CRC remains to be fully elucidated and requires to be further investigated. In addition, there is growing evidence that CD4+T cells have a vital role in anti-tumor immunity, specifically designed to activate the CD8+ cytotoxic T-lymphocyte response (48). The present correlation analysis indicated that the infiltration of CD8+TIL was associated with increased CD4+TIL, suggesting that CD4+TIL have an adjunct role in the efficacy of anti-tumor CD8+TIL responses in the CRC microenvironment. Furthermore, correlation analysis also revealed that the infiltration of CD8+TIL was associated with increased Foxp3+Tregs, which may also demonstrate the negative feedback mechanism of the immune system. However, this hypothesis requires to be further analyzed and verified by Digital Spatial Profiling (49).
MDSCs represent a heterogeneous population of pathologically activated immature myeloid cells that have potent immune suppressive activity in peripheral lymphoid organs and tumor in situ, and the abnormal accumulation of these cells is an important mechanism for tumor immune evasion (22,50). Previous studies have indicated that the proportion of circulating CD33+/CD11b+ HLA-DR-MDSCs in patients with CRC was higher than that in healthy individuals and the percentage of MDSCs in the peripheral blood of patients with CRC was closely correlated with clinical cancer stage and distant metastasis (35,51). Furthermore, recent evidence has revealed that the expansion of circulating granulocytic MDSCs was associated with poor prognosis in patients with metastatic CRC treated with FOLFOX-Bevacizumab chemotherapy (52). Although tumor tissue was included in certain studies (35,51), the significance was limited by low sample numbers. The present study first analyzed the relationship between the infiltration of CD33+MDSCs in situ and the risk of death in patients with CRC. It was revealed that a high density of CD33+MDSCs in the tumor in situ was associated with poor outcome compared with a low density of CD33+MDSCs. Multivariate analyses suggested that CD33+MDSCs were an independent prognostic factor in CRC. Furthermore, it was observed that tumor-infiltrating CD33+MDSCs were closely correlated with the infiltration of CD4+TILs (P<0.001), suggesting that MDSCs affect antitumor immunity by CD4+T cells in CRC in situ (53); however, further investigation is required to confirm their immunosuppressive function.
In the tumor microenvironment, different ICs lead to different TME statuses and affect the prognosis of patients. Based on immune effector CD8+TIL and immunosuppressive CD33+MDSC, the present immunoprofile system demonstrated good predictive performance for patients with stage II/III CRC. However, the present study also has several limitations. First, the sample size of stage I/IV patients was too small, limiting the performance evaluation of the immunoprofile system, which thus requires further research. In addition, the immune factors used in the present study were quite limited. With the development of cancer and immune microenvironment research, there is no doubt that continuous improvement of the immunoprofile will be implemented, incorporating more prognostic parameters and improving the predictive model. Furthermore, the prognostic value of tumor-infiltrating Foxp3+Tregs in CRC remains controversial. Certain studies have indicated that Foxp3+Tregs are associated with favorable prognosis in CRC, whereas the results of the present study did not indicate such positive prognostic value. Therefore, future investigations should distinguish Treg-cell subpopulations (21) or define a suppressive index of Treg cells (40) in CRC, and to explore the underlying mechanisms governing the roles of these cells.
In conclusion, in the present study, a nomogram-based immunoprofile system based on CD8+TILs and CD33+MDSCs was established in patients with CRC. The results demonstrated that the immunoprofile provides accurate prognosis prediction and is an important supplement to the TNM staging system for patients with stage II/III CRC.
Supplementary Material
Heatmap displaying the hierarchical clustering analysis of tumor-infiltrating immune cells and six co-signaling molecules or the immunomodulatory factor IDO1 using immunohistochemical staining in the primary cohort. Each colored square in the figure indicates the Spearman correlation r-value between the two markers. Red color denotes a strong positive correlation (r=0.9, P<0.00001); yellow, no correlation (r=0); and green, negative correlation (r= 0.9). P, parenchyma; M, mesenchyme; TC, tumor cell; IC, immune cell; Foxp3, forkhead box p3; PD1, programmed cell death 1; PD-L1, PD1 ligand 1; TIM3, T-cell immunoglobulin mucin family member 3; LAG3, lymphocyte-activating 3; OX40, tumor necrosis factor receptor superfamily, member 4; ICOS, inducible T-cell costimulator; IDO1, indoleamine 2,3-dioxygenase 1.
Overall survival of patients stratified by different CD8+TIL infiltration status in both tumor regions was analyzed in combination. CD8+TIL lowlow represents ≤1% CD8+T cells infiltrating in the parenchyma with ≤5% CD8+T cells infiltrating in the mesenchyme. CD8+TIL highhigh indicates >1% CD8+T cells infiltrating in parenchyma with >5% CD8+T cells infiltrating in mesenchyme. CD8+TIL heterogeneous is another combination (lowhigh/highlow) of CD8+T cell infiltration status in both tumor regions. TIL, tumor-infiltrating lymphocytes.
Survival analysis of immune markers in the primary cohort. Survival curves comparing overall survival of patients stratified by different (A) CD4H+TIL infiltration status and Foxp3+T-regulatory cell infiltration status, (B) PD1+TIL infiltrating status, as well as (C) PD-L1/LAG3/TIM3/OX40/ICOS/IDO1 expression status. TIL, tumor-infiltrating lymphocytes; Foxp3, forkhead box p3; PD1, programmed cell death 1; PD-L1, PD1 ligand 1; TIM3, T-cell immunoglobulin mucin family member 3; LAG3, lymphocyte-activating 3; OX40, tumor necrosis factor receptor superfamily, member 4; ICOS, inducible T-cell costimulator; IDO1, indoleamine 2,3-dioxygenase 1.
Survival curves comparing overall survival of patients stratified by different (A) TNM stage, (B) T stage, (C) N stage in the primary cohort. (D) Survival curves grouped by different immunoprofile in all patients with colorectal cancer (n=249).
Primary antibodies used for IHC/multiplex IHC.
Kaplan-Meier survival analyses for the primary cohort (n=96) according to the minimum P-value cutoffs.
Acknowledgements
The authors would like to acknowledge Dr Lai Song from Beijing DCTY Bio-information Technology Co. (Beijing, China) for excellent technical assistance in data analysis.
Funding
This study was supported by the National Natural Science Foundation of China (grant no. 81672274) and the Clinical and Scientific Research Support Fund of the General Hospital of the Chinese PLA (grant no. 2017-FC-TSYS-3022).
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.
Authors' contributions
LXW, SCJ, QW and JQH contributed to the conception and design of the study. LXW, NJC and JFL collected the data. LXW, NJC, ZZ and LJZ performed IHC and mIHC staining. LXW, LLW and YC performed the statistical analysis and interpretation. LXW was a major contributor in writing the manuscript. All authors contributed to critical revision of the final manuscript and approved the manuscript for submission. LXW and SCJ confirm the authenticity of the raw data.
Ethics approval and consent to participate
In this study, the Chinese PLA General Hospital was authorized to use the cohort of Qingyang People's Hospital. The study was approved by the Ethics Committee of the Chinese PLA General Hospital (Beijing, China; approval no. S2019-228-02) and written informed consent was provided by all of the patients.
Patient consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
