iTRAQ-based quantitative proteomic analysis of the anti-apoptotic effect of hyperin, which is mediated by Mcl-1 and Bid, in H2O2-injured EA.hy926 cells

  • Authors:
    • Xiao-Xia Liu
    • Li Tang
    • Rui Ge
    • Jian-Kuan Li
    • Ya Kang
    • Mei-Xia Zhu
    • Qing-Shan Li
    • Xu-Liang Hao
  • View Affiliations

  • Published online on: February 29, 2016
  • Pages: 1083-1090
Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Endothelial injury has been implicated in the pathogenesis of many cardiovascular diseases, including thrombotic disorders. Hyperin (quercetin-3-O-galactoside), a flavonoid compound and major bioactive component of the medicinal herb Apocynum venetum L., is commonly used to prevent endothelium dysfunction. However, its mode of action remains unclear. To the best of our knowledge, we have for the first time investigated the protective effect hyperin exerts against H2O2-induced injury in human endothelium-derived EA.hy926 cells using isobaric tags for relative and absolute quantitation (iTRAQ)‑based quantitative proteomic analysis. The results showed that H2O2 exposure induced alterations in the expression of 250 proteins in the cells. We noted that the expression of 52 proteins associated with processes such as cell apoptosis, cell cycle and cytoskeleton organization, was restored by hyperin treatment. Of the proteins differentially regulated following H2O2 stress, the anti-apoptotic protein, myeloid cell leukemia-1 (Mcl-1), and the pro-apoptotic protein, BH3-interacting domain death agonist (Bid), exhibited marked changes in expression. Hyperin increased Mcl-1 expression and decreased that of Bid in a dose-dependent manner. In addition, flow cytometric analysis and western blot analysis of the apoptosis-related proteins, truncated BID (tBid), cleaved caspase-3, cleaved caspase-9, Fas, FasL and caspase-8, demonstrated that the rate of apoptosis and the pro-apoptotic protein levels were decreased by hyperin pre‑treatment. In the present study we demonstrate that hyperin effectively prevents H2O2‑induced cell injury by regulating the Mcl‑1‑ and Bid-mediated anti‑apoptotic mechanism, suggesting that hyperin is a potential candidate for use in the treatment of thrombotic diseases.


Endothelial dysfunction has been implicated in the pathogenesis of many cardiovascular diseases, including thrombotic disorders (1,2). Oxidative stress plays an important role in endothelial dysfunction, which results in apoptosis of endothelial cells, destruction of vascular barrier integrity, increased endothelial permeability, platelet aggregation and generation of cytokines, consequently promoting thrombotic diseases (3,4). Thus, protecting endothelial cells against apoptosis is likely to be a beneficial intervention strategy for thrombotic diseases.

Flavonoids are polyphenolic compounds that are widespread in many plants, and exert various biochemical and pharmacological effects (5). Hyperin (quercetin-3-O-galactoside) is considered the major bioactive flavonoid component in the medicinal herb, Apocynum venetum L., which has been used extensively for the treatment of hypertension in Chinese medicine. Previous studeis have suggested that hyperin plays various biological roles, including anti-inflammatory (6,7), cytoprotective (8) and anti-ischemic roles (9). Our previous study revealed that hyperin protects cells from H2O2-induced injury (10). However, its underlying mode of action has not yet been elucidated.

Isobaric tags for relative and absolute quantitation (iTRAQ) (11) is a method used to screen the entire proteome within the detectable dynamic range for qualitative and quantitative differences in cell protein expression before and after drug treatment. Compared to other proteomic technologies, it has many advantages, including a high throughput and compatibility with various sample types. The technique has been shown to be suitable for the identification of lower abundance proteins such as transcription factors (12), which makes it applicable for investigating molecular mechanisms and discovering drug targets.

In the present study, iTRAQ-based proteomic analysis was applied to investigate the effect of hyperin against H2O2-induced injury in human endothelium-derived EA.hy926 cells, and to elucidate the potential protective mechanism of hyperin in oxidative stress-induced injury.

Materials and methods

Chemicals and reagents

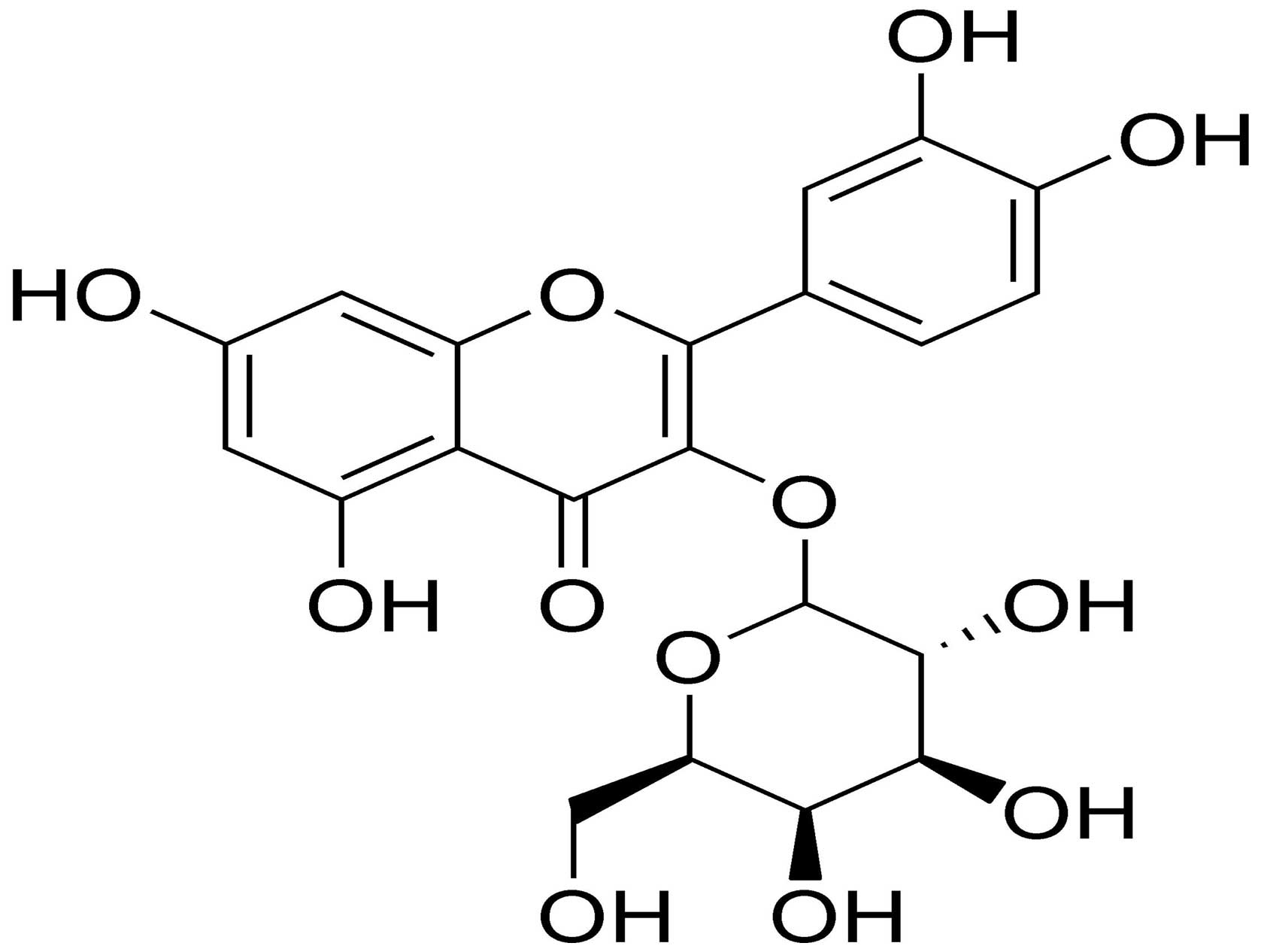

Hyperin was purchased from the National Institutes for Food and Drug Control (Beijing, China); its chemical structure is shown in Fig. 1. Dulbecco's modified Eagle's medium (DMEM) and fetal bovine serum (FBS) were purchased from Gibco (Grand Island, NY, USA). iTRAQ reagent was obtained from Applied Biosystems Life Technologies (Foster City, CA, USA). Antibodies against BH3-interacting domain death agonist (Bid; BS1819), myeloid cell leukemia-1 (Mcl-1; BS1220), β-actin (AP0060), Fas (BS6430) and FasL (BS1122) were obtained from Bioworld Technology, Inc., (Nanjing, China). Antibody against truncated tBID (tBID; ab10640) was purchased from Abcam (Cambridge, UK). Antibodies against caspase-3 (#9664), caspase-8 (#8592) and caspase-9 (#9509) were purchased from Cell Signaling Technology, Inc. (Beverly, MA, USA). Other reagents were obtained from Sigma-Aldrich (St. Louis, MO, USA). H2O2 was freshly prepared for each experiment from a 3% stock solution.

Cell culture and treatments

EA.hy926 cells were purchased from the Cell Bank of the Chinese Academy of Sciences (Beijing, China) and were cultured in DMEM supplemented with heat-inactivated FBS (10%), 100 U/ml penicillin, and 100 g/ml streptomycin. The cells were incubated in a humidified incubator aerated with 5% CO2 at 37°C. Hyperin was dissolved in dimethyl sulfoxide (DMSO), and the DMSO content in all groups was <0.1%. Prior to treatment, the cells were incubated with serum-free medium for 24 h and randomly assigned to three groups: a 'control group', an 'H2O2-exposed group', and a 'hyperin-treated group'. The cells in the hyperin group were treated with designated concentrations of hyperin for 24 h prior to 200 μmol/l H2O2 exposure for 4 h in fresh medium.

Cell viability assay

Cell viability was evaluated using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. Briefly, EA.hy926 cells (in logarithmic phase) were seeded into 96-well plates (1×104 cells/well) and cultured for 24 h. The medium was then replaced with fresh medium for the different treatments. Each concentration of reagent was added to the culture fluid of six parallel wells and a blank well was used as a control. Subsequently, 10 μl of 5 mg/ml MTT in phosphate-buffered saline (PBS) was added to each well and the cells were further incubated for 4 h. The culture medium was then carefully removed and DMSO (100 μl/well) was added to dissolve the formazan precipitate. The plates were shaken for 10 min. Optical density was read at 570 nm (490 nm as reference) on a universal microplate reader (Model 680; Bio-Rad Laboratories, Inc., Hercules, CA, USA). The viability of the EA.hy926 cells in each well was expressed as a percentage of the viable control cells.

Protein extraction and labeling with iTRAQ reagents

The cells of each experimental group were collected by centrifugation (138 × g for 5 min) and washed twice with PBS. Protein extracts were prepared using lysis buffer (8 mol/l urea, 30 mmol/l HEPES, 1 mmol/l PMSF, 2 mmol/l EDTA, 10 mmol/l DTT). The protein concentration was estimated using a Bradford assay. iTRAQ labeling was performed according to the manufacturer's instructions (Applied Biosystems/MDS SCIEX, Toronto, ON, Canada). Briefly, 100 μg of each protein sample was reduced, alkylated and subjected to trypsin hydrolysis. Each sample was labeled separately with the isobaric tags as follows: control group (114 tags), H2O2 group (115 tags), and hyperin group (116 tags). All labeled peptides were pooled and dried in a SpeedVac (Thermo Fisher Scientific, Waltham, MA, USA.

High-pH reversed-phase chromatography

The combined iTRAQ-labeled samples were dissolved in 200 μl buffer A [25% acetonitrile (ACN), 10 mmol/l KH2PO4, pH 3.0, with phosphoric acid]. The proteins were separated on a Luna SCX column (4.6×250 mm, 100-Å pore size; Phenomenex, Inc., Torrance, CA, USA) with buffers A and B (buffer b: 25% ACN, 2 mol KCl, 10 mmol/l KH2PO4, pH 3.0, with phosphoric acid) at a flow rate of 400 nl/min. A solvent gradient system was used as follows: 0–35 min, 0% B; 35–36 min, 0–5% B; 36–56 min, 5–30% B; 56–61 min, 30–50% B; 61–66 min, 50% B; 66–71 min, 50–100% B; 71–81 min, 100% B. Elution was monitored by measuring absorbance at 214 nm and fractions were collected every 1 min. The collected eluents were lyophilized to powder and resuspended in 0.1% (v/v) trifluoroacetic acid (TFA; 40 μl) for further desalting and concentration using a Strata-X C18 cartridge (Phenomenex, Torrance, CA, USA). The desalted samples were lyophilized to powder.

Liquid chromatography-tandem mass spectrometry (LC-MS/MS)

In this study, iTRAQ-labeled samples were redissolved in 6 μl eluent buffer A [0.1% formic acid (FA) in water, v/v]. Each of the fractions was analyzed three times using a Q-Exactive Orbitrap mass spectrometer (Thermo Fisher Scientific). A flow rate of 400 nl/min was used for protein separation on a C18 capillary column (Michrom Bioresources, Inc., Auburn, CA, USA). A solvent gradient system was used: 0–10 min, 5% B (0.1% FA in ACN); 10–40 min, 5–30% B; 40–45 min, 30–60% B; 45–48 min, 60–80% B; 48–55 min, 80% B; 55–58 min, 80–5% B; 58–65 min, 5% B. A full MS scan (350–2,000 m/z range) was acquired in the Orbitrap at a mass resolution of 70,000. A maximum of 10 precursors per cycle were then chosen for fragmentation by high-energy collision dissociation (HCD) in the C-trap in linear trap quadrupole with an isolation width of 3.0 m/z. Precursor ion activation was performed with an isolation width of 2.5 Da. The ion transfer tube temperature and spray voltage were 320°C and 1.8 kV, respectively.

Protein analysis

For protein identification, MS/MS spectra were analyzed using Proteome Discoverer software v. 1.3 (PD; Thermo Fisher Scientific). The precursor ion mass range was set at 350–6,000 Da. The minimum number of peaks in a spectrum was set to 10, and the threshold for the S/N ratio was set to 1.5. Next, the MS spectra were searched using Mascot 2.3.0 (Matrix Science, London, UK) with precursor mass tolerance at 15 ppm, fragment ion mass tolerance at 20 mmu, trypsin enzyme with 1 miscleavage, methyl methanethiosulfonate of cysteine and iTRAQ 8-plex of lysine and the NH2-terminus as fixed modifications, and deamidation of asparagine and glutamine, oxidation of methionine and iTRAQ 8-plex of tyrosine as variable modifications. Protein identifications were accepted at 95% or higher probability and contained at least two identified peptides with a false discovery rate (FDR) <1%. The peptides were quantified using PD software. Tagged samples were normalized by comparing median protein ratios for the reference channel. Protein quantitative ratios were calculated from the median of all peptide ratios. The proteins with a relative expression of >1.2 or <0.8, and with P<0.05 to ensure up- and downregulation authenticity, were chosen for further analysis. Protein sequences and functional information were retrieved from the UniProt databases ( For further analysis, functional annotation analysis of altered proteins was carried out using DAVID annotation software ( and the KEGG database ( by importing GenInfo (GI) numbers.

Western blot analysis

Following treatment with various concentrations of hyperin and/or H2O2 as described above, the EA.hy926 cells were harvested and washed with PBS. Protein extracts were prepared with RIPA buffer (Beyotime Institute of Biotechnology, Shanghai, China). Protein concentration was estimated using a bicinchoninic acid (BCA) protein assay kit (Sangon Biotech, Shanghai, China). For western blot analysis, equal amounts of protein (50 μg) were separated on 12% sodium dodecyl (SDS)-polyacrylamide gels and electrotransferred onto nitrocellulose membranes (PALL Gelman Laboratory, Ann Arbor, MI, USA) that were blocked in 5% non-fat milk. The membranes were incubated overnight at 4°C with primary antibodies. After three washes with Tris-buffered saline containing 0.05% Tween-20 (TBS-T), the membranes were incubated for 1 h with horseradish peroxidase (HRP)-conjugated goat anti-rabbit IgG secondary antibody at room temperature. The bands were visualized using an ECL detection kit (CoWin Biotech, Beijing, China). Quantification of the bands was performed by densitometric analysis using the Adobe Photoshop 7.0.1 software (Adobe Systems, Inc., San Jose, CA, USA).

Flow cytometric analysis

Quantitative detection of apoptotic cells and analysis of cell cycle distribution in the cultures were undertaken using flow cytometry. The EA.hy926 cells treated with different concentrations of hyperin and/or exposed to 200 μmol/l H2O2 were collected by centrifugation (138 × g for 5 min) and cell density was adjusted to 1×105 cells/ml. The cells were washed twice with cold PBS and centrifuged (138 × g for 5 min). The pellets were fixed overnight in pre-cooled 70% (v/v) ethanol at 4°C, and then washed with cold PBS. The cells were suspended in 1 ml of propidium iodide solution (20 mg/ml) supplemented with 0.25 mg/ml RNase A and 0.1% (v/v) Triton X-100, and incubated on ice for 30 min in the dark. The samples were analyzed with a FACSCalibur flow cytometer (BD Biosciences, San Jose, CA, USA).

Statistical analysis

Each experiment was performed at least 3 times. All data are expressed as the means ± SD. Statistical analysis was performed using a Student's t-test and SPSS 18.0 software (SPSS Inc., Chicago, IL, USA). A P-value <0.05 was considered to indicate a statistically significant difference.


Hyperin protects EA.hy926 cells against H2O2-induced cell death

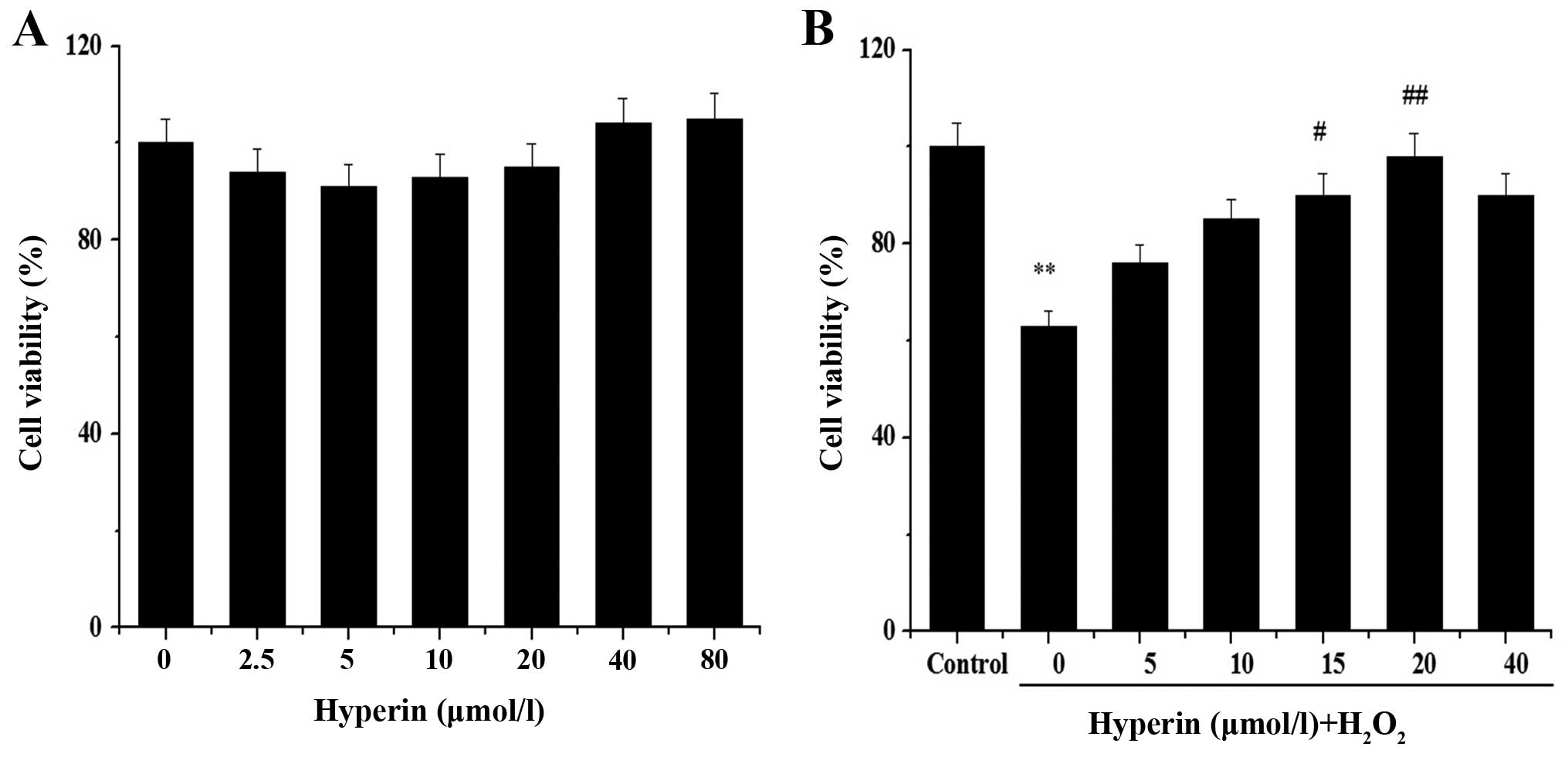

We assessed whether hyperin protects EA.hy926 cells against the effect of H2O2 by MTT assay. No obvious cytotoxicity in untreated cells was noted, nor was obvious cytoxicity noted in cells treated with hyperin at concentrations in the range of 2.5–80 μmol/l (Fig. 2A). We also noted that hyperin exerted a protective effect on H2O2-injured cells in a dose-dependent manner (Fig. 2B). When the cells were treated with 20 μmol/l hyperin, cell viability was restored to 98%. Therefore, this concentration was selected for subsequent proteomic analysis.

Hyperin protects EA.hy926 cells against H2O2-induced changes in the proteome

A total of 3,640 proteins were identified using iTRAQ, of which 250 were altered by H2O2 (data not shown); the 250 proteins were functionally classified into various relevant categories such as transition metal ion-binding, zinc ion-binding and transferase activity, which are mainly involved in regulating cellular component organization, growth, cytoskeleton organization, and response to stimulus, using the NCBI online database and DAVID software platform; the most significantly up- and downregulated proteins are shown in Fig. 3. Further analysis of the pathways and networks revealed that the regulated proteins were mainly involved in apoptosis, inositol phosphate metabolism and vitamin B6 metabolism.

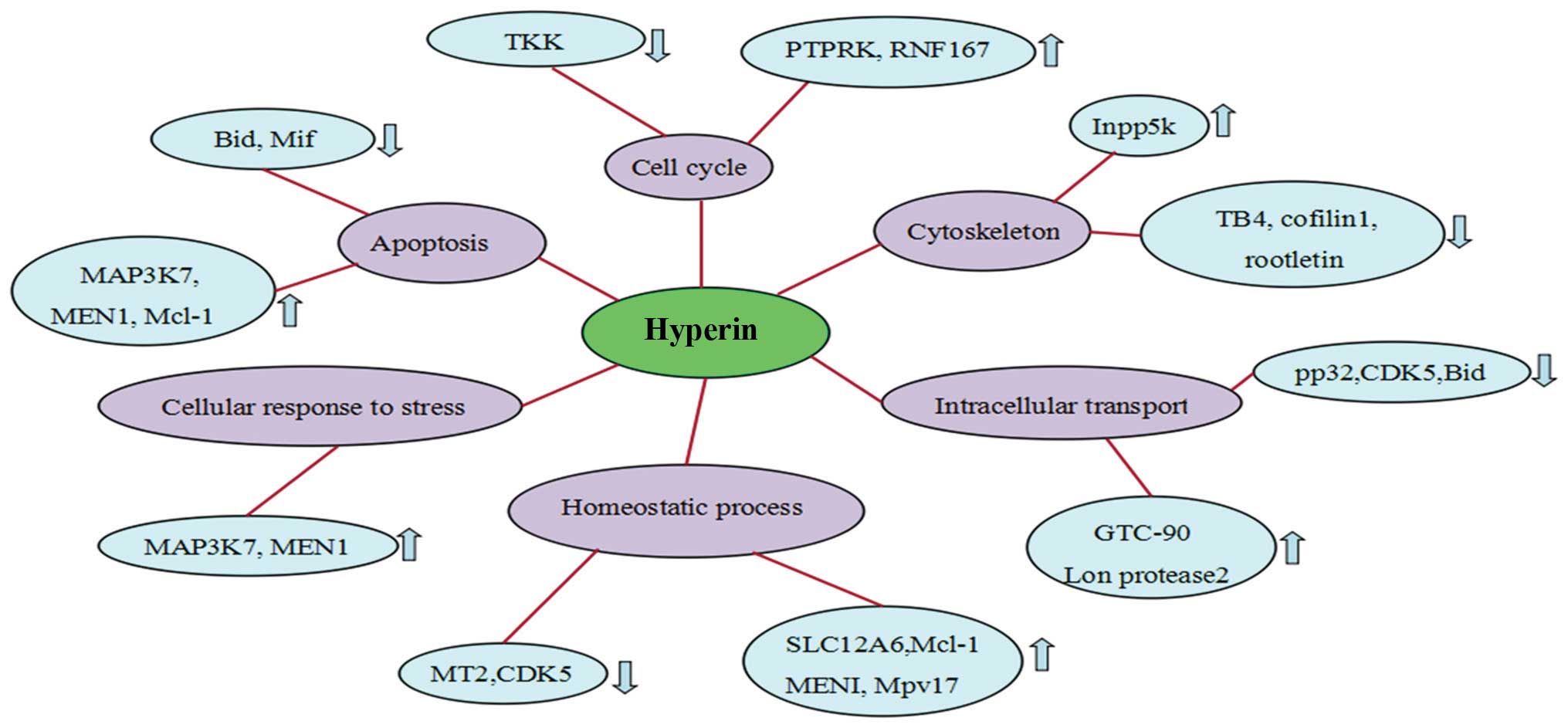

Following treatment with hyperin, of the 250 proteins that exhibited altered expression upon H2O2 exposure, 52 revealed a tendency towards restoration of the expression levels (Table I). Compared with the H2O2 group, 28 proteins were downregulated and 24 were upregulated. These proteins were associated with apoptosis, cell cycle and cytoskeleton organization.

Table I

List of differentially expressed proteins.

Table I

List of differentially expressed proteins.

AccessionaDescriptionMW [kDa]bCalc. pIc115/114d116/115e
P68402Platelet-activating factor acetylhydrolase IB subunit β25.65.921.7670.610
P33981Dual specificity protein kinase TTK978.161.7330.647
Q6NSJ5Leucine-rich repeat-containing protein 8E90.26.961.6530.555
O60518Ran-binding protein 6124.65.011.6390.603
Q6PJG6BRCA1-associated ATM activator
P55957BH3-interacting domain death agonist225.441.4160.691
Q9BVK2Probable dolichyl pyrophosphate Glc1Man9GlcNAc2 α-1,3-glucosyltransferase609.141.4160.691
Q8IUC8Polypeptide N-acetylgalactosaminyltransferase 13646.831.3850.791
P02795 Metallothionein-267.831.3610.685
P04732 Metallothionein-1E67.961.2940.798
Q71U36Tubulin α-1A chain50.15.061.2900.654
P62328Thymosin β-455.061.2710.780
P51858Hepatoma-derived growth factor26.84.731.2630.817
P14174Macrophage migration inhibitory factor12.57.881.2410.808
Q92688Acidic leucine-rich nuclear phosphoprotein 32 family member B28.84.061.2320.810
O60232Sjoegren syndrome/scleroderma autoantigen
Q3MJ13WD repeat-containing protein 72123.36.671.2300.821
Q3YEC7Rab-like protein 679.55.221.2300.783
P39687Acidic leucine-rich nuclear phosphoprotein 32 family member A28.64.091.2200.768
Q00535Cyclin-dependent kinase 533.37.661.2180.755
Q15147 1-Phosphatidylinositol 4,5-bisphosphate phosphodiesterase β-4134.46.91.2170.729
Q8NCW5NAD(P)H-hydrate epimerase31.77.661.2060.807
P00338L-lactate dehydrogenase A chain36.78.271.2020.798
O43318Mitogen-activated protein kinase kinase kinase 767.27.110.8331.244
Q9H6Y7E3 ubiquitin-protein ligase RNF16738.35.630.8241.233
Q04756Hepatocyte growth factor activator70.67.240.8201.284
Q9UP83Conserved oligomeric Golgi complex subunit 592.76.60.8061.224
Q8IWE4DCN1-like protein 334.35.120.7961.280
Q9UBR2Cathepsin Z33.87.110.7941.219
P0CG39POTE ankyrin domain family member J117.35.970.7831.311
Q9Y67628S ribosomal protein S18b, mitochondrial29.49.380.7791.259
Q9UMR5Lysosomal thioesterase PPT234.26.330.7691.227
Q9BT40Inositol polyphosphate 5-phosphatase K51.16.540.7471.200
P42356 Phosphatidylinositol 4-kinase α231.26.870.7331.404
P39210Protein Mpv1719.79.470.7301.201
Q9H330Transmembrane protein 245100.98.870.7131.369
Q68CQ4Digestive organ expansion factor homolog37.35.660.7051.234
Q9P2K3REST corepressor 3875.880.6921.428
Q6PJF5Inactive rhomboid protein
Q9UHW9Solute carrier family 12 member 61010.55.530.6111.366
Q63HN8E3 ubiquitin-protein ligase RNF213127.57.080.6041.515
Q86UB9Transmembrane protein 1355916.480.5871.958
Q92560Ubiquitin carboxyl-terminal hydrolase BAP152.39.450.4531.938
Q86WA8Lon protease homolog 2, peroxisomal80.36.840.4421.352
Q07820Induced myeloid leukemia cell differentiation protein Mcl-
Q8TE02Elongator complex protein 534.84.970.7721.217

{ label (or @symbol) needed for fn[@id='tfn1-ijmm-37-04-1083'] } Differentially expressed proteins.

a Swiss-Prot accession number;

b MW, molecular weight of the matched protein in kDa;

c pI, isoelectric point of the matched protein;

d fold-changes of the proteins in the H2O2 vs. control groups;

e fold-changes of the proteins in the hyperin vs. H2O2 groups.

Bid and Mcl-1 protein expression

An examination of Bid and Mcl-1 expression after the iTRAQ experiment demonstrated marked changes. Therefore, the results were validated by western blot analysis, as shown in Fig. 4. Compared with the H2O2-exposed group, Bid expression in the hyperin-treated groups was significantly decreased, while Mcl-1 expression was significantly increased. In both cases, the effect was dose-dependent. The results were in agreement with those of the proteomics analysis.

Hyperin protects EA.hy926 cells against H2O2-induced cell cycle arrest

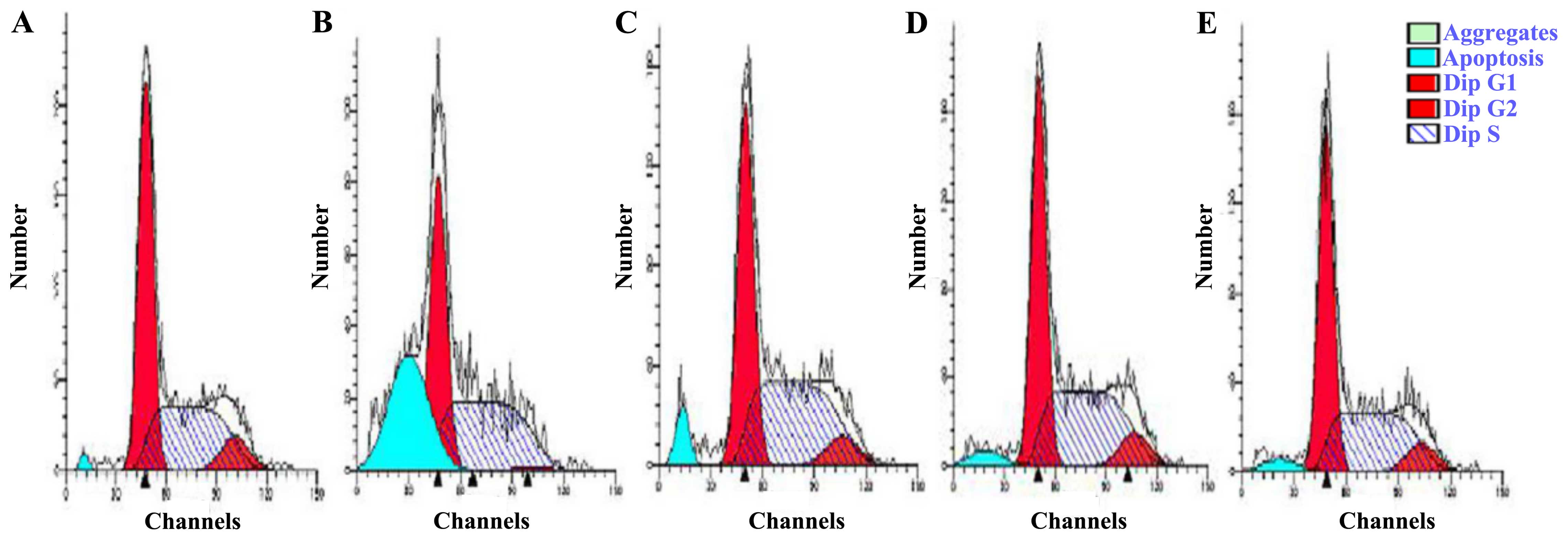

We further analyzed the effect of H2O2 and hyperin on apoptosis and cell cycle distribution by flow cytometry. The group exposed to 200 μmol/l H2O2 exhibited a higher rate of apoptosis (30.83%) than the control group (1.32%) (Fig. 5). Treatment with hyperin at 10, 15 or 20 μmol/l resulted in decreased accumulation of apoptotic cells at the sub-G peak compared with that in the H2O2-exposed group. The percentage of cells in the G0/G1 phase was increased in the H2O2-exposed group; however, it decreased in the hyperin group in a dose-independent manner. The results indicated that the cells were blocked in the G0/G1 phase following H2O2 treatment and that hyperin reduced the number of cells in cycle arrest, thereby reducing damage.

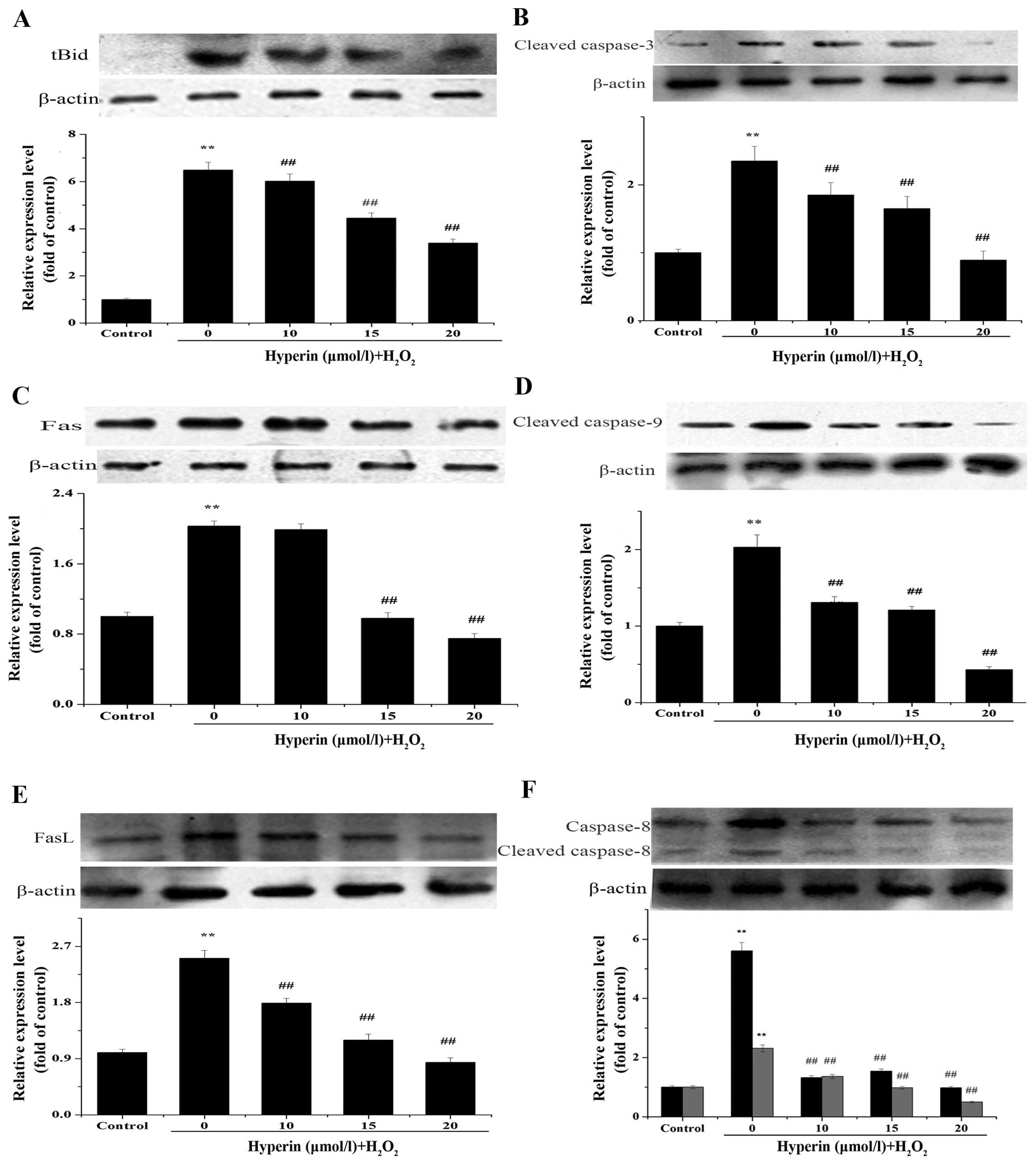

Expression of tBid, Fas, FasL, cleaved caspase-3, -8 and -9

Fas, FasL, cleaved caspase-3, -8, -9 play important roles in apoptosis. tBid is the cleaved form of Bid and is involved in the mitochondrial apoptotic pathway (22,23). The expression of these proteins was assayed by western blot analysis to clarify the role of the Bid- and Mcl-1-mediated apoptosis mechanism in H2O2-injured EA.hy926 cells and the effect of hyperin. As shown in Fig. 6A–F, hyperin significantly decreased the relative expression of these proteins compared to that in the H2O2 group, in a dose-dependent manner.


In our previous study (10), we found that hyperin exerted protective effects against H2O2-induced cell injury and cell cycle arrest, and decreased the accumulation of apoptotic cells at the sub-G peak, as was also demonstrated in the present study. In this study we aimed to further investigate the mode of action of hyperin using iTRAQ-based proteomic analysis. A total of 3,640 proteins were identified, of which 250 were found to be altered by H2O2; after treatment with hyperin, 52 of these proteins exhibited a tendency towards normal expression (see Table I). These proteins were associated with multiple biological processes including apoptosis, cell cycle, and cytoskeleton organization. The results of the MTT assay and flow cytometric analysis revealed that hyperin protects endothelial cells from cell apoptosis and death induced by H2O2. Therefore, we focused on the effect of hyperin on apoptosis. The functional roles of the proteins with altered expression levels following treatment with hyperin, which were found to be associated with apoptosis by iTRAQ analysis, are briefly discussed below.

In the present study, mitogen-activated protein kinase kinase kinase 7 (MAP3K7) and receptor-type tyrosine-protein phosphatase-kappa (PTPRK) expression was upregulated following hyperin treatment (Fig. 3), indicating that hyperin inhibits H2O2-induced apoptosis in the EA.hy926 cells. MAP3K7 acts as an essential component of the MAPK signal transduction pathway, which plays an important role in the oxidative stress response (13). Also, it is a crucial modulator of angiogenesis, and it has been demonstrated that MAP3K7 deletion is marked by TNF-dependent endothelial cell death and vessel regression (14). PTPRK regulates various processes, including cell growth, tumor invasion, cell cycle, and metastasis. Previous research has found that knockdown of PTPRK resulted in increased apoptosis through the c-Jun N-terminal kinase (JNK) pathway (15).

By contrast, the expression of macrophage migration inhibitory factor (Mif), and cofilin 1 (CFL1) in response to H2O2 was downregulated in hyperin-treated cells (Fig. 3). Mif is an inflammatory cytokine with chemokine-like functions, which has the capacity to induce apoptosis and cell dysfunction (16). Schumacher et al have reported that an increased level of Mif is associated with thrombosis (17), and that it plays a pivotal role in regulating platelet survival and thrombotic potential (18). CFL1 plays an important role in the regulation of cell morphology and cytoskeletal organization. A previous study has implied that mitochondrial translocation of CFL1 plays a crucial role in the promotion of apoptosis (19). Our findings suggested that the downregulation of Mif and CFL1 participates in the antithrombotic effect of hyperin.

iTRAQ proteomic analysis revealed marked changes in the expression of the anti-apoptotic protein, Mcl-1, and the pro-apoptotic protein, Bid. However, the mechanism underlying Bid- and Mcl-1-mediated apoptosis remains unclear and requires further study.

Mcl-1 is an outer mitochondrial membrane-bound protein of the Bcl-2 family that has a BH3-like domain, and plays an important role in the anti-apoptotic process (20). It has been shown to inhibit cell death by suppressing the release of cytochrome c from the mitochondria, through binding and sequestering the pro-apoptotic proteins, Bak and Bax, on the outer mitochondrial membrane in EA.hy926 cells (21). By contrast, Bid is the only pro-apoptotic protein with a BH3 domain and is involved in the Fas and TNF signaling pathways (22). tBid is known to facilitate Bax translocation to the mitochondria, triggering the release of cytochrome c from the mitochondria (23). In the present study, we found for the first time to the best of our knowledge, that hyperin induces an increase in the level of Mcl-1 and a decrease in Bid, in response to H2O2, in a dose-dependent manner. Furthermore, similar to Bid expression, the levels of the apoptosis-related proteins tBid, Fas, FasL, cleaved caspase-8, -9 and -3 induced by H2O2 exposure were significantly decreased after treatment with hyperin. These data are in agreement with previous reseacrh which demonstrated that the apoptotic pathway is initiated by Fas and FasL, with sequential activation of the initiator caspase-8 and Bid in the cells damaged by H2O2 (24). Bid is then cleaved into tBid, resulting in the release of cytochrome c from mitochondria into the cytosol. Cytochrome c binds to apoptotic protease activating factor-1 (Apaf-1) and then recruits caspase-9 to form the apoptosome complex. This complex results in the activation of caspase-3 and execution of cell death (25). This process is regulated by anti-apoptotic proteins such as Mcl-1 and Bcl-2, and proapoptotic proteins such as tBid (26,27). Our present findings indicated that hyperin blocks the Bid- and Mcl-1-mediated apoptotic pathways that are involved in H2O2-induced apoptosis in EA.hy926 cells.

In conclusion, we systematically examined and compared the proteomic profiles of untreated, H2O2-exposed, and hyperin pre-treated EA.hy926 cells for the first time, to the best of our knowledge. The results demonstrate that hyperin effectively prevents H2O2-induced cell injury through regulation of the Mcl-1- and Bid-mediated anti-apoptotic mechanism. Our findings suggest that hyperin is a promising candidate for use in the treatment of thrombotic diseases.


This study was financially supported by the National Natural Science Foundation of China (grant nos. 81274132 and 81172938). We are grateful to Editage for providing editorial assistance.



Versari D, Daghini E, Virdis A, Ghiadoni L and Taddei S: Endothelial dysfunction as a target for prevention of cardiovascular disease. Diabetes Care. 32(Suppl 2): S314–S321. 2009. View Article : Google Scholar : PubMed/NCBI


Triggle CR, Samuel SM, Ravishankar S, Marei I, Arunachalam G and Ding H: The endothelium: influencing vascular smooth muscle in many ways. Can J Physiol Pharmacol. 90:713–738. 2012. View Article : Google Scholar : PubMed/NCBI


Choy JC, Granville DJ, Hunt DW and McManus BM: Endothelial cell apoptosis: biochemical characteristics and potential implications for atherosclerosis. J Mol Cell Cardiol. 33:1673–1690. 2001. View Article : Google Scholar : PubMed/NCBI


Aird WC: Endothelium and haemostasis. Hamostaseologie. 35:11–16. 2015. View Article : Google Scholar : PubMed/NCBI


Middleton E Jr, Kandaswami C and Theoharides TC: The effects of plant flavonoids on mammalian cells: implications for inflammation, heart disease, and cancer. Pharmacol Rev. 52:673–751. 2000.PubMed/NCBI


Wang WQ, Ma CG and Xu SY: Protective effect of hyperin against myocardial ischemia and reperfusion apoptosis. Acta Pharmacol Sin. 17:341–344. 1996.


Bernatoniene J, Trumbeckaite S, Majiene D, Baniene R, Baliutyte G, Savickas A and Toleikis A: The effect of crataegus fruit extract and some of its flavonoids on mitochondrial oxidative phosphorylation in the heart. Phytother Res. 23:1701–1707. 2009. View Article : Google Scholar : PubMed/NCBI


Li ZL, Liu JC, Hu J, Li XQ, Wang SW, Yi DH and Zhao MG: Protective effects of hyperoside against human umbilical vein endothelial cell damage induced by hydrogen peroxide. J Ethnopharmacol. 139:388–394. 2012. View Article : Google Scholar


Müller WE, Singer A, Wonnemann M, Hafner U, Rolli M and Schäfer C: Hyperforin represents the neurotransmitter reuptake inhibiting constituent of hypericum extract. Pharmacopsychiatry. 31(Suppl 1): 16–21. 1998. View Article : Google Scholar : PubMed/NCBI


Hao XL: Study on the substance bases of anti-thrombi activity and the mechanism of anti-apoptosis of human umbilical vein endothelial cells of total flavonoids from Folium Apocyni Veneti. Ph.D thesis. Shanxi Medical University; 2009, In Chinese.


Ross PL, Huang YN, Marchese JN, Williamson B, Parker K, Hattan S, Khainovski N, Pillai S, Dey S, Daniels S, et al: Multiplexed protein quantitation in Saccharomyces cerevisiae using amine-reactive isobaric tagging reagents. Mol Cell Proteomics. 3:1154–1169. 2004. View Article : Google Scholar : PubMed/NCBI


Aggarwal K, Choe LH and Lee KH: Shotgun proteomics using the iTRAQ isobaric tags. Brief Funct Genomics Proteomics. 5:112–120. 2006. View Article : Google Scholar


Lim D, Roh JY, Eom HJ, Choi JY, Hyun J and Choi J: Oxidative stress-related PMK-1 P38 MAPK activation as a mechanism for toxicity of silver nanoparticles to reproduction in the nematode Caenorhabditis elegans. Environ Toxicol Chem. 31:585–592. 2012. View Article : Google Scholar


Morioka S, Inagaki M, Komatsu Y, Mishina Y, Matsumoto K and Ninomiya-Tsuji J: TAK1 kinase signaling regulates embryonic angiogenesis by modulating endothelial cell survival and migration. Blood. 120:3846–3857. 2012. View Article : Google Scholar : PubMed/NCBI


Sun PH, Ye L, Mason MD and Jiang WG: Receptor-like protein tyrosine phosphatase κ negatively regulates the apoptosis of prostate cancer cells via the JNK pathway. Int J Oncol. 43:1560–1568. 2013.PubMed/NCBI


Stojanovic I, Saksida T, Timotijevic G, Sandler S and Stosic-Grujicic S: Macrophage migration inhibitory factor (MIF) enhances palmitic acid- and glucose-induced murine beta cell dysfunction and destruction in vitro. Growth Factors. 30:385–393. 2012. View Article : Google Scholar : PubMed/NCBI


Schumacher E, Vigh E, Molnár V, Kenyeres P, Fehér G, Késmárky G, Tóth K and Garai J: Thrombosis preventive potential of chicory coffee consumption: a clinical study. Phytother Res. 25:744–748. 2011. View Article : Google Scholar : PubMed/NCBI


Chatterjee M, Borst O, Walker B, Fotinos A, Vogel S, Seizer P, Mack A, Alampour-Rajabi S, Rath D, Geisler T, et al: Macrophage migration inhibitory factor limits activation-induced apoptosis of platelets via CXCR7-dependent Akt signaling. Circ Res. 115:939–949. 2014. View Article : Google Scholar : PubMed/NCBI


Tang Q, Ji Q, Tang Y, Chen T, Pan G, Hu S, Bao Y, Peng W and Yin P: Mitochondrial translocation of cofilin-1 promotes apoptosis of gastric cancer BGC-823 cells induced by ursolic acid. Tumour Biol. 35:2451–2459. 2014. View Article : Google Scholar


Yang T, Kozopas KM and Craig RW: The intracellular distribution and pattern of expression of Mcl-1 overlap with, but are not identical to, those of Bcl-2. J Cell Biol. 128:1173–1184. 1995. View Article : Google Scholar : PubMed/NCBI


Shimazu T, Degenhardt K, Nur-E-Kamal A, Zhang J, Yoshida T, Zhang Y, Mathew R, White E and Inouye M: NBK/BIK antagonizes MCL-1 and BCL-XL and activates BAK-mediated apoptosis in response to protein synthesis inhibition. Genes Dev. 21:929–941. 2007. View Article : Google Scholar : PubMed/NCBI


Luo X, Budihardjo I, Zou H, Slaughter C and Wang X: Bid, a Bcl2 interacting protein, mediates cytochrome c release from mitochondria in response to activation of cell surface death receptors. Cell. 94:481–490. 1998. View Article : Google Scholar : PubMed/NCBI


Li H, Zhu H, Xu CJ and Yuan J: Cleavage of BID by caspase 8 mediates the mitochondrial damage in the Fas pathway of apoptosis. Cell. 94:491–501. 1998. View Article : Google Scholar : PubMed/NCBI


Inagaki M, Omori E, Kim JY, Komatsu Y, Scott G, Ray MK, Yamada G, Matsumoto K, Mishina Y and Ninomiya-Tsuji J: TAK1-binding protein 1, TAB1, mediates osmotic stress-induced TAK1 activation but is dispensable for TAK1-mediated cytokine signaling. J Biol Chem. 283:33080–33086. 2008. View Article : Google Scholar : PubMed/NCBI


Chun KH, Benbrook DM, Berlin KD, Hong WK and Lotan R: The synthetic heteroarotinoid SHetA2 induces apoptosis in squamous carcinoma cells through a receptor-independent and mitochondria-dependent pathway. Cancer Res. 63:3826–3832. 2003.PubMed/NCBI


Gogvadze V, Orrenius S and Zhivotovsky B: Multiple pathways of cytochrome c release from mitochondria in apoptosis. Biochim Biophys Acta. 1757:639–647. 2006. View Article : Google Scholar : PubMed/NCBI


Yin XM: Signal transduction mediated by Bid, a pro-death Bcl-2 family proteins, connects the death receptor and mitochondria apoptosis pathways. Cell Res. 10:161–167. 2000. View Article : Google Scholar : PubMed/NCBI
