Introduction

Colorectal cancer is one of the most common types of malignant cancer worldwide (1). Worldwide, colorectal cancer ranks third among malignant tumor types in morbidity and mortality for male and female populations (2). In China, with the continuous improvement of living standards and changes in dietary habits, the morbidity of colorectal cancer is also increasing (3). At present, surgery remains the primary treatment for colorectal cancer, and the majority of patients experience tumor relapse and/or metastasis (4). Postoperative colorectal cancer liver metastasis is the leading cause of mortality (5). Postoperative chemotherapy has improved survival rates, but the use of chemotherapy drugs is constrained by their side effects (6,7). Therefore, an important topic in the field of colorectal cancer study is the identification of safe and affordable antitumor drugs with minor side effects.

Ginkgo biloba L., also known as ginkgo, is the oldest existing seed plant (8) and is widely distributed in China. Ginkgolic acid is a phenolic acid (a 6-alkyl or 6-alkenyl derivative of salicylic acid) that has been identified in ginkgo fruit, ginkgo exotesta, and ginkgo leaves (9). It has several monomer structures, and the monomers C13:0, C15:0, and C17:1 demonstrate antitumor activity (10). Several previous studies have indicated that ginkgolic acid inhibits tumor growth and invasion in a number of cancer types, including pancreatic, liver, laryngeal and breast cancer (11–13). However, to the best of our knowledge, no studies have been conducted to investigate the effects of ginkgolic acid on colon cancer cells.

Adenosine 5′-monophosphate activated protein kinase (AMPK), a serine/threonine protein kinase, is an intracellular energy sensor (14). Activating the AMPK pathway may be an important mechanism for the antitumor effects of ginkgolic acid (11). Epidemiological data demonstrates that metformin, an established AMPK activator, significantly reduces the risk of colon cancer in patients with diabetes (15–17) and promotes the apoptosis of colon cancer cells (18). Therefore, the present study hypothesized that the botanical substance ginkgolic acid may inhibit the biological activity of colon cancer cells by activating the AMPK pathway. In the present study, SW480 human colon cancer cells were used as target cells to investigate the effects of ginkgolic acid on the clonal proliferation, migration and invasion of cancer cells in vitro, and to investigate potential molecular mechanisms.

Materials and methods

Cell culture and reagents

Human colorectal cancer SW480 cells were purchased from the Institute of Biochemistry and Cell Biology Cell Bank (Shanghai Institutes for Biological Sciences, Chinese Academy of Sciences, Shanghai, China). Adherent SW480 cells were cultured in RPMI-1640 medium (Hyclone; GE Healthcare, Chicago, IL, USA) containing 10% fetal bovine serum (FBS, Hyclone; GE Healthcare), 100 µg/ml penicillin and 100 µg/ml streptomycin in a humidified incubator at 5% CO2 and 37°C throughout the study. MTT, ginkgolic acid (C15:1; C22H34O3; molecular weight, 346.50), and dimethyl sulfoxide (DMSO) were purchased from Sigma-Aldrich; Merck KGaA (Darmstadt, Germany). Radioimmunoprecipitation assay protein lysis buffer was purchased from the Beyotime Institute of Biotechnology (Haimen, China). Information regarding the antibodies used in the present study is summarized in Table I. Ginkgolic acid was dissolved in methanol to prepare a 1 mmol/l stock solution, which was sterilized via filtration with a 0.22 µm membrane filter (EMD Millipore, Billerica, MA, USA) and stored in the dark at −20°C. A working solution was diluted with RPMI-1640 immediately prior to use.

Table I. Antibodies used in the present study.

Table I.

Antibodies used in the present study.

Antibody	Catalog number	Dilution	Company
Rabbit anti-uPA	17968-1-AP	1:500	ProteinTech Groups, Inc., Chicago, IL, USA
Rabbit anti-MMP-9	10375-2-AP	1:800
Rabbit anti-MMP-2	10373-2-AP	1:800
Rabbit anti-CXCR4	ab2074	1:1,000	Abcam, Cambridge, UK
Rabbit anti-AMPK	#2532	1:800	Cell Signaling Technology, Inc., Danvers, MA, USA
Rabbit anti-p-AMPK	#2535	1:1,000
Mouse anti-β-actin	sc-47778	1:2,000	Santa Cruz Biotechnology, Inc., Dallas, TX, USA
Goat anti-rabbit IgG-HRP	sc-2004	1:10,000
Goat anti-mouse IgG-HRP	sc-2005	1:10,000

[i] uPA, urinary-type plasminogen activator; MMP, matrix metalloproteinase; CXCR4, C-X-C chemokine receptor 4; AMPK, adenosine 5′-monophosphate-activated protein kinase; p, phosphorylated; HRP, horseradish peroxidase.

Cell proliferation assay

Tetrazolium dye-based MTT assays were performed to investigate the effect of ginkgolic acid on the proliferation of SW480 cells. SW480 cells in the exponential growth phase were harvested and seeded into 96-well plates at a density of 5×103 cells/well. Cells were starved with RPMI-1640 containing 1% FBS overnight once they had adhered to plates. Next, cells were treated with different concentrations of ginkgolic acid (0, 5, 10, 20 and 50 µmol/l) or 25 mg/l 5-Fu (5-FU concentration was chosen based on a previous in-house determination of the 5-FU IC50, data not shown) and cultured for 12, 24, 36 or 48 h. A total of 20 µl MTT solution (5 mg/ml) was added into each well, and the cells were incubated at 37°C for 4 h. The supernatant was carefully aspirated and discarded, and 150 µl of DMSO was added into each well. The plates were placed on a shaker for 15 min, and the optical density (OD) at 490 nm was measured for each well on a microplate reader (Bio-Rad Laboratories, Hercules, CA, USA).

Wound-scratch assay

SW480 cells in the exponential growth phase were harvested, and the cell density was adjusted to 1×106 cells/ml; 500 µl cell suspension was added into each well of 24-well plates, and the cells were cultured to 100% confluence. A 200-µl sterile pipette tip was used to scratch the bottom of the wells, the medium was discarded and the wells were washed three times with sterile PBS to remove scratched cells. Next, serum-free medium containing 0 µmol/l (the control group) or 10 µmol/l ginkgolic acid was added, the plates were placed in an incubator at 37°C with 5% CO2, and images (magnification, ×40) of the same spot were captured at 0 and 36 h under an inverted microscope (Nikon Instruments Inc., Tokyo, Japan). Each group included 3 duplicates.

Matrigel-invasion assay

SW480 cells were treated with different concentrations (0, 10 and 20 µmol/l) of ginkgolic acid for 24 h, harvested, centrifuged at 100 × g for 5 min at room temperature and resuspended in serum-free medium at ~2.5×105 cells/ml. Matrigel-coated Transwell chambers were placed in 24-well plates; 200 µl cell suspension (~5.0×104 cells) was added into each well in the upper chamber, and 500 µl medium containing 10% FBS was added to the lower chamber. Subsequent to incubation for 48 h, the chamber was removed, the medium in the upper chamber was discarded and a cotton swab was used to wipe cells on the polycarbonate membrane that did not cross the membrane. Next, the chamber was stained with 0.5% crystal violet solution (prepared with 0.1% methanol) at room temperature for 30 min, washed with tap water and observed under an inverted microscope (magnification, ×200). The number of cells that migrated to the underside of the membrane was counted. The group treated with 0 µmol/l ginkgolic acid was used as the control group. A total of 10 fields of view were counted in each group, and the mean value was used for subsequent analysis. Each group included 3 duplicates, and the experiment was repeated 3 times.

Reverse transcription quantitative polymerase chain reaction (RT-qPCR)

Following treatment with different concentrations (0, 10 and 20 µmol/l) of ginkgolic acid for 24 h, total RNA was extracted from the SW480 cells according to the protocol of the manufacturer of the RNA extraction kit (Thermo Fisher Scientific, Inc., Waltham, MA, USA). A total of 2 µl RNA was used for cDNA synthesis with a reverse transcription kit (Takara Biotechnology Co., Ltd., Dalian, China). A total of 1 µl reverse transcription reaction solution was used as the template in a 20 µl-reaction system for qPCR using a SYBR Green Real-time PCR Master Mix (Takara Biotechnology Co., Ltd., Dalian, China) on a Bio-Rad quantitative fluorescence PCR instrument (Bio-Rad Laboratories, Inc., Hercules, CA, USA). PCR thermocycler conditions were as follows: Heating at 94°C for 5 min, followed by 40 cycles of denaturation at 94°C for 30 sec, annealing at 60°C for 30 sec and extension at 72°C for 1 min. Terminal extension was then performed at 72°C for 5 min. β-actin was used as an internal control, and the relative expression levels of target genes were calculated using the 2−ΔΔCq method (19) using GAPDH as the normalization control. PCR primer sequences are presented in Table II.

Table II. Primers for quantitative polymerase chain reaction.

Table II.

Primers for quantitative polymerase chain reaction.

Genes	Primer sequences
Adenosine 5′-monophosphate-activated protein kinase	P1: 5′-GTAAGAATGGAAGGCTGGATGA-3
	P2: 5′-TCTGGTGCAGCATAGTTGGG-3′
Urinary-type plasminogen activator	P1: 5′-TAAGATCTGGTGTCTGATTG-3′
	P2: 5′-TTGGATGAACTAGGCTAAAA-3′
MMP-9	P1: 5′-GTGCTGGGCTGCTGCTTTGCTG-3′
	P2: 5′-GTCGCCCTCAAAGGTTTGGAAT-3′
MMP-2	P1: 5′-GATGATGCCTTTGCTCGTGC-3′
	P2: 5′-CAAAGGGGTATCCATCGCCA-3′
C-X-C chemokine receptor 4	P1: 5′-TCTGTGACCGCTTCTACC-3′
	P2: 5′-AGGATGAGGATGACTGTGG-3′
β-actin	P1: 5′-CATCACTATCGGCAATGAGC-3′
	P2: 5′-GACAGCACTGTGTTGGCATA-3′

[i] MMP, matrix metalloproteinase; P1, forward primer; P2, reverse primer.

RNA interference (RNAi)

RNAi was used to knockdown AMPK expression in SW480 cells. AMPK-targeting small interfering (si)RNA sequences were designed and synthesized by Shanghai GenePharma Co., Ltd. (Shanghai, China). The sequences are included in Table III. SW480 cells were seeded into 6-well plates at 5.0×106 cells/well and were transfected with siRNA at 60–70% confluence. Lipofectamine® 2000 (Thermo Fisher Scientific, Inc.) was used for transfection according to the manufacturer's protocol. Further experiments were performed at 24 h subsequent to transfection.

Table III. siRNA sequences for AMPK

Table III.

siRNA sequences for AMPK

siRNA name	siRNA sequences
si-AMPK#1	Sense: 5′-UUCUCCGAACGUGUCACGUTT-3′
	Antisense: 5′-ACGUGACACGUUCGGAGAATT-3′
si-AMPK#2	Sense: 5′-GCGUGUACGAAGGAAGAAUTT-3′
	Antisense: 5′-AUUCUUCCUUCGUACACGCTT-3′
si-AMPK#3	Sense: 5′-CGGGAUCAGUUAGCAACUATT-3′
	Antisense: 5′-UAGUUGCUAACUGAUCCCGTT-3′
si-Control	Sense: 5′-GAGGAGAGCUAUUUGAUUATT-3′
	Antisense: 5′-UAAUCAAAUAGCUCUCCUCTT-3′

[i] siRNA, small interfering RNA; AMPK, adenosine 5′-monophosphate-activated protein kinase.

Western blot analysis

Western blotting was performed as previously described (20). Total protein was extracted from treated cells, and then the protein concentration was measured with the bicinchoninic acid (BCA) method. An equal amount of protein from each group was separated by SDS-PAGE and then transferred to a polyvinylidene fluoride membrane with a semi-dry method. The membrane was blocked in 5% skimmed milk at room temperature for 2 h incubated with diluted primary antibodies (Table I) at 4°C overnight, washed with TBST buffer, incubated with the secondary antibodies (dilution, 1:1,000; Table I) at room temperature for 1 h and washed three times with TBST buffer. ECL chemiluminescence reagents (EMD Millipore, Billerica, MA, USA) were added, and images were captured with the ChemiDoc XRS imaging system (Bio-Rad Laboratories, Inc.). β-actin was used as an internal reference to calculate the relative expression level of the proteins.

Statistical analysis

Data were expressed as the mean ± standard deviation. The SPSS 15.0 software package (SPSS, Inc., Chicago, IL, USA) was used for data analysis. One-way analysis of variance was performed to compare measurement data among the groups and post-hoc analysis of significant effects was performed using Dunnett's test. P<0.05 was considered to indicate a statistically significant difference. Each experiment was repeated ≥3 times.

Results

Effects of ginkgolic acid on the proliferation of SW480 colon cancer cells

In the present study, the effect of ginkgolic acid on the proliferation of SW480 colon cancer cells was initially investigated. SW480 cells were treated with different concentrations of ginkgolic acid (5, 10, 20 and 50 µmol/l). MTT assays were performed at different time points (12, 24, 36 and 48 h). Cells treated with 0 µmol/l ginkgolic acid were used as the normal control group, and cells treated with 25 mg/l fluorouracil were used as a positive control. The results demonstrated ginkgolic acid treatment inhibited the proliferation of SW480 cells in a concentration- and time-dependent manner; a higher concentration of ginkgolic acid was associated with a greater extent of inhibition (P<0.05 at 10, 20 and 50 µmol/l compared with 0 µmol/l). At 50 µmol/l ginkgolic acid, cell proliferation was almost completely inhibited. Therefore, 10 and 20 µmol/l ginkgolic acid were used for subsequent experiments (Fig. 1).

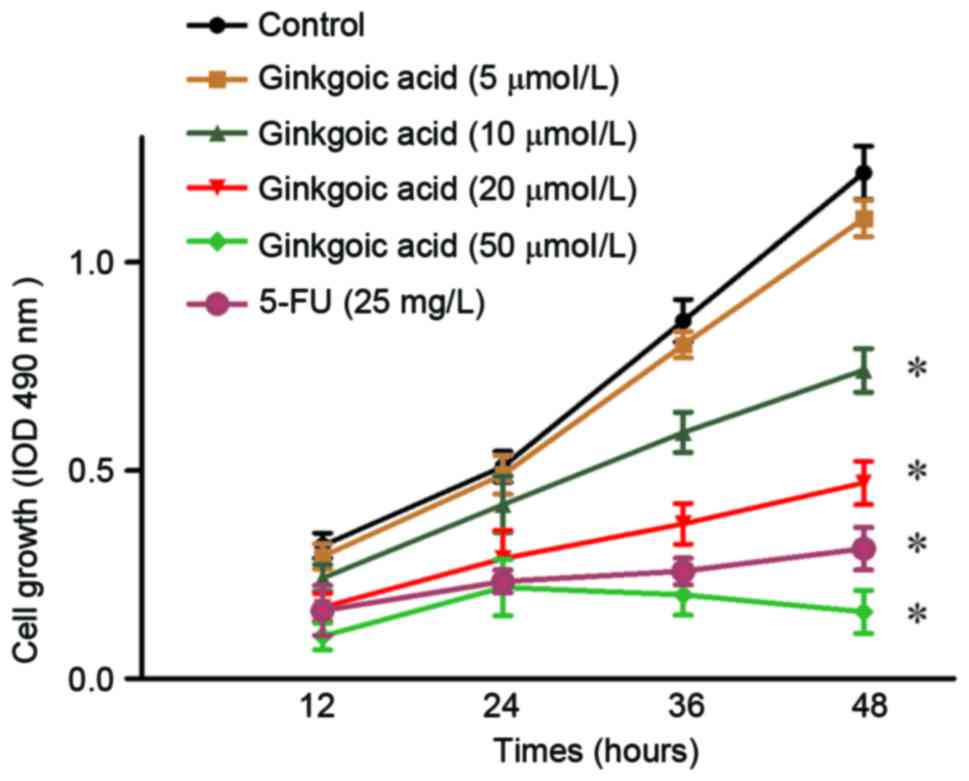

Figure 1. Effects of ginkgolic acid on the viability of SW480 cells. SW480 cells were treated with ginkgolic acid at various concentrations (0, 5, 10, 20 and 50 µmol/l). At the indicated time points (12, 24, 36 and 48 h), cell viability in each group was assessed by an MTT assay. Cells treated with 0 µmol/l ginkgolic acid were used as a negative control group, and cells treated with 25 mg/l 5-FU were a positive control group. Data are presented as the mean ± standard deviation. *P<0.05 vs. negative control. 5-FU, fluorouracil.

Effects of ginkgolic acid on the migration and invasion of SW480 colon cancer cells

Tumor cell migration and invasion are important processes in the relapse and metastasis of colon cancer. Therefore, the effects of ginkgolic acid on the migration and invasion of SW480 cells were investigated. Wound-healing assays were performed to investigate the effects of ginkgolic acid on the migration ability of SW480 cells. As demonstrated in Fig. 2A, 10 µmol/l ginkgolic acid significantly inhibited the migration of SW480 cells compared with the control group (P<0.05).

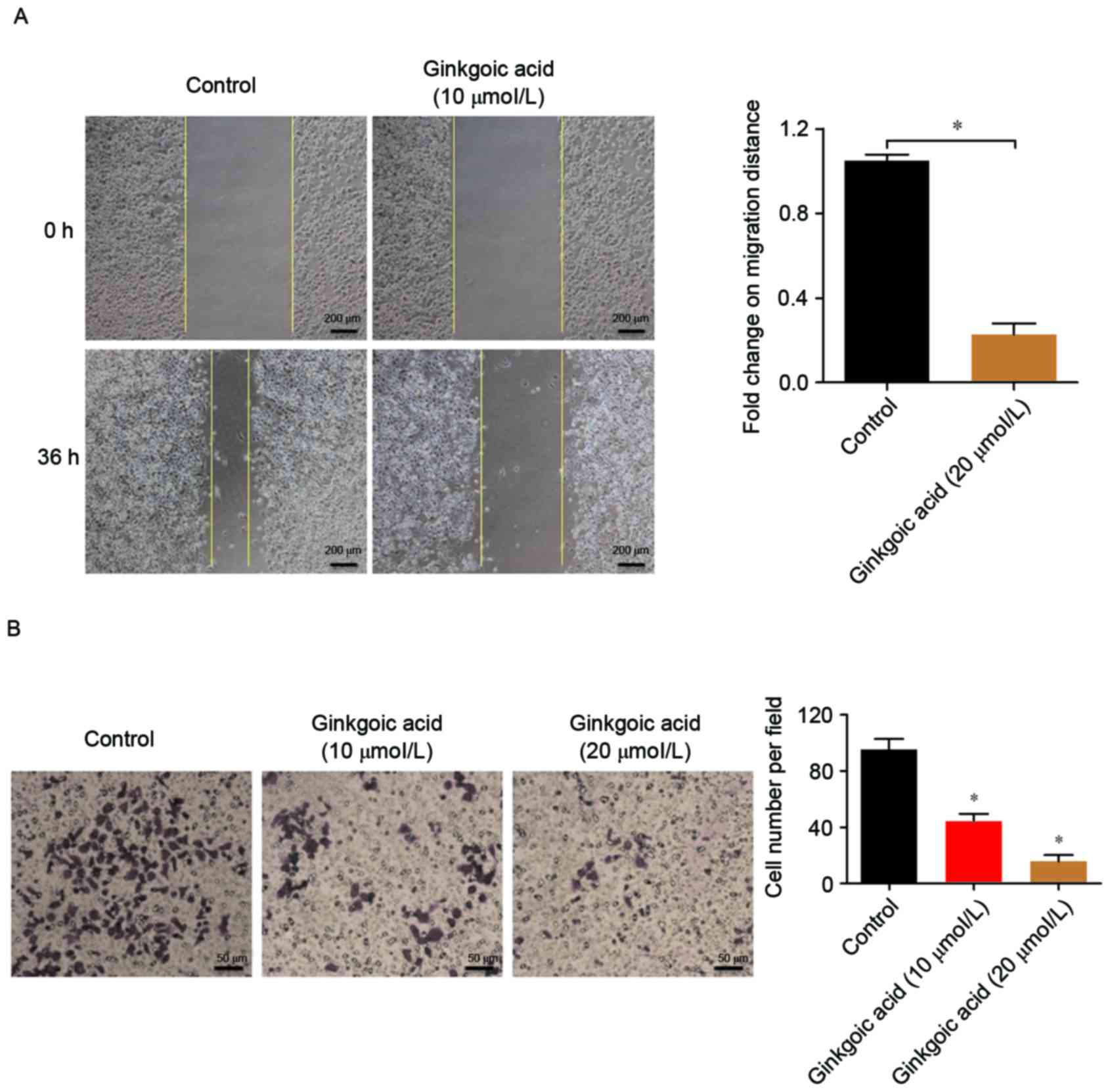

Figure 2. Effects of ginkgolic acid on the migration and invasion of SW480 cells. (A) SW480 cells at 90% confluence were treated with 10 µM ginkgolic acid or vehicle for 12 h, and a scratch assay was performed. Images were captured at 0 and 36 h at ×40 magnification. *P<0.05. (B) SW480 cells were seeded into a Matrigel-coated invasion chamber subsequent to treatment with ginkgolic acid at various concentrations (0, 10 and 20 µmol/l), and a Matrigel-invasion assay was performed at 48 h. The number of invaded cells was quantified by counting the cells from 10 random fields at ×20 magnification. Data are presented as the mean ± standard deviation. *P<0.05 vs. control.

Transwell chamber assays were performed to investigate the effects of ginkgolic acid on the invasion ability of SW480 cells. As demonstrated in Fig. 2B, 10 and 20 µmol/l ginkgolic acid treatments significantly reduced the number of tumor cells that crossed the Transwell chamber (P<0.05); the invasion of SW480 cells was decreased to a greater extent at an increased dose of ginkgolic acid, suggesting that ginkgolic acid inhibited the invasion of SW480 cells in a concentration-dependent manner.

Ginkgolic acid inhibits the expression of invasion-associated proteins in SW480 colon cancer cells

The results of the aforementioned experiments suggest that ginkgolic acid significantly inhibited the proliferation, invasion and migration of SW480 colon cancer cells. Next, the effects of ginkgolic acid on the expression of invasion-associated genes [including matrix metalloproteinase (MMP)-2, MMP-9, urinary-type plasminogen activator (uPA), and C-X-C chemokine receptor type 4 (CXCR4)] in SW480 cells were investigated. SW480 cells were treated with 10 or 20 µmol/l ginkgolic acid for 24 h, and total mRNA was extracted for qPCR. As demonstrated by Fig. 3A, ginkgolic acid treatment significantly reduced the expression of MMP-2 and −9, uPA and CXCR4 mRNA in a concentration-dependent manner (P<0.05). Western blotting results were similar to the qPCR results (Fig. 3B); treatments with 10 and 20 µmol/l ginkgolic acid inhibited the expression of invasion-associated proteins, including MMP-2 and −9, uPA, and CXCR4. These results suggested that ginkgolic acid downregulated the expression of invasion-associated molecules in SW480 cells at transcriptional and post-transcriptional levels.

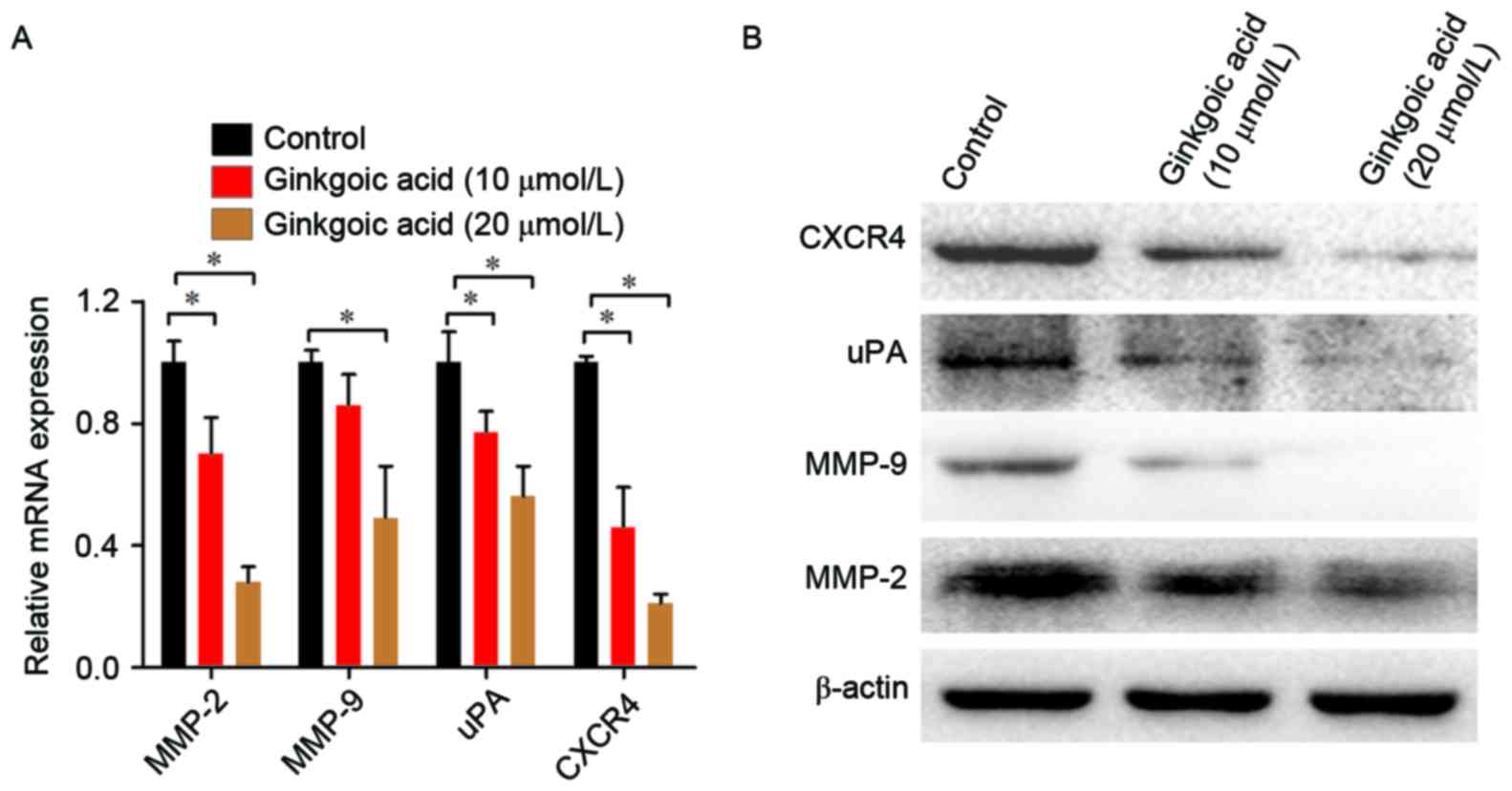

Figure 3. Ginkgolic acid suppresses the expression of invasion-associated genes and proteins. (A) SW480 cells were treated with ginkgolic acid at various concentrations (0, 10 and 20 µmol/l) for 24 h, and the mRNA levels of invasion-associated markers (MMP-2 and −9, uPA and CXCR4) were measured by reverse transcription-quantitative polymerase chain reaction. The expression of each target gene was quantified using β-actin as a normalization control. Data are presented as the mean ± standard deviation. *P<0.05. (B) The protein levels of invasion-associated markers were measured by western blotting following ginkgolic acid treatment for 48 h. MMP, matrix metalloproteinase; uPA, urinary-type plasminogen activator; CXCR4, C-X-C chemokine receptor 4.

Activation of AMPK is associated with the ginkgolic acid regulation of invasion-associated molecules

A previous study indicated that inducing AMPK activation may be an important mechanism for the antitumor effects of ginkgolic acid (1). Therefore, the effect of ginkgolic acid on AMPK expression and activation in SW480 cells was investigated. Fig. 4A demonstrates that ginkgolic acid exhibited no significant effect on AMPK protein expression in SW480 cells; however, ginkgolic acid significantly increased the expression of phosphorylated AMPK (p-AMPK), suggesting that ginkgolic acid induced AMPK activation in SW480 cells. To investigate whether AMPK mediated the downregulation of invasion-associated molecules by ginkgolic acid in SW480 colon cancer cells, AMPK-targeting siRNAs were designed and verified by qPCR and western blotting. Fig. 4B and C indicate that all three siRNAs silenced AMPK expression at the mRNA and protein levels, particularly si-AMPK#1. Therefore, following AMPK silencing with si-AMPK#1, SW480 colon cancer cells were treated with ginkgolic acid for 48 h and western blotting was performed to detect the expression of invasion-associated proteins. Fig. 4D demonstrates that AMPK knockdown alone exhibited no significant effect on the expression of MMP-2, uPA, or CXCR4 in SW480 cells; however, it removed the inhibitory effect of ginkgolic acid on the expression of MMP-2, uPA, and CXCR4.

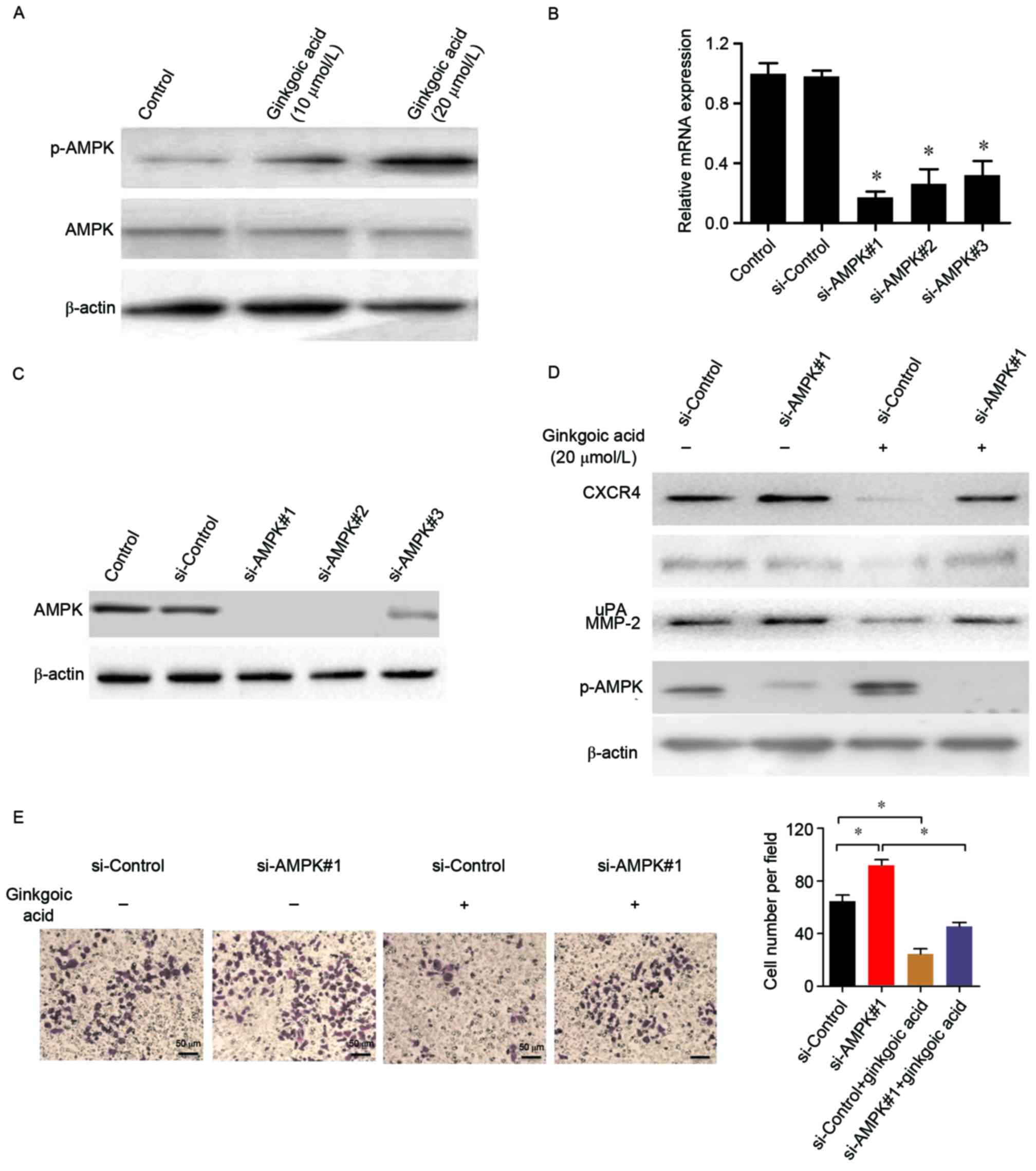

Figure 4. Ginkgolic acid-mediated downregulation of invasion-associated molecules in SW480 cells is associated with the activation of AMPK. (A) The expression of AMPK and p-AMPK in SW480 cells following ginkgolic acid treatment were detected by western blotting. siRNAs were used to silence AMPK expression in SW480 cells. The efficiency of siRNAs targeting AMPK was evaluated by (B) reverse transcription-quantitative polymerase chain reaction and (C) western blotting. (D) SW480 cells were treated with ginkgolic acid (20 µmol/l) for 48 h following AMPK silencing, and the expression of MMP-2, uPA, CXCR4 and p-AMPK were detected by western blotting. (E) The invasive ability of SW480 cells was detected by a matrigel-invasion assay following siRNA knockdown of AMPK with ginkgolic acid treatment. The number of invaded cells was quantified by counting the cells from 10 random fields at ×200 magnification. Data are presented as the mean ± standard deviation. *P<0.05. AMPK, adenosine 5′-monophosphate-activated protein kinase; p-, phosphorylated; siRNA, small interfering RNA; MMP, matrix metalloproteinase; uPA, urinary-type plasminogen activator; CXCR4, C-X-C chemokine receptor 4.

The invasion ability of SW480 cells was determined by a matrigel-invasion assay following siRNA knockdown of AMPK and ginkgolic acid treatment. As indicated in Fig. 4E, the invasion ability of SW480 cells was impaired by ginkgolic acid treatment. However, this effect of was partially restored by AMPK knockdown. These results suggest that ginkgolic acid may inhibit the invasion ability of SW480 colon cancer cells via AMPK signaling.

Discussion

Tumor relapse and metastasis are the leading causes of mortality in patients with colorectal cancer (21). At present, surgery remains the primary treatment for colorectal cancer, although preoperative and postoperative adjuvant chemotherapy have improved the survival rate for patients with medium-stage and advanced colorectal cancer. Chemotherapy may reduce the size of the primary tumor and reduces postoperative metastasis and relapse. Currently, a range of chemotherapy drugs is in use, although drugs are rarely effective without inducing significant adverse reactions (6–7). A number of natural active plant-based compounds have demonstrated preventive effects and have been suggested to inhibit tumor growth.

Ginkgolic acid, a phenolic acid extracted from the ginkgo tree, has been demonstrated to possess significant anti-inflammatory, anti-viral, and antibacterial (22,23). Its antitumor properties have attracted a great deal of attention (24,25), but the detailed mechanisms are unknown. A previous study has revealed that ginkgolic acid inhibits the proliferation, invasion, migration and colony-forming ability of pancreatic cancer cells with minimal toxicity to normal cell lines, even at high concentrations (11). Its mechanism of action may involve AMPK activation and the inhibition of downstream lipid synthesis (11). Zhou et al (12) indicated that ginkgolic acid induced cell cycle arrest and regulated the expression of apoptosis-associated proteins, thereby inhibiting tumor growth and inducing apoptosis. The present study demonstrated that ginkgolic acid inhibited the growth of SW480 colon cancer cells in a concentration-dependent manner and reduced cell proliferation and migration, most likely by inducing AMPK activation. These results suggest that ginkgolic acid exhibits antitumor effects and is a promising, safe and effective drug for colorectal cancer.

The chemokine receptor CXCR4 is a type of G-protein coupled receptor. It binds to the corresponding ligand to exert a number of biological effects, including promoting tumor proliferation, growth, invasion and metastasis (26). Previous studies have suggested that CXCR4 is expressed at different levels in the majority of colorectal cancer cell lines and cancer tissues, whereas it is almost non-existent in normal tissues (27,28). Studies have revealed that CXCR4 and its ligand SDF-1 are highly expressed in lymph node and liver metastases of colorectal cancer, and that this expression is closely associated with cancer progression (29–33). In a mouse model for colorectal cancer metastasis, CXCR4 served a critical role in maintaining the proliferation of tumor cells in colorectal cancer metastases (34). AMD3100, a specific CXCR4 inhibitor, significantly reduced colorectal cancer liver metastasis in mice (35). These results suggest that CXCR4 may serve a crucial role in colorectal cancer progression, particularly in invasion and metastasis. The present study indicated that ginkgolic acid inhibited the invasion and migration of SW480 cells; particularly, ginkgolic acid inhibited the expression of CXCR4 in SW480 cells.

AMPK, a serine/threonine protein kinase complex, is an intracellular energy sensor. Activated AMPK is associated with tumor growth and proliferation, cell cycle progression, apoptosis, angiogenesis, and tumor invasion and metastasis (36). Epidemiological data indicate that metformin, an AMPK agonist, reduces the morbidity and mortality of patients with gastrointestinal tumors (37). AMPK may represent a novel target for antitumor treatment; however, its mechanism is complex and remains uncharacterized. At present, it is hypothesized that the activated AMPK pathway may exert antitumor effects by the following methods: i) Regulating key enzymes for lipid metabolism, including HMG-CoA reductase, aminocyclopropane-1-carboxylate (ACC) and fatty acid synthase (FASN), thereby inhibiting lipid synthesis and promoting lipid degradation in tumor cells; ii) acting on the mammalian target of rapamycin pathway, thereby directly inhibiting tumor proliferation and inducing cell cycle arrest and apoptosis; iii) indirectly inhibiting tumor invasion, metastasis and angiogenesis, thereby inhibiting tumor proliferation and preventing tumor progression; and iv) acting through other mechanisms, including downregulating the expression of cyclooxygenase 2 and regulating autophagy (38). Taken together, AMPK may be an important molecule for targeted therapy in gastrointestinal tumors.

In conclusion, the present study indicated that ginkgolic acid effectively inhibited the proliferation, invasion and migration of SW480 colon cancer cells and reduced the expression of invasion-associated proteins such as MMP-2, CXCR4 and uPA, likely mediated by inducing AMPK activation. In vivo experiments are required to validate the results. These results suggest that ginkgolic acid, a plant-based compound, may be an effective drug for colon cancer.

Acknowledgements

The present study was supported by the National Natural Science Foundation of China (grant no., 81572734), the Scientific and Technological Development Research Project Foundation by Shaanxi Province (grant nos. 2016SF-121 and 2016FS-141) and the Fundamental Research Funds for the Central Universities in Xi'an Jiaotong University.
