The co‑treatment of metformin with flavone synergistically induces apoptosis through inhibition of PI3K/AKT pathway in breast cancer cells

Introduction

PI3K/AKT signaling pathway plays an important role in the development of numerous types of tumors as it is involved in cell growth, proliferation and apoptosis (1–3). There are several pathways that PI3K/AKT regulates its downstream targets. PI3K/AKT indirectly inhibits mTOR to cause cell cycle arrest and cell apoptosis (4). AKT activates MDM2 indirectly to decrease p53 level and activity, and promote p53 translation and protein stability (5–7).

Metformin is a biguanide used as an oral anti-diabetic drug, and the Food and Drug Administration (FDA) recently has approved the first clinical study to investigate its protective effects against numerous comorbidities. It has received attention as a potential therapeutic agent for cancer treatment (8,9). Trametinib and paclitaxel are well-known chemotherapeutic drugs, which are frequently used to treat breast and lung cancers, and both have synergistic effects when used in combination with metformin (4,10). Metformin exerts anti-proliferative activity on glioblastoma cells by inhibiting AKT signaling (11). Metformin induces p53 activity by regulating AMPK/mTOR signaling pathway (10,12) and activates AMPK to phosphorylate and inactivate MDMX, finally results in stabilization and activation of p53 in cancer cells (13). As a major p53 repressor, MDMX overexpresses in many human cancers, which inhibits DNA repair signals and promotes transformation to contribute to tumorigenesis. When MDMX is inhibited, the activity of p53 is enhanced and p53 degradation is blocked (14).

Flavonoids are safe and easily obtainable by extraction from natural plants. Many of them are part of human daily diet (15,16). Flavonoids inhibit PI3K/AKT pathway to induce apoptosis (17,18). Tangeretin inhibits growth of HL-60 cells and induces apoptosis without causing serious side-effect on immune cells (19). Luteolin has low incidence of side effects in therapeutic potential (20). Pre-treatment with cardamonin significantly attenuates nephrotoxic effects, oxidative stress, inflammation and decreases caspase3 expression and Bax/Bcl-2 ratio induced by cisplatin (21). Flavone (2-phenyl-4H-1-benzopyran-4-one) is the core structure of flavonoids, which induces apoptosis potent in human colon carcinoma cells (22,23). Flavone inhibits PI3K/AKT and increases FoxO3a activation to induce apoptosis in breast cancer cells (24).

The PI3K/AKT pathway that metformin mediated with or without flavonoids remains to be fully determined in breast cancer cells. Inhibition of PI3K/AKT pathway may gain importance as potential mono- and combination therapies in the clinical trials. Therefore, our study was designed to investigate whether flavone enhances cell apoptosis induced by metformin and whether the combination shares a common intracellular signal pathway that regulates MDMX/p53 via PI3K/AKT in breast cancer cells.

Materials and methods

Reagents and antibodies

Metformin (MET) and flavone (FLA) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Antibodies against PI3K (cat. no. 4249S), p-AKT(ser-473) (cat. no. 4060S) and caspase3 (cat. no. 8665P) were from Cell Signaling Technology (Danvers, MA, USA); MDMX (cat. no. sc-14738) from Santa Cruz Biotechnology (Dallas, TX, USA); p53 (cat. no. BS1272) and Bax (cat. no. BS1030) from Bioworld Technology, Inc. (St. Louis Park, MN, USA). AKT1 (cat. no. BF0570), Bcl-2 (cat. no. AF0769) and cleaved caspase3 (cat. no. AF7022) were from Affinity Biosciences (Cincinnati, OH, USA); β-actin (cat. no. 60008-1-lg) was from ProteinTech Group, Inc. (Chicago, IL, USA). PI3K inhibitor (LY294002) was obtained from Beyotime Institute of Biotechnology (Haimen, China).

Cell culture

MCF-10A human breast epithelial cells, MDA-MB-231 and MCF-7 human breast cancer cells were from American Type Culture Collection (Manassas, VA, USA). Cells were cultured in Dulbecco's modified Eagle's medium supplemented with 10% fetal calf serum, and maintained at 37°C in humidified atmosphere with 5% CO2.

MTT assay

MTT assay is based on the conversion of MTT (Amresco, LLC, Solon, OH, USA) to formazan crystals by mitochondrial dehydrogenases. Briefly, MDA-MB-231 cells were plated in 96-well plates at a density of 1×104 cells per well for 16 h. The cells were respectively treated with flavone and metformin under various concentrations (100, 150, 200, 250 µM) and (5, 10, 15, 20, 25 mM) for 24 h to select a suitable inhibitory concentration. Similarly, the cells were treated with 10 mM metformin, 10 mM metformin:100 µM flavone, 10 mM metformin:200 µM flavone; and 20 mM metformin, 20 mM metformin:100 µM flavone, 20 mM metformin:200 µM flavone for 24 h. Then MTT solution (5 mg/ml) was added (20 µl/well) to the precipitate and incubated at 37°C for 4 h. The solution was aspirated, and the formazan crystals were dissolved with 150 µl DMSO (Amresco, LLC). The absorbance was measured at 492 nm by an enzyme-linked immunosorbent assay reader (Awareness Technology, Inc., Palm City, FL, USA).

Hoechst/propidium iodide (PI) staining

MCF-10A, MDA-MB-231 and MCF-7 cells were exposed to 20 mM metformin, 20 mM metformin:100 µM flavone for 24 h and stained with Hoechst 33342 and PI (Beyotime Institute of Biotechnology) for 20–30 min. The nuclei of apoptotic cells were observed visually by fluorescence microscope. The cells were differentiated with normal live cells (exhibited light blue), apoptotic cells (exhibited bright blue) and necrotics cells (exhibited red).

Western blot analysis

The cells were treated with 20 mM metformin, 100 µm flavone and 20 mM metformin:100 µM flavone for 24 h. Protein concentration was determined by the BCA Assay (Thermo Fisher Scientific, Inc., Waltham, MA, USA). An equal amount of protein from each sample was loaded per lane, separated by SDS-PAGE and transferred onto a polyvinylidene difluoride membrane. The membrane was blocked in 5% milk for 90 min at room temperature, incubated with primary antibodies overnight at 4°C, then washed 3 times and incubated with appropriate HRP-conjugated secondary antibodies. After washing, protein expression was detected with the ECL system (Beyotime Institute of Biotechnology).

Statistical analysis

Each experiment was analysed in three biological replicates. Data were expressed as mean ± standard deviation. Multiple comparisons between the groups have been performed using S-N-K method after ANOVA. P-values of <0.05 were considered statistically significant.

Results

Combined metformin and flavone inhibits cell viability, and induces apoptosis

MDA-MB-231 cells were treated by 0, 5, 10, 15, 20 and 25 mM metformin for 24 h, the inhibition rates on cell viability were 0, 7.64±5.90, 13.51±0.35, 13.10±0.39, 20.93±1.038 and 24.20±0.012%, the inhibitory effects on cell viability increased with the extension of treatment concentrations, and cells were sensitive to 10/20 mM metformin treatment. The inhibition rates were 0, 3.83±7.30, 9.15±8.14, 18.97±2.94 and 19.67±3.78%, respectively when treated by 0, 100, 150, 200, and 250 µM flavone for same time. Cell viability was inhibited by 150, 200 and 250 µM flavone and was not significantly effected by 100 µM flavone (P<0.05 and P<0.01; Fig. 1A). The concentrations of 10 and 20 mM metformin were chosen for the combination treatment. When 100/200 µM flavone was supplemented to the cells which were treated with 10 mM metformin for 24 h, the inhibition rates increased to 24.3±1.5 and 24.9±1.5% respectively compared to an inhibition rate of 15.7±0.2% with 10 mM metformin only. Similarly, when 100/200 µM flavone was added to the cells treated with 20 mM metformin, the inhibition rates became higher (34.0±1.9 and 36.8±1.4%, respectively) than 20 mM metformin only (24.6±2.5%). The results demonstrated that combination treatment of metformin and flavone increased significantly inhibition rates to the breast cancer cells (P<0.05 and P<0.01; Fig. 1B). The inhibition rates were higher when the cells treated by 20 mM metformin combined with 100/200 µM flavone than that by 10 mM metformin with same concentration flavone. Meanwhile, the inhibition rates had no change when the cells co-treated by 10/20 mM metformin with 100/200 µM flavone respectively. The combination of 20 mM metformin:100 µM flavone was used for the following experiments.

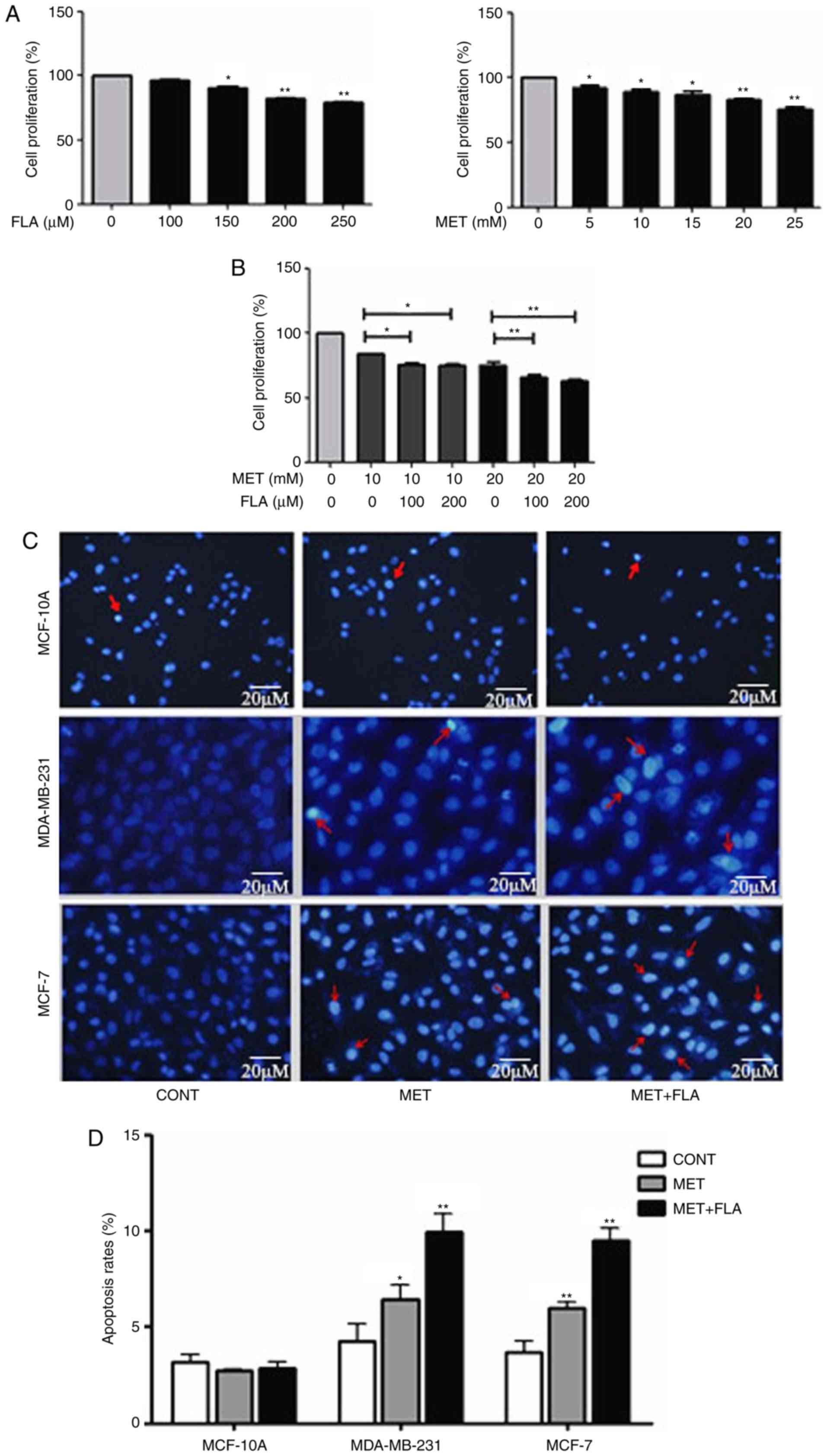

Figure 1. The combination of metformin and flavone inhibited cell viability and induced apoptosis in breast cancer cells with a concentration dependent manner. (A) MDA-MB-231 cell viability was measured after treatment with FLA (0, 100, 150, 200, 250 µM) (*P<0.05, 150 µM FLA vs. control; **P<0.01, 200 µM FLA vs. control, 250 µM FLA vs. control) and MET under various concentrations (0, 5, 10, 15, 20, 25 mM) (*P<0.05, 5 mM MET vs. control, 10 mM MET vs. control, 15 mM MET vs. control; **P<0.01, 20 mM MET vs. control, 25 mM MET vs. control) for 24 h. (B) MDA-MB-231 cells were treated by 10 mM MET, 10 mM MET:100 µM FLA, 10 mM MET:200 µM FLA and treated by 20 mM MET, 20 mM MET:100 µM FLA, 20 mM MET:200 µM FLA for 24 h (*P<0.05, 10 mM MET:100 µM FLA vs. 10 mM MET, 10 mM MET:200 µM FLA vs. 10 mM MET; **P<0.01, 20 mM MET:100 µM FLA vs. 20 mM MET, 20 mM MET:200 µM FLA vs. 20 mM MET). (C) Representative photomicrographs of MCF-10A, MDA-MB-231 cells stained with Hoechst 33342 and propidium iodide fluorescent dye after incubated in the treatment with 20 mM MET, 20 mM MET:100 µM FLA for 24 h. The arrows show the apoptotic cells distinguished by condensed or fragmented nuclei. (D) The quantitative results of apoptosis rates with different treatment (*P<0.05, 20 mM MET vs. control; **P<0.01, 20 mM MET:100 µM FLA vs. control) and MCF-7 (**P<0.01, 20 mM MET vs. control, 20 mM MET:100 µM FLA vs. control). FLA, flavone; MET, metformin.

To investigate effects of metformin and flavone on cell apoptosis, Hoechst and PI nuclear staining assay were performed. The apoptosis rates were 2.71±0.81 and 2.86±0.79% in MCF-10A, 6.43±0.78 and 9.96±0.94% in MDA-MB-231 and 5.89±1.02 and 9.37±0.86% in MCF-7 after metformin or combination treatment compared to 3.16±0.95, 4.23±0.90 and 3.46±0.80% of control groups, respectively (P<0.05 and P<0.01; Fig. 1C and D). Our results revealed that MCF-10A cells were less sensitive to metformin or combination-induced apoptosis than MDA-MB-231 or MCF-7 cells respectively. Metformin and co-treatment increased breast cancer cell apoptosis but barely affected on MCF-10A cells, and the higher apoptosis rate appeared by co-treatment than metformin treatment in MDA-MB-231 and MCF-7 cells.

Combined metformin and flavone synergistically inhibits the PI3K/AKT pathway

In MDA-MB-231 and MCF-7 cells, the results of western blotting showed that metformin, flavone and co-treatment had no effect on AKT1 expression, but metformin decreased PI3K and p-AKT(ser-473) protein levels compared with control group. The combination of metformin and flavone significantly decreased expressions of PI3K and p-AKT compared to metformin or flavone single-treatment (P<0.05 and P<0.01; Fig. 2). These results showed that induction of cell apoptosis may involve modulation of the PI3K/AKT signaling via the combination treatment.

Figure 2. The combination of metformin and flavone synergistically inhibited the PI3K/AKT pathway in breast cancer cells. (A) Protein levels for PI3K, AKT and p-AKT(ser-473) were detected with western blotting when MDA-MB-231 cells (left column) were treated with 0, 20 mM MET, 100 µM FLA and the combination of 20 mM MET:100 µM FLA for 24 h, and MCF-7 cells (right column) were the same treatment to test PI3K, AKT and p-AKT(ser-473) expressions, (B) and their densitometry results over β-actin at least three separate experiments. **P<0.01, 20 mM MET vs. control, 20 mM MET:100 µM FLA vs. 20 mM MET; *P<0.05, 20 mM MET vs. control, 20 mM MET:100 µM FLA vs. 20 mM MET. PI3K, phosphatidylinositol 3-kinase; AKT, serine/threonine kinase; FLA, flavone; MET, metformin.

PI3K/AKT pathway is associated with MDMX/p53 regulation for treatment with the combination of metformin and flavone

When two cell lines were treated with metformin or flavone alone, MDMX expression decreased and p53 increased. When flavone was supplemented together into the cells, the effects of metformin were potentiated (P<0.05 and P<0.01; Fig. 3). These results suggested that the combination induced apoptosis by reducing MDMX and up-regulating p53 level.

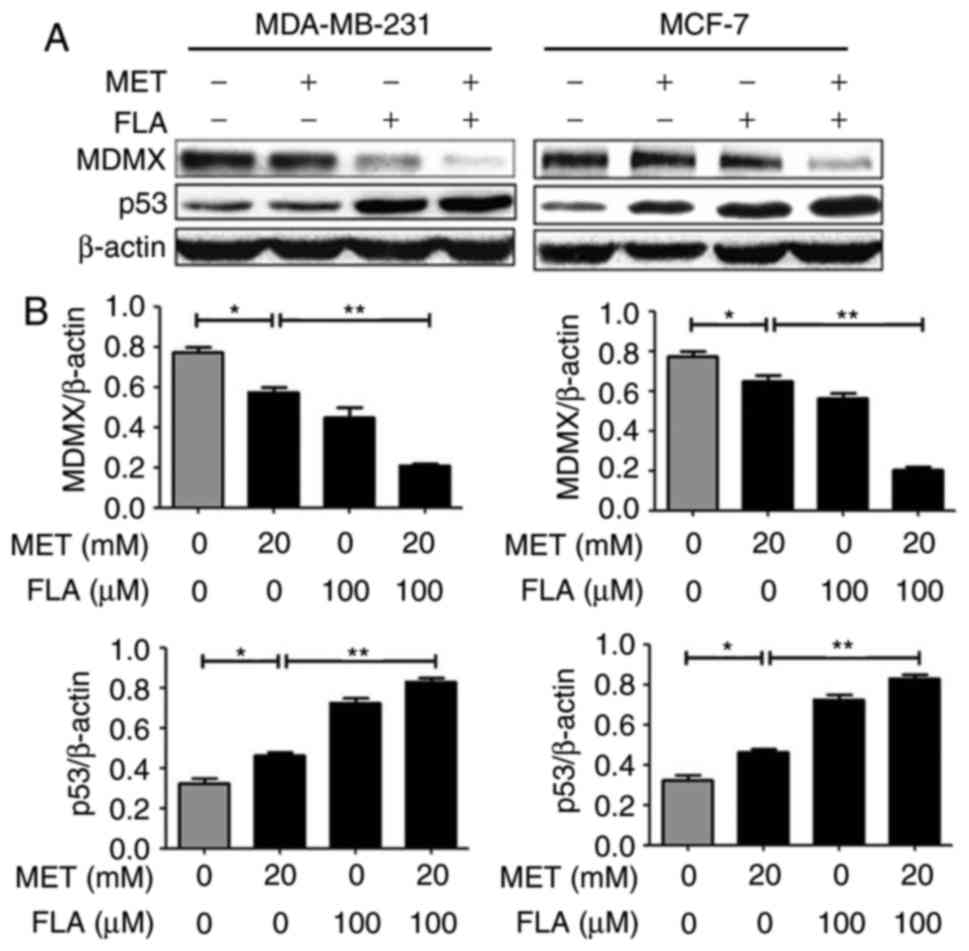

Figure 3. The combination of metformin and flavone regulated MDMX and p53 expressions. (A) Western blotting revealed the expression levels of MDMX and p53 when MDA-MB-231 and MCF-7 cells treated with 0, 20 mM MET, 100 µM FLA and the combination of 20 mM MET:100 µM FLA for 24 h. (B) Bar graphs showed their relative levels to β-actin. *P<0.05, 20 mM MET vs. control; **P<0.01, 20 mM MET:100 µM FLA vs. 20 mM MET. MDMX, murine double minute X; FLA, flavone; MET, metformin.

To further examine the relationship of p53 with PI3K/AKT pathway after the combination treatment, PI3K inhibitor LY294002 was used to examine p53 expression. An increase in p53 protein level appeared when the cells were treated with combination or LY294002 compared to control group. p53 levels increased significantly when LY294002 was added to co-treatment compared to combination group or LY294002 in MDA-MB-231 and MCF-7 cells (P<0.05 and P<0.01; Fig. 4).

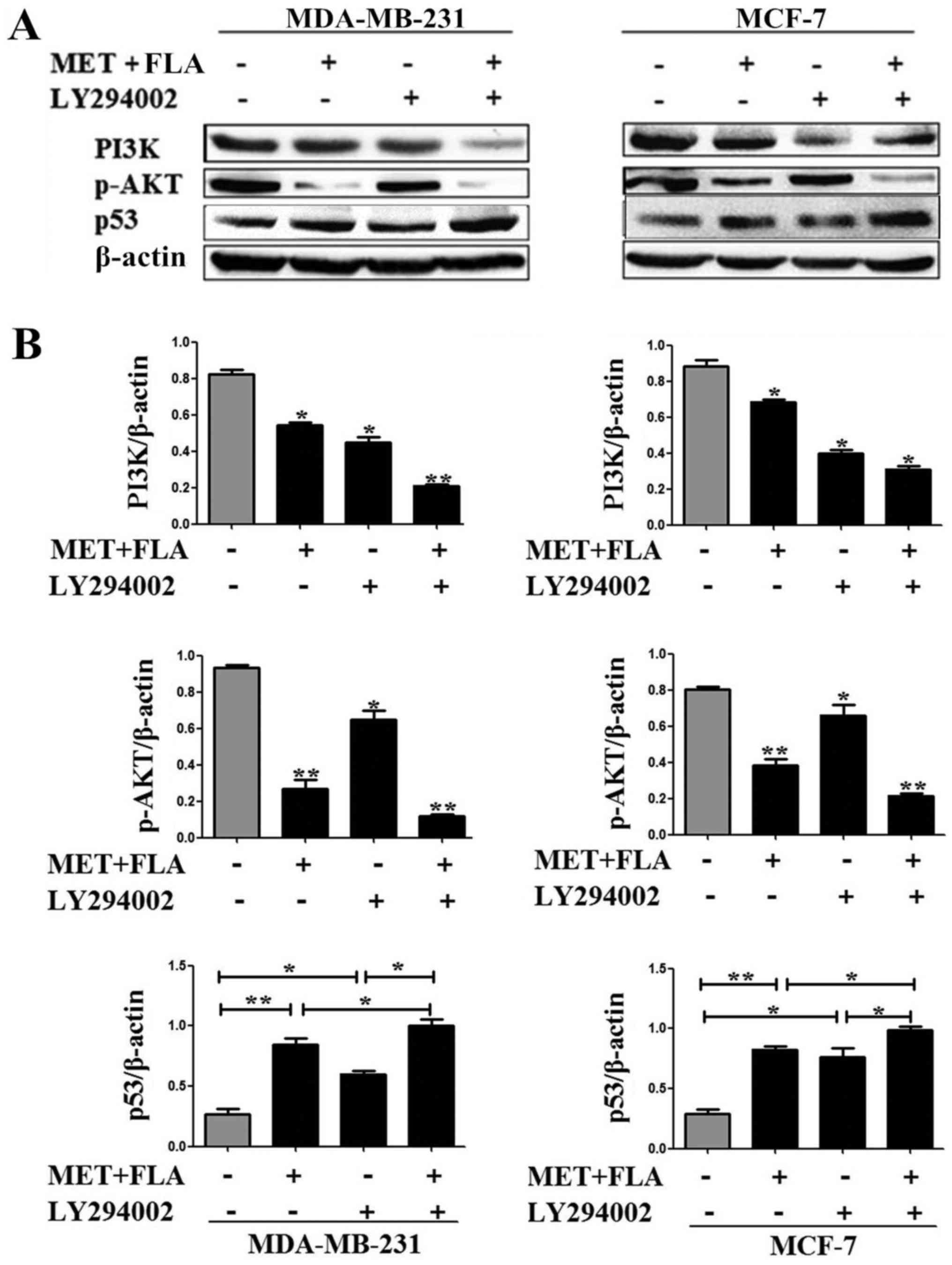

Figure 4. PI3K/AKT pathway was associated with MDMX/p53 regulation treated with the combination of metformin and flavone. (A) Expressions of PI3K (*P<0.05, combination vs. control, LY294002 vs. control; **P<0.01, the combination and LY294002 vs. control), p-AKT(ser-473) (*P<0.05, LY294002 vs. control; **P<0.01 combination vs. control, the combination and LY294002 vs. control) and p53 (*P<0.05, LY294002 vs. control, the combination and LY294002 vs. combination, the combination and LY294002 vs. LY294002; **P<0.01, combination vs. control) with 0, the combination, LY294002, the combination and LY294002 treatment in MDA-MB-231 cells. MCF-7 cells were the same treatment to detect PI3K (*P<0.05, combination vs. control, Ly294002 vs. control, the combination and LY294002 vs. control), p-AKT(ser-473) (*P<0.05, LY294002 vs. control; **P<0.01, combination vs. control, the combination and LY294002 vs. control) and p53 (*P<0.05, LY294002 vs. control, the combination and LY294002 vs. combination, the combination and LY294002 vs. LY294002; **P<0.01, combination vs. control) expression. (B) Bar graphs showed their relative levels to β-actin. PI3K, phosphatidylinositol 3-kinase; AKT, serine/threonine kinase; MDMX, murine double minute X; FLA, flavone; MET, metformin.

Combined metformin and flavone regulates the expression of apoptosis-associated proteins

Bcl-2 and Bax are p53-dependent target genes. Our results showed that metformin, flavone and co-treatment decreased Bcl-2, and increased Bax as well as cleaved caspase3 expressions, but it had no effect on caspase3 level. Combination group showed higher expression of cleaved caspase3 than metformin or flavone group. These results showed that metformin, flavone and co-treatment induced apoptosis via apoptotic protein Bcl-2, Bax and caspase pathway in breast cancer cells (P<0.05 and P<0.01; Fig. 5).

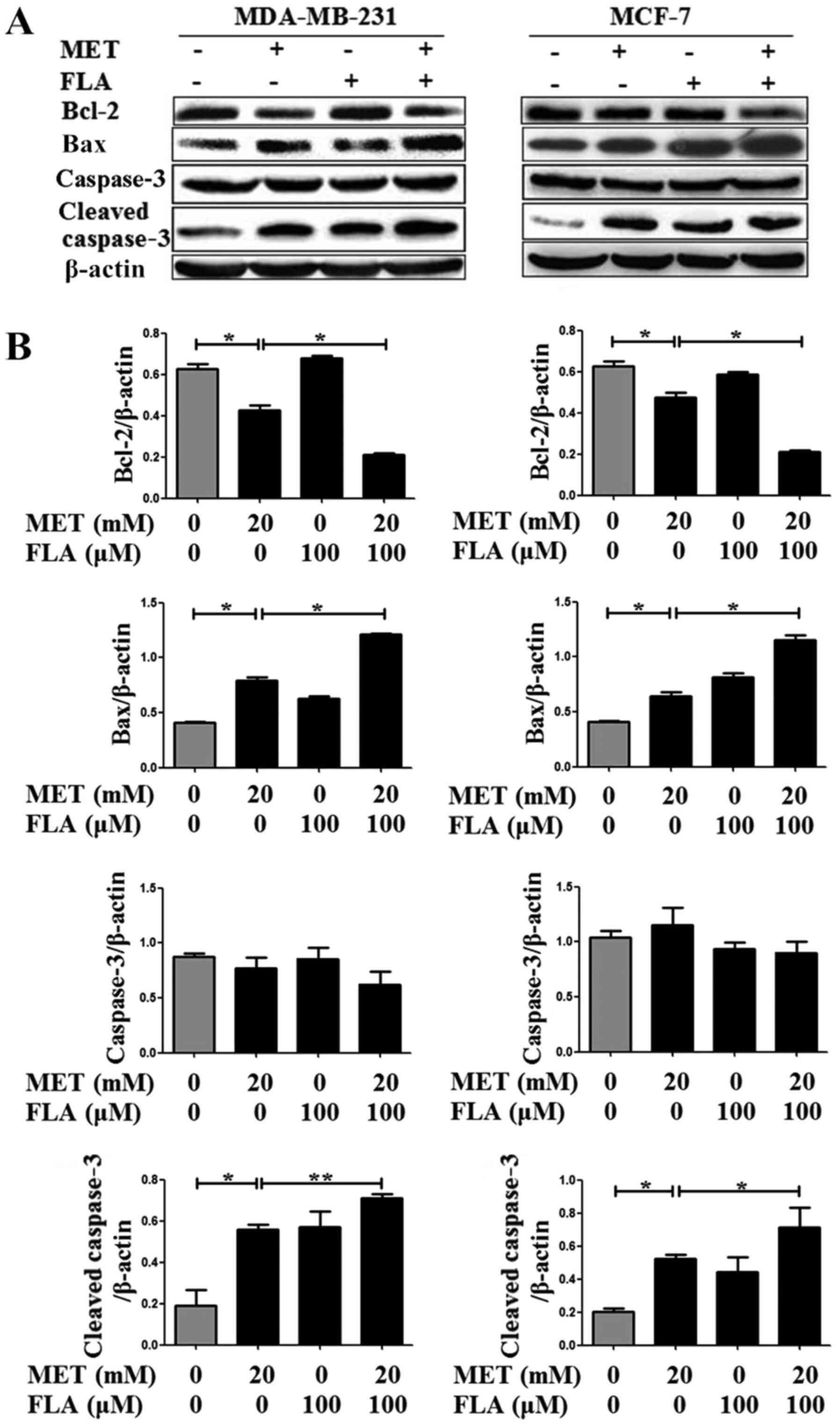

Figure 5. The combination of metformin and flavone regulated downstream targets of p53. (A) Protein levels of Bcl-2, Bax were detected with western blotting when MDA-MB-231 and MCF-7 cells were treated with 0, 20 mM MET, 100 µM FLA and the combination of 20 mM MET:100 µM FLA for 24 h (*P<0.05, 20 mM MET vs. control, 20 mM MET:100 µM FLA vs. 20 mM MET), caspase3 were detected no significance and cleaved caspase3 were detected when MDA-MB-231 (*P<0.05, 20 mM MET vs. control; **P<0.01, 20 mM MET:100 µM FLA vs. 20 mM MET) and MCF-7 cells (*P<0.05, 20 mM MET vs. control, 20 mM MET:100 µM FLA vs. 20 mM MET) were the same treatment, (B) and their densitometry results over β-actin in at least three separate experiments. FLA, flavone; MET, metformin.

Discussion

Metformin is an oral anti-diabetic drug and has a well-known safety profile. It interferes with PI3K/AKT pathway to induce apoptosis in many cancer cells (11,25,26). AKT can activate eIF4E by inhibiting mTOR to enhance cyclin D1, resulting in cell cycle arrest in G1 phase (27,28). As a novel AMPK activator, metformin increases nuclear accumulation and protein stability of FoxO3a by inhibiting AKT-MDM2 signaling pathway to reduce invasive and metastatic capacity of aggressive cancer cells (29). Therefore, PI3K/AKT pathway plays a significant role in anticancer effects.

Flavone inhibits PI3K/AKT pathway to involve in the progression and apoptosis of cancer cells (18,30,31). Our previous results have presented that 100 µM flavone reduced viability slightly in breast cancer cells (32). We herein showed that metformin monotherapy had low inhibition rates on cell viability and apoptosis (Fig. 1A and C). The addition of flavone to metformin led to enhance anti-cancer effects of metformin (Fig. 1B and C). Apoptosis rates are 27 and 37% for the cells treated with flavone compared to 13 and 25% for control group respectively in MDA-MB-231 and MCF-7 cells (24). Apoptosis is increased about 2.4- to 3.1-fold induced by flavonoid for 36 h in LNCaP cells (33). Our previous study showed that apoptotic rate was 15.15±0.20% when treated by 200 µM flavone compared to 4.90±1.23% of control group in breast cancer cells (32). Apoptosis rates in our results increased 1.5- to 3-fold. It is consistent with others' results. Similarly, metformin decreased PI3K and p-AKT(ser-473) protein expressions compared with control group. When the cancer cells were treated with the combination, PI3K and p-AKT(ser-473) protein levels became lower than those in metformin treatment (Fig. 2). Therefore, the combination treatment significantly decreased expressions of PI3K and p-AKT(ser-473). MCF-7 cells represent an ERa positive model and MDA-MB-231 ERa negative. Both cells are PTEN inactive mutation (34). In addition, mTORC2 can regulate AKT phosphorylation at S473 and induce cellular signal pathway in human wild-type PTEN or PTEN-null cancer cell lines (35). Therefore, the constitutive AKT activation after PI3K inhibitor treatment might due to deregulated p-AKT level by mTORC2 inhibition with co-treatment other than dependence on PI3K only.

MDMX binds to p53 and is involved in inhibiting p53 transactivation activity, which represses function of p53 and destabilizes the protein in breast cancer cells (14,36). Our data indicated that metformin reduced MDMX level and activated p53 to regulate apoptosis-related proteins. It is in accordance with a previous result that metformin phosphorylates and inactivates MDMX to activate p53 in HCT116 colon cancer cells (13). The combination of metformin and flavone markedly inhibited MDMX and activated p53 compared to metformin treatment only. Flavone supplement enhanced the regulation of metformin on MDMX and p53 (Fig. 3). When MDMX was inhibited, p53 expression was enhanced, which showed that the combination increased p53 level through inhibiting MDMX. Some reports suggest that PI3K/AKT/p53 was activated by mammalian reovirus to inhibit virus replication/infection (37). A p53 target gene, Sesn2, is independent of p53 but requires the PI3K/AKT pathway to protect cells against oxidative and genotoxic stresses (38). Pacilitaxel can promote apoptosis and growth inhibition of human nasopharyngeal cancer cell line CNE2 by suppressing PI3K, p-AKT and increasing p53 level (39). However, the molecular mechanism of PI3K/AKT pathway regulates MDMX/p53 is presently unclear when the cancer cells were treated with combination of metformin and flavone. In our study, p53 expression significantly increased after co-treatment and LY294002 treatment (Fig. 4), indicating that p53 was the downstream of PI3K and the combination increased expression of p53 by inhibiting PI3K/AKT pathway. Although the mechanism was not fully understood, it brings unexpected insight into PI3K/AKT-mediated regulation of MDMX/p53 on apoptosis by co-treatment in breast cancer cells.

p53 directly activates apoptosis-related Bax to induce release of cytochrome c from mitochondria, and then activates caspase (40). In addition, p53 reduces Bcl-2 transcription (41). Flavones induce caspase-dependent apoptosis in A549 cells (42) and primary human neutrophils (43). Our present study showed that metformin, flavone and combination induced apoptosis by decreasing Bcl-2, increasing Bax and cleaved caspase3 protein level.

Taken together, it is the first time for the combination of metformin and flavone to inhibit cell viability and to induce apoptosis more effectively than metformin and flavone alone in breast cancer cells. The combination potentiated apoptosis by decreasing MDMX and increasing p53 expression via PI3K/AKT signaling pathway. Further studies should be performed to fully define the action of the combination and underlying mechanism in vivo, and this combination will be a promising approach for clinical cancer therapy.

Acknowledgements

The present study was supported by the National Natural Science Foundation of China (grant no. 31672377), Major Key Technology of Science and Technology in Shandong Province (2015ZDJS04003), the Key Program of Shandong Provincial Natural Science Foundation of China (ZR2013CZ002), Science and Technology Program of Jinan (201202033).
