Biomechanical properties of polyvinyl alcohol hydrogel as a nucleus pulposus replacement in intervertebral disc herniation: A systematic review

  • Authors:
    • Eko Agus Subagio
    • Galih Indra Permana
    • Abdul Hafid Bajamal
    • Muhammad Faris
    • Nur Setiawan Suroto
    • Amaliya Rasyida
    • Budi Utomo
  • View Affiliations

  • Published online on: November 14, 2023
  • Article Number: 37
  • Copyright : © Subagio et al. This is an open access article distributed under the terms of Creative Commons Attribution License [CC BY 4.0].

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


The best artificial disc material must closely resemble the viscoelasticity, biomechanics and bioavailability of a natural human intervertebral disc. Currently, there is a lack of reviews discussing the characterization of polyvinyl alcohol (PVA) hydrogel as a nucleus pulposus (NP) replacement in intervertebral disc herniation. The present study systematically reviewed the biomechanical characterization of PVA hydrogel as a potential ideal candidate for the replacement of NP. The PubMed, Google Scholar, Science Direct, and Cochrane Database of Systematic Reviews databases were searched according to the Preferred Reporting Items for Systematic Reviews and Meta‑Analyses guideline. Data from the literature regarding study design, sample size, materials and biomechanical properties were collected. The literature search identified seven publications, which were read to obtain information about the biomechanical characteristics of PVA hydrogel material used with different compounds. Stress, strain and Young's modulus testing outcomes were all evaluated. The biomechanical characteristics of the materials were evaluated to determine how closely they resemble those of the NP. The results revealed that the PVA hydrogel and NP share similar biomechanical characteristics. In order to enhance its biomechanical capabilities, the PVA hydrogel may be combined with other materials.


The most common cause of radicular pain and one of the most common reasons for spinal surgery is intervertebral disc herniation (IDH). This condition is caused by the displacement of the nucleus pulposus (NP) to the outside of the intervertebral disc (IVD) space. The progressive degeneration of a disc is considered to cause IDH (1). The degenerative process is influenced by various factors, including mechanical, behavioral and genetic factors. The IVD allows flexibility and transmits physiological loads across the spine. By sending signals to cells that control appropriate matrix homeostasis, the mechanical load plays a critical role in preserving a healthy IVD (2,3). Conversely, ongoing exposure to high loading is associated with disc degeneration. Degenerative alterations in the annulus lead to IDH. A weakness caused by annulus fissures makes it possible for disc material to expand or move outside the annulus margins (1,4). A recent trend in the surgical management of degenerative disc disease is to preserve the spinal mobility segment and reduce soft-tissue dissection. The intradiscal replacement of the NP or artificial discs may be used instead of performing spinal fusion (2,4,5). This strategy aims to restore the NP, while maintaining the integrity of the cartilaginous endplate and the biomechanics of the anulus fibrosis. The objectives of using NP implants are to stabilize spinal ligamentous structures, improve disc space height, relieve or reduce transmission of shear pressures on the remaining annulus, and stabilize motion (4,6,7).

The ideal implant for the NP must have the same biomechanical characteristics and bioavailability as the human NP. Polyvinyl alcohol (PVA) hydrogel materials for use as implants are designed to have the characteristics of structural integrity, biocompatibility, biodegradability, safety, viscosity and mechanical strength. PVA hydrogel compounds, which have specific material properties, can be used to replace a disc artificially (6,8,9). The present study systematically reviews the biomechanical characterization of PVA hydrogel materials resembling the NP and evaluates these materials as an NP replacement in IDH.

Data and methods

The present systematic review was performed according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guideline (10).

Search strategies

The PubMed, Google Scholar, Cochrane (CENTRAL) and Science Direct databases were searched for relevant systematic reviews, original articles and randomized clinical trials (RCTs) of PVA hydrogel materials as NP replacements. The key words used for the search were herniated NP, IVD herniation, NP replacement, IVD substitution, PVA hydrogel and injectable hydrogel. The corresponding author will provide the detailed search strategy upon request. Additional studies were found by searching the references of the retrieved publications and relevant overview articles.

Inclusion criteria

All reviews, original articles and/or RCTs written in the English language were considered eligible for inclusion if they fulfilled all of the following criteria: i) The study population consisted of patients with IDH and NP replacement or IVD substitution; ii) the study population (in vitro, in vivo and ex vivo) had undergone NP replacement or IVD substitution with PVA hydrogel materials; iii) PVA hydrogel material biomechanics, including stress, strain and Young's modulus, had been characterized. Studies that matched the inclusion criteria for any groups were included, as were subgroups provided that the subgroup findings were presented separately.

Study selection

The inclusion criteria were applied to the references found by the literature search independently by two reviewers to select relevant studies from the titles and abstracts or, if necessary, from the whole publication. A third reviewer was engaged to settle disputes, if necessary.

Categorization of the relevant literature

Relevant literature was categorized with biomaterial testing of the PVA hydrogel as an NP replacement. The literature could be in the form of RCTs, reviews, original articles and material biomechanical testing. All of the selected literature contained stress, strain and Young's modulus as the biomechanical properties of the PVA hydrogel materials.

Data extraction

The data were extracted independently by two reviewers. Information was collected on the PVA hydrogel compound, biomechanical characterization, stress, strain and Young's modulus. Biomechanical testing in reports was required to have been performed on a testing machine. The materials used to replace the NP in IDH cases fulfilled all of the criteria described above.

Outcome measurements

The literature was selected if it reported the test method, crosslinking materials, stress (MPa), strain (%) and Young's modulus (MPa). The ASTM standard test method and crosslinking materials were those used to measure the composition of the PVA hydrogel material mixture. The stress (MPa), strain (%) and Young's modulus (MPa) were of the biomechanical properties of a material were collected. These biomechanical properties were then compared with the value of human NP biomechanical properties with the goal of identifying an ideal PVA hydrogel compound biomaterial similar to the NP.


Study selection

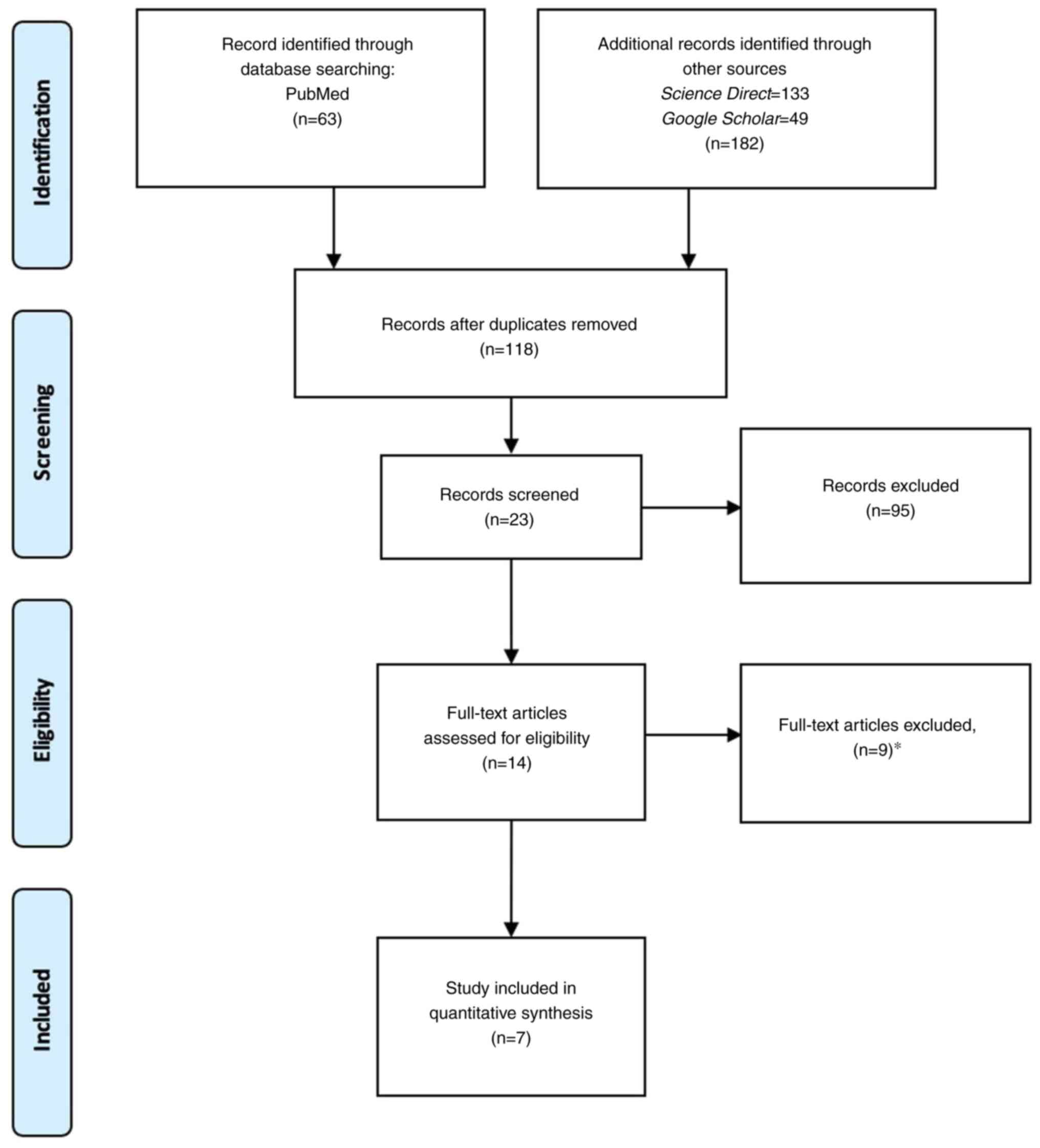

The initial search identified 245 references. A total of 222 articles were excluded on the basis of duplication and/or the abstract, title and key words. After reading the complete articles, 16 articles were excluded for the following reasons: The reports did not describe PVA hydrogel as the main material (nine studies), no biomechanical properties (stress, strain and Young's modulus) were reported, no outcome results were provided (four studies), and there was no explanation of the mechanical testing procedure (three studies). As a result, only seven articles were included in the present systematic review (Fig. 1).

Description of study characteristics

No reviews were found in the search. A total of seven articles on biomechanical testing from PVA hydrogel were found. All seven articles were on the PVA hydrogel used as the base material that was crosslinked with other materials, described unconfined uni-axial compression mechanical testing, and reported the biomechanical properties results.

Data extraction

The relevant information from the studies selected according to the inclusion criteria described above is presented in Table I. The information explained the mechanical testing procedure, crosslinking materials, and biomechanical properties. The literature search identified the materials with the biomechanical properties most similar to those of the NP. The study by Binetti et al (2012) (11) demonstrated that a PVA hydrogel with polyethylene glycol-diglycidyl ether (PEG-DGE) had a Young's modulus of 2 MPa. This result is similar to the Young's modulus of human NP (1.43-32.85 MPa) (12).

Table I

Characteristics of the primary studies included in the present systematic review.

Table I

Characteristics of the primary studies included in the present systematic review.

No.Author(s), year of publicationTest methodCrosslinkingStress (MPa)Strain (%)Young's modulus (MPa)(Refs.)
1.Kita, 2010Unconfined uni-axial compression testPVP0.01150.05(21)
2.Binetti et al, 2012Unconfined uni-axial compression testPEG-DGE5.71352(11)
3.Mahanta et al, 2013Unconfined uni-axial compression testFeCl30.000006470.000012(22)
4.Binetti et al, 2014Unconfined uni-axial compression testPVP, PEG-DGE0.18300.6(23)
5.Neo et al, 2014Unconfined uni-axial compression testSilk0.06450.13(19)
6.Charron et al, 2017Unconfined uni-axial compression testPEG 1% (w/v) gelatin0.02250.1(20)
7.Heo and Park, 2022Unconfined uni-axial compression testPhosphate-buffered saline0.17250.7(24)

[i] PVP, polyvinyl pyrolidone; PEG, polyethylene glycol; diglycidyl ether.


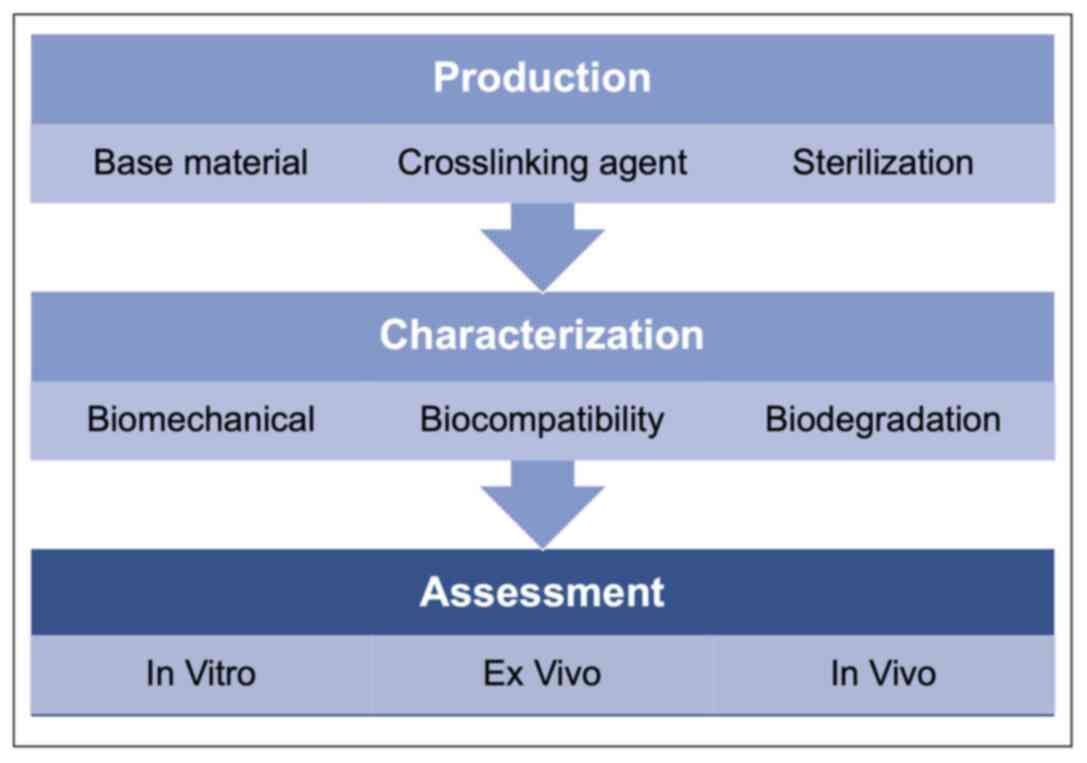

New approaches supporting IVD regeneration that are clinically practical and can enhance the quality of life of patients need to be developed. Since the NP is the location at which early IVD degeneration is most commonly observed, the NP is a prospective target for future treatments. Tissue engineering with NP bioinstructive materials is an alternative to currently available therapies (7,13,14). In addition, to helping to restore NP functionality by increasing its disc height, biologically suitable materials to repair injured tissue can also serve as a delivery system for cells and/or biomolecules to help regenerate healthy tissue. This distinction between NP restoration and regeneration imposes various critical constraints on the relevant biomaterials (Fig. 2) (4,11,13,15). Ideally, biomaterials need to restore the height and biomechanical properties similar to those of the undamaged NP and be able to withstand typical physiological loads on the disc (Table II). From a mechanical point of view, mostly unconfined compression tests and rheology are performed to understand a biomaterial's behavior under physiologically relevant stresses. Consequently, a broad range of parameters regarding their effects on the material's efficacy and performance over time within the disc need to be considered during development (Fig. 3) (4,9,13,16).

Table II

Intradiscal pressure values for different positions and exercises.

Table II

Intradiscal pressure values for different positions and exercises.

PositionStress (MPa)
Lifting 20 kg (rounded back)2.3
Lifting 20 kg (straight back)1.7

In the present systematic review, the literature was systematically selected to evaluate the biomechanical properties of PVA hydrogels with various crosslinking materials. All the selected literature described similar mechanical testing procedures for the study materials. The biomechanical properties results were for stress (MPa), strain (%) and Young's modulus (MPa) (9,17,18). A total of seven articles were identified for the qualitative analysis. The analysis revealed that knowledge on NP replacement is limited, particularly with PVA hydrogel material, which is an ideal substitute as its biomechanical properties are similar to those of the NP. This condition may be affected by several factors, such as the crosslinking materials, mechanical testing procedures and material composition ratio.

In the literature search, the PVA hydrogels were described as being crosslinked with polyvinyl pyrrolidone (PVP), PEG-DGE, FeCl3, polyvinyl pyrrolidone (PVP)/PEG-DGE, silk, PEG 1% (w/v) gelatin and phosphate-buffered saline (PBS). Notably, the studies by Neo et al (2014) (19) and Charron et al (2017) (20) demonstrated that the PVA hydrogel could be crosslinked with natural materials, such as silk and gelatin. Hydrogels crosslinked with natural materials are very interesting to study due to their biocompatibility, biodegradability and safety (7,14). The studies by Kita (2010) (21), Binetti et al (2012) (11), Mahanta et al (2013) (22), Binetti et al (2014) (23), and Heo and Park (2022) (24) demonstrated that PVA hydrogels crosslinked with synthetic materials, such as PVP, PEG-DGE, FeCl3, PVP/PGE-DGE and PBS, lacked bioactivity. However, those materials have the advantages of being able to be engineered and formed to generate the appropriate mechanical properties. The present systematic review found that the biomechanical properties of natural crosslinking agents were less similar than those of synthetic crosslinking agents to those of NP (14,15,25). Synthetic hydrogel crosslinking has exhibited improved Young's moduli values than those of natural materials. Young's modulus is a metric that evaluates resistance to changing the shape of a material in response to an applied force, which is essentially a measurement of a material's stiffness; the higher the value of Young's modulus, the more inelastic the material is, making it more difficult to deform (14,18,15,25). The ratio of stress to strain yields Young's modulus. Due to its association with the amount of load that a material can withstand while keeping its shape, Young's modulus is crucial in defining the biomechanical characterization of a material. The study by Binetti et al (2012) (11) demonstrated that the PVA hydrogel with PEG-DGE possessed the omptimal Young's modulus value among other materials and that value was similar to that of the NP. PVA hydrogel with PEG-DEG crosslinking is an ideal candidate for NP replacement.

In conclusion, the biomechanical properties of the NP and of PVA hydrogel are similar. The PVA hydrogel can be combined with various substances to improve its biomechanical properties. The most promising materials for NP replacement were found to be PVA and PEG-DGE hydrogel. The materials were tested in vivo to determine their resistance and mechanical strength in the body. The biocompatibility of PVA hydrogel needs to be further evaluated.


Not applicable.


Funding: No funding was received.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

EAS, GIP, AHB and MF were involved in the conception and design of the study, in data collection and analysis, as well as in the writing, revising and reviewing of the manuscript. NSS, AR and BU were involved in the conception and design of the study, and in the revising and reviewing of the manuscript. EAS, GIP, AHB, MF, NSS, AR and BU confirm the authenticity of all the raw data. All authors have read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.



Amin RM, Andrade NS and Neuman BJ: Lumbar disc herniation. Curr Rev Musculoskelet Med. 10:507–516. 2017.PubMed/NCBI View Article : Google Scholar


Newell N, Little JP, Christou A, Adams MA, Adam CJ and Masouros SD: Biomechanics of the human intervertebral disc: A review of testing techniques and results. J Mech Behav Biomed Mater. 69:420–434. 2017.PubMed/NCBI View Article : Google Scholar


Zhang X, Zhao Z, Niu C, Ma Z, Hou J, Wang G and Tang M: Spinal biomechanical modelling in the process of lumbar intervertebral disc herniation in middle-aged and elderly. J Healthc Eng. 2021(2869488)2021.PubMed/NCBI View Article : Google Scholar


Iatridis JC, Nicoll SB, Michalek AJ, Walter BA and Gupta MS: Role of biomechanics in intervertebral disc degeneration and regenerative therapies: What needs repairing in the disc and what are promising biomaterials for its repair? Spine J. 13:243–262. 2013.PubMed/NCBI View Article : Google Scholar


Fenton DS: CHAPTER 23-Disc Herniation: Recurrent vs. Postoperative Scarring. In: Czervionke LF, Fenton DS, eds. Imaging Painful Spine Disorders. W.B. Saunders; 2011: 174-179.


Lewis G: Nucleus pulposus replacement and regeneration/repair technologies: present status and future prospects. J Biomed Mater Res Part B Appl Biomater. 100:1702–1720. 2012.PubMed/NCBI View Article : Google Scholar


Allen MJ, Schoonmaker JE, Bauer TW, Williams PF, Higham PA and Yuan HA: Preclinical evaluation of a poly (vinyl alcohol) hydrogel implant as a replacement for the nucleus pulposus. Spine (Phila Pa 1976). 29:515–523. 2004.PubMed/NCBI View Article : Google Scholar


Thomas JD, Lowman A and Marcolongo M: Novel associated PVA/PVP hydrogels for nucleus pulposus replacement. J. Biomed. Mater. Res. 67:1329–1337. 2003.PubMed/NCBI View Article : Google Scholar


Di Martino A, Vaccaro AR, Lee JY, Denaro V and Lim MR: Nucleus pulposus replacement: Basic science and indications for clinical use. Spine (Phila Pa 1976). 30(Suppl 16):S16–S22. 2005.PubMed/NCBI View Article : Google Scholar


Page MJ, McKenzie JE, Bossuyt PM, Boutron I, Hoffmann TC, Mulrow CD, Shamseer L, Tetzlaff JM, Akl EA, Brennan SE, et al: The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. Int J Surg. 88(105906)2021.PubMed/NCBI View Article : Google Scholar


Binetti VR, Marcolongo M and Lowman AM: Development of a chemically crosslinked poly (vinyl alcohol) hydrogel for injectable nucleus pulposus replacement. In: 2012 38th annual northeast bioengineering conference (NEBEC). IEEE; 2012: 378-379.


Wilke HJ, Neef P, Caimi M, Hoogland T and Claes LE: New in vivo measurements of pressures in the intervertebral disc in daily life. Spine (Phila Pa 1976). 24:755–762. 1999.PubMed/NCBI View Article : Google Scholar


Schmitz TC, Salzer E, Crispim JF, Fabra GT, LeVisage C, Pandit A, Tryfonidou M, Maitre CL and Ito K: Characterization of biomaterials intended for use in the nucleus pulposus of degenerated intervertebral discs. Acta Biomater. 114:1–15. 2020.PubMed/NCBI View Article : Google Scholar


Leckie S and Kang J: Recent advances in nucleus pulposus replacement technology. Curr Orthop Pract. 20:222–226. 2009.


Yang X and Li X: Nucleus pulposus tissue engineering: A brief review. Eur Spine J. 18:1564–1572. 2009.PubMed/NCBI View Article : Google Scholar


Carl A, Ledet E, Yuan H and Sharan A: New developments in nucleus pulposus replacement technology. Spine J. 4(Suppl 6):S325–S329. 2004.PubMed/NCBI View Article : Google Scholar


Jia H, Lin X, Wang D, Wang J, Shang Q, He X, Wu K, Zhao B, Peng P, Wang H, et al: Injectable hydrogel with nucleus pulposus-matched viscoelastic property prevents intervertebral disc degeneration. J Orthop Transl. 33:162–173. 2022.PubMed/NCBI View Article : Google Scholar


Joshi A, Fussell G, Thomas J, Hsuan A, Lowman A, Karduna A, Vresilovic E and Marcolongo M: Functional compressive mechanics of a PVA/PVP nucleus pulposus replacement. Biomaterials. 27:176–184. 2006.PubMed/NCBI View Article : Google Scholar


Neo PY, Shi P, Goh JCH and Toh SL: Characterization and mechanical performance study of silk/PVA cryogels: Towards nucleus pulposus tissue engineering. Biomed Mater. 9(65002)2014.PubMed/NCBI View Article : Google Scholar


Charron PN, Blatt SE, McKenzie C and Oldinski RA: Dynamic mechanical response of polyvinyl alcohol-gelatin theta-gels for nucleus pulposus tissue replacement. Biointerphases. 12(02C409)2017.PubMed/NCBI View Article : Google Scholar


Kita BK: Characterization of in-situ curing PVA-PEG hydrogels for nucleus pulposus replacement. Thesis. 1:125–142. 2010.


Mahanta N, Teow Y and Valiyaveettil S: Viscoelastic hydrogels from poly (vinyl alcohol)-Fe (iii) complex. Biomater Sci. 1:519–527. 2013.PubMed/NCBI View Article : Google Scholar


Binetti VR, Fussell GW and Lowman AM: Evaluation of two chemical crosslinking methods of poly (vinyl alcohol) hydrogels for injectable nucleus pulposus replacement. J Appl Polym Sci. 131:2014.


Heo M and Park S: Biphasic properties of PVAH (polyvinyl alcohol hydrogel) reflecting biomechanical behavior of the nucleus pulposus of the human intervertebral disc. Materials (Basel). 15(1125)2022.PubMed/NCBI View Article : Google Scholar


Cloyd JM, Malhotra NR, Weng L, Chen W, Mauck RL and Elliott DM: Material properties in unconfined compression of human nucleus pulposus, injectable hyaluronic acid-based hydrogels and tissue engineering scaffolds. Eur spine J. 16:1892–1898. 2007.PubMed/NCBI View Article : Google Scholar
