Genetic heterogeneity of RPMI-8402, a T-acute lymphoblastic leukemia cell line
Affiliations: Department of Tumor Biology, Medical University of Łódź, Łódź 90‑752, Poland, Department of Research and Development, Celther Polska Ltd., Łódź 93‑193, Poland, Department of Microbiology and Medical Laboratory Immunology, Medical University of Łódź, Łódź 92‑213, Poland
- Published online on: November 23, 2015 https://doi.org/10.3892/ol.2015.3959
- Pages: 593-599
Copyright: © Stoczynska‑Fidelus et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
This article is mentioned in:
In general, cell lines are considered to be genetically and phenotypically homogenous populations of cells. When cell lines are cultured in vitro, the most adaptable clone is usually the one that expands most rapidly during the stabilization process, and the cells derived from this clone become the most abundant in the culture. Generally, ≤20–30 passages are required in order to purify the cells derived from this clone from other clones that may also be present in the culture. This potential genetic heterogeneity displayed by cell lines cultured in vitro has led to certain opposition to the use of cancer cell lines in modern drug testing (1,2). The number of cell lines described as consisting of several genetically different cell populations has increased in the recent years (3,4). However, the number of publications based on genetically heterogeneous cell lines is limited. The analysis of genetically heterogenous cell cultures is more complicated than that of genetically homogenous cell populations, due to the flexibility and differences in adaptation exhibited by the different populations present in the culture, and typically requires the combination of well-established methodologies, including immunocytochemistry (ICC) and cell sorting, with novel technologies such as massive parallel sequencing. These types of genetic analyses are of importance, particularly for cancer, since the mutational analysis of the cellular heterogeneity of an specimen offers an evolutionary perspective of the carcinogenic process. In the present study, the genetic heterogeneity of RPMI-8402, a T-acute lymphoblastic leukemia (T-ALL) cell line, is analyzed in depth, and the usefulness of cell lines in anticancer drug research is debated (5–7).
Materials and methods
RPMI-8402 cell culture
The RPMI-8402 cell line (ACC 290 human, peripheral blood, leukaemia, acute lymphoblastic T cell) was purchased from the Leibniz Institute DSMZ-German Collection of Microorganisms and Cell Cultures (Brunswick, Germany). RPMI-8402 cells were cultured at low and high density in RPMI-1640 expansion medium supplemented with 10% FBS (both PAA, Linz, Austria) and penicillin/streptomycin/glutamin (Thermofisher Scientific, Inc., Waltham, MA< USA) in %% CO2 for 24 h.
DNA and RNA extraction
DNA and RNA were isolated from RPMI-8402 cells at 48 and 72 h post-seeding, using AllPrep DNA/RNA Mini Kit (Qiagen GmbH, Hilden, Germany) according to the manufacturers protocol. The concentration and purity of the nucleic acids were measured by NanoPhotometer® (Implen GmbH, Munich, Germany).
TP53 mutation detection
The TP53 gene was sequenced via the Sanger's method (also known as the dideoxy sequencing or chain termination method), using cDNA as template. Reverse transcription was performed with QuantiTect® Reverse Transcription Kit (Qiagen GmbH), according to the manufacturers protocol. The exons 4–8 of the TP53 gene on the cDNA template were amplified by polymerase chain reaction (PCR), using Q5® Hot Start High-Fidelity DNA Polymerase (New England BioLabs, Inc., Ipswich, MA, USA). The primer sequences used for PCR and sequencing of the TP53 gene are indicated in Table I. The cycling conditions were as follows: 30 sec at 98°C (polymerase activation), followed by 35 cycles of 10 sec at 98°C (denaturation), 20 sec at 63°C (annealing), 20 sec at 72°C (extension), and 2 min at 72°C (final extension). Next, samples were purified with NucleoSpin Gel and PCR Clean-up (Macherey-Nagel GmbH, Düren, Germany). cDNA sequencing was performed using BigDye Terminator v3.1 Cycle Sequencing Kit (Applied Biosystems, Thermo Fisher Scientific, Inc., Waltham, MA, USA) following the manufacturers protocol. Upon ethanol/EDTA precipitation, the sequences were analysed with ABI PRISM® 310 Genetic Analyzer (Applied Biosystems, Thermo Fisher Scientific, Inc.), using the DNA sequencing analysis software provided with the instrument.
RPMI-8402 cells, obtained from expansion of the culture, were fixed for 15 min in phosphate-buffered saline (PBS) containing 4% paraformaldehyde (Sigma-Aldrich, St. Louis, MO, USA), and next permeabilised with 0.1% Triton™ X-100 (Sigma-Aldrich) for 10 min at room temperature (RT) while agitating. The fixed cells were subsequently blocked with 2% donkey serum (Sigma-Aldrich) dissolved in PBS for 1 h at RT while agitating, and then incubated with monoclonal rabbit antibody against human TP53 (dilution 1:200; cat no. sc-6243, Santa Cruz Biotechnology, Inc., Dallas, TX, USA). Next, the cells were incubated with anti-rabbit Alexa Fluor 488 secondary antibody (dilution 1:1,000; Invitrogen, Thermo Fisher Scientific, Inc.) for 1 h at RT in the dark, and the cell nuclei were counterstained with DAPI (Sigma-Aldrich). Slides were cover-slipped and examined under a fluorescence microscope (ECLIPSE Ci-S; Nikon, Corporation, Tokyo, Japan), using ACT-1 software (Nikon, Corporation).
Fluorescence in situ hybridization (FISH) analyses
For the simultaneous detection of the number of copies of the TP53 gene and chromosome 17 centromere (CEP17) by FISH, TP53/CEP 17 FISH Probe Kit (Vysis, Abbott Molecular, Des Plaines, IL, USA) was used. The reaction was conducted according to the following protocol: Fixed samples were incubated in 2X standard saline citrate (SSC) buffer (Abbott Molecular) at 72°C for 2 min, followed by 5-min incubation at 37°C in a 0.5 mg/l protease solution (Abbott Molecular, Des Plaines, IL, USA), and then washed in PBS for 5 min at RT. Next, the specimens were fixed for 5 min at RT in 1% formaldehyde solution; washed in PBS for 5 min at RT; dehydrated in 70% ethanol for 1 min, followed by 1-min incubation in 85% ethanol, and 5-min incubation in 100% ethanol; and dried at RT, prior to be placed on a slide warmer at 50°C for 2 min. The FISH probe mix was centrifuged and denatured at 73°C for 5 min. Upon addition of the denaturated probe, the specimens were cover-slipped and incubated at 37°C overnight in a humidified chamber, prior to be subjected to hybridization. Subsequently, the cell specimens were washed with 0.4X SSC buffer containing 0.3% Nonidet (N)P-40 (Abbott Molecular) at 73°C for 2 min, followed by 1-min wash at RT with 2X SSC buffer containing 0.1% NP-40. Next, the specimens were dried in the dark at RT, stained with 10 µl 125 ng/ml DAPI solution (Abbott Molecular) and cover-slipped. The samples were analysed with ECLIPSE Ci-S fluorescence microscope, which was equipped with a specifically designed combination of filters for a range of green and orange light. The number of red signals, resulting from the binding of the TP53-specific probe, directly indicated the number of copies of TP53, while the number of green signals, caused by the binding of the CEP 17 probe, directly indicated the number of copies of the chromosome 17.
Fluorescence activated cell sorting (FACS)
For FACS analysis, 5×106 cells were suspended in 0.5 ml 0.5% bovine serum albumin (BSA) (Sigma-Aldrich) in PBS; fixed in PBS containing 4% paraformaldehyde for 10 min; permeabilised with 0.1% Triton™ X-100 for 10 min at RT; and washed three times with 0.5 ml 0.5% BSA dissolved in PBS. Nonspecific binding sites were blocked by incubation with 2% BSA dissolved in PBS for 15 min. Next, 25% cells were subjected to a preliminary analysis to evaluate their size and granularity, and 75% of them were then selected for immunolabeling with rabbit anti-TP53 antibody (diluted 1:200 in PBS; cat no. sc-6243; Santa Cruz Biotechnology, Inc.). For immunolabeling, the fixed cells were incubated with the aforementioned primary antibody for 15 min at RT, followed by 15-min incubation at RT with a goat anti-rabbit Alexa Fluor® 488 fluorochrome-conjugated secondary antibody (dilution 1:1,000 in PBS; cat no., Invitrogen, Thermo Fisher Scientific, Inc.) for visualization of the labeled proteins. Cell sorting was performed with Amnis® Imaging Flow Cytometer (Amnis, EMD Millipore, Billerica, MA, USA). Side scatter and forward scatter gate parameters were selected to sort cells according to their cell size and granularity, which had been previously determined during the preliminary analysis. The selected population of cells was divided into two groups, TP53+ and TP53−, according to the intensity of the fluorescence signal arising from the secondary antibody. To ensure the precision of the selection process, the two cells detected following a TP53+ cell, were excluded. Cell debris was collected in a separate tube. Sorted cells (≤5×105 cells) were subjected to DNA/RNA isolation for further sequencing analysis.
Ion Torrent™ Personal Genome Machine (PGM) sequencing and sequencing data analysis
Library preparation and sequencing were performed with Ion Torrent™ PGM (Thermo Fisher Scientific, Inc.), following the manufacturer's protocol, using whole genomic DNA isolated from RPMI-8402 cells.
The high-quality DNA required for sequencing was isolated from RPMI-8402 cells using AllPrep DNA/RNA Mini Kit, and purified with NucleoSpin Gel and PCR Clean-up. The concentration and purity of the extracted DNA were estimated by NanoPhotometer® and Qubit 2.0® Fluorometer (Thermo Fisher Scientific, Inc).
Ion AmpliSeq™ Libraries were constructed using Ion AmpliSeq 2.0 Library Kit (Thermo Fisher Scientific, Inc.), and purified with Agencourt AMPure XP (Beckman Coulter, Inc., Brea, CA, USA). Target amplification was performed using four pools of 4,000 primers (Ion AmpliSeq™ Comprehensive Cancer Panel; Thermo Fisher Scientific, Inc.). The quantification of libraries was estimated with Qubit 2.0 Fluorometer, using Qubit dsDNA HS Assay Kit (Thermo Fisher Scientific, Inc.). The size of the DNA fragments in each pool and the concentration of the final libraries were evaluated by 2100 BioAnalyzer (Agilent Technologies, Inc., Santa Clara, CA, USA) with High Sensitivity DNA Analysis Kit (Agilent Technologies, Inc.).
Upon dilution, the libraries were mixed and used to prepare Ion Sphere™ particles (ISPs), using Ion OneTouch™ 2 System (Thermo Fisher Scientific, Inc.) and Ion PGM™ Template OT2 200 Kit (Thermo Fisher Scientific, Inc.). The quality of the unenriched, template-positive ISPs was assessed with Qubit 2.0 Fluorometer, using Alexa Fluor® 488 and 647 fluorophores (Invitrogen, Thermo Fisher Scientific, Inc.). Following emulsion PCR and recovery, the template-positive ISPs were enriched with Ion OneTouch™ ES (Thermo Fisher Scientific, Inc.), using Dynabeads® MyOne™ Streptavidin C1 (Thermo Fisher Scientific, Inc.), and subjected to sequencing.
The sequencing process, which included 500 flows and >5×106 total counts with 99.5% aligned bases, was performed on Ion 318™ Chip (Thermo Fisher Scientific, Inc.), using Ion PGM™ Sequencing 200 Kit v2 (Thermo Fisher Scientific, Inc.). Ion Torrent™PGM sequencing of RPMI-8402 cells was performed using Ion AmpliSeq™ Comprehensive Cancer Panel (Thermo Fisher Scientific, Inc.), which included 16,000 pairs of primers (4,000 in each pool) that enabled to cover exons in ~400 genes involved in tumorigenesis.
The data obtained from the Ion Torrent™ PGM sequencing reaction were directly processed to generate sequence reads, and loaded onto Ion Torrent Server™ (Thermo Fisher Scientific, Inc.).
Initial variant calling from the Ion AmpliSeq™ sequencing data were generated by Torrent Suite™ Software version 4.0.2 (Thermo Fisher Scientific, Inc.) with Torrent Variant Caller plug-in version 4.0 (Thermo Fisher Scientific, Inc.). The analysis was performed using Homo sapiens hg19 genome as reference.
In order to ensure the specificity and sensitivity of the assay, the following restrictions were applied during the generation of the final results: i) The frequency of the candidate sites with potential mutations was analysed, and those mutations presenting a frequency in the range of 20–100 were used for further analysis; ii) for the filters, ‘total coverage depth >100’ and ‘coverage ± >20’ settings were used to eliminate potential false positives arising from low read depth; and iii) a subsequent filtering step was applied to eliminate those mutations that were detected in one strand, in order to reduce possible strand-specific errors. The data fulfilling all the aforementioned filtering criteria were used for further analysis, leading to the identification of single nucleotide polymorphisms (SNPs), insertions and deletions. The variant calls were visualised with Integrative Genomics Viewer software, version 8 (http://www.broadinstitute.org/software/igv), and the detected mutations were compared to mutations in RPMI-8402 cells that had been previously reported in the Broad-Novartis Cancer Cell Line Encyclopedia (CCLE) (http://www.broadinstitute.org/ccle) (8).
The ratio of mutated to wild-type (WT) TP53 DNA
Sequencing analysis demonstrated the presence of the heterozygous mutation CGT-TGT (Arg-Cys) in codon 273 of the TP53 gene (Fig. 1A). In cells cultured at low density, the ratio of mutated to WT TP53 detected by sequencing was 0.9, whereas in high density cultures this ratio reduced to 0.4.

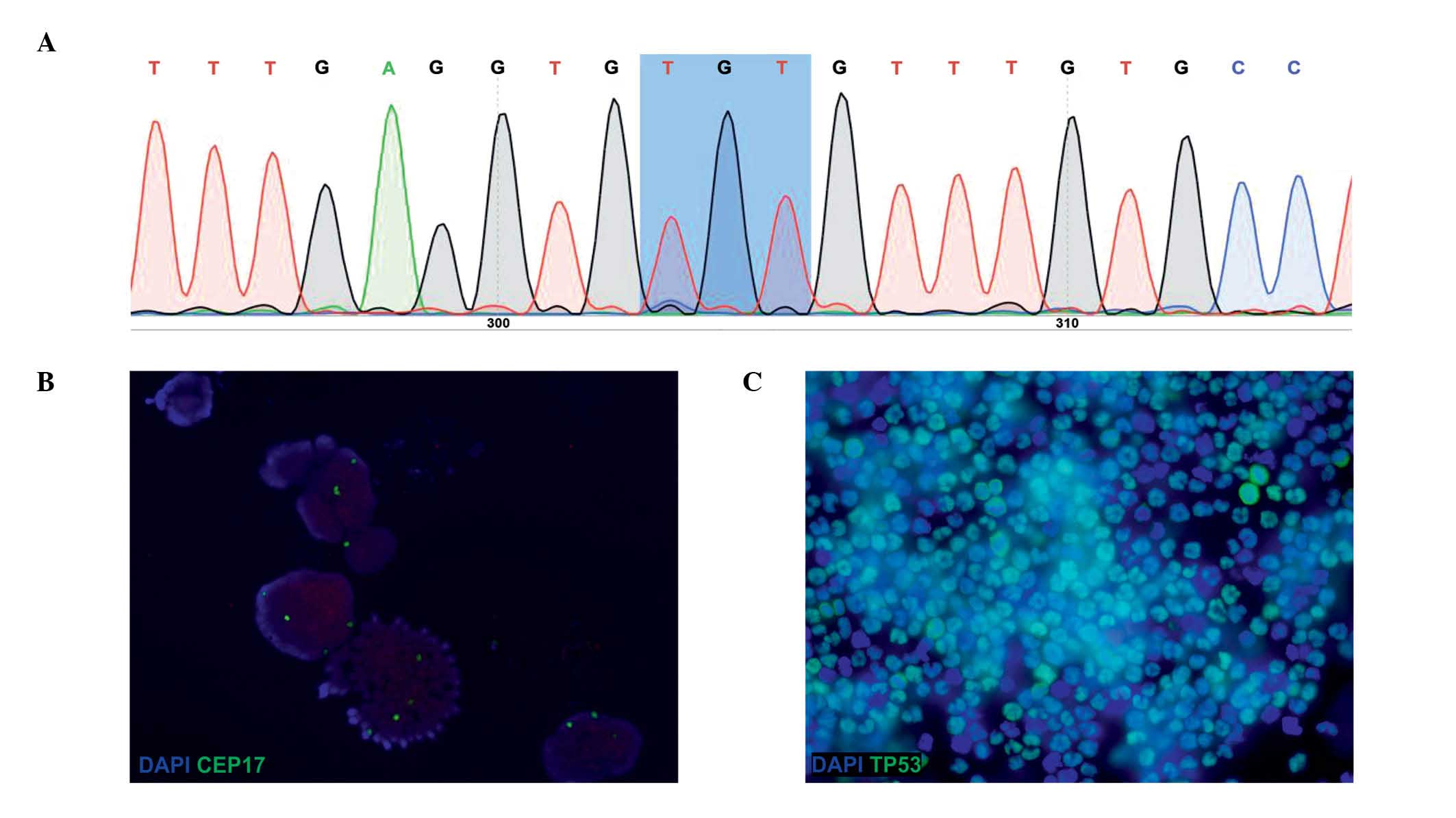

Analysis of the RPMI-8402 cell line. (A) Sanger sequencing results confirmed the presence of the mutation CGT-TGT (Arg-Cys) in the codon 273 of the TP53 gene. (B) Fluorescence in situ hybridization analysis of CEP17 identified a variable number of copies (3–7 copies/cell) of the chromosome 17. (C) Immunocytochemical analysis revealed two different cell populations, one exhibiting nuclear accumulation of TP53, and the other one displaying low protein expression levels of TP53. CEP17, chromosome 17 centromere.
Genetic heterogeneity visualized at the single cell level
FISH analysis with CEP17 demonstrated an heterogeneous number of copies of the chromosome 17 (3–7 copies/cell, 4 copies/cell on average) (Fig. 1B). In addition, ICC analysis identified two distinct populations of cells, one of them displaying nuclear accumulation of TP53 (TP53+), and the other one presenting low expression levels of TP53 (TP53−) (Fig. 1C).
Two cell populations were sorted by FACS, based on their expression levels of TP53, and subsequently subjected to sequencing analysis. TP53+ cells exhibited a higher proportion of the mutated template, compared with the TP53− population (Table II). Further analyses revealed a heterozygous mutation in the phosphatase and tensin homolog (PTEN) gene in TP53+ cells, which was absent in the TP53− population. By contrast, a homozygous mutation in the F-Box and WD repeat domain containing 7 (FBXW7) gene was observed in both cell populations.
Massive parallel sequencing and database analysis
The results of massive parallel sequencing were consistent with the data previously published in CCLE, confirming the reliability of the analyses performed on the present study. Furhermore, massive parallel sequencing demonstrated that the RPMI-8402 cell line consists of several genetically different cell populations. Consistently with the sorting analysis and Sangers sequencing, massive parallel sequencing detected the aforementioned R159S mutation in the PTEN gene in 36% of the templates. In addition, mutations in Harvey rat sarcoma viral oncogene homolog (HRAS) (A134S), low-density lipoprotein receptor-related protein 1B (LPRB1) (R3239G) and tuberous sclerosis complex 2 (TSC2) (A614T) were detected in 30, 24 and 73% of the templates, respectively (Table III). These mutations, as well as mutations in Wolf-Hirschhorn syndrome candidate 1 (WHSC1) and peroxisome proliferator-activated receptor γ (PPARγ) (Table III), represent an additional indication of genetic heterogeneity in the RPMI-8402 cell line, which may be used to reconstruct the carcinogenic process leading to the development of T-ALL (Tables III and IV).
Mutations detected by Ion Torrent™ Personal Genome Machine sequencing in the RPMI-8402 cell line, which had been previously described in the Cancer Cell Line Encyclopedia.
Novel mutations detected by Ion Torrent™ Personal Genome Machine sequencing in the RPMI-8402 cell line, which had not been previously published in the Cancer Cell Line Encyclopedia.
RPMI-8402 is a genetically heterogenous T-ALL cell line (9). Using DNA sequencing, the present study identified a heterozygous Arg-Cys mutation at codon 273 of the TP53 gene in RPMI-8402 cells, with varying proportions of the templates (50–75% of WT allele), depending on cell confluence. Additionally, FISH analysis detected a variable number of copies of the chromosome 17 in RPMI-8402 cells, while ICC analysis revealed two different cell populations, exhibiting high and low protein expression levels of TP53, respectively, which suggests genetic heterogeneity of the RPMI-8402 cell line. Cell sorting analysis identified heterogeneity of PTEN and TP53 mutations, but an homozygous mutation in the FBXW7 gene was detected in both cell populations. Furthermore, massive parallel sequencing confirmed the genetic heterogeneity of RPMI-8402 cells, and excluded the possibility of cross-contamination with another cell line. The comparison between the results obtained with Ion Torrent™ and Sanger sequencing indicates that the former method provides high sensitivity and specificity and, therefore, may be the a suitable technique for mutational analysis of cancer samples (10–12). However, strict parameters should be employed when using Ion Torrent™ sequencing, in order to ensure a correct analysis of the data. The results of the present study demonstrated that the RPMI-8402 cell line consists of several genetically different subpopulations. Furthermore, the proportion of cells with different mutations was observed to vary during cell culturing. Thus, in low density cultures, a significant proportion of the cells exhibited a mutated version of TP53, while at high density, cells carrying mainly the WT TP53 template constituted the majority of the culture.
From the perspective of new drug development, the heterogeneity of RPMI-8402 cells may be regarded at the same time as a difficulty and an opportunity. Thus, the results of antineoplastic drug testing may be influenced by the culture confluence, since different cell subpopulations may display different drug resistance, which may complicate the interpretation of the data. However, the findings of the present study, which identified genetic heterogeneity in the cell line RPMI-8402, may support the use of cell lines in future anticancer drug studies, since the lack of genetic heterogeneity (contrarily to what is typically observed in neoplasms) was one of the arguments against the use of cell lines in drug research (13,14).
Additionally, the results of the analyses of the RPMI-8402 cell line conducted in the present study may be used to elucidate the evolution of mutational alterations that occur during carcinogenesis. The results of the present study suggest that mutations in genes such as FBXW7, neurogenic locus notch homolog 4, 5-methyltetrahydrofolate-homocysteine methyltransferase (MTR; Table IV), nuclear mitotic apparatus protein 1, platelet-derived growth factor receptor α, synaptic nuclear envelope protein 1 and Werner syndrome occurred early in the process of carcinogenesis, since all the cells analysed contained the mutated templates. These alterations were possibly followed by mutations in TP53, Wilms tumor 1, PTEN, cyclin-dependent kinase 6, leukemia inhibitory factor receptor, mixed-lineage leukemia protein 3, A-kinase anchor protein 9, hepatic leukemia factor and AF4/FMR2 family, member 1; while the mutations detected in lactotransferrin, ROS1, transcription factor 7-like 1, heat shock protein 90 kDa α (cytosolic), class B member 1, fibronectin 1, splicing factor 3B subunit 1, cereblon and nuclear pore complex protein 98 possibly occurred at later stages of the carcinogenic process. In addition, mutations in genes such as low-density lipoprotein receptor-related protein 1B, phosphodiesterase 4D-interacting protein, lipoma-preferred partner, insulin-like growth factor 1 receptor and pleckstrin homology domain containing, family G member 5 and Bloom syndrome genes were observed in minor subpopulations of cells, where the mutated template constituted ~20%, suggesting their generation at the final stages of carcinogenesis (Table IV). Previous studies have demonstrated that certain mutations, particularly of oncogenes, do not require an homo-/hemizygous status to efficiently promote neoplastic transformation (15). In the case of RPMI-8402 cells, previous studies have demonstrated hypertetraploidy in this cell line, which further complicates the interpretation of data (16). However, massive parallel sequencing seems to be a useful tool in the identification of driver genes in carcinogenesis (17,18). The observations of the present study are in agreement with previous analyses of clinical T-ALL samples, which revealed that individual patients with T-ALL contained various clones that shared a common genetic stem origin but responded differently to the therapy (5,19).
In conclusion, the present study has demonstrated that the RPMI-8402 cell line exhibits the genetic heterogeneity typical of T-ALL, and therefore, it may be useful in anticancer drug research.
The present study was supported by the National Science Centre (Kraków, Poland) (grant nos. 2011/01/B/NZ1/01502 and 2011/01/B/NZ4/07832). Ion Torrent™ sequencing analyses were performed within the framework of control procedures of the PGM™ equipment at the Celther Polska Ltd. (Łódź, Poland).
Gillet JP, Calcagno AM, Varma S, Marino M, Green LJ, Vora MI, Patel C, Orina JN, Eliseeva TA, Singal V, et al: Redefining the relevance of established cancer cell lines to the study of mechanisms of clinical anti-cancer drug resistance. Proc Natl Acad Sci USA. 108:18708–18713. 2011. View Article : Google Scholar : PubMed/NCBI
Nugoli M, Chuchana P, Vendrell J, Orsetti B, Ursule L, Nguyen C, Birnbaum D, Douzery EJ, Cohen P and Theillet C: Genetic variability in MCF-7 sublines: Evidence of rapid genomic and RNA expression profile modifications. BMC Cancer. 3:132003. View Article : Google Scholar : PubMed/NCBI
Inoue A, Yokomori K, Tanabe H, Mizusawa H, Sofuni T, Hayashi Y, Tsuchida Y and Shimatake H: Extensive genetic heterogeneity in the neuroblastoma cell line NB(TU)1. Int J Cancer. 72:1070–1077. 1997. View Article : Google Scholar : PubMed/NCBI
Treanor LM, Zhou S, Janke L, Churchman ML, Ma Z, Lu T, Chen SC, Mullighan CG and Sorrentino BP: Interleukin-7 receptor mutants initiate early T cell precursor leukemia in murine thymocyte progenitors with multipotent potential. J Exp Med. 211:701–713. 2014. View Article : Google Scholar : PubMed/NCBI
Srivastava BI, Minowada J and Moore GE: High terminal deoxynucleotidyl transferase activity in a new T-cell line (RPMI 8402) of acute lymphoblastic leukemia origin. J Natl Cancer Inst. 55:11–14. 1975.PubMed/NCBI
Gu Y, Lu K, Yang G, Cen Z, Yu L, Lin L, Hao J, Yang Z, Peng J, Cui S and Huang J: Mutation spectrum of six genes in Chinese phenylketonuria patients obtained through next-generation sequencing. PLoS One. 9:e941002014. View Article : Google Scholar : PubMed/NCBI
Cai X, Sheng J, Tang C, Nandakumar V, Ye H, Ji H, Tang H, Qin Y, Guan H, Lou F, et al: Frequent mutations in EGFR, KRAS and TP53 genes in human lung cancer tumors detected by ion torrent DNA sequencing. PLoS One. 9:e952282014. View Article : Google Scholar : PubMed/NCBI
Bai X, Zhang E, Ye H, Nandakumar V, Wang Z, Chen L, Tang C, Li J, Li H, Zhang W, et al: PIK3CA and TP53 gene mutations in human breast cancer tumors frequently detected by ion torrent DNA sequencing. PLoS One. 9:e993062014. View Article : Google Scholar : PubMed/NCBI
Gebhart E, Thoma K, Verdorfer I, Drexler HG and Efferth T: Genomic imbalances in T-cell acute lymphoblastic leukemia cell lines. Int J Oncol. 21:887–894. 2002.PubMed/NCBI
Gerlinger M, Horswell S, Larkin J, Rowan AJ, Salm MP, Varela I, Fisher R, McGranahan N, Matthews N, Santos CR, et al: Genomic architecture and evolution of clear cell renal cell carcinomas defined by multiregion sequencing. Nat Genet. 46:225–233. 2014. View Article : Google Scholar : PubMed/NCBI
Sottoriva A, Spiteri I, Piccirillo SG, Touloumis A, Collins VP, Marioni JC, Curtis C, Watts C and Tavaré S: Intratumor heterogeneity in human glioblastoma reflects cancer evolutionary dynamics. Proc Natl Acad Sci USA. 110:4009–4014. 2013. View Article : Google Scholar : PubMed/NCBI
Mullighan CG: The molecular genetic makeup of acute lymphoblastic leukemia. Hematology Am Soc Hematol Educ Program. 2012:389–396. 2012.PubMed/NCBI
