Apigenin inhibits growth and induces apoptosis in human cholangiocarcinoma cells

  • Authors:
    • Pantipa Subhasitanont
    • Daranee Chokchaichamnankit
    • Khajeelak Chiablaem
    • Siriporn Keeratichamroen
    • Lukana Ngiwsara
    • N. Monique Paricharttanakul
    • Kriengsak Lirdprapamongkol
    • Churat Weeraphan
    • Jisnuson Svasti
    • Chantragan Srisomsap
  • View Affiliations

  • Published online on: August 2, 2017     https://doi.org/10.3892/ol.2017.6705
  • Pages: 4361-4371
Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


A promising nutraceutical, apigenin, was recently revealed to exhibit biological activity in inhibiting several types of cancer. The effects of apigenin on the growth inhibition and apoptosis of the cholangiocarcinoma HuCCA‑1 cell line were investigated. Protein alterations subsequent to apigenin treatment were studied using a proteomic approach. The values of 20, 50 and 90% inhibition of cell growth (IC20, IC50 and IC90) were determined by MTT cell viability assay. Apoptotic cell death was detected using two different methods, a flow cytometric analysis (Muse Cell Analyzer) and DNA fragmentation assay. A number of conditions including attached and detached cells were selected to perform two-dimensional gel electrophoresis (2‑DE) to study the alterations in the expression levels of treated and untreated proteins and identified by liquid chromatography (LC)/tandem mass spectrometry (MS/MS). The IC20, IC50 and IC90 values of apigenin after 48 h treatment in HuCCA‑1 cells were 25, 75 and 200 µM, respectively, indicating the cytotoxicity of this compound. Apigenin induced cell death in HuCCA‑1 cells via apoptosis as detected by flow cytometric analysis and exhibited, as confirmed with DNA fragmentation, characteristics of apoptotic cells. A total of 67 proteins with altered expression were identified from the 2‑DE analysis and LC/MS/MS. The cleavage of proteins involved in cytoskeletal, cytokeratin 8, 18 and 19, and high expression of S100‑A6 and S100‑A11 suggested that apoptosis was induced by apigenin via the caspase‑dependent pathway. Notably, two proteins, heterogeneous nuclear ribonucleoprotein H and A2/B1, disappeared completely subsequent to treatment, suggesting the role of apigenin in inducing cell death. The present study indicated that apigenin demonstrates an induction of growth inhibition and apoptosis in cholangiocarcinoma cells and the apoptosis pathway was confirmed by proteomic analysis.


A nutraceutical is a food or a part of a food that provides medicinal and health benefits (1). Several nutraceuticals originate from natural sources. Understanding the action of these active nutritional compounds and their mechanisms associated with their health benefits is of interest. Apigenin, 4′,5,7-trihydroxyflavone, is a promising food-based flavonoid compound present abundantly in common fruits and vegetables including oranges, parsley, celery, spearmint, tea, wheat sprouts, perennial chamomile, onions and a number of seasonings (2). It has been demonstrated to display a variety of biological activities, including anti-inflammatory, anti-oxidant, anticarcinogenic, chemoprevention and tumor growth inhibition (3,4).

The higher incidence of cholangiocarcinoma (CCA), a malignant tumor derived from intrahepatic or extrahepatic biliary tracts, occurs in Southeast Asian countries such as Thailand (5). Congenital liver malformations, primary sclerosing cholangitis and infection with the parasitic liver flukes Opisthorchis viverrini are risk factors for cholangiocarcinoma (6). The risk of cholangiocarcinoma increases in patients with chronic liver disease with either form of viral hepatitis, B or C (7,8), alcoholic liver disease or cirrhosis from a number of causes (9,10). Our group has established the proteomic map of a Thai human cholangiocarcinoma HuCCA-1 cell line and compared it to Thai human hepatocellular carcinoma HCC-S102 cell line and hepatoblastoma HepG2 cell line by studying their soluble proteins (11) and membrane proteins (12).

Apoptosis, a process of programmed cell death in multicellular organisms, is one of the main types of cell death pathway and involves a series of biochemical events, which lead to cell morphology and mortality (13). When the apoptotic process occurs, the cell body and fragments are safely disposed. This serves a critical role in the multiple steps of tumorigenesis. The specific proteolytic activities of caspases, cysteinyl-aspartate proteases, are recognized to be responsible for many of these morphologic alterations (14,15). Several proteins are known to potentially inhibit (16) or promote (17) the onset of apoptosis by a number of means of activation. Several studies have focused on apoptosis-associated proteins in apoptotic cells (18,19).

The use of apigenin as an anticancer agent in vitro for the treatment of various cancer cells including prostate, breast, cervical, lung, tongue oral, leukemia and colorectal cancer has increased (2022). The evidence of apigenin-induced apoptosis has been demonstrated in a number of cancer cell lines but there is no study on the anticancer action of apigenin on cholangiocarcinoma cell lines.

In the present study, MTT assays were performed to study the cytotoxicity of apigenin on a cholangiocarcinoma cell line, and flow cytometric analysis was employed to determine the induction of apoptosis. The proteomic analysis was also used to study the differential protein expression between apigenin-treated and untreated cells.

Materials and methods

Cell culture

The HuCCA-1 cell line, derived from a bile duct tumor mass, was provided by Professor Stitaya Sirisinha, Faculty of Science, Mahidol University (Bangkok, Thailand) and grown as a monolayer culture in Ham's F12 culture medium (Gibco Life Technologies; Thermo Fisher Scientific, Inc., Waltham, MA, USA), containing 15 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid and supplemented with 10% fetal bovine serum (FBS, Hyclone Laboratories; GE Healthcare Life Sciences, Logan, UT, USA), 100 U/ml penicillin, 100 mg/ml streptomycin and 125 ng/ml amphotericin B. The cells were maintained at 37°C in a humidified atmosphere with 5% CO2.

Cytotoxicity assay

Cells at 80% confluence were harvested by trypsinization from culture flasks and seeded in 96-well plates at 104 cells per 100 µl per well. After 24 h incubation, the cells were treated with apigenin (Sigma-Aldrich; Merck KGaA, Darmstadt, Germany) at various concentrations (1–250 µM) for 24, 48 and 72 h. Each well was then replaced with fresh medium containing 0.5 mg/ml MTT (Sigma-Aldrich; Merck KGaA) and incubated for 2 h. Finally, the medium was removed and 100 µl dimethyl sulfoxide was added to each well. The absorbance was measured at 550 nm with a microplate reader, subtracted with the absorbance at 650 nm. Data were expressed as % cell growth compared with the untreated cells as the control.

Detection of apoptosis

Apoptosis was detected by two different methods, flow cytometric analysis of phosphatidylserine externalization and a DNA fragmentation assay. For the flow cytometric analysis, the HuCCA-1 cells were seeded in 6-well plate at 4×105 cells per 2 ml per well. After 24 h incubation, the cells were treated with apigenin at concentrations of 20% inhibition of cell growth (IC20), 25 µM, IC50, 75 µM and IC90, 200 µM, respectively. After 48 h of compound treatment, floating cells in culture media were separated whilst adherent cells were harvested by trypsinization, then the two cell populations were pooled together and centrifuged at 778 × g for 10 min at 4°C. The supernatant was removed and the cell pellets were resuspended and adjusted to 1×106 cells/ml in culture media containing 1% FBS. Equal volumes of the cell suspension and reagent of Muse™ Annexin-V & Dead Cell kit (Merck KGaA) were mixed together in a tube and incubated at room temperature for 20 min, and analysis was performed using Muse™ Cell Analyzer (Merck KGaA) (23). For the DNA fragmentation assay, after 48 h of compound treatment, floating cells in culture media were harvested by centrifugation at 778 × g for 10 min at 4°C, whilst adherent cells were harvested by scraping in cold 1X PBS followed by the centrifugation at 778 × g for 10 min to collect the cells. Subsequent to this step, the cell pellets were subjected to DNA extraction using the QIAamp DNA kit (Qiagen GmbH, Hilden, Germany), the isolated DNA fragments were resolved in 2% agarose gel using electrophoresis and then visualized by staining with ethidium bromide.

Sample preparation and protein extraction

Tissue culture flasks measuring 75 cm2 were used for seeding HuCCA-1 cells and the cells were cultured at 37°C, 5% CO2 for 24 h. Apigenin was then added to the cells at final concentration of 200 µM, 90% inhibition, IC90, for 48 h. Since apigenin treatment causes cell detachment, the floating cells were collected from the medium by centrifugation at 778 × g for 10 min at 4°C and washed with 0.25 M sucrose-containing protease inhibitor cocktail (Sigma-Aldrich; Merck KGaA). The adherent cells were harvested by trypsinization and washed twice with 0.25 M sucrose, scraped in the same sucrose solution and centrifuged at 778 × g for 10 min at 4°C. The two samples were resuspended in 100 µl lysis buffer containing 7 M urea, 2 M thiourea, 4% CHAPS, 2% dithiothreitol (DTT), 2% ampholine pH 3–10 and a protease inhibitor cocktail, sonicated on ice and centrifuged at 13,800 × g for 10 min at 4°C. The supernatants were saved and the concentration of proteins was determined using the Bio-Rad Protein Assay (Bio-Rad Laboratories, Inc., Hercules, CA, USA).

Two-dimensional gel electrophoresis

The samples were prepared by leaving them overnight in gel rehydration of nonlinear pH 3–10, 70-mm Immobiline DryStrip gels (IPG; GE Healthcare, Chalfont, UK). An Ettan IPGphor system (GE Healthcare) was used for running the first dimension isoelectric focusing at 6,500 Vh. The IPG strips were equilibrated in two steps of equilibration buffer as previously described (10). For running the second-dimension electrophoresis, 12.5% SDS-PAGE was prepared, the IPG strips were placed in the Hoefer minigels and electrophoresis was performed at 20 mA for 2 h. Coomassie Brilliant Blue R-250 (0.1%) in 40% methanol and 10% acetic acid was used as the staining solution.

Gel scanning and image analysis

The gels were scanned using ImageScanner II (GE Healthcare) and analyzed using ImageMaster 2D platinum software (version 7.0; GE Healthcare) for differential analysis.

In-gel digestion

The triplicate washing step was performed by adding 50 µl 0.1 M NH4HCO3 in 50% acetonitrile (ACN) in excised gel spots and incubating for 20 min at 30°C. The gel pieces were dried completely in SpeedVac (Labconco, Kansas City, MO, USA). The gel pieces were reduced and alkylated in 1X buffer solution, 0.1 M NH4HCO3, 10 mM DTT and 1 mM EDTA, and incubated at 60°C for 45 min. The buffer solution was replaced with freshly prepared 100 mM iodoacetamide in 0.1 M NH4HCO3 solution. The reaction mixture was incubated in the dark at room temperature for 30 min. The gel pieces were washed three times using 50% ACN in water and were dried completely. The trypsin (Promega Corporation, Madison, WI, USA) was aliquoted (1 µg trypsin/10 µl 1% acetic acid) and stored at −20°C. The digestion buffer, 0.05 M Tris-HCl, 10% ACN, 1 mM CaCl2, pH 8.5, was prepared. The tryptic digestion was performed by adding 50 µl digestion buffer and 1 µl prepared trypsin into the gel pieces. The reaction mixture was incubated at 37°C overnight. The digestion buffer was removed and saved. The gel pieces were then added to 60 µl 2% freshly prepared trifluoroacetic acid and incubated at 60°C for 30 min for peptide extraction. The saved digestion buffer and the final extract were then pooled and dried by SpeedVac.

Protein identification by liquid chromatography (LC) tandem mass spectrometry (MS/MS)

The Q-TOF mass spectrometer (Micromass UK, Ltd., Manchester, UK) equipped with a Z-spray ion source operating in the nanoelectrospray mode was used. The analysis by LC was carried out using a capillary LC system (Waters Corporation, Milford, MA, USA). The instrument in MS/MS mode was calibrated by Glu-fibrinopeptide. The 75 mm id ×150 mm C18 PepMap column (LC Packings, Amsterdam, The Netherlands) was attached to the LC system. Eluents A and B were prepared as follows: Eluent A, 0.1% formic acid in 97% water and 3% ACN and eluent B, 0.1% formic acid in 97% ACN and 3% water. The gradient for peptide separation was 0 min 7% B, 35 min 50% B, 45 min 80% B, 49 min 80% B, 50 min 7% B and 60 min 7% B. ProteinLynx Global SERVER™ (version 2.2; Waters Corporation) screening Swiss-Prot and NCBI (https://www.ncbi.nlm.nih.gov/) was employed for database search. The MASCOT (http://www.matrixscience.com) search tool available on the Matrix Science site screening and NCBInr was also used to confirm certain proteins.

Western blot analysis

The untreated and apigenin treated HuCCA-1 cells were scraped separately and sonicated in an in-house 1X radioimmunoprecipitation assay (RIPA) buffer (150 mM NaCl, 1% Triton X-100, 0.5% sodium deoxycholate, 0.1% SDS, 50 mM Tris pH 8.0 and 1 mM EDTA) to extract the proteins. Protein lysates (20 µg) were subsequently loaded in each lane. Proteins separation was performed by 12.5% SDS-PAGE and transferred onto FluoroTrans® polyvinylidene difluoride membranes (Pall Corporation, Port Washington, NY, USA). Subsequent to blocking with 5% nonfat dried milk in TBS-Tween 20 (TBST), 10 mM Tris, pH 7.6, 150 mM NaCl, 0.1% Tween 20, at room temperature for 1 h, the membranes were washed with TBST and incubated with the following primary antibodies: Mouse monoclonal cytokeratin 7 (CK7; cat. no. MAB3554; dilution, 1:2,000; Merck KGaA); mouse monoclonal cytokeratin 8 (CK8; cat. no. MAB3414; dilution, 1:2,000; Merck KGaA); mouse monoclonal cytokeratin 18 (CK18; cat. no. MAB3236; dilution, 1:2,000; Merck KGaA); mouse monoclonal cytokeratin 19 (CK19; cat. no. MAB3238; dilution, 1:2,000; Merck KGaA); mouse monoclonal S100-A6 (cat. no. ab55680; dilution, 1:250; Abcam, Cambridge, UK); rabbit polyclonal S100-A11 (cat. no. 10237–1-AP; dilution, 1:250; Proteintech, Chicago, IL, USA); rabbit monoclonal S100-P (cat. no. ab133554; dilution, 1:1,000; Abcam); mouse monoclonal heterogeneous nuclear ribonucleoprotein A2/B1 (hnRNP A2/B1; cat. no. ab6102; dilution, 1:2,000; Abcam); rabbit polyclonal heterogeneous nuclear ribonucleoprotein H (hnRNP H; cat. no. ab10374; dilution, 1:5,000; Abcam); mouse monoclonal annexin A1 (cat. no. MAB3773; dilution, 1:2,000; Merck KGaA); mouse monoclonal annexin A2 (cat. no. ab54771; dilution, 1:20,000; Abcam); rabbit polyclonal annexin A3 (cat. no. ab33068; dilution, 1:2,000; Abcam); mouse monoclonal peroxiredoxin-1 (cat. no. ab58252; dilution, 1:2,000; Abcam); mouse monoclonal prostaglandin E synthase 3 (PTGES3; cat. no. WH0010728M1; dilution, 1:500; Sigma-Aldrich; Merck KGaA); or rabbit monoclonal GAPDH (cat. no. ab75834; dilution, 1:10,000; Abcam) at 4°C overnight. The membranes were then washed with TBST and incubated with horseradish peroxidase-conjugated anti-mouse or anti-rabbit antibodies (Dako; Agilent technologies, Inc., Santa Clara, CA, USA) at room temperature for 1 h. Following washing with TBST, membranes were visualized by using an enhanced chemiluminescence Western blotting detection kit (Advansta, Menlo Park, CA, USA) and an ImageQuant LAS 4000 mini (GE Healthcare). A total of three experiments were performed for each antibody.

Statistical analysis

The mean values and standard deviations of differential expression between treated and untreated cells were calculated. The significance of differences was analyzed by two-tailed unpaired Student's t tests, and P<0.05 was considered to indicate a statistically significant difference.

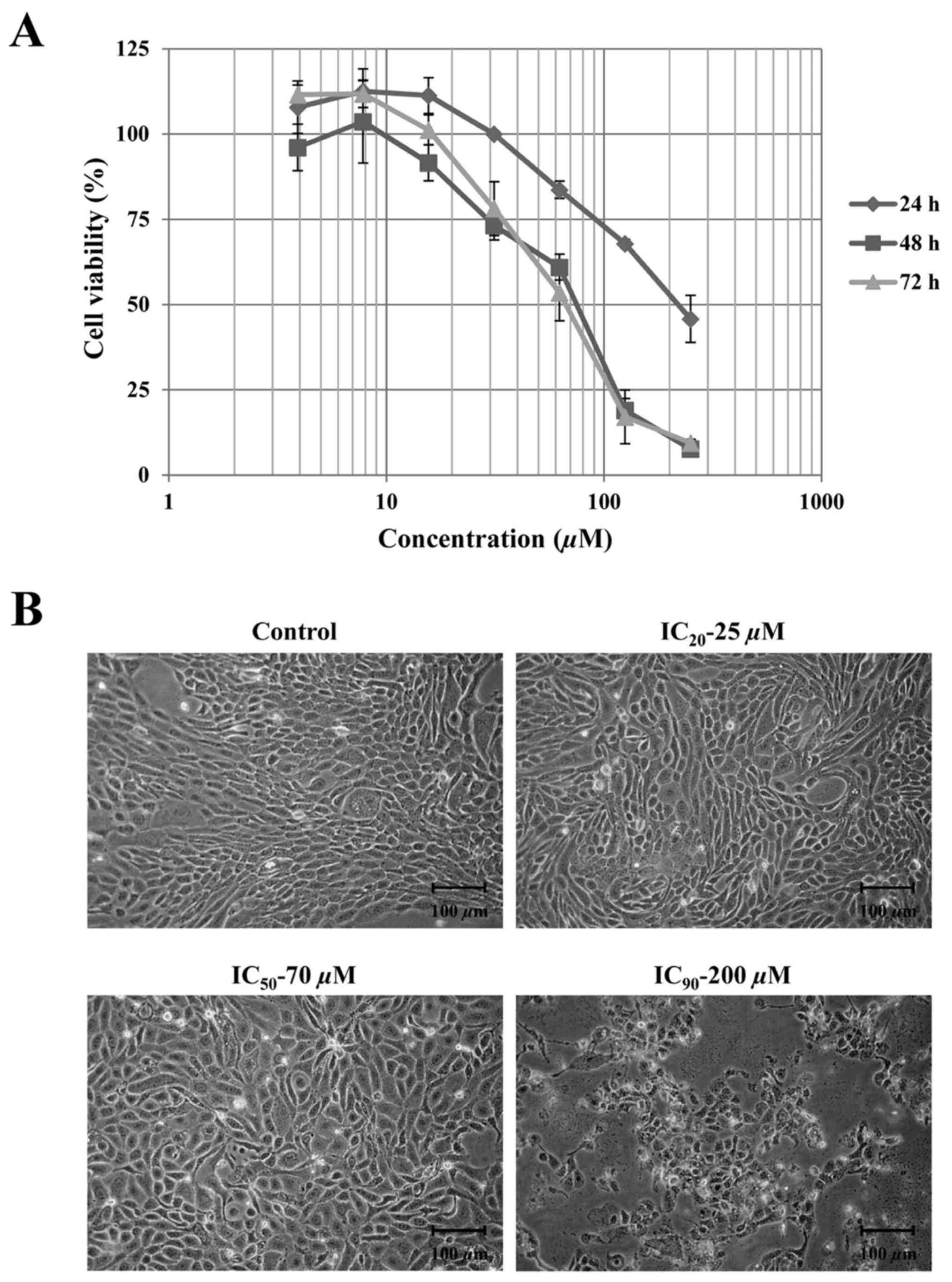

Apigenin inhibited the growth of HuCCA-1 cells

The MTT assay was performed to investigate the growth inhibition and assess the cytotoxic effect of apigenin. HuCCA-1 cells were treated with various concentrations of apigenin ranging from 1–250 µM at different times. The results in Fig. 1A illustrate the dose- and time-dependent inhibition of cell growth by apigenin. Since cell morphology changes were being observed at 48 h subsequent to treatment as demonstrated in Fig. 1B, the results at this time point were chosen to estimate the value of concentrations that will cause IC20, IC50 and IC90. The values of IC20, IC50 and IC90 of apigenin after 48 h treatment were 25, 75 and 200 µM, respectively. After 48 h incubation, the morphology changes were clearly observed in treated cells at concentrations up to 200 µM compared with the control. The treated cells appeared to lack regular shape with boundaries resembling loosely adhered cells.

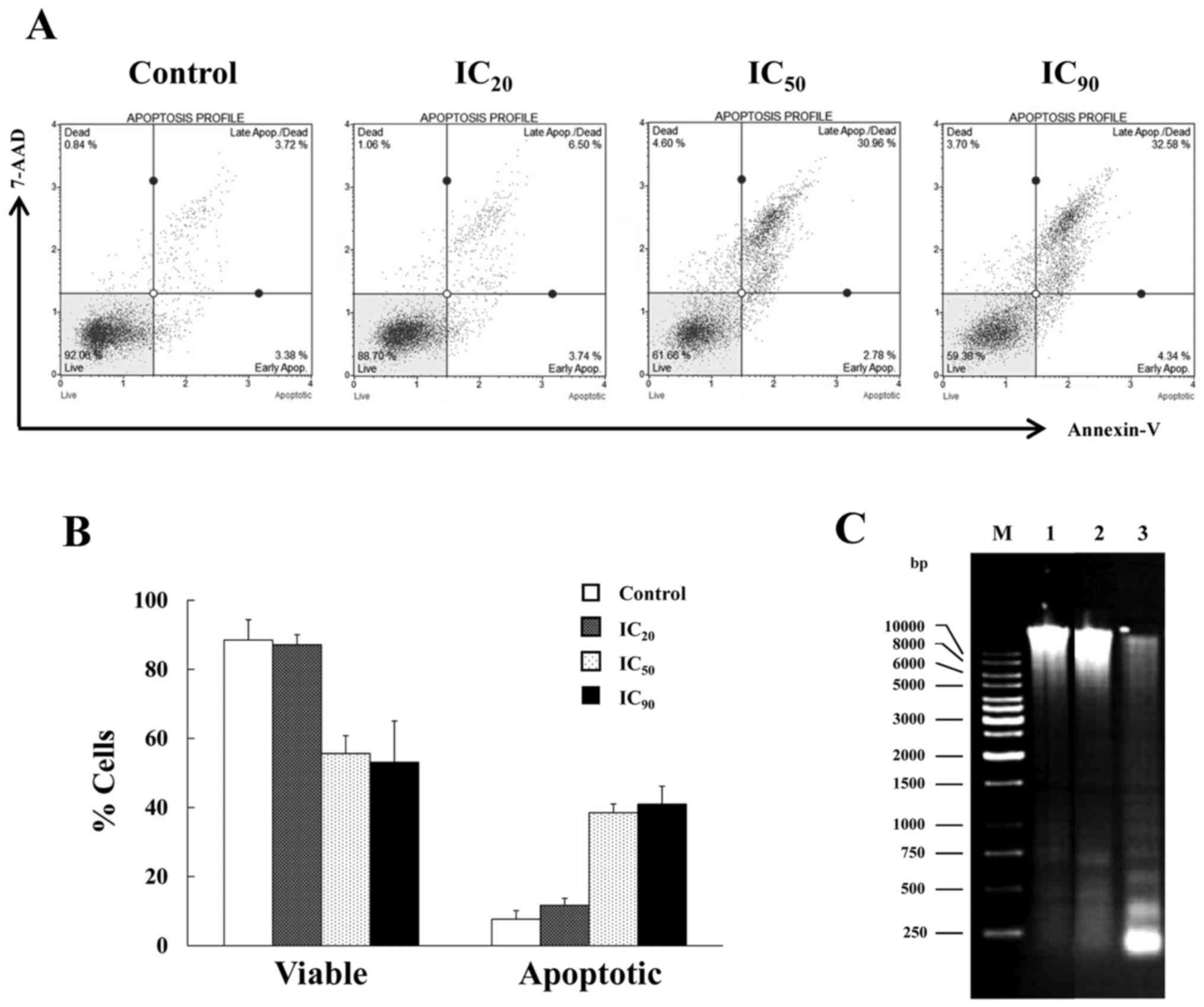

Apigenin induced apoptosis in HuCCA-1 cells

To examine whether apigenin induced apoptotic cell death in HuCCA-1 cells, two different methods were used to detect apoptosis, flow cytometric analysis of phosphatidylserine (PS) externalization and DNA fragmentation assays. When cells undergo apoptosis, an early event is PS externalization on the cell surface, which are detected by Annexin-V staining. Subsequent to the progression to late stage of apoptosis, the membrane integrity of the cells is lost, allowing penetration of membrane-impermeant dyes such as 7-aminoactinomycin D (7-AAD) and propidium iodide. Mode of cell death in apigenin-treated HuCCA-1 cells was analyzed. The cells were treated with increasing concentration from IC20, 25 µM, IC50, 75 µM and IC90, 200 µM of apigenin compared with the untreated control for 48 h. Subsequent to the treatment, the cells that were positive for Annexin-V and 7-AAD staining with stages of early and late apoptosis were detected (Fig. 2A). The percentage of total apoptotic cell populations, early and late apoptosis, increased corresponding to the higher concentration of apigenin. The highest proportion of apoptotic cells was ~41%, when cells were treated with apigenin at a concentration of IC90 (Fig. 2B).

Additionally, another key feature of apoptosis, DNA fragmentation with a ladder pattern, was also investigated. The HuCCA-1 cells were treated with IC90, 200 µM, apigenin for 48 h, and subsequently analyzed for DNA fragmentation. As demonstrated in Fig. 2C, the ladder pattern of DNA fragmentation was observed in floating cells whilst the attached cells exhibited no visible DNA laddering. Taken together, the results of flow cytometric analysis and DNA fragmentation assay consistently indicated that apigenin induced apoptosis in HuCCA-1 cells.

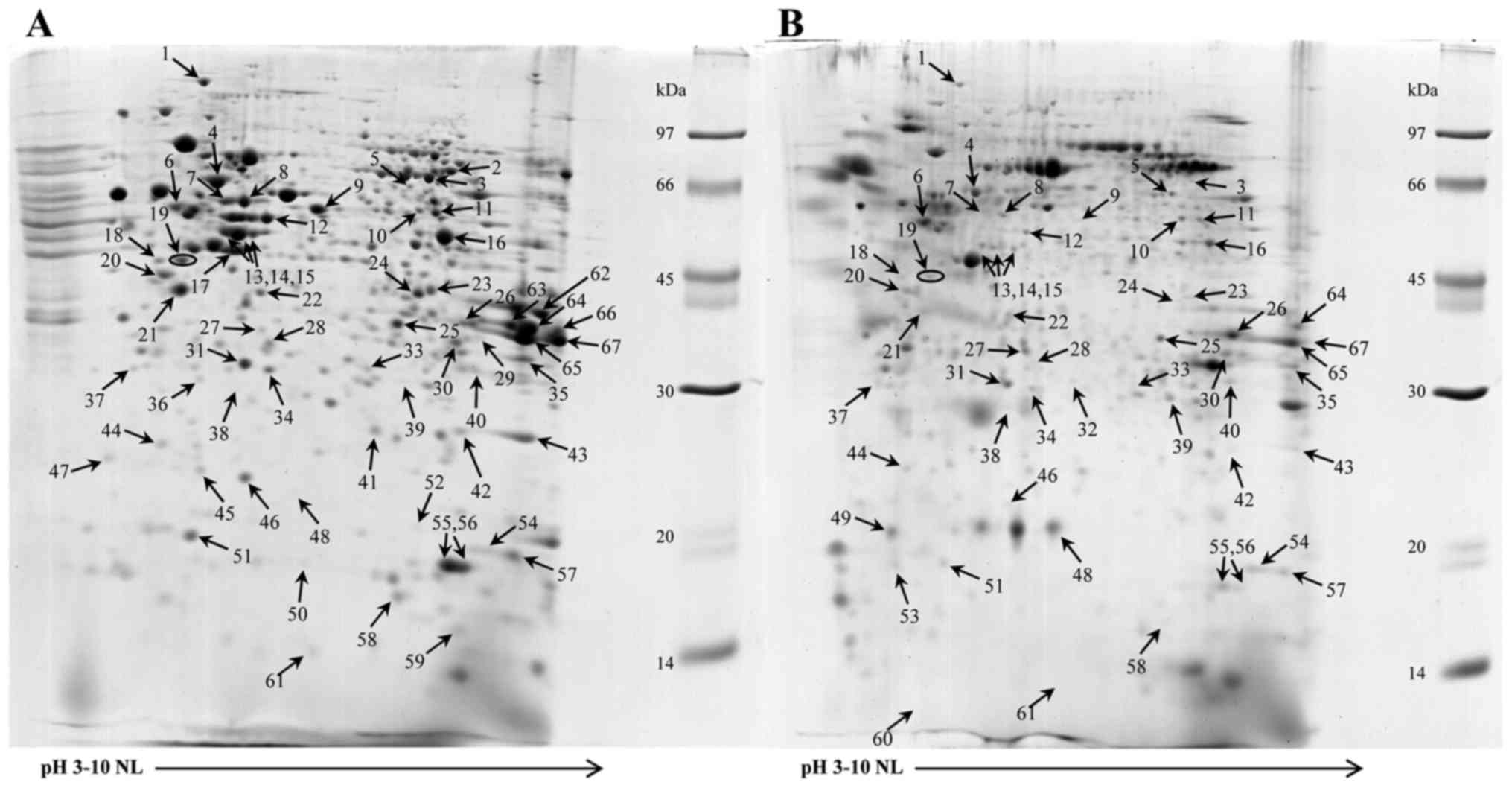

Differential expression of proteins in HuCCA-1 when treated with apigenin

From the DNA fragmentation of apigenin-treated HuCCA-1 cells, apoptosis was clearly demonstrated in the floating cells. Thus, the levels of protein expression in the untreated and apigenin-treated cells floating and adherent cells were compared using proteomic techniques. Only the floating cells demonstrated differential protein expression when compared with the untreated cells by 2-DE. Fig. 3A and B illustrates the 2-DE patterns of the untreated and floating cells treated with 200 µM apigenin, 90% inhibition, IC90, for 48 h. A total of sixty-seven proteins were revealed to exhibit differential expression and were identified by comparison to the proteins previously examined in the reference map of HuCCA-1 (11) and using LC/MS/MS as summarized in Table I. These proteins were categorized by their functions as follow: Metabolism, cytoskeletal/mobility, protein synthesis and degradation, signal transduction, chaperone/stress response, protection and detoxification, transport/binding proteins, cell cycle, ion channels and DNA replication/gene regulation. The fold changes of proteins were calculated by ImageMaster program and included in Table I.

Table I.

Differentially expressed proteins of HuCCA-1 following apigenin treatment.

Table I.

Differentially expressed proteins of HuCCA-1 following apigenin treatment.

Spot no.Accession no.Protein namesTheoretical pI/MWFunctionFold Changea
  1Q9Y4L1Hypoxia up-regulated protein 15.21/111.3Chaperone/stress response−2.04±0.17b
  2Q16822Phosphoenolpyruvate carboxykinase [GTP], mitochondrial7.40/70.6MetabolismND
  3P31939Bifunctional purine biosynthesis protein PURH6.26/64.6Metabolism −16.21±0.35d
  4P1080960 kDa heat shock protein, mitochondrial5.55/61.0Chaperone/stress response−2.12±0.48b
  5P31948 Stress-induced-phosphoprotein 16.76/62.6Chaperone/stress response +1.58±0.03c
  6P07437Tubulin beta chain4.59/49.6 Cytoskeleton/mobility+2.19±0.39c
  7P08729Keratin, type II cytoskeletal 75.46/51.2 Cytoskeleton/mobility −2.51±0.13c
  8P08729Keratin, type II cytoskeletal 75.46/51.2 Cytoskeleton/mobility−5.33±0.41c
  9P31943Heterogeneous nuclear ribonucleoprotein H6.21/49.2Protein synthesis and degradation −26.66±0.51c
10Q16658Fascin7.28/54.4 Cytoskeleton/mobility−1.22±0.02c
11P43490Nicotinamide phosphoribosyltransferase7.12/55.5Metabolism −2.77±0.14b
12P05787Keratin, type II cytoskeletal 85.52/53.5 Cytoskeleton/mobility−6.94±0.42d
13P05787Keratin, type II cytoskeletal 85.52/53.5 Cytoskeleton/mobility −2.82±0.18b
13P05783Keratin, type I cytoskeletal 185.42/47.9 Cytoskeleton/mobility−2.82±0.18b
14P05787Keratin, type II cytoskeletal 85.52/53.5 Cytoskeleton/mobility −21.08±0.90c
14P05783Keratin, type I cytoskeletal 185.42/47.9 Cytoskeleton/mobility−21.08±0.90c
15P05787Keratin, type II cytoskeletal 85.58/53.5 Cytoskeleton/mobility −3.48±0.17c
15P05783Keratin, type I cytoskeletal 185.42/47.9 Cytoskeleton/mobility−3.48±0.17c
16P06733Alpha-enolase7.54/47.0Metabolism −4.79±0.68c
17P08727Keratin, type I cytoskeletal 195.09/44.1 Cytoskeleton/mobilityND
18P0886540S ribosomal protein SA4.59/32.8Protein synthesis and degradation−1.81±0.04b
19P07910Heterogeneous nuclear ribonucleoproteins C1/C24.99/33.6Protein synthesis and degradation −2.01±0.12c
20P06748Nucleophosmin4.71/30.9Protein synthesis and degradation−1.63±0.16b
21P07910Heterogeneous nuclear ribonucleoproteins C1/C24.99/33.6Protein synthesis and degradation −4.64±0.49b
22P0538860S acidic ribosomal protein P05.60/34.3Protein synthesis and degradation−1.42±0.03b
23Q15365Poly(rC)-binding protein 17.11/37.5Protein synthesis and degradation −5.59±0.14b
24O00154Cytosolic acyl coenzyme A thioester hydrolase7.27/37.4Metabolism−19.00±0.27d
25P04083Annexin A17.00/38.6Signal transduction −2.05±0.14c
26P07355Annexin A28.04/38.4Signal transduction+3.89±0.48b
27P12429Annexin A35.82/36.4Signal transduction +4.63±0.12b
28Q06323Proteasome activator complex subunit 15.98/28.7Cell cycle−5.84±0.10b
29P04406 Glyceraldehyde-3-phosphate dehydrogenase8.79/35.9MetabolismND
30P04406 Glyceraldehyde-3-phosphate dehydrogenase8.79/35.9Metabolism −1.12±0.02b
31P35232Prohibitin5.57/29.8DNA replication/gene regulation−1.22±0.06b
32P02545Lamin A/C6.13/53.2 Cytoskeleton/mobilityD
33   P48556  26S proteasome non-ATPase regulatory subunit 87.16/30.0  Protein synthesis and degradation−3.17±0.05b
34Q06830 Peroxiredoxin-18.52/22.1Protection and detoxification −2.41±0.09b
35P21796Voltage-dependent anion-selective channel protein 18.85/30.6Ion channels−1.35±0.09b
36P43487Ran-specific GTPase-activating protein5.27/23.3Transport/binding proteinsND
37P28066Proteasome subunit alpha type-54.54/26.4Protein synthesis and degradation +1.82±0.03b
38Q9BV44THUMP domain-containing protein 35.97/57.0Protein synthesis and degradation−2.45±0.03b
39P05783Keratin, type I cytoskeletal 185.42/47.9 Cytoskeleton/mobility +9.17±0.15b
40P25789Proteasome subunit alpha type-48.04/29.5Protein synthesis and degradation−2.13±0.07c
41P6233326S protease regulatory subunit 10B7.09/44.2Protein synthesis and degradationND
42Q15056Eukaryotic translation initiation factor 4H7.33/27.4Protein synthesis and degradation −3.62±0.10b
43Q06830 Peroxiredoxin-18.52/22.1Protection and detoxification−6.52±0.41c
44P13693 Translationally-controlled tumor protein4.84/19.6Transport/binding proteins −2.11±0.07b
45O75947ATP synthase subunit d, mitochondrial5.26/18.3Metabolism−1.31±0.02b
46P32119 Peroxiredoxin-25.86/21.9Protection and detoxification −3.20±0.11b
47Q15185Prostaglandin E synthase 34.30/18.7Chaperone/stress responseND
48O00746Nucleoside diphosphate kinase, mitochondrial9.21/17.3Metabolism+12.27±0.35b
49P05783Keratin, type I cytoskeletal 185.42/47.9 Cytoskeleton/mobilityD
50P16949Stathmin5.96/17.2 Cytoskeleton/mobilityND
51Q93020GTP-binding regulatory5.30/22.1Signal transduction protein Gi alpha-2 chain −3.64±0.18b
52P23528Cofilin-18.22/18.5 Cytoskeleton/mobilityND
53P08727Keratin, type I cytoskeletal 195.09/44.1 Cytoskeleton/mobilityD
54P23528Cofilin-18.22/18.5 Cytoskeleton/mobility+2.46±0.13b
55P62937Peptidyl-prolyl cis-trans isomerase A8.18/17.9Signal transduction −4.24±0.66c
56P62937Peptidyl-prolyl cis-trans isomerase A8.18/17.9Signal transduction−10.17±0.46d
57P22392Nucleoside diphosphate kinase B8.52/17.3Metabolism −1.83±0.13b
58P2539840S ribosomal protein S126.30/14.5Protein synthesis and degradation−2.35±0.10b
59Q9UII2ATPase inhibitor, mitochondrial9.34/12.2MetabolismND
60P06703Protein S100-A65.32/10.2 Cytoskeleton/mobilityD
61P31949Protein S100-A117.27/11.7 Cytoskeleton/mobility +4.13±0.12b
62P04075 Fructose-bisphosphate aldolase A8.06/39.4MetabolismND
63Q04828Aldo-keto reductase family 1 member C18.25/36.8Protection and detoxificationND
64P22626Heterogeneous nuclear ribonucleoproteins A2/B19.12/37.4Protein synthesis and degradation −4.56±0.75b
65P04406 Glyceraldehyde-3-phosphate dehydrogenase8.79/35.9Metabolism−1.46±0.40b
66P22626Heterogeneous nuclear ribonucleoproteins A2/B19.12/37.4Protein synthesis and degradationND
67P04406 Glyceraldehyde-3-phosphate dehydrogenase8.79/35.9Metabolism −7.70±0.92c

{ label (or @symbol) needed for fn[@id='tfn1-ol-0-0-6705'] } -, downregulated expression following treatment; +, upregulated expression following treatment; D, appearance of proteins upon treatment; ND, disappearance of proteins upon treatment; pI, isoelectric point; MW, molecular weight.

a Fold change of protein expression was calculated from three independent experiments.

b P<0.05

c P<0.01

d P<0.001.

The expression levels of twelve proteins were not measured in HuCCA-1 cell lysate subsequent to apigenin treatment. These proteins are involved in metabolism, cytoskeletal/mobility, protein synthesis and degradation, chaperone/stress response, protection and detoxification and transport/binding. These proteins are phosphoenolpyruvate carboxykinase (GTP; Table I, spot no. 2), GAPDH (Table I, spot no. 29), ATPase inhibitor (Table I, spot no. 59) and fructose-bisphosphate aldolase A (Table I, spot no. 62), CK19 (Table I, spot no. 17), stathmin (Table I, spot no. 50), cofilin-1 (Table I, spot no. 52), 26S protease regulatory subunit 10B (Table I, spot no. 41), hnRNP A2/B1 (Table I, spot no. 66), PTGES3 (Table I, spot no. 47), aldo-keto reductase family1 member C1 (Table I, spot no. 63) and ran-specific GTPase-activating protein (Table I, spot no. 36). The expression of four proteins was identified subsequent to treatment of the cells with apigenin. The proteins are associated with cytoskeleton/mobility, which are lamin A/C (Table I, spot no. 32), CK18 (Table I, spot no. 49), CK19 (Table I, spot no. 53) and protein S100-A6 (Table I, spot no. 60). A total of five downregulated proteins demonstrated >15-fold lower expression when comparing the 2-DE patterns of treated and untreated cells. They are cytosolic acyl coenzymeA thioester hydrolase (Table I, spot no. 24), bifunctional purine biosynthesis protein PURH (Table I, spot no. 3), CK8 (Table I, spot no. 14), CK18 (Table I, spot no. 14) and hnRNP H (Table I, spot no. 9). A total of seven downregulated proteins demonstrated lower expression in the range of 5- to 15-fold, which are GADPH (Table I, spot no. 67), cytokeratin 8 (Table I, spot no. 12), cytokeratin 7 (Table I, spot no. 8), poly (rC)-binding protein 1 (Table I, spot no. 23), peptidyl-prolyl cis-trans isomerase A (Table I, spot no. 56), peroxiredoxin-1 (Table I, spot no. 43) and proteasome activator complex subunit 1 (Table I, spot no. 28).

For proteins involved in cytoskeleton/mobility function, significant changes were revealed in expression in CK7, CK8, CK18, CK19, S100-A6 and S100-A11 (Table I, spot no. 61). The CK8 and CK18 proteins were identified in spots 13, 14 and 15 whose intensities decreased upon treatment with apigenin. Notably, two novel spots belonging to CK18 at a molecular weight (MW) 29.9 kDa (Table I, spot no. 39) and MW 21.5 kDa (Table I, spot no. 49) appeared subsequent to treatment. For CK19, there was a disappearance of spot no. 17 (Table I, MW 48 kDa) and an appearance of a low MW spot (Table I, spot no. 53) at 19.2 kDa in the floating cells. S100-A6 demonstrated expression only subsequent to treatment and S100-A11 increased by ~four-fold subsequent to apigenin treatment.

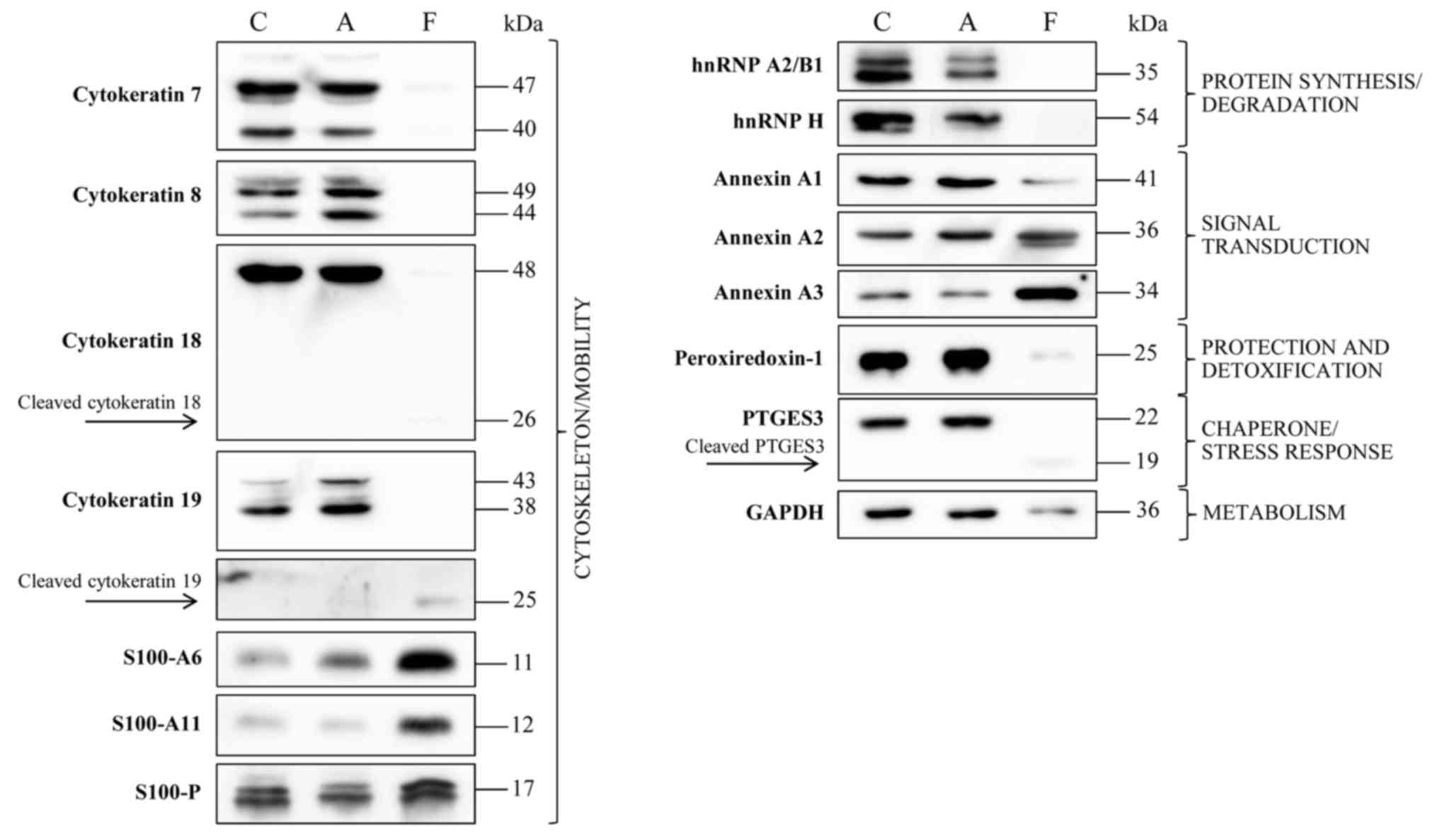

Immunodetection of differential protein expression when treated with apigenin

Immunodetection was used to verify the presence of certain proteins from adherent and floating cells subsequent to treatment with apigenin compared with untreated cells, as demonstrated in Fig. 4. The results confirmed the disappearance of hnRNP A2/B1, hnRNP H and PTGES3 in floating cells subsequent to treatment. Upon treatment, the proteins involved in cytoskeleton/mobility function, CK7, CK8, CK18 and CK19, disappeared in the floating cells, whilst they remain unchanged in the attached cells. In contrast, S100-A6 demonstrated expression only subsequent to treatment, whereas S100-A11 expression was markedly increased subsequent to treatment, consistent with 2-DE data. The expression of S100-P was decreased in attached cells subsequent to treatment.


Cholangiocarcinoma is a malignant tumor derived from bile duct epithelium, with high incidence in northeast Thailand (6). The proteomic and secretomic maps of HuCCA-1 cell line, a Thai human cholangiocarcinoma cell line were described by our laboratory (11). The cell line has been used for screening the cytotoxic activities of Thai medicinal plants and proteomic profiling upon treatment with pomiferin, a prenylated isoflavone from Derris malaccensis (24).

Apigenin is a promising nutraceutical, a food or part of a food that may elicit health benefits. Numerous reports of the effect of apigenin treatment on different human cancer cell lines have demonstrated an inhibition of cell growth via apoptosis and cell cycle arrest (25,26) The present study investigated the effect of apigenin on a Thai cholangiocarcinoma HuCCA-1 cell line. Dose response curves after 24, 48 and 72 h of treatment revealed inhibitory concentrations at IC50 of apigenin for HuCCA-1 cells to be 220, 75 and 68 µM at 24, 48 and 72 h, respectively. Since marked changes of morphology were observed in treated cells at 200 µM apigenin, 90% inhibition, IC90, subsequent to a 48-h incubation, this treatment condition was used for additional study.

Apoptosis, or programmed cell death, leads to DNA fragmentation, cytoskeletal reorganization, plasma membrane blebbing, nuclear condensation and loss of cell adhesion. Induction of apoptosis by apigenin in HuCCA-1 cells was demonstrated by flow cytometric analysis and confirmed by DNA fragmentation assays. The cleavage of chromosomal DNA by cellular nucleases into oligonucleosomal size fragments is a characteristic feature of apoptosis. Agarose gel electrophoresis demonstrated that the DNA ladder pattern, indicating DNA fragmentation, was identified only with floating cells and not with attached cells. This confirms that the later stages of apoptosis are exhibited in HuCCA-1 cells treated with apigenin. Typically, apoptosis occurs through the activation of specific caspases including caspase-3 (27), leading to cleavage of CK18, as demonstrated in the present study by proteomics and confirmed by western blot, consistent with previous studies (2830). In parallel with CK18 cleavage, active caspase-3 also cleaves an inhibitor of cellular nuclease, DNA Fragmentation Factor, allowing the active nuclease move to the nucleus and induces DNA fragmentation during apoptosis (31).

In the present study, the treatment of HuCCA-1 cells with apigenin demonstrated various types of protein alterations, namely changes in protein expression and/or cleavage. The proteins with roles in cytoskeleton/mobility revealed cleavage, and therefore this supports the presence of caspase activities during apoptosis.

The results of the present study revealed that subsequent to treatment with apigenin, the expression of S100-A6 and S100-A11 was higher in floating cells compared with attached HuCCA-1 cells during apoptosis. These two proteins are members of the S100 protein family and have been revealed to serve important roles in a number of tumorigenic processes, including apoptosis, cell differentiation, cell growth and cell cycle. The upregulation of S100-A6 has been demonstrated to enhance apoptosis and decrease cell viability by affecting caspase-3 activity in hepatocellular carcinoma cells (32). S100-A11 was identified to be involved in cell differentiation, cell cycle, cell growth and cell apoptosis processes. There is also evidence that S100-A11 induced cell apoptosis by involving certain parts of the translocation of apoptosis-inducing factor from the cytoplasm to nuclei (33). The expression of S100-P was also detected in HuCCA-1 cells. The S100-P has been demonstrated to serve many roles including tumorigenesis, proliferation, apoptosis and metastasis in numerous types of cancer including cholangiocarcinoma (3436). The level of S100-P in floating apoptotic cells remains unchanged subsequent to the apigenin treatment but the expression was decreased in the attached cells, compared with control. These results suggest that, in addition to apoptosis induction, apigenin may also decrease the aggressiveness of non-apoptotic cancer cells.

Proteins involved in protein synthesis and degradation demonstrated low or no expression subsequent to apigenin treatment, including 26S protease regulatory subunit 10B, hnRNP H and hnRNP A2/B1. In particular, the 26S protease regulatory subunit 10B is a protein associated with apoptosis, and disappears in the floating cells. The decreased activity of the 26S proteasome and induction of cell death was observed only in breast cancer cells and not in normal cells, treated with Murraya koenigii leaf extract (37). The western blot of the present study also demonstrated that expression of hnRNP H and hnRNP A2/B1 disappeared completely subsequent to apigenin treatment. HnRNP proteins are multifunctional, participating in several cellular processes and composed of at least 20 major, high abundant or core hnRNP proteins including A1, A2/B1, B2, C1 and C2 (38). HnRNP A2/B1 has been demonstrated to be involved in splicing, mRNA stability and mRNA transport during the progress of tumorigenesis (39). Apigenin has been identified to bind specifically to the C-terminal glycine-rich domain of hnRNP A2, which is suggested to prevent hnRNP A2 from forming homodimers, resulting in alternative splicing of a number of human hnRNP A2 targets (40). HnRNP H and hnRNP C1/C2 are also involved in controlling numerous splicing decisions. The lower expression levels of hnRNP proteins upon treatment with apigenin may lead to the elimination of the splicing forms which inhibit cell death and promotion of the normal splice forms in the cells.

Chaperone/stress response proteins including prostaglandin E synthase 3, hypoxia upregulated protein 1 and 60 kDa heat shock protein, were revealed to be downregulated subsequent to treatment with apigenin. However, stress-induced-phosphoprotein 1 was upregulated. Molecular chaperones are involved in protein folding, transport and assembly (41) and function to maintain cell survival. Elevated expression levels of heat shock proteins may promote cancer and may lead to resistance to chemotherapy and hyperthermia (42). It has been suggested that heat shock proteins and their co-chaperones are involved in the regulation of apoptosis by caspase activation (43). Stress-induced-phosphoprotein 1 (STIP1) is an Hsp70/Hsp90-organizing protein, a co-chaperone that regulates the different functions of Hsps. STIP1 has been associated with several types of cancer (4447). PTGES3 or cytosolic prostaglandin E synthase is a 23 kDa glutathione-requiring enzyme expressed in a wide variety of cells. It is identical to co-chaperone p23 that binds to heat shock protein 90 (Hsp90) (48). PTGES3/p23 inhibited ATPase activity to stabilize the closed conformation of Hsp90. An increased expression of PTGES3/p23 has been demonstrated to be involved in tumor progression and a poor prognosis in breast cancer (49). Additionally, in acute myelogenous leukemia, PTGES3/p23 was demonstrated to be the target for caspase in chemotherapy-induced apoptosis. The 17 kDa product from the cleavage of PTGES3/p23 by caspase is stable in the apoptotic cells leading to chaperone activity of PTGES3/p23 (50). The results from the present study indicate that PTGES3/p23 is downregulated subsequent to treatment with apigenin, so this protein may participate in the HuCCA-1 cellular apoptosis induced by apigenin.

In conclusion, apigenin, a nutraceutical present in several vegetables and fruits, demonstrated the cytotoxic effect toward HuCCA-1. Apoptotic cell death was detected using two different methods, a flow cytometric analysis (Muse Cell Analyzer) with Annexin-V and dead cell assay kit, and DNA fragmentation confirmed the occurrence of early and late apoptosis. The proteins most significantly altered subsequent to treatment with apigenin were associated with apoptosis. The cleavage of cytokeratin 8, 18 and 19 and the high expression of S100-A6 and S100-A11 indicate that apoptosis was induced by apigenin via a caspase-dependent pathway. A marked reduction in the expression of hnRNP A2/B1 was also observed, possibly with changes of splicing forms, since it has been identified that the binding of apigenin to hnRNP A2/B1 resulted in changes of the splicing forms. The present study aimed to contribute to the understanding of the usefulness of dietary flavonoids such as apigenin.
