A genome‑wide scan to locate regions associated with familial vesicoureteral reflux

  • Authors:
    • Zsuzsa Bartik
    • Ulla Sillén
    • Malin Östensson
    • Susanne Fransson
    • Anna Djos
    • Rosmarie Sjöberg
    • Tommy Martinsson
  • View Affiliations

  • Published online on: November 28, 2021
  • Article Number: 92
  • Copyright: © Bartik et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Vesicoureteral reflux (VUR) is a congenital malformation carrying a high risk of recurrent urinary tract infections (UTI) and, at worst, chronic renal failure. Familial clustering implies a genetic etiology, but studies during the past few decades have demonstrated a causal gene variant in <10% of patients with VUR. The aim of the present study was to search for fully or partially shared ancestral haplotypes in 14 families from south‑western Sweden with at least three affected members. High‑density single nucleotide polymorphism microarray was used for genotyping prior to analysis with a compatibility matching method developed in‑house, and the analysis of copy number variations (CNV). No single unique haplotype was revealed to be shared by the families, thereby excluding a common ancestry and founder mutations as a probable cause of VUR. After evaluation of haplotypes shared by subsets of families, a haplotype shared by nine families was found to be of particular interest. This haplotype, located at chromosomal region 4q21.21, harbours two tentative candidate genes (bone morphogenetic protein 3 and fibroblast growth factor 5), both expressed in metanephros and with known functions during nephrogenesis. As to CNV, only one family had a specific CNV shared by all affected members. This was a focal deletion at 5q31.1 including follistatin‑like 4, a gene without a previous known connection to VUR. These data demonstrated the genetic heterogeneity of VUR and indicated that an interaction of environmental and genetic factors, including non‑coding and epigenetic regulators, all contribute to the complexity of VUR.


Vesicoureteral reflux (VUR) is a common urinary tract (UT) defect that occurs in approximately 1-2% of young children (1). High-grade VUR is seen primarily in male infants and is often associated with generalised renal damage, i.e. renal hypodysplasia. This rare condition is regarded as a congenital abnormality associated with primary VUR (2). Overall, in children with VUR the most common form of renal damage is a focally acquired injury caused by ascending urinary tract infections (UTI) (3). The morbidity seen in children with VUR is often related to recurrent UTI, which carries the risk of progressive renal damage.

Familial clustering of VUR is well recognized. The risk that offspring of affected individuals will have reflux themselves has been reported to be as high as 66%, while the risk of a sibling of an affected individual also having the condition is between 27 and 51% (4-7). The high frequency of VUR in relatives favours an autosomal dominant inheritance pattern with reduced penetrance (8-12), although some studies indicate possible autosomal recessive inheritance (13) or an X-linked mode of inheritance (14).

The search for a single gene linked to the heritability of VUR has so far been unsuccessful, but a large number of candidate genes have been suggested. These candidates mainly include genes functioning in the developmental pathways of the kidney, ureter and ureterovesical junction. During the last decade, the VUR hypodysplasia anomaly has been included in the congenital anomalies of the kidney and urinary tract (CAKUT) group, which comprises a broad spectrum of renal and lower UT structural and functional abnormalities. The rationale for this approach is the shared embryological background, starting with an interaction between the ureteric bud (UB) and metanephric mesenchyme (MM) (15,16). There has been a rapid increase in identification of CAKUT-associated genes due to recent advances in new and more affordable sequencing. Mutations in numerous different developmental genes have been identified, but there is little correlation between families and individuals. Despite this progress, the mutations responsible for the majority of CAKUT conditions remain unknown (17,18).

The vast majority of genetic studies of VUR and/or CAKUT have focused on the coding part of the genome. However, in numerous studies of familial VUR there is a relative paucity of precise genetic causes, despite indications of a dominant autosomal inheritance pattern. It may therefore be reasonable to expect that VUR-related variants are located in the non-coding DNA, such as the promotor, topologically associating domain (TAD) boundaries, or regulatory elements. Studies have shown that the regulatory elements can be located within the gene, or located at a distance of up to 1 Mb from the gene (19). Thus, designating variants in non-coding areas as pathological is far more difficult than identifying variants in protein-coding genes. Whole-genome scans to identify common regions are the first step towards locating these regulatory regions. However, genome scan studies, mainly linkage analyses, show different results with very few shared genomic regions among hereditary VUR patients.

Besides single nucleotide variants (SNV) and smaller insertions/deletions (indels), copy number variations (CNV) are also important contributors to human genetic variation. However, some CNVs can also be associated with a variety of birth defects and common diseases (20). CNV-associated congenital malformations depend on the disruption of specific genes at breakpoints, and also on which genes are located within the duplication or deletion. Few studies have investigated the impact of CNV in relation to VUR/CAKUT (21,22).

For this study we included only families from the south-western part of Sweden who had the VUR complex (same phenotype). This was because of the higher levels of heredity in VUR than in other conditions included in CAKUT. We concentrated on individuals who had the highest grade of VUR together with renal hypodysplasia, which is the most severe phenotype. In this study we explored the possible presence of shared chromosomal areas (haplotypes) in 14 families with familial VUR. We screened for unique haplotypes which might be shared by affected individuals in the families and would therefor indicate a common ancestor. Screening was performed using high-density single nucleotide polymorphism (SNP) arrays, followed by genome-wide association (GWA) and the SNP compatibility matching method recently described (23,24). As VUR appears to be a genetically heterogeneous disease we also evaluated shared haplotypes, including those in subsets of families, for coding and non-coding genes which could cause the VUR abnormality. In addition, we searched for CNVs which might be associated with the condition.

Materials and methods

Patients and families

Fourteen families with three or more members with primary VUR, were recruited at Queen Silvia Children's Hospital (a tertiary referral center) in Gothenburg, Sweden. The families were contacted and information on the study was given. Before entering the study all subjects and/or their parents signed informed consent forms for genetic screening. Blood samples or buccal smear (Isohelix SK-2S Buccal Swabs) specimens were collected using standard procedures. The Regional Ethical Review Board in Gothenburg approved the study (Dnr 589-05).

A total of 43 patients in 14 families with VUR were included (49% males). To clarify the relationship and analyse the pattern of inheritance, pedigrees were constructed for each family (Fig. 1). Additional members of the families whose medical histories strongly suggested VUR, but who had not undergone radiological investigations, were classified as probable cases. Patients with VUR secondary to a neurogenic bladder and posterior urethral valves were excluded from the study.

Clinical data were obtained from medical records. A VUR grade was obtained from a voiding cystourethrography (VCUG), levels of kidney damage from dimercaptosuccinic acid (DMSA) or mercaptoacetyltriglycine (MAG-3) scintigraphy (25), and total kidney function was measured using glomerular filtration rate (GFR) or was estimated according to the Schwartz formula (26). When patients had bilateral VUR, their more severely affected side was measured to establish VUR grade and kidney damage. Focal kidney damage was defined as one or more areas with reduced uptake or indentation of the renal outline, and is caused by postnatally acquired renal scarring (3). Generalised damage, referred to as congenital renal hypodysplasia, was classified as a small kidney with reduced tracer uptake or a diffuse parenchymal anomaly. A GFR of <80% (<2SD) of expected GFR was considered subnormal (27).

SNP genotyping

Genomic DNA was extracted from blood lymphocytes (in 25 cases) and buccal cells (in 15 cases) using a Qiagen DNeasy Blood and Tissue Kit (Qiagen) and a Maxwell 16 Buccal Swab LEV DNA Purification Kit (Promega, Corp.) respectively. For three individuals from three different families DNA samples were not available. The samples were genotyped on Affymetrix 250K SNP NspI arrays, (Affymetrix Inc.), which detects ~262,000 SNPs. The array experiments were performed either locally (n=34, Department of Laboratory Medicine at the University of Gothenburg, Gothenburg, Sweden) or at the BEA Core Facility, (n=6, Karolinska Institute, Huddinge, Sweden), according to the manufacturer's protocol (Affymetrix). Briefly, 250 ng of genomic DNA was digested using the NspI restriction enzyme and ligated to adaptors. After ligation, the template was subjected to PCR amplification using a generic primer that recognised the adaptor sequence. The amplified DNA was fragmented with DNase I, labelled with biotin and hybridised to a GeneChip® Human Mapping 250 K array. The hybridised probes were washed using the Affymetrix Fluidics Station 450 and marked with streptavidin-phycoerythrin. The arrays were scanned using a confocal laser scanner, GeneChip Scanner 3000 (Affymetrix). Primary data analysis was performed using GDAS (GeneChip® DNA Analysis software) and GTYPE (Affymetrix) for the extraction of genotype calls.

SNP compatibility matching

SNP genotype data for individuals were analysed using SNP compatibility matching (23,24). This method can be applied to dominant traits in families where several members are affected. In the original SNP compatibility matching method, it was assumed that all affected individuals had a common ancestor and shared the causal IBD (identical by descent) variant. Although it was unlikely that all affected individuals in our 14 families shared the same ancestral variant, we still wanted to examine this possibility. In a similar way to homozygosity mapping we also used this method to identify shared haplotypes, which may act as causal factors for a disease, in different subsets of affected subjects or families. The aim of the method is to identify regions free from incompatibilities. For each SNP locus, individuals can have either genotype ‘AA’, ‘AB’ or ‘BB’. A locus where at least one affected individual is ‘AA’ and at least one other affected individual is ‘BB’ is scored as an incompatibility. A locus of this type cannot by definition be included in the disease gene haplotype we are trying to locate. However, a continuous large region of SNP loci, without any incompatibilities among affected individuals, may include a unique disease haplotype and, consequently, also the disease gene. Genotypes for our 14 affected families were compared and incompatibilities, as defined above, for all the 260,000 SNP loci were scored and plotted against the genome position for each locus. Corresponding genotype data generated by the Affymetrix 250 K array in four healthy control individuals were entered into the analysis. Given that an affected individual and an unaffected control do not have the same disease phenotype, their DNA must by definition be different. The regions of the genome that were identical by state (IBS) in both VUR cases and controls were therefore excluded.

Study strategies

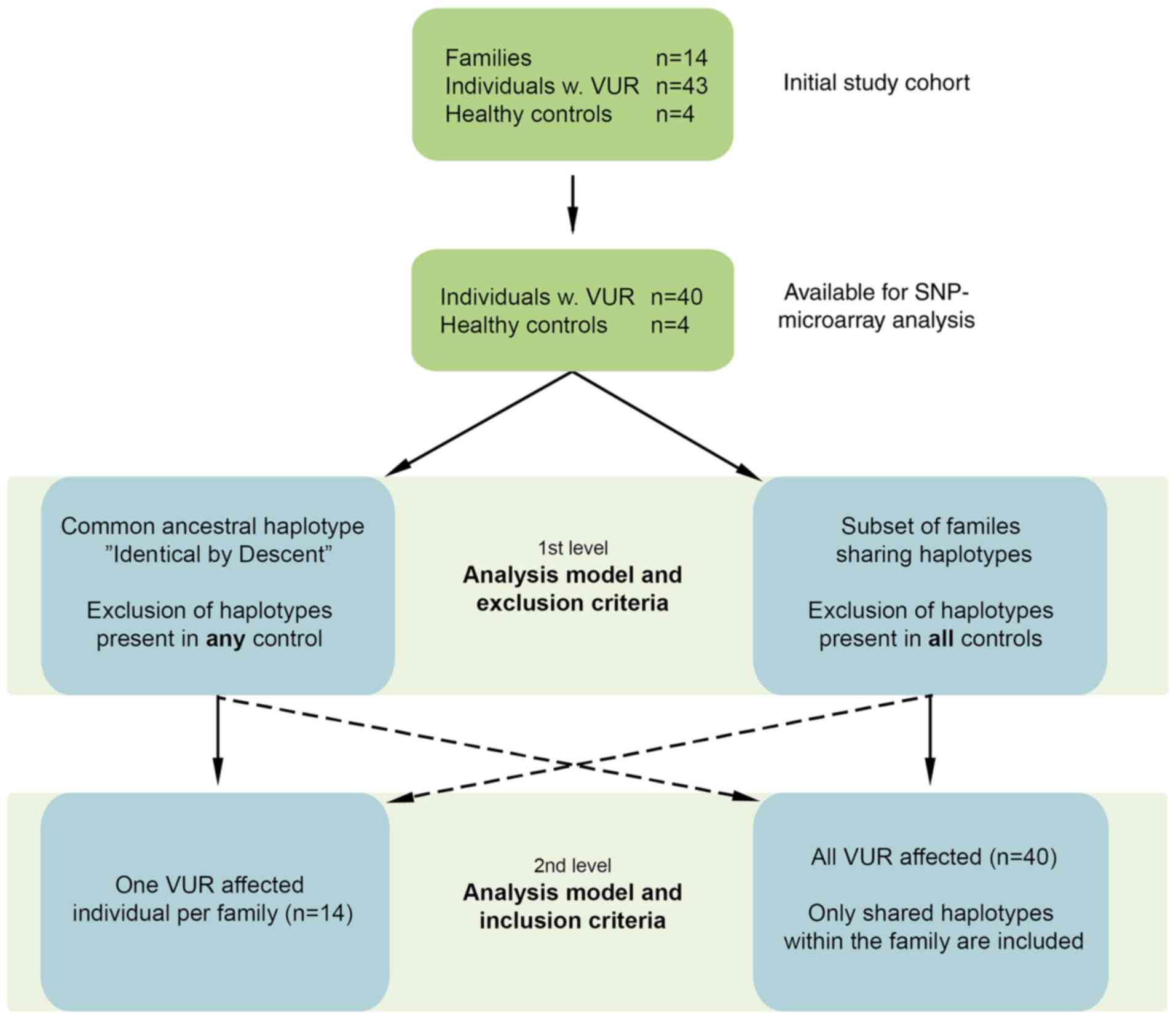

Two different strategies were used for analysing the study group and the controls (Fig. 2). In the first set of analyses, we tested whether the disease haplotype was inherited from a common familial ancestor (causal variant IBD). For this strategy we included one affected individual per family, since a common ancestor hypothesis presumes that all affected members of the family share the same haplotype, which contains the founder gene mutation. We used four controls added one at a time. Haplotypes found in both the control and the families were excluded as a non-specific disease haplotype. If the haplotype region shared by affected individuals, on the other hand, became covered with incompatibilities when the control data was added, this indicated that the haplotype was not present in the control and thus might be specific to the disease. After testing the controls one after the other, the shared region(s) that remained could be regarded as identical by reason of descent. In these analyses the size of haplotype regions we chose was ≥120 SNPs. After this, in a second set of analyses, we searched for common haplotype regions in subsets of families. All affected individuals from each family were included and for each family only haplotypes shared by all family members were selected. We used four controls to rule out common haplotypes within the general population. We excluded only those regions that were identical for VUR cases and all four controls. The haplotype region unique to the affected families and not present in all four controls could be regarded as specific to the disease. Given the limited number of families available for this study, a less stringent filtering strategy was used with inclusion of a very restricted number of controls in order to only exclude the most common haplotypes i.e. haplotypes shared by all four controls. With this strategy, increase in number of controls would probably mean exclusion of fewer common haplotypes. The chosen size of haplotype regions was ≥60 SNPs in the second set of analyses.

CNV detection

The R package ‘aroma.affymetrix’ was used for copy number detection. The CEL files for each sample provided us with copy number estimates of the intensity values using the CRMA v2 method (28). For copy number segmentation we used the Circular Binary Segmentation (CBS) method (29). Criteria for inclusion of CNVs were: i) number of SNPs per CNV ≥10; ii) CNV size >50 kb but <3 Mb; iii) CNV frequency <1% in the general population. The CNVs were also filtered by the log2 values, excluding those between +/-0.2. We searched for recurrent identical CNVs within families. CNVs were defined as identical if they had the same state of duplication or deletion, showed ≤30% difference in length, and overlapped by >70%.

Data bases

All genomic positions for SNPs and CNVs are given relative to GRCh37/hg19 genome assembly. Regions shared by seven families or more were reported in the results. The UCSC genome browser ( was used to visualise the regions which could theoretically contain the disease gene. We recorded the genes, both coding and non-coding DNA sequences, in these regions. In addition, we examined their expression and role during kidney development using GUDMAP (the GenitoUrinary Development Molecular Anatomy Project data; and via an extensive literature search ( The significance of each CNV detected was determined by comparison with public CNV databases: DECIPHER (Database of Chromosomal Imbalance and Phenotype in Humans using Ensembl Resources, and DGV (Database of Genomic Variants,


Clinical characteristics

The study included 43 patients with VUR, from 14 different families (21 males). Two families were nuclear and 12 were extended families. The relationship between the affected individuals and the pattern of inheritance is shown in pedigrees in Fig. 1. Phenotypical details of the study subjects are outlined in Table I. Of the 43 patients with VUR, high-grade reflux (grades IV to V) was seen in 49%, generalised kidney damage in 50% and subnormal total renal function in 15% of the cases. Five cases displayed additional malformations of the UT, such as bilateral duplex kidney, bladder diverticula and a unilateral megaureter. One VUR patient with syndromic presentation was diagnosed with unbalanced translocation, which was inherited from a healthy father with balanced translocation, the VUR inheritance being maternal. An additional three cases with extrarenal manifestations had syndromic features but were undiagnosed (Table SI).

Table I

Demographic data, VUR grades, renal abnormalities and function for the group of individuals included in the IBD part of the study and for the whole study group.

Table I

Demographic data, VUR grades, renal abnormalities and function for the group of individuals included in the IBD part of the study and for the whole study group.

CharacteristicsIBD study cohorta, n=14 (%)Total VUR cohort, n=43 (%)
Presenting symptom VUR
     Pre- and postnatal screening3(22)10(23)
     Other symptoms2(14)4(9)
Age at presentation, months11 (0.25-98)7 (0.25-98)
Grade of reflux
Uni- or bilateral reflux
Recurrent UTIs
Renal damage
     Yes, focal2(14)6(14)
     Yes, generalizedb10(72)21(50)
Uni- or bilateral renal damage
Total renal function

[i] aOne affected individual from each family.

[ii] bHypodysplasia. Categorical variables n (%); continuous variables median (range). IBD, identical by descent; VUR, vesicoureteral reflux.

The SNP compatibility matching method for locating risk regions using GWA data GWA data testing for IBD haplotype (common ancestor)

Regions with no incompatibilities were identified through SNP genotype data analyses using the method described above. One affected individual per family (n=14) was included in these analyses. Since the individual chosen for the analysis was the most severely affected member of the family, this subgroup displayed more high-grade VUR (10/14), more generalised kidney damage, hypodysplasia (10/14) and more frequent subnormal total renal function (4/14) (Table I).

In these analyses we excluded shared haplotype regions in affected individuals that were also found in any of the controls, i.e. excluded as non-specific disease haplotypes. In the analyses without controls, the most frequent haplotype was present in 13 out of 14 VUR families. When tested against four healthy controls one at a time, a maximum of seven families shared one haplotype and thus the number of haplotypes shared by ≥7 families decreased from 34 to only one (Table II). Thus additional controls were not included as a common ancestor haplotype already was excluded after used controls. The conclusion was that we did not find a unique haplotype that was shared by most or all the families, as the regions of interest shared by numerous families were also seen in one or more of the controls.

Table II

Number of haplotypes shared by ≥ seven families in the different sets of analyses.

Table II

Number of haplotypes shared by ≥ seven families in the different sets of analyses.

A, One affected individual/family
 Number of haplotypes shared by ≥ seven of the families
Type of analysis7 fam8 fam9 fam10 fam11 fam12 fam13 fam
No control included18851111
Inclusion of 4 controls
     Haplotypes found in all 4 controls excludeda,b14640111
     Haplotypes in any of 4 controls excluded1000000
B, All affected individuals/family
 Number of haplotypes shared by ≥7 of the families
Type of analysis7 fam8 fam9 fam10 fam11 fam12 fam13 fam
No control included21952000
Inclusion of 4 controls
     Haplotypes found in all 4 controls excludeda20651000
     Haplotypes in any of 4 controls excludedb0000000

[i] aCommon haplotypes in the general population.

[ii] bResults not presented. Fam, families.

GWA data testing for disease variant excluding the common haplotypes

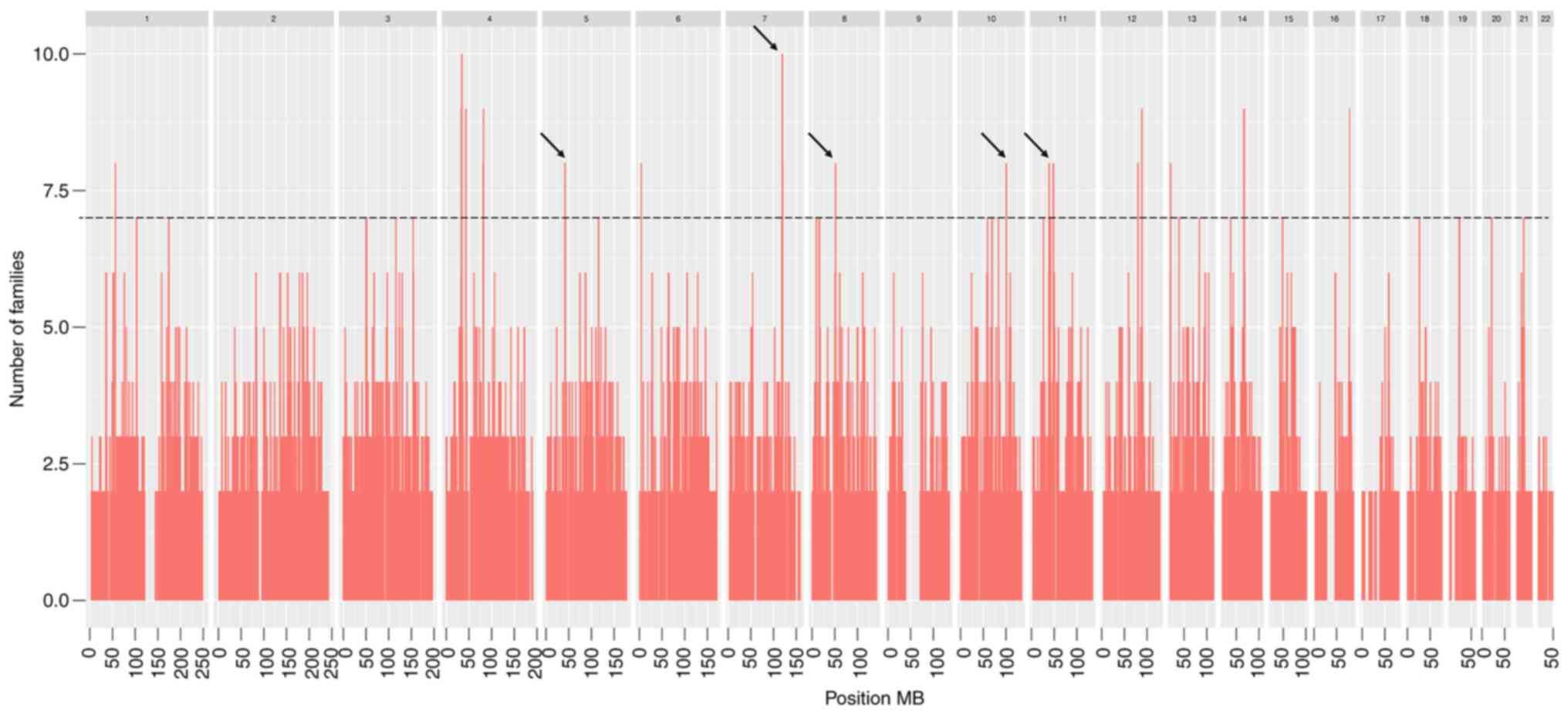

In these analyses we searched for haplotype regions shared by subsets of VUR families, with the only exclusion being of haplotypes common in the general population, i.e. haplotypes shared by all the four controls used (Table II). Forty out of 43 affected individuals from 14 families were included in these analyses; DNA was missing from three individuals. A total of 32 haplotype regions shared by ≥7 families were identified (Table III). The size of these possible disease-associated haplotypes varied from 0.20 to 1.93 Mb, with a total of 22.92 Mb, representing 0.76% of the genome. Twenty regions of haplotypes were shared by seven families, six regions by eight families and five regions by nine families, while only one haplotype was shared by 10 families (Table II). Fig. 3 illustrates the genomic locations of haplotype regions shared by ≥7 families.

Table III

Haplotype regions found in ≥ seven families when including all affected individuals in the 14 families, after exclusion of common haplotypes in the general population.

Table III

Haplotype regions found in ≥ seven families when including all affected individuals in the 14 families, after exclusion of common haplotypes in the general population.

Haplotype regions shared by ≥ seven families GenesEvidence
Genomic locationsCytogenetic bandSize of region, MbNumber of families per haplotype regionCodingNon-coding(Refs.)Region
Chr3:115,953,619-116,316,7413q13.310.367--(40) (45)3p13-q21.2, 3p12.3-q24
Chr4:81,214,575-82,324,437j4q21.211.119BMP3b, FGF5b-
Chr8:9,294,638-9,977,1878p23.10.687TANKSa,d, SLC9A6a,e-
Chr12:88,355,694-89,207,726 12q21.32-q21.330.859CEP290a,f, KITLGa,g-
Chr14:37,462,847-38,176,04114q13.3-q21.10.717FOXA1b RP11-356O9.2c
Chr15:48,329,542-48,925,11515q21.10.607 SLC12A1a,h, FBN1a,i RP1-208K4.1c
Chr20:21,055,354-22,080,540j 20p11.23-p11.221.037PAX1a-(40)20p12.2-p11.23

[i] aGene expressed in Metanephros, function not established.

[ii] bFunction shown in metanephros.

[iii] cNon-coding RNA expressed mainly or only in kidney/urinary bladder.

[iv] dActivate the WNT signaling pathway.

[v] eKidney specific, repairing damaged proteins.

[vi] fRegulation of ciliogenesis.

[vii] gActivates STAT 1-3-5.

[viii] hKidney specific, Na/K regulation.

[ix] iInteracts with TGFB and BMP.

[x] jHaplotypes were also found in analyses including one individual/family. (-) genes or non-coding RNA are present in the region, but are not known to be involved in kidney/urinary tract development. BMP3, Bone morphogenetic protein 3; FGF5, fibroblast growth factor 5; CEP290, centrosomal protein of 290 kDa; KITLG, Kit ligand; FREM2, FRAS1-related extracellular matrix 2; FOXA1, forkhead box A1; PLEK2, pleckstrin-2; SLC12A1, Solute carrier family 12 member 1; FBN1, fibrillin-1; PAX1, paired box protein; USP16, ubiquitin carboxyl-terminal hydrolase 16; TANKS, TRAF Family member associated NFKB activator; SLC9A6, solute carrier family 9 member A6.

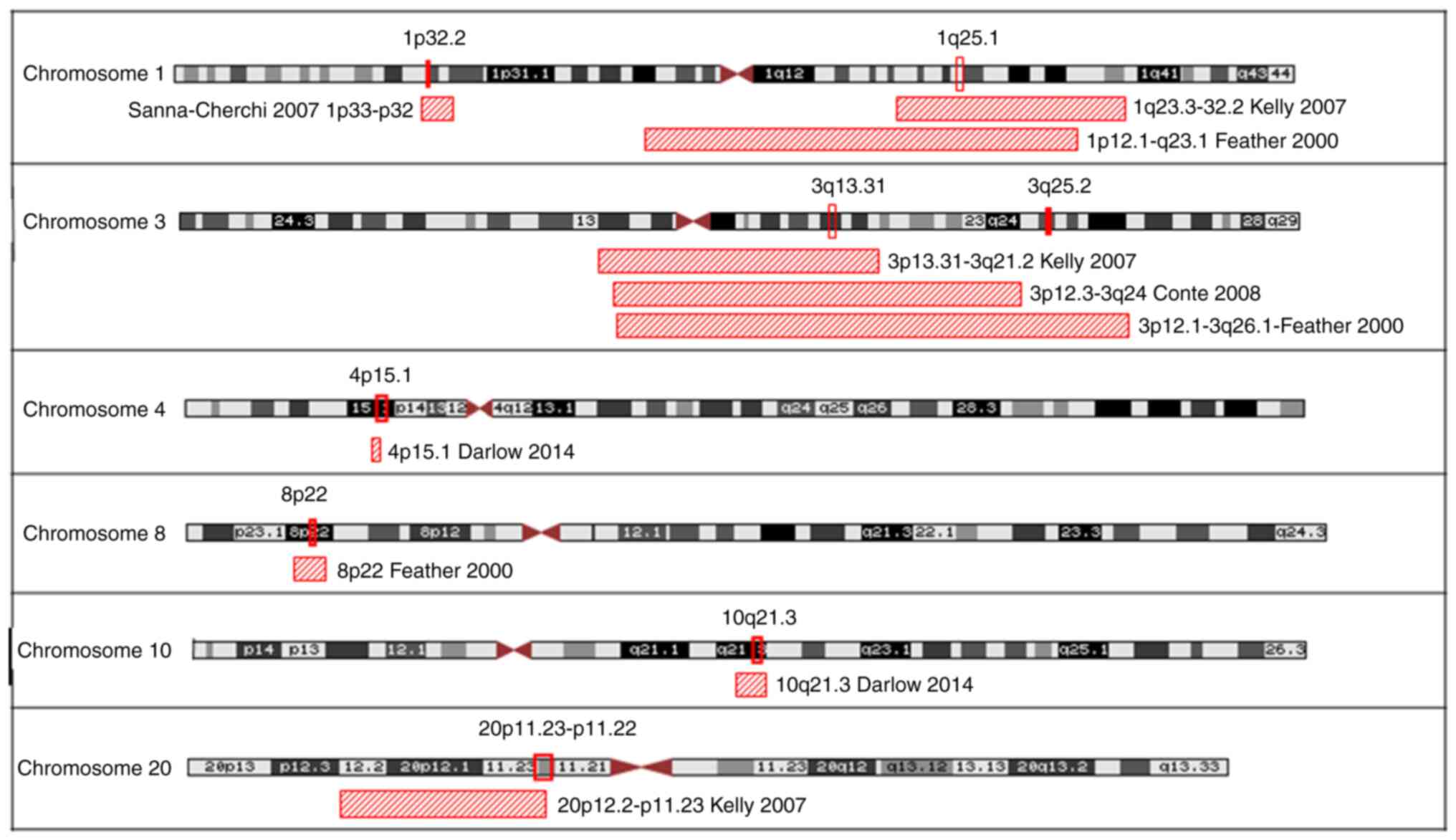

In these candidate regions where genes causing the disease might be located, we searched for coding and non-coding genes of interest in the embryological development of the kidney and UT. We differentiated between genes with a known function in the UB and MM, and genes only expressed in the metanephros according to GUDMAP but without known function (Table III). The haplotype region shared by the highest number of families (n=10) and located at 4p15.1 did not contain any protein coding elements. The non-coding RNAs were not expressed in the post-developmental kidney or UT, although to our knowledge their expression in the fetal kidney has not yet been investigated. A haplotype shared by nine families was also located on chromosome 4, at 4q21.21 (Table III). In this region, two tentative candidate genes were located; bone morphogenetic protein 3 (BMP3) in the middle of the region and fibroblast growth factor 5 (FGF5) at the lower end of the region, both with known functions in the embryological development of the kidney and UT. Non-coding RNAs were also present in this region, but with no known role in the post-developmental kidney.

Of the other four regions shared by nine families, two regions (12q21.32-q21.33 and 14q23.3) included genes with expression in metanephros, but without an identified function during kidney development (Table III). In the six haplotype regions shared by eight families no genes of interest were found. Of the 20 haplotypes shared by seven families each, one region on cytogenetic band 13q13.3 included the FRAS1 related extracellular matrix 2 (FREM2) gene with known functions in the embryonic kidney. Another locus at 14q13.3-21.1, contained the forkhead box A1 (FOXA1) gene, known to be involved in early embryological development of numerous organ systems. Of the remaining haplotypes shared by seven families, four included genes expressed in the embryological kidney, but without known function (Table III).

Non-coding RNA genes were present in almost all haplotype regions, often with detectable expression levels in most of the tissue samples, as presented by the GTExPortal ( A few lncRNA (14q13.3-q21.1 and 15q21.1, respectively), had expressions that were exclusive or almost exclusive to the post-natal kidney and UT. Despite extensive data mining regarding fetal expression of these lncRNA in the kidney (ENCODE-HaploReg 4.1), no available data could be found.

A large number of haplotype regions were shared by six families each (data not shown). A few genes of interest because of their roles in UB and MM development were located in these regions. One of these genes was ZFYVE9 at locus 1p32.3.

CNV analysis for locating inherited chromosomal imbalances

A large number of CNVs were detected in all the individuals analysed, with the overall CNV distribution (Fig. S1). We searched for recurrent identical CNVs within the families with log 2 value >0.2 for gain and log 2 <-0.2 for loss. CNVs shared by several affected family members were detected in five families, although only one family (family 32) showed the presence of a shared CNV-a deletion at 5q31.1-in all affected relatives (Tables IV and SII). This chromosomal region contains the follistatin like 4 (FSTL4) gene, expressed during renal tubuli development, according to GUDMAP, but not detected in earlier embryological phases (in UB or MM). An additional four CNVs were partially shared, meaning that some but not all affected family members were carriers of that specific CNV. Of specific interest is the duplication at 20q13.31, seen in family 80. This region contains the BMP7 gene, known to have a major function in kidney and UT development. However, it was only present in two family members. In addition, eighteen CNVs were shared by ≥2 unrelated individuals among the families. Common CNVs in the population were excluded.

Table IV

CNV detected in two or more affected individuals within a family. Segregation with VUR and the genes located within the region.

Table IV

CNV detected in two or more affected individuals within a family. Segregation with VUR and the genes located within the region.

A, Family 17
 Family members
CNV position351 Fa369 Fa347 Fa355 Fe368 FeGenes
B, Family 32
 Family members
CNV position236 Fa656 Fa395 Ma235 Fe234 MGenes
5:132581687-132690433+++NANA FSTL4c
C, Family 76
 Family members
CNV position650 Fa648 Ma660 Fa644 Fd653 MGenes
D, Family 77
 Family members
CNV position645 Ma649 Fa690 Fa651 M Genes
8:18100755-18457679+-+NA  NAT2c, PSD3b
19:49998299-50281369+-+NA  PRR12b, IRF3b, BCL2L12b, CPT1Cb, RPS11b, RCN3b, NOSTPb, PRRG2b, SCAF1c, PRMT1c, AP2A1c, TSKSc, FCGRTc, ADM5, RRAS
E, Family 80
 Family members
CNV position682 Ma652 Ma658 Ma666 Ma695 FGenes
20:54967565-55918939-+--+ BMP7b
21:38399356-38712209+++-- DSCR3b, TTC3

[i] aAffected family members. F, female; M, male; NA, not analysed. +, CNV present; -, CNV absent.

[ii] bExpressed in ureteric bud and/or metanephric mesenchyme.

[iii] cExpressed later in metanephros (in mice according to GUDMAP).

[iv] dProbable carrier according to the pedigree.

[v] eProbable VUR-strong history of VUR but no radiological investigations available. CNVs, copy number variants; VUR, vesicoureteral reflux; FSTL4, follistatin-like 4; TRAC, T cell receptor alpha chain constant; NAT2, arylamine N-acetyltransferase 2; PSD3, phosphatidylserine decarboxylase proenzyme 3; BMP7, bone morphogenetic protein 7; DSCR3, vacuolar protein sorting-associated protein 26C; TTC3, E3 ubiquitin-protein ligase TTC3; PRR12, proline-rich protein 12; IRF3, interferon regulatory factor 3; BCL2L12, Bcl-2-like protein 12; CPT1C, carnitine O-palmitoyltransferase 1; RPS11, 40S ribosomal protein S11; RCN3, reticulocalbin-3; NOSTP, nitric oxide synthase interacting protein; PRRG2, transmembrane gamma-carboxyglutamic acid protein 2; SCAF1, splicing factor arginine/serine-rich 19; PRMT1, protein arginine N-methyltransferase 1; AP2A1, AP-2 complex subunit a-1; TSKS, testis-specific serine kinase substrate; FCGRT, Fc fragment of IgG receptor and transporter; ADM5, adrenomedullin-5; RRAS, Ras-related protein R-Ras2.


There are numerous association and linkage studies, mainly genome-wide scans, searching for the chromosomal region(s) which can explain the heritability of VUR. These studies either include a large number of small families with ≥2 affected members, often siblings (30-34), or a small number of large families with numerous cases (9,11,35-37). They show few overlapping regions, posing the question of whether distinctive VUR-associated loci may vary in frequency in different populations. In our study, the pedigrees of the 14 families with three or more individuals with primary VUR indicate a dominant autosomal inheritance pattern with reduced penetrance, in line with earlier reports (8-11). Given their origin in a small homogenous region in Sweden, we wanted to investigate the possibility of shared ancestry among the families. We used a SNP compatibility matching method, a variant of linkage analysis, to analyse GWAS data. This data included only patients with the condition, taking an affected-only approach. This method was originally designed to detect a disease gene haplotype derived from a common ancestor, thus establishing a classical Mendelian dominant inheritance pattern (23,24). However, in this case the method revealed that there was no haplotype region shared by all the affected members of the 14 families. This suggested that there was no common ancestral founder mutation, a finding in line with similar studies of other cohorts (38,39).

Nevertheless, subsets of the VUR families were shown to share regions on candidate disease genes. In our study we have presented haplotype regions shared by seven or more families, and at least eight of our findings agreed with loci identified in other studies (on chromosomes 1, 3, 4, 8, 10 and 20, Fig. 4). The haplotype chromosomal region 4p15.1 was the region shared by most families (n=10) and overlaps with a locus presented in an earlier case/control association study by Darlow et al (31). The region contained only non-coding genes, without any records of expression in the post-developmental kidney. Whether regulatory elements in this region fulfil functions in the fetal kidney is unknown and will require further study. Of the other novel haplotypes shared by several families in this present study, we found regions 4q21.21 (n=9), 13q13.3 (n=7) and 14q21.1 (n=7) to be of particular interest given the current knowledge of the role of genes in fetal development of the kidney and UT. The 4q21.21 region contains BMP3, encoding a ligand of the growth factor beta (GFB) superfamily with a role in organogenesis in embryonic kidney and renal tubuli development (40,41). This chromosomal region also contains FGF5, which encodes for a member of the fibroblast growth and differentiation factor family, which in turn has been shown to have a role in metanephric development (42). Interaction between FGF and BMP signaling pathways has been shown to have a role in the regulation of MM development (43). Interestingly, in a patient with DiGeorge-like syndrome with unilateral renal agenesis and a deletion in chromosome 3, BMP3 was suggested as a target gene through action via the non-coding gene miRNA-4273(44). The role of the BMP receptor family in VUR is further indicated by Darlow et al, which found an association with chromosomal region 4q22.3, which contains BMPR1B (31). The haplotype region 13q13.3 includes FREM2, which encodes a factor in the GDNF-RET/BMP signaling pathway, a factor that both affects expression and has an established function in the UB and MM. In addition, biallelic mutations in FREM2 cause the recessive disorder Fraser syndrome type 2, which includes CAKUT anomalies (45). The 14q21.1 haplotype includes FOXA1 (HNF3α), a gene involved in early embryonic development in numerous organ systems. The gene is expressed in the embryonic kidney (metanephros) and UT, mainly in epithelia of the ureter. Nevertheless, studies in Foxa1 null mice did not show any overt malformations in the kidney. However, the condition led to death due to severe hypoglycaemia and dehydration, the latter due to nephrogenic diabetes insipidus (46,47).

In the study of CNV inheritance in the 14 VUR families, only one family showed segregation of a CNV. This was a small deletion within chromosome 5q31.1, which included a part of FSTL4. This gene encodes a calcium ion-binding protein that is expressed during renal tubuli development, although not detected in earlier embryological phases (in UB or MM) according to GUDMAP. The 5q31.1-deletion was not present in the other families and has not been reported in previous publications (21,22,48). Whereas the majority of the CNVs detected did not segregate fully with disease in the families, an overlap between our data and previously published findings of likely pathogenic de novo CNVs was seen in three loci; 7p22.1, 12q24(21) and 8q24.13(22). These latter studies included individuals with CAKUT, mainly renal hypodysplasia, which was also seen in the majority of our own patients. The CNV at 7p22.1 is associated with chromosome 7p interstitial duplication syndrome, which includes developmental delay and intellectual disability. However, the individual in our study who was found to have this duplication had neither kidney damage nor an extrarenal phenotype. The CNV at 12q2 was described as a large pathogenic de novo duplication associated with congenital kidney malformations (21).

Using GWA and the SNP compatibility matching method, we did not identify a unique haplotype IBD for all 14 families in the south-western part of Sweden with the VUR complex, although retained haplotypes were identified in subsets of families. However, a limitation of the present study was the small number of families with hereditary VUR, and also the limited number of generations included. The latter limitation was explained mainly by VUR being a radiological diagnosis not generally available before the 1970s, and thus the VUR diagnosis is not ideal for this type of studies of heredity far back. Nevertheless, partially shared haplotypes on chromosomes 4q and 13q, with possible candidate genes, were retained as regions of interest after common haplotypes were eliminated. The genes identified in these regions have known functions in the embryogenesis of the kidney and UT but the regions also include non-coding genes. An overwhelming amount of data shows that the hereditary VUR-hypodysplasia complex is a genetically heterogeneous disease where less than 10% of VUR patients have an identified pathogenic causal mutation (18). On the other hand, knowledge of non-coding regulatory elements and their expression in the UB and MM at the time points when the VUR anomaly develops, is currently very limited and thus a limitation of the study. However, this is an emerging field that aids in the identification of regulatory elements in the human genome and makes possible the potential discovery of new mechanisms which govern VUR.

Supplementary Material

Genomic distribution of CNVs detected in the present study, among all the individuals analysed. Chromosomal regions for CNVs detected in more one affected family member are marked. Blue indicates copy number gain; pink indicates copy number loss. CNVs, copy number variants; chr, chromosome.
Additional malformations of the UT and other organ systems.
CNV shared by two or more affected individuals within the families, detailing CNV locus and characteristics.


Mrs. Alice Andersson and Mrs Eva Johansson (The Queen Silvia Children’s Hospital, Gothenburg, Sweden) assisted in collecting patient information, samples and data from medical records.


Funding: The present study was financed by grants from the Swedish state under the agreement between the Swedish Government and county councils, the ALF agreement (grant no. ALFGBG-830501).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

ZB, US, TM, MÖ and SF designed the study. AD, RS and ZB collected the material and performed the SNP genotyping. MÖ carried out SNP compatibility matching through advanced statistical analysis. TM, MÖ and SF confirm the authenticity of all the raw data. All authors have read and approved the final manuscript.

Ethics approval and consent of participants

The Regional Ethical Review Board in Gothenburg approved the study (approval no. Dnr 589-05). Written informed consent was obtained from all patients.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
