α2-antiplasmin modulates bone formation by negatively regulating osteoblast differentiation and function

  • Authors:
    • Yosuke Kanno
    • Akira Ishisaki
    • Hiromi Kuretake
    • Chihiro Maruyama
    • Ayaka Matsuda
    • Osamu Matsuo
  • View Affiliations

  • Published online on: July 5, 2017     https://doi.org/10.3892/ijmm.2017.3055
  • Pages: 854-858
Metrics: HTML 0 views | PDF 0 views     Cited By (CrossRef): 0 citations

Abstract

α2-antiplasmin (α2AP) is known to be a physiological inhibitor of plasmin. Previously, we showed that α2AP displays various functions, such as promotion of extracellular matrix production, cell growth, and cell differentiation that are not promoted by its function as a plasmin inhibitor. We herein investigated the role of α2AP in bone formation by examining calcein incorporation after its injection in α2AP-deficient mice. We found that α2AP deficiency enhanced the bone formation rate in mice. We also found that the osteocalcin expression and alkaline phosphatase activity were elevated in the femur and serum of the α2AP-deficient mice. Intriguingly, α2AP deficiency promoted osteoblast (OB) differentiation of primary calvarial OBs. In contrast, α2AP attenuated OB differentiation of mouse osteoblastic the MC3T3-E1 cells. Furthermore, α2AP attenuated Wnt-3a-induced β-catenin expression and low‑density lipoprotein receptor-related protein 6 activation in the MC3T3-E1 cells. These results suggest that α2AP negatively affects OB differentiation and function by inhibiting the Wnt/β-catenin pathway. These findings provide a basis for clinical strategies to improve various bone disorders.

Introduction

Bone homeostasis is regulated by an appropriate balance between resorption of old bone and formation of new bone, which is known as bone remodeling. Osteoblasts (OBs), which are responsible for bone formation, arise from mesenchymal stem cells (MSCs) as OB progenitors, and OB differentiation and function are positively regulated by several signaling pathways including Wnt/β-catenin-mediated signaling which targets the expression of osteogenic transcription factor Runx2 (1,2). Additionally, OBs are associated with differentiation and activation of osteoclasts (OCs) which are responsible for bone resorption (3).

α2-antiplasmin (α2AP) is known to be synthesized in various tissues, and functions as the principal inhibitor of plasmin, a main component of the fibrinolytic system (4,5). As a new function of α2AP, we previously found that α2AP is associated with tissue remodeling, angiogenesis, extracellular matrix (ECM) production, cell growth and cell differentiation (611). α2AP is most phylogenetically closely related to the non-inhibitory serine protease inhibitor, pigment epithelium-derived factor (PEDF) (12), and they have very similar structure (3 β-sheets and 9 β-helices) (13,14). Furthermore, Shiomi et al recently reported that α2AP deficiency attenuated ovariectomy (OVX)-induced bone loss, and α2AP is associated with osteoclast formation (15). These observations suggest that α2AP exhibits various functions not only as a plasmin inhibitor, but also as a modulator of bone metabolism. However, the mechanisms underlying α2AP-regulated bone metabolism remain to be clarified at the cellular and molecular levels.

We herein investigated the roles of α2AP in bone metabolism, particularly in regards to how α2AP affects OB differentiation and bone formation.

Materials and methods

Animals

The α2AP-deficient (α2AP−/−) mice were generated by homologous recombination using embryonic stem cells, as previously described (16). Wild-type (α2AP+/+) and α2AP−/− mice littermates were housed in groups of 2–5 in filter-top cages with a fixed 12-h light and 12-h dark cycle.

The animal experiments were approved by the Animal Research Committee of Doshisha Women's College of Liberal Arts (approval ID, Y15-024). All experiments were performed in accordance with relevant guidelines and regulations.

In vivo calcein labeling

Calcein (Nacalai Tesque, Inc., Kyoto, Japan) in saline was intraperitoneally injected into eight-week-old α2AP+/+ and α2AP−/− mice (20 mg/kg). Two injections were given 3 days apart. The undecalcified sections of femurs from eight-week-old α2AP+/+ and α2AP−/− mice were prepared by the Tohkai Cytopathology Institute (Gifu, Japan). Bone formation was visualized using a calcein incorporation assay as described by Naylor et al (17). Briefly, the mineral apposition rate (µm/day) in vivo was calculated by identifying newly formed bone via calcein labeling. The data of double-labeled regions were obtained by using fluorescence microscopy, and the mineral apposition rate was calculated as the distance of the double-labeled regions.

Immunohistochemical staining of osteocalcin

Paraffin-embedded tissue of femurs in eight-week-old α2AP+/+ and α2AP−/− mice was serially sectioned at 4–7 µm distance. Then, the sections were labeled with anti-rabbit osteocalcin antibody (cat. no. SC-30045; Santa Cruz Biotechnology, Inc., Santa Cruz CA, USA), and then secondarily labeled with Cy3-conjugated anti-rabbit IgG (cat. no. A10520; Thermo Fisher Scientific, Inc., Waltham, MA, USA). The signals were then detected using a laser scanning microscope. The stained images obtained from separate fields on the specimens were analyzed using ImageJ software.

Enzyme-linked immunosorbent assay (ELISA)

The osteocalcin in the serum from eight-week-old α2AP+/+ and α2AP−/− mice was then measured using a mouse osteocalcin EIA kit (Biomedical Technologies, Stoughton, MA, USA). The absorbance of the ELISA samples was measured at 450 nm using Multiskan JX (Thermo LabSystems, Beverly, MA, USA).

Measurement of alkaline phosphatase (ALP) activity

We measured ALP activity in the serum and osteoblasts from α2AP+/+ and α2AP−/− mice as previously described (18). ALP activity was determined using p-nitrophenyl phosphate (Sigma-Aldrich, Steinheim, Germany) as a substrate. The absorbance of the samples was measured at 405 nm using Multiskan JX (Thermo LabSystems).

Cell culture

Primary OBs derived from α2AP+/+ and α2AP−/− mouse calvaria were obtained as previously described (19). Primary OBs or MC3T3-E1 cells were maintained in minimum essential medium (MEM) (Invitrogen Life Technologies, Carlsbad, CA, USA) supplemented with 10% fetal bovine serum (FBS) (Biowest, Nuaillé, France) and 1% penicillin-streptomycin (Invitrogen Life Technologies) at 37° in a humidified atmosphere of 5% CO2/95% air.

OB differentiation

OB differentiation in the primary OBs derived from α2AP+/+ and α2AP−/− mouse calvaria and MC3T3-E1 cells were induced as previously described (19). Briefly, primarily cultured OBs or MC3T3-E1 cells were cultured for 14 days in the differentiation media supplemented with 10 mM β-glycerophosphate and 10 nM dexamethasone (both from Sigma-Aldrich), and 50 µg/ml ascorbic acid (Wako Pure Chemical Industries, Ltd., Osaka, Japan) in 6-well plates. After 14 days, the cells were then washed with phosphate-buffered saline (PBS), and cell proteins were extracted with a lysis buffer (10 mM Tris-HCl, pH 7.5, 0.1% Triton X-100).

Reverse transcription-polymerase chain reaction (RT-PCR)

We performed RT-PCR as previously described (19). First-strand cDNA was synthesized from total RNA using the High Fidelity RT-PCR kit (Toyobo, Osaka, Japan). Quantitative RT-PCR (RT-qPCR) was performed on the IQ5 real-time PCR detection system (Bio-Rad Laboratories, Inc., Hercules, CA, USA) with SYBR-Green technology on cDNA generated from the reverse transcription of purified RNA. The 2-step PCR reactions were performed as 92°C for 1 sec and 60°C for 10 sec. Runx2 mRNA expression was normalized against GAPDH mRNA expression using the comparative cycle threshold method. We used the following primer sequences: Runx2 forward, 5′-GAATGGCAGCACGCTATTAAATCC-3′ and reverse, 5′-GCCGCTAGAATTCAAAACAGTTGG-3′; GAPDH forward, 5′-TTCATTGACCTCAACTACATG-3′ and reverse, 5′-GTGGCAGTGATGGCATGGAC-3′.

Western blot analysis

Western blot analysis was performed as previously described (20). Briefly, cells were washed twice with cold PBS, harvested, and then sonicated in lysis buffer containing 10 mM Tris-HCl buffer (pH 7.5), 1% SDS, 1% Triton X-100, and a protease inhibitor cocktail (Roche, Mannheim, Germany). The protein concentration in each lysate was measured using a BCA protein assay kit (Pierce, Rockford, IL, USA). Proteins in the supernatant were separated by electrophoresis on 10% SDS-polyacrylamide gels and transferred to a PVDF membrane. We detected β-catenin, phospho-lipoprotein receptor-related protein 6 (p-LRP6), LRP6 and GAPDH by incubation with anti-rabbit β-catenin antibody (cat. no. Rb-1491; NeoMarkers, Fremont, CA, USA), anti-rabbit phospho-LRP6 antibody (cat. no. bs-2905R) and anti-rabbit LRP6 antibody (cat. no. bs-3253R) (both from Bioss Inc., Woburn, MA, USA), and anti-rabbit GAPDH antibody (cat. no. SAB2100894; Sigma-Aldrich) followed by incubation with horseradish peroxidase-conjugated antibodies to rabbit IgG (cat. no. NA934-1ML; Amersham Pharmacia Biotech, Uppsala, Sweden).

Spontaneous secretion of VEGF in primary OBs

Spontaneous secretion of VEGF in primary OBs was measured as previously described (6). The OBs were maintained in MEMα containing 10% FBS. After 6 days, the medium was exchanged for serum-free MEMα. After 24 h, the conditioned medium was collected, and VEGF in the medium was then measured by VEGF ELISA kit (R&D Systems, Minneapolis, MN, USA). The absorbance of the ELISA samples was measured at 450 nm using Multiskan JX (Thermo LabSystems).

Statistical analysis

All data are expressed as the means ± SEM. The significance of the effect of each treatment (P<0.05) was determined by analysis of variance (ANOVA) followed by the least significant difference test.

Results

Effect of α2AP deficiency on bone formation in mice

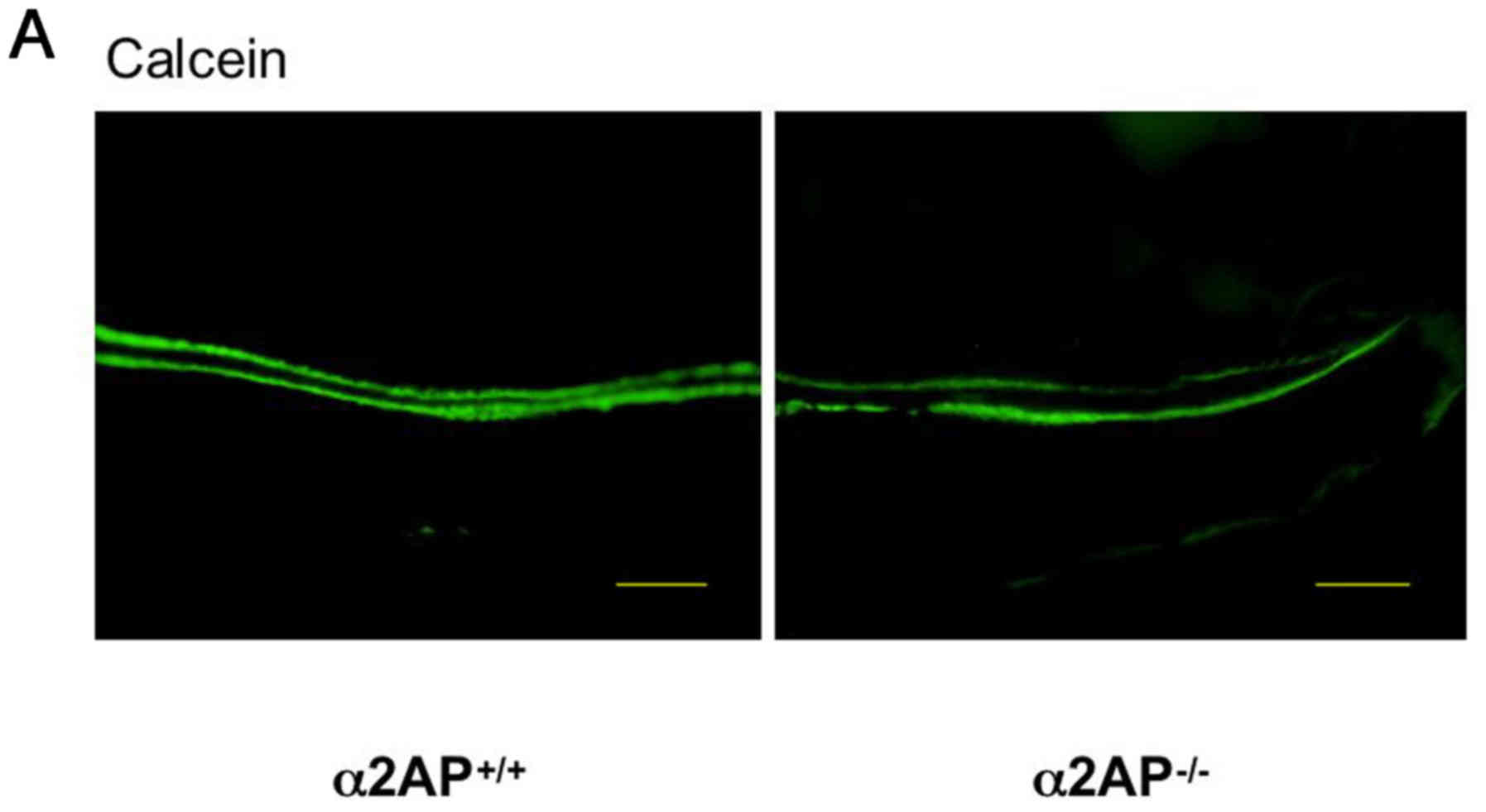

We investigated the effect of α2AP deficiency on bone formation by examining calcein incorporation after its injection in the α2AP+/+ and α2AP−/− mice. The double calcein-labeled regions in the femurs from the eight-week-old α2AP+/+ and α2AP−/− mice are shown in Fig. 1A. The mineral apposition rate was calculated as the distance of the double calcein-labeled regions. The distance between the double calcein-labels in the femurs from the α2AP−/− mice was larger than that from the α2AP+/+ mice (Fig. 1B). Additionally, we examined the expression of osteocalcin in the femurs from the α2AP+/+ and α2AP−/− mice. The level of osteocalcin expression in the femurs from the α2AP−/− mice was significantly higher than that of the α2AP+/+ mice at the protein level (Fig. 1C and D). Furthermore, we examined the levels of osteocalcin and ALP activity in the serum of the α2AP+/+ and α2AP−/− mice. The levels of osteocalcin and ALP activity in the serum of the α2AP−/− mice were significantly higher than those of the α2AP+/+ mice (Fig. 1E and F, respectively).

Effect of α2AP deficiency on OB differentiation and function

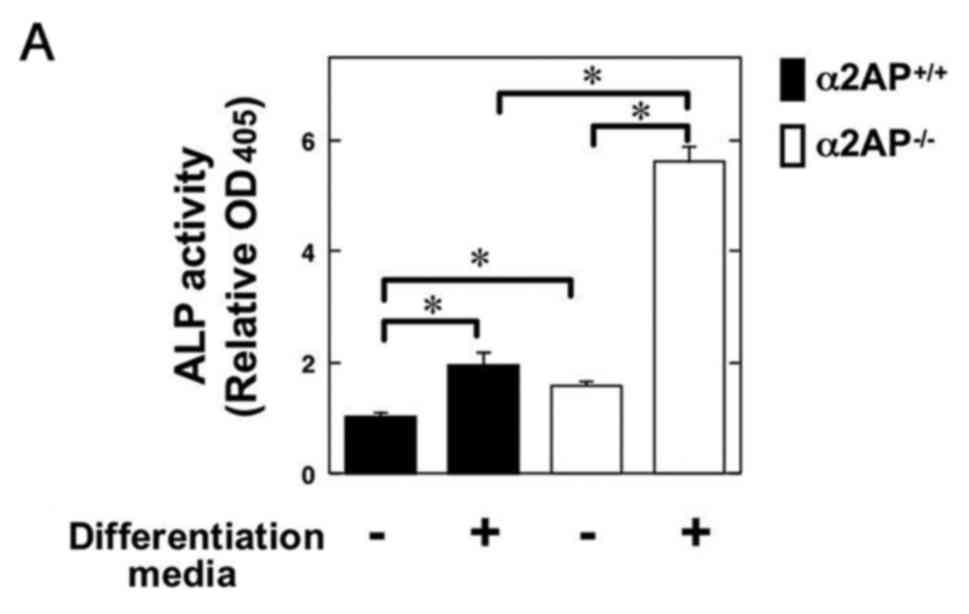

Next, to clarify the role of α2AP in OB differentiation, we examined the ALP activity in primary calvarial OBs from the α2AP+/+ and α2AP−/− mice in the absence or presence of OB differentiation media. Intriguingly, the α2AP deficiency resulted in upregulation of ALP activity in OBs (Fig. 2A). Additionally, we examined the expression level of Runx2, which is an essential transcription factor for OB differentiation, in OBs from the α2AP+/+ and α2AP−/− mice in the presence of the OB differentiation media. The level of Runx2 mRNA expression in the α2AP−/− OBs was significantly higher than that in the WT OBs (Fig. 2B). It has been reported that PEDF, which is most phylogenetically closely related to α2AP, inhibits the Wnt/β-catenin pathway by blocking LRP6 (21). Therefore, to clarify whether or not α2AP is associated with the Wnt/β-catenin pathway, we examined the expression of β-catenin in OBs from the α2AP+/+ and α2AP−/− mice. The expression of β-catenin in the α2AP−/− OBs was significantly higher than that in the α2AP+/+ OBs at the protein level (Fig. 2C).

Effect of α2AP on OB differentiation and function

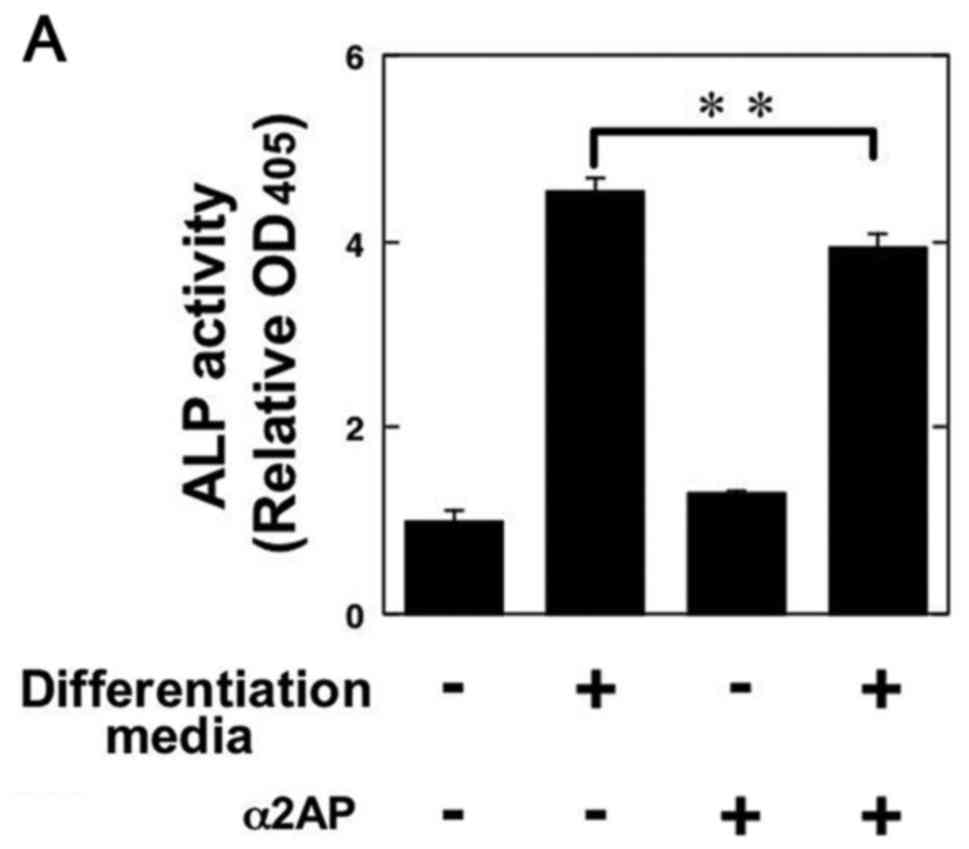

In order to clarify the roles of α2AP in the functions of OBs, we examined ALP activity in the α2AP-treated mouse osteoblastic MC3T3-E1 cells. α2AP treatment attenuated the OB differentiation media-induced ALP activation in the MC3T3-E1 cells (Fig. 3A). We also showed that α2AP treatment significantly attenuated the Runx2 mRNA expression in the MC3T3-E1 cells in the OB differentiation media (Fig. 3B). Furthermore, we demonstrated that α2AP attenuated the Wnt-3a-induced β-catenin expression and LRP6 phosphorylation at the protein level (Fig. 3C).

Discussion

In the present study, we investigated the roles of α2AP in the stat uses of differentiation and function of OBs that regulate bone formation. We found that the bone formation rate and osteocalcin expression in the femur and serum ALP activity were significantly elevated in the α2AP-deficient mice compared with these parameters in the WT mice (Fig. 1). Additionally, α2AP deficiency promoted osteogenic transcription factor expression and ALP activity in OBs (Fig. 2A and B). In contrast, the α2AP treatment attenuated them (Fig. 3A and B). These data strongly suggest that α2AP negatively regulates OB differentiation and function.

Although α2AP is known to be a plasmin inhibitor, we previously found that α2AP regulates ECM production, cell growth, and cell differentiation in the absence of plasmin (710). We also showed that plasminogen deficiency did not affect OB differentiation (19). We herein showed that α2AP attenuated OB differentiation in the absence of plasmin (Fig. 3A and B). These observations suggest that α2AP-mediated OB differentiation is not carried out by its action as a plasmin inhibitor.

α2AP is most phylogenetically closely related to PEDF (12), and they have very similar structure (3 β-sheets and 9 α-hel ices) (13,14). It has been reported that PEDF inhibits the Wnt/β-catenin pathway by blocking LRP6, which is coreceptor for Wnts (21). The Wnt-3a-induced LRP6 activation results in inhibition of β-catenin degradation (22), and the Wnt/LRP6/β-catenin axis plays an important role in OB differentiation (2325). We herein showed that the expression status of β-catenin was elevated in the OBs from the α2AP-deficient mice than in that from WT mice (Fig. 2C). In addition, the α2AP treatment attenuated Wnt-3a-induced β-catenin expression and LRP6 activation (Fig. 3C). These data strongly suggest that α2AP negatively modulates OB differentiation by inhibiting the Wnt/LRP6/β-catenin axis.

In a previous study, we showed that α2AP deficiency enhanced VEGF expression in fibroblasts (6). α2AP deficiency also enhanced VEGF expression in primary osteoblasts (data not shown). It has been reported that osteoblast-derived VEGF positively regulates OB differentiation and bone formation activity of OBs in autocrine or paracrine manners (26). Additionally, activation of the Wnt/β-catenin pathway induces VEGF production (27). The α2AP-mediated Wnt/β-catenin pathway may also regulate the production of VEGF production, and the α2AP-regulated VEGF production may be associated with bone homeostasis.

In conclusion, α2AP affects bone metabolism by negatively regulating OB differentiation and function. These findings provide a basis for therapeutic strategies for various bone disorders.

References

1

Buttery LD, Bourne S, Xynos JD, Wood H, Hughes FJ, Hughes SP, Episkopou V and Polak JM: Differentiation of osteoblasts and in vitro bone formation from murine embryonic stem cells. Tissue Eng. 7:89–99. 2001. View Article : Google Scholar : PubMed/NCBI

2

Yavropoulou MP and Yovos JG: The role of the Wnt signaling pathway in osteoblast commitment and differentiation. Hormones (Athens). 6:279–294. 2007. View Article : Google Scholar

3

Long F: Building strong bones: molecular regulation of the osteoblast lineage. Nat Rev Mol Cell Biol. 13:27–38. 2011. View Article : Google Scholar : PubMed/NCBI

4

Collen D: Identification and some properties of a new fast-reacting plasmin inhibitor in human plasma. Eur J Biochem. 69:209–216. 1976. View Article : Google Scholar : PubMed/NCBI

5

Menoud PA, Sappino N, Boudal-Khoshbeen M, Vassalli JD and Sappino AP: The kidney is a major site of alpha(2)-antiplasmin production. J Clin Invest. 97:2478–2484. 1996. View Article : Google Scholar : PubMed/NCBI

6

Kanno Y, Hirade K, Ishisaki A, Nakajima K, Suga H, Into T, Matsushita K, Okada K, Matsuo O and Matsuno H: Lack of alpha2-antiplasmin improves cutaneous wound healing via over-released vascular endothelial growth factor-induced angiogenesis in wound lesions. J Thromb Haemost. 4:1602–1610. 2006. View Article : Google Scholar : PubMed/NCBI

7

Kanno Y, Kuroki A, Okada K, Tomogane K, Ueshima S, Matsuo O and Matsuno H: Alpha2-antiplasmin is involved in the production of transforming growth factor beta1 and fibrosis. J Thromb Haemost. 5:2266–2273. 2007. View Article : Google Scholar : PubMed/NCBI

8

Kanno Y, Kawashita E, Minamida M, Kaneiwa A, Okada K, Ueshima S, Matsuo O and Matsuno H: Alpha2-antiplasmin is associated with the progression of fibrosis. Am J Pathol. 176:238–245. 2010. View Article : Google Scholar :

9

Kanno Y, Kawashita E, Kokado A, Kuretake H, Ikeda K, Okada K, Seishima M, Ueshima S, Matsuo O and Matsuno H: α2AP mediated myofibroblast formation and the development of renal fibrosis in unilateral ureteral obstruction. Sci Rep. 4:59672014. View Article : Google Scholar

10

Kawashita E, Kanno Y, Asayama H, Okada K, Ueshima S, Matsuo O and Matsuno H: Involvement of α2-antiplasmin in dendritic growth of hippocampal neurons. J Neurochem. 126:58–69. 2013. View Article : Google Scholar : PubMed/NCBI

11

Kanno Y, Kawashita E, Kokado A, Okada K, Ueshima S, Matsuo O and Matsuno H: Alpha2-antiplasmin regulates the development of dermal fibrosis in mice by prostaglandin F(2α) synthesis through adipose triglyceride lipase/calcium-independent phospholipase A(2). Arthritis Rheum. 65:492–502. 2013. View Article : Google Scholar

12

Irving JA, Pike RN, Lesk AM and Whisstock JC: Phylogeny of the serpin superfamily: implications of patterns of amino acid conservation for structure and function. Genome Res. 10:1845–1864. 2000. View Article : Google Scholar : PubMed/NCBI

13

Law RH, Sofian T, Kan WT, Horvath AJ, Hitchen CR, Langendorf CG, Buckle AM, Whisstock JC and Coughlin PB: X-ray crystal structure of the fibrinolysis inhibitor alpha2-anti-plasmin. Blood. 111:2049–2052. 2008. View Article : Google Scholar

14

Tombran-Tink J, Aparicio S, Xu X, Tink AR, Lara N, Sawant S, Barnstable CJ and Zhang SS: PEDF and the serpins: phylogeny, sequence conservation, and functional domains. J Struct Biol. 151:130–150. 2005. View Article : Google Scholar : PubMed/NCBI

15

Shiomi A, Kawao N, Yano M, Okada K, Tamura Y, Okumoto K, Matsuo O, Akagi M and Kaji H: α2-Antiplasmin is involved in bone loss induced by ovariectomy in mice. Bone. 79:233–241. 2015. View Article : Google Scholar : PubMed/NCBI

16

Okada K, Lijnen HR, Dewerchin M, Belayew A, Matsuo O, Collen D and Bernaerts R: Characterization and targeting of the murine alpha2-antiplasmin gene. Thromb Haemost. 78:1104–1110. 1997.PubMed/NCBI

17

Naylor AJ, Azzam E, Smith S, Croft A, Poyser C, Duffield JS, Huso DL, Gay S, Ospelt C, Cooper MS, et al: The mesenchymal stem cell marker CD248 (endosialin) is a negative regulator of bone formation in mice. Arthritis Rheum. 64:3334–3343. 2012. View Article : Google Scholar : PubMed/NCBI

18

Kanno Y, Into T, Lowenstein CJ and Matsushita K: Nitric oxide regulates vascular calcification by interfering with TGF-signalling. Cardiovasc Res. 77:221–230. 2008. View Article : Google Scholar

19

Kanno Y, Ishisaki A, Kawashita E, Chosa N, Nakajima K, Nishihara T, Toyoshima K, Okada K, Ueshima S, Matsushita K, et al: Plasminogen/plasmin modulates bone metabolism by regulating the osteoblast and osteoclast function. J Biol Chem. 286:8952–8960. 2011. View Article : Google Scholar : PubMed/NCBI

20

Kanno Y, Shu E, Kanoh H and Seishima M: The antifibrotic effect of α2AP neutralization in systemic sclerosis dermal fibroblasts and mouse models of systemic sclerosis. J Invest Dermatol. 136:762–769. 2016. View Article : Google Scholar : PubMed/NCBI

21

Park K, Lee K, Zhang B, Zhou T, He X, Gao G, Murray AR and Ma JX: Identification of a novel inhibitor of the canonical Wnt pathway. Mol Cell Biol. 31:3038–3051. 2011. View Article : Google Scholar : PubMed/NCBI

22

Tamai K, Zeng X, Liu C, Zhang X, Harada Y, Chang Z and He X: A mechanism for Wnt coreceptor activation. Mol Cell. 13:149–156. 2004. View Article : Google Scholar : PubMed/NCBI

23

Wang J, Guan X, Guo F, Zhou J, Chang A, Sun B, Cai Y, Ma Z, Dai C, Li X, et al: miR-30e reciprocally regulates the differentiation of adipocytes and osteoblasts by directly targeting low-density lipoprotein receptor-related protein 6. Cell Death Dis. 4:e8452013. View Article : Google Scholar : PubMed/NCBI

24

Fei Y, Xiao L, Doetschman T, Coffin DJ and Hurley MM: Fibroblast growth factor 2 stimulation of osteoblast differentiation and bone formation is mediated by modulation of the Wnt signaling pathway. J Biol Chem. 286:40575–40583. 2011. View Article : Google Scholar : PubMed/NCBI

25

Honda T, Yamamoto H, Ishii A and Inui M: PDZRN3 negatively regulates BMP-2-induced osteoblast differentiation through inhibition of Wnt signaling. Mol Biol Cell. 21:3269–3277. 2010. View Article : Google Scholar : PubMed/NCBI

26

Hu K and Olsen BR: Osteoblast-derived VEGF regulates osteoblast differentiation and bone formation during bone repair. J Clin Invest. 126:509–526. 2016. View Article : Google Scholar : PubMed/NCBI

27

Wang Y, Sang A, Zhu M, Zhang G, Guan H, Ji M and Chen H: Tissue factor induces VEGF expression via activation of the Wnt/β-catenin signaling pathway in ARPE-19 cells. Mol Vis. 22:886–897. 2016.
