Arg972 insulin receptor substrate‑1 enhances tumor necrosis factor‑α‑induced apoptosis in osteoblasts

  • Authors:
    • Yunhui You
    • Shiqing Liu
    • Lijuan Peng
    • Mei Long
    • Hongxiang Deng
    • Hongjun Zhao
  • View Affiliations

  • Published online on: March 9, 2015     https://doi.org/10.3892/mmr.2015.3457
  • Pages: 255-260
Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Abstract

The presence of Arg972 insulin receptor substrate‑1 (IRS‑1) is associated with impaired insulin/IRS‑1 signaling to activate phosphatidylinositol‑3 kinase (PI3K). Tumor necrosis factor‑α (TNF‑α), an inflammatory cytokine with a central role in the pathogenesis of rheumatoid arthritis (RA), induces apoptosis in osteoblasts, which are the principal cell type responsible for bone loss in RA. In our previous study, an association between Arg972 IRS‑1 and a high risk and severity of RA was identified. In the present study, the effects of Arg972 IRS‑1 and IRS‑1 on TNF‑α‑induced apoptosis in human osteoblasts were examined. Normal and RA osteoblasts were stably transfected with Arg972 IRS‑1 and IRS‑1. In addition, cells were stably transduced with IRS‑1‑shRNA to knock down IRS‑1. Following stimulation with 10 nM insulin for 30 min, the stable overexpression of Arg972 IRS‑1 and knock down of IRS‑1 significantly decreased IRS‑1‑associated PI3K activity and Akt activation/phosphorylation at serine 473 (ser473) and enhanced TNF‑α‑induced apoptosis in normal and in RA osteoblasts. By contrast, the stable overexpression of IRS‑1 significantly increased the levels of IRS‑1‑associated PI3K activity and Akt phosphorylation (ser473) and inhibited TNF‑α‑induced apoptosis, which was eliminated by pretreatment with 50 µn BJM120, a selective PI3K inhibitor, for 30 min. In conclusion, the present study provided the first evidence, to the best of our knowledge, that insulin stimulation of Arg972 IRS‑1 and IRS‑1 enhanced and inhibited TNF‑α‑induced apoptosis, respectively in normal and RA osteoblasts by a PI3K‑dependent mechanism. These findings suggest that insulin/IRS‑1 signaling is important in the pathogenesis of RA.

Introduction

The effects of insulin are mediated by the activation of a signaling pathway involving insulin receptor subAstrate-1 (IRS-1) and phosphatidylinositol-3 kinase (PI3K) (1,2). Previous studies have reported a common polymorphism (rs1801278) in the IRS-1 gene, in which a Gly/Arg substitution occurs at codon 972 (Arg972) (3,4). The presence of Arg972 IRS-1 is associated with impaired insulin/IRS-1 signaling to activate PI3K (3,4). In our previous study, an association between Arg972 IRS-1 and increased risk and severity of rheumatoid arthritis (RA), a chronic inflammatory disease with progressive joint destruction, was identified (5,6). However, the role of Arg972 IRS-1 in the pathogenesis of RA remains to be elucidated.

RA is characterized by an imbalance in bone remodeling and bone loss (7). It is well established that osteoclasts are the principal type of cell responsible for bone loss in RA (7). Tumor necrosis factor-α (TNF-α), an inflammatory cytokine has been is elevated in the synovial fluid and the synovium of patients with RA (8) and has been demonstrated to have a central role in the pathogenesis of RA (9). Substantial in vitro and in vivo evidence has suggested that TNF-α induces apoptosis in osteoblasts (1013). Insulin/IRS-1 signaling reportedly activates the PI3K/Akt pathway, which is important in cell survival against apoptotic stress (14). Thus, in the present study, the effects of Arg972 IRS-1 and IRS-1 on TNF-α-induced apoptosis in normal and RA osteoblasts were examined.

Materials and methods

Plasmids and reagents

A fragment of human genomic DNA containing the entire coding sequence of IRS-1 was cloned and ligated into a pcDNA 3.1 expression vector and the Arg972 IRS-1 expression vector (Invitrogen Life Technologies, Carlsbad, CA, USA) was constructed, as previously described (4,15). The cDNA construct containing the Arg972 substitution was generated by site-directed mutagenesis using polymerase chain reaction (PCR) with the wild-type IRS-1 as a template. The PCR fragment containing the codon 972 variant of IRS-1 was digested with BamHI and NheI restriction endonucleases and inserted into pcDNA3-WT-IRS-1, which was previously digested with the same enzymes. The presence of the substitution and the entire sequence of the fragment inserted was confirmed by sequencing. SuperFect transfection reagent was purchased from Qiagen (Valencia, CA, USA). Anti-β-actin (cat. no. 8H10D10, 3700) antibody was purchased from Cell Signaling Technology, Inc. (Danvers, MA, USA). IRS-1 (cat. no. sc-29376-V) short hairpin (sh)RNA lentiviral particles, control shRNA lentiviral particles-A (cat. no. sc-108080), selective PI3K inhibitor BKM120 (cat. no. sc-364437A) and rabbit anti-human polyclonal IRS-1 (C-20; cat. no. sc-559; 1:1,000 dilution), mouse anti-human monoclonal Akt (5C10) (cat. no. sc-81434; 1:1,000 dilution) and rabbit anti-human polyclonal phosphorlyated (phospo)-Akt [Serine 473 (ser473) cat no. sc-101629; 1:1,000 dilution] antibodies were purchased from Santa Cruz Biotechnology, Inc. (Santa Cruz, CA, USA). The DeadEnd™ Fluorometric terminal deoxynucleotidyl transferase mediated nick-end labeling (TUNEL) system was purchased from Promega (Madison, WI, USA). Recombinant human TNF-α, G418, puromycin and insulin were purchased from Sigma-Aldrich (St. Louis, MO, USA). Dulbecco’s modified Eagle’s medium (DMEM) was purchased from Life Technologies (Beijing, China).

Cell culture

Adult human osteoblasts, isolated from normal individuals (cat. no. 406-05a) and patients with RA (cat. no. 406RA-05a) were purchased from Cell Applications (San Diego, CA, USA). The cells were grown in DMEM supplemented with 10% fetal bovine serum and 1% penicillin/streptomycin (Sigma-Aldrich) at 37°C in a humidified, 5% CO2 atmosphere. The normal and the RA osteoblasts were genotyped by sequencing and found to be wild type IRS-1 homozygotes.

Transfection and lentiviral transduction

The IRS-1 and Arg972 IRS-1 expression constructs were transfected into the osteoblast cells using Superfect™ transfection reagent (Qiagen) according to the manufacturer’s instructions. Pools of stable transductants were generated via selection using G418 (600 μg/ml) according to the manufacturer’s instructions. Lentiviral transduction was performed and pools of stable transductants were generated via selection with puromycin (4 μg/ml).

Western blot analysis

The osteoblasts were lysed in 250 μl 2X SDS loading buffer containing 62.5 mm TrisHCl, (pH 6.8), 2% SDS, 25% glycerol, 0.01% bromphenol blue, 5% 2-mercaptoethanol (Sigma-Aldrich), and incubated at 95°C for 10 min. Equal quantities of the proteins (100 μg) of each sample were separated by 8–15% SDS-polyacrylamide gel electophoresis and blotted onto a polyvinylidene difluoride microporous membrane (Millipore, Billerica, MA, USA). The membranes were incubated for 1 h with a 1:1,000 dilution of primary antibody, washed three times with phosphate-buffered saline for 5 min and incubated with secondary antibodies with horseradish peroxidase conjugate (1:5,000, 1 h. The peroxidase was visualized using a GE Healthcare electrochemiluminescence kit (Shanghai, China).

IRS-1-associated PI3K activity assay

The IRS-1-associated PI3K activities were determined, as previously described (16). Briefly, 700 μg total protein was immunoprecipitated with anti-IRS-1 antibody (Santa Cruz Biotechnology, Inc.). PI3K activity was measured in a reaction mixture containing phosphatidylinositol (Sigma-Aldrich) and [γ-32P]ATP (Sigma-Aldrich). After 5 min, the reaction was stopped by the addition of HCl and chloroform:methanol and analyzed by thin-layer chromatography. PI3K activity was detected by the appearance of a specific radioactive spot corresponding to 32P-labeled phosphatidylinositol 3-phosphate [(32P)PI-3-P] (17). The PI3K activity was normalized against 106 cells. The autoradiographic signals were quantified using the National Institutes of Health Image J software, version 1.63 (National Institutes of Health, Bethesda, MO, USA).

Measurement of apoptosis using a TUNEL assay

The TUNEL assay was performed using the DeadEnd™ Fluorometric TUNEL system according to the manufacturer’s instructions (Promega). The cells were treated with 20 ng/ml TNF-α for 6 and 12 h in the presence of 10 nM insulin. Subsequently, 50 μl of TdT reaction mix was added to the cells on an area no larger than 5 cm2 and slides were covered with plastic coverslips to ensure even distribution of the mix. The slides were incubated for 60 min at 37°C in a humidified chamber. Apoptotic cells exhibit a marked nuclear green fluorescence, which can be detected using a standard fluorescein filter. Cells stained with 4′,6-diamidino-2-phenylindole (Sigma-Aldrich) exhibit a marked blue nuclear fluorescence. The slides were visualized using fluorescence microscopy (IX83; Olympus, Beijing, China) and the relative quantity of apoptotic cells were determined by counting the number of TUNEL-positive cells in five randomly selected fields (magnification, ×100) for each sample.

Statistical analysis

Statistical analyses were performed using SPSS 15.0 software (SPSS, Inc., Chicago, IL, USA). All continuous variable values are expressed as the mean ± standard deviation. Comparisons of the means among multiple groups were performed with one-way analysis of variance, followed by post hoc pairwise comparisons using Tukey’s test. P<0.05 was considered to indicate a statistically significant difference for the two-tailed analysis.

Results

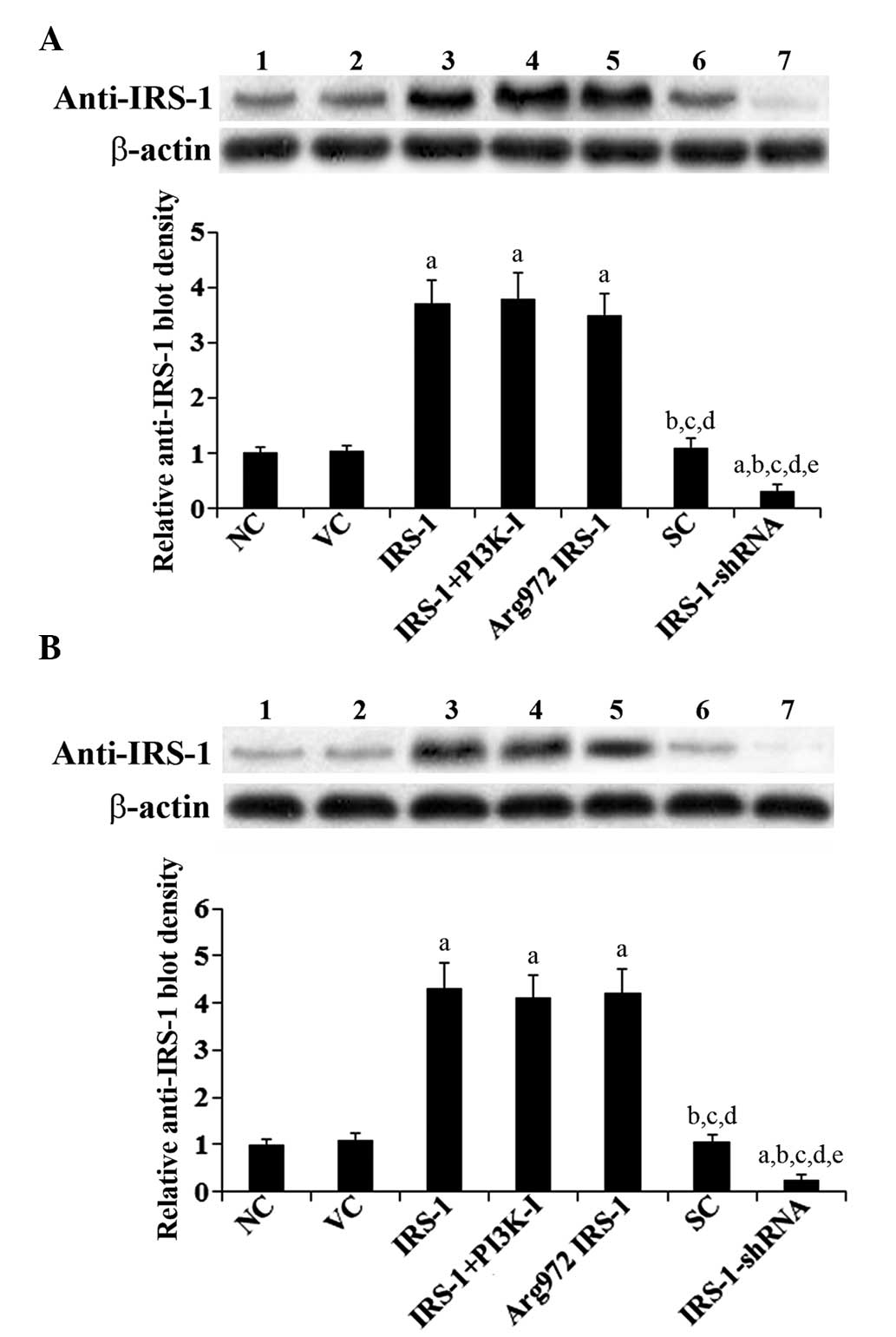

The normal and RA osteoblasts were stably transfected with Arg972 IRS-1 and IRS-1. By contrast, the cells were stably transduced with IRS-1-shRNA to knock down IRS-1. As shown in Fig. 1, compared with the controls, use of the anti-IRS-1 antibody revealed that IRS-1 and Arg972 IRS-1 were overexpressed >3.5-fold, while the level of endogenous IRS-1 was knocked down by ~70% in the normal and the RA osteoblasts. Insulin stimulation (10 nM) had no significant effects on the overexpression of Arg972 IRS-1 and IRS-1 or on the knock down of IRS-1 in the cells (data not shown).

Arg972 IRS-1 is reportedly associated with impaired insulin/IRS-1 signaling to activate the PI3K/Akt pathway (3,4), which is important in cell survival against apoptotic stress (14). The present study also examined the IRS-1-associated PI3K activity and Akt activation/phosphorylation in osteoblasts. In the absence of insulin, the overexpression of Arg972 IRS-1 and IRS-1 and the knock down of IRS-1 exhibited no significant effects on IRS-1-associated PI3K activity, Akt activation/phosphorylation or TNF-α-induced apoptosis in the osteoblasts. (figs. 2Figure 34). Different techniques used to stimulate insulin were assessed, which revealed that treatment with 10 nM insulin for 30 min had the most marked stimulatory effects on IRS-1-associated PI3K activity in the osteoblasts (data not shown). Thus, in all the subsequent experiments, osteoblasts were pre-stimulated with 10 nM insulin for 30 min. As shown in Fig. 2, overexpression of IRS-1 increased IRS-1-associated PI3K activity by ~3 fold in the normal and RA osteoblasts, compared with the controls, which was eliminated by pretreatment with 50 μM BKM120, a selective PI3K inhibitor, for 30 min. By contrast, the overexpression of Arg972 IRS-1 and the knock down of IRS-1, decreased IRS-1-associated PI3K activity by 40 and 60%, respectively in the normal and RA osteoblasts. Similar trends were observed in the phosphorylation of Akt at ser473, which is required for full activation of Akt by PI3K (Fig. 3) (14).

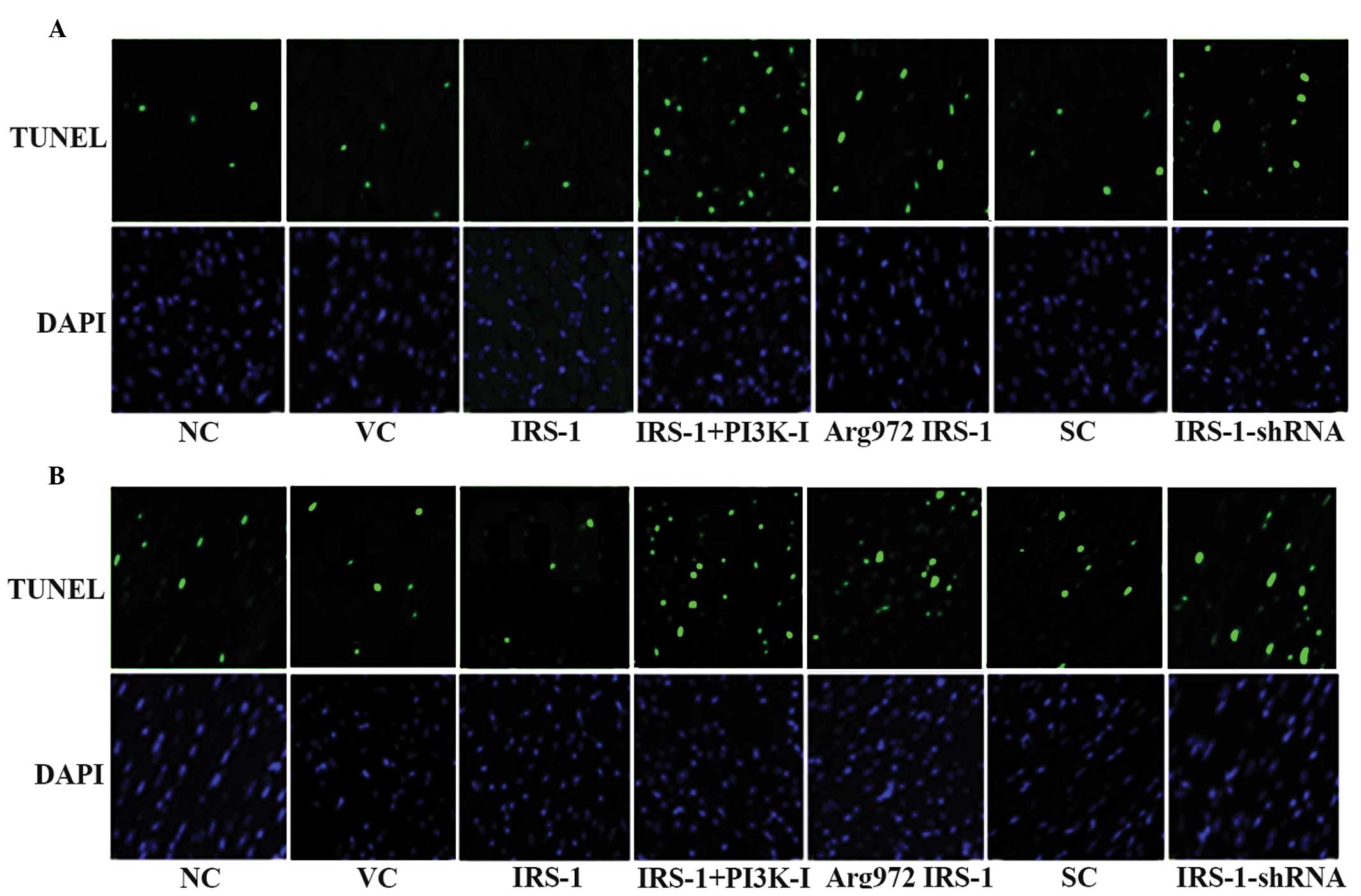

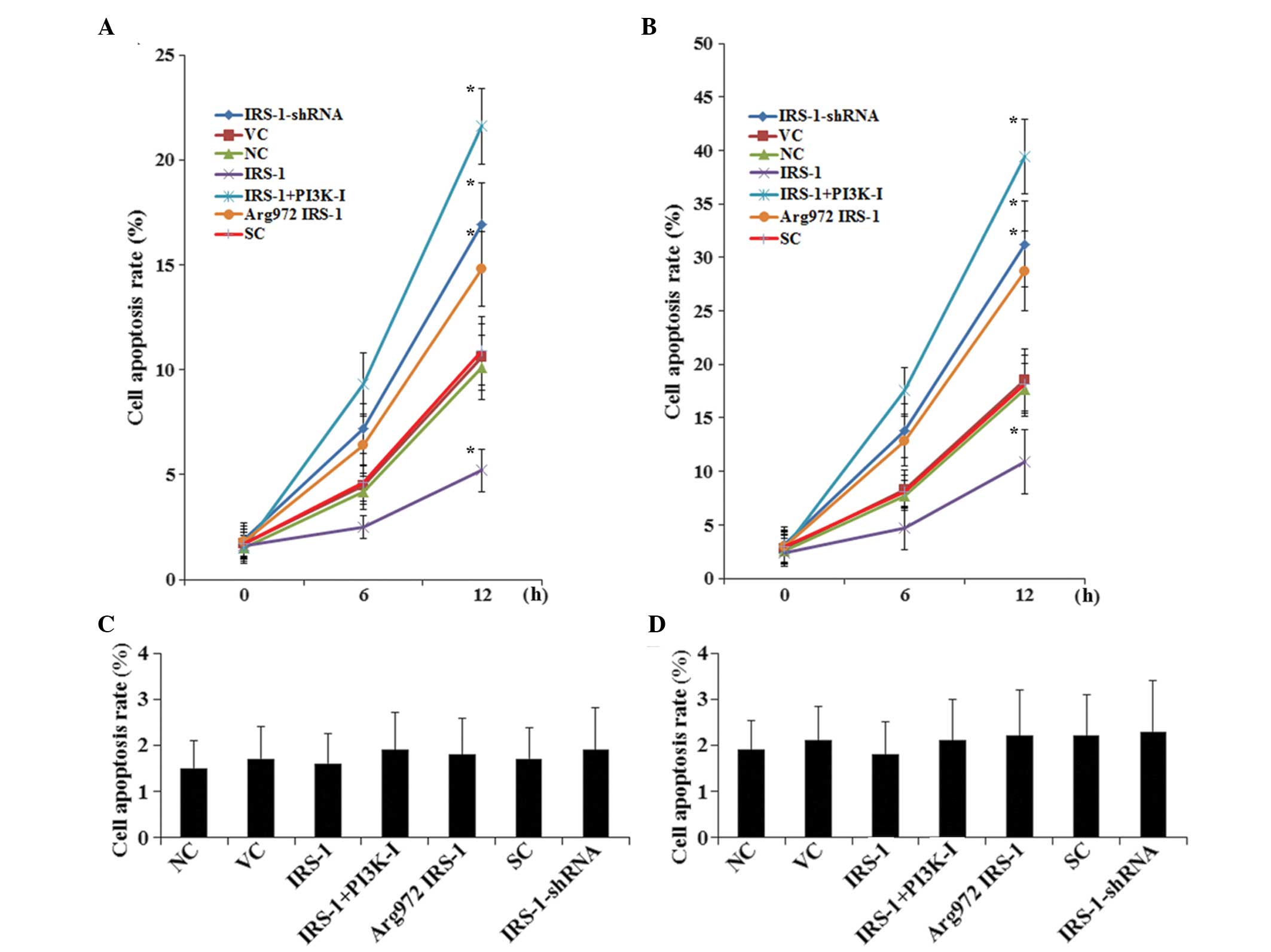

Subsequently, the effects of IRS-1 and Arg972 IRS-1 on TNF-α-induced apoptosis in osteoblasts were examined. As shown in Fig. 4A and B, osteoblasts treated with 20 ng/ml TNF-α for 12 h in the presence of insulin (10 nM), exhibited significant differences in apoptosis. Compared with the controls at 12 h, overexpression of IRS-1 decreased cell apoptosis by ~5% in the normal osteoblasts and by ~7% in the RA osteoblasts and this was eliminated completely by pretreatment with 50 μM BKM120, a selective PI3K inhibitor, for 30 min. By contrast, overexpression of Arg972 IRS-1 increased cell apoptosis by ~4.5% in the normal osteoblasts and by ~10.5% in the RA osteoblasts, and knock down of IRS-1 increased cell apoptosis by ~6.5% in the normal osteoblasts and ~13% by in the RA osteoblasts (Fig. 4A and B). In the absence of TNF-α treatment, no significant differences were obsserved in the apoptotic rate at 12 h in the normal or the RA osteoblasts (Fig. 4C and D). Representative fluorescent TUNEL assay images at 12 h are shown in Fig. 5. DAPI staining of the cell nuclei indicated a similar cell number/density in the experiment groups (Fig. 5).

Discussion

Arg972 IRS-1 has been previously reported an independent risk factor for RA and a case-control study demonstrated it is significantly associated with the severity of RA (5). In the present study, a mechanistic explanation for this was obtained by revealing that Arg972 IRS-1 enhanced TNF-α-induced apoptosis in normal and RA osteoblasts.

The presence of Arg972 IRS-1 is associated with impaired insulin/IRS-1 signaling to activate the PI3K/Akt pathway (3,4). The results of the present study were in agreement with this, which demonstrated that, in the presence of insulin, stable overexpression of Arg972 IRS-1 and knock down of IRS-1 significantly decreased IRS-1-associated PI3K activity and Akt activation/phosphorylation (ser473) in osteoblasts. By contrast, the stable overexpression of IRS-1 significantly increased IRS-1-associated PI3K activity and Akt activation/phosphorylation (ser473), which was completely eliminated by a selective PI3K inhibitor. For insulin stimulation, the cells were pretreated with 10 nM insulin, which had been used in a previous study to stimulate osteoblast-linage cells (18).

The present study demonstrated that treatment with 20 ng/ml TNF-α for 12 h induced significant apoptosis in the normal and RA osteoblasts, concordant with a previous study, which observed peaks in the activities of caspase-3, caspase-8 and caspase-9 in human bone marrow stromal cells after 12 h of treatment with 20 ng/ml TNF-α (19). In agreement with their inhibitory effects on the PI3K/Akt pathway, which is important in promoting cell survival against apoptotic stress (14), overexpression of Arg972 IRS-1 and knock down of IRS-1 in the present study significantly enhanced TNF-α-induced apoptosis in the normal and RA osteoblasts. This was corroborated by the finding that the overexpression of IRS-1 significantly increased IRS-1-associated PI3K activity/Akt phosphorylation and reduced TNF-α-induced apoptosis in the osteoblasts. The overexpression of Arg972 IRS-1 and knock down of IRS-1 in the RA osteoblasts exhibited a more pronounced inhibitory effect on TNF-α-induced apoptosis compared with the normal osteoblasts. This suggested that, Arg972 IRS-1, or the impairment of insulin/IRS-1 signaling, was important in the pathogenesis of RA and that other signaling pathways, besides insulin/IRS-1 signaling, are involved in the pathogenesis of RA.

The normal and the RA osteoblasts used in the present study were genotyped and found to be wildtype IRS-1 homozygotes. Thus, the overexpression of Arg972 IRS-1 in the osteoblasts resulted in the expression of a mixture of Arg972 IRS-1 and wild type IRS-1. This resembles an Arg972 IRS-1 heterozygote, which is the major source of Arg972 IRS-1 carriers and the frequency of Arg972 IRS-1 heterozygote, wild-type IRS-1 homozygote and Arg972 IRS-1 homozygote are 12.5, 87 and 0.6%, respectively, in Exome Sequencing Project cohort populations (http://www.ncbi.nlm.nih.gov/SNP/snp_ref.cgi?rs=rs1801278). By demonstrating that the overexpression of Arg972 IRS-1 and IRS-1 enhanced and inhibited TNF-α-induced apoptosis in normal and RA osteoblasts, respectively, the results of the present study suggested that Arg972 IRS-1 carriers may develop RA more easily and that insulin/IRS-1 signaling is important in the pathogenesis of RA. It also suggested that insulin/IRS-1 signaling may be a new target for treating RA.

TNF-α has significant effects on other cell types in the synovial membrane, including synoviocytes, macrophages, chondrocytes and osteoblasts (20). Thus, it may be useful to examine how Arg972 IRS-1 and IRS-1 affect the regulatory effects of TNF-α on cell types other than osteoblasts in future studies. In addition, inflammatory cytokines, including interleukin-1β and interleukin-6 have also been found to have important roles in the pathogenesis of RA (9). Therefore, identifying whether insulin/IRS-1 signaling can regulate the effects of interleukins on cells involved in the pathogenesis of RA may be of interest.

In conclusion, the present study provided the first evidence, to the best of our knowledge, that under insulin stimulation, Arg972 IRS-1 and IRS-1 enhanced and inhibited TNF-α-induced apoptosis in normal and RA osteoblasts, respectively, by a PI3K-dependent mechanism. These findings suggest an important role for insulin/IRS-1 signaling in the pathogenesis of RA.

References

1

Zeng G, Nystrom FH, Ravichandran LV, Cong LN, Kirby M, Mostowski H and Quon MJ: Roles for insulin receptor, PI3-kinase, and Akt in insulin signaling pathways related to production of nitric oxide in human vascular endothelial cells. Circulation. 101:1539–1545. 2000. View Article : Google Scholar : PubMed/NCBI

2

Kuboki K, Jiang ZY, Takahara N, et al: Regulation of endothelial constitutive nitric oxide synthase gene expression in endo-thelial cells and in vivo: a specific vascular action of insulin. Circulation. 101:676–681. 2000. View Article : Google Scholar : PubMed/NCBI

3

Fallucca F, Dalfrà MG, Sciullo E, et al: Polymorphisms of insulin receptor substrate 1 and beta3-adrenergic receptor genes in gestational diabetes and normal pregnancy. Metabolism. 55:1451–1456. 2006. View Article : Google Scholar : PubMed/NCBI

4

Huang C, Lin Z, Zhou Y, et al: Arg(972) insulin receptor substrate-1 is associated with elevated plasma endothelin-1 level in hypertensives. J Hypertens. 30:1751–1757. 2012. View Article : Google Scholar : PubMed/NCBI

5

Zhao H, Liu S, Long M, Peng L, Deng H and You Y: Arg972 Insulin receptor substrate-1 polymorphism and risk and severity of rheumatoid arthritis. J Int Rheum Dis. In press.

6

Nanke Y, Kotake S, Akama H and Kamatani N: Alkaline phosphatase in rheumatoid arthritis patients: possible contribution of bone-type ALP to the raised activities of ALP in rheumatoid arthritis patients. Clin Rheumatol. 21:198–202. 2002. View Article : Google Scholar : PubMed/NCBI

7

Neve A, Corrado A and Cantatore FP: Osteoblast physiology in normal and pathological conditions. Cell Tissue Res. 343:289–302. 2011. View Article : Google Scholar

8

Fütterer A, Mink K, Luz A, Kosco-Vilbois MH and Pfeffer K: The lymphotoxin beta receptor controls organogenesis and affinity maturation in peripheral lymphoid tissues. Immunity. 9:59–70. 1998. View Article : Google Scholar : PubMed/NCBI

9

McInnes IB and Liew FY: Cytokine networks: Towards new therapies for rheumatoid arthritis. Nat Clin Prac Rheumatol. 1:31–39. 2005. View Article : Google Scholar

10

Kitajima I, Soejima Y, Takasaki I, Beppu H, Tokioka T and Maruyama I: Ceramide-induced nuclear translocation of NFkappa B is a potential mediator of the apoptotic response to TNF-alpha in murine clonal osteoblasts. Bone. 19:263–270. 1996. View Article : Google Scholar : PubMed/NCBI

11

Hill PA, Tumber A and Meikle MC: Multiple extracellular signals promote osteoblast survival and apoptosis. Endocrinology. 138:3849–3858. 1997.PubMed/NCBI

12

Jilka RL, Weinstein RS, Bellido T, Parfitt AM and Manolagas SC: Osteoblast programmed cell death (apoptosis): Modulation by growth factors and cytokines. J Bone Miner Res. 13:793–802. 1998. View Article : Google Scholar : PubMed/NCBI

13

Hock JM, Krishnan V, Onyia JE, Bidwell JP, Milas J and Stanislaus D: Osteoblast apoptosis and bone turnover. J Bone Miner Res. 16:975–984. 2001. View Article : Google Scholar : PubMed/NCBI

14

Chen L, Monti S, Juszczynski P, et al: SYK inhibition modulates distinct PI3K/AKT- dependent survival pathways and cholesterol biosynthesis in diffuse large B cell lymphomas. Cancer Cell. 23:826–838. 2013. View Article : Google Scholar : PubMed/NCBI

15

Porzio O, Federici M, Hribal ML, et al: The Gly972-->Arg amino acid polymorphism in IRS-1 impairs insulin secretion in pancreatic beta cells. J Clin Invest. 104:357–364. 1999. View Article : Google Scholar : PubMed/NCBI

16

Nagoshi T, Matsui T, Aoyama T, et al: PI3K rescues the detrimental effects of chronic Akt activation in the heart during ischemia/reperfusion injury. J Clin Invest. 115:2128–2138. 2005. View Article : Google Scholar : PubMed/NCBI

17

Matsui T, Li L, del Monte F, Fukui Y, Franke TF, Hajjar RJ and Rosenzweig A: Adenoviral gene transfer of activated PI 3-kinase and Akt inhibits apoptosis of hypoxic cardiomyocytes in vitro. Circulation. 100:2373–2379. 1999. View Article : Google Scholar : PubMed/NCBI

18

Yang J, Zhang X, Wang W and Liu J: Insulin stimulates osteoblast proliferation and differentiation through ERK and PI3K in MG-63 cells. Cell Biochem Funct. 28:334–341. 2010. View Article : Google Scholar

19

Byun CH, Koh JM, Kim DK, Park SI, Lee KU and Kim GS: α-lipoic acid inhibits TNF-α-induced apoptosis in human bone marrow stromal cells. J Bone Miner Res. 20:1125–1135. 2005. View Article : Google Scholar : PubMed/NCBI

20

Ma X and Xu S: TNF inhibitor therapy for rheumatoid arthritis (Review). Biomed Rep. 1:177–184. 2013.
