Construction of an anti‑programmed death‑ligand 1 chimeric antigen receptor and determination of its antitumor function with transduced cells

  • Authors:
    • Jiasen Xie
    • Zishan Zhou
    • Shunchang Jiao
    • Xiaokun Li
  • View Affiliations

  • Published online on: May 2, 2018     https://doi.org/10.3892/ol.2018.8617
  • Pages: 157-166
  • Copyright: © Xie et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Abstract

A chimeric antigen receptor (CAR) is a type of fusion protein that comprises an antigen‑recognition domain and signaling domains. In the present study, a programmed death‑ligand 1 (PD‑L1)‑specific CAR, comprised of a single‑chain variable fragment (scFv) derived from a monoclonal antibody, co‑stimulatory domains of cluster of differentiation (CD) 28 and 4‑1BB and a T‑cell‑activation domain derived from CD3ζ, was designed. The construction was cloned and packaged into the lentiviral vector pLVX. Flow cytometry confirmed that peripheral blood mononuclear cells were efficiently transduced and that the CAR was successfully expressed on T cells. The cytotoxicity of transduced T cells was detected using PD‑L1‑positive NCI‑H358 bronchioalveolar carcinoma cells and A549 lung adenocarcinoma cells (with a low expression of PD‑L1, only in the A549 cells). The results demonstrated mild cytotoxicity at an effector‑to‑target ratio of 10:1. An ELISA revealed a significant increase in the level of interferon‑γ released from T cells transduced with scFv‑28Bz when the cells were co‑cultured with PD‑L1‑positive NCI‑H358 cells, while interkeukin‑2 and tumor necrosis factor‑α levels remained unchanged. These data indicated a potential method for the treatment of solid tumors.

Introduction

Lung cancer was the most common cancer and the leading cause of cancer-associated mortality in China in 2015 (1), followed by gastric cancer, esophageal cancer and liver cancer. Non-small cell lung cancer (NSCLC) accounts for 80–90% of lung cancer cases (2,3). The primary treatment for stage I–II NSCLC is surgery; however, the majority of NSCLC diagnoses occur at stage IV (4). In addition to small molecule inhibitors, tyrosine kinase inhibitors and monoclonal antibodies, immunotherapy has been used as a primary treatment method (5).

Chimeric antigen receptors (CARs) are fusion proteins that comprise ≥3 main domains: The antigen-binding domain, usually a single-chain variable fragment (scFv) of antibody responsible for recognition and binding; the intracellular domain; and the transmembrane sequence, which connects the extracellular region to the intracellular domain (68). The CAR molecule has been developed through three stages according to the intracellular signaling domain: The first generation of CARs consisted of only one cluster of differentiation (CD)3ζ chain; the second generation was comprised of one co-stimulatory molecule and a CD3ζ chain; and the third generation comprised ≥2 co-stimulatory molecules with CD3ζ as the last signal transduction region. Once a CAR molecule is expressed on a CAR-T cell and the tumor antigen is recognized by the scFv, the CAR-T cell is activated and lyses the target cells (9). In 2003, the first preclinical study to demonstrate the effectiveness of anti-CD19 was published (10), and a series of studies based on different target molecules have subsequently been conducted (1117). Due to antibody specificity, CAR-T cells may effectively bind to an antigen independently of major histocompatibility complex restriction (18), and an increasing number of studies have demonstrated positive outcomes for patients following treatment with CAR-T cells (1923).

Programmed death 1 (PD-1) is a receptor that is involved in apoptosis (24). One study on PD-1-deficient mice has indicated that PD-1 functions to negatively regulate immune responses (25). At present, the consensus is that PD-1 acts as an immune-checkpoint receptor and is involved in regulating T cell activity to inhibit immune responses and prevent overstimulation in peripheral tissues (2629). Programmed death-ligand 1 (PD-L1), one of the two ligands of PD-1, was identified and subsequently termed PD-L1 (Pdcd1Ig1), the study of which provided convincing evidence that T cells exhibited lower proliferative ability when cultured with an anti-CD3 antibody (3032).

Recently, several studies have revealed a high expression level of PD-L1 in patients with NSCLC (33), and have demonstrated its association with the mechanism underlying tumor immune escape (34,35). Effective blocking of PD-1 or PD-L1 has a positive effect on the treatment of cancer together with combination treatment methods (3640). CAR-T cells secreting anti-PD-L1 antibodies have also demonstrated promising efficacy (41). Furthermore, the expression of a dominant negative receptor or switch of co-stimulatory receptor may achieve the same purpose to prevent inactivation of T cells (4244). Based on the results of previous studies, a CAR was designed comprising an anti-PD-L1 scFv and an intracellular co-stimulation signal from CD28 and 4-1BB (PD-L1 scFv-CD28-CD137-CD3z), which was inserted into a high-quality lentivirus for transduction into peripheral blood mononuclear cells (PBMCs) (4547). The function of CAR-T cells was confirmed by a flow cytometric apoptosis assay following co-culture with NCI-H358 or A549 cells at a ratio of 10:1. The levels of interferon (IFN)-γ, interleukin (IL)-2 and tumor necrosis factor (TNF)-α in the supernatant of the co-culture were detected by ELISA. The results indicated mild antitumor activity and a protective effect of T cells against PD-L1 by blocking PD-L1.

Materials and methods

Reagents and sequences

RPMI-1640 culture medium and the Dynabeads Human T-Activator CD3/CD28 kit were purchased from Gibco; Thermo Fisher Scientific, Inc. (Waltham, MA, USA). The Annexin V Apoptosis kit with 7-aminoactinomycin (7-AAD) and the carboxyfluorescein succinimidyl ester (CFSE) Cell Division Tracker kit were obtained from BioLegend, Inc. (San Diego, CA, USA). Fluorescein isothiocyanate (FITC)-Protein L was purchased from ACROBiosystems (Newark, DE, USA). All restriction endonucleases were purchased from Thermo Fisher Scientific, Inc., and the ligation kit was obtained from New England BioLabs, Inc. (Ipswich, MA, USA). The homologous recombination kit and chemically competent cell Stbl3 were provided by Beijing TransGen Biotech Co., Ltd. (Beijing, China). The lentiviral vector pLVX was provided by Clontech Laboratories, Inc. (Mountainview, CA, USA). DNA sequences were synthesized by Thermo Fisher Scientific, Inc. Lentivirus concentrator reagent was obtained from Beijing Syngentech Co., Ltd. (Beijing, China). All fluorescent antibodies used for flow cytometric analysis were purchased from BioLegend, Inc. (PD-L1/PD-1) or BD Biosciences (CD4 and CD8; Franklin Lakes, NJ, USA).

Cell culture

NSCLC NCI-H358 and A549 cells were provided by ATCC (Manassas, VA, USA) and cultured in RPMI-1640 medium (cat no. 11875119) with 10% fetal bovine serum (FBS; cat no. 10099141; both Thermo Fisher Scientific, Inc.) in a 5% CO2 atmosphere at 37°C. PBMCs (obtained from Mr Jiasen Xie and Miss Zishan Zhou, Beijing Bio DC Labs, Beijing, China) were activated by Dynabeads and cultured in X-VIVO 15 chemically defined, serum-free hematopoietic cell medium (cat no. 04-418Q; Lonza Group, Ltd., Basel, Switzerland) with 5% FBS in a 5% CO2 atmosphere at 37°C.

Construction of vector and production of lentivirus

The lentiviral vector pLVX (cat no. 631982; Clontech Laboratories, Inc.) was digested with EcoRI and NotI, prior to being recovered with a Gel DNA Recovery kit (cat no. DP209; Tiangen Biotech Co., Ltd., Beijing, China). A scFv fragment, designated FR1 (Invitrogen; Thermo Fisher Scientific, Inc.), which comprised scFv and a transmembrane domain, was amplified from a pUC-vector using the following primers: FR1 forward, 5′-GTGTCGTGAGGATCTATTTCCGGTGAATTCGCCGCCACCATGGCCTTACCAGTGACCGCC-3′ and reverse, 5′-TCTGGACCGCTTAGATCGGTTCCTATGATTTCGGTTCCTATGATTACAATAAAGAGTAAT-3′. A signal fragment containing a transmembrane domain, CD137 co-stimulatory domain and a CD28 co-stimulatory domain was amplified from a pUC-vector (Invitrogen; Thermo Fisher Scientific, Inc.) and termed FR2, using the following primers: FR2 forward, 5′-ATTACTCTTTATTGTAATCATAGGAACCGAAATCATAGGAACCGATCTAAGCGGTCCAGA-3′ and reverse, 5′-GTAATCCAGAGGTTGATTGATCCGCGGCCGCCTACCGTGGGGGGAGGGCCTGCATATGAA-3′. Platinum Pfx. The DNA template plasmid pUC-FR1 and pUC-FR2 were synthesized by Invitrogen; Thermo Fisher Scientific, Inc. DNA polymerase (cat no. 11708039; Thermo Fisher Scientific, Inc.) was used according to the manufacturer's protocol, and the thermocycling conditions were as follows: 94°C for 2 min, 94°C for 15 sec, 58°C for 30 sec, 68°C for 2 min, 30 cycles and 68°C for 5 min. PCR products were subjected to 1% agarose gel electrophoresis and stained with 0.5 µg/ml ethidium bromide at room temperature for 30 min and observed at 254 nm UV. The specific bands were recovered with a gel extraction kit. A seamless homologous recombination with FR1, FR2 and the digested vector pLVX was performed to obtain the scFv-28Bz expression recombination vector. The recombination product was transformed into Stbl3 competent cells, which were selected on ampicillin plates. The positive clones were used for sequencing.

The validated vector pLVX-EF1α-scFv-28Bz was used to produce lentiviral particles with the 2nd generation package system psPAX2 and pMD2.G. The LipoFiter Liposomal Transfection reagent was purchased from Hanbio Biotechnology Co., Ltd. (Shanghai, China) and all procedures were performed according to the manufacturer's protocols. A total of 30 µg plasmid were transfected (containing 15 µg pLVX-EF1α-scFv-28Bz, 7.5 µg psPAX2 and 7.5 µg pMD2.G). The lentiviruses in the cell culture supernatant were collected at 48 and 72 h post-transfection and were concentrated by PEG8000 reagent from the BioGeek Lentivirus Concentrate kit (cat no. BG20101L; Beijing Syngentech Co., Ltd.). In order to ensure the reliability of the system, parallel experiments were also conducted. The same empty lentivector of LV-EF1α-scFv-28Bz was constructed to express green fluorescent protein (GFP) in the same multiple cloning site and following the same EF1α promoter to produce LV-EF1α-GFP. The lentivector was packaged in lentiviral particles with the same packaging system and the particles were transfected into PBMCs as the LV-EF1α-scFv-28Bz particles would be transfected into PBMCs. The expression of GFP was confirmed to ensure the reliability of vector system, packaging system and transfection efficiency.

Cell expansion and transduction

PBMCs were activated by Dynabeads at a bead-to-cell ratio of 1:1 in X-VIVO 15 chemically defined medium with 30 IU/ml rIL-2 (cat no. Z03074-10; GenScript, Piscataway, NJ, USA), and incubated in a humidified 5% CO2 incubator at 37°C. A total of 3–5 days later, the activated cells were resuspended and ~2 million PBMCs were transduced with pre-conditioned lentiviral particles with or without scFv-28Bz in serum-free X-VIVO™ 15 chemically defined medium with a final concentration of 10 µg/ml Polybrene® (Sigma-Aldrich; Merck KGaA, Darmstadt, Germany), centrifuged at 270 × g at 32°C for 1 h with a parallel control (virus control - empty lentivirus particles without scFv-28Bz + PMBC; cell control - X-VIVO 15 medium + PBMC; controls centrifuged at 270 × g for 1 h at 32°C) and cultured in a humidified 5% CO2 incubator at 37°C for 24 h. The medium was changed to full-nutrient medium (X-VIVO 15 with 5% FBS) after 24 h and fresh medium was added according to growth status every 2 days, with a density of 1–2 million cells/ml.

Detection of CAR molecule in transduced cells and PD-L1 in tumor cell lines

As reported previously, the protein L has the ability to bind to the κ light chain of antibodies (48). Flow cytometry was used to confirm the expression of scFv-28Bz using the FITC-Protein-L reagent (cat no. RPL-PF141; ACROBiosystems). PBMCs (~2 million) were harvested using centrifugation at 300 × g for 10 min at 25°C, washed twice with phosphate-buffered saline (PBS) and incubated with 2 µg FITC-Protein-L protein at room temperature for 1 h in the absence of light, with FITC-Protein-L-stained mock cells serving as the isotype control. Subsequently, the cells were washed three times in PBS containing 0.5% bovine serum albumin (BSA). NCI-H358 and A549 cells (~2 million) were harvested by digestion with trypsin and washed twice with PBS. The cell lines were incubated with 2 µg phycoerythrin (PE)-anti-PD-L1 (PE anti-human CD274 Antibody; 1:10, cat no. 329706) at room temperature for 30 min, prior to being washed three times in PBS containing 0.5% BSA. The cells were analyzed with a BD FACSCalibur flow cytometer and the results were analyzed with FlowJo software 7.6.1 (FlowJo LLC, Ashland, OR, USA).

Analysis of subsets of PBMCs and PD-1 expression

CD4+ CAR-T cells provided assistance to CD8+ CAR-T cells in vitro and in vivo, as the proportion of CD4+ cells and CD8+ cells in CAR-T are associated with therapeutic efficacy (49). In order to compare the cytotoxicity of tumors with different expression levels of PD-L1, the expression level of PD-1 on T cells should be similar, to avoid differences in cell viability due to PD-L1 (30). PBMCs were collected at 14 days post-transduction and were washed using PBS twice. A total of 2×106 PMBC cells were incubated at room temperature for 30 min with a mixture of peridinin chlorophyll protein complex-CD4 (cat no. 347324) and PE-CD8 (cat no. 340046) antibodies, while the remaining cells were incubated with an allophycocyanin-conjugated anti-human PD-1 antibody (cat no. 329908) for 30 min at room temperature, with normal immunoglobulin G (IgG; PerCP-Mouse IgG1 isotype; cat no. 550672; PE-Mouse IgG1 isotype; cat no. 550617; both BD Biosciences; APC-Mouse IgG1 isotype; cat no. 400120; BioLegend, Inc.) used as an isotype control. All antibodies had a dilution of 1:10. Following washing three times in PBS containing 0.5% BSA, the cells were analyzed by a flow cytometer and the results were analyzed with FlowJo software 7.6.1.

Detection of IFN-γ, IL-2 and TNF-α production by T cells

In order to ensure that the interaction of T cells with target cells was able to induce the production of cytokines, T cells were co-cultured with NCI-H358 or A549 cells at a ratio of 1:1 overnight at 37°C in serum-free medium (X-VIVO™ 15 chemically defined medium), and the supernatants were collected for cytokine detection by ELISA kits, as follows: Human IFN-γ ELISA kit (cat. no. DKW12-1000-096), Human IL-2 ELISA kit (cat no. DKW12-1020-096) and Human TNF-α ELISA kit (cat no. DKW12-1720-096; all Dakewe Biotech Co., Ltd., Shenzhen, China).

Flow cytometric analysis of cell apoptosis

As a reliable way to detect lytic activities of effector cells (50,51), flow cytometry has the advantages of good repeatability and sensitivity. CFSE-labeled NCI-H358 or A549 cells (1×106 cells/well) were seeded onto 12-well culture plates on day 0. PBMCs (1×107 cells/well) were plated into the 12-well culture plates for co-culturing with NCI-H358 or A549 cells for 3.5 h at 37°C and 5% CO2 in a cell incubator. Subsequently, all the cells from each well were collected, and were centrifuged for 10 min at 200 × g at 25°C and washed three times in PBS. The cells were resuspended in 100 µl binding buffer with Annexin V/7-AAD (cat no. 640930; Biolegend, Inc.) and incubated for 30 min at room temperature in the dark. Following being washed with PBS containing 0.5% BSA, the cell mixtures were collected and resuspended in 100 µl PBS. Non-co-cultured target cells served as a parallel control to detect spontaneous cell death. The labeled cells were analyzed using a flow cytometer. Data were collected and analyzed with FlowJo software 7.6.1 to determine the percentage of apoptotic cells. The specific cytotoxicity of PBMCs was equal to the total death of co-cultured target cells following subtraction of the total spontaneous death of non-co-cultured target cells [specific cytotoxicity=target cellco-cultured (Q1+Q2+Q3) - target cellnon-co-cultured (Q1+Q2+Q3)].

Statistical analysis

Experiments were repeated ≥3 times and all the results are presented as the mean ± standard deviation. The GraphPad Prism 6.0 software (GraphPad Software, Inc., La Jolla, CA, USA) was used for statistical analyses. The pairwise mean comparisons were performed using an unpaired Student's t-test in the cell apoptosis assay and one-way analysis of variance, followed by Tukey's multiple comparisons test, was applied to analyze the data following ELISA detection. P<0.05 was considered to indicate a statistically significant difference.

Results

Successful construction of PD-L1-specific scFv-28Bz and efficient expansion of cells

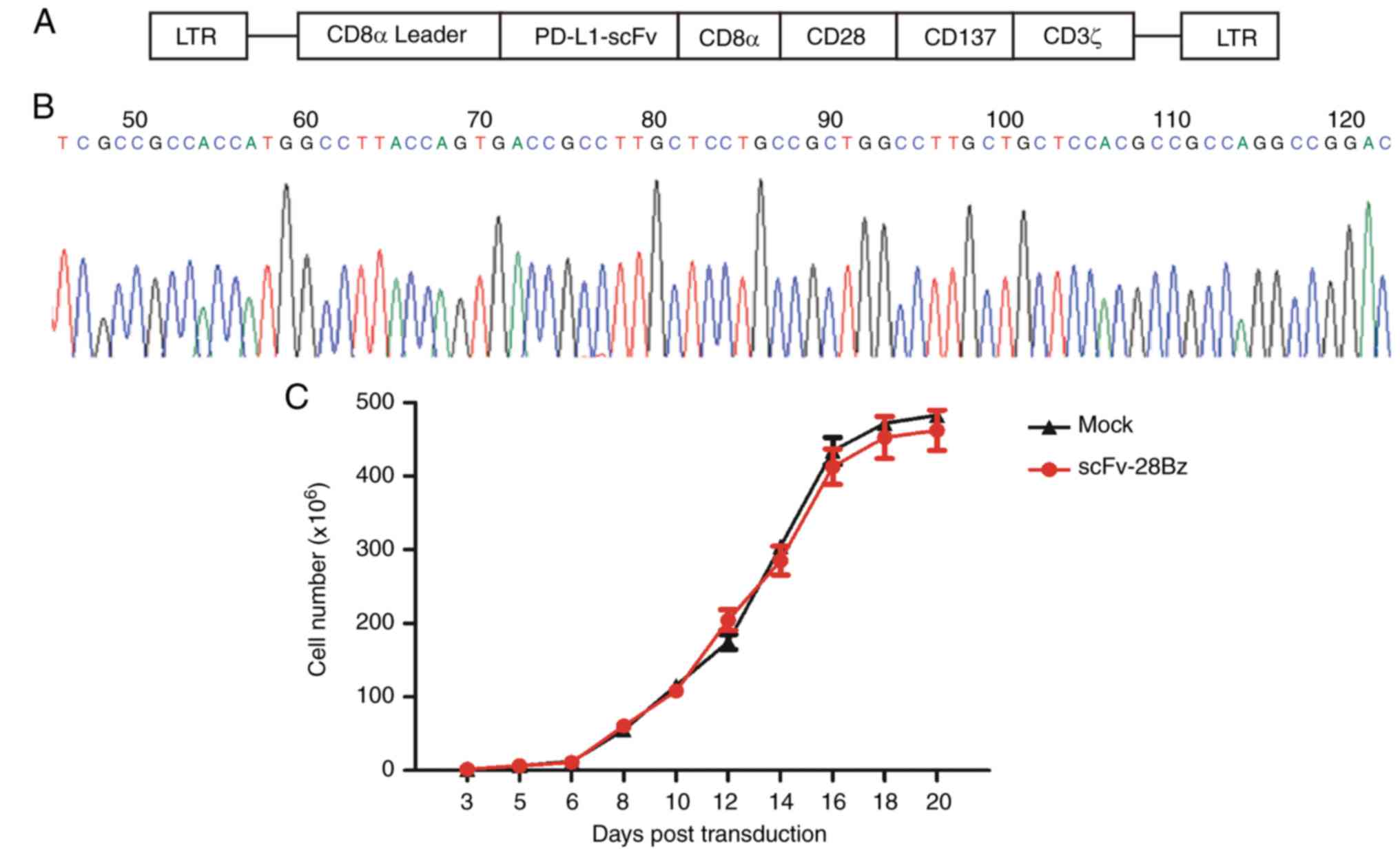

One type of lentiviral vector (LV-EF1α-scFv-28Bz) was constructed successfully. As demonstrated in Fig. 1A, the vector contained PD-L1 scFv, a scFv from MPDL3280A (52), and transmembrane domains from CD8α, a CD28 co-stimulatory domain, a CD137 co-stimulatory domain and a CD3ζ intracellular domain (Fig. 1A). The 5′ terminal sequencing results are depicted in Fig. 1B. The PBMCs were cultured in X-VIVO 15 chemically defined medium with 5% FBS post-transduction, and the cell numbers were counted; according to cell growth status, fresh medium was supplemented to maintain a density of 1–2 million cells/ml. As depicted in Fig. 1C, the total cell number reached 200–300 million at day 14–21 post-transduction.

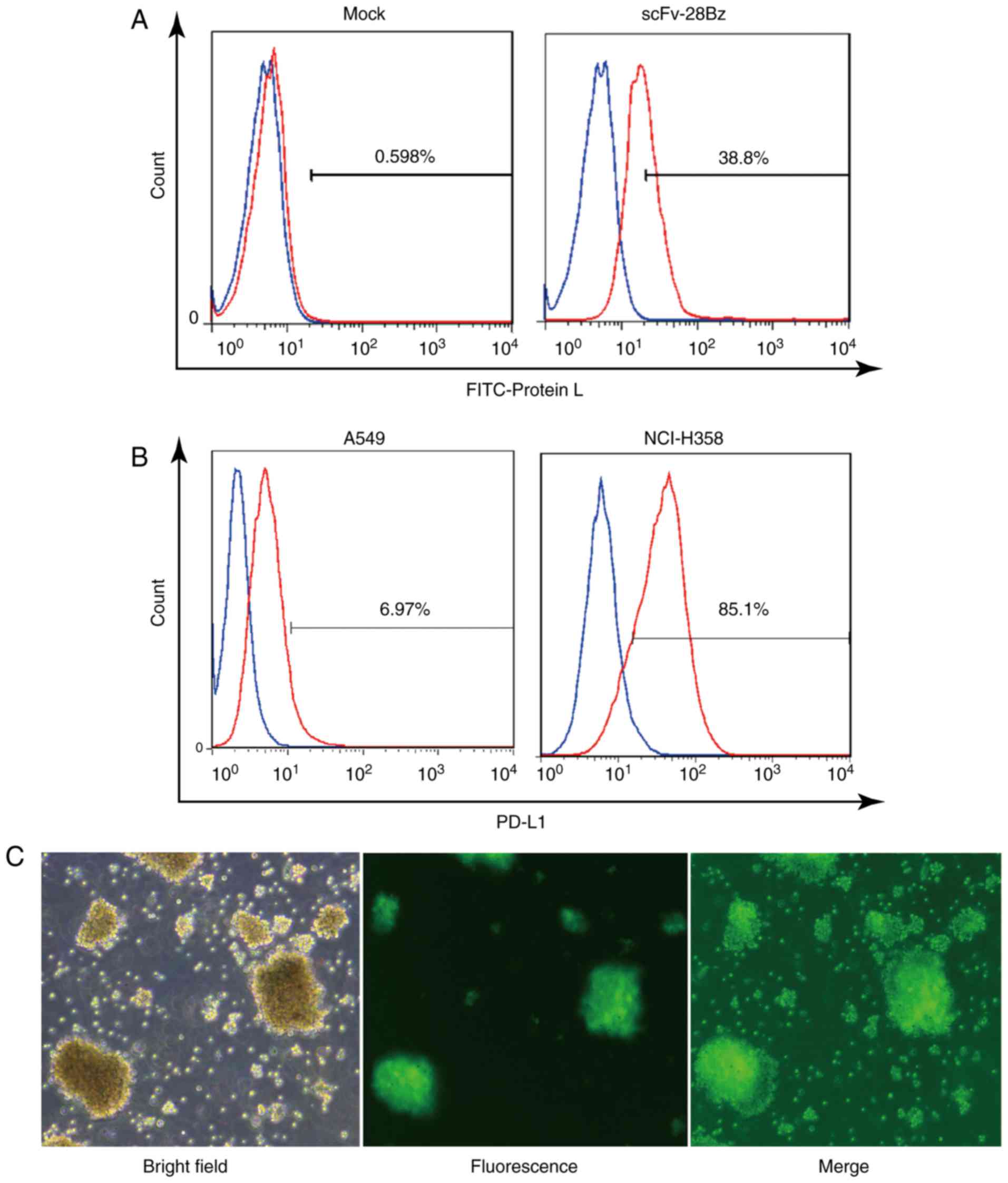

Expression of CAR on transduced cells and differential PD-L1 expression in tumor cell lines

The FITC-Protein L may effectively bind to the k-light chain of scFv, as reported by Zheng et al (48). As depicted in Fig. 2A, according to FITC-Protein L staining, the scFv-28Bz-positive cells accounted for ~39% of the total cells, compared with <1% in the non-transgenic control, which indicated that scFv-28Bz was efficiently expressed on T cells. PD-L1 was expressed on 6.97% of A549 cells and 85.1% of NCI-H358 cells, as depicted in Fig. 2B. Therefore, A549 was selected to represent negative PD-L1 expression, while NCI-H358 was used as the PD-L1-positive cell line. As a systematic parallel experimental control, the LV-EF1α-GFP virus had a high infection efficiency in PBMCs, as depicted in Fig. 2C. The transfection efficiency of the viral system ensured the reliability of the expression of the CAR on the PBMCs.

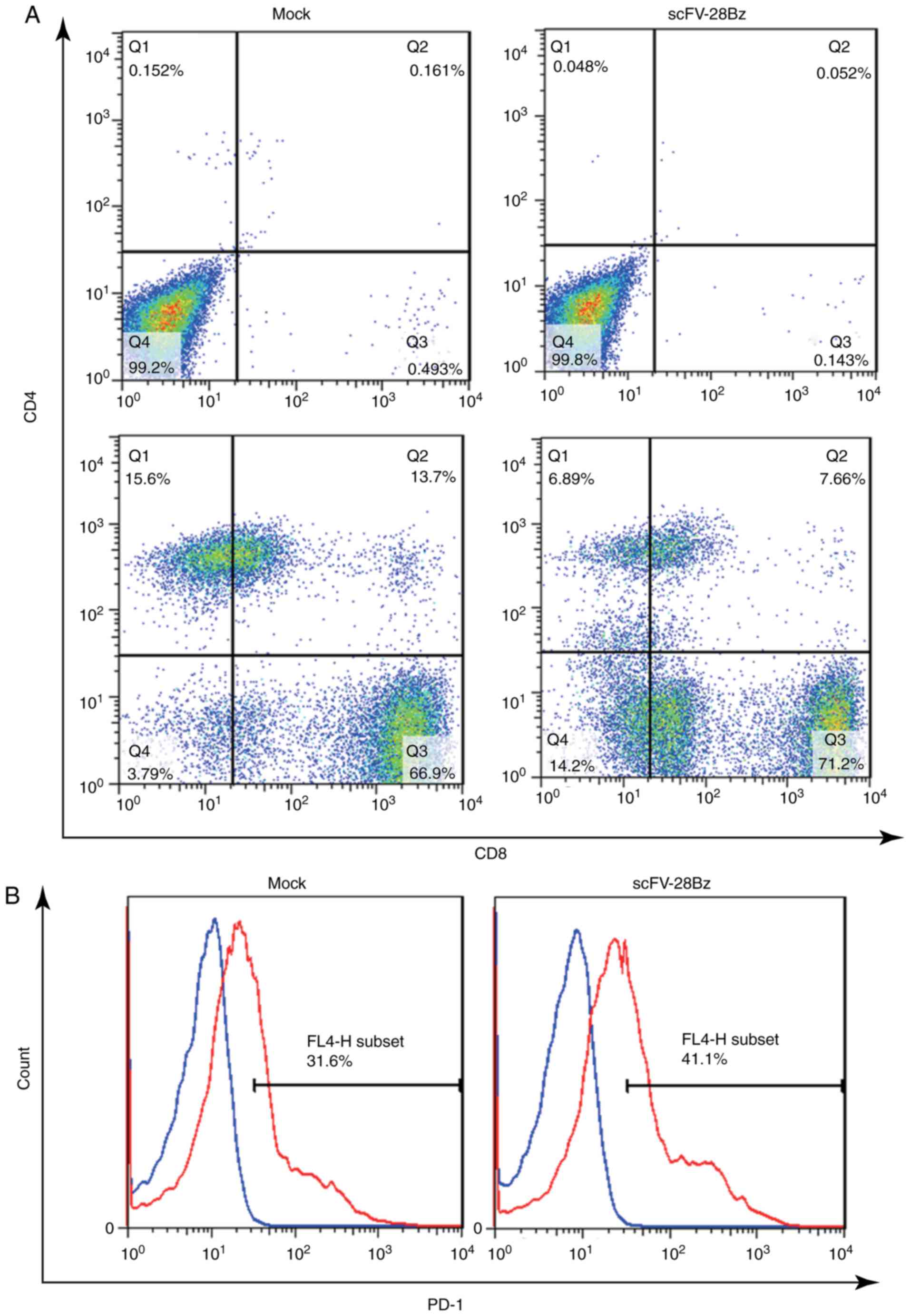

CD4+ and CD8+ cells account for the majority of PBMCs, and PD1 is highly expressed in these cells

On day 14 post-transduction, the cells were collected to analyze the subsets of CD4+ and CD8+ cells and the expression of PD-1. As depicted in Fig. 3A, the CD4+ subset accounted for 10–30% of the total number of cells, and the CD8+ subset accounted for 70–90% of the total number of cells. The expression of PD-1 was 30–50%, as depicted in Fig. 3B.

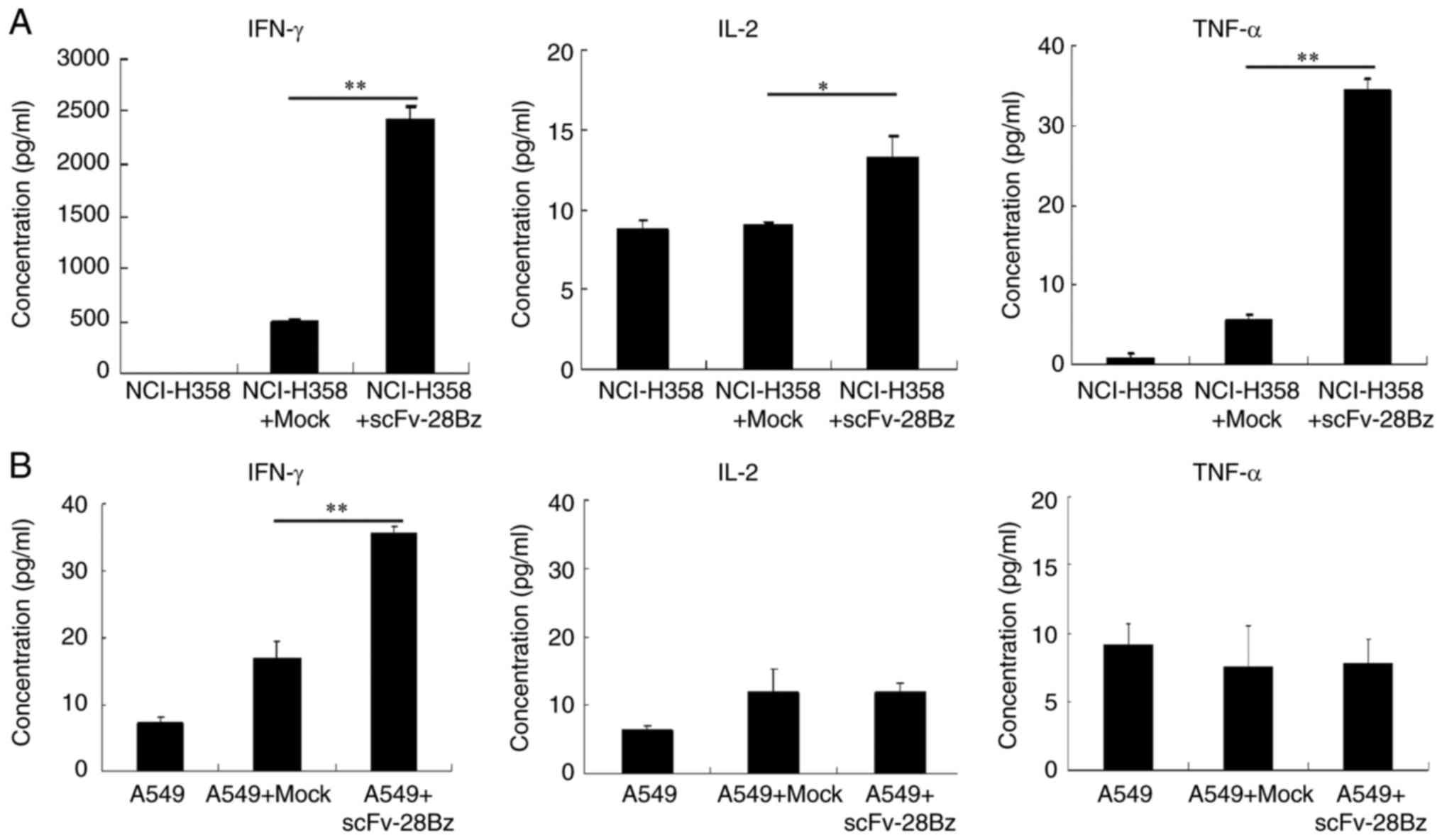

IFN-γ, IL-2 and TNF-α production in T cells

The results revealed that the co-culture of transduced T cells with NCI-H358 cells induced significantly increased production of IFN-γ, compared with mock T cells with NCI-H358 (P<0.01; Fig. 4A), but the levels of IL-2 and TNF-α were low. The levels of cytokines in the supernatants of co-cultured cells with A549 cells were <40 pg/ml (Fig. 4B).

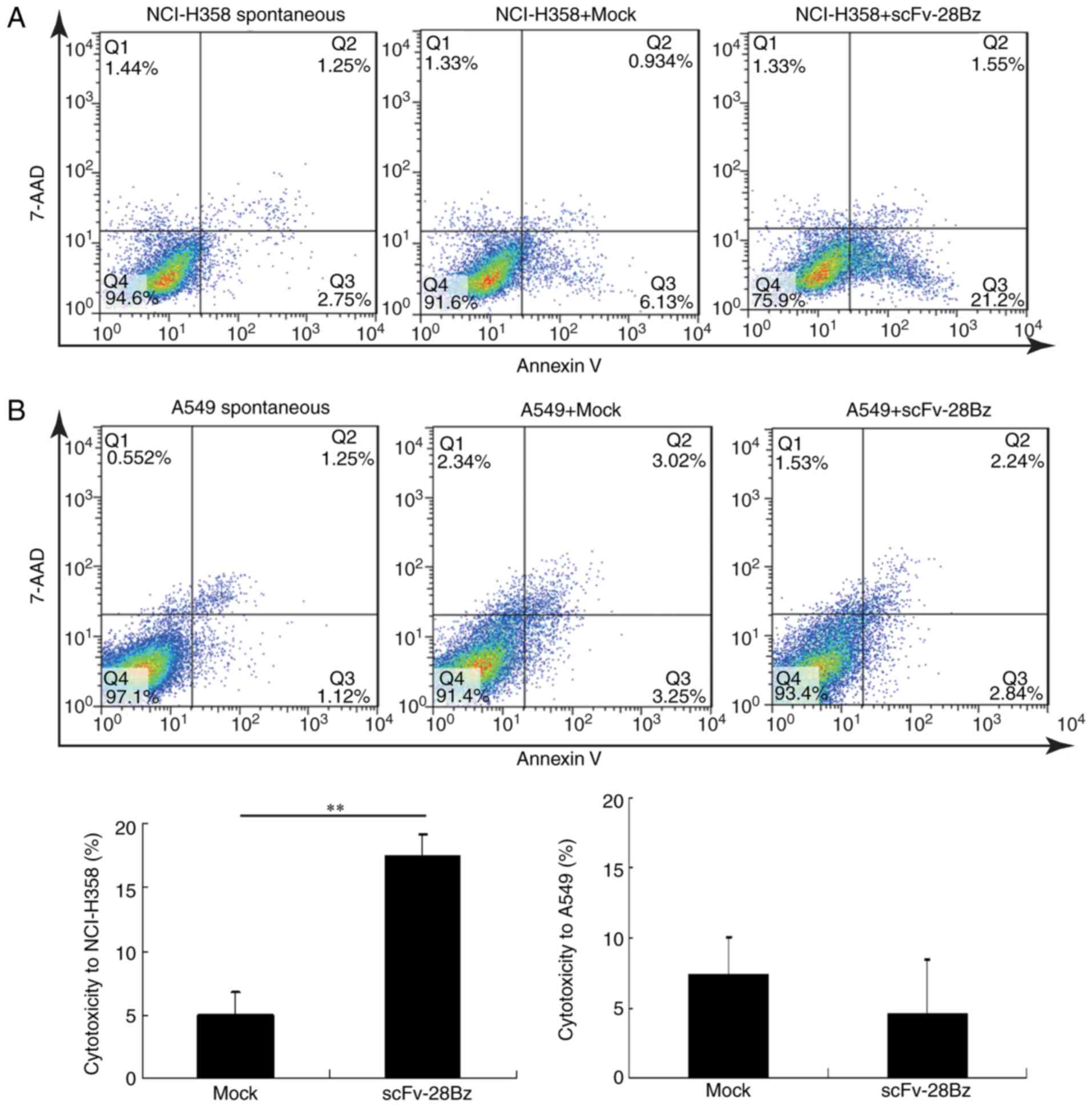

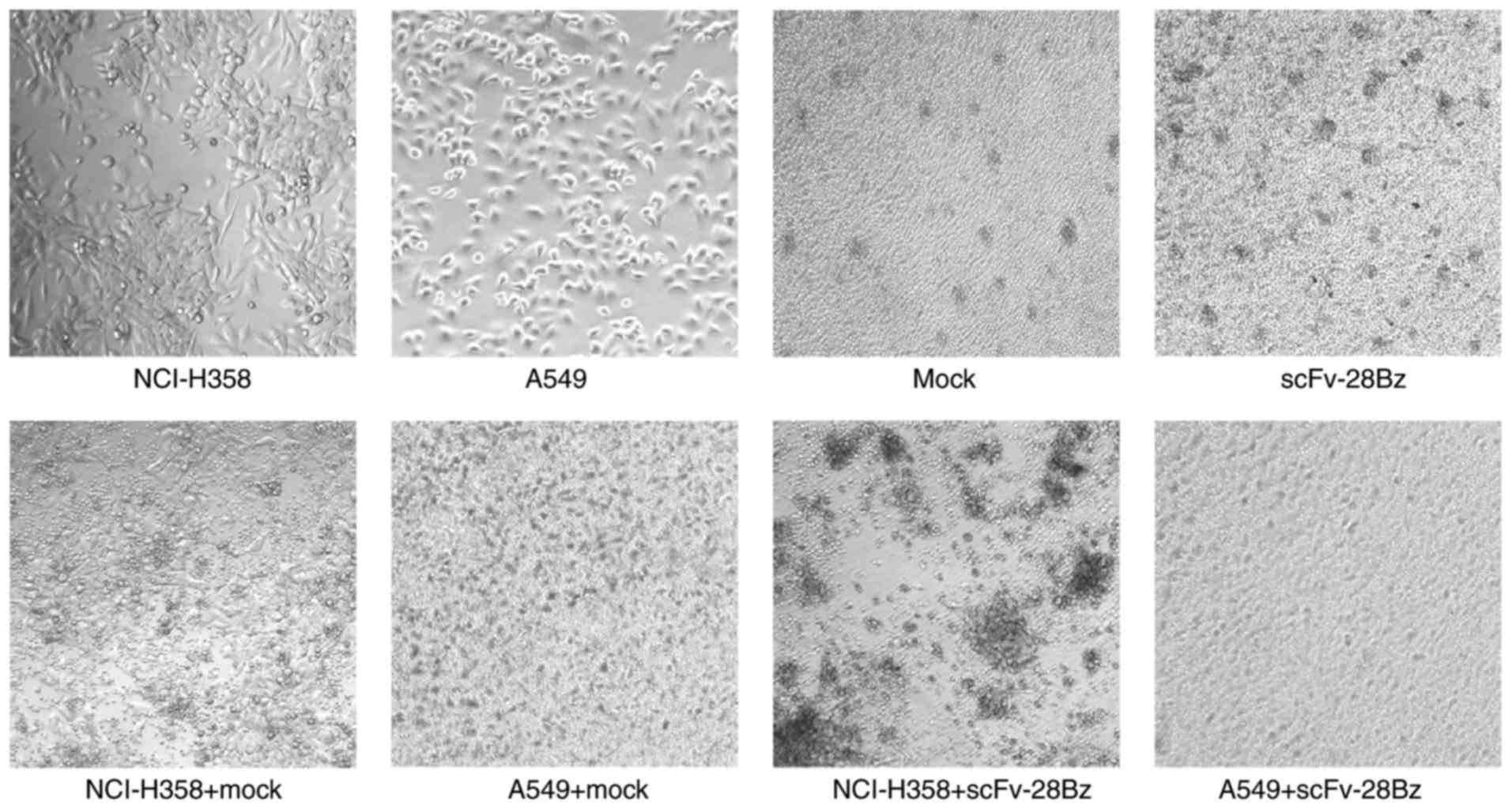

Transduced T cells exhibit a mild ability to kill NCI-H358 cells, but not A549 cells

The cytotoxicity percentages of mock and scFv-28Bz T cells against NCI-H358 cells were 5±1.7 and 17.3±1.8%, respectively (Fig. 5A), and scFv-28Bz was significantly higher, compared with the mock control group (P<0.01). The cytotoxicity percentages of mock and scFv-28Bz T cells against A549 cells were 7.3±2.77 and 4.5±3.96%, respectively, and there was no significant difference between these groups (Fig. 5B). The morphology of co-cultured cells also demonstrated specific cytotoxicity of CAR-T cells against PD-L1+ NCI-H358 cells, but no significant effect on A549 cells expressing low PD-L1 levels (Fig. 6).

Discussion

Lung cancer is a lethal disease, the etiopathogenesis of which is varied and complex (5355). There are several types of lung cancer, and different treatment methods are adopted depending on the type and level of development; however, more effective treatment programs are required (3,56). In recent years, immunotherapy has provided a good option for the treatment of lung cancer, and is expected to relieve the pain induced by cancer (3). Previous CAR-T cell studies based on CD19 as a target have demonstrated positive effects (19,20,45,57). Furthermore, increasing evidence on immune checkpoints has provided a potential novel approach to tumor therapy (36,37,5861). In 2014, PD-L1 immunotherapy utilizing a monoclonal antibody, MPDL3280A, was demonstrated to be effective in the treatment of metastatic urothelial bladder cancer, and this therapy received breakthrough designation status by the US Food and Drug Administration in June 2014 (62). Using the monoclonal antibody MPDL3280A, another study also demonstrated the inhibition of a variety of cancer types with high PD-L1 expression, which suppressed the pre-existing immunity towards the tumor antigen (52). Therefore, the light chain and heavy chain of MPDL3280A was selected to produce a CAR together with an intracellular domain. To use PD-L1 as a novel target for the treatment of solid tumors with CAR-T cells, it was determined that T cells expressing scFv-28z did not attack nearby T cells, despite the fact that T cells expressed low PD-L1 (63), and the number of T cells was effectively amplified. This indicated that it may be safe to select PD-L1 as a target. The data indicated that CAR-T cells were able to release IFN-γ at a high level when co-cultured with NCI-H358 cells, but not when co-cultured with <100 pg/ml A549 cells, which demonstrated a PD-L1-specific interaction with scFv. Furthermore, low concentrations of IL-2 and TNF-α were observed, reflecting that exposure to an antigen for a long time may lead to low cytokine production by T cells, which requires reversal by multiple simultaneous treatments (64). Similarly, the apoptosis assay revealed mild specific cytotoxicity against PD-L1-positive cells at an effector-to-target T ratio of 10:1. The results demonstrated that effectively blocking the PD-1 pathway may reactivate T cell activity that has been decreased due to PD-L1 expression in the solid tumor microenvironment. From another perspective, the moderate killing effect may be an ideal result of target blocking. Furthermore, the high level of PD-1 expression in T cells, as depicted in Fig. 3, demonstrated that complete blocking of the signaling pathway by only one treatment may not be easy to implement, and that a variety of blocking methods, including combination with PD-1 blocking, may lead to improved results.

Studies on tumor therapy have indicated that the presence or absence of invasive T cells is critical in determining the response of patients to treatment. The inhibitory effect of the tumor microenvironment on immunity may manifest as the absence of infiltrating cells (65,66). If tumor-specific T cells are unable to effectively reach the tumor cells and to accumulate in their vicinity, it is not possible to remove the tumor cells (18). By contrast, PD-L1-targeted T cells may avoid being weakened, and accumulate in the vicinity of tumor cells and infiltrate into the tumor to exert cytotoxic effect. As a therapeutic method, PD-L1 CAR-T presented its specificity against tumor cells with a high expression of PD-L1. PD-L1 CAR may be considered to be a shield and a probe that is directed toward tumor cells with high expression of PD-L1. This is of clinical significance for adoptive cell immunotherapy. During the T-cell immunotherapy, effective defense against PD-L1 in the tumor microenvironment is a prerequisite for maintaining a continuous antitumor effect (28,62,6769).

In summary, PD-L1-targeted CAR lentiviral vectors and efficiently transduced T cells were constructed. The CAR-T cells exerted a mild cytotoxic effect against a PD-L1-positive lung cancer cell line in vitro; however, this approach requires further optimization in order to obtain improved results.

The results indicated the possibility of treating tumors by targeting immune checkpoints in the tumor microenvironment, however it remains unknown whether CAR-T cells attack normal tissues expressing PD-L1. As the results of the present study demonstrate, it is confirmed that CAR-T does not attack nearby T-cells with low PD-L1 expression. In addition, PD-L1 CAR may be further developed to a dual target CAR to achieve improved safety and specificity.

Acknowledgements

The authors would like to thank Mr Hongbao Yao (Beijing Bio DC Labs, Beijing, China) for his technical assistance with the flow cytometry operation and Dr Xiaobin Chen (Beijing Bio DC Labs) for reviewing the manuscript.

Funding

The present study was supported by the National High Technology Research and Development Program of China (grant no. 2014AA022206).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

JX and ZZ designed the experiments, analyzed the data and wrote the manuscript. SJ and XL contributed to the initial idea and approved the final version to be published.

Ethics statement and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
