Genetic alterations in 47 patients with a novel myelodysplastic syndrome diagnosis at a single center

Introduction

Myelodysplastic syndrome (MDS) is a group of acquired clonal disorders that originate in the hematopoietic stem/progenitor cells, and are characterized by ineffective erythropoiesis of the bone marrow, long-term progressive refractory cytopenia, and high risk of conversion to acute leukemia (1–3).

With the continuous progress in the field of life sciences, researchers have begun to examine the pathogenesis of MDS at the gene level and have reported that more and more gene abnormalities are associated with MDS pathogenesis (4–8). Studies on MDS genetic alterations have revealed that 70–80% of the patients with MDS have at least one mutation (4–6,9). With the development of sequencing technology and its broad applications, gene mutations and other molecular biological markers have been included in the guidelines for the diagnosis and treatment of MDS (9,10). In November 2016, the National Comprehensive Cancer Network released the Clinical Practice Guidelines in Oncology: Myelodysplastic Syndromes (version 2.2017), which proposed that frequent mutations in MDS-associated genes may be suggestive of the presence of clonal hematopoiesis (11). A previous study reported that there are ~60 MDS-affected genes, which are subdivided into RNA splicing, DNA methylation, chromatin remodeling, transcription, receptors/kinases, cohesion, RAS pathway and DNA repair (9). The completion of whole-genome sequencing and targeted gene sequencing in patients with MDS has preliminarily revealed the molecular mechanism underlying the pathogenesis of MDS (12,13). In the present study, the mutant genes of patients with a novel MDS diagnosis were determined by the next-generation sequencing technology to analyze the association between the mutant genes and clinicopathological features of the patients.

Materials and methods

Diagnosis and classification criteria

The diagnostic criteria, classification criteria, and international prognostic scoring system for MDS were based on the 2007 Vienna standards for the diagnosis of MDS (14), the 2008 World Health Organization (WHO) classification criteria for MDS (15), and the Revised International Prognostic Scoring System (IPSS-R) (16), respectively.

Sample collection

The subjects were 47 patients with a novel MDS diagnosis in the Department of Hematology of Xiyuan Hospital of China Academy of Chinese Medical Sciences (Beijing, China) between July 15th, 2017 and December 31st, 2017. The sample included 26 females (55.3%) and 21 males (44.7%) with median age of 56 years (range, 19–82 years). The median peripheral white blood cell count, hemoglobin level, platelet count, neutrophil count and bone marrow blast percentage were 2.52 (1.9–8.2×109/l), 77 (35–168 g/l), 44 (3–540×109/l), 1.12 (0–8.48×109/l) and 2% (0–17.2%), respectively. According to the 2008 WHO classification criteria, 1 case of refractory anemia (RA), 27 cases of refractory cytopenia with multilineage dysplasia (RCMD), 12 cases of type 1 RA with excess blasts (RAEB-1), 5 cases of type 2 RAEB (RAEB-2), and 2 cases of MDS-unclassified (MDS-U) were included. According to the cytogenetic risk classification, 36 cases of good-prognosis karyotype, 10 cases of intermediate-prognosis karyotype, and 1 case of poor-prognosis karyotype were detected. According to the IPSS-R, 8 low-risk, 24 intermediate-risk, 10 high-risk, and 5 very high-risk cases were noted (Table I). The study protocol was approved by the Clinical Research Ethics Committee of Xiyuan Hospital, China Academy of Chinese Medical Sciences (Beijing, China). All patients provided written informed consent to participate in the study.

Table I. Characteristics of patients.

Table I.

Characteristics of patients.

Parameters	n (%)
Age, years	56 (19–82)
Male	21 (44.7)
Female	26 (55.3)
WBC, ×109/l	2.52 (1.9–8.2)
PLT, ×109/l	44 (3–540)
Hb, g/l	77 (35–168)
ANC, ×109/l	1.12 (0–8.48)
Bone marrow blasts, %	2 (0–17.2)
WHO classification (10)
RA	1 (2.13)
RCMD	27 (55.45)
RAEB-1	12 (25.53)
RAEB-2	5 (10.64)
MDS-U	2 (4.25)
Cytogenetic risk
Good	36 (76.59)
Intermediate	10 (21.28)
Very Poor	1 (2.13)
IPSS-R risk group (11)
Low	8 (17.02)
Intermediate	24 (51.06)
High	10 (21.28)
Very high	5 (10.64)

[i] Cytogenetic risks: Good=normal, del(5q), del(12p), del(20q), double including del(5q); Intermediate=del(7q), +8, +19, i(17q), any other single or double independent clones; Very poo r=complex, >3 abnormalities. WBC, white cell blood count; PLT, platelet count; Hb, hemoglobin; ANC, absolute neutrophil count; RA, refractory anemia; RCMD, refractory cytopenia with multilineage dysplasia; RAEB-1, refractory anemia with excess blasts-1; RAEB-2, refractory anemia with excess blasts-2; MDS-U, myelodysplastic syndrome unclassified; IPSS-R, revised International Prognostic Scoring System; WHO, World Health Organization.

Next-generation sequencing

The genomic DNA (gDNA) was extracted following bone marrow or peripheral blood sample collection from patients. The concentration of gDNA was >10 ng/l, with optical density (OD)260/OD280=1.7–1.9, and the total amount was >1,000 ng. If quality inspection yielded good results, the gDNA was subsequently used for the construction of an Illumina standard library (Illumina, Inc.), and the Roche NimbleGen liquid phase hybrid capture chip was employed to perform 127-target gene sequencing (Table SI). The captured exon library was sequenced on the Illumina NextSeq 550AR platform (Illumina, Inc.), and each sample was required to have an average effective depth ≥1,000× in the target area. Using the Burrows-Wheeler Alignment algorithm version 0.7.12 (17) to compare the sequence data with the human genome (version: GRCh37), Picard version 1.115 (https://github.com/broadinstitute/picard) was used to mark the polymerase chain reaction duplicates, and the quality value of the sequence alignment results was corrected by means of BaseRecalibrator in Genome Analysis Toolkit version 3.5 (18). The MuTect2 version 3.5 software (18) was employed for mutation detection, and all test results were annotated in the Annovar version 0722 software (19). The types of analysis included single-nucleotide variants and insertions and deletions (indels). Single-nucleotide polymorphisms described in dbSNP version 135 database (https://www.ncbi.nlm.nih.gov/snp/) were excluded. Variant allele frequency (VAF) was calculated as the number of the variant reads divided by the total number of reads for the mutation position. Circos plot was performed in Circos version 0.69–6 software (http://www.circos.ca/), corresponding to the relative frequency and pairwise co-occurrence of gene mutations, and the threshold was a patient with paired mutations.

Karyotype analysis

Bone marrow cells were cultured for short-term (24 h), G-banding of chromosomes was performed, and karyotypes were determined according to the International Nomenclature System for Human Cytogenetics (11). For the G-banding of chromosomes 0.2–0.4 ml bone marrow was absorbed and injected into 10 ml preheated (37°C) culture medium, which consisted of RPMI-1640 medium (Thermo Fisher Scientific, Inc.), fetal bovine serum (Hangzhou Sijiqing Biological Engineering Materials Co., Ltd.) and penicillin-streptomycin double antibiotics (Beijing Solarbio Science & Technology Co., Ltd.) with the ratio 100:20:1. This was followed by treatment with 0.1 ml from 5 ug/ml colchicine (Hubei DiBo Chemical Co., Ltd.) and incubation at 37°C for 4–6 h. The cells were harvested after 24–48 h. The cell suspension was centrifuged at 402 × g at 25°C for 10 min. 10 ml of acetic acid and methanol mixture (ratio 3:1) was added to the suspension for 30 min, followed by centrifugation of the cell suspension at 402 × g at 25°C for 10 min. The process was repeated three times. The obtained cell suspension was used to prepare chromosome slices. Saline (45 ml) and 2% trypsin solution were added to the container and heated in a water bath at 37°C. The chromosome slices were immersed in the aforementioned trypsin working solution at 37°C and shaken for 30 sec. Staining was performed with Giemsa solution (Giemsa stock solution and phosphoric acid buffer solution with a ratio of 1:10) at room temperature for 8–10 min and rinsed with tap water, followed by the removal of the specimen.

Statistical analysis

Data analysis was performed in the Python 3.5.2 statistical software (https://www.python.org/) using the χ2 test or Fisher's exact test. The raw values (Fig. 1), the median (minimum to maximum), if appropriate (Table I), or the maximum, upper quartile, median, lower quartile, and minimum values (Fig. 4) are presented. The odds ratio was calculated as the ratio of mutation frequency between two different groups. P<0.05 was considered to indicate a statistically significant difference.

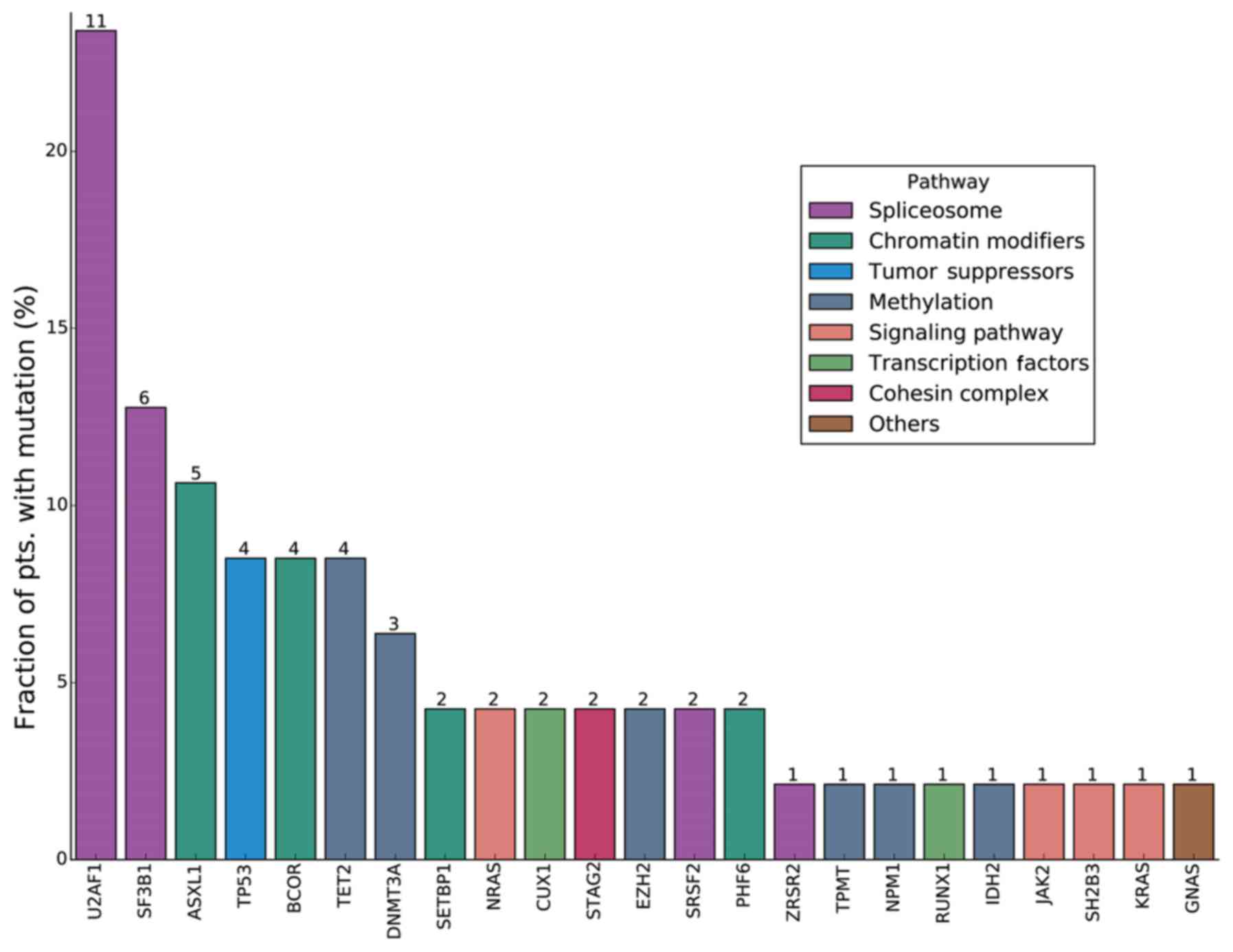

Figure 1. Gene mutation analysis in patients with myelodysplastic syndrome. All bars are colored according to the different functional groups assigned to each mutated gene. The number on each bar indicates the number of patients carrying the indicated gene mutation. pts, patients.

Figure 4. VAF analysis of different mutated genes. The boxplot indicates the median, 25th, and 75th percentiles of VAF observed across the entire cohort of 47 patients. For ZRSR2, TPMT, IDH2, RUNX1, JAK2, KRAS, NPM1, GNAS and SH2B3, each of these genes has been detected in only one patient. All bars are colored according to the different functional groups assigned to each mutated gene. VAF, variant allele fraction.

Results

Analysis of mutant genes in patients with MDS

Among the 47 patients with a novel MDS diagnosis, 31 patients had a gene mutation(s), and the overall rate of mutation prevalence was 66.0% (31/47). A total of 23 mutant genes of clinical significance were detected. According to the descending order of the detection frequency among the 47 patients with MDS, there were 11 cases with a U2 small nuclear RNA auxiliary factor 1 (U2AF1) mutation (23.4%); 6 cases with a splicing factor 3b subunit 1 (SF3B1) mutation (12.8%); 5 cases with an ASXL transcriptional regulator 1 (ASXL1) mutation (10.6%); 4 cases each with a mutation in tet methylcytosine dioxygenase 2 (TET2), BCL6 corepressor (BCOR) or TP53 (8.5%); 3 cases with a DNA methyltransferase 3α (DNMT3A) mutation (6.8%); 2 cases each with a mutation in serine and arginine rich splicing factor 2 (SRSF2), enhancer of zeste 2 polycomb repressive complex 2 subunit (EZH2), PHD finger protein 6 (PHF6), SET binding protein 1 (SETBP1), stromal antigen 2 (STAG2), cut like homeobox 1 or NRAS proto-oncogene, GTPase (NRAS) (4.3%); and 1 case each with a mutation in zinc finger CCCH-type, RNA binding motif and serine/arginine rich 2 (ZRSR2), thiopurine S-methyltransferase, isocitrate dehydrogenase [NADP(+)] 2, mitochondrial (IDH2), nucleophosmin 1 (NPM1), RUNX family transcription factor 1 (RUNX1), KRAS, SH2B adaptor protein 3 (SH2B3), Janus kinase 2 (JAK2) or GNAS complex locus (2.1%). Each of seven genes (U2AF1, SF3B1, ASXL1, TET2, BCOR, TP53 and DNMT3A) had mutation prevalence of >5% in the present study cohort (Fig. 1).

Analysis of mutant genes in patients with MDS according to genetic functional groups

According to the classification based on the genetic functional groups and the descending order of population mutation frequency, 19, 11, 11, 5, 4, 3, and 2 cases were respectively associated with the following categories among the 47 patients with a novel MDS diagnosis: RNA splicing (40.4%), chromatin remodeling (23.4%), DNA methylation (23.4%), a signaling pathway (10.6%), a tumor suppressor (8.5%), a transcription factor (6.4%), and the cohesin complex (4.26%) (Fig. 2).

Figure 2. Mutation analysis of patients with myelodysplastic syndrome according to genetic functional groups. Red boxes indicate mutations.

Of the 31 patients with mutations, 16 patients had ≥2 mutations (51.6%). Among them, 7 patients had two genetic alterations, 6 patients had three genetic alterations, and 3 patients had four genetic alterations (Fig. 2). Of the 16 patients with ≥2 mutations, 4 (25%) had a synergistic mutation within the same functional group and the remaining 12 (75%) had mutations in different genetic functional groups. The prevalence of synergistic mutations in different functional groups was significantly higher compared with that in the single functional group (P=0.036; Fig. 2).

Association analysis of the mutant genes with MDS

The results indicated that the mutations in genes EZH2 and ASXL1 (P=0.009), IDH2 and KRAS (P=0.021), IDH2 and STAG2 (P=0.043), IDH2 and SRSF2 (P=0.043), KRAS and STAG2 (P=0.043), RUNX1 and PHF6 (P=0.043), NPM1 and NRAS (P=0.043), and EZH2 and ZRSR2 (P=0.043) co-occurred and these associations were statistically significant (Fig. 3).

Figure 3. Association analysis of the mutant genes in myelodysplastic syndrome. The Circos plot corresponds to the relative frequency and pairwise co-occurrence of gene mutations. The length of the arc represents the frequency of mutations in the first gene, and the width of the ribbon indicates the percentage of patients carrying the second gene mutation.

VAF analysis

In the present study, 23 mutant genes were detected, and the median VAFs were compared and sorted in descending order. The results revealed that the four genes associated with ‘signaling pathway’, JAK2, KRAS, NRAS and SH2B3, had a low VAF, which suggested that the corresponding mutations were acquired relatively late during the evolution of the leukemic clones (Fig. 4).

Analysis of the association between genetic alterations and clinicopathological features of the patients

Mutant genes and MDS subtypes

The mutation prevalence rates of the JAK2 gene in subtypes RA (0/1), RCMD (0/27), RAEB-1 (0/12), and RAEB-2 (0/5) were all 0%, and in the MDS-U subtype, the mutation prevalence was 50% (1/2); the mutation prevalence rate of the JAK2 gene was significantly higher in the MDS-U subtype compared with non MDS-U subtypes (P=0.043; Fig. 5).

Figure 5. Analysis of mutant genes and MDS subtypes. The odds ratio of the association is color coded, and the significance level is indicated by the color symbol in each field. Red and pink colors indicate a positive association. Blue indicates a negative association. MDS, myelodysplastic syndrome; RA, refractory anemia; RCMD, refractory cytopenia with multilineage dysplasia; RAEB-1, refractory anemia with excess blasts-1; RAEB-2, refractory anemia with excess blasts-2; MDS-U, myelodysplastic syndrome unclassified.

Mutant genes and karyotype

The mutation prevalence rates of the SH2B3 gene in the patients with good, intermediate and very poor prognosis karyotypes were 0 (0/36), 0 (0/10), and 100% (1/1), respectively; mutation prevalence was significantly higher in the patients with the very poor prognosis karyotype (P=0.021). The mutation prevalence rates of the U2AF1 gene in the patients with good, intermediate and very poor prognosis karyotypes were 16.7 (6/36), 50.0 (5/10) and 0 (0/1), respectively; mutation prevalence tended to be highest in the patients with the intermediate prognosis karyotype (P=0.07; Fig. 6).

Figure 6. Association analysis of mutant genes and cytogenetic risks. The odds ratio of the association is color-coded, and the significance level is indicated by the color symbol in each field. Red and pink colors indicate a positive association. Blue indicates a negative association.

Mutant genes and IPSS-R

The mutation prevalence rates of the SETBP1 gene among low-risk, intermediate-risk, high-risk, and very high-risk patients were 0 (0/8), 0 (0/24), 20 (2/10), and 0 (0/5), respectively; and mutation prevalence was significantly higher in the high-risk group as defined by IPSS-R (P=0.042). The mutation rates of EZH2 among low-risk, intermediate- risk, high-risk, and very high-risk patients were 0 (0/8), 0 (0/24), 20 (2/10), and 0 (0/5), respectively; and mutation prevalence was significantly the highest in the high-risk group on the basis of the IPSS-R score (P=0.042; Fig. 7).

Figure 7. Association analysis of mutant genes and the revised International Prognostic Scoring System classification. The odds ratio of the association is color-coded, and the significance level is indicated by the color symbol in each field. Red and pink colors indicate a positive association. Blue indicates a negative association. Int, intermediate.

Discussion

The positive gene mutation detection rates in the study by Haferlach et al (9) in a 104-target gene panel, Xu et al (20) in a 28-target gene panel, and the present study in a 127-target gene panel were 89.5, 84.0, and 66.0%, respectively, suggesting that mutations in patients with newly diagnosed MDS are relatively common. Twelve genes, TET2 (33.3%), SF3B1 (32.9%), ASXL1 (23.4%), SRSF2 (17.5%), DNMT3A (13.1%), RUNX1 (10.6%), U2AF1 (7.7%), ZRSR2 (7.6%), STAG2 (7.5%), TP53 (6.4%), EZH2 (5.5%) and Cbl proto-oncogene (5.1%%), with a mutation frequency prevalence >5% in the MDS population have been previously reported (9). In the present study, seven genes with a mutation prevalence >5% were detected, including U2AF1 (23.4%), SF3B1 (12.8%), ASXL1 (10.6%), TET2 (8.5%), BCOR (8.5%), TP53 (8.5%) and DNMT3A (6.8%).

The pathogenesis of MDS is associated with genetic alterations. Previous studies from China reported that the U2AF1 mutation has one of highest prevalence rates among other mutations in the Chinese MDS population (20–22). The mutation prevalence of U2AF1 according to different Chinese research groups was 16.8% among 511 patients (21), 9.4% among 320 patients (22) and 8.0% among 125 patients (20). Furthermore, U2AF1 mutations are more common among patients with trisomy 8 (21–23). The results of the present study are in accordance with the aforementioned results, since U2AF1 mutations had the highest prevalence (23.4%) among the 47 Chinese patients with MDS and tended to occur in the patients with the intermediate-prognosis karyotype. In addition, the genetic alterations with clear clinical significance and poor prognosis were prone to be accompanied by poor prognostic clinical (objective) indicators.

Furthermore, in the present study population, it was also indicated that the prevalence of SETBP1 mutations (4.3%) was relatively low, similar to the result (4.7%) obtained by Xu et al (22); however, a mutation in this gene has not been reported in patients with MDS in western countries (9). The prevalence of SRSF2 mutations (17.5%) is reported to be higher in patients with MDS in western countries (9). The results of the present study revealed that the prevalence of SRSF2 mutations (4.3%) was lower in Chinese patients with MDS, which is in accordance with the findings (3.4%) of Xu et al (22) in China. In the present study, the prevalence rates of mutations in genes, including IDH2, TP53, BCOR and EZH2, resemble those reported by the other two groups in China (22) and in western country (9).

The most common mutant genes in these 47 patients were the splicing genes, followed by the methylation genes; consistent with previous literature data (9). Among the 16 patients with ≥2 mutations, the mutations that co-occurred were detected in gene pairs IDH2-SRSF2, IDH2-STAG2 and EZH2-ASXL1, which were distributed among different functional groups. This result suggested that genes in different functional groups may undergo synergistic mutations. Among the patients with newly diagnosed MDS, the median VAFs of the genes associated with ‘signaling pathway’ were relatively low, suggesting that mutations in signaling-pathway-associated genes appeared later in the clonal evolution of MDS.

In this study, a 31-year-old patient had a synergistic interaction of mutations in SETBP1, ASXL1, EZH2 and U2AF1; according to the RAEB-1 subtype with a blast percentage of 6%, this patient belonged to the high-risk group on the basis of IPSS-R and had agranulocytosis status. The percentages of WT1 and PRAME quantitative gene detection were 12.8 and 387.8, respectively, which were all associated with acute leukemia. This result is consistent with the findings of Inoue et al (24) who concluded that the SETBP1 gene mutation can trigger the ASXL1 mutation in patients with MDS and the conversion of MDS to leukemia. Since the patient with synergistic genetic alterations had a worse prognosis, synergistic genetic alterations were targeted by therapeutic interventions in the present study. In the 2016 WHO classification system, JAK2 gene mutation was the main indicator of chronic myeloproliferative neoplasms (25). The mutation prevalence of JAK2 was significantly higher in the MDS-U subtype compared with non MDS-U subtypes in this study, suggesting that JAK2 could help with the differential diagnosis of this disease.

In myeloid neoplasms, EZH2 gene mutations often occur in MDS and myeloproliferative neoplasms, and have been associated with a poor prognosis (15). A knockout mouse model revealed that after EZH2 undergoes inactivating mutations, the number of modifications of H3k27me3 sharply diminishes, and the transcription of oncogenes, including target genes Hmga2, Pbx3, Lmo1 and Myc, is inhibited, leading to MDS or myeloproliferative neoplasm-like phenotypes (26). In the present study, the EZH2 gene mutation mostly occurred in the high-risk group on the basis of the IPSS-R score, suggesting that EZH2 mutations are associated with a poor prognosis among patients with MDS, a finding that is in accordance with previous literature (15).

In summary, 66.0% of 47 Chinese patients with a novel MDS diagnosis were indicated to have a genetic mutation, as detected by the highly promising next-generation sequencing technology. The results for gene mutations in this study will supplement the database of patients with MDS in China. Due to the small sample size, the results concerning the association between genetic alterations and clinicopathological features of patients with MDS in this study require further confirmation with a larger cohort.

Supplementary Material

Supporting Data

Acknowledgements

Not applicable.

Funding

This study was supported by the National Natural Science Foundation of China (grant no. 81673821), the Beijing Municipal Science & Technology Commission (grant no. Z141100006014003) and the Special Research Foundation of Central Level Public Scientific Research Institutes (grant no. ZZ10-016).

Availability of data and materials

All data and materials analyzed during the current study are included in this published article.

Authors' contributions

XH contributed to the study design; PZ, JQ and XH wrote the manuscript; XH, PZ, WL, RQ, HX, CL, LL, YL, QZ, HW and XG conducted the clinical research; JQ and JW performed the next-generation sequencing; PZ and JQ performed the data processing and statistical analysis. All authors have read and agreed to the final version of the manuscript.

Ethics approval and consent to participate

The study protocol was approved by the Clinical Research Ethics Committee of Xiyuan Hospital, China Academy of Chinese Medical Sciences (approval no. 2017XLA019-2). All patients provided written informed consent to participate in the study.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
