Venous thrombosis, multiple carcinomatous foci and differences in metastatic pathways of penile carcinoma
- Authors:
- Published online on: January 17, 2023 https://doi.org/10.3892/ol.2023.13674
- Article Number: 88
-
Copyright: © Yi et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
Abstract
Introduction
Penile squamous cell carcinoma (SCC) has a low incidence rate, accounting for 0.6% of all malignant tumors in males in the US, and may reach up to 10% in males in certain parts of Africa, South America and Asia (1,2). Of note, penile SCC has a high mortality rate (2).
The 5-year survival rate of patients with stage III disease without surgery is 0% and the average overall survival time of patients with stage IV disease is only 11.2 months (3). However, only 2.3% of patients with penile cancer have distant metastasis (4) and cachexia is not a common phenomenon in penile cancer. It has been reported that a high proportion (17%) of patients are <40 years old and the survival rate for this group is lower than for those aged 40–60 years (5). In clinical practice, numerous patients with penile cancer are relatively young (6), are in otherwise good physical health and present without any visceral metastasis (5). It remains elusive why their survival rates are so poor and further exploration of the life-threatening factors in patients with penile cancer may thus be necessary.
The surgical management of penile cancer has shifted from radical ablative surgery to organ-preserving techniques, with closer surgical margins, which provide good oncological, psychological and functional outcomes (7,8). Traditionally, the tumour-free margin of partial penectomy is recommended to be at least 20 mm (7,9). Agrawal et al (10) suggested a 10-mm surgical margin for grade 1 or 2 and a 15-mm surgical margin for grade 3 penile cancer. Hoffman et al (11) and Minhas et al (12) suggested a surgical margin of 10 mm or less, while Sri et al (13) concluded that a >1 mm surgical margin has a low risk of local recurrence in organ-preserving surgery. Therefore, no precise and unified clinical data of appropriate surgical margins have been reported to date (14,15) and the cause of this issue remains elusive.
The present study reported the recurrence of multiple carcinomatous foci in the stump after partial penectomy or positive margins in penile cancer. Subsequently, the metastatic pathways of penile cancer were summarized according to the current study and a literature review. The coagulation parameters, such as prothrombin time (PT), fibrinogen (FIB) and D-dimer (D-D), were also analysed to evaluate their relationship with T stage and metastasis of penile cancer.
Patients and methods
Patients with penile SCC
A retrospective review was performed including 94 cases of penile SCC encountered between November 2002 and August 2020 at the WuMing Hospital and Cancer Hospital of Guangxi Medical University (Nanning, China). The inclusion criteria were that both the clinical and the pathologic data were integrated. Patients lacking reliable pathologic data were excluded from the present analysis.
The study was in accordance with the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of WuMing Hospital of Guangxi Medical University (Nanning, China). All cases were diagnosed as penile SCC by surgical pathology, as reviewed by two pathologists. Clinical information was acquired from the patients' clinical charts. The included patients were diagnosed from specimens of partial or radical penectomy. TNM staging was performed according to the Eighth Edition TNM Penile Staging System (16).
The related coagulation lab detection results, including plasma PT, thrombin coagulation time (TT), FIB and D-D, were also analysed (Table I).
Statistical analysis
Figures were generated using GraphPad Prism 9 software (GraphPad Software; Dotmatics). An unpaired Student's t-test was performed to compare the PT, activated partial thromboplastin time and fibrinogen levels of patients between the corpora cavernosum invasion and no invasion groups. Mann-Whitney U-test was used to compare coagulation parameters between the lymph metastasis group and no metastasis group, and D-dimer levels between the corpora cavernosum cavernous invasion and no invasion group. The relationships between coagulation parameters, cavernous invasion and pelvic lymph node metastasis were evaluated using Spearman's correlation coefficient. Statistical analyses were performed using SPSS software (version 21; IBM Corporation). P<0.05 was considered to indicate a statistically significant difference.
Results
Patient characteristics
A total of 94 patients were included in the present study; the patients' age ranged from 25 to 95 years (mean ± standard deviation, 53.3±1.4 years). A total of 77 patients (81.9%) underwent partial penectomy and 17 (18.1%) underwent radical penectomy. Furthermore, 71 patients (75.5%) underwent open or laparoscopic inguinal lymph node dissection or biopsy, while 23 patients (24.5%) did not undergo inguinal lymph node dissection. Among these former 71 cases, 63 (90%) were subjected to inguinal lymph node dissection, while 7 (10%) underwent inguinal lymph node biopsy.
A total of six patients presented with embolism or typical multiple lesions were observed (Fig. 1, Fig. 2, Fig. 3, Fig. 4, S1 and S2). Table I presents the laboratory parameters of cases 1, 2, 4. A total of two patients who died of inguinal blood vessel rupture were also not presented in detail (their data were included in the study but not included in the evaluation of coagulation function. These cases were not among the 6 cases mentioned at the start of this paragraph and not included in the case reports). Furthermore, one case of secondary penile carcinoma that occurred via a different metastatic pathway was noted, and presented as case 4 in the case reports (this case was not included in the SCC group and not included in the statistical analysis).
PT in patients with and without invasion of the corpora cavenosum
The PT (normal range, 9–13 sec) exhibited differences between the groups of patients with and without invasion of the corpora cavernosum (Fig. 1A; Table II; P=0.048). The PT was also different between patients with or without pelvic lymph node metastasis (Fig. 1B; P=0.006). The PT was negatively correlated with pelvic lymph node metastasis (ρ=−0.366; P=0.009).
 | Table II.Clinicopathological features of typical cases of primary and secondary penile carcinoma in the present study. |
Coagulation parameters in penile lesions
D-D was correlated with T stage (ρ=−0.287; P=0.048) and with cholinesterase (ρ=−0.380; P=0.009; Fig. S2A and B). FIB was correlated with neutrophils (ρ=0.337; P=0.004; Fig. S2D) and lymphocytes (ρ=−0.241; P=0.041; Fig. S2E). A relationship between FIB and carcinoembryonic antigen was also demonstrated (ρ=0.643; P=0.018; Fig. S2C).
Presentation of typical cases
General
Cases 1–3 had multiple penile lesions, Case 4 had secondary penile carcinoma and Cases 5–7 had embolisms.
Case 1: Multiple carcinomatous foci confirmed by radical penectomy

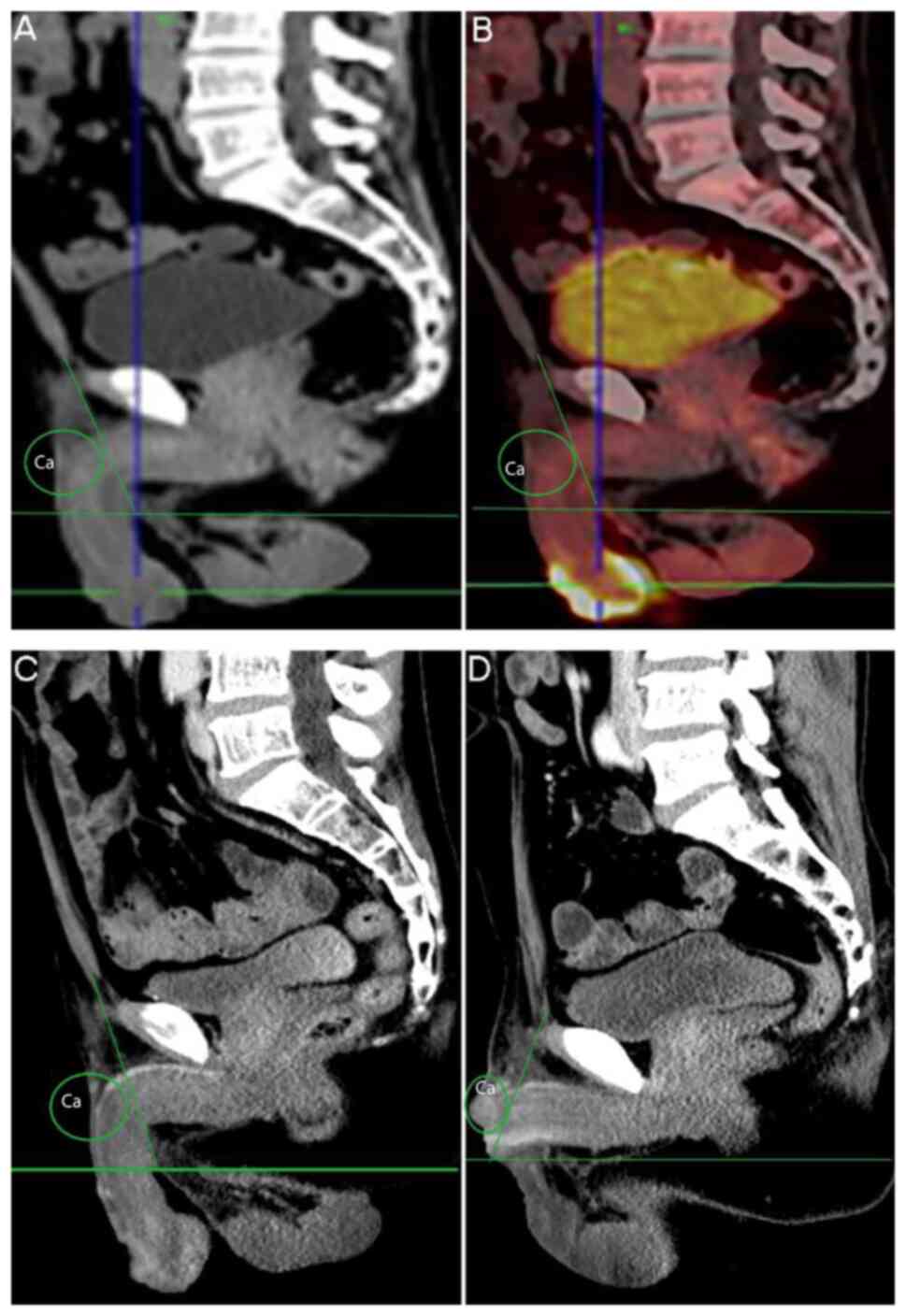

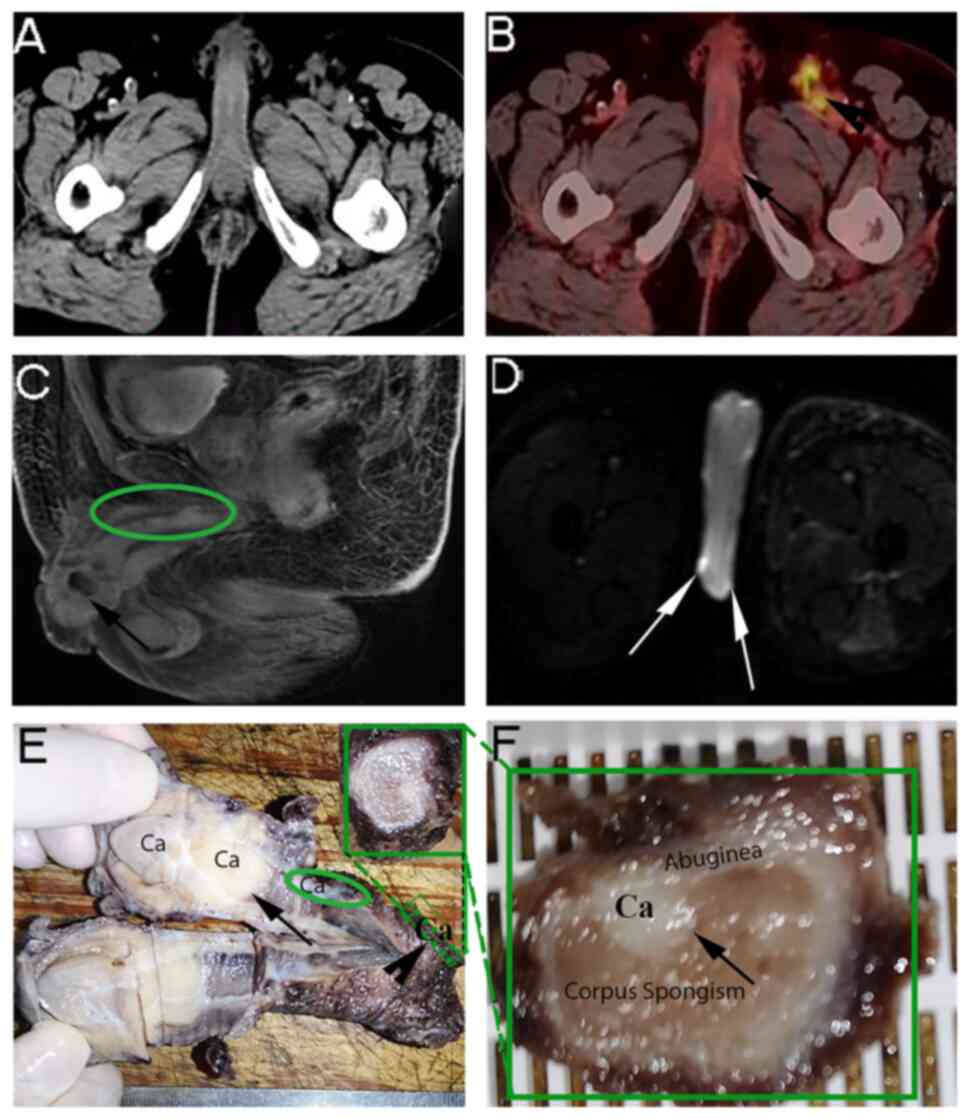

A 66-year-old male complained of a penile tumour for 2 months in July 2020 (Fig. 2A). The positron emission tomography (PET)/CT results indicated multiple metastatic lymph nodes in the lower thoracic spine, abdominal aorta, bilateral iliac vessels and bilateral inguinal regions (Fig. 2B). Radical penectomy was performed after neoadjuvant chemotherapy. However, the postoperative pathology suggested that the margin of the corpora cavernosum was positive. Multiple carcinomatous foci were confirmed by MRI (Fig. 2C and D), and histological and pathological examination (Fig. 2E and F; Table I).
Case 2: Two penile operations within 3 months due to recurrence and multiple penile lesions
A 55-year-old male complained of a penile tumour that had recurred for one month in August 2018. The neoplasms had originally been resected 20 years previously. CT and PET/CT indicated metastasis of the bilateral inguinal and the left rib (Fig. 3A-D). SCC was confirmed after partial penectomy with unilateral inguinal lymph node dissection. The margin was negative (Table I).
Recurrent cancer of the penile stump was found only one month after the second operation. Radical penectomy and inguinal lymphadenectomy were performed. After one year, the patient died without having undergone any chemoradiotherapy.
Case 3: A negative margin was confirmed, but recurrence with multiple penile lesions was observed
A 49-year-old male complained of a penile tumour in January 2016. An SCC with a negative margin was confirmed by frozen and routine pathology. However, the recurrence of SCC with multiple penile lesions was confirmed by radical penectomy within one year. The patient died 8 months later.
Case 4: Different metastatic pathways of secondary penile carcinoma
This case is presented only to illustrate the metastatic pathway, but it was not included in the SCC group and not included in the statistical analysis. A 49-year-old male underwent radical cystectomy because of urothelial carcinoma of the bladder 1 year prior to presentation in March 2020. A penile nodule was observed following symptoms of scrotum and left lower limb swelling for 1 month. At first, the penile lesion was small, but it rapidly expanded in size (Fig. 4E and F; Table I). Metastasis from a bladder urothelial carcinoma was confirmed by pathology. The patient died 6 months later without chemoradiotherapy and immunotherapy.
Case 5: Pulmonary embolisms were found during hospitalization
A 45-year-old male complained of right inguinal ulceration for one month in March 2020. Partial penectomy had been performed one year prior. Four cycles of postoperative chemotherapy were administered. A 4×8 cm inguinal mass was palpated in the right groin.
Right pulmonary embolism was found while the patient was hospitalized. Inferior vena cava filter placement and anti-freezing treatment were performed. Partial penile resection plus laparoscopic bilateral inguinal lymph node dissection was then performed. The patient remained alive after a follow-up of 3 months.
Case 6: Femoral vein embolus and pulmonary embolism
A 48-year-old male underwent partial penile resection and bilateral inguinal lymph node dissection 4 years prior in February 2018. Recurrent right inguinal lymph node metastasis was detected. The metastatic lymph nodes were adjacent to the right iliac artery and inguinal area. Right femoral vein embolus and pulmonary embolism were confirmed by CT (Fig. S1). Inferior vena cava filter implantation, thrombolysis and radiotherapy were performed. The patient died 4 months later.
Case 7: External iliac vein and femoral vein embolisms migrated to the popliteal vein
A 53-year-old male complained of inguinal masses for 10 days in August 2015. A penile small mass was noted that had gradually increased in size for two years. The largest inguinal lymph node was found on the left and was 50×30 mm in size. External iliac vein thrombus was found on the same side (left), and the left femoral vein migrated to the popliteal vein. Inferior vena cava filter implantation, left iliac vein stent placement and thrombolysis were performed. The venous thromboses were controlled. Total penectomy was performed after chemotherapy (5-fluorouracil and cisplatin). The patient died 10 months later.
Discussion
The present study suggests that venous thrombosis may be a serious life-threatening complication of advanced penile cancer. Furthermore, multiple carcinomatous foci were found in histological images. More importantly, direct clinical evidence for the different metastatic pathways of primary and secondary penile carcinoma was provided (Fig. 4A-D).
PT measurement is a screening test to check for impairment of the function of the extrinsic coagulation system. The PT exhibited differences between patients with or without pelvic lymph node metastasis, and between patients with or without invasion of the corpora cavenosum. Shortened PT indicates thrombotic disease, disseminated intravascular coagulation (DIC) hypercoagulability or congenital increase in coagulation factor V levels. Venous thromboembolism (VTE) is a common complication in patients with cancer. Direct oral anticoagulants may be an effective and safe therapeutic choice (17) for patients with advanced penile cancer.
The coagulation parameters, including FIB and D-D, have been reported to influence the prognosis of cancer (18). D-D was also associated with T stage in the present study. D-D has been commonly used for the diagnosis and evaluation of VTE (19).
To the best of our knowledge, the present study was the first to investigate the relationship between venous metastasis and penile thrombosis, and femoral vein thrombosis and pulmonary embolism. Clinicians should pay attention to the life-threatening vein emboli. Additionally, it should be noted that some patients with penile cancer rarely develop cachexia despite the poor prognosis, unlike patients with other types of tumour. In the present study, numerous patients were relatively young (6), were in otherwise good physical health and had no visceral metastases, but their prognosis was poor (5). Life-threatening venous embolisms have an important role in prognosis, as demonstrated by the current study (Figs. 1, 4 and S1). Considering that three current patients who required clinical intervention for thrombosis were found during hospitalization (3.2%; 3/94), the proportion of patients with urgent thromboembolic events may be higher than expected. Inferior vena cava filter implantation and thrombolysis are the treatments for vein embolus. These treatments were effective, as demonstrated in cases 5–7.
Venous thrombosis may be a life-threatening complication of penile cancer, particularly in relatively young males in otherwise good physical condition. The occurrence of a thromboembolic event may be a life-threatening complication for numerous cancer patients (20). The presence of a hypercoagulable state in patients with malignancies is generally emphasized in clinical practice (19,21), and it is particularly important to monitor various indicators of coagulation, evaluate VTE and assess the hypercoagulable state in high-risk patients with penile cancer.

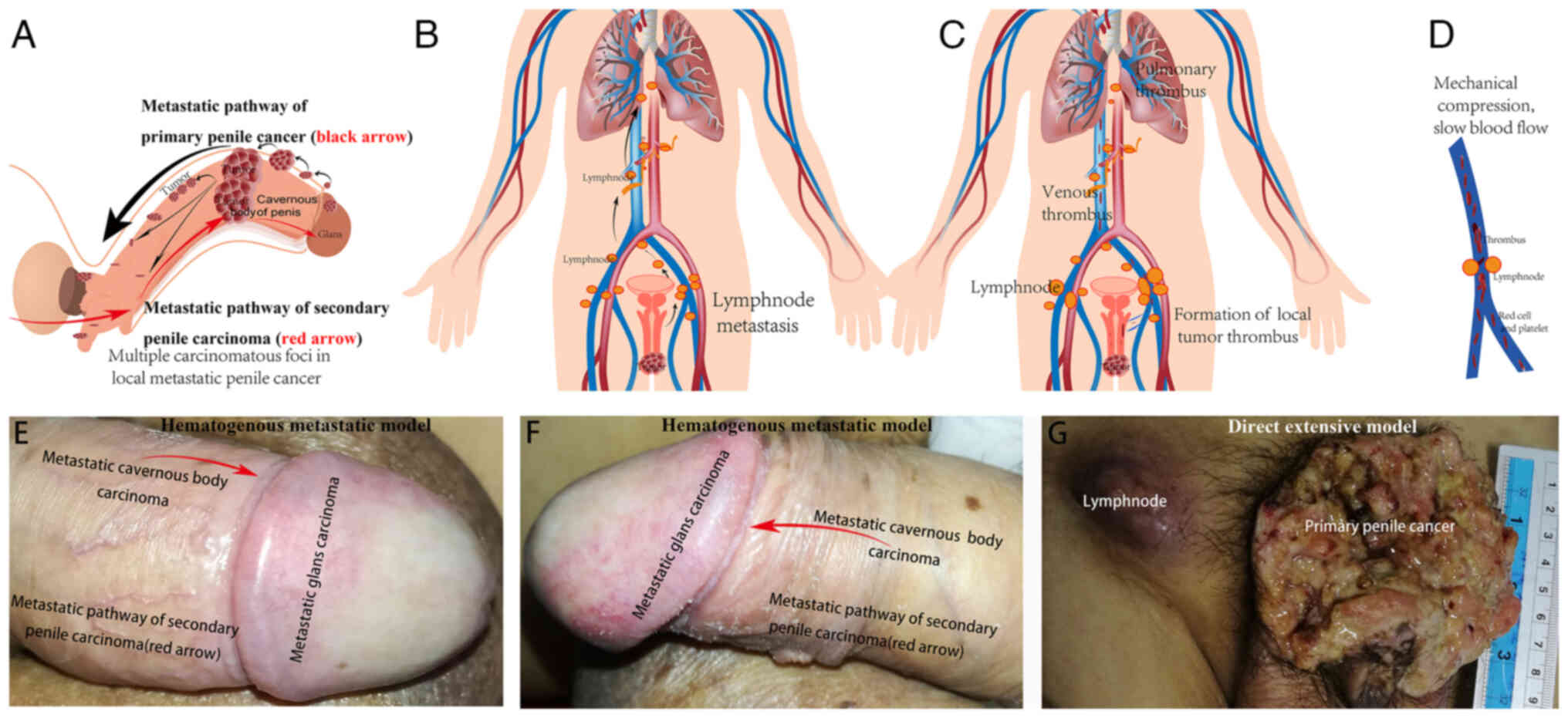

For venous metastasis, the local small tumour thrombus of penile cancer may propagate along the vein. When inguinal lymph node metastases compress the vein, the local blood flow is slowed, which increases the risk of thrombosis. After the formation of thrombi, this condition may embolize to vital organs, such as the lung, which may be life-threatening, as indicated in cases 5–7 (Fig. 4C and D).
It may be suggested that the multifocal features of high-stage penile carcinoma is one of the reasons why it is difficult to develop guidelines regarding an adequate surgical margin. In case 1, direct histological evidence of multifocal lesions of penile carcinoma was found. In case 2, the surgical margin of the patient was negative after partial penectomy, but SCC recurred on the penile stump only 1 month after surgery, which also highlights the occurrence of multifocal lesions in advanced-stage penile cancer.
In the present study, three patients with at least stage T2 cancer had lymph node metastasis and infiltrated tunica albuginea (cases 1–3). In addition, local multiple microvascular tumour thrombi were present and tumour markers, such as SCC-associated antigen and cytokeratin 19 fragment, were increased. If these features are present, radical penectomy may be recommended.
Thus, the present study suggested that for improved prognosis of patients with a late clinical stage, instead of partial penectomy, a more reasonable choice of treatment may be radical amputation. The following signs may indicate the requirement for radical penectomy: Stage T2 or above and accompanied by lymph node metastasis; infiltrated tunica albuginea; formatted local multiple vascular tumour thrombus; increased tumour markers, such as SCC-associated antigen and cytokeratin 19 fragment; and multiple hypermetabolic masses in the penile shaft as indicated by PET/CT.
In the early stage, local invasion and lymphatic metastasis are the main mode of metastasis in primary penile cancer, while in advanced primary tumors, hematogenous metastasis may serve a main role.
These multifocal lesions may represent the local metastatic pathway of primary penile cancer and this metastasis appears mainly located under the albuginea and may spread to the distant cavernous body (Fig. 4A, black arrow). The inguinal lymph node is the most common site of lymph node metastasis, which may extend from the pelvic vessels and abdominal aorta to the mediastinum in primary penile cancer (Fig. 4B).
However, the model of metastasis of secondary penile carcinoma is different. The local advanced model of primary penile cancer is direct extension, the lesion diffuses from the glans and distal penis to proximal region. However, the mode of metastasis of secondary carcinoma is hematogenous metastasis. In the secondary model, the lesion diffuses from the proximal penis to the distal shaft and glans (Fig. 4E-G). As shown in case 4 with primary urothelial carcinoma of bladder, the penis was invaded and rapidly metastasized from the penile body to the glans, and then the whole penile cavernous body was harden (Fig. 4E-G). The metastatic pathway can be evidenced by the erythema in the glans as shown in case 4. The metastatic lesion originated from the proximal penile body, and then spread to the distal penile glans, which was visible to the naked eye (Fig. 4A, black and red arrows; Fig. 4E-G).
Although the prognosis of penile cancer is generally poor, radical penectomy in high-risk patients with multiple lesions may reduce the symptoms of dysuria and pain, and the economic burden of secondary surgery for certain patients who may have financial difficulties. The combination of chemotherapy, radiotherapy, ongoing immunotherapy and the results of the International Penile Advanced Cancer Trial may bring hope to patients with advanced penile cancer (22).
One of the limitations of the present study is that thrombus examination was not performed in all patients, such as deep vein color Doppler ultrasound studies. As another limitation, there was a lack of survival analysis data. Furthermore, the sample size of the present study was relatively small.
In conclusion, the present study was the first to find multiple carcinomatous focus in primary high-grade penile cancer. Multiple carcinomatous focus should be evaluated in patients with metastatic penile cancer of T2 stage or above. It may be suggested that venous thrombosis is one of the life-threatening complications of advanced penile cancer. PT exhibited differences between patients with or without pelvic lymph node metastasis, and with or without invasion of the corpora cavernosum. Inferior vena cava filter implantation and thrombolysis are treatment choices for venous thrombosis. Most importantly, to the best of our knowledge, the present study was the first to report clinical evidence for the different metastatic pathways of primary and secondary penile carcinoma.
Supplementary Material
Supporting Data
Acknowledgements
Not applicable.
Funding
This work was supported by the ‘139’ Program Training Project for the Cultivation of High-level and Key Talent in Guangxi Medicine, China (grant no. G201903036), the National Natural Science Fund of China (grant nos. 31860289 and 32260241), Guangxi Scientific Research and Technology Development Projects of China (grant no. 1355005-3-11), Guangxi Medical and Health Key Research Projects of China (grant no. 2012093), Scientific Research and Technology Development Project, Wuming District, Nanning, China (grant no. 20180120) and the self-financing research of the Health Department of Guangxi Autonomous Region (grant no. Z20210631), which funded the fee for the polishing and publication of the article.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Authors' contributions
XY and WL were involved in the design and conceptualization of the study. Drafting of the manuscript and the acquisition, analysis and interpretation of data were performed by XY, WL, HL and YT. XY and HL confirm the authenticity of all the raw data. All authors have read and approved the final manuscript.
Ethics approval and consent to participate
The study was approved by the Ethics Committee of Wuming Hospital of Guangxi Medical University [Nanning, China; no. WM2022(080)].
Patient consent for publication
Written informed consent was obtained from the patients or the patients' next of kin for the publication of their case data and accompanying images.
Competing interests
The authors declare that they have no competing interests.
Glossary
Abbreviations
Abbreviations:
|
SCC |
squamous cell carcinoma |
|
PET/CT |
positron emission-computed tomography |
|
PT |
prothrombin time |
References
|
Misra S, Chaturvedi A and Misra NC: Penile carcinoma: A challenge for the developing world. Lancet Oncol. 5:240–247. 2004. View Article : Google Scholar : PubMed/NCBI | |
|
Montella M, Sabetta R, Ronchi A, De Sio M, Arcaniolo D, De Vita F, Tirino G, Caputo A, D'Antonio A, Fiorentino F, et al: Immunotherapy in penile squamous cell carcinoma: Present or future? Multi-target analysis of programmed cell death ligand 1 expression and microsatellite instability. Front Med (Lausanne). 9:8742132022. View Article : Google Scholar : PubMed/NCBI | |
|
Sirithanaphol W, Sookprasert A, Rompsaithong U, Kiatsopit P, Wirasorn K and Chindaprasirt J: Prognostic factors for penile cancer and survival in response to multimodality therapy. Res Rep Urol. 12:29–34. 2020.PubMed/NCBI | |
|
Rippentrop JM, Joslyn SA and Konety BR: Squamous cell carcinoma of the penis: Evaluation of data from the surveillance, epidemiology, and end results program. Cancer. 101:1357–1363. 2004. View Article : Google Scholar : PubMed/NCBI | |
|
Paiva GR, de Oliveira Araújo IB, Athanazio DA and de Freitas LAR: Penile cancer: Impact of age at diagnosis on morphology and prognosis. Int Urol Nephrol. 47:295–299. 2015. View Article : Google Scholar : PubMed/NCBI | |
|
Liu W, Luo Y, Wang G, Li N, Wang Z, Lei J and Wang X: Conditional survival after surgery for patients with penile cancer. Andrology. 8:1744–1752. 2020. View Article : Google Scholar : PubMed/NCBI | |
|
Emmanuel A and Watkin N: Update on organ preserving surgical strategies for penile cancer. Urol Oncol. 40:179–183. 2022. View Article : Google Scholar : PubMed/NCBI | |
|
McDougal WS: Phallic preserving surgery in patients with invasive squamous cell carcinoma of the penis. J Urol. 174:2218–2220. 2005. View Article : Google Scholar : PubMed/NCBI | |
|
Nam JK, Lee DH, Park SW, Kam SC, Lee KS, Kim TH, Kim TS, Oh CK, Park HJ and Kim TN: Clinicopathologic characteristics and treatment outcomes of penile cancer. World J Mens Health. 35:28–33. 2017. View Article : Google Scholar : PubMed/NCBI | |
|
Agrawal A, Pai D, Ananthakrishnan N, Smile SR and Ratnakar C: The histological extent of the local spread of carcinoma of the penis and its therapeutic implications. BJU Int. 85:299–301. 2000. View Article : Google Scholar : PubMed/NCBI | |
|
Hoffman MA, Renshaw AA and Loughlin KR: Squamous cell carcinoma of the penis and microscopic pathologic margins: How much margin is needed for local cure? Cancer. 85:1565–1568. 1999. View Article : Google Scholar : PubMed/NCBI | |
|
Minhas S, Kayes O, Hegarty P, Kumar P, Freeman A and Ralph D: What surgical resection margins are required to achieve oncological control in men with primary penile cancer? BJU Int. 96:1040–1043. 2005. View Article : Google Scholar : PubMed/NCBI | |
|
Sri D, Sujenthiran A, Lam W, Minter J, Tinwell BE, Corbishley CM, Yap T, Sharma DM, Ayres BE and Watkin NW: A study into the association between local recurrence rates and surgical resection margins in organ-sparing surgery for penile squamous cell cancer. BJU Int. 122:576–582. 2018. View Article : Google Scholar : PubMed/NCBI | |
|
Lindner AK, Schachtner G, Steiner E, Kroiss A, Uprimny C, Steinkohl F, Horninger W, Heidegger I, Madersbacher S and Pichler R: Organ-sparing surgery of penile cancer: Higher rate of local recurrence yet no impact on overall survival. World J Urol. 38:417–424. 2020. View Article : Google Scholar : PubMed/NCBI | |
|
Miyamoto H: Clinical benefits of frozen section assessment during urological surgery: Does it contribute to improving surgical margin status and patient outcomes as previously thought? Int J Urol. 24:25–31. 2017. View Article : Google Scholar : PubMed/NCBI | |
|
Pettaway CA, Srigley JR, Brookland RK, Choyke PL and Amin MB: Penis. Amin MB, Edge SB, Greene FL, et al: AJCC cancer staging manual. 8th edition. New York: Springer; pp. pp7012017 | |
|
Lee AYY: Anticoagulant therapy for venous thromboembolism in cancer. N Engl J Med. 382:1650–1652. 2020. View Article : Google Scholar : PubMed/NCBI | |
|
Wang FM and Xing NZ: Systemic coagulation markers especially fibrinogen are closely associated with the aggressiveness of prostate cancer in patients who underwent transrectal ultrasound-guided prostate biopsy. Dis Markers. 2021:88999942021.PubMed/NCBI | |
|
Bates SM, Greer IA, Middeldorp S, Veenstra DL, Prabulos AM and Vandvik PO: VTE, thrombophilia, antithrombotic therapy, and pregnancy: Antithrombotic therapy and prevention of thrombosis, 9th ed: American college of chest physicians evidence-based clinical practice guidelines. Chest. 141 (2 Suppl):e691S–e736S. 2012. View Article : Google Scholar : PubMed/NCBI | |
|
Winters J and Garcia D: Cancer-associated thrombosis. Hematol Oncol Clin North Am. 24695–707. (viii)2010. View Article : Google Scholar : PubMed/NCBI | |
|
O'Leary JG, Greenberg CS, Patton HM and Caldwell SH: AGA Clinical practice update: Coagulation in cirrhosis. Gastroenterology. 157:34–43.e1. 2019. View Article : Google Scholar : PubMed/NCBI | |
|
Chahoud J, Kohli M and Spiess PE: Management of advanced penile cancer. Mayo Clin Proc. 96:720–732. 2021. View Article : Google Scholar : PubMed/NCBI |
