Ultrasonic evaluation of congenital vaginal oblique septum syndrome: A study of 21 cases
Affiliations: Department of Ultrasound, Shandong Provincial Hospital Affiliated to Shandong University, Jinan, Shandong 250021, P.R. China, Department of Ultrasound, Heze Municipal Hospital, Heze, Shandong 274000, P.R. China, Department of Radiology, Shandong Provincial Hospital Affiliated to Shandong University, Jinan, Shandong 250021, P.R. China, Department of Ultrasound, Shanghai Dongfang Hospital Affiliated to Tongji University, Shanghai 200120, P.R. China
- Published online on: July 6, 2018 https://doi.org/10.3892/etm.2018.6411
- Pages: 2066-2070
This article is mentioned in:
Various case reports have described congenital abnormalities of the unilateral hematocolpos and ipsilateral renal agenesis (1–3). In 1985, Bian named this condition congenital vaginal oblique septum syndrome (CVOS) (4) and it is also known as Herlyn-Werner-Wunderlich syndrome (3,5,6). CVOS is usually caused by congenital malformation in the vagina, which results in the development of a double uterus and cervix (6). There is also an oblique diaphragm from the cervical side to the bottom of unilateral vaginal wall, known as the vaginal oblique septum, which blocks lateral cervical pathways (7). The effusion lacuna caused by obstruction is known as behind-septum vaginal cavity (7). Renal agenesis usually occurs in patients with the malformation on the oblique septum side due to embryonal dysplasia (7). Clinically, there are three types of CVOS: Types I, II and III (4,6). Patients with type I CVOS do not possess a hole in the oblique septum and the attachment of the uterus to the vagina is normal (6,8). However, these patients have an additional uterus behind the septum that is entirely isolated from the contralateral uterus (6,8). Menstrual blood is retained behind the septum vaginal cavity and in certain cases, the uterine cavity. Patients with type II CVOS exhibit a hole several mm thick in the reclined septum through which menstrual blood can flow (6,8). Patients with type III CVOS possess no hole in the oblique septum, but exhibit a cervical fistula between the two lateral cervixes or between the cavity behind the septum and contralateral cervix (6,8). Menstrual blood on the oblique septum may drain through the contralateral cervix (4). As CVOS is a very rare syndrome, it is easily misdiagnosed and the treatment is often delayed (6). Early accurate diagnosis and resection of the oblique vaginal septum are therefore important, emphasizing the need to recognize the syndrome early (6). The purpose of the current study was to identify the features of CVOS detected by ultrasound, classify the lesion types of CVOS and to compare the results of the ultrasound with the intraoperative and pathology results.
Patients and methods
Between December 1996 and September 2015, 21 female patients with suspected CVOS were included in the current retrospective study from the Provincial Hospital Affiliated to Shandong University (Jinan, Shandong), the People's Hospital of Linyi City (Linyi, Shandong) and Heze Municipal Hospital (Heze, Shandong). These patients included 15 already included in a previous study (8). For the present study, a further 6 patients were identified based on sonogram and one of them who underwent magnetic resonance imaging examination showed the same result. The mean age of the patients was 17.29±5.69 years old (range, 13–32 years). Patients without typical ultrasonic features were excluded. A grey-scale pelvic ultrasound was performed to evaluate the uterus, vagina and kidneys prior to surgery. A total of 15 patients with type I CVOS received surgery immediately following the confirmation of diagnosis. Excluding a patient with type III CVOS who received surgery whilst 17 weeks pregnant, the remainder of patients also underwent surgery once the diagnosis was confirmed. Transvaginal resection of the reclined septum was performed in all patients. All 15 patients with type I CVOS had both normal menstrual cycles and dysmenorrheal unilateral abdominal pain. Dysmenorrhea was preliminarily less severe, but increased in severity over time. The mean duration from the first menstruation to operation was 6.67±2.06 months in type I (mean duration of dysmenorrhea, 3.60±1.68 months), 27.00±13.60 months in type II (mean duration of symptoms, 23.2±12.42 months) and 134 months in type III (excluding the pregnant patient). Excluding dysmenorrhea, the remaining 6 patients with type II and type III also exhibited menstrual extension and vaginal purulent drainage. Vaginal or rectal examination revealed masses of various sizes beside the normal vagina in all patients.
Grey-scale ultrasound imaging was performed trans-abdominally with a LogiqE8 or LogiqE9 (GE Healthcare, Chicago, IL, USA), an HDI 3500 (ATL; Philips Healthcare, Andover, MA, USA) or an Envision HD system (Philips Healthcare), with multi-frequency (3–6 MHz) convex transducers. Pelvic organs were routinely scanned when the bladders of patients were moderately filled to provide an optimal imaging window. Following ultrasound, the appearance of the uterus, cervix, vagina and ovaries were assessed and documented. Any abnormal findings were also recorded. When a mass within the vagina was detected, the association between the mass and adjacent organs was investigated; the size of the mass was measured in three dimensions: d1, d2 and d3 [meaning length (longitudinal section), width (cross section) and thickness (anteroposterior section), respectively] using the scales on each ultrasound machine. The volume of the mass was calculated using the following formula: V=0.52 × d1 × d2 × d3. Ultrasound results were compared with intraoperative and pathological results. Furthermore, bilateral renal areas were scanned to identify each kidney due to CVOS often accompanying kidney absence according to theories of embryonic development. As computed tomography urography (CTU) and Intravenous pyelogram (IVP) are more sensitive and comprehensive methods for kidney examination than ultrasonography, CTU and IVP were performed in 10 and 5 patients, respectively when ultrasonic examination was unable to confirm kidney absence However, CTU was not routinely utilized at the beginning of this study, so most patients were only examined using IVP. In recent years, IVP has been substituted for CTU in the majority of hospitals and the patients who exhibited suspected renal dysplasia mostly underwent CTU. In the current study, CTU was performed using a 64-detector row CT scanner (Lightspeed VCT; GE Healthcare) by intravenously injecting 80 ml iopromide (Ultravist. 300; 740 mg/ml) at a rate of 4 ml/sec, following 20 ml normal sodium reinjection to make optimal use of diagnostic opacity. The data acquisition was initiated 30 min. IVP was performed using a Hitachi TU-130 (Hitachi, Ltd., Tokyo, Japan) and a Shimadzu NAX-500RF (Shimadzu Corporation, Kyoto, Japan) X-ray machine by intravenously injecting 40 ml meglumine diatrizoate (Hunan Hansen Pharmaceutical Co., Ltd., Yiyang, China). The renal area was photographed 7, 15 and 30 min following injection.
Ultrasonic diagnosis consisting with surgery
Following ultrasound examination, all 21 patients underwent surgery to remove the oblique septum and drain any blood retained within the hematocolpos via a transvaginal approach. Based on the characteristics of ultrasound imaging, all 21 cases were diagnosed with CVOS prior to this surgery. All 21 patients exhibited a double uterus and cervix with ipsilateral renal agenesis on the oblique septum side and compensatory enlargement of the contralateral kidney. A total of 15 patients with ipsilateral renal agenesis were confirmed using IVP (n=10) and CTU (n=5) following ultrasound examination, the remaining 6 patients, confirmed using ultrasound, did not receive the first two examinations as a clear image had already been obtained. Sonograms indicated that the size and shape of bilateral ovaries of all patients were within normal limits. Oval cystic masses of various sizes with dense floating echogenic debris were identified on the ultrasound images taken from all patients. There were 14 hematocolpos lesions on the right and 7 on the left of the vagina. Type I CVOS was diagnosed in 15 patients with large hematocolpos masses (volume, 64–268 ml), which was confirmed by surgery. There were 4 cases of type II and 2 cases of type III CVOS with small hematocolpos lesions (volume, 5–36 ml), which were surgically confirmed. These three types of CVOSs are demonstrated in Fig. 1.

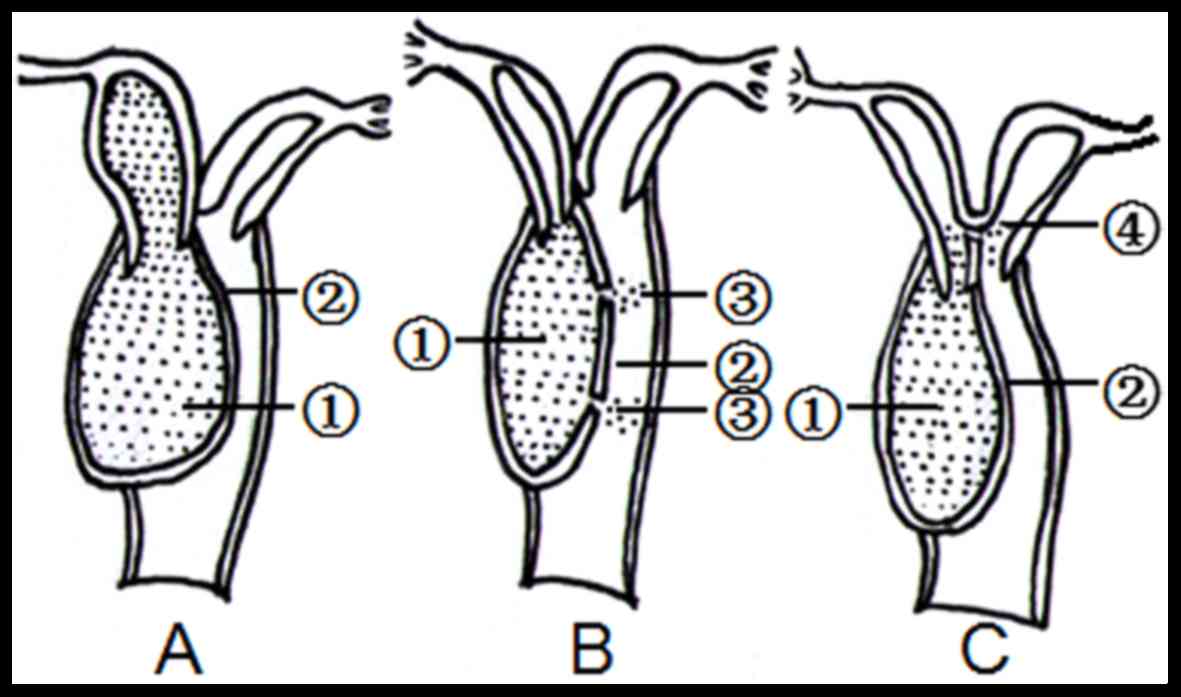

Different types of CVOS. (A) Type I CVOS with a complete oblique septum and retained menstrual blood behind the septum vaginal and uterine cavities (B). Type II CVOS exhibiting an oblique septum containing holes. A small quantity of menstrual blood behind the septum vaginal cavity may drain through the holes (C). Type III CVOS demonstrating a complete oblique septum with cervical fistula. A quantity of menstrual blood behind the septum vaginal cavity may drain through the cervical fistula. 1, Retained menstrual blood behind the septum vaginal cavity; 2, oblique septum of the vagina; 3, holes in the oblique septum; and 4, the cervical fistula. CVOS, congenital vaginal oblique septum syndrome.
Ultrasonic features of CVOS
Out of the 15 patients with type I CVOS, there were 9 patients with right oblique septum and 6 patients with left oblique septum (Figs. 2–4). Among the 4 patients with type II CVOS, 3 patients had oblique septum on the right side and another on the left of the vagina (Fig. 5). In the 2 patients with type III CVOS, the septum was on the right side of the vagina (Fig. 6). Patients with types II (n=4) and III (n=2) CVOS exhibited an anechoic vaginal mass with an irregular shape and thickening wall, which was consistent with pathological findings.

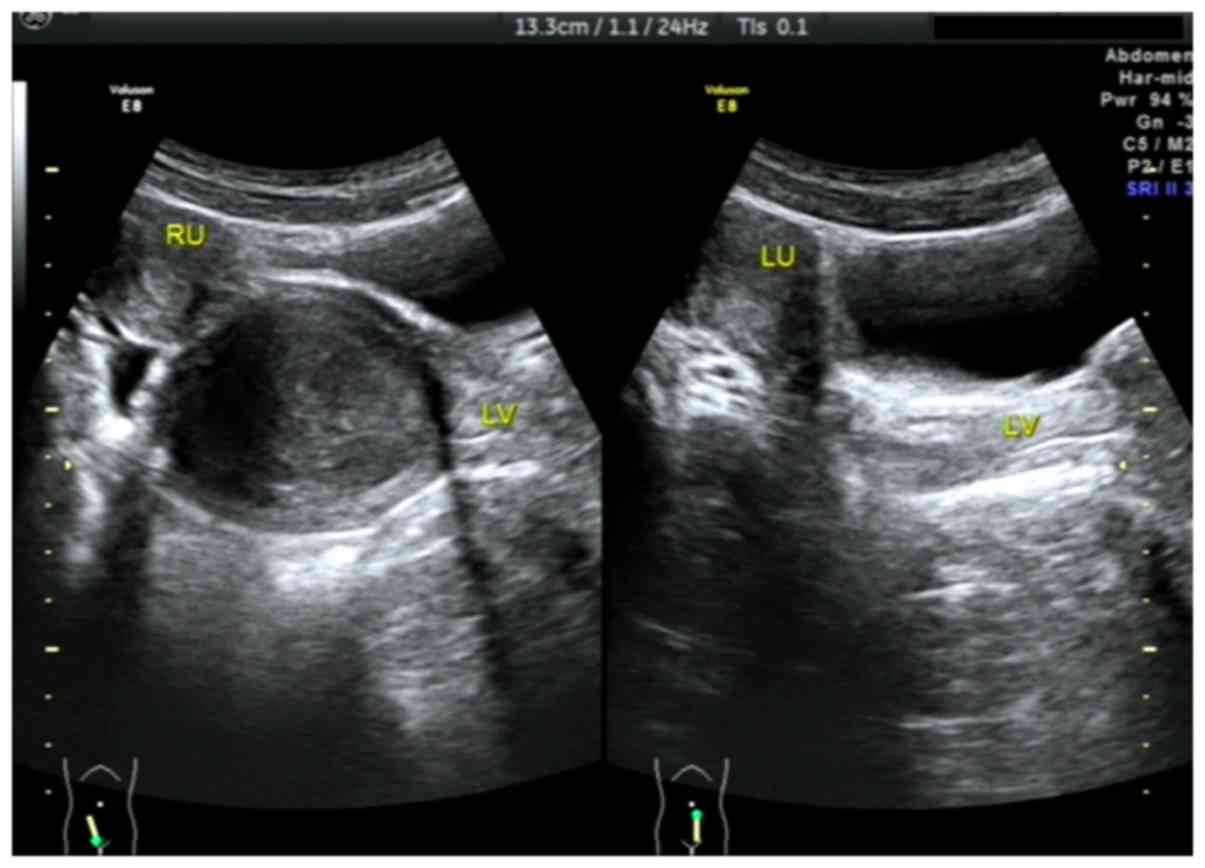

Type I congenital vaginal oblique septum syndrome. Sonograms were obtained from a 14-year-old female patient in sagittal pelvic planes demonstrating a normal right uterus and an oval cystic mass with dense floating echogenic dots behind the right septum vaginal cavity (left side of the figure), normal left uterus and left vagina (right side of the figure). RU, right uterus; LU, left uterus; LV, left vagina.

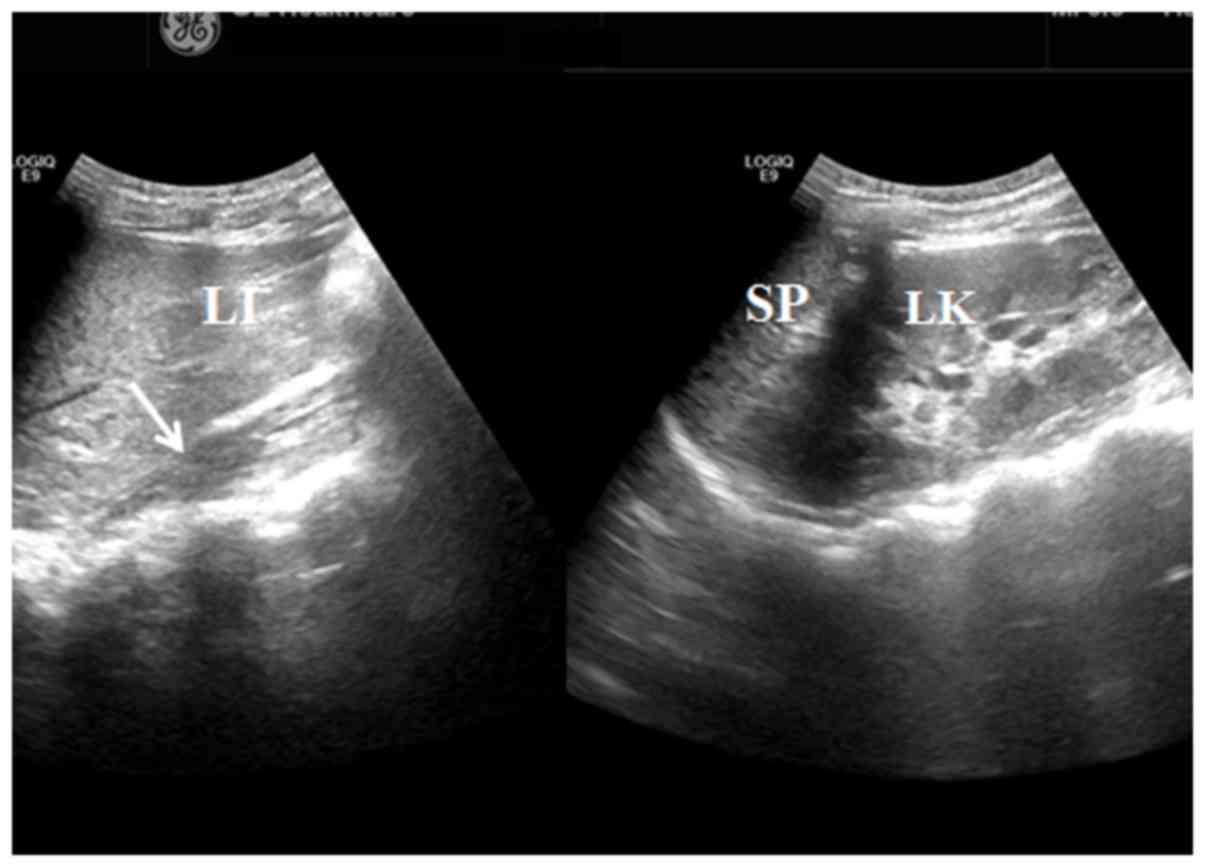

Sonogram obtained from double waist oblique coronal sections from a 14-year-old patient identifying the absence of the right kidney (white arrow; left side of the figure). The left kidney was normal (right side of the figure). LI, liver; SP, spleen; LK, left kidney.

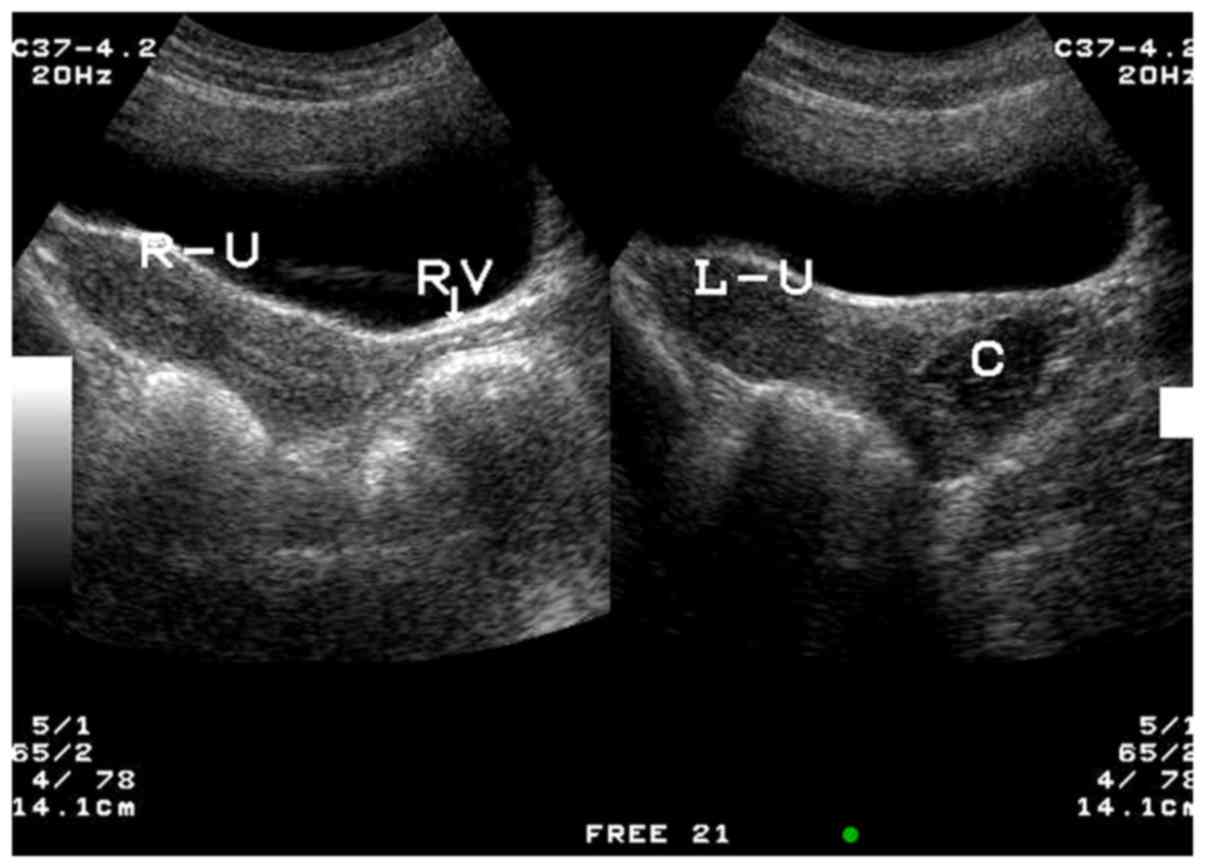

Type II congenital vaginal oblique septum syndrome. Sonograms obtained from a 19-year-old female patient in sagittal pelvic planes exhibiting a cystic mass with dense floating echogenic dots behind the left septum vaginal cavity. The right uterus and right vagina (right side of the figure) and left uterus were normal. R-U, right uterus; RV, right vagina; L-U, left uterus; C, left septum vaginal cavity.

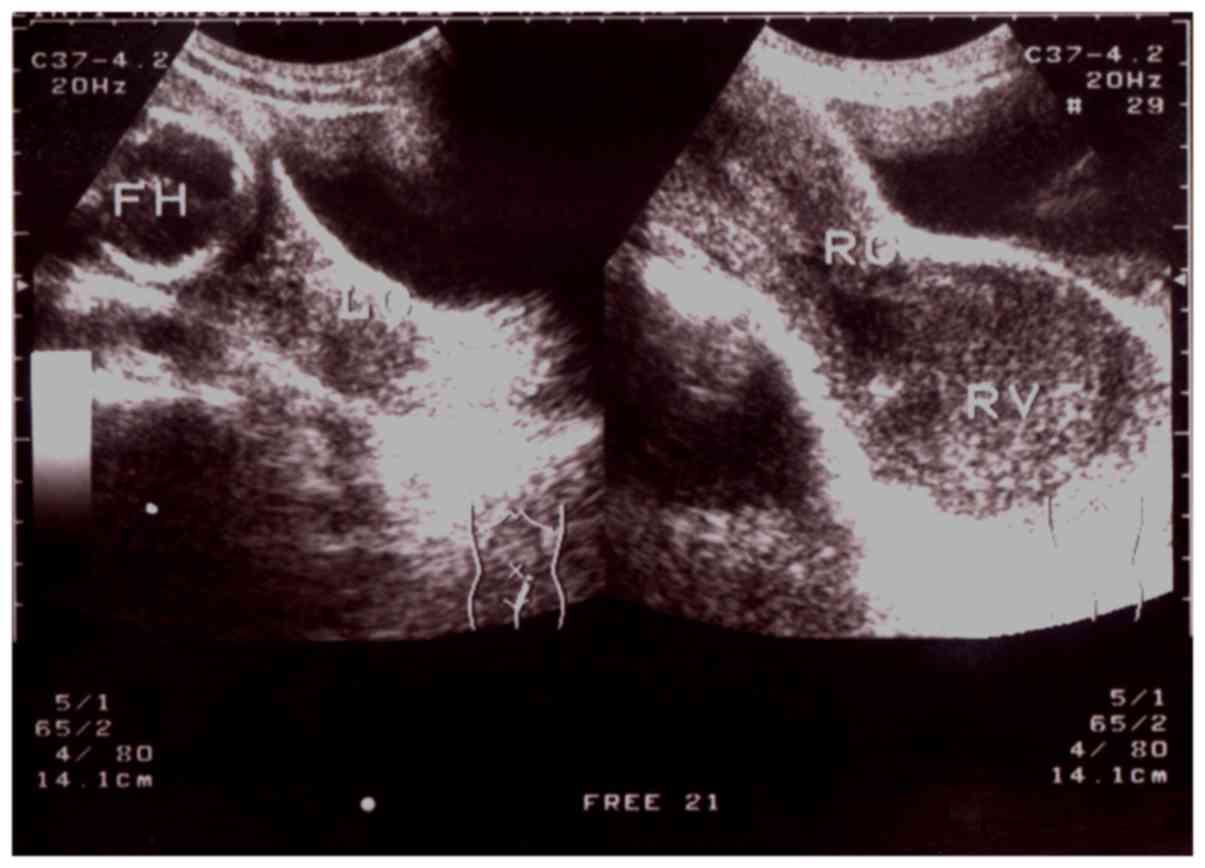

Type III congenital vaginal oblique septum syndrome. Sonograms obtained from a 17-week pregnant 32-year-old female patient with sagittal pelvic planes exhibiting the fetal head in the left uterus and the cystic mass with dense floating echogenic dots behind the right septum vaginal cavity. FH, fetal head; RV, dense floating echogenic dots behind the right septum vaginal cavity; RU, right uterus; RC, right cervix; LC, left cervix.
In previous studies, patients with CVOS were divided into 3 types, namely types I, II and III (4,6). Patients with type I CVOS do not have a hole in the oblique septum and the attachment of the uterus to the vagina is normal; however, these patients have another uterus behind the septum that is completely isolated from the contralateral uterus and do not possess a normal vagina from which menstrual blood may flow. Menstrual blood is retained behind the septum vaginal cavity and in some cases the uterine cavity. Such patients experience a normal menstrual cycle but experience periodic abdominal pain. Patients with type II CVOS have a hole several mm thick in the reclined septum through which menstrual blood drips out. Patients with type III CVOS have no hole in the oblique septum; however, there is cervical fistula between the two lateral cervixes or between the cavity behind the septum and contralateral cervix. Menstrual blood on the oblique septum side may drain out through the contralateral cervix
CVOS diagnosis was previously conducted by conducting X-ray hysterosalpinography and IVP (4). However, due to the popularization and development of instruments to perform ultrasound, ultrasonography has been developed as an accurate, fast, real-time and non-invasive examination method that clearly identifies the uterus, cervix, vaginal hemorrhage, ovarian characteristics and the presence or absence of kidneys (8,9). Kidney absence, which is not easily identified by ultrasound, may be detected by IVP (10).
According to theories of embryonic development, the mullerian and Wolffian ducts originate in the urogenital ridge and the development of mullerian duct depends on the Wolffian duct (4). If there are developmental disorders of the Wolffian duct, the mullerian duct on the same side may also be affected and a series of genitourinary system malformations may occur (4). In patients with type I CVOS, the vaginal cavity behind the septum exhibits hemorrhage and is expanded due to obstruction of the vagina (6). There are specific changes that can be detected by ultrasonograms: The big cystic mass formed by hemorrhage in the vagina can be detected behind the filling bladder, with a clear margin (6). Furthermore, there are point echoes in the cystic mass due to old hemorrhages. The inside wall of the mass is the oblique septum and the upper part is the ipsilateral side of the uterine body connected with it and the contralateral uterine body connected with the ipsilateral normal vagina, which probably has normal endometrium (11). Along with prolonging of the menstrual cycle, the expanding mass and hemorrhage within the uterine cavity can be visualized dynamically. However, due to the extrusion of the hemorrhage to the vagina, it may be difficult to detect the contralateral normal vagina. In the current study, only 5 patients exhibited the normal vagina located in the front of the mass.
Based on the results of the current study and those of previous studies (8,12–14), it has been suggested that a diagnosis of type I CVOS may be made if the following features are identified in the ultrasonogram: i) There is a double uterus with or without uterine cavity hemorrhage on one side, the endometrium of the uterus on the other side is normal; ii) there is a cystic mass below the unilateral uterine body; iii) the contralateral normal vaginal and normal uterus connected with the vagina is identified from the images; iv) the kidney is absent on the side of the mass; and v) the patient undergoes a normal menstrual cycle. For patients with type II and III CVOS, the ultrasonogram is the same as type I apart from a smaller and lower tension of the mass, due to insufficient menstrual blood drainage. However, secondary infection often occurs due to obstruction of menstrual blood drainage.
Out of the patients included in the current study, one patient aged 32 years old was diagnosed with type III CVOS whilst pregnant. CVOS diagnosis during pregnancy is rare and the patient's abdominal pain was reduced due to the absence of menstruation following pregnancy. However, due to persistent purulent secretion, part of the reclined septum was removed transvaginally when the patient was 17 weeks pregnant. At 40 weeks pregnancy, the fetus was in the breech position and the umbilical cord was around the neck of the fetus; therefore, a cesarean section was performed. During surgery, two cervical fistulas located below the gorge and a double uterus with fallopian tubes and ovaries on their side were identified.
Compared to type I CVOS, the other 5 patients with type II and III CVOS demonstrated fewer small cystic masses with thick walls and slightly triangular irregular shapes next to the normal vagina Combined with the presence of a double uterus and ipsilateral renal agenesis, a diagnosis of CVOS was tentatively made. These diagnoses were confirmed by gynecological examination and following surgery. Therefore, ultrasound imaging may be important in aiding the diagnosis of types II and III CVOS. In the majority of patients (14/21) included in the current study, oblique septums were located on the right side, which is consistent with the results of previous studies (1,15,16). Accurate ultrasonic diagnoses may enable clinicians to perform transvaginal resection of the reclined septum and avoid unnecessary laparotomy to excise the uterus and fallopian tube (17).
In conclusion, the results of the current study suggest that the key to diagnosing CVOS accurately lies in correctly assessing the ultrasonic images of patients with CVOS and determining the associated clinical manifestations. The results indicate that diagnoses of CVOS may be made by performing high-resolution ultrasound. Definite diagnoses of type I CVOS was performed in 15 patients using ultrasonograms and helpful patient information was provided from to aid in the timely diagnosis of the 6 patients with types II and III CVOS.
The authors of the present study would like to thank the patients and their families for their support and collaboration, and Dr Ji-Bin Liu (Thomas Jefferson University Hospital, Philadelphia, PA, USA) for guidance on manuscript preparation.
No funding was received.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
All authors participated in the acquisition of data for this study. YHG and HLF were the major contributors in writing the manuscript. All authors have read and approved this manuscript.
Ethics approval and consent to participate
The protocol of the study was approved by the ethics committee of Shandong Provincial Hospital.
Patient consent for publication
The authors declare that they have no competing interests.
