1. Introduction and aim

Basilar artery occlusion (BAO) accounts for approximately 1% of all cases of acute ischemic stroke (AIS) or transient ischemic attacks (TIA), and for 5% of all intracranial large vessel occlusions (LVO) (1,2). Although endovascular treatment is the gold-standard for anterior circulation LVO, its positive impact on the vertebrobasilar system is still a matter of debate (3). Hopefully, ongoing randomized trials will shed more light on this devastating pathology (4). Due to the misleading nature of prodromal symptoms related to BAO, clinical diagnosis is often delayed, leading to prolonged time intervals to imaging evaluation and treatment (5).

Cross-sectional imaging has proven its diagnostic and prognostic utility for anterior circulation LVO shifting the paradigm from time is brain to imaging is brain (6). Computed tomography (CT) is the main imaging modality for the diagnosis of suspected AIS owing to its widespread availability in emergency departments. CT has a sensitivity of up to 80% for the detection of early ischemic changes (EIC) in middle cerebral artery (MCA) territory strokes (7). For posterior circulation ischemia, however, detection of EIC is difficult, mainly due to posterior fossa radiologic particularities, such as beam hardening artifacts, which limit the sensitivity to only 55% for cerebellar EIC, and 33% for brainstem EIC, respectively (8). Magnetic resonance imaging (MRI) is superior to CT in terms of sensitivity, especially in posterior fossa ischemia. However, the lack of available MRI machines in smaller hospitals or in developing countries, and limitations related to artifacts, uncooperative or severe patients, limit the feasibility of MRI evaluation in posterior ischemic strokes (9). Our aim is to review the imaging signs, or scores described on non-contrast CT (NCCT) and CT angiography (CTA) in acute BAO in order to provide an integrated view on their diagnostic and prognostic strengths and weaknesses.

2. Literature research methods

We performed a non-systematic PubMed search for papers between 1980 and 2019, using the terms ‘basilar artery occlusion’ and ‘basilar artery thrombosis’ and ‘imaging’. Inclusion criteria were retrospective or prospective studies that evaluated diagnostic and prognostic computed-tomography changes in patients with BAO. The search generated 445 results. Furthermore, we identified papers related to imaging markers by searching the reference list of articles retrieved by our initial search. Only English reports were included. The final reference list is based on the relevance and originality of this review's objective and includes 14 total studies.

3. Hyperdense Basilar Artery (HDBA) sign

A hyperdense vessel is seen as a region of high attenuation on NCCT scans (Fig. 1). Pathologically it represents, in the appropriate clinical setting, an acute thrombus within the artery. The hyperdense appearance of fresh intravascular clots is determined by the extravasation of serum out of the clot, followed by a relative increase in concentration of red blood cells. Higher densities are mainly caused by the protein fraction of hemoglobin, much less by its iron content, which contributes only to 7-8% to its attenuation (10). Thrombi retrieved from patients with a dense MCA have, on average, a higher content of red blood cells (11-14) and are more frequently associated with a cardioembolic stroke subtype (15). These observations are not confirmed for BAO.

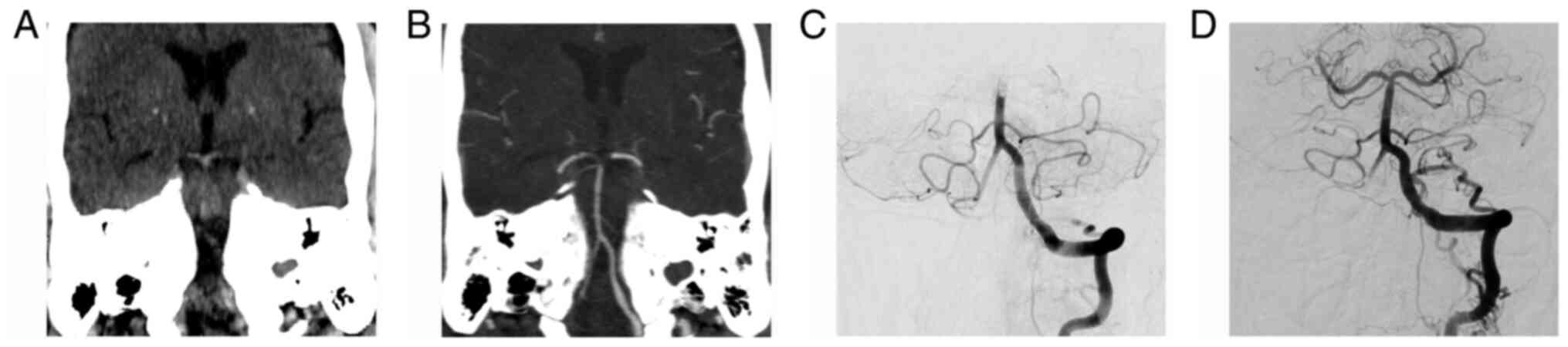

Figure 1 (A and B) Coronal reformated NCCT and CTA images reveal the HDBA sign and the corresponding distal BA thrombus, extending in both posterior cerebral arteries. (C and D) Before and after aspiration thrombectomy: Frontal projection digital subtraction angiography images confirm the BA occlusion, and subsequent recanalization. NCCT, non-contrast computer tomography; CTA, computer tomography angiography; HDBA, hyperdense basilar artery; BA, basilar artery.

The HDBA sign can be a useful tool for the detection of BAO, with a sensitivity ranging between 68 and 94% and a specificity between 80 and 98% (16-18). Sensitivity is higher if the clinical diagnosis of BAO is highly probable (14) or if the attenuation of the hyperdense vessel is measured. Optimal measured cut-off values that best discriminate a HDBA, range between 40 and 46 HU (17,18). Another method by which to increase detection of an HDBA, that was confirmed for dense MCAs, is to obtain a CT slice thickness of less than 2 mm or more appropriate 1 mm, and to view them on 5-mm-thick maximum intensity projection (MIP) reconstructions (19). One possible limitation of early studies evaluating the diagnostic value of the HDBA sign, is the use of a larger slice thickness, of 2 mm (16) or 4-5 mm (16,17), respectively. It is well known that a larger slice thickness increases partial volume averaging with cerebrospinal fluid and adjacent brain parenchyma, and can lead to false-negative NCCT results, potentially missing more hyperdense clots (18).

A dense basilar artery basilar artery (BA) sign is also valuable as a prognostic marker. It correlates well with discharge NIHSS and can independently predict short- (OR, 5.5; 95% CI, 2.2-13.6; P<0.001) (20) and long-term outcome (OR, 5.3; 95% CI, 1.1-33.3; P=0.05) (16). Nevertheless, in the absence of the HDBA sign, a brainstem ischemia or LVO should not be excluded; further contrast-enhanced vessel imaging is mandatory for the correct radiologic evaluation of patients with suspected posterior circulation stroke.

4. Posterior Circulation Acute Stroke Prognosis Early CT Score (pc-ASPECTS)

pc-ASPECTS is a 10-point score that evaluates EIC changes in the thalamus, occipital cortex, cerebellar hemispheres, midbrain, and pons. For the first three, 1 point is subtracted for each part if EIC are present, while 2 points each are subtracted if the midbrain or the pons are affected (21) (Fig. 2). Evaluation of the score is difficult on NCCT, due to posterior fossa beam hardening artefacts, particularly in the brainstem. CTA source images (CTASI) are a better tool for the visualization of ischemia. Parenchymal hypodensity on CTASI most likely represents a region of cerebral blood volume reduction (CBV). The extent of this region correlates well with admission and 24-h NIHSS, and with the 90-day functional outcome. Furthermore, ischemic lesion volume on CTASI does not differ significantly from DWI volume on MRI. If applied on CTASI, pc-ASPECTS is more sensitive and specific (65 and 82%) (22). In their retrospective cohort of 46 patients with BAO, Puetz et al dichotomized the patients into two groups: CTASI pc-ASPECTS ≥8 and <8. Patients with a score ≥8 were 11 times more likely to have a good outcome (mRS ≤3): 52% achieved a good functional outcome at three months, whereas only 4% if the score was <8 (unadjusted RR, 12.1; 95% CI, 1.7-84.9). Mortality was reduced by 60% if the score was ≥8. If successful recanalization was obtained, 70% of the patients achieved a good prognosis if pc-ASPECTS was ≥8, and only 9% if the score was <8 (unadjusted RR, 7.7; 95% CI, 1.1-52.1) (21).

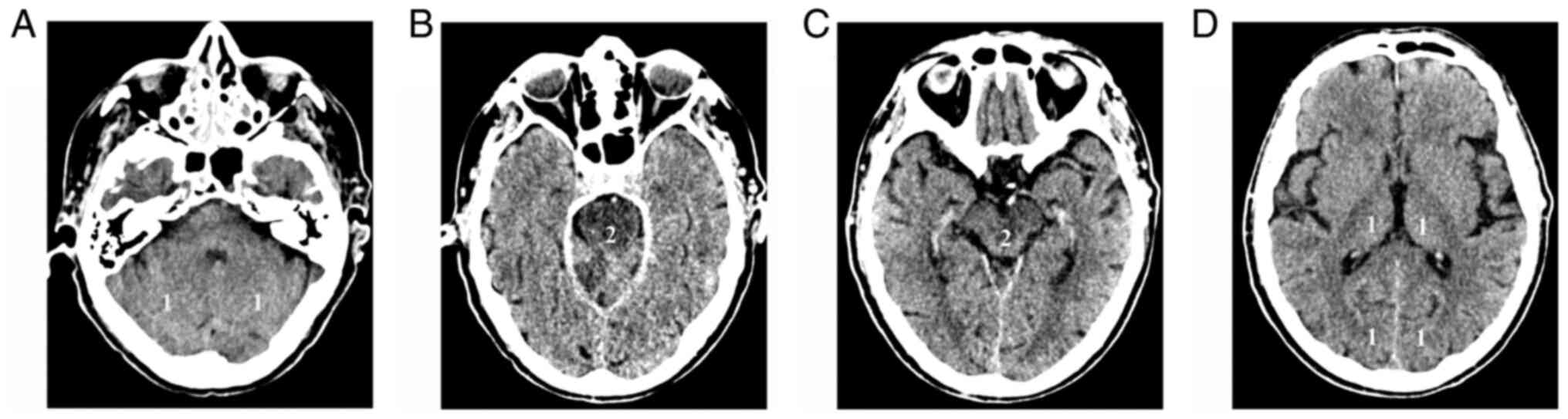

Figure 2 Axial non-contrast CT images (A) at the level of the cerebellar hemispheres, (B) pons, (C) midbrain and cerebral peduncles, and (D) thalamus, show the allocation of points to each structure for the calculation of pc-ASPECTS. CT, computed tomography; pc-ASPECTS, pc-ASPECTS, Posterior Circulation Alberta Stroke Program Early CT Score.

In patients from the Basilar Artery International Cooperation Study (BASICS) group, a significant association was found between pc-ASPECTS ≥8, favorable outcome, functional independence (mRS ≤2) and reduced mortality (23). However, after adjustment for age, NIHSS and tissue-type plasminogen activator (tPA), only functional independence (RR, 2.0; 95% CI, 1.1-3.8) and mortality (RR, 0.7; 95% CI, 0.5-0.98) were significantly associated, but not a favorable outcome. In a post hoc analysis, the same group was further dichotomized by pc-ASPECTS of <6 and ≥6. It was found that a score of ≥6 was an independent predictor of a favorable outcome, even after adjustment for age, NIHSS, and treatment modality (RR, 3.1; 95% CI, 1.2-7.5) (23). In patients with BAO presenting with coma, the discriminative prognostic power of pc-ASPECTS of <8 OR, ≥8 was not found to be significantly associated with a favorable outcome or mortality, if adjusted for age, NIHSS and treatment modality (24). Even in a larger cohort comprising 231 patients with acute BAO, the prognostic value of pc-ASPECTS in predicting functional independence at 3 months was not significant (25).

Pc-ASPECTS dichotomized by <8 or ≥8 was also evaluated on CT perfusion (CTP) maps in 27 patients from the BASICS registry (26). The most frequent changes were seen in 93% of cases on mean transit time (MTT) parameter maps (95% CI, 76-99). Cerebral blood volume (CBV) pc-ASPECTS <8 was evident in 3 cases, all of whom died. However, none of the perfusion changes were associated with functional outcome, likely due to the small number of available cases (26).

5. Pons-Midbrain Index (PMI)

Schaefer et al more precisely attributed functional outcome to lesions located in the pons and midbrain, for which they developed the Pons-Midbrain Index, a scoring system based on CTASI: 0, if no ischemic changes are visible, 1 if <50% of the territory is hypodense, 2 if >50% of the parenchyma is hypodense. Brain structures scored were the medulla, pons, midbrain, thalami, occipital lobes, inferior parietal lobes and middle temporal lobes. Each structure was scored separately. The only regions that were correlated with death and disability were the pons and midbrain, which taken together as a sum of the scores, they called the PMI. A PMI ≥3, or <3, was independently associated with mortality, or survival, respectively (27).

The Basilar Artery International Cooperation Study (BASICS) group looked at the death rate among patients with BAO who presented with coma. Among 78 patients with BAO and coma, 49% died, and 17% had a favorable outcome (mRS 0-3) if PMI was <3, as opposed to 76% deaths, and only 14% favorable outcome if PMI was ≥3(24). However, after adjusting for age, NIHSS and treatment type, only mortality was associated with a PMI <3 (RR, 0.67; 95% CI, 0.46-1.00), but not a favorable outcome. Notably, a subgroup of patients, despite presenting with coma, with extensive pontine-mesencephalic ischemia (PMI ≥3) had a favorable outcome at 1 month, comprising 14%. Based on this observation, the authors argue against the use of the PMI to exclude patients with BAO and coma from intravenous or intraarterial treatment (24).

6. Posterior Circulation CT Angiography (pc-CTA) score

The Posterior Circulation CT Angiography (pc-CTA) score is a 6-point scoring system that evaluates the extent of the occlusion and, indirectly, the collateral circulation (28) (Fig. 3). One point is assigned for each of the following occluded segments: One of the vertebral arteries, proximal segment of the BA [from the vertebrobasilar junction to the origin of the anterior-interior cerebellar arteries (AICA)], middle segment of the BA [from the origin of the AICA to the superior cerebellar arteries (SCA)], distal BA (from the SCA to the tip) and the posterior cerebral arteries (PCA). A pc-CTA score of 0 means that all vascular segments are open; a score of 6, that all are occluded (28).

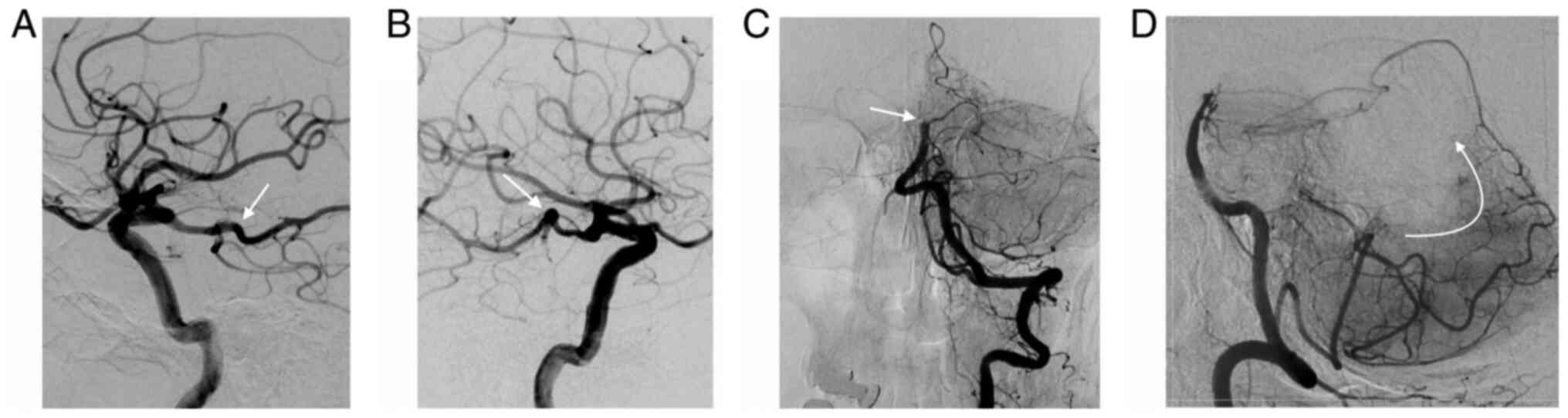

Figure 3 (A and B) Digital subtraction angiograms from bilateral internal carotid artery contrast injection show both posterior communicating arteries with a fetal configuration (white arrow) in a patient with basilar artery occlusion. (C and D) Contrast injection in the left vertebral artery reveal the distal basilar occlusion (white arrow) and collateral reconstitution of the superior cerebellar arteries through the posterior inferior cerebellar artery (curved arrow).

In their retrospective series of 15 patients, the primary endpoint was the correlation between the score and patient outcome at 3 months, as assessed by the modified Rankin Scale (mRS). A pc-CTA score <3 was associated with a good outcome (mRS ≤3) in all patients. In contrast, the contrary, if the score was ≥3, patient outcome was worse (28). In a retrospective study performed by Alemseged et al (29) a pc-CTA ≥3 predicted a poor outcome if adjusted for age (OR, 1.6; 95% CI, 1.1-2.1; P=0.008), but not for NIHSS.

7. Posterior Circulation Collateral Score (pc-CS)

The investigators enrolled in the Basilar Artery International Cooperation Study (BASICS) developed this CT angiography score [Posterior Circulation Collateral Score (pc-CS)] as a prognostic tool for identifying patients who present with a poor outcome (30). The score allots 1 point for each patent posterior inferior cerebellar artery (PICA), anterior-inferior cerebellar artery (AICA), superior cerebellar artery (SCA) and posterior communicating artery (Pcom) if its diameter is smaller than the ipsilateral PCA, or 2 points if it has a diameter equal to, or larger than the ipsilateral PCA. A score of 10 implies that all the aforementioned branches are patent, while a score of 0, means that all of them are not visible/occluded. Three intervals of severity were defined for the pc-CS: Poor 0-3, intermediate 4-5, and good 6-10. Patients with a poor score had higher median NIHSS at admission and had more frequently severe symptoms (tetraplegia, locked-in state or coma), than patients with an intermediate or a good score. Moreover, there was a 25% lower risk of poor outcome in patients with a good pc-CS score, compared to those with a poor score, after adjustment for age, time to treatment and treatment modality (RR, 0.74; 95% CI, 0.58-0.96). There was no significant difference between poor outcome compared to intermediate outcome. An important finding of their analysis was the crucial role played by the presence or absence of PComs, or their diameter. A poor outcome is more frequently encountered if one or both PComs are absent, and if their diameter is small (30).

Ravindren et al further emphasized the crucial importance of the PComs in BAO, by analyzing the presence or absence of collaterals, represented by the PCom and PICA-AICA anastomosis. Patients with collaterals had an almost 3-times higher likelihood of a good outcome at 3 months (OR, 2.73; 95% CI, 1.01-7.39), while absence of both PComs was associated with a 60% decreased chance of good functional outcome at 90 days (OR, 0.39; 95% CI, 0.17-0.93). Furthermore, even unilateral absence of a PCom led to a 2-fold increase in mortality (OR, 2.17; 95% CI, 1.14-4.13) (25).

When time-to-treatment ≤6 or >6 h and revascularization status were taken into account, all patients with a favorable pc-CS had a good outcome (OR, 9.4; 95% CI, 1.4-64; P=0.02). Conversely, an unfavorable pc-CS was associated with good outcome only in patients treated within 6 h from symptom onset, and not beyond (OR, 5.5; 95% CI, 1.4-2; P=0.01) (31).

8. Basilar Artery on Computed Tomography Angiography (BATMAN) Prognostic Score

BATMAN is a 10-point score that incorporates thrombus burden and extent of primary collaterals. It allocates 1 point for the patency of either the vertebral artery, proximal BA segment, middle BA, distal BA, for each PCA and 2 points for each PCom larger than 1 mm in diameter. If smaller, i.e. hypoplastic, 1 point is given to each. If a fetal PCom is present, it receives 3 points (29). The optimal cut-off value to discriminate between good and bad functional outcome is a score of 7. A BATMAN score <7 is an independent predictor of poor outcome (OR, 6.9; 95% CI, 1.4-33; P=0.01) and an increased risk of mortality (OR, 7.4; 95% CI, 1.2-44; P=0.03) after adjustment for age and NIHSS. The score did not influence recanalization success between the two groups. If recanalization was not achieved, the rates of poor outcome were similar. However, if recanalization was successful, only 24% of the patients had a poor outcome if BATMAN was ≥7, compared to 76% if <7. Compared to the prognostic scores reviewed earlier, BATMAN performed better than pc-CS in terms of accuracy and interrater agreement, but not better than pc-CTA (29).

In a recent paper, Alemseged et al (31) assessed the prognostic value of BATMAN correlated with time-to-treatment (TTT) and recanalization status (mTICI). In patients with a favorable score treated within or even beyond 6 h, complete revascularization (mTICI 2b-3) was associated with a good outcome (adjusted OR, 15.8; 95% CI, 1.4-175; P=0.02). However, in cases with an unfavorable score, revascularization was associated with good outcome only if obtained within 6 h (OR, 15; 95% CI, 1.9-124; P=0.01); findings that support the relevance of collaterals and thrombus load in late time-windows for BAO.

9. Current challenges and future directions

Major limitations of the aforementioned studies are related to their retrospective design and relatively small number of patients (see Tables SI and SII). Furthermore, the heterogenous treatment modalities (intravenous tPA, intraarterial thrombolysis, mechanical thrombectomy) and different clinical and imaging outcome parameters reported (mRS ≤2 or ≤3, mTICI), limit the generalizability of the scores, especially in the new era of mechanical and aspiration thrombectomy. There are also restrictions imposed by spiral computed tomography physics; posterior fossa beam hardening artefacts decrease sensitivity of diagnostic tests, particularly for the visualization of parenchymal structures.

Therefore, prospective trials, using standardized computed tomographic parameters, clinical outcome and recanalization scales are mandatory in order to consolidate the diagnostic and prognostic value of these imaging markers; emphasis should be placed on collateral capacity, thrombus burden and thrombus location. Moreover, occlusion etiology should be dichotomized into atherosclerotic vs. cardioembolic, in light of their different treatment strategies and prognosis (32). There is a growing body of evidence that supports, in addition to the classic non-contrast CT and CT angiography, the inclusion of perfusion imaging in the armamentarium aimed at the patient with posterior fossa ischemia (26,33-35). It improves detection of infratentorial ischemia and provides further prognostic information. Ultimately, machine learning software could be used to integrate the different imaging parameters and to guide treatment decision-making.

10. Conclusions

Acute BAO remains a devastating disease in spite of recent technological improvements. Computed tomography markers can aid and accelerate the diagnosis of this complex clinical entity, leading to shorter time-to-treatment intervals. They can provide valuable prognostic knowledge to better inform patients and their relatives about the consequences of the disease. However, none of the computed tomography markers should be used to exclude patients from intravenous and intraarterial therapy.
