Anti-inflammatory and antioxidant effects of MOK, a polyherbal extract, on lipopolysaccharide‑stimulated RAW 264.7 macrophages

  • Authors:
    • Ji Hye Hwang
    • Jun Nan Ma
    • Jong Hun Park
    • Hyo Won Jung
    • Yong‑Ki Park
  • View Affiliations

  • Published online on: October 16, 2018     https://doi.org/10.3892/ijmm.2018.3937
  • Pages: 26-36
  • Copyright: © Hwang et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Abstract

MOK, a pharmacopuncture medicine consisting of 10 herbs, has a long history as treatment for various inflammatory conditions. To investigate the mechanisms of action of MOK, its anti‑inflammatory and antioxidative effects were assessed in RAW 264.7 macrophages stimulated by lipopolysaccharide (LPS). RAW 264.7 cells were treated with different concentrations of MOK extract for 30 min prior to stimulation with or without LPS for the indicated times. Nitric oxide (NO) production was measured using Griess reagent, while the mRNA levels of inflammatory cytokines, tumor necrosis factor (TNF)‑α, interleukin (IL)‑1β, IL‑6 and the antioxidant enzymes Mn superoxide dismutase and heme oxygenase‑1, were determined using reverse transcription‑polymerase chain reaction analysis. Western blotting was used to determine the protein expression of inducible nitric oxide synthase (iNOS), cyclooxygenase (COX)‑2, superoxide dismutase (SOD)2, catalase (CAT) and heme oxygenase‑1 (HO‑1), and the phosphorylation of mitogen‑activated protein kinases (MAPKs), including ERK1/2, JNK and p38. Western blotting and immunocytochemistry were used to observe the nuclear expression of nuclear factor (NF)‑κB p65. Additionally, reactive oxygen species (ROS) and prostaglandin (PG)E2 production were determined using the ROS assay and an enzyme immunoassay. With MOK treatment, there was a notable decrease in NO and PGE2 production induced by LPS in RAW 264.7 cells by downregulation of iNOS and COX‑2 mRNA and protein expression. Furthermore, with MOK treatment, there was a decrease in the mRNA expression levels of TNF‑α, IL‑1β and IL‑6, as well as in the phosphorylation of ERK, JNK and p38 MAPK, by blocking the nuclear translocation of NF‑κB p65 in LPS‑stimulated cells. In addition, MOK treatment led to an increase in the antioxidant enzymes SOD, CAT and HO‑1 in LPS‑stimulated cells, with a concomitant decrease in ROS generation. These results indicate that the inflammatory responses in activated macrophages are inhibited by MOK through downregulation of the transcription levels of inflammatory mediators and inhibition of the MAPK/NF‑κB pathway. Moreover, MOK protects against oxidative damage by upregulating the expression of antioxidant enzymes and generating ROS scavengers.

Introduction

Macrophages play important roles in the host immune defense system during infection and disease development; their activation by different stimuli, including bacterial lipopolysaccharide (LPS) (1,2), causes production of pro-inflammatory cytokines [tumor necrosis factor (TNF)-α, interleukin (IL)-1β and IL-6], inflammatory mediators [nitric oxide (NO), prostaglandin (PG) E2], and reactive oxygen species (ROS), which contribute to the progression of several inflammatory diseases (3). In turn, the inflammatory burden of ROS is increased by the formation of reactive nitrogen species (RNS) from the rapid combination of NO with superoxide radical-induced nitrosative stress. Therefore, an imbalanced redox milieu may result from either or both overproduction of ROS and decreased antioxidant capacity (2). It is well-known that useful therapeutic strategies for various inflammatory diseases include the control of production of free radicals and inflammatory mediators.

In complementary and alternative medicine, diseases are considered to represent an imbalance between Yin and Yang. In traditional Chinese medicine and traditional Korean medicine (TKM), various treatment methods, including acupuncture, pharmacopuncture and herbal medicines, are used to rebalance the Yin and Yang of individual patients; in particular, the mechanism underlying their therapeutic effect has been reported to be associated with anti-inflammatory and immunomodulatory responses.

A growing body of scientific evidence supports acupuncture as an effective treatment of various inflammatory conditions in several diseases (4,5). Recent studies have reported on the mediation of the anti-inflammatory and immunomodulatory effects of acupuncture by the downregulation of pro- inflammatory cytokines, including TNF-α, IL-1β, IL-6, IL-8 and IL-10, along with C-reactive protein, erythrocyte sedimentation rate, and the modulation of immunoglobulin (Ig) M and IgA in chronic obstructive pulmonary disease, spastic cerebral palsy and periodontitis, as well as in clinical studies of rheumatoid arthritis and acute pancreatitis (4,6-10).

Pharmacopuncture therapy, which includes stimulating acupoints along with the injection at the acupoints of herbal extracts, is a new form of acupuncture applied in TKM. This therapy is commonly used to regulate immune imbalance in the clinical setting and is considered as a good candidate for the treatment of inflammatory diseases. Among pharmaco-puncture medicines, MOK is used for the clinical treatment of the fire meridians and symptoms related to diseases of the heart and thyroid gland. It is also used for a Korean somatization disorder, Hwa-Byung, which is a mental illness associated with the inability to control anger (11). MOK, a pharmacopuncture medicine consisting of ten herbs, is used to treat these conditions due to its anti-inflammatory and antioxidant properties, in addition to its immunomodulatory functions (12-14). Specifically, MOK has been reported to exert anti-inflammatory effects in cell-based assays (14). Moreover, its in vivo anti-hypothyroidism and anti-hyperthyroidism effects have been confirmed in previous studies (15,16). In addition, its inhibitory function on the production of inflammatory mediators by primary peritoneal macrophages has been reported (17). However, there is little scientific evidence regarding the efficacy of MOK therapy in inflammation.

The aim of the present study was to investigate the anti-inflammatory and antioxidant effects of MOK on RAW264.7 macrophages stimulated by LPS and identify the mechanism responsible for these effects on signaling pathways.

Materials and methods

Reagents

The present study used Dulbecco’s modified Eagle’s medium (DMEM) obtained from Invitrogen; Thermo Fisher Scientific (Carlsbad, CA, USA) supplemented with 10% fetal bovine serum (FBS; Invitrogen; Thermo Fisher Scientific), 2 mm L-glutamine (Invitrogen; Thermo Fisher Scientific), and 0.1 mm (0.7 µl/100 ml final media volume) 2-mercaptoethanol (Sigma-Aldrich; Merck KGaA, St. Louis, MO, USA). LPS (Isotype 055:B5), sulphanilamide, dimethyl sulphoxide and N-(1-napthyl)ethylenediamine dihydrochloride (NED) were purchased from Sigma-Aldrich; Merck KGaA. Penicillin and streptomycin were obtained from GenDEPOT (Barker, TX, USA). The WST-1-based cell cytotoxicity assay kit was obtained from Roche Diagnostics GmbH (Mannheim, Germany). Primary monoclonal antibodies against iNOS (1:200, cat. no. 13120, Cell Signaling Technology, Danvers, MA, USA), NF-κB (1:200, sc-109, Santa Cruz Biotechnology, Dallas, TX, USA), TBP (1:200, sc-273, Santa Cruz Biotechnology), β-actin (1:2,000, cat. no. A-5316-2ML, Sigma-Aldrich; Merck KGaA), ERK1/2 (1:200, cat. no. 9102, Cell Signaling Technology), JNK (1:200, cat. no. 9252, Cell Signaling Technology), p38 (1:200, cat. no. 9212, Cell Signaling Technology) MAPKs and their phosphorylated forms (1:200, cat. no. 9101 for p-ERK, cat. no. 9251 for p-JNK, and cat. no. 9211 for p-p38), superoxide dismutase (SOD) 2 (1:1,000, cat. no. 13141, Cell Signaling Technology), catalase (CAT; 1:1,000, cat. no. 14097, Cell Signaling Technology), and COX-2 (1:1,000, cat no. sc-7951, Santa Cruz Biotechnology) were used. Goat anti-mouse (1:2,000, cat. no. 1721011, Bio-Rad Laboratories, Hercules, CA, USA) or rabbit IgE (H+L)-horseradish peroxidase-conjugated secondary antibody (1:2,000, cat. no. 1721019, Bio-Rad Laboratories) were used. All other chemicals were purchased from Sigma-Aldrich; Merck KGaA, the Taq-based PCR enzyme was supplied by Toyobo (Osaka, Japan), and the OxiSelect in vitro ROS/RNS assay kit was obtained from Cell Biolabs (San Diego, CA, USA).

MOK extract preparation

The MOK extract, a prescription containing ten herbs (Table I), was obtained in a sealing vial (53.1 mg/ml) from Namsangcheon Herbal Medicine Dispensary, an extramural facility meeting the Korean Good Manufacturing Practice standards. All raw materials of MOK were authenticated by the Korean Food and Drug Administration.

Table I

Constituents of MOK extract.

Table I

Constituents of MOK extract.

Herbal nameScientific nameContent (mg/ml)
Hominis PlacentaHominis Placenta2
MoschusMoschus berezovskii0.5
Fel UrsiUrsus arctos0.3
Calculus Bovis CowBos taurus0.3
bezoar
Scutellariae RadixScutellaria baicalensis10
Phellodendri CortexPhellodendron amurense10
Pulsatilla KoreanaPulsatilla koreana10
Sophorae SubprostrataeSophora tonkinensis10
Radix
Aucklandiae RadixAucklandia lappa5
Aquilaria agallochaAquilaria agallocha5
Total53.1
Cell culture

RAW 264.7 cells, a mouse macrophage cell line obtained from the American Type Culture Collection (Manassas, VA, USA), were maintained in DMEM supplemented with 10% FBS (HyClone; GE Healthcare Life Sciences, Logan, UT, USA), 100 U/ml penicillin and 100 µg/ml streptomycin at 37°C in a 5% CO2 incubator.

Cell viability assay

The commercially available WST-1 cell viability assay kit was employed to evaluate the cytotoxic effects of MOK extract in accordance with the manufacturer’s protocol. Briefly, RAW 264.7 cells (5×104) were seeded into 96-well microtiter plates (Nunc, Roskillde, Denmark) with different concentrations of MOK extract and cultured for 24 h at 37°C in an incubator with 5% CO2. The WST-1 reagent was added to each well at the end of the treatment, and the plates were incubated for a further 2 h. Finally, absorbance was measured at 450 nm with a microtiter plate reader (Asys, Cambridge, England).

NO level measurement

RAW 264.7 cells (1×105 cells/ml) were pretreated with various concentrations of MOK extract for 30 min and then stimulated for 24 h with or without 1 µg/ml LPS at 37°C in an incubator with 5% CO2. The NO level in the culture supernatants was measured using Griess reagents by adding 50 µl 1% sulphanilamide and 50 µl 0.1% NED in 5% phosphoric acid to 100 µl of culture supernatant in each well and incubating at room temperature for 15 min in the dark. Subsequently, absorbance at 540 nm was measured with a Spectramax 250 microplate reader (GENios; Tecan, Männedorf, Switzerland). A standard curve was prepared using NaNO2 as a standard solution in the same manner, and was used to calculate the concentration of NO.

PGE2 level measurement

RAW 264.7 cells were pretreated with various concentrations of MOK extract for 30 min followed by stimulation with or without LPS for 18 h at 37°C in an incubator with 5% CO2. PGE2 levels were assessed by a commercially available PGE2 enzyme immunoassay kit (Cayman Chemical Co., Ann Arbor, MI, USA) in accordance with the instructions of the manufacturer. The PGE2 concentration was analyzed in accordance with the formula obtained from the standard curve generated using the PGE2 standard solution provided in the kit.

Reverse transcription-polymerase chain reaction (RT-PCR) analysis

RAW 264.7 cells were pretreated with various concentrations of MOK extract for 30 min prior to incubation for 5 h at 37°C in an incubator with 5% CO2, with or without LPS. Total RNA was extracted from the cells using TRIzol reagent (Gibco-BRL Life Technologies; Thermo Fisher Scientific, Inc., Waltham, MA, USA) and used for cDNA synthesis along with an oligo-dT primer, ImProm-II reverse transcriptase (2 U), 0.5 mM dNTP, 3 mM MgCl2, and RNase inhibitor in 5X Reverse Transcriptase Buffer (Promega Co., Madison, WI, USA). cDNA was synthesized at 25°C for 5 min and 42°C for 60 min. PCR was performed with the incubation mixture [2 µl cDNA, 4 µM 5′ and 3′ specific primers (Table II), 10X buffer (10 mM Tris-HCl, pH 8.3, 50 mM KCl, 25 mM MgCl2, 0.1% Triton X-100, 250 µM dNTP, and 1 U Taq polymerase (TaKaRa Bio Inc., Shiga, Japan)] under the following conditions: 30 sec at 94°C (denaturation), 30 sec at 60°C (annealing), 1 min for extension, and a final extension for 10 min at the end of 35 cycles. The band intensities were quantified by densitometric analysis (ChemiDoc MP Imaging System; Bio-Rad Laboratories) and were expressed relative to the intensity of the GAPDH band.

Table II

Primers for PCR analysis.

Table II

Primers for PCR analysis.

NameForward (5′→3′)Reverse (5′→3′)
iNOS GGTGTTGAAGGCGTAGCTGA ATCATGGACCACCACACAGC
COX-2 ATGCTCCTGCTTGAGTATGT CACTACATCCTGACCCACTT
IL-1β ATGGCAACTGTTCCTGAACTCAACT CAGGACAGGTATAGATTCTTTCCTTT
IL-6 GAGGATACCACTCCCAACAGACC TTCACAGAGGATACCACTCC
TNF-α AGCCCCCAGTCTGTATCCTT CTCCCTTTGCAGAACTCAGG
MnSOD GTGACTTTGGGTCTTTTGA GCTAACATTCTCCCAGTT
HO-1 AAGATTGCCCAGAAAGCCCTGGAC AACTGTCGCCACCAGAAAGCTGAG
GAPDH GACATCATACTTGGCAGG CTCGTGGAGTCTACTGGT

[i] PCR, polymerase chain reaction; iNOS, inducible nitric oxide synthase; COX, cyclooxygenase; IL, interleukin; TNF, tumor necrosis factor; SOD, superoxide dismutase; HO-1, heme oxugenase-1; GAPDH, glyceraldehyde 3-phosphate dehydrogenase.

Western blot analysis

RAW 264.7 cells were pretreated for 30 min with MOK extract at various concentrations, followed by stimulation with or without LPS for 24 h (in the case of iNOS, COX-2, SOD2 and CAT), for 30 min (in the case of NF-κB, I-κB, JNK, and p38 MAPK), or for 5 min (in the case of ERK MAPK) at 37°C in a 5% CO2 incubator. The cells were lysed by adding 0.1 ml 50 mm Tris-HCl (pH 7.2), including 0.1% sodium dodecyl sulphate, 1% sodium deoxycholate, 1% NP-40 and 0.15 M NaCl. Nuclear extracts were prepared using the NE-PER Nuclear and Cytoplasmic Extraction Kit (Pierce Biotechnology Inc., Rockford, IL, USA) in accordance with the manufacturer’s instructions, and the protein concentration was determined using the Bradford assay. Equal amounts of protein (20 µg/ml) were electrophoresed on 10% sodium dodecyl sulfate-polyacrylamide gels. After electrophoresis, an electric transfer system was used to transfer proteins from the gel onto a nitrocellulose membrane. Non-specific binding was blocked with 3% skimmed milk in TBST buffer (5 mm Tris-HCl, pH 7.6, 136 mm NaCl and 0.1% Tween-20) for 1 h. The blots were then incubated for 1 h at room temperature with primary antibodies against iNOS, COX-2, β-actin, all forms of ERK1/2, JNK, p38 and their phosphorylated forms, SOD2, CAT, p65 NF-κB, or I-κB, and washed three times with 1X TBST. The blots were incubated for 1 h at room temperature with horseradish peroxidase-labeled anti-mouse IgG (Santa Cruz Biotechnology), washed with 1X TBST three times and developed using ECL western blotting detection reagents (GE Healthcare Bio-Sciences, Pittsburgh, PA, USA) prior to analysis with a ChemiDoc MP Imaging System (Bio-Rad Laboratories). The intensity of western blot bands was quantified and values were expressed relative to that of β-actin or total forms of the MAPKs.

Immunocytochemistry

To confirm the nuclear translocation of NF-κB, cells were seeded in four-well slide chambers and pretreated with MOK extract at various concentrations with or without LPS (1 µg/ml) for 2 h. The cells were washed twice with 1X PBS and fixed with 1% paraformaldehyde for 15 min, followed by blocking with 1% bovine serum albumin in PBST to reduce non-specific immunoreactivity. The cells were then incubated overnight with anti-NF-κB p65 antibody at 4°C, washed three times with 1X PBS, and incubated with goat anti-rabbit Alexa Fluor 488 (green)-labelled secondary antibody (Abcam, Cambridge, UK) for 2 h at room temperature in the dark. The stained cells were washed with 1X PBS and then mounted with fluorescence mounting medium containing 4′,6-diamidino-2-phenylindole (DAPI). Next, the fluorescent-stained cells were examined under a fluorescence microscope (Leica, Solms, Germany) at a magnification of ×200.

Intracellular ROS measurement

RAW 264.7 cells (5×105 cells/ml) were pre-incubated for 20 h, followed by incubation with or without MOK extract (2.5, 5 or 10 mg/ml) with or without LPS for 24 h. The ROS levels were then analyzed using an OxiSelect in vitro ROS/RNS assay kit (Cell Biolabs) based on the conversion of 2′,7′,7-diacetate to 2′,7′-dichlorodihydrofluorescein by ROS. The cells were homogenized, and the fluorescence spectrum (excitation: 480 nm, emission: 530 nm) was measured with a fluorescence plate reader (LS 55 Luminescence spectrometer; Perkin Elmer, Wellesley, MA, USA).

Statistical analysis

GraphPad Prism (GraphPad Software, Inc., San Diego, CA, USA) was used for the statistical analyses. The data were summarized as means ± standard error of the mean of three independent experiments and analyzed by one-way analysis of variance followed by Tukey’s post hoc test (a null hypothesis of no difference was rejected with a P-value <0.05).

Results

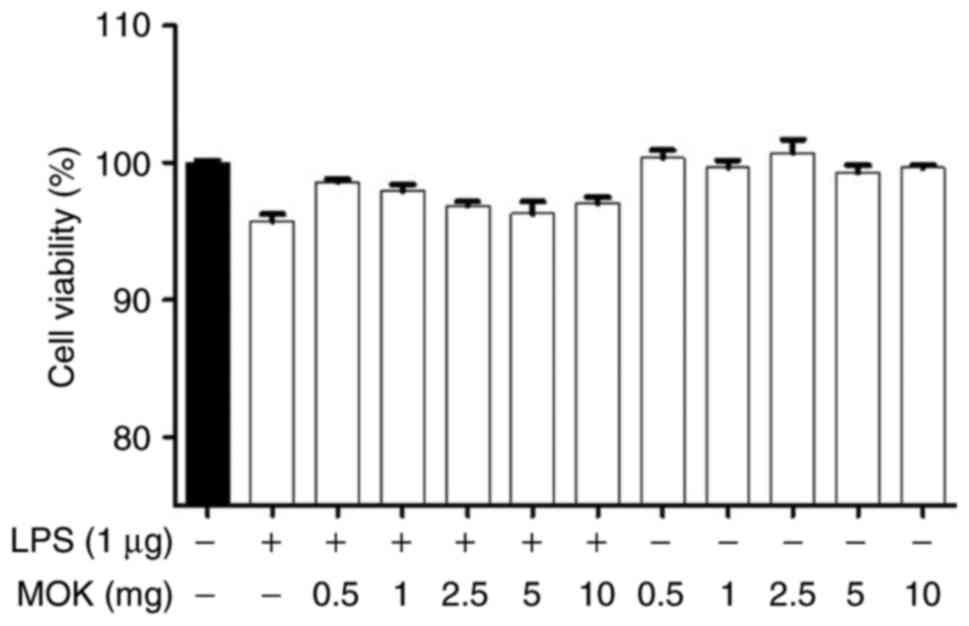

Effect of MOK on cell viability

The cytotoxic effects of MOK extract were investigated by measuring cell viability using the WST-1 assay. Treatment of RAW 264.7 cells stimulated by LPS with MOK extract at a concentration of 10 mg/ml exerted no effect on cell viability (Fig. 1). Therefore, MOK extract was used at concentrations of 2.5-10 mg/ml to investigate its effects on inflammation induced by LPS in RAW 264.7 cells.

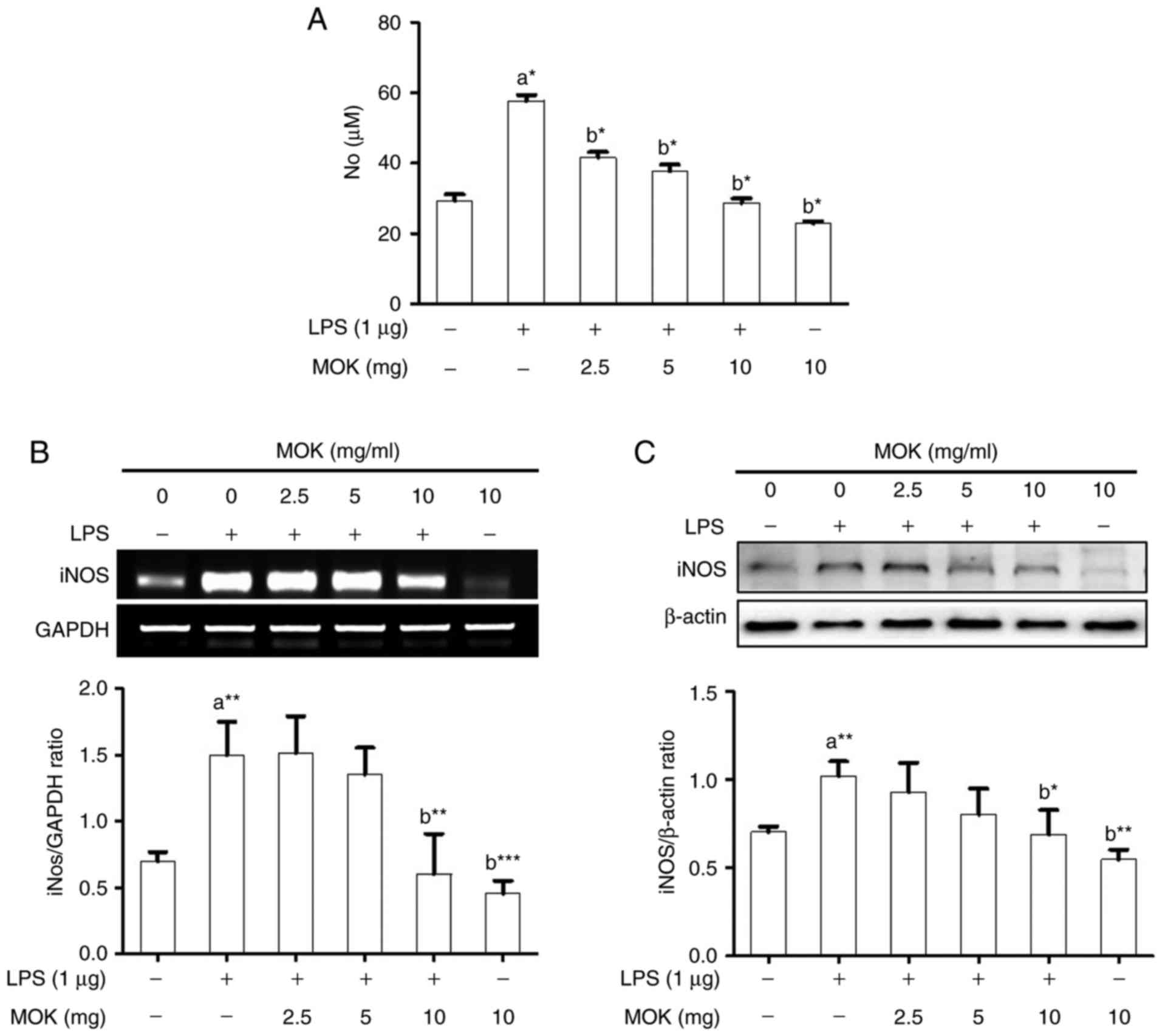

Effects of MOK on NO production and iNOS expression

The inhibitory effect of MOK extract on pro-inflammatory mediator production was investigated by measuring NO levels and iNOS expression in RAW 264.7 cells stimulated by LPS. NO production (Fig. 2A) and iNOS expression at the mRNA (Fig. 2B) and protein (Fig. 2C) levels exhibited a statistically significant (P<0.05, P<0.01 and P<0.01, respectively) increase following stimulation of the cells by LPS. Ttreatment with MOK extract at concentrations of 2.5, 5 and 10 mg/ml achieved a statistically significant decrease (P<0.05) of NO production in cells stimulated by LPS, in a dose-dependent manner. Moreover, treatment with 10 mg/ml MOK extract achieved a statistically significant inhibition of iNOS expression at the mRNA (Fig. 2B) and protein (Fig. 2C) levels (P<0.01 and P<0.05, respectively) in cells stimulated by LPS, indicating that MOK extract inhibited NO production by downregulating iNOS transcription in the activated macrophages.

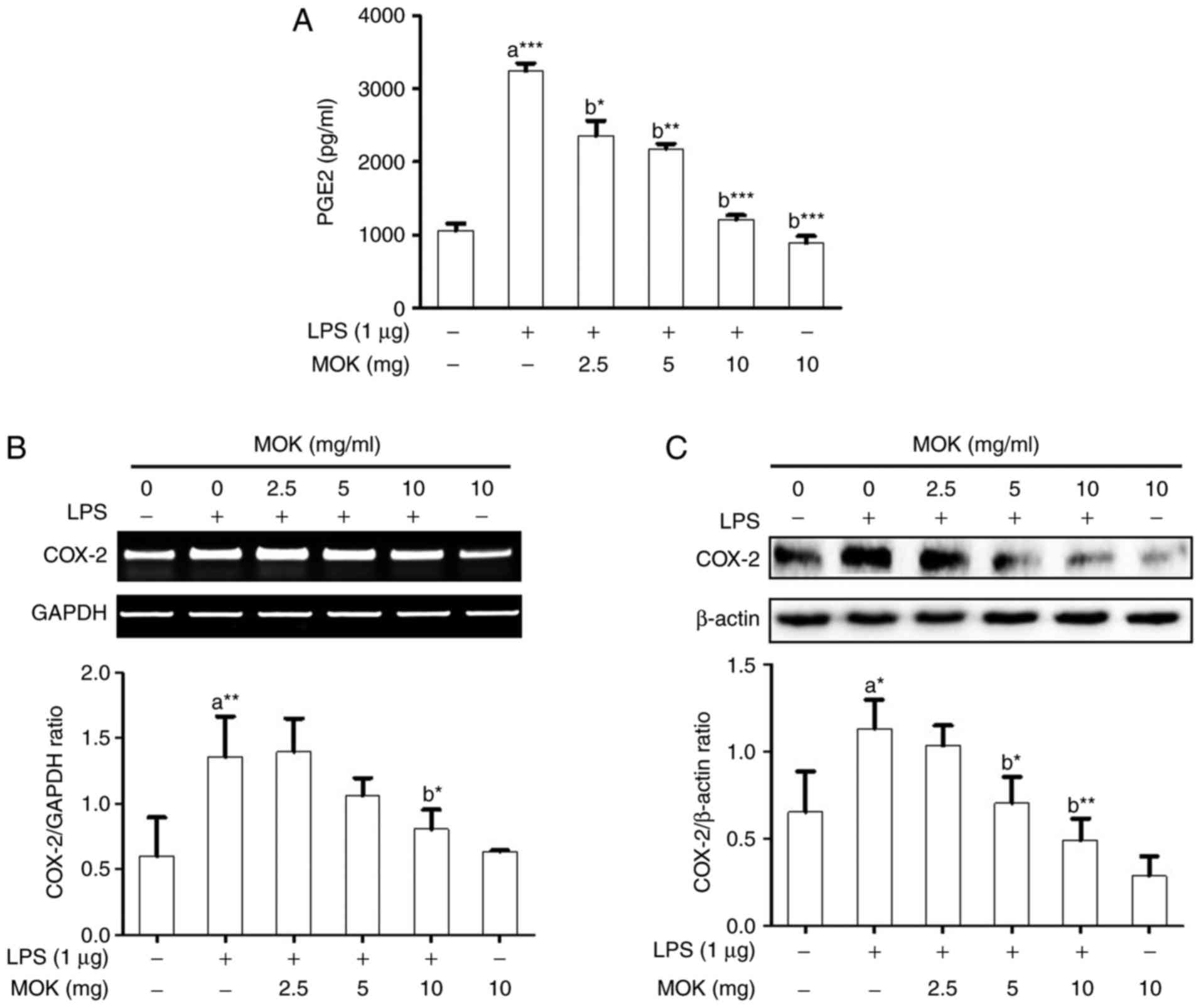

Effects of MOK extract on PGE2 production and COX-2 expression

Next, the inhibitory effects of MOK extract on PGE2 production and COX-2 expression were examined in RAW 264.7 cells stimulated by LPS. PGE2 production (Fig. 3A) and COX-2 expression at the mRNA (Fig. 3B) and protein (Fig. 3C) levels exhibited a statistically significant increase (P<0.001, P<0.01 and P<0.05, respectively) following stimulation of the cells by LPS. Treatment of RAW 264.7 cells with MOK extract at concentrations of 2.5, 5 and 10 mg/ml achieved a statistically significant decrease (P<0.05, P<0.01 and P<0.001, respectively) in LPS-induced PGE2 production in a concentration-dependent manner (Fig. 3A). MOK extract (10 mg/ml) also achieved a statistically significant inhibition of COX-2 mRNA (Fig. 3B) and protein (Fig. 3C) expression (P<0.05 and P<0.01, respectively) in cells stimulated by LPS, indicating that MOK extract inhibited PGE2 production by downregulating the transcription of COX-2 in activated macrophages.

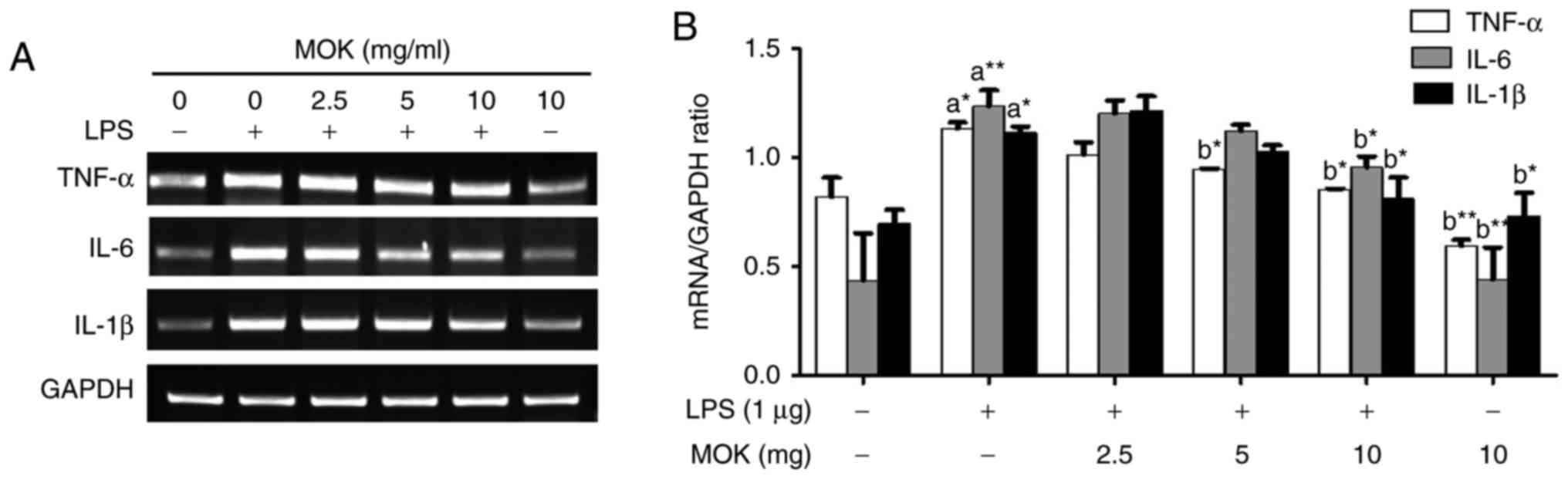

Effect of MOK extract on the LPS-induced production of pro-inflammatory cytokines

To better understand the inhibitory effects of MOK extract on inflammation, mRNA expression of pro-inflammatory cytokines (IL-6, IL-1β and TNF-α) was investigated via RT-PCR in RAW 264.7 cells stimulated by LPS. The expression of pro-inflammatory cytokines (IL-6, IL-1β and TNF-α) at the mRNA level exhibited a statistically significant increase (P<0.05, P<0.01 and P<0.05, respectively) following stimulation of the cells by LPS. Treatment with MOK extract was associated with inhibition of LPS-induced mRNA expression of IL-6, IL-1β and TNF-α in RAW 264.7 cells (Fig. 4A); a statistically significant decrease (P<0.05) in the expression of these mRNAs at a concentration of 10 mg/ml MOK (Fig. 4B) was observed, indicating that MOK extract inhibits the synthesis of pro-inflammatory cytokines in activated macrophages.

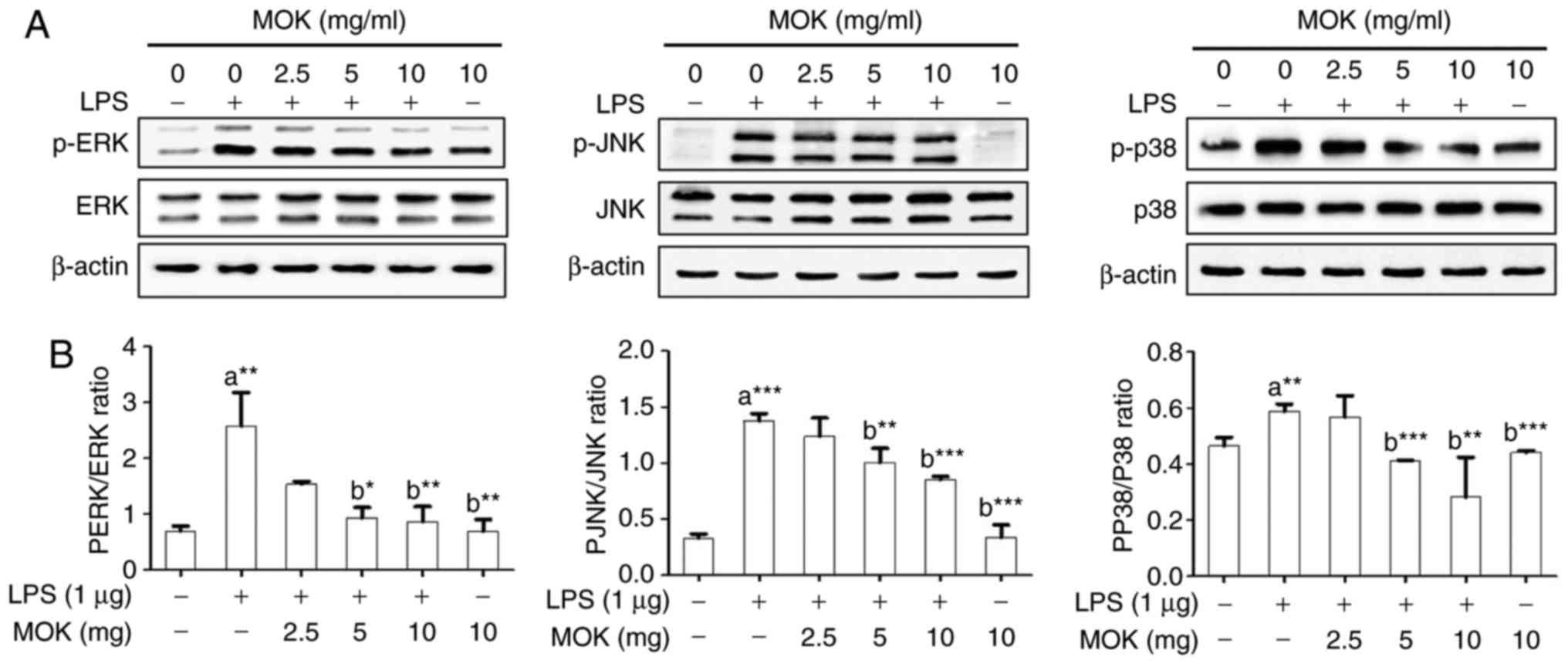

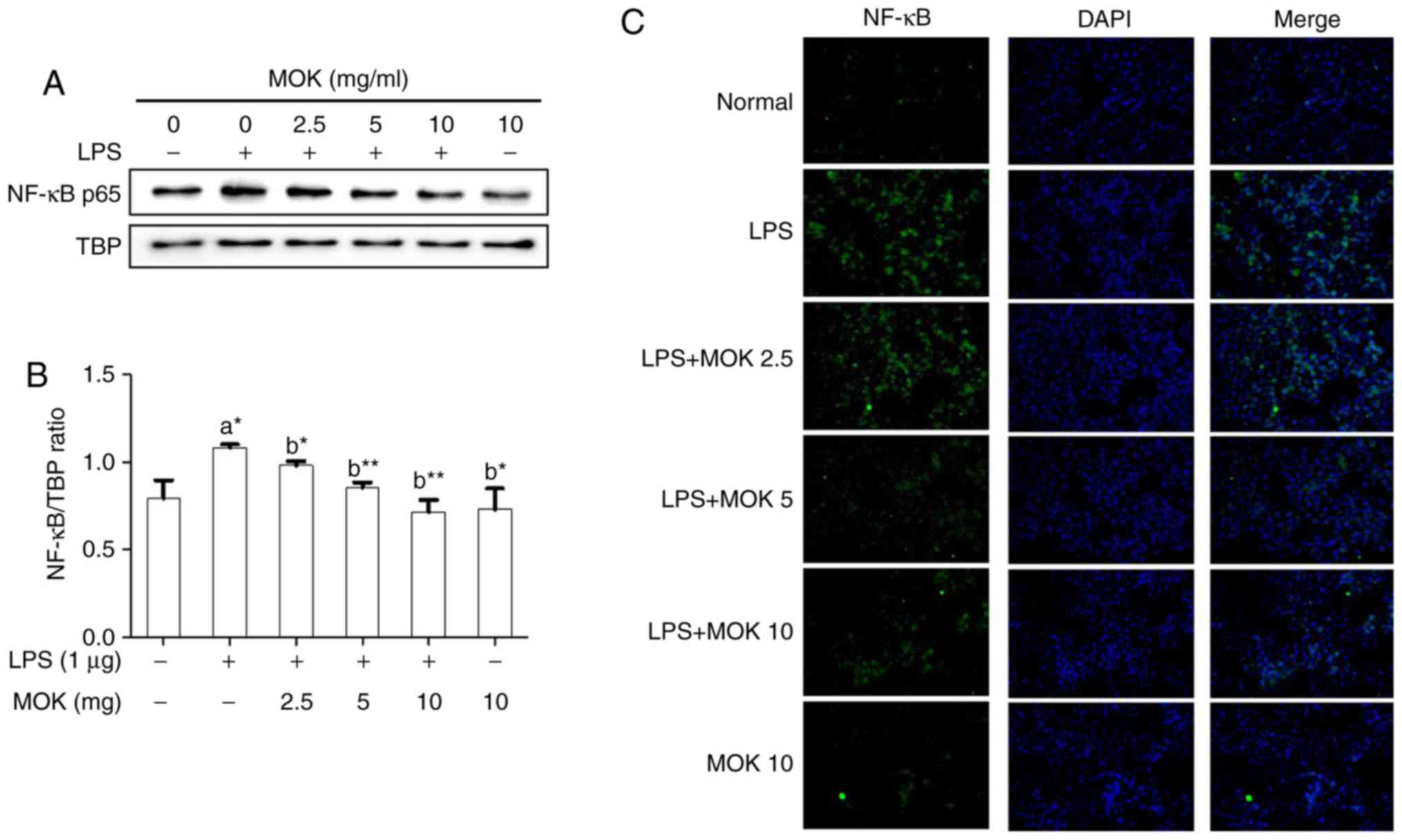

Effect of MOK extract on the MAPK/NF-κB pathway

To confirm the effects of MOK extract on inflammatory signaling in RAW 264.7 cells, the phosphorylation of ERK1/2, JNK and p38 MAPK, and the expression of NF-κB p65, were investigated by western blot analysis. Phosphorylation of MAPK (ERK1/2, JNK and p38) exhibited a statistically significant increase (P<0.01, P<0.001 and P<0.01, respectively) following stimulation of the cells by LPS. Treatment with 5 mg/ml (P<0.05, P<0.01 and P<0.001, respectively) and 10 mg/ml MOK extract (P<0.01, P<0.001 and P<0.001, respectively) was associated with a statistically significant inhibition of phosphorylation of MAPK (ERK1/2, JNK and p38) in RAW 264.7 cells stimulated by LPS (Fig. 5). NF-κB p65 nuclear expression statistically significantly increased (P<0.05) following stimulation of the cells by LPS (Fig. 6). Additionally, MOK extract treatment at concentrations of 2.5, 5 and 10 mg/ml resulted in a significant decrease (P<0.05, P<0.01 and P<0.01, respectively) of NF-κB p65 nuclear expression in LPS-stimulated cells (Fig. 6A and B); this inhibitory effect of MOK was also observed via immunohistochemistry (Fig. 6C). Therefore, it was demonstrated that MOK treatment inhibited nuclear translocation of NF-κB p65 in RAW 264.7 cells stimulated by LPS. In addition, the results indicated that the inhibitory effects of MOK extract on the production of pro-inflammatory factors are mediated by inhibition of the MAPK/NF-κB pathway in activated macrophages.

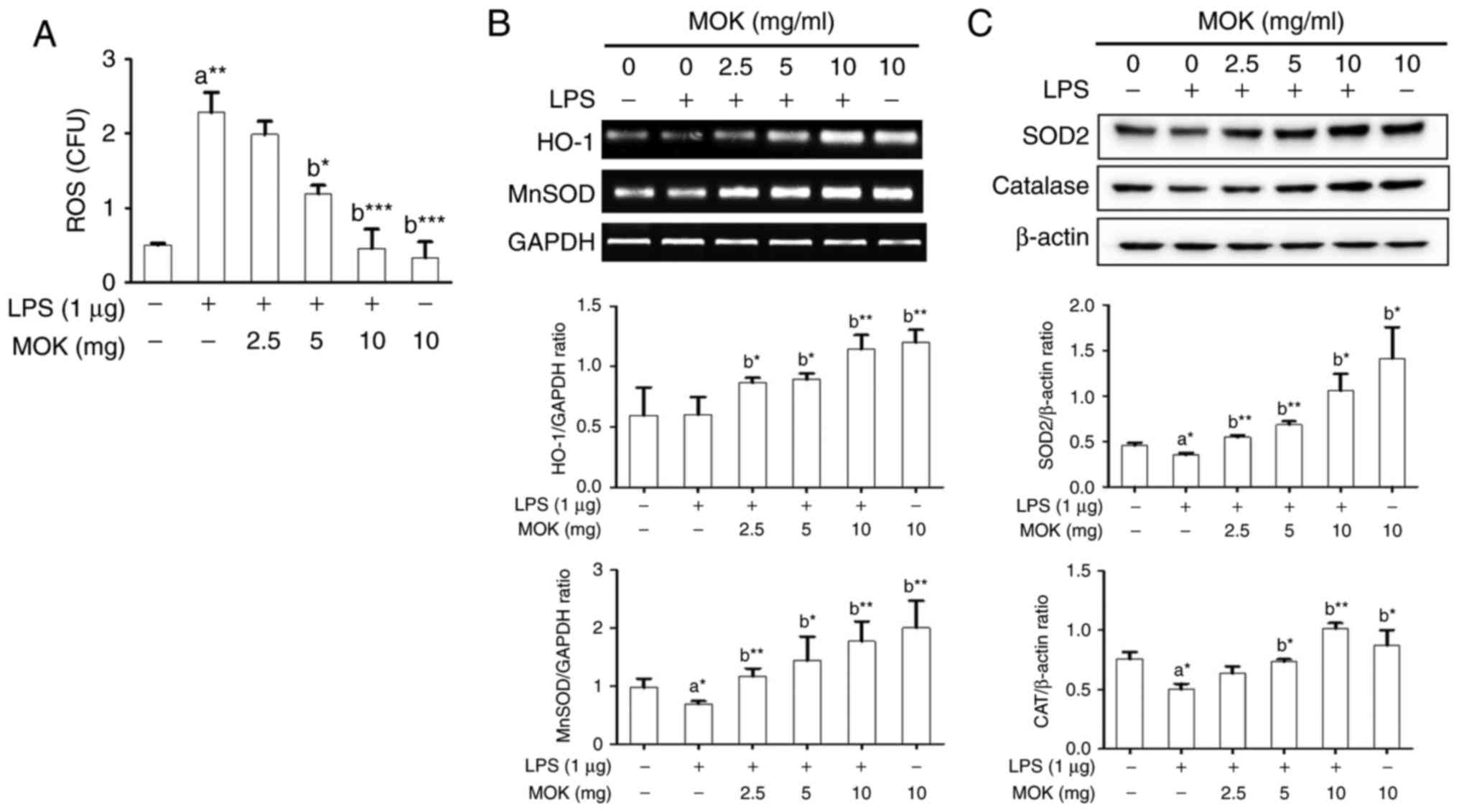

Effect of MOK extract on oxidative damage

Next, the inhibitory effect of MOK extract on oxidative damage was investigated by measuring ROS production and antioxidant enzyme expression in RAW 264.7 cells stimulated by LPS. Following stimulation of the cells by LPS, ROS production exhibited a significant increase (Fig. 7A), along with a signifi-cant decrease in antioxidant enzyme expression, except HO-1 production (Fig. 7B and C). Treatment by 5 or 10 mg/ml MOK extract achieved a statistically significant decrease (P<0.05 and P<0.001, respectively) in the production of ROS in LPS-stimulated cells in a concentration-dependent manner (Fig. 7A). Additionally, with concentrations of MOK extract of 2.5, 5 and 10 mg/ml, there was a statistically significant increase in the mRNA expression of HO-1 (P<0.05, P<0.05 and P<0.01, respectively) and MnSOD (P<0.01, P<0.05 and P<0.01, respectively), as well as an increase in the expression of SOD2 (P<0.01, P<0.01 and P<0.05, respectively) and CAT (P<0.05 for 5 mg/ml and P<0.01 for 10 mg/ml) proteins in RAW 264.7 cells stimulated by LPS (Fig. 7B and C). These results indicate that MOK extract may prevent oxidative damage by inhibiting ROS production and activating antioxidant enzymes in activated macrophages.

Discussion

Pharmacopuncture is a frequently used practice in clinical TKM, as it acts faster and is considered to be more effective compared with orally administered medicines. MOK is a polyherbal pharmacopuncture medicine that consists of ten herbs (Table I) and is frequently used in clinical practice for the treatment of heart and thyroid diseases. Although scientific evidence regarding the therapeutic aspects of MOK is lacking, it is expected that the clinical applications of MOK will be justified based on efficacy studies of the MOK constituents.

RAW264.7 is a functional macrophage line transformed by Abelson leukemia virus (18) and requires LPS for full activation. RAW264.7 cells are commonly used to study the anti-inflammatory properties of drugs. In the present study, in order to investigate the effects of MOK extract on inflammatory and oxidative responses, RAW264.7 cells were stimulated with LPS (1 µg/ml). We first determined the non-toxic concentrations of MOK extract with or without LPS in RAW264.7 macrophages using a WST viability assay. The decrease of RAW264.7 cell viability following LPS stimulation due to the release of inflammatory substances, which may act as cytotoxic agents, has been previously demonstrated, but an increase in cell viability (19) or little change in cell viability (20-23) have also been reported. However, in our cell viability assay, LPS (1 µg/ml) stimulation of RAW263.7 cells was not associated with a decrease in their viability, similar to non-treated cells or cells treated with MOK alone.

MOK did not decreased cell viability at 10 mg/ml; therefore, MOK extract at 2.5, 5 and 10 mg/ml was used for the efficacy study. MOK extract is applied in pharmacopuncture therapy at concentrations in the range of 0.2 ml (10.62 mg) to 0.4 ml (21.24 mg) that are known to be safe (10) for patients with various conditions, such as Hwa-Byeong (11), tension headache (12), functional dyspepsia (13) and herpes zoster (24).

Among the ten MOK constituent herbs, Moschus berezovskii (Moschus), Bos taurus (Bovis Calculus) and Ursus arctos (Ursi Fel) comprise the main active components. Specifically, M. berezovskii is a representative orifice-opening medicine used in unconscious patients and U. arctos, B. taurus, Scutellaria baicalensis, Phellodendron amurense, Pulsatilla koreana and Sophora tonkinensis act as heat-clearing medicines for patients with fever. Aucklandia lappa and Aquilaria agallocha are medicines regulating qi, whereas Hominis plancenta is a medicine for tonifying and replenishing. Notably, these ten herbs have individually been reported to have anti-inflammatory and antioxidant properties (25-32). Additionally, in our previous high-performance liquid chromatography analysis of MOK extract, we detected several compounds, such as bilirubin, ursodeoxycholic acid, baicalein and muscone, that were also reported to have anti-inflammatory and antioxidant properties (15). Therefore, various pharmaceutical effects of MOK extract in pharmacopuncture therapy may be predicted based on the studies on the individual effects of MOK components in vitro and in vivo. Furthermore, in the present study, MOK was found to exert anti-inflammatory and antioxidant effects on RAW 264.7 macrophages stimulated by LPS by downregulating inflammatory mediators and upregulating antioxidant enzymes. Unavoidable noxious stimuli that adversely affect normal tissue function induce inflammation as a protective response (33). Inflammation, as one of several immune responses against infection, is implicated in various human diseases, including cancer, neurological disorders, metabolic syndromes, inflammatory bowel disease, arthritis, cardiovascular and infectious diseases (34,35).

Although inflammatory mediators (NO, iNOS, PGE2 and COX-2) and pro-inflammatory cytokines (TNF-α, IL-1β and IL-6) produced by activated macrophages have important functions regarding host survival and tissue repair in the normal state (36), whereas their overproduction contributes to the induction and progression of several inflammatory diseases (37,38). Accordingly, the regulation of inflammatory mediators is recognized as a beneficial therapeutic strategy for inflammatory diseases. The present study demonstrated that MOK extract inhibited NO and PGE2 production by downregulating the expression of their synthetic enzymes, including iNOS and COX-2, as well as pro-inflammatory cytokines, including IL-6, IL-1β and TNF-α, in RAW 264.7 cells stimulated by LPS. We previously reported that MOK extract also inhibits the expression of iNOS, COX-2 and pro-inflammatory cytokines in primary macrophages isolated from the mouse peritoneal cavity (18). These results indicate that MOK extract effectively improves inflammatory conditions, as it can suppress the overproduction of inflammatory mediators by activated macrophages.

Oxidative stress caused by ROS overproduction damages cellular lipids, DNA and proteins, and is implicated in a variety of acute and chronic inflammatory diseases, cardiovascular disease, diabetes, central nervous system disorders, age-related disorders, neurodegenerative disorders and cancer (39,40). Notably, macrophage stimulation by LPS also causes production of ROS (41,42). Cells have two defense systems that react to oxidative stress from exogenous and endogenous sources, with compounds related to the latter including antioxidant enzymes, such as SODs (CuZnSOD and MnSOD), CAT and HO-1 (39). Therefore, the downregulation of ROS expression levels or the upregulation of antioxidant enzyme activity is important for the treatment of oxidative damage. In previous studies, it was reported that LPS stimulation induces oxidative stress by increasing ROS production and decreasing the expression of antioxidant enzymes, SOD, MnSOD, HO-1 and the levels of GSH in RAW264.7 macrophages (43,44). In the present study, MOK extract inhibited ROS production by upregulating the expression of SOD and CAT in RAW 264.7 cells stimulated by LPS. These results suggest that MOK exerts antioxidant effects during macrophage activation. Additionally, we also reported that MOK extract inhibited mRNA expression of HO-1 and MnSOD in mouse peritoneal macrophages without LPS stimulation (17).

To elucidate the underlying mechanism responsible for the anti-inflammatory and antioxidant effects of MOK extract, its regulatory effects on the MAPK/NF-κB inflammatory signaling pathway were investigated in RAW 264.7 cells stimulated by LPS, as the therapeutic effects of several anti-inflammatory agents are associated with inhibition of inflammatory gene expression, which often occurs through blockade of the MAPK/NF-κB pathway in macrophage activation. Antioxidant effects also depend on an increase in antioxidant enzyme expression and a decrease in ROS levels. ERK1/2, JNK and p38 MAPKs along with NF-κB comprise two cellular pathways involved in macrophage-mediated inflammation. Specifically, MAPKs are a family of proteins associated with serine/threonine kinases, which play an important role in cell proliferation and differentiation and cellular responses to cytokines or stress inducers. These are activated by phosphorylation and then induce activation of the transcription factor NF-κB. NF-κB also plays a key role in the pathogenesis and regulation of inflammatory responses, and its activation can regulate inflammatory cytokines (40,45,46). In the present study, MOK extract inhibited the phosphorylation of ERK1/2, JNK and p38 MAPKs, as well as the nuclear translocation of NF-κB p65 in RAW 264.7 cells stimulated by LPS. These findings indicate that MOK extract exerts anti-inflammatory effects in activated macrophages by blocking the MAPK/NF-κB pathway. In a future study, we will consider the application of specific inhibitors, e.g., MAPK inhibitors, to investigate the underlying mechanism in detail.

In conclusion, MOK extract, a pharmacopuncture medicine, inhibited the production of the inflammatory mediators NO and PGE2 in RAW 264.7 cells stimulated by LPS by downregulating their synthetic enzymes, iNOS and COX. The expression of pro-inflammatory cytokines, such as IL-6, IL-1β and TNF-α, was also inhibited. In addition, MOK extract inhibited the phosphorylation of ERK1/2, JNK and p38 MAPKs and the nuclear translocation of NF-κB p65 in RAW 264.7 cells stimulated by LPS. Moreover, MOK extract decreased ROS production by inducing the expression of the antioxidant enzymes MnSOD and CAT in RAW 264.7 cells stimulated by LPS. These results indicate that MOK exerts anti-inflammatory and antioxidant effects in activated macrophages, and it may be useful for the treatment of inflammatory conditions as a pharmacopuncture medicine.

Acknowledgments

Not applicable.

Funding

This study was supported by the National Research Foundation of Korea (NRF), funded by the Korean government (MSIT) (grant no. NRF-2017R1C1B5076224).

Authors’ contributions

JHH, HWJ and YKP made substantial contributions to the conception and design of the present study; JHH, JNM and JHP performed the experiments for data acquisition; JHH, JNM and HWJ performed the statistical analysis; JHH and HWJ interpreted the experimental results and wrote the manuscript; JHH, HWJ, JHP and YKP revised the manuscript. The final version of the manuscript was read and approved by all authors.

Availability of data and materials

The corresponding author will make available the data generated and analyzed during this study upon reasonable request. All materials used are included in Materials and methods.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

References

1

Liu Z, Tang L, Zou P, Zhang Y, Wang Z, Fang Q, Jiang L, Chen G, Xu Z, Zhang H and Liang G: Synthesis and biological evaluation of allylated and prenylated mono-carbonyl analogs of curcumin as anti-inflammatory agents. Eur J Med Chem. 74:671–682. 2014. View Article : Google Scholar

2

Mittal M, Siddiqui MR, Tran K, Reddy SP and Malik AB: Reactive oxygen species in inflammation and tissue injury. Antioxid Redox Signal. 20:1126–1167. 2014. View Article : Google Scholar :

3

Zhang L and Wang CC: Inflammatory response of macrophages in infection. Hepastobiliary Pancreat Dis Int. 13:138–152. 2014. View Article : Google Scholar

4

Cho SY, Yang SB, Shin HS, Lee SH, Koh JS, Kwon S, Jung WS, Moon SK, Park JM, Ko CN and Park SU: Anti-inflammatory and immune regulatory effects of acupuncture after craniotomy: Study protocol for a parallel-group randomized controlled trial. Trials. 18:4812017. View Article : Google Scholar

5

Zijlstra FJ, van den Berg-de Lange I, Huygen FJ and Klein J: Anti-inflammatory actions of acupuncture. Mediators Inflamm. 12:59–69. 2003. View Article : Google Scholar : PubMed/NCBI

6

Lisboa MR, Gondim DV, Ervolino E, Vale ML, Frota NP, Nunes NL, Mariguela VC, Taba M Jr, Messora MR and Furlaneto FA: Effects of electroacupuncture on experimental periodontitis in rats. J Periodontol. 86:801–811. 2015. View Article : Google Scholar : PubMed/NCBI

7

McDonald JL, Cripps AW, Smith PK, Smith CA, Xue CC and Golianu B: The anti-inflammatory effects of acupuncture and their relevance to allergic rhinitis: A narrative review and proposed model. Evid Based Complement Alternat Med. 2013.591796:2013.

8

Song Q, Hu S, Wang H, Lv Y, Shi X, Sheng Z and Sheng W: Electroacupuncturing at Zusanli point (ST36) attenuates pro-inflammatory cytokine release and organ dysfunction by activating cholinergic anti-inflammatory pathway in rat with endotoxin challenge. Afr J Tradit Complement Altern Med. 11:469–474. 2014. View Article : Google Scholar : PubMed/NCBI

9

Wei Y, Dong M, Zhang H, Lv Y, Liu J, Wei K, Luo Q, Sun J, Liu F, Xu F and Dong J: Acupuncture attenuated inflammation and inhibited Th17 and treg activity in experimental asthma. Evid Based Complement Alternat Med. 2015.340126:2015.

10

Jung C, Jung JH and Lee MS: A Clinical Study of Immune Pharmacopuncturology. Kyungrak Medical Publishing Co.; Chungnam: 2011, In Korean.

11

Hwang JH: A case report of Hwa-byeong with MOK herbal acupuncture therapy. J Immuno-Pharmacopuncture. 2:43–55. 2013.In Korean.

12

Ha TD and Jung C: A case report on severe tension-type headache treated with pharmacopuncture (Yakchim). J Immuno-Pharmacopuncture. 5:37–45. 2016.In Korean.

13

Kim MJ, Kim SK, Ko SJ and Park JW: A case study of MOK and V Yakchim on functional dyspepsia. J Immuno-Pharmacopuncture. 3:41–49. 2014.In Korean.

14

Kim HJ, Gwan R, Han JW, Jung C and Park KH: Analysis of physioactivities on MOK Yakchim. J Immuno-Pharmacopuncture. 2:17–25. 2013.In Korean.

15

Hwang JH, Kang SY, Kang AN, Jung HW, Jung C, Jeong JH and Park YK: MOK, a pharmacopuncture medicine, regulates thyroid dysfunction in L-thyroxin-induced hyperthyroidism in rats through the regulation of oxidation and the TRPV1 ion channel. BMC Complement Altern Med. 17:5352017. View Article : Google Scholar : PubMed/NCBI

16

Hwang JH, Jung HW, Kang SY, Kang AN, Ma JN, Meng XL, Hwang MS and Park YK: Therapeutic effects of acupuncture with MOK, a polyherbal medicine, on PTU-induced hypothyroidism in rats. Exp Ther Med. 16:310–320. 2018.PubMed/NCBI

17

Hwang JH, Hwang MS and Park YK: MOK, a pharmacopuncture medicine, reduces inflammatory response through inhibiting the proinflammatory cytokine production in LPS-stimulated mouse peritoneal macrophages. J Acupunct Res. 34:11–21. 2017. View Article : Google Scholar

18

Raschke WC, Baird S, RalpH P and Nakoinz I: Functional macrophage cell lines transformed by Abelson leukemia virus. Cell. 15:261–267. 1978. View Article : Google Scholar : PubMed/NCBI

19

Zhang X, Xiong H and Liu L: Effects of taraxasterol on inflammatory responses in lipopolysaccharide-induced RAW 264.7 macrophages. J Ethnopharmacol. 141:206–211. 2012. View Article : Google Scholar : PubMed/NCBI

20

Choi HS, Seo HS, Kim SR, Choi YK, Shin YC and Ko SG: Anti-inflammatory and anti-proliferative effect of herbal medicines (APR) in RAW264.7 cells. Mol Med Rep. 9:1569–1574. 2014. View Article : Google Scholar : PubMed/NCBI

21

Li T, Gao D, Du M, Cheng X and Mao X: Casein glycomacropeptide hydrolysates inhibit PGE2 production and COX2 expression in LPS-stimulated RAW264.7 macrophage cells via Akt mediated NF-κB and MAPK pathways. Food Funct. 9:2524–2532. 2018. View Article : Google Scholar : PubMed/NCBI

22

Yang X, Kang MC, Li Y, Kim EA, Kang SM and Jeon YJ: Anti-inflammatory activity of questinol isolated from marine-derived fungus Eurotium amstelodami in lipopoly-saccharide-stimulated RAW 264.7 macrophages. J Microbiol Biotechnol. 24:1346–1353. 2014. View Article : Google Scholar : PubMed/NCBI

23

Kim HJ, Tsoyi K, Heo JM, Kang YJ, Park MK, Lee YS, Lee JH, Seo HG, Choi HS and Chang KC: Regulation of lipopolysaccha-ride-induced inducible nitric-oxide synthase expression through the nuclear factor-κB pathway and interferon-β/tyrosine kinase 2/Janus tyrosine kinase 2-signal transducer and activator of transcription-1 signaling cascades by 2-naphthylethyl-6, 7-dihydroxy-1, 2, 3, 4-tetrahydroisoquinoline (THI 53), a new synthetic isoquino-line alkaloid. J Pharmacol Exp Ther. 320:782–789. 2007. View Article : Google Scholar

24

Gong HM, Jun SA, Lee HJ and Kim JS: A case report of Herpes zoster patient treated with additional CS, V pharmacopuncture. J Immuno-Pharmacopuncture. 1:27–36. 2016.

25

De D, Datta Chakraborty P, Mitra J, Sharma K, Mandal S, Das A, Chakrabarti S and Bhattacharyya D: Ubiquitin-like protein from human placental extract exhibits collagenase activity. PLoS One. 8:e595852013. View Article : Google Scholar : PubMed/NCBI

26

Feng Y, Siu K, Wang N, Ng KM, Tsao SW, Nagamatsu T and Tong Y: Bear bile: Dilemma of traditional medicinal use and animal protection. J Ethnobiol Ethnomed. 5:22009. View Article : Google Scholar : PubMed/NCBI

27

Jang SY, Park JW, Bu Y, Kang JO and Kim J: Protective effects of hominis placenta hydrolysates on radiation enteropathy in mice. Nat Prod Res. 25:1988–1992. 2011. View Article : Google Scholar : PubMed/NCBI

28

Li X, Xu Y, Zhang C, Deng L, Chang M, Yu Z and Liu D: Protective effect of calculus bovis sativus on dextran sulphate sodium-induced uicerative colitis in mice. Evid Based Complement Alternat Med. 2015.469506:2015.

29

The National College of Oriental Medicine Herbology Classroom: Herbology: Youngrimsa, Seoul. 2016.In Korean.

30

Park SY, Phark S, Lee M, Lim JY and Sul D: Anti-oxidative and anti-inflammatory activities of placental extracts in benzo[a] pyrene-exposed rats. Placenta. 31:873–879. 2010. View Article : Google Scholar : PubMed/NCBI

31

Park JY, Lee J, Jeong M, Min S, Kim SY, Lee H, Lim Y and Park HJ: Effect of Hominis Placenta on cutaneous wound healing in normal and diabetic mice. Nutr Res Pract. 8:404–409. 2014. View Article : Google Scholar : PubMed/NCBI

32

Thevis M, Schänzer W, Geyer H, Thieme D, Grosse J, Rautenberg C, Flenker U, Beuck S, Thomas A, Holland R and Dvorak J: Traditional Chinese medicine and sports drug testing: Identification of natural steroid administration in doping control urine samples resulting from musk (pod) extracts. Br J Sports Med. 47:109–114. 2013. View Article : Google Scholar

33

Okin D and Medzhitov R: Evolution of inflammatory diseases. Curr Biol. 22:R733–R740. 2012. View Article : Google Scholar : PubMed/NCBI

34

Monaco C, Andreakos E, Kiriakidis S, Feldmann M and Paleolog E: T-cell-mediated signalling in immune, inflammatory and angiogenic processes: the cascade of events leading to inflammatory diseases. Curr Drug Targets Inflamm Allergy. 3:35–42. 2004. View Article : Google Scholar : PubMed/NCBI

35

Yamamoto Y and Gaynor RB: IkappaB kinases: Key regulators of the NF-kappaB pathway. Trends Biochem Sci. 29:72–79. 2004. View Article : Google Scholar : PubMed/NCBI

36

Adib-Conquy M, Scott-Algara D, Cavaillon JM and Souza- Fonseca-Guimaraes F: TLR-mediated activation of NK cells and their role in bacterial/viral immune responses in mammals. Immunol Cell Biol. 92:256–262. 2014. View Article : Google Scholar

37

Korhonen R, Lahti A, Kankaanranta H and Moilanen E: Nitric oxide production and signaling in inflammation. Curr Drug Targets Inflamm Allergy. 4:471–479. 2005. View Article : Google Scholar : PubMed/NCBI

38

Sweet MJ and Hume DA: Endotoxin signal transduction in macrophages. J Leukoc Biol. 60:8–26. 1996. View Article : Google Scholar : PubMed/NCBI

39

Davies KJ: Oxidative stress: The paradox of aerobic life. Biochem Soc Symp. 61:1–31. 1995. View Article : Google Scholar : PubMed/NCBI

40

Thalhamer T, McGrath MA and Harnett MM: MAPKs and their relevance to arthritis and inflammation. Rheumatol (Oxford). 47:409–414. 2008. View Article : Google Scholar

41

Chang LY, Wan HC, Lai YL, Chou IC, Chen YT and Hung SL: Areca nut extracts increased the expression of cyclooxygenase-2, prostaglandin E2 and interleukin-1α in human immune cells via oxidative stress. Arch Oral Biol. 58:1523–1531. 2013. View Article : Google Scholar : PubMed/NCBI

42

Satoh M, Minami Y, Takahashi Y and Nakamura M: Immune modulation: Role of theinflammatory cytokine cascade in the failing human heart. Curr Heart Fail Rep. 5:69–74. 2008. View Article : Google Scholar : PubMed/NCBI

43

Wang L, Xu Ml, Liu J, Wang Y, Hu JH and Wang MH: Sonchus asper extract inhibits 7 macrophages. Nutr Res Pract. 9:579–585. 2015. View Article : Google Scholar : PubMed/NCBI

44

Jin Y, Yang J, Lin L, Lin Y and Zheng C: The attenuation of scutellariae radix extract on oxidative stress for colon injury in lipopolysaccharide-induced RAW264.7 Cell and 2,4,6-trinitro-benzene sulfonic acid-induced ulcerative colitis rats. Pharmacogn Mag. 12:153–159. 2016. View Article : Google Scholar : PubMed/NCBI

45

Broom OJ, Widjaya B, Troelsen J, Olsen J and Nielsen OH: Mitogen activated protein kinases: A role in inflammatory bowel disease. Clin Exp Immunol. 158:272–280. 2009. View Article : Google Scholar : PubMed/NCBI

46

Shan J, Fu J, Zhao Z, Kong X, Huang H, Luo L and Yin Z: Chlorogenic acid inhibits lipopolysaccharide-induced cyclo-oxygenase-2 expression in RAW264.7 cells through suppressing NF-kappaB and JNK/AP-1 activation. Int Immunopharmacol. 9:1042–1048. 2009. View Article : Google Scholar : PubMed/NCBI
