Development of a cancer cells self‑activating and miR‑125a‑5p expressing poly‑pharmacological nanodrug for cancer treatment

  • Authors:
    • Yung-Chieh Chang
    • Min-Chieh Shieh
    • Yen-Hsuan Chang
    • Wei-Lun Huang
    • Wu-Chou Su
    • Fong-Yu Cheng
    • Chun Hei Antonio Cheung
  • View Affiliations

  • Published online on: June 14, 2022
  • Article Number: 102
  • Copyright: © Chang et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Cancer cells can acquire resistance to targeted therapeutic agents when the designated targets or their downstream signaling molecules develop protein conformational or activity changes. There is an increasing interest in developing poly‑pharmacologic anticancer agents to target multiple oncoproteins or signaling pathways in cancer cells. The microRNA 125a‑5p (miR‑125a‑5p) is a tumor suppressor, and its expression has frequently been downregulated in tumors. By contrast, the anti‑apoptotic molecule BIRC5/SURVIVIN is highly expressed in tumors but not in the differentiated normal tissues. In the present study, the development of a BIRC5 gene promoter‑driven, miR‑125a‑5p expressing, poly‑L‑lysine‑conjugated magnetite iron poly‑pharmacologic nanodrug (pL‑MNP‑pSur‑125a) was reported. The cancer cells self‑activating property and the anticancer effects of this nanodrug were examined in both the multidrug efflux protein ABCB1/MDR1‑expressing/‑non‑expressing cancer cells in vitro and in vivo. It was demonstrated that pL‑MNP‑pSur‑125a decreased the expression of ERBB2/HER2, HDAC5, BIRC5, and SP1, which are hot therapeutic targets for cancer in vitro. Notably, pL‑MNP‑pSur‑125a also downregulated the expression of TDO2 in the human KB cervical carcinoma cells. PL‑MNP‑pSur‑125a decreased the viability of various BIRC5‑expressing cancer cells, regardless of the tissue origin or the expression of ABCB1, but not of the human BIRC5‑non‑expressing HMEC‑1 endothelial cells. In vivo, pL‑MNP‑pSur‑125a exhibited potent antitumor growth effects, but without inducing liver toxicity, in various zebrafish human‑ABCB1‑expressing and ABCB1‑non‑expressing tumor xenograft models. In conclusion, pL‑MNP‑pSur‑125a is an easy‑to‑prepare and a promising poly‑pharmacological anticancer nanodrug that has the potential to manage numerous malignancies, particularly for patients with BIRC5/ABCB1‑related drug resistance after prolonged chemotherapeutic treatments.


Numerous targeted therapeutic agents have been developed for cancer treatment in the past two decades. For example, the anti-Erb-B2 receptor tyrosine kinase 2 (ERBB2/HER2) monoclonal antibody Trastuzumab (Herceptin), is commonly used nowadays for treating patients with ERBB2+ (HER2+) breast tumor. On the other hand, the epidermal growth factor receptor (EGFR) inhibitor Gefitinib (Iressa), is used to manage patients with advanced non-small cell lung cancer, which is often EGFR+. Despite the early success of various targeted therapeutics, drug resistance remains a major problem in clinical practice. As cancer cells can acquire resistance to targeted therapeutic agents when the designated-targets or their downstream signaling molecules develop protein conformational or activity changes due to gene mutations or amplifications, agents specificity targeting a single molecule or pathway often fails particularly in patients after prolonged treatment (1). This leads to the recent interest in poly-pharmacology, which refers to the design or use of pharmacological agents that act on multiple targets or disease pathways (2,3).

The microRNA (miR)-125a-5p is a recently discovered tumor suppressor. In clinical situations, low expression levels of miR-125a-5p were associated with enhanced malignant potential and poor prognosis in patients with head and neck, gastric, and breast cancer (4-6). At the cellular level, ectopic overexpression of miR-125a-5p inhibits the proliferation (or promotes apoptosis), migration, invasion, and epithelialmesenchymal transition (EMT) of breast, colorectal and lung cancer cells (7-12). Ectopic overexpression of miR-125a-5p also restores the sensitivity to cisplatin in the cisplatin-resistant cervical cancer cells and counteracts EGF-induced cell proliferation and invasion in cervical cancer cells (13,14). At the molecular level, miR-125a-5p negatively regulates the expression of ERBB2, baculoviral IAP repeat containing 5 (BIRC5/SURVIVIN), Sp1 transcription factor (SP1), LIM kinase 1 (LIMK1), and polypeptide N-acetylgalactosaminyltransferase 7 (GALNT7) in cells, in which upregulation of these molecules is known to promote tumorigenesis, tumor metastasis and drug resistance (4,6,14-18).

BIRC5 is a member of the inhibitor of apoptosis proteins (IAPs) family known for its inhibitory effects on caspase activity. Physiologically, BIRC5 plays an important role in brain development during embryogenesis (19). Unlike other IAPs, BIRC5 is highly expressed in different tumor types (Fig. S1A) but its expression remains low/undetectable in the differentiated normal and undamaged tissues (20-24). BIRC5 is also highly expressed in cancer stem cells (25,26). Clinically, high expression levels of BIRC5 is associated with poor prognosis in patients with cancer (Fig. S1B) (26,27). As upregulation of BIRC5 promotes tumorigenesis and tumor drug resistance, various efforts have been made in the development of the BIRC5-targeting anticancer therapies, including targeted therapy and vaccination (28-35). However, none of these BIRC5-targeting therapies has yet been approved by FDA for clinical application, mainly due to the lack of efficacy during clinical trials.

Polymeric gene delivery systems offer increased amounts of plasmid DNA uptake and the possibility of controlling the rate and conditions of release of plasmid DNA after administration. Plasmid DNA complexed with poly-L-lysine can be protected against digestion by nucleases present in the physiological environment (36). It was previously revealed that liposomal transfection of a BIRC5 promoter-driven antisense BIRC5-expressing plasmid DNA (pSur/AS-Sur) induces apoptosis in BIRC5-expressing (BIRC5+) cancer cells but not in the BIRC5 non-expressing (BIRC5) human umbilical vein endothelial cells (HUVEC) in vitro (37). In the present study, the multi-molecules/pathways-targeting BIRC5 promoter-driven miR-125a-5p expressing plasmid DNA (pSur-125a) loaded nanoparticles was created, in which the biodegradable and biocompatible poly-L-lysine polymer was used to encapsulate pSur-125a. The feasibility of using these nanoparticles to suppress the expression of various known miR-125a-5p-targeting cancer-related molecules such as ERBB2, SP1 and BIRC5 in BIRC5+ cancer cells was demonstrated. It was found that overexpression of miR-125a-5p downregulates the cellular expression of histone deacetylase 5 (HDAC5) and tryptophan 2,3-dioxygenase (TDO2), which is an enzyme that facilitates the production of kynurenine and the related induction of immunosuppression in tumors. Overexpression of ATP Binding Cassette Subfamily B Member 1 (ABCB1/MDR1/P-gp) induces multidrug resistance in cancer cells. In the present study, it was also demonstrated that the anticancer efficacy and the molecular effects of these nanoparticles are not affected by the expression of ABCB1 in cancer cells in vitro and in vivo.

Materials and methods

Cell lines and cell culture conditions

Human KB (cervical carcinoma), MCF7 (breast adenocarcinoma), and MDA-MB-231 (breast adenocarcinoma) cells were originally obtained from the American Type Culture Collection. Human KB cells were cultured in RPMI-1640 medium (cat. no. 31800-022; Gibco; Thermo Fisher Scientific, Inc.) containing 5% fetal bovine serum (FBS) (cat. no. 04-001-1A; Biological Industries) and penicillin/streptomycin/glutamine (PSG). The human NTUB1 and the NTUB1-derived ABCB1-expressing NTU0.017 bladder carcinoma cells were kindly provided by Dr Jang-Yang Chang of Institute of Biotechnology and Pharmaceutical Research, National Health Research Institutes, Miaoli, Taiwan (38). Human NTUB1 and MDA-MB-231 cells were cultured in RPMI-1640 medium containing 10% FBS and PSG. The KB- and NTUB1-derived ABCB1-expressing, multidrug resistant KB-TAX50 and NTU0.017 cells were generated by the paclitaxel-driven selection and cultured in medium containing 50 and 17 nM paclitaxel, respectively, as previously described (37,39-41). Human MCF7 cells were cultured in α-MEM containing 5% FBS, PSG, and insulin-transferring-selenium supplement (ITS) (cat. no. 11074547001; Diagnostics). MCF7-TamC3 cells were created by prolonged culture of MCF7 cells under estrogen-depleted conditions. The cellular and molecular phenotypes of the MCF7-dervided estrogen-independent and tamoxifen-resistant MCF7-TamC3 breast cancer cells have already been characterized in previous studies (15,42). MCF7-TamC3 cells were cultured in phenol-red-free RPMI containing 5% charcoal-stripped FBS, PSG and ITS. The human HMEC-1 dermal microvascular endothelial cells were kindly provided by Dr Ben-Kuen Chen of the Department of Pharmacology of National Cheng Kung University, Taiwan. All cells were cultured at 37°C in a humidified incubator containing 5% CO2 and were revealed to be mycoplasma free. The use of the aforementioned human cell lines in the present study was approved by the review board of Ministry of Science and Technology (Taiwan) and the biosafety committee of National Cheng Kung University (Taiwan).

Construction of the BIRC5 promoter driven miR-125a-5p expressing plasmid DNA

PCR was used to amplify the miR-125a-5p fragment and to insert the BspHI and EcoRI endonuclease restriction site on the 5′ and 3′ end of the PCR products (i.e. the newly synthesized miR-125a-5p fragments), respectively, with the use of the plasmid DNA pLV-[hsa-mir-125a] (cat. no. p087; BioSettia, Inc.) as template. The PCR cycle was carried out as follows: 98°C for 30 sec, followed up by 30 cycles of 98°C for 10 sec, 64.5°C for 30 sec, 72°C for 30 sec and then 72°C for 10 min using the following set of primers: forward, [designed to bind on the hsa-miR-125a precursor sequence (miRNA accession no. MI0000469) carried by the plasmid DNA pLV-(hsa-mir-125a)] 5′-AAT CAT GAT CGA GGA TCC TCG TTT-3′ and reverse, 5′-AAG AAT TCG GTC AGG TTT CAG TTG-3′. The BspHI and EcoRI enzymatic sites are underlined. The PCR product was incubated with the restriction endonuclease BspHI and EcoRI to generate sticky ends. The destination vector pSur was created by incubating the plasmid DNA pDRIVE-hSurvivin (a vector that harbors a BIRC5/survivin gene promoter and a luciferase gene) (cat. no. pdrive-hsurvivin; InvivoGen) with BspHI and EcoRI for the removal of the luciferase gene. Then, the digested PCR product was ligated onto the linearized pSur in a molar ratio of 1:3. Successful ligation of the PCR product onto pSur (i.e. the creation of pSur-125a) was validated by DNA sequencing. The plasmid DNA pSur-125a was transformed into the DH5α E. coli cells for long term storage.

In vitro cell viability analysis

Cells (5,040 cells/well) were seeded onto each well of 96-well plates overnight before being transfected with the plasmid DNA for 48 h or treated with the nanoparticles for 96 h. After treatment, 200 µl of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) solution (cat. no. 0793; diluted in phenol-red free RPMI in a ratio of 1:10; Amresco, LLC) was added to each well and incubated at 37°C for 4 h. Then, 100 µl MTT lysis buffer containing 500 ml/l dimethylformamide and 100 g/l sodium dodecyl sulfate, was added to each well and incubated for 16 h. Cell viability was quantified by measuring the absorbance of the solution at 570 nm using a SpectraMax® M5 microplate reader (Molecular Devices, LLC). The percentage of viable cells for each treatment group was calculated by adjusting the control group to 100%. Samples were assayed in duplicate and the experiments were repeated at least three times.

Wound healing (cell migration) assay

Cells (2.2×104) were seeded onto each well of the culture inserts (Ibidi GmbH) for 24 h. Cell-free gaps (500 mm) were created after removing the culture inserts. Cells were treated with either pL-MNP-pSur-Emp or 0.5 × IC50 pL-MNP-pSur-125a. Images of the wound areas were captured by using an invert light microscope (CKX53; Olympus Corporation) after 9 h (NTU0.017 cells) or 12 h (NTUB1 cells). The average width of the wound was measured and analyzed using ImageJ 1.52a software (National Institutes of Health) to calculate the cell migration.

Transwell invasion (cell invasion) assay

The upper chambers of the Transwell plates with 8-µm pore size were coated with 20% Matrigel at 37°C for 1 h (BD Medical Technology). Cells (5×105) were seeded onto the upper chamber of the Transwell (cat. no. 353182; Falcon; Corning Life Sciences) in serum-free culture medium containing indicated concentration of pL-MNP-pSur-Emp and pL-MNP-pSur-125a. Cell culture medium was added to the lower chamber containing the same concentration of pL-MNP-pSur-Emp and pL-MNP-pSur-125a as upper chamber. At 20 h post-treatment, cells attached on the revere side of the PET membrane were fixed with 4% paraformaldehyde solution at room temperature for 15 min and subsequently stained with 0.2% crystal violet solution at room temperature for 10 min. Images were captured by using an invert microscope (OLYMPUS CKX53). The crystal violet was dissolved with 33% acetic acid, and the absorbance was measured (570 nm). The related invasion ability was calculated by comparing the absorbance intensity.

MicroRNA (miR-125a-5p) and BIRC5 mRNA expression analysis

Total RNAs were extracted using TRIzol® reagent (cat. no. 15596-026; Thermo Fisher Scientific, Inc.). To detect the expression level of miR-12a-5p in cells, complementary DNA (cDNA) was synthesized from the extracted RNA using TaqMan™ microRNA-specific primers, following protocol as described in the TaqMan® MicroRNA Reverse transcription kit (cat. no. 4427975; Thermo Fisher Scientific, Inc.). A TaqMan reverse transcription-quantitative PCR (RT-qPCR)-based microRNA assay (ID 002198-hsa-miR-125a-5p; ID 001093-RNU6B) was used to determine the expression of miR-125a-5p in cells. The target fragment was amplified according to the following protocol: preheating at 95°C for 10 min, 40 cycles at 95°C for 15 sec and 60°C for 1 min. The miRNA expression level was normalized with RNU6B, which was broadly used as the endogenous reference microRNA in different miRNA quantification studies. To detect the expression level of BIRC5 mRNA, total RNA was extracted using TRIzol® reagent and complementary DNA was synthesized from RNA using the RevertAid H Minus first strand cDNA synthesis kit (cat. no. K1631; Thermo Fisher Scientific, Inc.). The relative expression levels of BIRC5 and ACTA1 mRNA were determined by qPCR using primers as previously described (15). The specific primers with the following sequences were used in the present study: human BIRC5 forward, 5′-CTG CCT GGC AGC CCT TT-3′ and reverse, 5′-CCT CCA AGA AGG GCC AGT TC-3′; human ACTA1 forward, 5′-GGC GGC ACC ACC ATG TAC CCT-3′ and reverse, 5′-AGG GGC CGG ACT CGT CAT ACT-3′. The target genes were quantified using the comparative threshold cycle (Ct) values 2−ΔΔCq method (43) (ΔCq=Cq Target gene-CtRNU6B, ΔΔCq=ΔCq Treatment-ΔCq Control). Experiments were repeated thrice.

Western blot analysis

Cells were lysed using CelLytic™ M cell lysis reagent (cat. no. C2978; Sigma-Aldrich; Merck KGaA) containing 1 mM phenylmethylsulfonyl fluoride, 1 mM sodium fluoride and cocktail protease inhibitor cocktail (cat. no. 05892791001; Roche Diagnostics). The protein concentration was measured by the bicinchoninic acid (BCA) protein assay kit. Equal amounts of protein (30 µg) were subjected to sodium dodecyl-sulfate polyacrylamide gel electrophoresis (SDS-PAGE) on a 6, 10 or 12% acrylamide gel. The resolved proteins were transferred onto a PVDF membrane (cat. no. IPVH00010; Merck KGaA) and incubated with a blocking buffer TBST (5% non-fat dried milk in Tris-buffered saline with Tween-20 (cat. no. 9480; Calbiochem; Merck KGaA) for 1 h at room temperature before an overnight incubation at 4°C with the following primary antibodies: anti-cleaved CASP3 antibody (1:1,000; cat. no. 9664; Cell Signaling Technology, Inc.), anti-ERBB2 antibody (1:1,000; cat. no. UM570036; UltraMAB), anti-BIRC5 (Survivin) antibody (1:700; cat. no. AF886; R&D Systems, Inc.), anti-CDH1 (1:1,000; cat. no. 24E10; Cell Signaling Technology, Inc.), anti-HDAC5 antibody (1:1,000; cat. no. 161661-AP; ProteinTech Group, Inc.), anti-TDO2 (1:500; cat. no. GTX114831; GeneTex, Inc.) anti-PARP antibody (1:1,000; cat. no. 9532; Cell Signaling Technology, Inc.), and anti-ACTA1 antibody (1:20,000; cat. no. MAB1501; Merck Millipore). The PVDF membrane was then washed thrice with TBS containing 0.1% Tween-20 before incubation for 1 h at room temperature with horseradish peroxidase-conjugated goat anti-rabbit antibodies (1:10,000; cat. no. AP132P; MilliporeSigma), mouse (1:10,000; cat. no. AP124P) or goat (1:10,000; cat. no. AP106P; both from MilliporeSigma) immunoglobulin G. Immunoreactive proteins were visualized using western blot enhanced chemiluminescence reagents (cat. no. WBKLS05000; Merck Millipore) and protein signals were detected by luminescence readers (FUJI LAS-100). The intensity of protein bands was determined by using the ImageJ 1.52a software (National Institutes of Health). Experiments were repeated at least three times.

Preparation of NH2-Fe3O4 magnetic nanoparticles (MNPs)

First, 1 M ferric chloride hexahydrate (FeCl3·6H2O) and 2 M ferrous chloride tetrahydrate (FeCl2·4H2O) were prepared by dissolving iron salts in 2 M hydrochloric acid (HCl) solution. Next, 4 ml of 1 M FeCl3 solution and 1 ml 2 M FeCl2 solution were mixed, and 1 ml of organic acid aqueous solution (0.5 g glycine dissolved in 1 ml deionized water) was then added to prepare the mixture solution. After vigorous stirring of the mixture solution, 5 M sodium hydroxide (NaOH) solution was then added drop by drop until the solution turned black. The solution was vigorously stirred again for 15 min at room temperature. Using a permanent magnet, the precipitated magnetic powder was fractionated, and the solution was subsequently discarded. Deionized water was then added to wash the precipitates thrice to remove excess salt. Subsequently, 3 g glycine, which was dissolved in 50 ml HCl, was added to the washed precipitates. The mixture solution was stirred for 5 min and then sonicated for 30 min. After adding deionized water and acetone in a volume ratio of Mixture solution: Deionized water: Acetone=5:2:3, the solution was centrifuged at 6,200 g for 10 min to discard the supernatant. Next, the following steps were repeated twice to remove excess organic acid in the suspension: 7 ml deionized water was added to dissolve and wash the precipitates, 3 ml acetone was added, and the mixture solution was centrifuged at 6,200 g for 10 min. In the end, NH2-Fe3O4 MNPs were produced after the precipitates were dispersed in deionized water. An inductively coupled plasma analysis of the Fe ion concentration for the NH2-Fe3O4 MNPs was measured by a spectro analyzer (Jobin-Yvon JY138).

Preparation of the plasmid DNA loaded poly-L-lysine-conjugated MNPs (pL-MNPs)

The poly-L-lysine-conjugated MNPs (pL-MNPs) were prepared by mixing 5 ml of 0.1% (w/v) low molecular weight poly-L-lysine (MW 1,000 to 5,000; cat. no. P0879; Sigma-Aldrich; Merck KGaA) with 0.1 ml of 0.1 mM MNPs. After the mixture solution was stirred for 30 min at room temperature and centrifuged at 17,000 g for 10 min, the precipitates were isolated by removing the supernatant. The precipitates were then washed twice with deionized water. Finally, the precipitates (pL-MNPs) were dispersed and stored in deionized water. A total of 500 ng/µl of plasmid DNA (in aqueous solution) were incubated with 0.22 µM pL-MNPs. Next, deionized water and rhodamine 6G (R6G; final concentration, 10 µM) were added to the plasmid DNA solution to achieve the final volume depending on the concentration of nanoparticles in the experiments. The volume ratio of 500 ng/µl of plasmid DNA:0.22 µM pL-MNP: deionized water=2:1:7. All samples were gently stirred at room temperature for at least 30 min before stirring at 4°C for 16 h.

Characterizations of the plasmid DNA-loaded pL-MNPs

Dynamic light scattering (DLS) was used to measure the size of plasmid DNA-loaded pL-MNPs, by Zetasizer Nano ZS90 (Malvern Instruments, Inc.). The zeta potential of pL-MNPs were determined by ELSZ-2000 (Otsuka Electronics Co., Ltd.). The surface morphology, shape and size of nanoparticles were measured by the scanning electron microscopy (SEM) at an accelerating voltage of 10 kV at a working distance of 9 mm. Samples prepared for SEM were firstly dropped on the cooper coin and collected after the solvent was evaporated at room temperature. Subsequently, samples were coated with gold for the sputter coating. Liquid transmission electron microscopy (liquid-TEM) was used for the in situ TEM image inspection for analyzing the structural and chemical properties, including size, structure and elements of plasmid DNA-loaded pL-MNPs. In the present study, the liquid-TEM was operated under the acceleration voltage of 200 kV (A JEOL JEM 2100 TEM).

DNase I protection assay

pSur-125a and PL-MNP-pSur-125a were incubated with DNase I at 37°C for 15, 30 min, 1 and 2 h in a final volume of 10 µl. The digestions were halted by incubating at 75°C for 10 min. The integrity of plasmid DNA was assessed by gel electrophoresis (0.8% agarose gel, 100 V), which was stained with the Healthview™ nucleic acid stain (cat. no. GN-NAS-100; Genomic).

In vitro plasmid DNA release assay

In vitro release of plasmid DNA from the plasmid DNA-loaded nanoparticle was performed in phosphate buffer saline (PBS) with different pH values (pH=7.4, 6, 5 and 4). 15 µg pL-MNP-pSur-Emp were incubated in 1 ml PBS with different pH value for various durations (1, 3, 6, 9, 12 and 24 h). After incubation, pL-MNP-pSur-Emp was stratified from the solution by using a magnet and the supernatant was collected to a new tube. The concentration of the plasmid DNA pSur-Emp in the supernatant was determined using spectrophotometry (MaestroGen, Inc.), and the total amount of the plasmid DNA presence was calculated using the following equation: Amount of plasmid DNA releasing (µg)=concentration of plasmid DNA (µg/µl) x 1,000 µl. The release percentage of plasmid DNA was determined using the following equation:

In vivo drug potency evaluation

The animal protocol was approved (approval no. 109273) by the Institutional Animal Care and Use Committee (IACUC) of National Cheng Kung University (Tainan, Taiwan). Wild type zebrafish (Danio rerio, strain: AB) embryos were purchased from the Laboratory Animal Center, College of Medicine, National Cheng Kung University. Human KB, KB-TAX50 and MDA-MB-231 cancer cells were labeled with PKH67 to track tumor growth in vivo. Zebrafish embryos were anesthetized with 0.01% tricaine 48 h post-fertilization (hpf) and subsequently transplanted with cancer cells. Total of 500 cancer cells were transplanted into the yolk sac of zebrafish embryos. A total of 1 h after cells transplantation, saline (negative control, N=24), pL-MNP-pSur-Emp (negative control, N=24), or pL-MNP-pSur-125a (N=24) were microinjected into yolk sac of zebrafish embryos. The saline or nanoparticles-treated zebrafish embryos were kept at 35°C for 48 h. Tumor size was measured from images captured using fluorescence microscopy every 12 h post-treatment.

In vivo hepatotoxicity analysis

Zebrafish hepatotoxicity analysis was performed by the Taiwan zebrafish core facility of National Health Research Institute (NHRI). Briefly, 48 hpf transgenic zebrafish (fabp10a:mCherry) embryos were treated (i.e. microinjected) with saline (N=24), or the indicated concentrations of pL-MNP-pSur-Emp (N=24) and pL-MNP-pSur-125a (N=24) for 48 h. The size of liver was measured from images captured using fluorescence microscopy.

Statistical analysis

Each experiment was performed at least three times. Data are presented as the mean ± standard error of the mean. A two-tailed unpaired Student's t-test was used for comparisons between two groups. One-way ANOVA with Tukey's post hoc test were used for multi-group comparisons. All statistical analyses were performed using GraphPad Prism version 8 (GraphPad Software, Inc.). P<0.05 was considered to indicate a statistically significant difference.

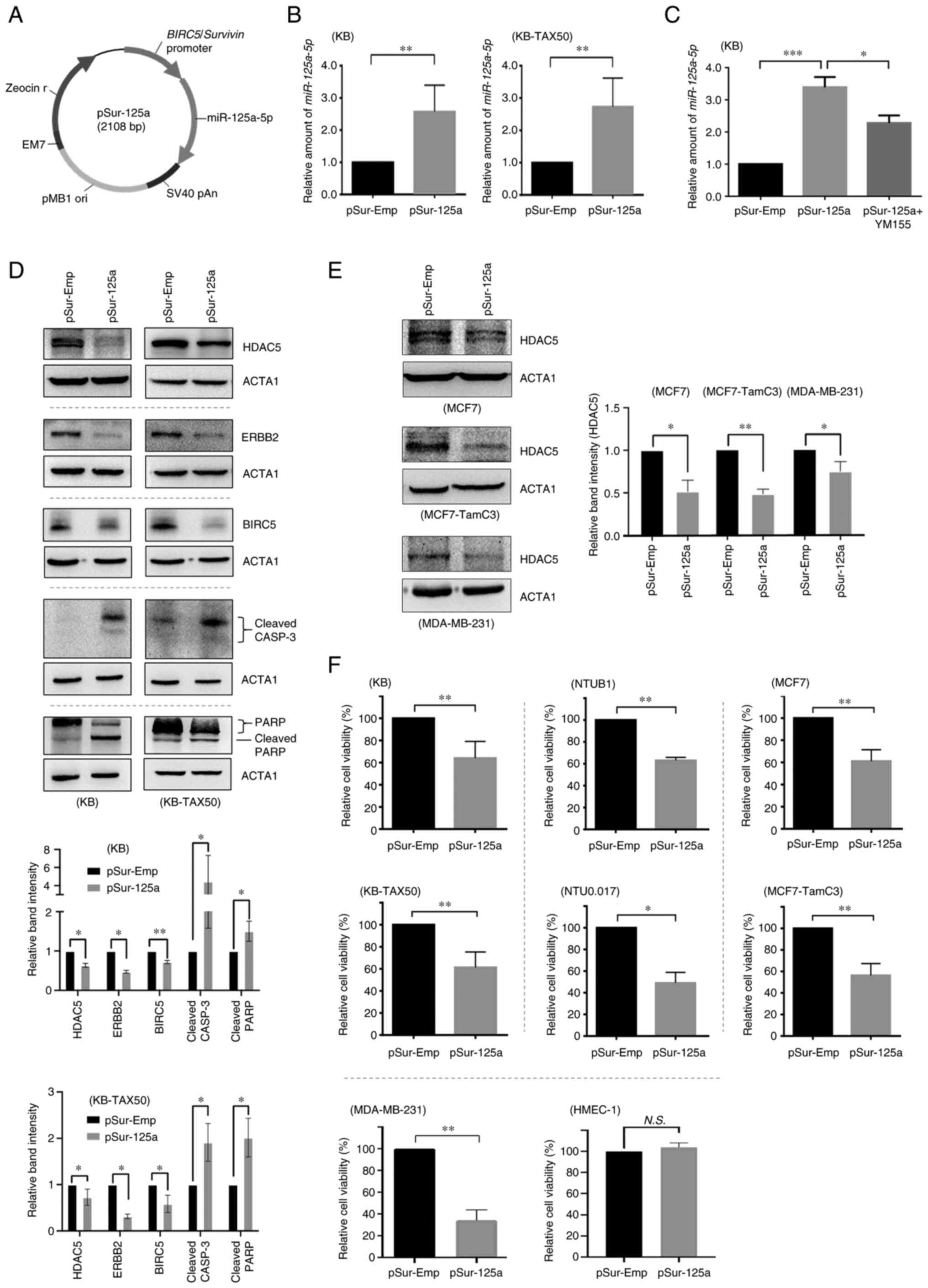

Transfection of pSur-125a decreases the viability of various BIRC5-expressing cancer cells

A BIRC5 gene promoter driven miR-125a-5p expressing, multiple oncoproteins downregulating, plasmid DNA (i.e. pSur-125a) was constructed. To confirm if pSur-125a functions as designed (Fig. 1A), the expression level of miR-125a-5p was examined in BIRC5+ cancer cells with or without liposomal delivery (i.e. transfection) of pSur-125a in vitro. The human KB and the KB-derived ABCB1-expressing, multidrug-resistant, KB-TAX50 cervical cancer cells (Fig. S2A) are known to express BIRC5 protein (37,39,44). Results of the qPCR analysis showed that transfection of pSur-125a significantly increased the amount of miR-125a-5p presence in both KB and KB-TAX50 cells compared with those transfected with pSur-Emp (i.e. the control plasmid DNA-BIRC5 promoter containing, but without the miR-125a-5p insert) (Fig. 1B). YM155 is a small molecule BIRC5 inhibitor that suppresses BIRC5 protein expression at the transcriptional level through direct interactions with the BIRC5 promoter region (45). In the present study, co-treatment with YM155 at a sub-lethal concentration (0.25 × IC50 of cell viability) partially attenuated the expression effects of pSur-125a on miR-125a-5p in KB cells, confirming that the increased expression of miR-125a-5p was at least in part driven by the BIRC5 promoter region located on pSur-125a (Fig. 1C). As revealed in Fig. 1D, transfection of pSur-125a decreased the expression of various known miR-125a-5p-targeting oncoproteins including ERBB2 and BIRC5 in KB and KB-TAX50 cancer cells. Transfection of pSur-125a also induced the protein cleavage of CASP3/caspase-3 and Poly (ADP-ribose) polymerase (PARP), which are markers for apoptosis, confirming the pro-apoptotic property of pSur-125a in BIRC5+ cancer cells (Fig. 1D). It was previously demonstrated that HDAC5 downregulation increases miR-125a-5p expression in the human estrogen receptor-positive (ER+) MCF7 and the ER+ MCF7-dervied estrogen-independent, tamoxifen resistant, MCF7-TamC3 breast cancer cells (15). Results of the western blot analysis showed that ectopic overexpression of miR-125a-5p decreased the expression of HDAC5 not only in KB and KB-TAX50, but also in MCF7, MCF7-TamC3 and MDA-MB-231 (triple-negative breast) cancer cells examined in the present study (Fig. 1E). These finding suggested that HDAC5 is a possible downstream affecting molecule of miR-125a-5p and a negative feedback loop possibly exists between HDAC5 and miR-125a-5p.

The viability of a panel of BIRC5+ cancer cells transfected with or without pSur-125a was examined (37,39,46). Results of the cell viability analysis revealed that transfection of pSur-125a significantly decreased the viability of KB, KB-TAX50, MCF7, MCF7-TamC3, MDA-MB-231, NTUB1 (bladder), and NTU0.017 (NTUB1-derived ABCB1-expressing) (Fig. S2A and B) cancer cells by 40-60% (Fig. 1F). In addition, the levels of effect of pSur-125a transfection on miR-125a-5p expression appear to be associated with the endogenous BIRC5 gene transcription levels (by using amounts of BIRC5 mRNA transcripts presence as an indicator) in the examined NTUB1, NTU0.017, and MDA-MB-231 cells (Fig. S2B and C). By contrast, transfection of pSur-125a did not affect the viability of the BIRC5-non-expressing (or only expressing at a relatively low level) human dermal microvascular endothelial HMEC-1 cells (Figs. S2D and 1F) and this result was unlikely caused by the limited transfection efficiency as bright green fluorescence signal could still be observed in HMEC-1 cells transfected with pCMV6-AC-GFP using the same plasmid DNA-liposome formulation (Fig. S2E).

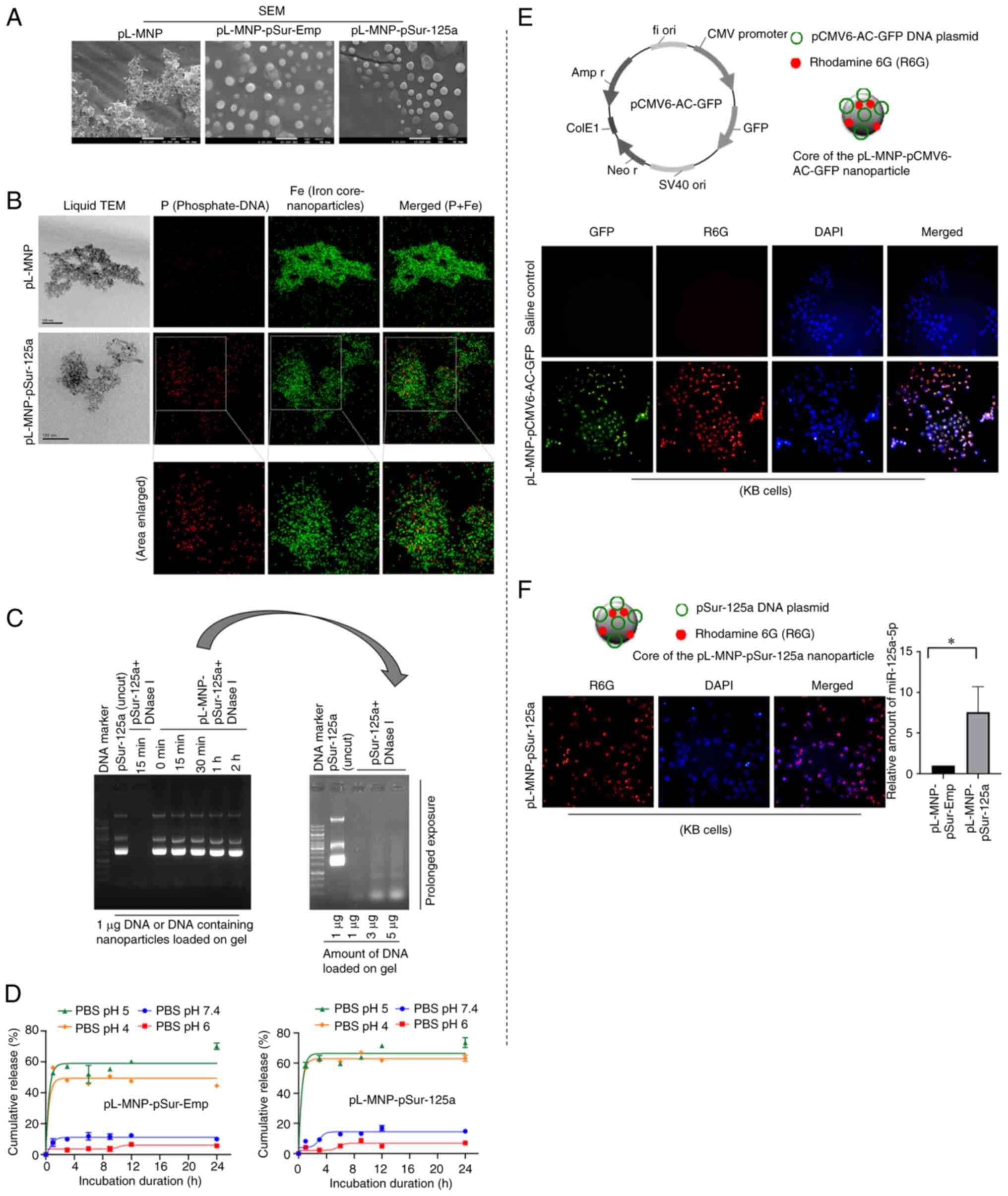

Physicochemical characterizations of the pSur-125a-loaded poly-L-lysine-modified magnetic iron oxide nanoparticles (pL-MNP-pSur-125a)

To increase the feasibility of utilizing pSur-125a as a therapeutic agent, the pSur-125a-loaded poly-L-lysine-modified magnetic iron oxide nanoparticles (pL-MNPs) (i.e. pL-MNP-pSur-125a) was developed. SEM images demonstrated that the pSur-Emp- and the pSur-125a-loaded nanoparticles (i.e. pL-MNP-pSur-Emp and pL-MNP-pSur-125a) were mostly in round shape under dehydrated conditions (Fig. 2A). The mean particle size of the nanoparticles pL-MNP (plasmid DNA-free), pL-MNP-pSur-Emp and pL-MNP-pSur-125a was ~289.1±9.5, 332.9±25.7 and 327.1±27.0 nm, respectively, as determined by the DLS analysis (Table I). The mean zeta (ζ) potential of pL-MNP, pL-MNP-pSur-Emp, and pLMNP-pSur-125a was +23.4±3.0, -45.0±4.3, and -39.8±3.4 mV, respectively (Table I). The chemical composition of pL-MNP-pSur-125a was determined by liquid TEM together with the energy dispersive X-ray spectroscopy (EDS) analysis. Images obtained by liquid TEM and results of the EDS analysis mapping together showed overlapping between the P element (representing the phosphate group of the DNA backbone) and the Fe element (representing the iron core of the nanoparticles), indicating successful loading of pSur-125a into the nanoparticles under the optimized conditions (Fig. 2B). The encapsulation efficiency of pL-MNP-pSur-Emp and pL-MNP-pSur-125a was 42.6±3.2 and 45.8±2.8%, respectively. The loading capacity of pL-MNP-pSur-Emp and pL-MNP-pSur-125a was 59.6±4.5 and 64.1±3.9% (Table I).

Table I

Physicochemical properties of different nanoparticles.

Table I

Physicochemical properties of different nanoparticles.

NanoparticlespL-MNP pL-MNP-pSur-Emp pL-MNP-pSur-125a
Carried plasmid DNANonepSur-EmppSur-125a
Zeta potential (mV)+23.4±3.0-45.0±4.3-39.8±3.4
Size (nm)289.1±9.5332.9±25.7327.1±27.0
Encapsulation efficiency (%)N/A42.6±3.245.8±2.8
Loading capacity (%)N/A59.6±4.564.1±3.9

Circulating DNA and RNA are susceptible to degradation by nucleases in the body. As revealed in Fig. 2C, the DNase I protection assay results demonstrated that the plasmid DNA pSur-125a, which is encapsulated in our formulated pL-MNPs, remained intact in the presence of DNase I for up to 2 h incubation. By contrast, the naked plasmid DNA pSur-125a was completely digested by the same amount of DNase I within 15 min of incubation, suggesting that pL-MNPs could protect the encapsulated pSur-125a from nuclease digestion (Fig. 2C). The plasmid DNA pSur-125a needs to be released from the nanoparticles pL-MNP-pSur-125a within the targeted cancer cells before turning on its miR-125a-5p-expressing function. The in vitro plasmid DNA release assay showed that ~50-65% of the loaded plasmid DNAs (i.e. pSur-Emp and pSur-125a) were released in the medium at pH 4-5 (Fig. 2D). By contrast, only ~5-10% of the loaded plasmid DNAs were released in the medium at pH 6-7.4, suggesting the release of the plasmid DNAs is pH sensitive, and the loaded plasmid DNAs are likely to be released in the endo/lysosomal compartments of cells (Fig. 2D) (47). The plasmid DNA pCMV6-AC-GFP (a GFP-expressing construct) and R6G-containing nanoparticles (i.e. pL-MNP-pCMV6-AC-GFP) were created to confirm if the nanoparticles could penetrate and release the loaded plasmid DNAs in cells. These nanoparticles were synthesized using the same formulation and under the same conditions as for the production of pL-MNP-pSur-125a. Incorporating R6G in pL-MNP-pCMV6-AC-GFP enabled the tracing of these nanoparticles during the transfection process. To prevent the leaching of R6G from nanoparticles, R6G-isocyanate was covalently bonded to the amino groups of pL-MNP. Microscopic images demonstrated that most KB cells treated with pL-MNP-pCMV6-AC-GFP emitted both the red (i.e. R6G) and green (i.e. GFP) fluorescent signals, indicating that pL-MNP-pCMV6-AC-GFP nanoparticles are capable of penetrating the cells and releasing the loaded pCMV6-AC-GFP for ectopic expression of GFP (Fig. 2E). Similarly, fluorescence microscopy results revealed successful binding/penetration of pL-MNP-pSur-125a on/into KB cells (Fig. 2F). Of note, results of the qPCR analysis showed that the amount of the miR-125a-5p transcripts present in the pL-MNP-pSur-125a treated cells was significantly increased as compared with cells treated with the control nanoparticles pL-MNP-pSur-Emp, confirming that the plasmid DNA pSur-125a was successfully released by the nanoparticles and was also activated to express miR-125a-5p in the treated cells (Fig. 2F).

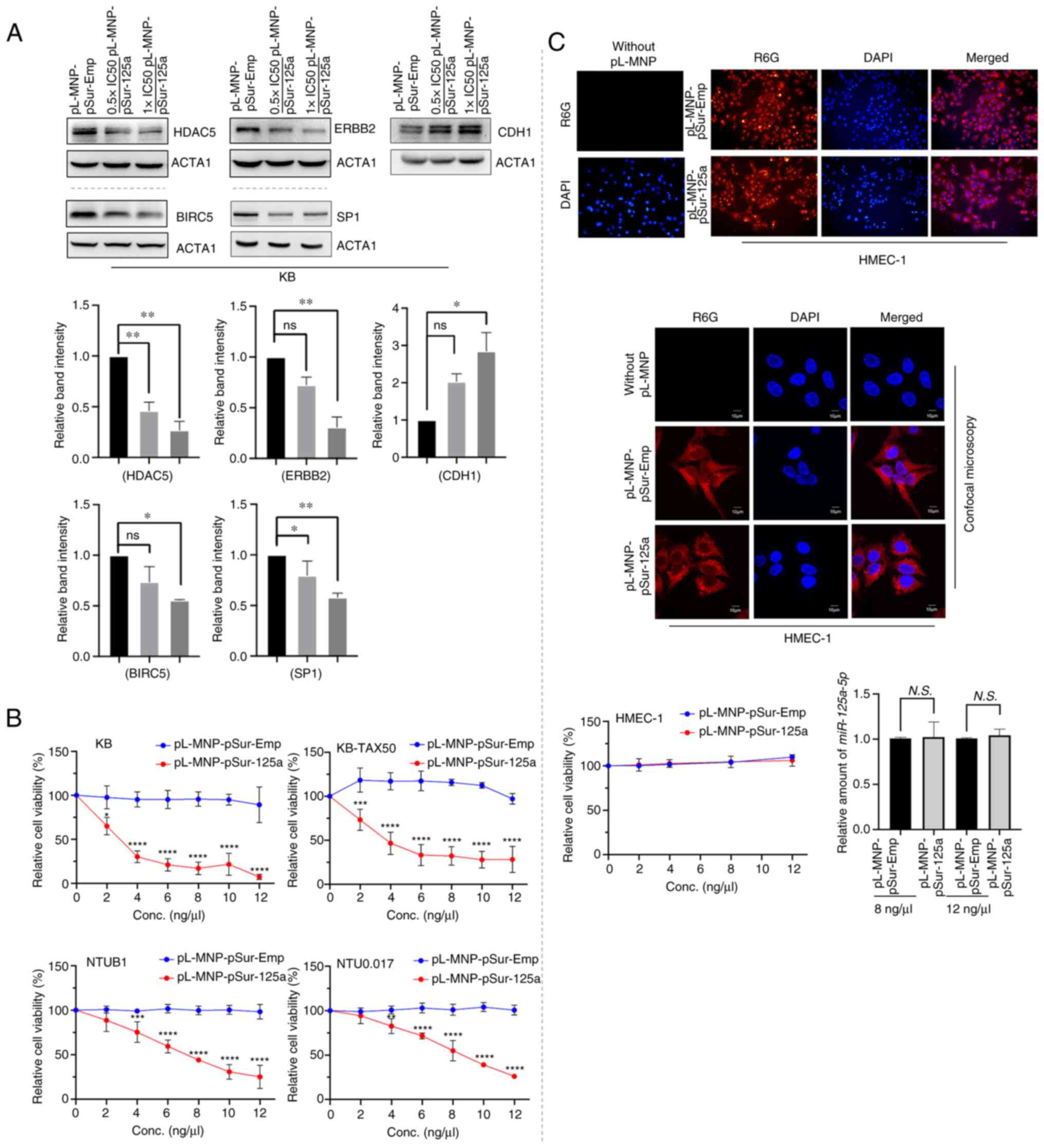

pL-MNP-pSur-125a exhibits the designated molecular and cellular functions in BIRC5-expressing cancer cells

At the molecular level and similar to the results of cells transfected with the plasmid DNA pSur-125a, KB cells treated with pL-MNP-pSur-125a also showed decreased protein expression levels of BIRC5, ERBB2, and HDAC5 (Fig. 3A). PL-MNP-pSur-125a also decreased the protein expression of HDAC5 in KB-TAX50 cells, confirming that HDAC5 is a downstream target of miR-125a-5p (Fig. S3A). By contrast, pL-MNP-pSur-125a increased the expression of CDH1/E-cadherin in KB cells, suggesting that the reduced expression of BIRC5, ERBB2 and HDAC5 protein was unlikely caused by the general reduction in the rate of protein synthesis in cells undergoing apoptosis and cell death (Fig. 3A). It was previously demonstrated that ectopic overexpression of miR-125a-5p decreases the expression of SP1, a transcription factor that is known to promote tumorigenesis upon upregulation in human SK-BR-3, MCF7, and MCF7-TamC3 breast cancer cells (15). In the present study, pL-MNP-pSur-125a decreased the expression of SP1 in KB cells, further confirming the poly-pharmacological effects (on various known miR-125a-5p-affecting molecules) of the nanodrug (Fig. 3A). Upregulation of tryptophan 2,3-dioxygenase (TDO2) promotes cancer immune evasion, and recently, TDO2 has been a hot therapeutic target for cancer (48,49). Intriguingly, it was found that pL-MNP-pSur-125a decreased the expression of TDO2 in KB but not in other examined cancer cells (Fig. S3B). To confirm if the downregulation of TDO2 was caused by miR-125a-5p overexpression, and not by the chemicals used for the nanoparticle production, cells were transfected with or without the plasmid DNA pSur-125a using liposomal reagents and the expression of TDO2 was examined. Similar to cells treated with pL-MNP-pSur-125a, transfection of pSur-125a also decreased the expression of TDO2 in KB cells (Fig. S3B). Collectively, these results suggested that miR-125a-5p differentially regulates TDO2 expression in different cancer cells.

The cellular effects of pL-MNP-pSur-125a were examined in both the BIRC5-expressing KB, KB-TAX50, NTUB1, NTU0.017 cancer cells and the BIRC5-non-expressing (or expressing at a relatively low level) HMEC-1 cells (50). In the present study, the cell viability assay results showed that pL-MNP-pSur-125a, but not pL-MNP-pSur-Emp, decreased the viability of KB, KB-TAX50, NTUB1 and NTU0.017 cells in a concentration-dependent manner (Fig. 3B). Importantly, pL-MNP-125a-5p is equally potent in inhibiting the growth of the multidrug resistance protein ABCB1 expressing (i.e. KB-TAX50 and NTU0.017) and their parental ABCB1 non-expressing (i.e. KB and NTUB1) cancer cells (Table II). Besides KB, NTUB1, and their derived ABCB1-expressing sublines, pL-MNP-pSur-125a (12 ng/µl, i.e. the maximum concentration used in the aforementioned cell viability assay) also decreased the viability (>50%) of various BIRC5+ cancer cell lines including MCF7, MCF7-TamC3, MDA-MB-231 and MIA-PaCa 2, as compared with those treated with pL-MNP-pSur-Emp (Fig. S3C). Of note, despite high levels of localization (and internalization) of the nanoparticles on cells, neither pL-MNP-pSur-Emp nor pL-MNP-pSur-125a exhibited any inhibitory effects on the viability of HMEC-1 cells in vitro (Fig. 3C). In addition, pL-MNP-pSur-125a, even at high concentrations (i.e. at 8 and 12 ng/µl), did not increase the expression of miR-125a-5p in HMEC-1 cells, further confirming that pL-MNP-pSur-125a is inactivated in BIRC5 non-expressing cells as designated (Fig. 3C).

Table II

pL-MNP-pSur-125a exhibits anti-proliferative activity against various types of cancer cells regardless of the expression of ABCB1.

Table II

pL-MNP-pSur-125a exhibits anti-proliferative activity against various types of cancer cells regardless of the expression of ABCB1.

Cell lineHMEC-1KBKB-TAX50NTUB1NTU0.017
Tissue typeMicrovascular endothelialCervical cancerCervical cancerBladder cancerBladder cancer
Drug resistanceN/A-Paclitaxel-Paclitaxel
ABCB1 statusNegativeNegativePositiveNegativePositive
pL-MNP-pSur-125a (IC50, ng/µl)>12 (unable to determine)2.8±0.53.6±1.37.2±0.68.6±0.4

Upregulation of BIRC5 and SP1 promotes cancer cells migration, invasion, and tumor metastasis (51). Notably, CDH1 downregulation is frequently observed in cancer cells undergoing EMT and pL-MNP-pSur-125a increased the expression of CDH1 in KB cells (Fig. 3A). In the present study, despite the migration rate of NTUB1 and NTU0.017 cells under culturing conditions being slightly different, results of the wound-healing assay showed that pL-MNP-pSur-125a at a low cytotoxic concentration (i.e. 0.5 × IC50) reduced the migration of both NTUB1and NTU0.017 cells (Fig. 4A). As NTUB1 is not suitable for use in the cell invasion assay, the potential effects of pL-MNP-pSur-125a on cell invasion were examined in NTU0.017 cells. In the present study, 0.5×IC50 pL-MNP-pSur-125a also decreased the invasiveness of NTU0.017 cancer cells in vitro (Fig. 4B).

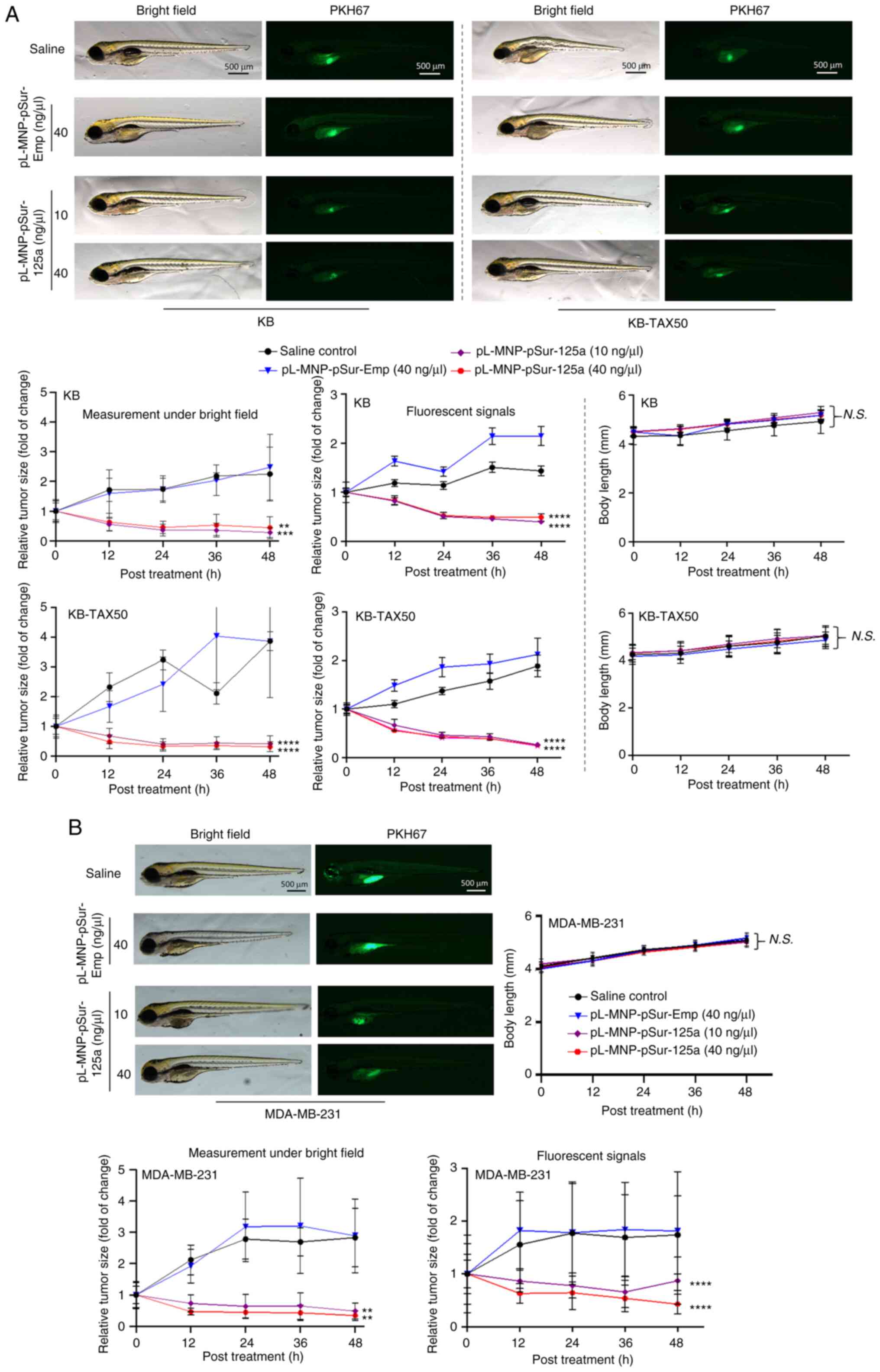

pL-MNP-pSur-125a exhibits antitumor formation effects in vivo

The anticancer efficacy of pL-MNP-pSur-125a was assessed in zebrafish, which is a xenograft model widely used for studies of tumor development and preclinical testing of anticancer drugs (52-54). The PKH67-stained (green fluorescent) KB and KB-TAX50 cancer cells were microinjected into the yolk sac of zebrafish embryos. As revealed in Fig. 5, pL-MNP-pSur-125a reduced the size of the KB, KB-TAX50 and MDA-MB-231 xenograft tumors in zebrafish. By contrast, neither saline nor pL-MNP-pSur-Emp showed any inhibitory effects on the growth of tumors (Fig. 5A and B). Notably, pL-MNP-pSur-125a was well-tolerated at the examined concentrations with no signs of severe toxicity in the KB, KB-TAX50 and MDA-MB-231 xenograft tumor models as the overall body length of zebrafish was similar (i.e. changes were insignificant) between the treatment and the control groups (i.e. saline and pL-MNP-pSur-Emp) (Fig. 5A and B).

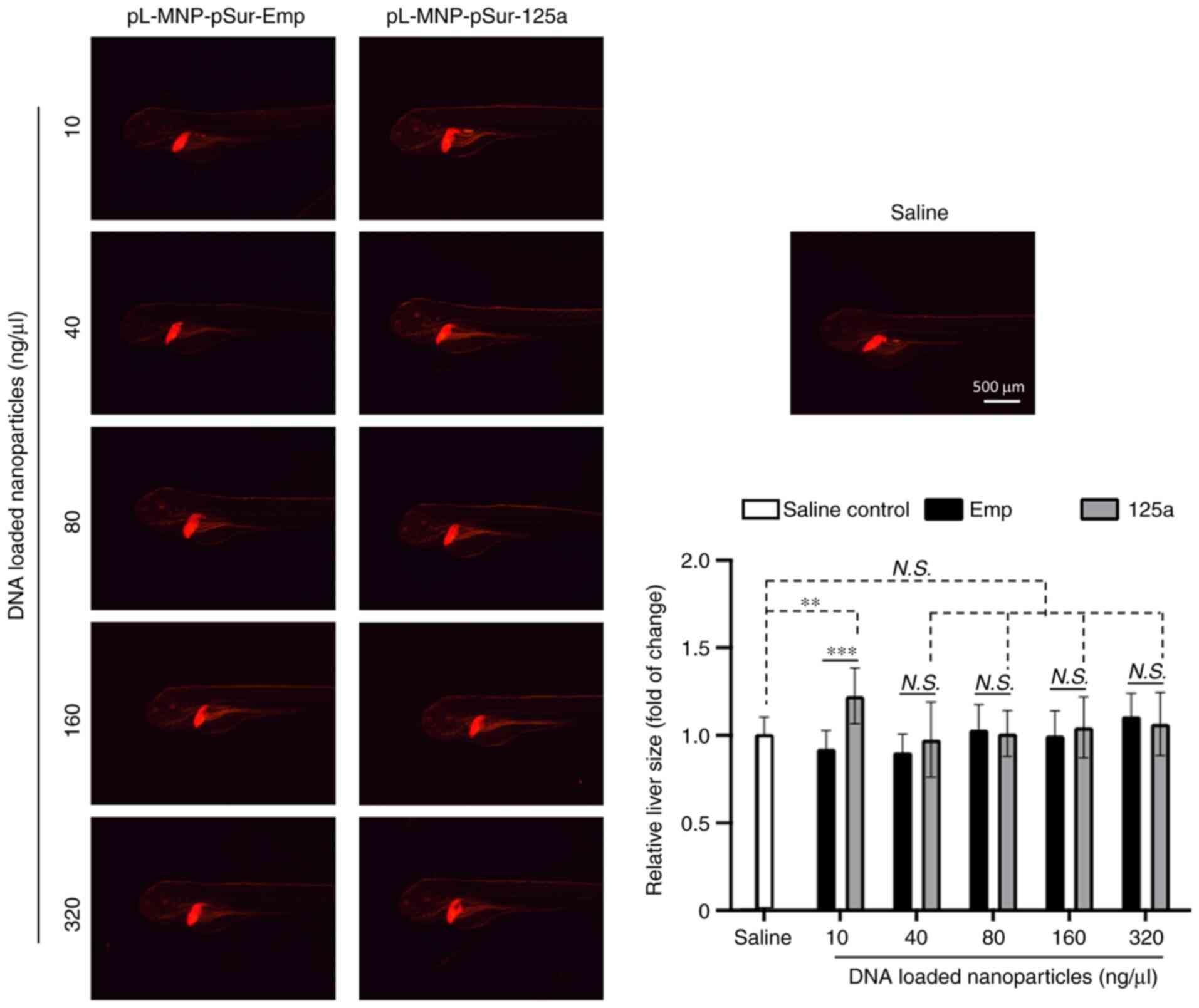

The possible hepatotoxicity effect of pL-MNP-pSur-125a was also examined in zebrafish, as it is an in vivo model commonly used to study drug-induced liver injury (55,56). Decreased liver size is a sign of liver damage. In the present study, pL-MNP-pSur-125a did not show any negative-effects on the size of the liver at most examined concentrations (except for 10 and 640 ng/µl, with slightly increased liver size), suggesting that the use of pL-MNP-pSur-125a may not induce liver damage during the treatment (Fig. 6).


In the present study, pL-MNP was successfully utilized as a transfection agent and the high gene expression efficiency of DNA-loaded pL-MNP (pL-MNP-pSur-125a) in BIRC5-expressing cancer cells was demonstrated. In this DNA-carried system, DNA was adsorbed on pL-MNP by strong electrostatic interactions and it could be released from pL-MNP by protonation of the phosphate group in DNA under acidic conditions (Fig. 7). During the production of pL-MNP-pSur-125a from pL-MNP, the increased hydrodynamic diameter (from ~289 to ~327 nm) and the charge transformation (from positive to negative charge) of zeta potential indicated the successful adsorption of pSur-125a on pL-MNP. Moreover, a high degree of overlap between the two chemical elements, phosphorus and iron, in pL-MNP-pSur-125a as shown by the elemental distribution maps also suggests that pSur-125a was successfully adsorbed onto pL-MNP.

Functionally, pL-MNP-pSur-125a exhibits poly-pharmacological properties as it downregulates the expression of various cancer-related molecules (HDAC5, ERBB2, BIRC5 and SP1) and induces cell death in BIRC5+ cancer cells (Fig. 7). It was previously identified that HDAC5 negatively regulates the expression of miR-125a-5p in cancer cells (15). Notably, in the present study, it was found that miR-125a-5p negatively regulates the expression of HDAC5. Co-incubation with the BIRC5 expression-suppressant (through the binding on the BIRC5 gene promotor region), YM155, only partially suppressed the increased-expression of miR-125a-5p in cells transfected with pSur-125a. The use of YM155 at low concentration (i.e. sublethal concentration) in the experiment may be one of the reasons behind the incomplete suppression of the increased-expression of miR-125a-5p in the pSur-125a-transfected cells. It is also possible that the increased amount of miR-125a-5p transcripts present in the pSur-125a-transfected cells was not solely caused by the BIRC5 promotor-driven miR-125a-5p expressing function of pSur-125a but also partly caused by the decreased expression of HDAC5 (induced by the pSur-125a-expressing miR-125a-5p), leading to the increased expression of the endogenous miR-125a-5p in cells (i.e. activating the endogenous feedback loop between HDAC5 and miR-125a-5p). Although the expression of the well-known anti-apoptotic molecule, B-cell lymphoma 2 (BCL2), was not examined in the pL-MNP-pSur-125a-treated cancer cells in the present study, it was demonstrated in a previous study that ectopic overexpression of miR-125a-5p decreases the expression of BCL2 in MCF7, MCF7-TamC3 and SK-BR-3 breast cancer cells (15). As BCL2 mRNA contains a putative miR-125a-5p binding site in the 3′ untranslated region (position 2419-2426 of BCL2 3′UTR), it is considered that pL-MNP-pSur-125a should also downregulate the expression of BCL2 in various BIRC5+ cancer cells.

Two of the most important pharmacological features of pL-MNP-pSur-125a are the following: i) this nanodrug is designed to be activated primarily in tumors, but not in the differentiated normal tissues, as BIRC5 is highly expressed in cancer cells, but not in the differentiated normal cells, and ii) the potency of this nanodrug is not affected by the expression of the multidrug resistant protein ABCB1 in cancer cells. Drug resistance is known to be a major clinical problem in cancer treatment. Upregulation of a drug efflux transporter ABCB1 causes cancer cells to become refractory to various chemotherapeutic, targeted therapeutic and hormonal drugs such as paclitaxel (mitotic inhibitor), doxorubicin (topoisomerase inhibitor), olaparib [poly ADP-ribose polymerase inhibitor (PARPi)], and tamoxifen [selective estrogen receptor modulator (SERM)] (57-60). Besides ABCB1, upregulation of BIRC5 is also known to promote multidrug resistance in cancer cells. For example, Park et al demonstrated that overexpression of BIRC5 promotes vincristine (mitotic inhibitor) resistance, whereas downregulation of BIRC5 increases the sensitivity to vincristine in acute lymphoblastic leukemia cells (61). It was previously demonstrated that dysregulation of the HDAC5-BIRC5-signaling pathway contributes to the development of both estrogen independence and hormone therapy resistance in estrogen receptor-positive (ER+) breast cancer cells (15). Overexpression of HDAC5 has also been shown to promote SOX9 deacetylation and nuclear translocation, contributing to tamoxifen resistance in ER+ breast cancer (62). In the case of ERBB2, overexpression or hyperactivation of this EGFR family member has been demonstrated to regulate the NRF2-dependent transcriptional activation, leading to the induction of antioxidant response and drug resistance in cancer cells (63). The expression of ERBB2 and the activation of its downstream signaling pathway is also known to play an important role in the survival of ERBB2+ breast cancer (i.e. the HER2-enriched subtype). On the other hand, TDO2 plays a pivotal role in regulating the immune microenvironment in tumors and overexpression of TDO2 promotes tumor immune evasion (64,65). Thus, various efforts have been made to the development of HDAC5 (e.g., LMK-235), BIRC5 (e.g., YM155, SPC3042), ERBB2 (e.g., Herceptin, Irbinitinib) and TDO2 (e.g., 680C91 and LM10) modulators/inhibitors for cancer treatment and several of them have reached clinical trials (30,31,35,45,48,66). Not to mention that the anti-ERBB2 monoclonal antibody, Herceptin, is already being used clinically in treating patients with ERBB2+ (i.e. HER2+) breast cancer. Given the roles of BIRC5, ERBB2, HDAC5 and TDO2 in survival of tumor cells, pL-MNP-pSur-125a is a promising nanodrug that has potential for the management of various malignancies, particularly for patients with ABCB1-related multidrug resistance after prolonged chemotherapeutic treatments. In addition, since miR-125a-5p modulates the expression of various proteins, it will be interesting to investigate in the future if pL-MNP-pSur-125a can also modulate the expression of different major histocompatibility class I molecules, in which dysregulation of these molecules is known to affect the effectiveness of anticancer immunotherapy (67).

Large-sized, DNA-loaded, nanoparticles (hydrodynamic diameter of 300-600 nm) have been revealed to mediate a higher transfection and gene expression efficiency in cells as compared with the DNA-loaded nanoparticles of smaller size (<100 nm) (68,69). However, nanoparticles with a hydrodynamic diameter of 100-400 nm, particularly for those with a diameter of less than 300 nm, have widely been considered optimal for passive tumor targeting due to the enhanced permeability and retention effect (70). In addition, it has been demonstrated that nanoparticles of 100-200 nm in size can escape from recognition by the reticuloendothelial system, which prolongs the half-life of nanoparticles in blood circulation (71). As revealed by the DLS results, the average hydrodynamic diameter of pL-MNP-pSur-125a is ~360 nm. Despite the fact that the size of pL-MNP-pSur-125a is slightly larger than 300 nm, which may hamper the efficiency of 'tumor site-penetration', several studies showed that nanoparticles with size larger than 300 nm still exhibit potent anticancer effects in vivo. For example, Talekar et al (72) demonstrated that the wild-type TP53/p53 and miR-125b co-expressing plasmid DNA-loaded hyaluronic acid-based nanoparticles, in a size range of 200-400 nm, were capable of inhibiting tumor growth and inducing apoptosis in a mouse model of lung cancer. In addition, a study showed that co-delivery of doxorubicin and the BIRC5 shRNA-expressing plasmid DNA by using mesoporous silica nanoparticles of around 350 nm in size were potent in targeting cancer cells in vitro and in vivo (73). It has also been demonstrated that chemotherapeutic drugs loaded to iron oxide mesoporous magnetic microparticles, with an average hydrodynamic size of 765 nm, were capable of penetrating the deep tumor cell layers of the dissected breast tumor tissues in culturing conditions of oxygen, nutrient and energy gradients similar to those found in vivo (74). Notably, fewer large-sized nanoparticles (i.e. 200-400 nm in size) were shown to be uptaken by macrophages than those of smaller size (75). As BIRC5 was expressed in atherosclerotic macrophages, the currently developed pL-MNP-pSur-125a nanoparticles in a size range of 300-400 nm may escape from being uptaken by macrophages, thereby limiting the induction of the unwanted immune responses (76). Further in vivo studies (e.g., by using genetically engineered mice) are needed to determine if pL-MNP-pSur-125a, at the current size, remains functional in targeting BIRC5+ tumors in a more complex tumor environment.

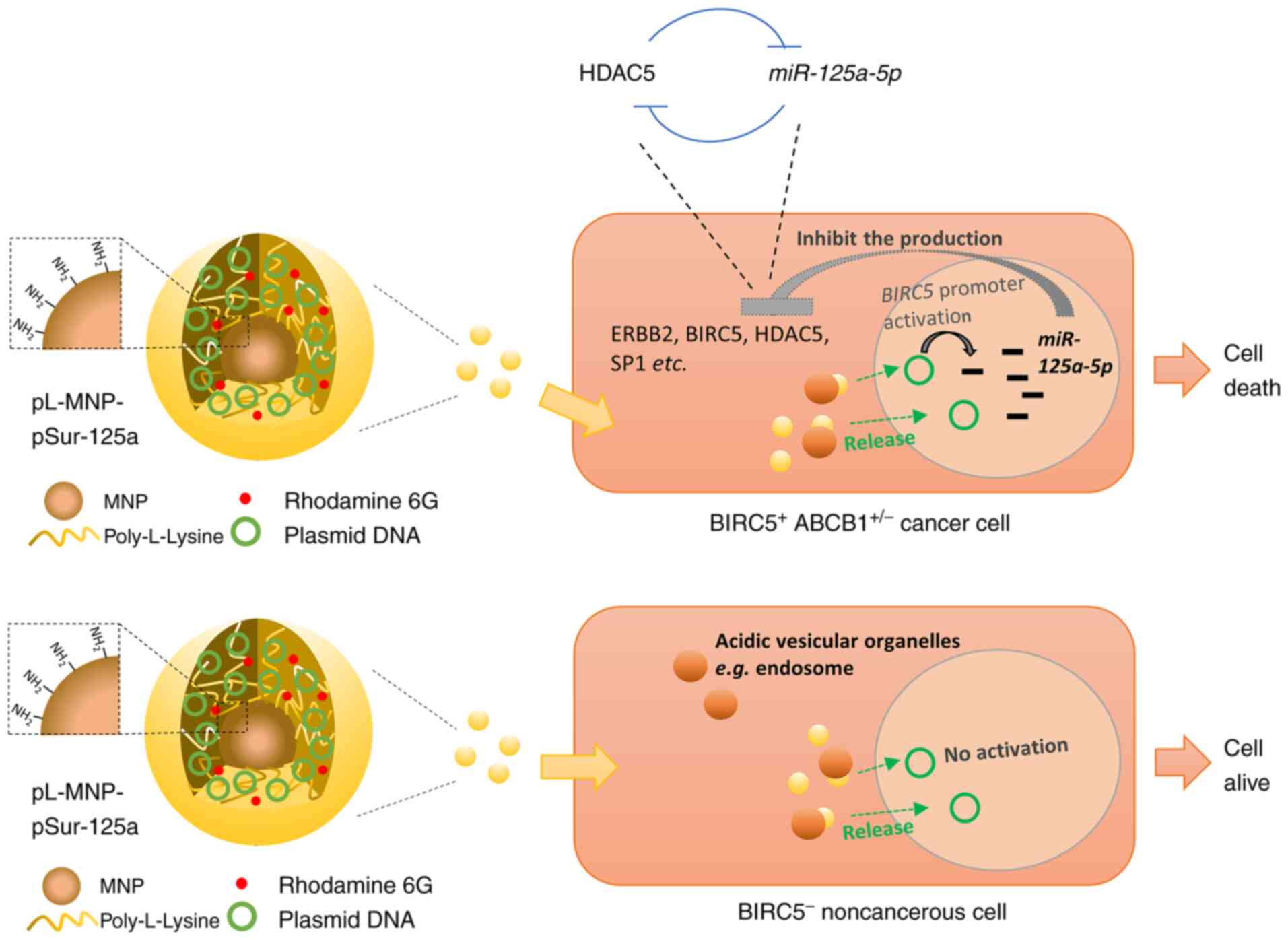

In conclusion, a poly-pharmacological nanoparticle pL-MNP-pSur-125a has been successfully produced and demonstrated to exert biological activity in eliminating BIRC5-expressing cancer cells, regardless of the tissue origins and the expression of the multidrug efflux pump ABCB1. PL-MNP-pSur-125a is a promising anticancer nanodrug that has the potential for the management of various malignancies, particularly for patients with ABCB1-related drug resistance after prolonged chemotherapeutic treatments.

Supplementary Data

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

Y-CC, M-CS, Y-HC, W-LH, W-CS, F-YC and CHAC conceived and designed the experiments. Y-CC, Y-HC and F-YC performed the experiments. Y-CC, Y-HC and F-YC analyzed the data. Y-CC and Y-HC confirm the authenticity of all the raw data. F-YC and CHAC wrote and proofread the paper. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The animal protocol was approved (approval no. 109273) by the Institutional Animal Care and Use Committee (IACUC) of National Cheng Kung University (Tainan, Taiwan).

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.


The authors would like to thank the technical services provided by the 'Bio-image Core Facility of the National Core Facility Program for Biotechnology, Ministry of Science and Technology, Taiwan'.


The present study was supported by the Ministry of Science and Technology of Taiwan (grant nos. 109-2320-B-006-031 and 110-2320-B-006-047-MY3) and the Ditmanson Medical Foundation Chia-Yi Christian Hospital of Taiwan (grant no. CYC109006).
