Synergism of a novel MCL‑1 downregulator, acriflavine, with navitoclax (ABT‑263) in triple‑negative breast cancer, lung adenocarcinoma and glioblastoma multiforme

  • Authors:
    • Anbok Lee
    • Hyeon-Ok Jin
    • Md. Masudul Haque
    • Hee Yeon Kim
    • Hana Jung
    • Jin Hee Park
    • Ilhwan Kim
    • Joo Yeon Song
    • Hye Kyoung Yoon
    • Hyoung Kyu Kim
    • Jin Han
    • In-Chul Park
    • Kwang Seok Kim
    • Sae Gwang Park
  • View Affiliations

  • Published online on: December 8, 2021
  • Article Number: 2
  • Copyright: © Lee et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Myeloid cell leukemia sequence 1 (MCL‑1), an anti‑apoptotic B‑cell lymphoma 2 (BCL‑2) family molecule frequently amplified in various human cancer cells, is known to be critical for cancer cell survival. MCL‑1 has been recognized as a target molecule for cancer treatment. While various agents have emerged as potential MCL‑1 blockers, the present study presented acriflavine (ACF) as a novel MCL‑1 inhibitor in triple‑negative breast cancer (TNBC). Further evaluation of its treatment potential on lung adenocarcinoma and glioblastoma multiforme (GBM) was also investigated. The anticancer effect of ACF on TNBC cells was demonstrated when MDA‑MB‑231 and HS578T cells were treated with ACF. ACF significantly induced typical intrinsic apoptosis in TNBCs in a dose‑ and time‑dependent manner via MCL‑1 downregulation. MCL‑1 downregulation by ACF treatment was revealed at each phase of protein expression. Initially, transcriptional regulation via reverse transcription‑quantitative PCR was validated. Then, post‑translational regulation was explained by utilizing an inhibitor against protein biosynthesis and proteasome. Lastly, immunoprecipitation of ubiquitinated MCL‑1 confirmed the post‑translational downregulation of MCL‑1. In addition, the synergistic treatment efficacy of ACF with the well‑known MCL‑1 inhibitor ABT‑263 against the TNBC cells was explored [combination index (CI)<1]. Conjointly, the anticancer effect of ACF was assessed in GBM (U87, U251 and U343), and lung cancer (A549 and NCI‑H69) cell lines as well, using immunoblotting, cytotoxicity assay and FACS. The effect of the combination treatment using ACF and ABT‑263 was estimated in GBM (U87, U343 and U251), and non‑small cell lung cancer (A549) cells likewise. The present study suggested a novel MCL‑1 inhibitory function of ACF and the synergistic antitumor effect with ABT‑263.


While breast cancer is a preeminent threat to the healthcare of women worldwide, triple-negative breast cancer (TNBC) is the most notable subtype due to its incomparable aggressiveness. Currently, treatment for TNBC primarily relies only on systemic cytotoxic chemotherapy, with a rather unsatisfactory prognostic outcome (1). Therefore, effective therapy for TNBC is urgently required.

Apoptosis, programmed cell death, is an intrinsic phenomenon for normal embryonic development and tissue homeostasis. Dysregulation of apoptosis is a critical step in cancer pathogenesis and is one of the major barriers to effective cancer treatment (2,3). The B-cell lymphoma 2 (BCL-2) protein family regulates the apoptosis pathway through mitochondrial outer membrane permeabilization, the cytosolic release of mitochondrial protein, cytochrome c, and caspase activation (4,5). Cancer cells resist apoptosis through various strategies, including increased expression of anti-apoptotic BCL-2 family proteins. The BCL-2 family includes anti-apoptotic members such as BCL-2, BCL-XL, BCL-W, as well as myeloid cell leukemia sequence 1 (MCL-1), and pro-apoptotic members such as BAX, BAK, and BH3-only (6).

MCL-1 has unique features among the BCL-2 family, including structure, function, and regulation (4). MCL-1 has a high affinity for pro-apoptotic BH3 peptides of BAX, BAK, BID, PUMA and NOXA compared with other BCL-2 anti-apoptotic family proteins (7). MCL-1 expression is quickly and readily induced by environmental stimuli including cytokines and growth factors unlike other proteins in the family such as BCL-2 and BCL-XL (8). MCL-1 is overexpressed in various human hematologic and solid cancers (7), and MCL-1 gene amplification has been observed in diverse cancers (9). MCL-1 is responsible for resistance to chemotherapeutic agents, and its high expression is associated with poor prognosis (10,11). The resistance to navitoclax (ABT-263) and venetoclax (ABT-199) has been demonstrated to be linked to high expression levels of MCL-1. In numerous instances, this resistance could be overcome by treatment with agents that downregulate, destabilize, or inactivate MCL-1 (12-14). Thus, MCL-1 has recently been recognized as an emerging therapeutic target in cancer.

Acriflavine (ACF), a mixture of 3,6-diamino-10-methylacridinium chloride (trypaflavin) and 3,6-diaminoacridine (proflavine) has been used as an antimicrobial agent a century ago (15). Recently, its potential as an anticancer agent has been highlighted. The antitumor activity of ACF has been reported in various cancers, including colorectal, pancreas, and prostate (16-21). Its mechanism is still under investigation; however, HIF-1 inhibition is considered as the main anticancer mechanism.

In the present study, the anticancer activity of ACF on TNBC cells and its cell death mechanism were evaluated. Furthermore, the interaction of MCL-1 protein in TNBC cells during ACF-induced cancer apoptosis was revealed. The potential of MCL-1 downregulation by ACF as a breakthrough strategy against BCL-2 inhibitor resistance was evaluated. Additionally, the therapeutic potential of ACF against non-small cell lung cancer (NSCLC) and glioblastoma multiforme (GBM) was demonstrated.

Materials and methods

Reagents and antibodies

ACF was purchased from Sigma-Aldrich; Merck KGaA. APC Annexin V Apoptosis Detection Kit was purchased from BioLegend, Inc (cat. no. 640930). APC anti-human IgG was purchased from BioLegend, Inc. (cat. no. 366906). ABT-263 was purchased from Santa Cruz Biotechnology, Inc. (cat. no. sc-207241). Monoclonal antibodies to detect MCL-1 (product no. 5453), GSK-3β (product no. 9315), phosphorylated (p)-GSK-3β (product no. 9323), GAPDH (product no. 2118) and polyclonal antibodies to detect p-MCL1 (product no. 4579), BCL-XL (product no. 2762), BCL-2 (product no. 2872), β-catenin (product no. 9562), cleaved PARP (product no. 9541), caspase-8 (product no. 9746), caspase-9 (product no. 9502), ubiquitin (product no. 3933), XAF1 (product no. 13805S) and XIAP (product no. 2042) were purchased from Cell Signaling Technology, Inc. Monoclonal antibody against β-actin (cat. no. A5316) was obtained from Sigma-Aldrich; Merck KGaA. Monoclonal antibodies to evaluate caspase-3 activation were purchased from Abcam (product code ab136812). MG-132 (product no. M7449), and cycloheximide (CHX; product no. C4859) were purchased from Sigma-Aldrich; Merck KGaA. Protein A/G PLUS-Agarose (cat. no. sc-2003) was purchased from Santa Cruz Biotechnology, Inc.

Cell line culture

The human cancer cell lines MDA-MB-231 (HTB-26), HS578T (HTB-126), HCC-70 (CRL-2315), A549 (CCL-185), and NCI-H69 (HTB-119) cells were purchased from the American Type Culture Collection (ATCC). U87 (glioblastoma of unknown origin), U343 and U251 cells were kindly received as a gift from Professor Jongsun Park (Department of Pharmacology, College of Medicine, Chungnam National University, South Korea). STR profiling was performed on all cell lines. All cells were cultured in Dulbecco's modified Eagle's medium (DMEM) or RPMI-1640 medium with 10% fetal bovine serum (FBS) (all from Cytiva) and 1% penicillin, and cultured at 37°C with 5% CO2. Cells were routinely controlled to exclude mycoplasma contamination.

Determination of cell viability

The In Vitro Toxicology Assay Kit (product no. TOX6; Sigma-Aldrich; Merck KGaA) was used to determine cellular viability. Briefly, cells (0.5-2×104 cells/well) were seeded and attached to 96-well culture plates. The indicated doses (0, 0.5, 1, 2, 10, 50, 100 µM) of ACF for different experiments were administered for 6-48 h. Cells were fixed in 10% trichloroacetic acid for 1 h at 4°C and washed five times with water. Fixed cells were stained with 0.4% sulforhodamine B for 15 min at room temperature and washed five times with 1% acetic acid. The incorporated dye was solubilized with 10 mM Tris Base, pH 8.8. The absorbance was spectrophotometrically measured at 565 nm using an EL800 microplate reader (BioTek Instruments, Inc.).

Cell death assay

Cell death was assayed using the Muse Annexin V & Dead Cell kit (cat. no. MCH100105; Luminex Corporation) according to the manufacturer's protocol. Briefly, 5×105 cells were collected, washed using cold phosphatebuffered saline (PBS), and resuspended in a medium containing 1% FBS. Following staining with the Muse Annexin V and Dead Cell reagent at room temperature for 20 min, cells were analyzed using the Muse Cell Analyzer (Luminex Corporation). Cell death was detected as the percentage of Annexin V- and/or 7-amino-actinomycin D (7-AAD)-positive cells.

Caspase-3/7 activity assay

Caspase-3/7 activity was analyzed using the Muse Caspase-3/7 kit (cat. no. MCH100108; Luminex Corporation). Briefly, 5×105 cells were collected and washed using cold PBS. Cells were resuspended in 1X assay buffer BA and mixed with Muse Caspase-3/7 reagent. Following 30 min of incubation at 37°C, Muse Caspase 7-AAD working solution was added to the cells. The cells were detected using the Muse Cell Analyzer and results were analyzed using Muse Cell Analyzer software version 1.6 (both from Luminex Corporation). The results were reported as the percentages of live cells (lower left panel, caspase-3/7-negative and 7-AAD-negative), apoptotic cells exhibiting caspase-3/7 activity (lower right panel, caspase-3/7 positive and 7-AAD-negative), late apoptotic/dead cells (upper right panel, caspase-3/7-positive and 7-AAD-positive), and necrotic cells (upper left panel, caspase-3/7-negative and 7-AAD-positive).

Western blot analysis

Cells were lysed using lysis buffer (cat. no. 9803S; Cell Signaling Technology, Inc.) supplemented with a protease inhibitor cocktail (cat. no. 11697498001; Roche Diagnostics GmbH) for 30 min at 4°C. Protein concentration was measured by bicinchoninic acid (BCA) assay. A total of 10-50 µg of protein per lane were separated using 8-14% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to nitrocellulose membranes (GE Healthcare Life Sciences; Cytiva). The membranes were blocked using 2% skim milk (product no. 70166; Sigma-Aldrich; Merck KGaA) for 1 h at room temperature followed by immunoblotting with specific primary antibodies (BCL-XL, BCL-2, GAPDH, β-actin, MCL-1, p-MCL1, XIAP, XAF1, cleaved PARP, GSK-3β, and p-GSK-3β, ubiquitin, caspase-8 and caspase-9) at a dilution of 1:2,000 overnight at 4°C. Horseradish peroxidase-conjugated anti-mouse (product no. 7076P2) and anti-rabbit (product no. 7074P2; both from Cell Signaling Technology, Inc.) secondary antibodies were incubated at a dilution of 1:1,000 at room temperature for 1 h. Following three washes with Tris-buffered saline 0.1% Tween-20, immunoreactive bands were visualized using an enhanced chemiluminescence detection system (Cyanagen Srl).

Annexin V and 7-AAD staining

Cells (4-5×105 cells/well) were seeded and attached to 6-well culture plates. The indicated doses (0, 1, 2 and 10 µM) of ACF were administered for 6-48 h. Cells were resuspended in binding buffer or PBS and stained using Annexin V-APC and 7-AAD for 15 min at room temperature. Flow cytometry was performed using a FACSCanto II instrument (BD Biosciences) and FlowJo v10.8.0 software (Tree Star, Inc.).

RNA extraction, cDNA synthesis, and reverse transcription-quantitative (RT-q) PCR

The mRNA was isolated using TRIzol (Thermo Fisher Scientific, Inc.). Extracted RNA was subjected to complementary cDNA synthesis using TOPscript RT DryMIX (Enzynomics, Inc.) according to the manufacturer's protocol. qPCR was performed using SYBR Green TOPreal qPCR 2X PreMIX (Thermo Fisher Scientific, Inc.). Samples were normalized according to GAPDH (forward, 5′-GGA GCG AGA TCC CTC CAA AAT-3′ and reverse, 5′-GGC TGT TGT CAT ACT TCT CAT GG-3′) and compared with assigned expression of untreated cells using the MCL-1 primers (forward, 5′-CGA CGG CGT AAC AAA CT-3′ and reverse, 5′-GGA AGA ACT CCA CAA ACC C-3′). Amplification was conducted with the CFX96 Touch Real-Time PCR detection system, a PCR machine (Bio-Rad Laboratories, Inc.). The thermocycling conditions consisted of initial denaturation at 95°C for 30 sec, followed by 40 cycles at 95°C for 5 sec, annealing at 60°C for 30 sec and extension at 72°C for 30 sec. All reactions were examined in technical triplicate. The 2−ΔΔCq method (22) was used to calculate the relative gene expression.

Mitochondrial membrane potential and reactive oxygen species (ROS) measurement

Mitochondrial membrane potential and ROS generation were evaluated using specific fluorescence probe staining including tetramethylrhodamine-ethyl ester-perchlorate (TMRE; Thermo Fisher Scientific, Inc.), and 6-chloromethyl-2′,7′-dichlorodihydrofluorescein diacetate acetyl ester (CM-H2DCFDA; Thermo Fisher Scientific, Inc.), respectively, as previously reported (23). Briefly, cells exposed to ACF (2 µM) and ABT-263 (1 µM) for 2, 6 or 24 h were incubated in 200 nM TMRE and 10 µM CM-H2DCFDA probe for 30 min at 37°C. Following washing twice using PBS, the fluorescence signals of TMRE and DCF-DA were detected and analyzed using a confocal microscope (LSM 700; Carl Zeiss AG).

Post-translational regulation and immunoprecipitation

For post-translational regulation of MCL-1, MDA-MB-231 and HS578T, cells were treated with cycloheximide (CHX; 10 µg/ml) and/or ACF (10 µM) and after 0, 1 and 2 h the expression of MCL-1 was determined using western blot analysis. For the proteasomal regulation study, MDA-MB-231 and HS578T cells were treated with MG-132 (10 µM) and/or ACF (10 µM) and after 6 h the expression of MCL-1 was determined using western blot analysis. For ubiquitination study, HS578T cells were treated with MG-132 (10 µM) and/or ACF (10 µM) and after 6 h the cells were harvested and washed twice with PBS. Cells were then resuspended in Pierce® IP Lysis Buffer (25 mM Tris-HCl pH 7.4, 150 mM NaCl, 1% NP-40, 1 mM EDTA, 5% glycerol) mixed with protease inhibitor and EDTA. A total of 100 µg of protein was incubated with anti-MCL-1 antibody for 2 h at 4°C. Subsequently, 20 µl of resuspended Protein A/G PLUS-Agarose (cat. no. sc-2003; Santa Cruz Biotechnology, Inc.) was added and incubated overnight at 4°C. Immunoprecipitates were collected and washed 4 times with PBS by centrifugation at 1,000 × g for 5 min at 4°C. The supernatant was discarded and the beads were resuspended with 40 µl of electrophoresis buffer and analyzed by SDS-PAGE and western blotting.

Combination index (CI) analyses

Using the CompuSyn software (CompuSyn v1.0; CompuSyn Inc.), the CI values were calculated according to the cell viability at corresponding concentrations. The CI value, CI<1 indicates a synergistic effect, CI=1 indicates an additive effect and CI>1 indicates and antagonistic effect (24,25).

Statistical analyses

Differences between groups were analyzed using one-way ANOVA and subsequent Tukey's multiple comparison post hoc test. Error bars represent ± standard deviation from three independent experiments. All statistical analyses were conducted using Graph-Pad Prism Version 4.0 (GraphPad Software, Inc.). P<0.05 was considered to indicate a statistically significant difference.


ACF induces apoptosis in TNBC cells in time and dose-dependent manners

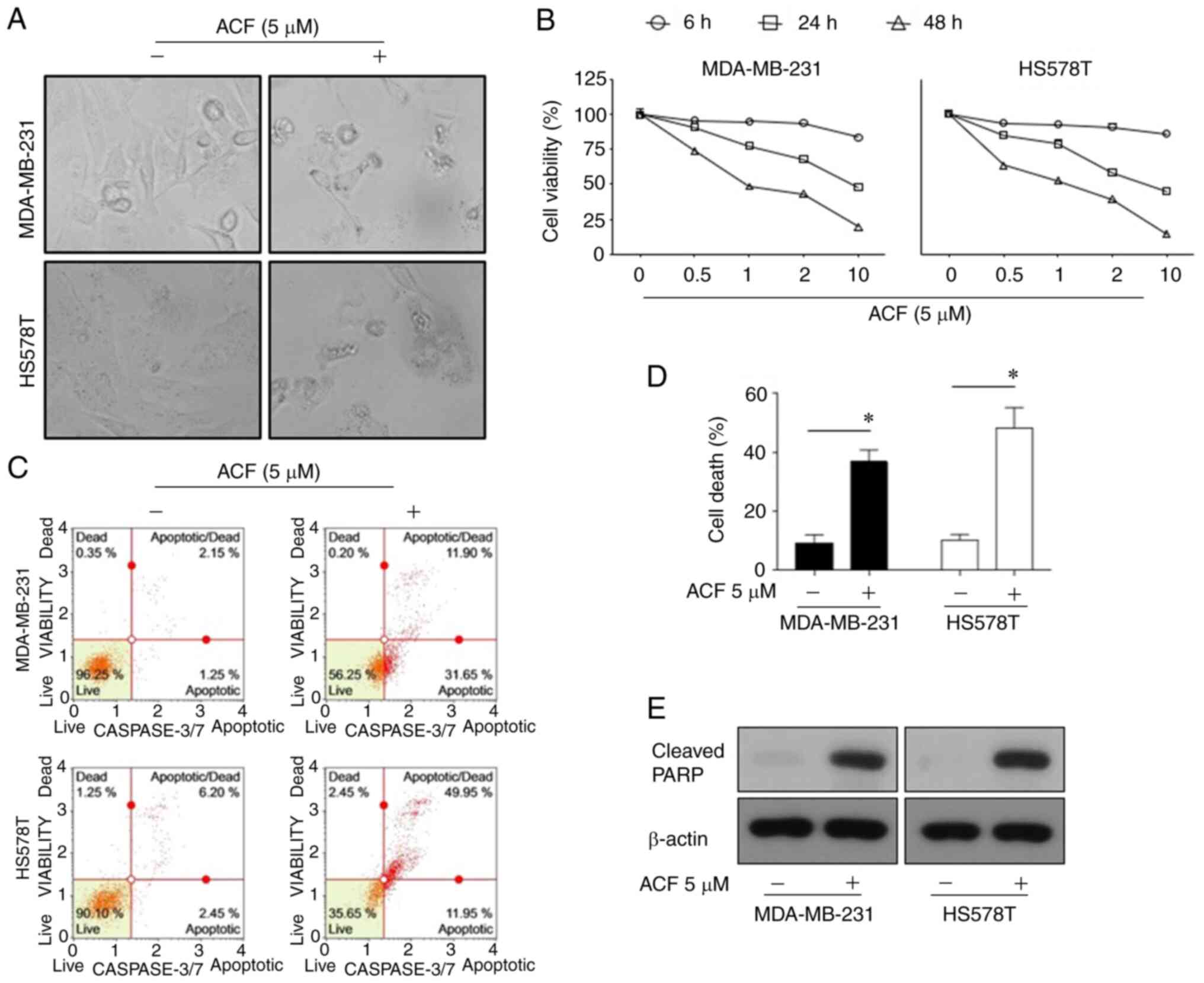

To assess whether ACF has anticancer activity on TNBC cells under normoxic conditions, the effect of ACF on survival and apoptosis in MDA-MB-231 and HS578T cells was examined. ACF (5 µM for 72 h) induced typical apoptosis morphologies in TNBCs characterized by shrinkage of cells and fragmentation into ultra-structured apoptotic bodies (Fig. 1A). The cell viability assay revealed that the anticancer activity of ACF was dose- and time-dependent (Fig. 1B). Flow cytometric analysis revealed that ACF-induced cell death was apoptosis via activation of caspase-3/7 (Fig. 1C and D). In addition, ACF-treated cells exhibited increased levels of cleaved PARP, which is a known cellular substrate of caspases (Fig. 1E). Then, the anticancer effect of ACF on different GBM (U87, U251, and U343) and lung cancer (A549, NCI-H69) cell lines was explored. Cytotoxicity and FACS data (Fig. S1) also revealed the anticancer activity of ACF on GBM and lung cancer cell lines.

ACF causes apoptosis via the intrinsic pathway

To determine whether apoptosis signaling occurs via the mitochondria-mediated intrinsic or death receptor-mediated extrinsic apoptotic signaling pathway, the accumulation of ROS and the level of mitochondrial membrane potential was assessed using TMRE. ROS levels and mitochondrial membrane potential were not altered following treatment with ABT-263, a BCL-2 protein inhibitor. However, ACF markedly increased the ROS levels within 2 h and reduced the mitochondrial membrane potentials at 6 h following treatment (Fig. 2). From a molecular point of view, the expression of caspase-8 and caspase-9 in ACF-treated (5 µM) cells was analyzed via western blot analysis. A total of 24 h following ACF treatment, the expression of caspase-9 was decreased while the expression of caspase-8 remained unchanged and the cleaved form of caspase-9 was not detected (Fig. S2). Collectively, these data suggested that ACF induces apoptosis via the intrinsic pathway.

Antitumor effect of ACF is mediated by the downregulation of MCL-1 protein

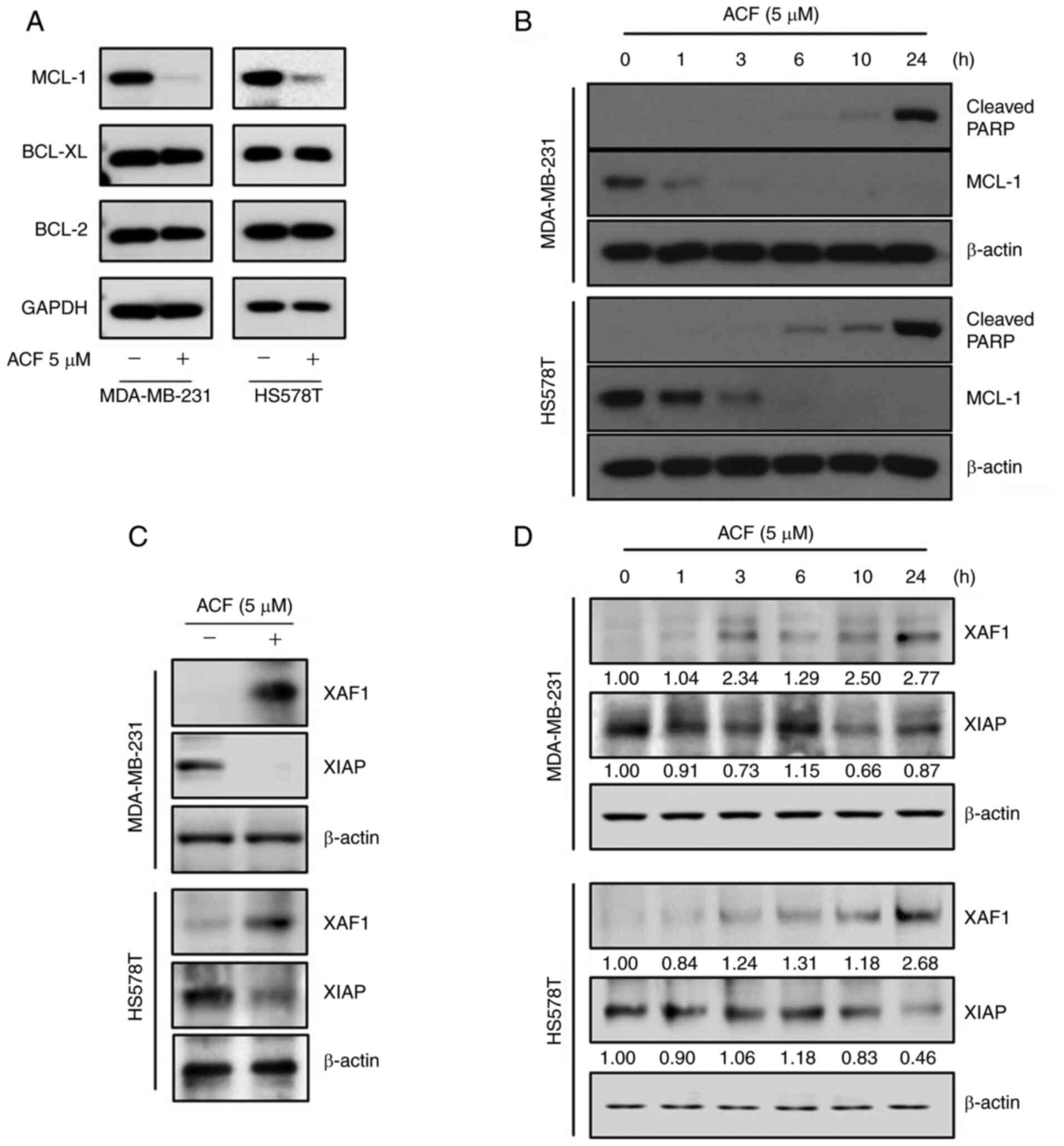

To evaluate the mechanism of ACF-induced intrinsic apoptosis, the protein levels of anti-apoptotic BCL-2 family proteins were determined using western blotting. ACF downregulated the protein levels of MCL-1, but not of other BCL-2 family proteins (Fig. 3A). The time kinetic study revealed that the MCL-1 protein level rapidly decreased and completely disappeared at 3-6 h following ACF treatment, while the majority of the cleaved PARP was formed 24 h following treatment (Fig. 3B). These results suggested the presence of other molecules between MCL-1 and cleaved PARP during ACF-mediated apoptosis. To determine which molecules linked MCL-1 downregulation and PARP cleavage, the XAF1 and XIAP protein levels were evaluated. Expression of XAF1 protein was increased and expression of XIAP was decreased at 24 h following the ACF treatment (Fig. 3C). Then, XAF1 and XIAP expression was evaluated at serial time-points. The results revealed the increased expression of XAF1 at 1, 3, 10 and 24 h following ACF treatment and decreased expression at 6 h. Expression of XIAP was decreased at 1, 3, 10 and 24 h but increased at 6 h following ACF treatment in the MDA-MB-231 cell line. In the HS578T cells, XAF1 increased at 3, 6, 10 and 24 h but decreased at 1 h and XIAP decreased at 1, 10 and 24 h and increased at 3 and 6 h following ACF treatment (Fig. 3D). In addition, MCL-1 downregulation was also observed both in hypoxic and normal conditions (Fig. S3). The aforementioned experiments entailed that ACF treatment induces an antitumor effect by downregulating MCL-1 not HIF-1 and it may also be associated with the expression of XAF1 and XIAP in TNBC cells.

ACF induces downregulation of MCL-1 at a transcriptional- and post-translational-dependent manner

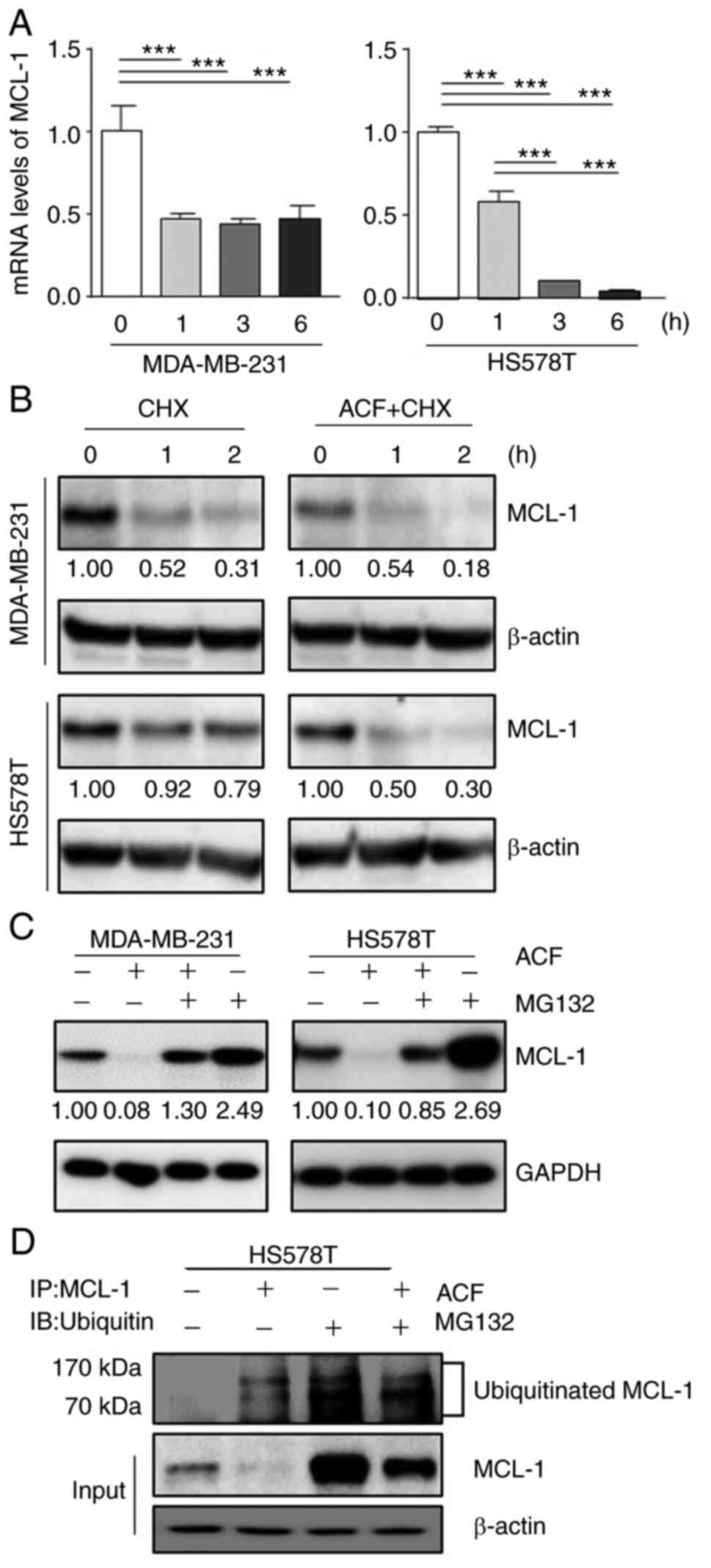

MCL-1 protein expression is regulated in multiple steps: transcription and post-translation. First, the mRNA levels of MCL-1 were evaluated using RT-qPCR. ACF decreased the levels of MCL-1 mRNA in MDA-MB-231 and HS578T cells (Fig. 4A). Secondly, it was evaluated if MCL-1 degradation occurs under CHX (10 µg/ml), an inhibitor of protein biosynthesis. ACF (10 µM) decreased MCL-1 expression even following inhibition of translation (Fig. 4B). This indicated that MCL-1 is also downregulated following translation. Next, it was evaluated whether ACF increases proteasomal degradation of MCL-1 using a proteasome inhibitor, MG-132 (10 µM). The decrease in MCL-1 by ACF was blocked using MG-132 (Fig. 4C). Interestingly, cells treated with MG-132 alone demonstrated markedly higher MCL-1 protein levels than those treated with both MG-132 and ACF. Lastly, the ubiquitination of MCL-1 protein was evaluated. Western blot data followed by immunoprecipitation also revealed increased ubiquitination of MCL-1 protein by ACF treatment (Fig. 4D). A higher ubiquitination level in cells treated with MG-132 was also consistent with the previous experiment (Fig. 4C). However, the level of GSK3β remained unchanged when treated with ACF (Fig. S4). Collectively, these data indicated that MCL-1 downregulation by ACF occurs at transcriptional and post-translational levels.

ACF and ABT-263 work synergistically by overcoming the resistance to ABT-263

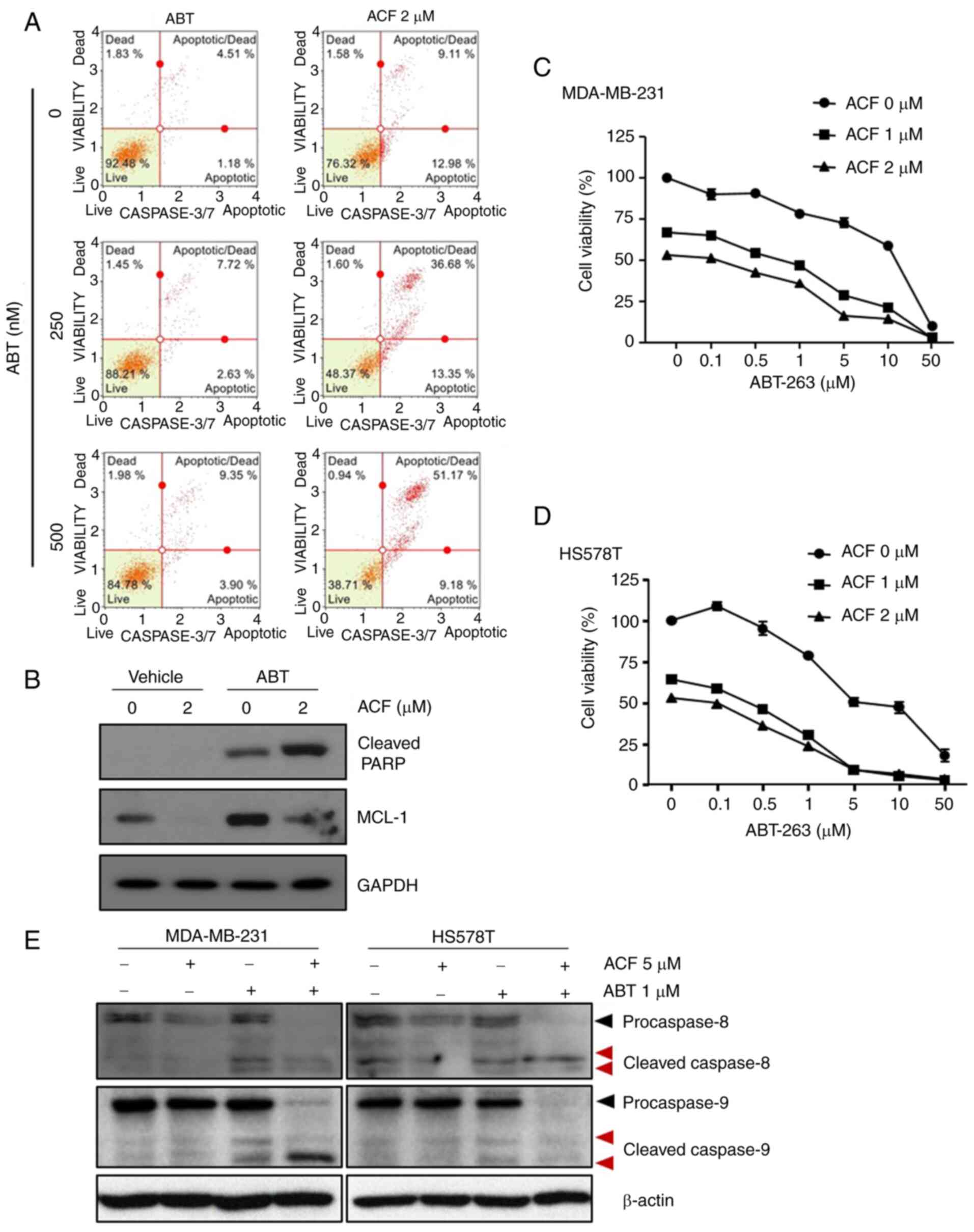

To determine whether ACF may be used as a treatment strategy, HS578T cells were treated with ABT-263, a BCL-2 protein inhibitor, with or without ACF. While ABT-263 or ACF alone was not so effective in inducing apoptosis, when combined with 2 µM ACF, apoptosis was induced in more than 30% of cells. Importantly, apoptosis induced by the combination of ABT-263 and ACF was five times greater than that by ABT-263 or ACF alone (Fig. 5A). As previously reported (26), ABT-263 induced MCL-1 expression in TNBC cells, and ACF treatment prevented MCL-1 induction (Fig. 5B). The combination treatment of ACF and ABT-263 revealed synergy in both MDA-MB-231 and HS578T cells (Figs. 5C and D and S3). To determine the molecular pathways involved, the expression of caspase-8 and caspase-9 was analyzed. Although the expression of active caspase-9 was detected after 24 h, caspase-8 remained unaltered when treated with ACF (Fig. S2). However, the expression of both caspases was not detected 6 h following ACF treatment. Interestingly, combination of ACF and ABT-263 activated both caspases suggesting the involvement of both an intrinsic and extrinsic apoptotic pathway in the combination treatment (Fig. 5E). To determine whether the synergistic effect of ACF and ABT-263 may be observed in other cancer types, GBM (U87, U343, U251) and NSCLC (A549) cells were treated with ACF and ABT-263. Immunoblotting data revealed that the ABT-263 treatment upregulated the expression of MCL-1. However, when treated with 2 µM ACF, the expression of MCL-1 was downregulated again (Fig. 6A). Addition of ACF to ABT-263 also increased apoptosis in GBM (U87, U251 and U343) and NSCLC (A549) cell lines (Fig. 6B and C) compared with ABT-263 single therapy. Analysis of CI revealed synergistic apoptosis in U251, U343 and A549 cell lines (Fig. S5). Cell viability data also suggested that the combination treatment could eliminate cancer cells in a dose-dependent manner (Fig. 6D). These data suggested that ACF could act synergistically with ABT-263 by preventing MCL-1 upregulation.


The BCL-2 family proteins modulate the intrinsic (mitochondrial) apoptotic pathway via the balance of pro- and anti-apoptotic proteins. The BCL-2 family consists of three main subclasses depending on the location of BCL-2 homology (BH) and function: multidomain anti-apoptotic (BCL-2, MCL-1 and BCL-XL), multidomain pro-apoptotic (BAX and BAK), and BH3-only pro-apoptotic (BIM, PUMA and NOXA) (2). Anti-apoptotic BCL-2 family members regulate apoptosis by isolating the stimulants from interacting with BAX and BAK (27,28). BH3 proteins (BAD and NOXA) are considered to cause apoptosis by engaging with anti-apoptotic proteins, freeing activators to stimulate BAX and BAK (29). Furthermore, anti-apoptotic BCL-2 family proteins seldom directly inhibit BAX and BAK, both inducing cell survival directly and indirectly, by sequestering BH3-only proteins (27,28). One of the most well-known and clinically advanced BCL-2 family target therapies is ABT-737 and its clinical analog ABT-263 (navitoclax). Their molecular structure mimics BAD BH3 and binds to the BH3 binding groove of BCL-2, BCL-XL, and BCL-W (30,31). However, the potency of BCL-2/BCL-XL inhibitors has been underwhelming (32). Their major limitation is the unexpected upregulation of MCL-1. In addition, the most frequently amplified gene in inhibitions of BCL-XL and BCL-2 is MCL-1, gaining significant interest in anticancer therapeutics.

MCL-1 is overexpressed in a wide range of cancers, including both solid and hematologic malignancies such as liver, ovarian, prostate, hematologic, and breast cancers (33-38). Previous studies revealed that MCL-1 is a crucial anti-apoptotic factor in TNBC (39,40). For instance, MCL-1-knockdown TNBC cell lines revealed markedly reduced viability, while BCL-XL silencing had a modest effect (41). Furthermore, Balko et al revealed an overexpression of the MCL-1 gene in 54% of TNBC patients who underwent neoadjuvant chemotherapy (42). They suggested that MCL-1 protects TNBC cells against apoptosis induced by cytotoxic chemotherapy (37). Moreover, the overexpression of MCL-1 has been proposed as a marker of poor prognosis in TNBC (39,43). Overall, MCL-1 may be one of the prospective therapeutic targets for TNBC. Upregulation of anti-apoptotic BCL-2 family proteins hallmarks numerous cancers and occurs via various pathways. A prototype of this mechanism is MCL-1 upregulation, which contributes to protein stabilization by genetic inactivation of the ubiquitin ligase complex protein F-box and WD repeat domain-containing 7 (FBW7) (9,44,45). Given the importance of inducing apoptosis in managing cancer treatment, agents inhibiting anti-apoptotic proteins have garnered interest as a therapeutic option against cancer. To overcome this MCL-1 upregulation by BCL-2 family inhibitors, trials were conducted to identify MCL-1 inhibitors in various cancers, including breast, hematologic, and lung cancers. They combined the pre-existing BCL-2 family inhibitors with novel MCL-1 inhibitors to overcome the potential resistance to BCL-2 family inhibitors and improve therapeutic outcomes (46,47).

In the present study, it was revealed that ACF could regulate MCL-1 at the transcriptional and post-translational levels in breast cancer cells. The anticancer mechanism of ACF with MCL-1 downregulation was also revealed to be effective in lung and GBM cells. The limitation of the present study on the exact mechanism of MCL-1 decrease in lung cancer and GBM cells should be explored in further studies. Our study revealed that ACF promoted cell death of TNBC cells (MDA-MB-231 and HS578T) through the intrinsic apoptotic pathway in normoxia regardless of the HIF-1 pathway. Both ubiquitin-dependent and independent degradation of MCL-1 was reported. E3 ubiquitin-ligases confer a high degree of specificity to ubiquitination by recognizing target proteins. Ubiquitination of MCL-1 is mediated by five E3 ubiquitin ligases, including MCL-1 ubiquitin ligase E3 (MULE), glycogen synthase kinase 3β (GSK3β), β-transducin repeats-containing protein (β-TrCP), FBW7, and tripartite motif-containing 17 (TRIM17) (48). However, different E3 ubiquitin-ligases appear to regulate MCL-1 protein expression in different cell types exposed to different stimuli. In the present study, the exact mechanism in the post-translational regulation of MCL-1 by ACF was not defined; however, ubiquitination was detected and GSK3β was not involved. Furthermore, the combination of ACF and ABT-263 generated apoptosis synergistically. This synergistic effect may be due to their independent inhibitory mechanism. ABT-263 stimulates TNBC apoptosis by inhibiting BCL-2, BCL-XL, and BCL-W. By contrast, our study revealed that ACF hinders MCL-1 and promotes TNBC apoptosis. It was assumed that as ABT and ACF work by regulating different BCL-2 family molecules, they compensated each other to enhance the antitumor effect. ACF is a mixture of two acridine analogs that are mostly utilized as antimicrobial agents (15). Goldie et al first reported the anticancer effect of ACF (49). Its potential as an anticancer agent has also been identified with the activity inhibiting the topo-isomerase and hypoxia-inducing factor (HIF) pathway by preventing the dimerization of HIF-1α and HIF-1β (16,50). Previously, it has also been reported that ACF inhibited the epithelial-mesenchymal transition in pancreatic cancer cells induced by TGF-β or cobalt chloride-induced hypoxia via reduction of the activating transcription factor 4 (20). ACF has also been revealed to be active in the prostate, pancreas, and colorectal tumor xenograft models in rodents when administered locally or systemically (16,49,51). ACF revealed anticancer effects in hepatocellular carcinoma and lung adenocarcinoma under normoxic conditions (18,19). The present study demonstrated cancer cell death by apoptosis caused by ACF in the normoxic state. Changes were primarily observed in mitochondrial membrane potentiality, which indicates an alteration in the function of the intrinsic apoptotic pathway. This indicates the importance of membranous stability, and only MCL-1 downregulation was observed without changes in various factors controlling membrane stability, including BCL-2. Considering these results, it is theorized that cancer cell death by ACF is due to MCL-1 inhibition, and not HIF-1 inhibition.

In the present study, the potential of ACF in treating TNBC cell lines in vitro, was investigated. To the best of our knowledge, this is the first study to suggest a novel MCL-1 inhibitory function of ACF. In addition, the present study revealed a synergistic antitumor effect with ABT-263. Furthermore, ACF demonstrated its therapeutic potency not only in TNBC but also in lung cancer and GBM cells.

Supplementary Data

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Authors' contributions

AL, HOJ, KSK, and SGP conceptualized the study and reviewed the writing of the manuscript. HYK and MMH wrote the original draft of the manuscript and analyzed the data. HOJ, HJ, JHP, IK, JYS, HKY, MMH and ICP investigated the anticancer effect of ACF on cancer cells and analyzed and curated the data. MMH, HJ, ICP, KSK, and SGP investigated the apoptotic signaling pathway and MCL-1 regulation mechanisms and analyzed the data. HKK and JH performed and analyzed the mitochondrial function assay. KSK and SGP were involved in supervision, funding acquisition, investigation, and project administration. KSK and SGP confirm the authenticity of all the raw data. All authors read and approved the final version of the manuscript.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.


Not applicable.


The present study was supported by the Korea Institute of Radiological and Medical Sciences (grant no. 50531-2021), which is funded by the Ministry of Science and Information and Communications Technology of the Korean government (IWK) and the Bio & Medical Technology Development Program of the National Research Foundation (NRF) of Korea Funded by the Korean government (MSIT) under grant no. 2019M3A9H1103607.



Foulkes WD, Smith IE and Reis-Filho JS: Triple-negative breast cancer. N Engl J Med. 363:1938–1948. 2010. View Article : Google Scholar : PubMed/NCBI


Adams JM and Cory S: The Bcl-2 apoptotic switch in cancer development and therapy. Oncogene. 26:1324–1337. 2007. View Article : Google Scholar : PubMed/NCBI


Hanahan D and Weinberg RA: Hallmarks of cancer: The next generation. Cell. 144:646–674. 2011. View Article : Google Scholar : PubMed/NCBI


Adams JM and Cory S: The BCL-2 arbiters of apoptosis and their growing role as cancer targets. Cell Death Differ. 25:27–36. 2018. View Article : Google Scholar


Mohammad RM, Muqbil I, Lowe L, Yedjou C, Hsu HY, Lin LT, Siegelin MD, Fimognari C, Kumar NB, Dou QP, et al: Broad targeting of resistance to apoptosis in cancer. Semin Cancer Biol. 35(Suppl): S78–S103. 2015. View Article : Google Scholar : PubMed/NCBI


Kang MH and Reynolds CP: Bcl-2 inhibitors: Targeting mitochondrial apoptotic pathways in cancer therapy. Clin Cancer Res. 15:1126–1132. 2009. View Article : Google Scholar : PubMed/NCBI


Ertel F, Nguyen M, Roulston A and Shore GC: Programming cancer cells for high expression levels of Mcl1. EMBO Rep. 14:328–336. 2013. View Article : Google Scholar : PubMed/NCBI


Craig RW: MCL1 provides a window on the role of the BCL2 family in cell proliferation, differentiation and tumorigenesis. Leukemia. 16:444–454. 2002. View Article : Google Scholar : PubMed/NCBI


Beroukhim R, Mermel CH, Porter D, Wei G, Raychaudhuri S, Donovan J, Barretina J, Boehm JS, Dobson J, Urashima M, et al: The landscape of somatic copy-number alteration across human cancers. Nature. 463:899–905. 2010. View Article : Google Scholar : PubMed/NCBI


Ding Q, He X, Hsu JM, Xia W, Chen CT, Li LY, Lee DF, Liu JC, Zhong Q, Wang X and Hung MC: Degradation of Mcl-1 by beta-TrCP mediates glycogen synthase kinase 3-induced tumor suppression and chemosensitization. Mol Cell Biol. 27:4006–4017. 2007. View Article : Google Scholar : PubMed/NCBI


Young AI, Timpson P, Gallego-Ortega D, Ormandy CJ and Oakes SR: Myeloid cell leukemia 1 (MCL-1), an unexpected modulator of protein kinase signaling during invasion. Cell Adh Migr. 12:513–523. 2018. View Article : Google Scholar


Woo SM, Min KJ, Seo BR, Seo YH, Jeong YJ and Kwon TK: YM155 enhances ABT-737-mediated apoptosis through Mcl-1 downregulation in Mcl-1-overexpressed cancer cells. Mol Cell Biochem. 429:91–102. 2017. View Article : Google Scholar : PubMed/NCBI


Caenepeel S, Brown SP, Belmontes B, Moody G, Keegan KS, Chui D, Whittington DA, Huang X, Poppe L, Cheng AC, et al: AMG 176, a selective MCL1 inhibitor, is effective in hematologic cancer models alone and in combination with established therapies. Cancer Discov. 8:1582–1597. 2018.PubMed/NCBI


Ramsey HE, Fischer MA, Lee T, Gorska AE, Arrate MP, Fuller L, Boyd KL, Strickland SA, Sensintaffar J, Hogdal LJ, et al: A novel MCL1 inhibitor combined with venetoclax rescues venetoclaxresistant acute myelogenous leukemia. Cancer Discov. 8:1566–1581. 2018. View Article : Google Scholar : PubMed/NCBI


Wainwright M: Acridine-a neglected antibacterial chromophore. J Antimicrob Chemother. 47:1–13. 2001. View Article : Google Scholar : PubMed/NCBI


Lee K, Zhang H, Qian DZ, Rey S, Liu JO and Semenza GL: Acriflavine inhibits HIF-1 dimerization, tumor growth, and vascularization. Proc Natl Acad Sci USA. 106:17910–17915. 2009. View Article : Google Scholar : PubMed/NCBI


Zhang L, Huang G, Li X, Zhang Y, Jiang Y, Shen J, Liu J, Wang Q, Zhu J, Feng X, et al: Hypoxia induces epithelial-mesenchymal transition via activation of SNAI1 by hypoxia-inducible factor -1α in hepatocellular carcinoma. BMC Cancer. 13:1082013. View Article : Google Scholar


Lee CJ, Yue CH, Lin YJ, Lin YY, Kao SH, Liu JY and Chen YH: Antitumor activity of acriflavine in lung adenocarcinoma cell line A549. Anticancer Res. 34:6467–6472. 2014.PubMed/NCBI


Lee CJ, Yue CH, Lin YY, Wu JC and Liu JY: Antitumor activity of acriflavine in human hepatocellular carcinoma cells. Anticancer Res. 34:3549–3556. 2014.PubMed/NCBI


Dekervel J, Bulle A, Windmolders P, Lambrechts D, Van Cutsem E, Verslype C and van Pelt J: Acriflavine inhibits acquired drug resistance by blocking the epithelial-to-mesenchymal transition and the unfolded protein response. Transl Oncol. 10:59–69. 2017. View Article : Google Scholar :


Mangraviti A, Raghavan T, Volpin F, Skuli N, Gullotti D, Zhou J, Asnaghi L, Sankey E, Liu A, Wang Y, et al: HIF-1α-targeting acriflavine provides long term survival and radiological tumor response in brain cancer therapy. Sci Rep. 7:149782017. View Article : Google Scholar


Livak KJ and Schmittgen TD: Analysis of relative gene expression data using real-time quantitative PCR and the 2-(Delta Delta C(T) method. Methods. 25:402–408. 2001. View Article : Google Scholar


Jeong SH, Kim HK, Song IS, Lee SJ, Ko KS, Rhee BD, Kim N, Mishchenko NP, Fedoryev SA, Stonik VA and Han J: Echinochrome A protects mitochondrial function in cardiomyocytes against cardiotoxic drugs. Mar Drugs. 12:2922–2936. 2014. View Article : Google Scholar : PubMed/NCBI


Chou TC: Theoretical basis, experimental design, and computerized simulation of synergism and antagonism in drug combination studies. Pharmacol Rev. 58:621–681. 2006. View Article : Google Scholar : PubMed/NCBI


Ashton JC: Drug combination studies and their synergy quantification using the Chou-Talalay method-letter. Cancer Res. 75:24002015. View Article : Google Scholar


Williams MM, Lee L, Hicks DJ, Joly MM, Elion D, Rahman B, McKernan C, Sanchez V, Balko JM, Stricker T, et al: Key survival factor, Mcl-1, correlates with sensitivity to combined Bcl-2/Bcl-xL blockade. Mol Cancer Res. 15:259–268. 2017. View Article : Google Scholar : PubMed/NCBI


Certo M, Del Gaizo Moore V, Nishino M, Wei G, Korsmeyer S, Armstrong SA and Letai A: Mitochondria primed by death signals determine cellular addiction to antiapoptotic BCL-2 family members. Cancer Cell. 9:351–365. 2006. View Article : Google Scholar : PubMed/NCBI


Lovell JF, Billen LP, Bindner S, Shamas-Din A, Fradin C, Leber B and Andrews DW: Membrane binding by tBid initiates an ordered series of events culminating in membrane permeabilization by Bax. Cell. 135:1074–1084. 2008. View Article : Google Scholar : PubMed/NCBI


Kuwana T, Bouchier-Hayes L, Chipuk JE, Bonzon C, Sullivan BA, Green DR and Newmeyer DD: BH3 domains of BH3-only proteins differentially regulate Bax-mediated mitochondrial membrane permeabilization both directly and indirectly. Mol Cell. 17:525–535. 2005. View Article : Google Scholar : PubMed/NCBI


Willis SN, Chen L, Dewson G, Wei A, Naik E, Fletcher JI, Adams JM and Huang DC: Proapoptotic bak is sequestered by Mcl-1 and Bcl-xL, but not Bcl-2, until displaced by BH3-only proteins. Genes Dev. 19:1294–1305. 2005. View Article : Google Scholar : PubMed/NCBI


Edlich F, Banerjee S, Suzuki M, Cleland MM, Arnoult D, Wang C, Neutzner A, Tjandra N and Youle RJ: Bcl-x(L) retrotranslocates bax from the mitochondria into the cytosol. Cell. 145:104–116. 2011. View Article : Google Scholar : PubMed/NCBI


Oltersdorf T, Elmore SW, Shoemaker AR, Armstrong RC, Augeri DJ, Belli BA, Bruncko M, Deckwerth TL, Dinges J, Hajduk PJ, et al: An inhibitor of Bcl-2 family proteins induces regression of solid tumours. Nature. 435:677–681. 2005. View Article : Google Scholar : PubMed/NCBI


Souers AJ, Leverson JD, Boghaert ER, Ackler SL, Catron ND, Chen J, Dayton BD, Ding H, Enschede SH, Fairbrother WJ, et al: ABT-199, a potent and selective BCL-2 inhibitor, achieves anti-tumor activity while sparing platelets. Nat Med. 19:202–208. 2013. View Article : Google Scholar : PubMed/NCBI


Bartlett NL: Highlights in lymphoma from the 2013 American society of hematology annual meeting and exposition: Commentary. Clin Adv Hematol Oncol. 12(Suppl 6): 18–23. 2014.PubMed/NCBI


Sieghart W, Losert D, Strommer S, Cejka D, Schmid K, Rasoul-Rockenschaub S, Bodingbauer M, Crevenna R, Monia BP, Peck-Radosavljevic M and Wacheck V: Mcl-1 overexpression in hepatocellular carcinoma: A potential target for antisense therapy. J Hepatol. 44:151–157. 2006. View Article : Google Scholar


LaBelle JL, Katz SG, Bird GH, Gavathiotis E, Stewart ML, Lawrence C, Fisher JK, Godes M, Pitter K, Kung AL and Walensky LD: A stapled BIM peptide overcomes apoptotic resistance in hematologic cancers. J Clin Invest. 122:2018–2031. 2012. View Article : Google Scholar : PubMed/NCBI


Reiner T, de Las Pozas A, Parrondo R, Palenzuela D, Cayuso W, Rai P and Perez-Stable C: Mcl-1 protects prostate cancer cells from cell death mediated by chemotherapy-induced DNA damage. Oncoscience. 2:703–715. 2015. View Article : Google Scholar : PubMed/NCBI


Young AI, Law AM, Castillo L, Chong S, Cullen HD, Koehler M, Herzog S, Brummer T, Lee EF, Fairlie WD, et al: MCL-1 inhibition provides a new way to suppress breast cancer metastasis and increase sensitivity to dasatinib. Breast Cancer Res. 18:1252016. View Article : Google Scholar : PubMed/NCBI


Zervantonakis IK, Iavarone C, Chen HY, Selfors LM, Palakurthi S, Liu JF, Drapkin R, Matulonis U, Leverson JD, Sampath D, et al: Systems analysis of apoptotic priming in ovarian cancer identifies vulnerabilities and predictors of drug response. Nat Commun. 8:3652017. View Article : Google Scholar : PubMed/NCBI


Campbell KJ, Dhayade S, Ferrari N, Sims AH, Johnson E, Mason SM, Dickson A, Ryan KM, Kalna G, Edwards J, et al: MCL-1 is a prognostic indicator and drug target in breast cancer. Cell Death Dis. 9:192018. View Article : Google Scholar : PubMed/NCBI


Goodwin CM, Rossanese OW, Olejniczak ET and Fesik SW: Myeloid cell leukemia-1 is an important apoptotic survival factor in triple-negative breast cancer. Cell Death Differ. 22:2098–2106. 2015. View Article : Google Scholar : PubMed/NCBI


Balko JM, Giltnane JM, Wang K, Schwarz LJ, Young CD, Cook RS, Owens P, Sanders ME, Kuba MG, Sánchez V, et al: Molecular profiling of the residual disease of triple-negative breast cancers after neoadjuvant chemotherapy identifies actionable therapeutic targets. Cancer Discov. 4:232–245. 2014. View Article : Google Scholar :


Ozretic P, Alvir I, Sarcevic B, Vujaskovic Z, Rendic-Miocevic Z, Roguljic A and Beketic-Oreskovic L: Apoptosis regulator Bcl-2 is an independent prognostic marker for worse overall survival in triple-negative breast cancer patients. Int J Biol Markers. 33:109–115. 2018. View Article : Google Scholar


Inuzuka H, Shaik S, Onoyama I, Gao D, Tseng A, Maser RS, Zhai B, Wan L, Gutierrez A, Lau AW, et al: SCF(FBW7) regulates cellular apoptosis by targeting MCL1 for ubiquitylation and destruction. Nature. 471:104–109. 2011. View Article : Google Scholar : PubMed/NCBI


Wertz IE, Kusam S, Lam C, Okamoto T, Sandoval W, Anderson DJ, Helgason E, Ernst JA, Eby M, Liu J, et al: Sensitivity to antitubulin chemotherapeutics is regulated by MCL1 and FBW7. Nature. 471:110–114. 2011. View Article : Google Scholar : PubMed/NCBI


Leverson JD, Zhang H, Chen J, Tahir SK, Phillips DC, Xue J, Nimmer P, Jin S, Smith M, Xiao Y, et al: Potent and selective small-molecule MCL-1 inhibitors demonstrate on-target cancer cell killing activity as single agents and in combination with ABT-263 (navitoclax). Cell Death Dis. 6:e15902015. View Article : Google Scholar : PubMed/NCBI


Pan R, Ruvolo VR, Wei J, Konopleva M, Reed JC, Pellecchia M, Andreeff M and Ruvolo PP: Inhibition of Mcl-1 with the pan-Bcl-2 family inhibitor (-)BI97D6 overcomes ABT-737 resistance in acute myeloid leukemia. Blood. 126:363–372. 2015. View Article : Google Scholar : PubMed/NCBI


Mojsa B, Lassot I and Desagher S: Mcl-1 ubiquitination: Unique regulation of an essential survival protein. Cells. 3:418–437. 2014. View Article : Google Scholar : PubMed/NCBI


Goldie H, Walker M, Graham T and Williams F: Topical effect of acriflavine compounds on growth and spread of malignant cells. J Natl Cancer Inst. 23:841–855. 1959.PubMed/NCBI


Hassan S, Laryea D, Mahteme H, Felth J, Fryknas M, Fayad W, Linder S, Rickardson L, Gullbo J, Graf W, et al: Novel activity of acriflavine against colorectal cancer tumor cells. Cancer Sci. 102:2206–2213. 2011. View Article : Google Scholar : PubMed/NCBI


Kim SG, Kim CW, Ahn ET, Lee KY, Hong EK, Yoo BI and Han YB: Enhanced anti-tumour effects of acriflavine in combination with guanosine in mice. J Pharm Pharmacol. 49:216–222. 1997. View Article : Google Scholar : PubMed/NCBI
