Bispecific GPC3/PD‑1 CAR‑T cells for the treatment of HCC

  • Authors:
    • Dezhi Li
    • Jie Qin
    • Tao Zhou
    • Yaqin Li
    • Xianyi Cheng
    • Zaizhong Chen
    • Junhui Chen
    • Wei V. Zheng
  • View Affiliations

  • Published online on: March 10, 2023
  • Article Number: 53
  • Copyright: © Li et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Constantly stimulated by the tumor microenvironment (TME), programmed death 1 (PD‑1) is elevated, and it interacts with PD ligand 1 (PD‑L1), rendering chimeric antigen receptor (CAR)‑T cells dysfunctional. Hence, CAR‑T cells immune to PD‑1‑induced immunosuppression were constructed to improve the function of CAR‑T cells in hepatocellular carcinoma (HCC). Double‑target CAR‑T cells, targeting glypican‑3 (GPC3) [a tumour-associated antigen (TAA)] and hindering PD‑1‑PD‑L1 binding, were established. The expression of GPC3, PD‑L1, and inhibitory receptors was measured using flow cytometry. The cytotoxicity, cytokine release, and differentiation level of CAR‑T cells were determined using lactate dehydrogenase release assay, enzyme‑linked immunosorbent assay, and flow cytometry, respectively. HCC cells were targeted and eliminated by double‑target CAR‑T cells. These double‑target CAR‑T cells limit PD‑1‑PD‑L1 binding and sustain cytotoxicity to PD‑L1+ HCC cells. The relatively low IR expression and differentiation level in double‑target CAR‑T cells in tumour tissues induced tumour‑suppression and extended survival in PD‑L1+ HCC TX models, as opposed to their single‑target counterparts. The results of the present study suggested that the newly constructed double‑target CAR‑T cells exhibit stronger tumour‑suppressing effects in HCC than their single‑target counterparts, which are common, suggesting the potential of strengthening CAR‑T cell activity in HCC treatment.


According to Global Cancer Incidence, Mortality and Prevalence (GLOBOCAN) 2020, hepatocellular carcinoma (HCC) is the third highest cause of cancer-related mortality globally, and a devastating disease with a high prevalence and unsatisfactory prognosis. There are ~906,000 new cases and 830,000 deaths of primary liver cancer in 2020, of which HCC accounted for 75-85% of cases (1,2). The risk factors of HCC are chronic hepatitis, hepatitis B virus (HBV)/HCV infection-triggered cirrhosis, alcoholic cirrhosis, dietary aflatoxin exposure, non-alcoholic steatohepatitis, α-1-antitrypsin deficiency and hemochromatosis (3). This disease may be cured through liver transplantation or resection, but these surgical schemes are not suitable for the majority of patients late in the disease course (4). The 5-year survival rates for HCC in China are <12.5%, thus effective treatment schemes for HCC require further investigation (5).

Glypican-3 (GPC3), a member of the heparan sulfate proteoglycan family, is a cell-surface glycophosphatidylinositol-anchored protein (6,7). GPC3 is highly expressed in at least 70% of HCC patients but not in normal adult tissues (8-10). GPC3 has been suggested to be an important diagnostic biomarker and immunotherapeutic target for HCC (11-13). Preclinical studies performed by Shi et al (14) confirmed the potential of GPC3-chimeric antigen receptor (CAR)-T cell therapy for HCC.

CAR comprises an extracellular antigen recognition domain (ARD), an intra-cellular signaling domain (i.e. CD3ζ) with or without 1 or 2 costimulatory molecules, and a transmembrane domain (15). CAR-T cells can distinguish the exact tumour-associated antigens (TAAs) in a manner independent of the major histocompatibility complex (16-18). Nowadays, although the curative effect of CAR-T cell therapy has been proven to treat hematological malignancies (19), it remains unsatisfactory in treating solid tumours (20,21). In contrast to blood tumours, solid tumours have an immunosuppressive tumor microenvironment (TME), which induces the expression of PD-1 on CAR-T cells. PD-1/PD-L1 axis is a well-known immune checkpoint inhibitor pathway. The combination of PD-L1 and PD-1 generates an inhibitory signal that prevents T cell activation, enabling tumour cells to escape from the monitoring of the immune system (22,23). Hence, CAR-T cells should be somewhat modified to avoid this inhibitory signal of the PD-1/PD-L1 pathway in HCC.

A double-target CAR with an extracellular ARD containing anti-PD-1 single-chain fragment variable (scFv) and anti-GPC3 scFv was established to help CAR-T cells persistently resistant to PD-1 inhibitory signals. It was hypothesized that the double-target CAR is capable of targeting tumour cells via anti-GPC3 scFv and blocking PD-1 which was expressed on para-tumour CAR-T cells via anti-PD-1 scFv. It appears that the newly-established double-target CAR-T cells were more effective in reducing tumor burden and prolonging the survival of tumor xenograft models than traditional single-target CAR-T cells, representing an effective strategy for applying CAR-T cell therapy to solid tumours.

Materials and methods

Cells and cell culture

HCCLM3 and HuH7 cells were obtained from China Center for Type Culture Collection, and SNU423, SNU182 and 293T cells were obtained from the American Type Culture Collection. Primary T cells from humans were cultured in a 37°C cell incubator (5% CO2) containing RPMI-1640 medium (MilliporeSigma) containing recombinant human IL-2 (30 IU/ml; cat. no. Z00368-1; GenScript), 10% fetal bovine serum inactivated by heat and 1% penicillin-streptomycin (Cytiva).

Preparation and transduction of vectors and lentiviruses

In the present study, the established CAR encompassed an extracellular ARD, a CD8 hinge, a CD28 transmembrane domain, a CD28 combined with or without 4-1BB domain, and a CD3ζ-derived signal transduction domain. A pKC lentiviral vector (BioVector NTCC, Inc.) was sub-cloned with discrepant CAR sequences in the frame.

Then this vector, together with packaging plasmid r-8.91, enveloping protein plasmid vesicular stomatitis virus G (1 µg: 900 ng: 100 ng), was used for 293T cell transfection using a PEIpro® transfection reagent (Getong Technology Co., Ltd.). The virus-containing supernatants were collected 48 and 72 h later, and an Amicon Ultra-15 centrifugal filter from MilliporeSigma was used to enrich the virus. In addition, a human T cell enrichment cocktail (cat. no. 15061; RosetteSep™; Stemcell Technologies, Inc.) was used for primary T cell isolation from the peripheral blood of tumor-free volunteers. The volunteers were health examiners in our hospital (samples were collected between March-April 2021), including 2 males and 2 females, aged 32-50 years, with an average of (40±7.8) years. The use of human peripheral blood was approved (approval no. 2021-081) by the Ethics Committee of Peking University Shenzhen Hospital (Shenzhen, China) and all donors provided informed written consent. Next, monoclonal antibodies (mAbs; 5 µg/ml) against pre-enveloped CD3 (cat. no. 05121-25-500) and dissolvable CD28 (cat. no. 10311-25-500; both from PeproTech, Inc.) were used to activate the obtained cells for 48 h prior to lentiviral infection. Next, T cell treatment with polybrene (8 µg/ml) was conducted for 4 h, followed by transduction with lentivirus enriched on the plate enveloped by NovoNectin (cat. no. CH38; Novoprotein Scientific, Inc.) plates for 8 h at 37°C (multiplicity of infection: 3). After 48 h, CAR expression was examined. Empty lentivirus was used as control.

Reverse transcription-quantitative (RT-q) PCR

Total RNA was isolated using Qiagen RNeasy Mini kit (Qiagen, Inc.), according to the manufacturer's instructions and cDNA synthesis was completed using the High Capacity cDNA Reverse Transcription kit (Applied Biosystems; Thermo Fisher Scientific, Inc.) according to the manufacturer's protocol. qPCR was performed under the following thermocycling conditions: 10 min at 95°C, 40 cycles of 15 sec at 95°C and 1 min at 60°C. qPCR was performed using 2X SYBR-Green PCR Master mix (Beijing Solarbio Science & Technology Co., Ltd.) and 200 nM forward and reverse primers for Bcl-2 and caspase-3. GAPDH was used as a reference gene. The sequences of the primers used were as follows: Bcl-2 forward, 5′-AAA AAT ACA ACA TCA CAG AGG AAG T-3′ and reverse, 5′-GTT TCC CCC TTG GCA TGA GA-3′; caspase-3 forward, 5′-TGC TAT TGT GAG GCG GTT GT-3′ and reverse, 5′-TTA ACG AAA ACC AGA GCG CC-3′; and GAPDH, forward, 5′-CTG GGC TAC ACT GAG CAC C-3′ and reverse, 5′-AAG TGG TCG TTG AGG GCA ATG-3′. Each assay was run on an Applied Biosystems 7300 Real-Time PCR System (Applied Biosystems; Thermo Fisher Scientific, Inc.) in triplicate, and the fold-changes of gene expression were derived using the comparative 2−ΔΔCq method, as previously described (24).

Flow cytometry (FC)

mAbs against FITC-PD1 (1:20; cat. no. 329903), PE-PD-L1 (1:20, cat. no. 329705), FITC-CD69 (1:20; cat. no. 310903), FITC-CD3 (1:20; cat. no. 317305), FITC-Annexin V (1:20; cat. no. 640905), FITC-CD62L (1:20; cat. no. 304803), FITC-CD45RA (1:20; cat. no. 304105), FITC-CD45 (1:20; cat. no. 304006), APC-Granzyme B (1:20; GrB; cat. no. 372203), FITC-perforin (1:20; cat. no. 353309; all from BioLegend, Inc.), and FITC-GPC3 (1:20; cat. no. 100393-R024; Sino Biological) were used. Following rinsing twice with PBS, the cells were dyed and underwent 20-min mAb incubation (5 µl per million cells in 100 µl staining volume) at 4°C protected from light, and they were assessed after they were immobilized in PBS.

To detect CAR expression on CAR-T cells, the cells were stained with biotinylated protein L (cat. no. M00097; GenScript) and then stained with streptavidin-PE at 37°C for 10 min (cat. no. 405203; BioLegend, Inc.). Flow cytometry data were acquired on a Gallios flow cytometer (Beckman Coulter, Inc.) and analyzed using the FlowJo software (Tree Star, Inc.). The level of expression of CAR on each type of CAR-T cell was adjusted to the same level by un-transduced T cells before use.

PD-1+ CAR-T cells were obtained by stimulating CAR-T cells with pre-coated anti-CD3 and soluble anti-CD28 anti-bodies for one week to induce PD-1 expression. Finally, the obtained cells were dyed at 4°C for 15 min. using FITC-PD-1 mAb and distinguished from their PD-1 counterparts using FITC fluorescence.

Cytokine investigation

ELISA (cat. nos. KGEHC102g, KGEHC003 and KGEHC154; Nanjing KeyGen Biotech Co., Ltd.; and cat. no. K4279-100; AmyJet Scientific, Inc.) was performed after gathering the supernatants/sera from mice, in order to clarify whether granzyme B (GrB), interferons (IFN)-γ, perforin and IL-2 exist.

In vitro CAR-T cell proliferation assays

HuH7 cells were stimulated with IFN-γ (40 µg/ml) for 8 h to induce the expression of PD-L1 and then inactivated with mitomycin C (100 µg/ml; cat. no. MB1164; Dalian Meilun Biology Technology Co., Ltd.) at 37°C for 2 h. Every 4 days, the cells were collected following inactivation to provoke each group of CAR-T cells (105/well), and the CAR-T cells were counted. Next, uninfected T cells (control) were cultured using 30 IU/ml recombinant IL-2. FC was ultimately used to distinguish the CAR-T cell phenotype.

Cell toxicity and death rate

A lactate dehydrogenase (LDH) assay was used to measure CAR-T cell toxicity using the corresponding kit (cat. no. C0016; Beyotime Institute of Biotechnology). CAR-T cells (1×105) were co-cultured with the target cells at various effector to target (E:T) ratios (4:1, 8:1, 16:1 and 32:1). The working concentration of the anti-PD-1 mAb (cat. no. 201905014; TopAlliance Biosciences) combined with GPC3-CAR-PD-1+ T cell was 10 µg/ml. The overall volume of the cultured system was 100 µl and was incubated for 12 h at 37°C in 96-well plates. Cell toxicity was calculated as follows: Cell toxicity (%)=(mixture cell experiment - effector cell spontaneous-target cell spontaneous-medium control)/(target cell maximum-target cell spontaneous-medium control) ×100%.

Subsequently, the corresponding cells were cultured in media comprising GrB (cat. no. ENZ-855; ProSpec-Tany TechnoGene, Ltd.) with/without perforin (cat. no. APB317Mu01; Cloud-Clone Corp.) for 12 h. Next, an LDH assay kit was used to calculate the cell death rate as follows: Cell death rate (%)=(cell experiment-cell spontaneous-medium control)/(cell maximum-cell spontaneous-medium control) ×100%.

TX assays

All experimental procedures in the present study were approved (approval no. 2021-081) by the Ethics Committee of Peking University Shenzhen Hospital (Shenzhen, China). A total of 24 female NOD/SCID mice (4-6 weeks old, 6 in each group) were housed at the Laboratory Animal Center of Peking University Shenzhen Hospital. Mice were housed in a sterile room under a 12-h light/dark cycle at ~23°C and 50% humidity, with ad libitum access to food and water. A total of 5×106 HuH7 cells in 100 µl PBS were subcutaneously injected into the right flank of mice to establish the TX model. Once the average tumor size reached 100-200 mm3, the mice were randomly assigned to different groups. A total of 1×106 CAR-T cells in 100 µl PBS were injected intratumorally into each mouse and the tumors were measured weekly post-injection. In the CAR-T cells combined with anti-PD-1 group, each mouse was intraperitoneally injected with 150 mg anti-PD-1 mAb once a week (a total of 5 times). The tumor volume was calculated according to the formula V=(length x width2)/2. The health and behaviour condition of mice was monitored daily. On day 42 or when a humane endpoint had been reached (e.g., >25% body weight loss, signs of illness or distress including ruffled fur, difficulty with diet, or abnormal posture), mice were euthanized and dissected for tumor tissue analysis. Euthanasia was performed using an intravascular administration of an overdose of sodium pentobarbital (200 mg/kg) followed by cervical dislocation. Euthanasia was confirmed by the loss of vital signs, such as respiration and heartbeat cessation.

Immunohistochemistry (IHC)

Tumor tissue was fixed with 4% formaldehyde at 37°C for 24 h, embedded in paraffin and sectioned into a thickness of 2-µm. Following dewaxing with xylene, hydration in alcohol with different concentrations, tissue incubation in hydrogen peroxide (3%) was performed to quench endogenous peroxidase and sodium citrate buffer (0.01 M, pH 6.0) was used to retrieve antigens at 95°C. Using 1% bovine serum albumin (Azer Scientific, Inc.), the slide blocking lasted for 30 min at room temperature. The sections were sequentially incubated with primary antibodies at 4°C overnight, including anti-Ki-67 (1:5,000; cat. no. 27309-1-AP;), anti-VEGF-A (cat. no. 19003-1-AP; 1:500; both from ProteinTech Group, Inc.), anti-MMP-9 (cat. no. 13667; 1:500; Cell Signaling Technology, Inc.). On the next day, slides were incubated with HRP-conjugated secondary antibodies (1:1,000; cat. no. 7074S; Cell Signaling Technology, Inc.) for 40 min at room temperature. After scanning IHC sections, images were captured using CaseViewer 2.2 (3DHISTECH Kft).

Western blot analysis

The cell lysate was obtained using 2% SDS and then centrifuged (4°C, 12,000 × g, 15 min) to obtain the supernatants. The protein concentration was detected using a BCA protein assay kit (cat. no. 23225; Thermo Fisher Scientific, Inc.). A total of 20 µg protein was separated using a 3% SDS-PAGE and transferred to a PVDF membrane. The transferred PVDF membrane was blocked using 5% skimmed milk for 1 h at 25°C and washed with Tris-buffered saline with Tween 20 (TBS-T) (1% Tween 20) (cat. no. 170-6435; Bio-Rad Laboratories, Inc.), then incubated with primary antibodies for 10 h at 4°C and incubated with the secondary antibodies at room temperature for 1 h. Finally, the membrane was visualized using the ImageQuant™ LAS 4000 system (Cytiva). Anti-GPC3 (1:1,000; cat. no. ab124829), anti-PD-L1 (1:1,000; cat. no. ab243877), Goat Anti-Rabbit IgG H&L (HRP) (1:5,000; cat. no. ab6721) and rabbit anti-human GAPDH (1:2,500; cat. no. ab9485; all from Abcam) were used. The protein bands were analyzed using ImageJ software (version 1.48; National Institutes of Health).

Data assessment

All data analyses were performed using GraphPad Prism version 7.0 (GraphPad Software, Inc.). One-way analysis of variance (ANOVA) followed by Bonferroni test or unpaired t-tests were used to compare different groups. The Kaplan-Meier method and log-rank test were used to assess the survival curves of the mice. P<0.05 was considered to indicate a statistically significant difference.

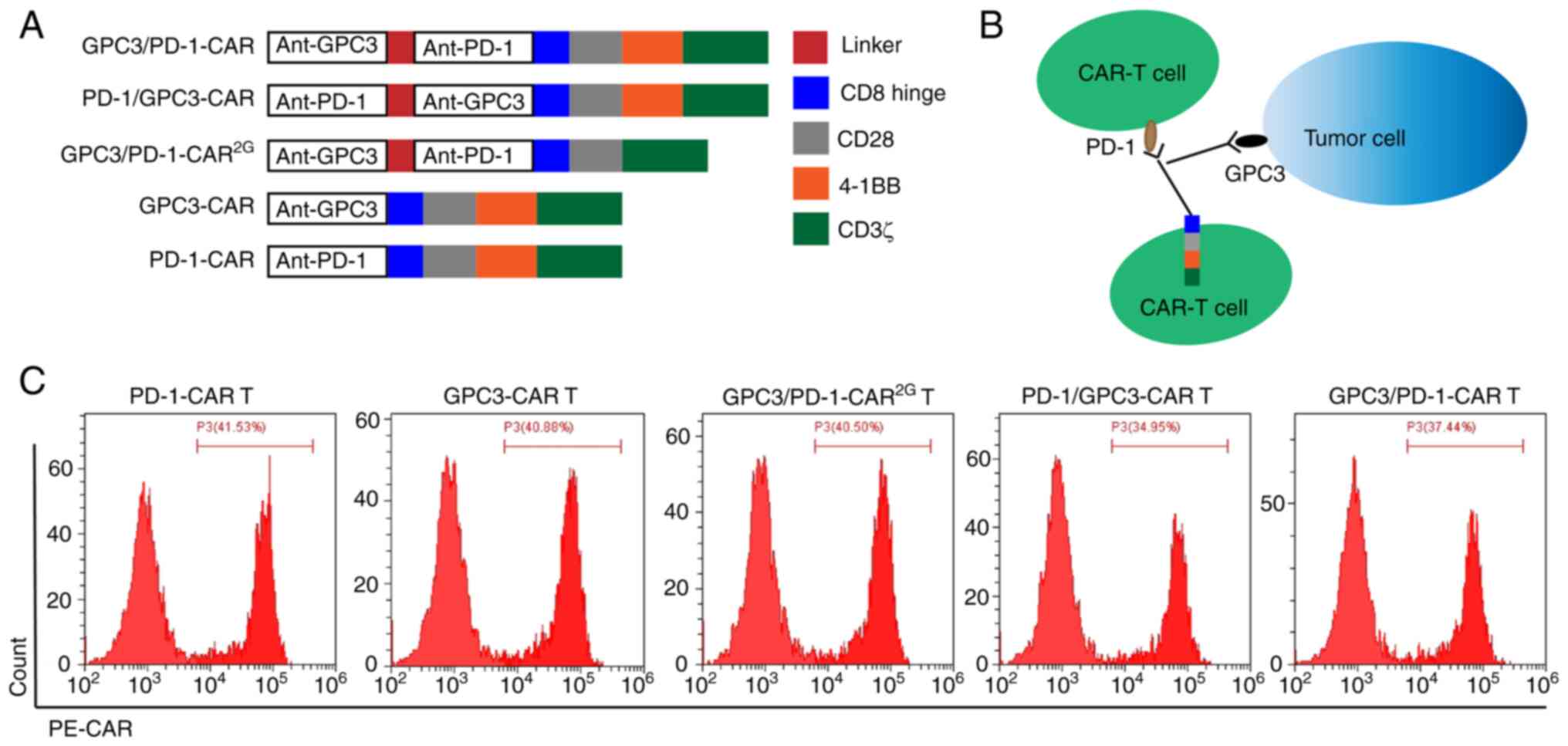

Establishment and expression of double-target CAR molecules

Double-target CAR, known as GPC3/PD-1-CAR, which could recognize PD-1 in T cells and GPC3 in tumour cells, was established. Next, anti-GPC3 scFv was connected to anti-PD-1 scFv using a GGGGS linker, which is used to bind the antigen outside the cell. Through a CD8 hinge and a CD28 transmembrane domain, the extracellular antigen binding domain (ABD) is connected to the intra-cellular domain. The intra-cellular domain consisted of the CD3ζ-chain, CD28 and 4-1BB (2 costimulatory domains). To investigate the effects of the sequential order of anti-PD-1 scFv and anti-GPC3 scFv on the function of dual-function CAR, the sequential order of the two scFvs in GPC3/PD-1-CAR was changed, constructed as PD-1/GPC3-CAR. Anti-GPC3 scFv and anti-PD-1 scFv were extracellular ABDs of GPC3-CAR and PD-1/CAR (two single-target CARs), and their other structures were the same as those of double-target CARs. The aforementioned CAR structures are all three-generation CARs containing two co-stimulation domains of CD28 and 4-1BB. GPC3/PD-1-CAR2G, a 2G double-target CAR, was also established, which comprised only CD28, for the purpose of comparing the functions of 2G and 3G CARs. Except where noted, the CARs in the present study were of the third generation (CAR3G). Fig. 1A is a diagram of the role of established CARs. Fig. 1B is a diagram of the role of double-target CAR-T cells. FC was used to measure differences in the expression of CARs in T cells. As revealed in Fig. 1C, the FC results exhibited a positive CAR expression on T cells (positive rate 34.95-41.53%).

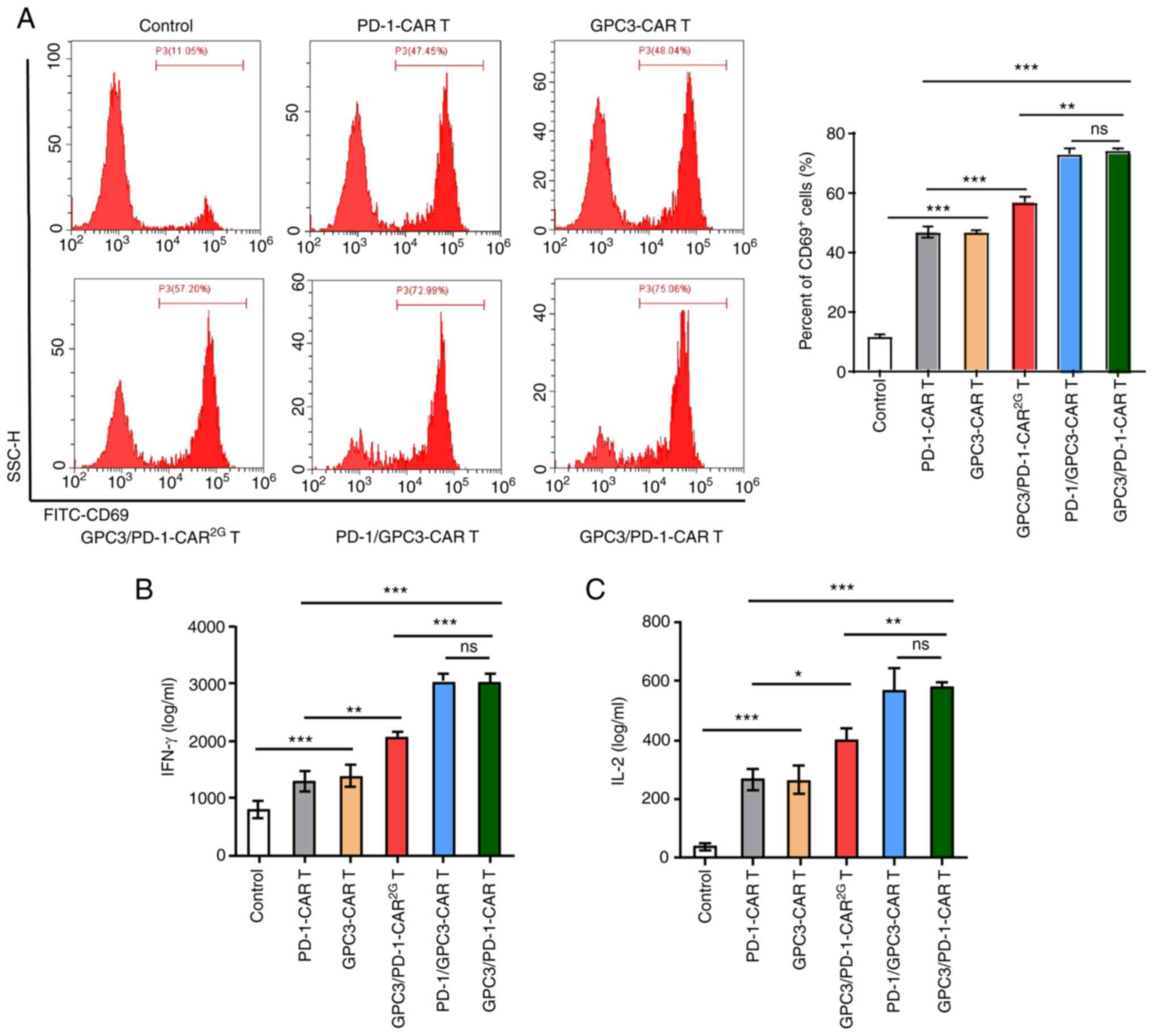

The established CARs have specific reactions to target antigens

Recombinant PD-1 and GPC3 proteins were used to provoke CAR-T cells, in order to clarify the function of the established CARs on certain reactions to target antigens. Provoked by target antigens, the expression level of CD69 (an earliest marker elevated after T cell activation) in CAR-T cells was examined. Following stimulation by GPC3 and PD-1, a pronounced elevation of CD69 was discovered in GPC3/PD-1-CAR (positive rate 75.06%) and PD-1/GPC3-CAR (positive rate 72.99%) T cells, and a modest elevation was observed in PD-1-CAR (positive rate 47.45%) and GPC3-CAR (positive rate 48.04%) T cells (Fig. 2A). This provoking also resulted in a higher IFN-γ and IL-2 secretion in CAR-T cells compared with control cells (Fig. 2B and C). Beyond that, GPC3-CAR-T and PD-1-CAR-T cells displayed a lower CD69 expression level and lower cytokine secretion compared with double-target CAR-T cells (Fig. 2A-C).

The aforementioned results showed the targeted control of the established CARs on active signals, and the provoking effect of the 2 targets on cells, i.e., under the provoking of the 2 targets, dual-function CAR-T cells mediated a stronger active signal.

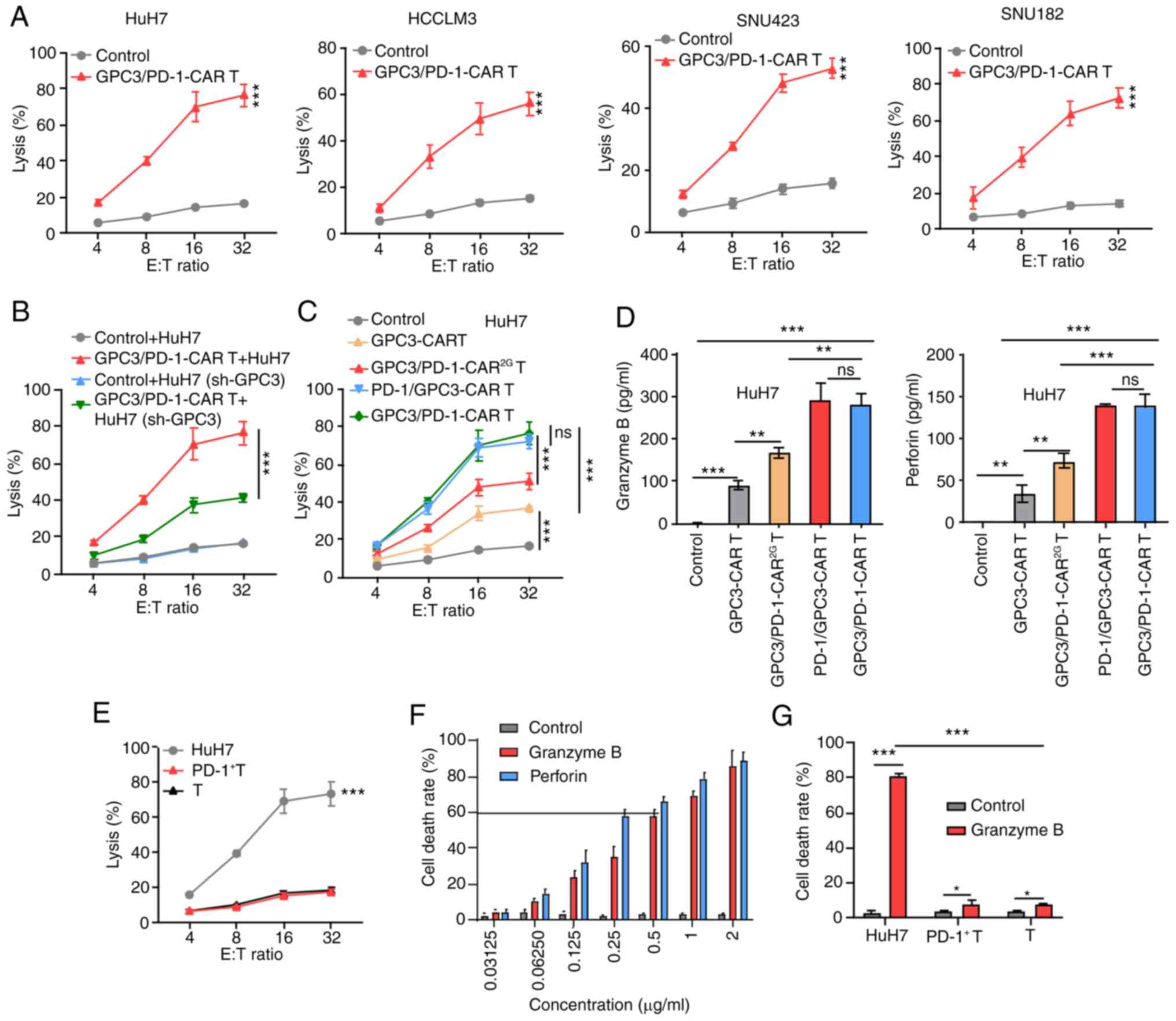

Double-target CAR-T cells display targeted toxicity to HCC cells

Western blotting was performed to measure the expression of GPC3 and PD-L1 in SNU182, HCCLM3, HuH7 and SNU423 cells. It appeared that the two targets (GPC3 and PD-L1) were expressed in all four HCC cell lines (Fig. S1A).

As specified in the 'Cell toxicity and death rate' section, the LDH assay revealed that with un-transduced T cells as controls, GPC3/PD-1-CAR-T cells successfully eliminated SNU182, HCCLM3, HuH7 and SNU423 cells at discrepant E:T ratios (Fig. 3A). Next, it was explored whether the expression level of GPC3 impacted the function of GPC3/PD-1-CAR-T cells. It was revealed that GPC3 expression was knocked down in HuH7 cells via GPC3 shRNA transfection (Fig. S1B); these cells were called HuH7(sh-GPC3). Next, HuH7(sh-GPC3) and HuH7 cells were cultured with GPC3/PD-1-CAR-T cells at different E:T ratios, and cell toxicity was determined using LDH assay. GPC3/PD-1-CAR-T cells were more efficient in eliminating HuH7 than HuH7(sh-GPC3) cells (Fig. 3B).

Furthermore, the differences among the activity of the four types of CAR-T cells co-cultured with HuH7 cells showed that toxicity and cytokine secretion were analogous for the two 3G double-target CAR-T cells, but they were superior to those of GPC3-CAR-T and GPC3/PD-1-CAR2G-T cells (Fig. 3C and D).

These results indicated that T cells of dual-functional CAR and GPC3-CAR can mediate robust cytotoxicity to tumor cells in a target-dependent manner and the killing efficiency of these cells is positively correlated with GPC3 expression. GPC3/PD-1-CAR were selected for later research in light of the analogous activity of the two classes of double-target CARs.

To determine the presence of targeted toxicity of double-target CAR-T cells to T cells expressing PD-1, T cells underwent 1 week of incubation with pre-coated anti-CD3 and soluble anti-CD28 antibodies to obtain PD-1+ T cells. Next, PD-1+ T cells, unprovoked T cells (T cells), and HuH7 cells were co-cultured with double-target CAR-T cells, respectively, at discrepant E:T ratios. As shown by the results of the LDH assay, double-target CAR-T cells exhibited no strong killing activity against T cells with different PD-1 expression levels (Fig. 3E).

The cause of insignificant toxicity of double-target CAR-T cells to T cells expressing PD-1 was examined by culturing HuH7 cells in a cascade of media containing different concentrations of GrB and perforin. When the cell death rate reached ~60%, GrB and perforin concentrations reached 0.5 and 0.25 µg/ml, respectively (Fig. 3F). Next, medium containing 0.5 µg/ml GrB and 0.25 µg/ml perforin was utilized to compare the death rates of HuH7, PD-1+ T and T cells, with a normal medium used as the control. In the GrB- and perforin-containing culture medium, PD-1+ T cell and T cell death rates exhibited slight upward trends, which were significantly lower than that of HuH7 cells (Fig. 3G). A higher tolerance of T cells to GrB and perforin were observed, and both indices are markers for the killing of target cells by CAR-T cells. This deciphered the cause of insignificant toxicity of double-target CAR-T cells to PD-1+ T cells.

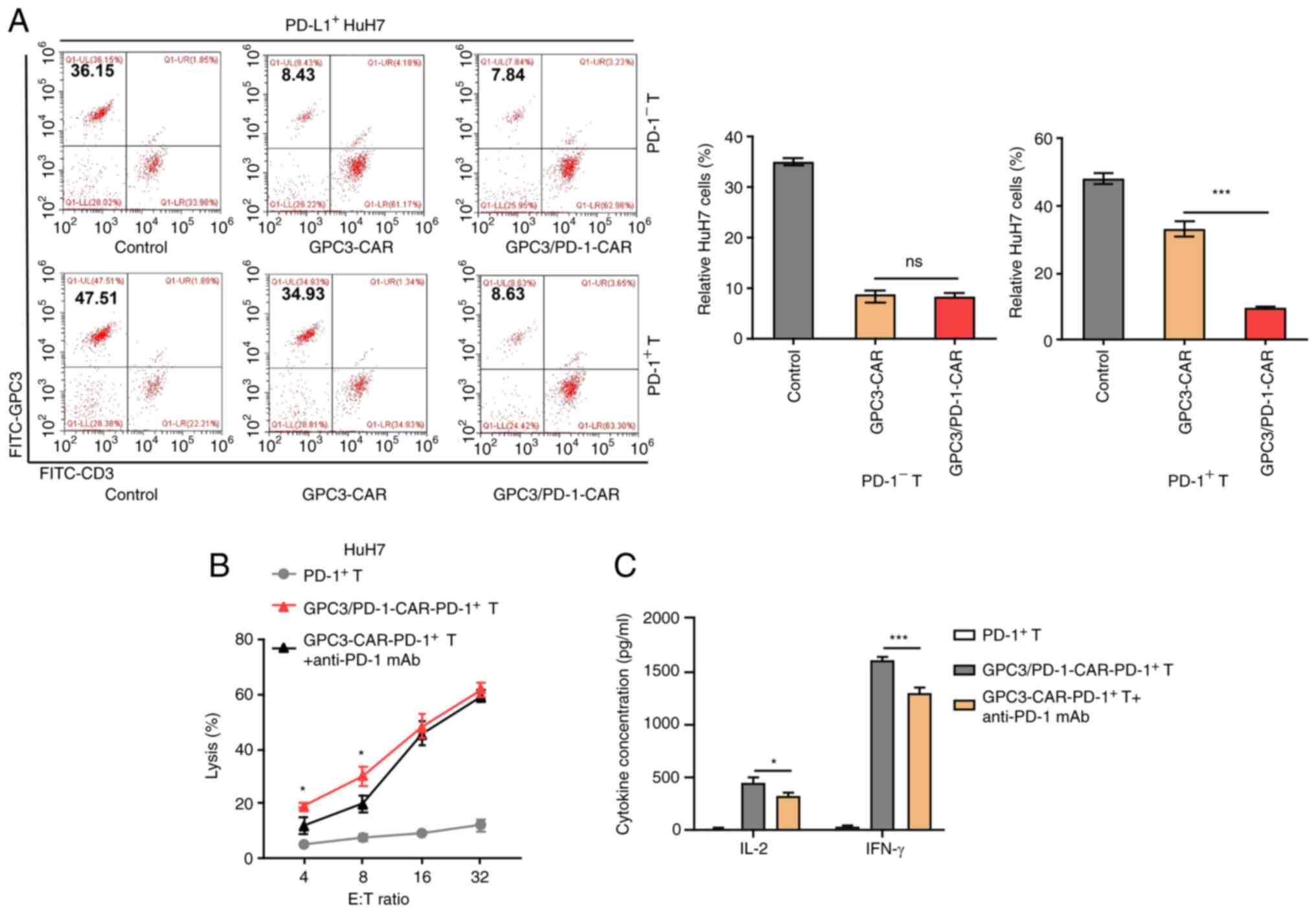

Double-target CAR-PD-1+ T cells have enhanced toxicity to tumour cells highly expressing PD-L1

CAR-T cells were stimulated with precoated anti-CD3 and soluble anti-CD28 antibodies for 1 week to construct CAR-PD-1+-T cells, and then FACS was adopted to get CAR-PD-1+-T and CAR-PD-1-T cells. HuH7 cells were also provoked using IFN-γ to induce PD-L1 expression, and PD-L1+-HuH7 cells were subsequently used to determine cell toxicity.

The dual-function and single-target CAR-PD-1+ -T cells were co-cultured with PD-L1+ -HuH7 cells at 1:1 ratio for 3 days, and the residual targeted cells were examined using FC. The marker was GPC3 for HuH7 cells and CD3 for CAR-T cells. The PD-L1+ -HuH7 cells continued to grow in co-culture with GPC3-CAR-PD-1+-T cells, suggesting that the activation of the CAR-T cells may be dampened by the PD-1/PD-L1 pathway (Fig. 4A). Conversely, double-target CAR-PD-1+-T cells were capable of successfully limiting the target tumours despite PD-1 expression.

Through the combination of an mAb against human PD-1 with GPC3-CAR-PD-1+-T cells, it was sought to interrupt the PD-1/PD-L1 pathway in eliminating PD-L1+ -HuH7 cells and this combination strategy was compared with double-target CAR-PD-1+-T cells. It appeared that double-target CAR-PD-1+-T cells had stronger cytolytic effects at E:T ratios of 4:1 and 8:1 to PD-L1+-HuH7 cells, as compared with the combination strategy (Fig. 4B). In addition, double-target CAR-PD-1+-T cells secreted more cytokines at an E:T ratio of 4:1 compared with the secretion observed following the combination regimen (Fig. 4C).

Double-target CAR-T cells exhibit a decreased inhibitory receptor (IR) expression, increased proliferation and subdue terminal differentiation in long-time antigen stimulation

Inactivated tumour cells were used to provoke GPC3-CAR-T and GPC3/PD-1-CAR-T cells every 4 days for 24 days under no other stimuli, and the expression, differentiation and proliferation of IRs was measured at 8, 16 and 24 days to determine the effect of PD-1 blocking on double-target CAR-T cells, using un-infected T cells as controls.

Although there was no difference in PD-1 expression between the two classes of CAR-T cells, less lymphocyte activation gene 3 and T cell immunoglobulin and mucin-domain containing-3 were expressed in double-target CAR-T cells than in GPC3-CAR-T cells (Fig. 5A), confirming that PD-1 blockade prevents CAR-T cells from entering an exhausted state. CAR-T cell apoptosis during stimulation was then measured. When PD-1 was blocked, less double-target CAR-T cells were subjected to apoptosis (25.41% on day 24) (Fig. 5B), confirming the pro-survival effect of blocking PD-1 on CAR-T cells.

As revealed by RT-qPCR, double-target CAR-T cells expressed more Bcl-2 (anti-apoptotic; Fig. 5C) and less caspase-3 (pro-apoptotic; Fig. 5D) compared with GPC3-CAR-T cells, which is indicative of the resistance of double-target CAR-T cells to apoptosis. Double-target CAR-T cells also exhibited enhanced long-term proliferation capacity throughout the extended culture, as compared with GPC3-CAR-T cells (Fig. 5E). Beyond that, as the provoking increased, a higher proportion of double-target CAR-T cells presented stem-like-memory (CD62L+CD45RA+) phenotype (17.68% on Day 24) than that of GPC3-CAR-T cells (7.37% on day 24; Fig. 5F).

In conclusion, the blocking of PD-1 provides CAR-T cell exhaustion resistance, antiapoptotic, and low terminal differentiation properties in long-term antigen stimulation.

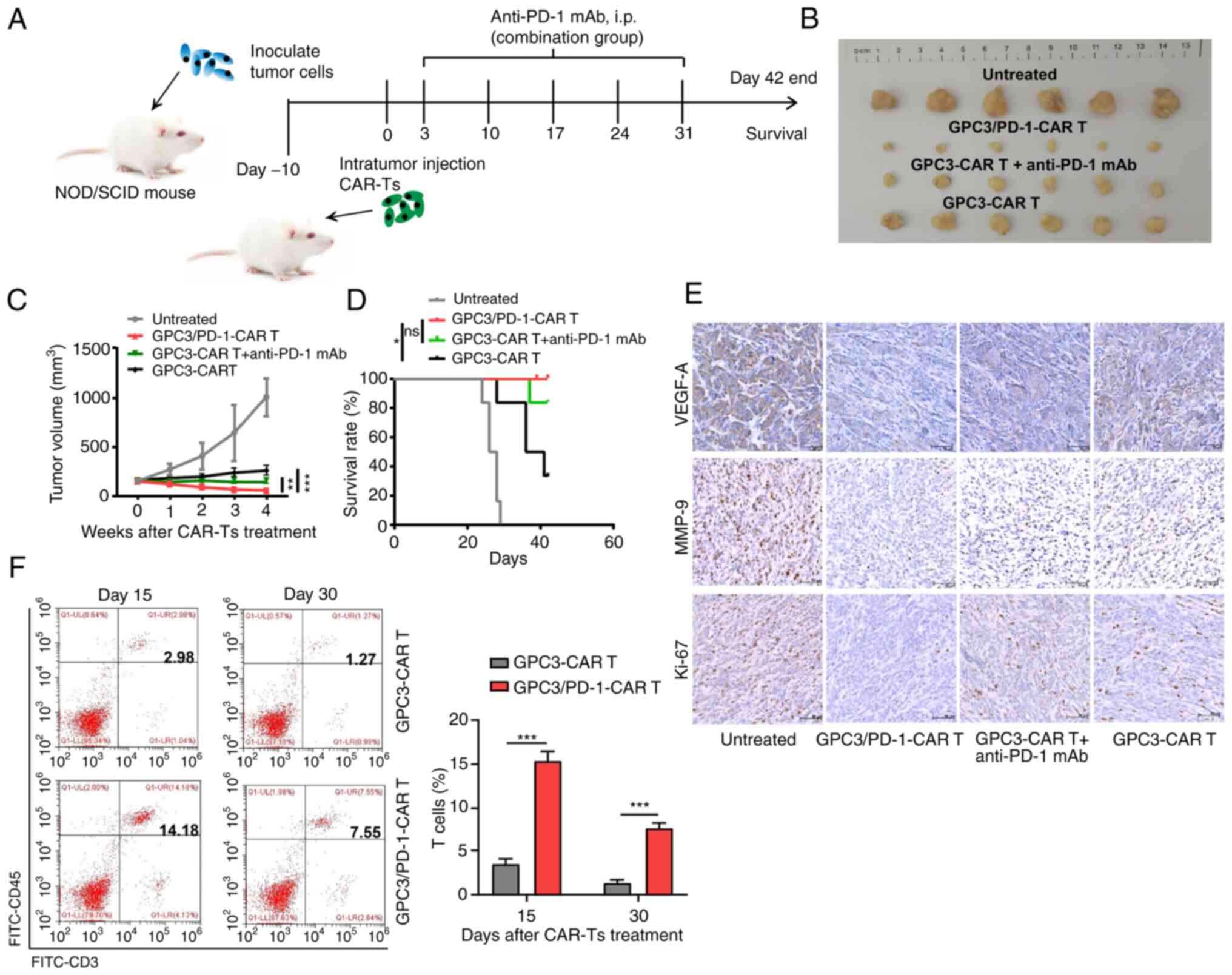

Double-target CAR-T cells have superior anti-tumor effects in the TX model mice

The tumour-resistant property of double-target CAR-T cells was assessed in vivo by modeling HuH7 tumour-bearing NOD/SCID mice. As detailed in Fig. 6A, each mouse received an intra-tumoral injection of 106 CAR-T cells. In the group composed of CAR-T cells combined with anti-PD-1 antibody, 150 mg mAbs against PD-1 were intraperitoneally injected into each mouse for 5 weeks (once a week). It was revealed that tumors in mice undergoing double-target CAR-T cell treatment grew slower than those in mice receiving combined regimen and GPC3-CAR-T cells (Fig. 6B and C). In addition, a more notable survival benefit was observed in double-target CAR-T cells compared with GPC3-CAR-T cells (Fig. 6D).

IHC was then performed to measure Ki-67, VEGF-A and MMP-9 expression in the tumour tissues. Tumor tissue treated with the dual-function CAR-T cells expressed lower levels of Ki-67, VEGF-A and MMP-9, indicating that the dual-function CAR-T cells have greater activation in suppressing the proliferation, angiogenesis and metastasis of the tumor cells (Fig. 6E). Furthermore, the group treated with dual-function CAR-T cells exhibited a higher frequency of total T cells within tumor tissue (Fig. 6F).


Anti PD-1/PD-L1 monoclonal antibodies have been used in clinical research and the results are very promising. In particular, atezolizumab (anti-PD-L1 mAb), nivolumab (anti-PD1 mAb), and pembrolizumab (anti-PD1 mAb) have already been approved with durable clinical response and prolonged overall survival, reaching clinics for the treatment of melanoma, non-small cell lung cancer, and renal cell carcinoma (24,25). However, this treatment is greatly limited by its low response rates in certain types of cancer, lack of known biomarkers, immune-related toxicity, innate and acquired drug resistance (26). Precisely speaking, the response rate of most cancers is not greater than 30%, which results in a limited therapeutic efficacy (27). As a new type of immunotherapy, CAR-T has attracted much attention due to its specific killing of tumor cells. Jiang et al (28) established a bispecific CAR targeting tyrosine-protein kinase Met and PD-L1 and proved that these bispecific CAR-T cells have enhanced therapeutic effects on HCC. Yuan et al (29) established a bispecific CAR targeting c-Met and PD-1 and proved that these bispecific CAR-T cells exhibited potent anti-tumor efficacy in solid tumors. In the present study, a new-class double-target CAR that recognizes GPC3 and blocks PD-1 was established. Compared with c-Met, GPC3 is more specifically upregulated in HCC (30,31). Blocked PD-1 markedly increased the toxicity of CAR-T cells in vitro. On the other hand, in vivo assays revealed the hindering effect of double-target CAR-T cells on tumour growth and their promoting effect in extending the survival of tumour-bearing mice, as compared with their single-target counterparts. Beyond that, double-target CAR-T cells exhibited enhanced persistence, limited inhibitory receptor expression, and less differentiated phenotypes in tumour tissues, giving rise to more potent tumour-resisting effects than their single-target counterparts.

CAR-T therapy has achieved effective responses in relapsed B-cell leukemia and lymphoma (32-34). However, there are still many difficulties in the application of CAR-T in the therapy of solid tumors (35-37). Following in-depth research, the PD-1/PD-L1 pathway has been accepted as a pivotal hallmark in checkpoint blockade treatment (38,39). It has been shown by pre-clinical studies that PD-1/PD-L1 mAbs combined with CAR-T cells can jointly suppress tumours (40-42). Impacted by PD-1 blocking, the newly established double-target CAR-T cells displayed resistance to the suppression of the PD-1/PD-L1 pathway, and their toxicity remained unchanged in PD-L1+ tumors. On the other hand, secreting perforin and GrB is one of primary ways of CAR-T cell toxicity (43,44). It was evidenced herein that, in contrast to tumour cells, T cells were more tolerant to GrB and perforin, providing one explanation for the targeting effect of double-target CAR-T cells on PD-1+ tumour cells.

The limitations of the TX model are evident. The findings of in-vivo experiments were principally based on the interplay between CAR-T and tumour cells. However, certain immune cells in the TME, such as endogenous tumour-infiltrating T cells, myeloid-derived suppressor cells and dendritic cells, also express PD-L1, exerting markedly affecting tumour outcome. In addition, nude mice deficient in normal immune function were selected as research objects; other breeds will be used for future modelling. In addition, the lack of comparison between CAR-T cell therapy and PD-1/PD-L1 antibodies is a limitation to the present study. Furtermore, the lack of CAR-T cell proliferation detection is another limitation.

In conclusion, impacted by PD-1 blocking, the newly constructed double-target CAR-T cells exhibit stronger tumour-suppressing effects on HCC than common single-target CAR-T cells. The present study provided new ideas for the successful treatment of solid tumors by CAR-T cell therapy.

Supplementary Data

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

JC and WVZ conceived the study. TZ, YL and XC curated the data. TZ, YL and ZC reanalyzed the data. DL and JQ were responsible for the study methodology. DL was responsible for the resources. JC and WVZ supervised the study. All authors wrote, reviewed and edited the original draft. All authors read and approved the final manuscript. JC and WVZ confirm the authenticity of all the raw data.

Ethics approval and consent to participate

All experimental procedures in the present study were approved (approval no. 2021-081) by the Ethics Committee of Peking University Shenzhen Hospital (Shenzhen, China). Written informed consent was obtained from all human peripheral blood donors.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.


Not applicable.


The present study was supported by the Sanming Project of Medicine in Shenzhen (grant no. SZSM201612071), the Shenzhen Key Medical Discipline Construction Fund (grant no. SZXK078) and the The Cell Technology Center and Transformation Base, Innovation Center of Guangdong-Hong Kong-Macao Greater Bay Area, Ministry of Science and Technology of China [grant no. YCZYPT (2018)03-1].
