Butein inhibits the proliferation of breast cancer cells through generation of reactive oxygen species and modulation of ERK and p38 activities

Introduction

Extracts from certain dietary foods or medical plants may function as chemopreventive agents and may inhibit tumorigenesis, including the initiation and promotion of several types of human cancer (1,2). Butein (3,4,2′,4′-tetrahydroxychalcone) is a bioactive polyphenol that is isolated from a number of plants, including Semecarpus anacardium, Dalbergia odorifera and Rhus verniciflua Stokes (R. verniciflua)(3). In Korea, butein is used as a food additive (3). Butein has been shown to demonstrate multiple biological functions, including anti-inflammatory, antioxidative and antimicrobial functions (4,5). Butein abolishes the effects of lipopolysaccharide-induced inflammation through the inhibition of nuclear factor κB (NFκB) activities and c-jun N-terminal kinase (JNK)-dependent pathways (5). Butein has also been shown to exert free radical scavenging activities and suppress H2O2-induced cytotoxicity in RAW264.7 macrophage cell lines (4). Additionally, butein decreases phorbol ester-induced skin cancer formation (6), ameliorates renal concentration capacity in cisplatin-induced renal failure (7), attenuates diabetic complications (8) and facilitates recovery in carbon tetrachloride-induced liver fibrosis (9).

Previous reports have focused on the anti-proliferative and anti-metastatic effects of butein. Jang et al showed that flavonoids isolated from R. verniciflua inhibited proliferation and triggered apoptosis in human osteosarcoma cells (10). These compounds, including butein, enhance p53 and Bax expression, decrease Bcl2 levels and subsequently induce apoptosis in osteosarcoma cells (11). Butein inhibits the colony formation of UACC-812 human breast cancer cells when it is co-cultured with fibroblast cells (11). Butein-treated colon adenocarcinoma and HeLa cells showed a significant reduction in cell proliferation (12,13). Iwashita et al showed that butein also triggered melanoma cells to undergo apoptosis, as evidenced by DNA condensation, DNA fragmentation and an increased frequency of hypodiploid cells; the authors also demonstrated that increased Bax and decreased Bcl-xL levels contribute to this butein-induced apoptosis (14). The treatment of U937 human leukemia cells with sublethal concentrations of butein has been shown to sensitize the cells to tumor necrosis factor-(TNF)-related apoptosis-inducing ligand (TRAIL)-induced apoptosis through increasing caspase 3-dependent pathways (14). Moreover, butein suppresses the signal transduction and activation of transcription 3 (STAT3) activity and reduces STAT3 target gene expression in multiple myeloma cells and human hepatocarcinoma cells (15,16). Treatment with butein was shown to induce G2/M arrest, by enhancing ataxia telangiectasia mutated (ATM), Chk1 and Chk2 activities in hepatoma cells (15). Butein has also been found to inhibit the invasion and angiogenesis of prostate cancer through the downregulation of matrix metalloproteinase (MMP)-9 and vascular endothelial growth factor expression (17).

Due to the high prevalence and increasing drug resistance of breast cancer, this disease has become the leading cause of cancer-related mortality in women. Studies focusing on natural compounds for the treatment of breast cancer have begun to emerge (18). A polyphenol-rich fraction purified from R. verniciflua containing fesetin, sulfuretin and butein, has demonstrated anti-proliferative effects both in gastric and breast cancer (19). Butein also diminishes the testosterone-induced cell proliferation of breast cancer cells by reducing aromatase activity (19). Chua et al demonstrated that butein suppresses the migration and invasion of breast cancer through the inhibition of NFκB activity and subsequent decrease in CXC chemokine receptor 4 (CXCR4) expression (20). Recently, butein has been shown to block phorbol 12-myristate 13-acetate (PMA)-elevated cyclooxygenase 2 (COX2) expression by inhibiting extracellular signal-regulated kinase (ERK) activation in cancerous and non-cancerous breast cells (21). However, the effects of butein on the growth and proliferation of breast cancer cells remain unclear. In this study, the molecular mechanisms of the effects of butein on breast cancer cell proliferation are delineated for the first time.

Materials and methods

Materials

All chemicals that were used, including butein, isopropanol, dimethylsulfoxide (DMSO) and propidium iodine, were purchased from Sigma Chemical Company (St. Louis, MA, USA). The phospho-p38 antibody was purchased from Cell Signaling Technology (Beverly, MA, USA). Antibodies against p38, phospho-ERK and ERK were obtained from Santa Cruz Biotechnology (Santa Cruz, CA, USA). Anti-β actin and horseradish peroxidase (HRP)-conjugated secondary antibodies were obtained from Sigma Chemical Company. Dulbecco’s modified Eagle’s medium (DMEM), fetal bovine serum and penicillin-streptomycin mixture were obtained from Gibco Laboratory (Gaithersburg, MO, USA).

Cell culture

The human breast cancer cell line MDA-MB-231 was maintained in DMEM supplemented with 10% fetal bovine serum, 100 units/ml penicillin and 100 μg/ml streptomycin at 37°C in a humidified atmosphere of 5% CO2.

3-(4,5 Dimethylthiazol-2-yl)-2,5 diphenyltetrazolium bromide (MTT) assay

Cells were seeded in 24-well plates at a density of 4×104 cells/ml and were treated with the indicated concentrations of butein for 24 or 48 h. After removing the supernatant, the cells were incubated with fresh medium containing 5.0 mg/l MTT at 37°C for an additional 3 h. After washing with phosphate-buffered saline (PBS), the purple-blue formazan was dissolved in 1 ml of isopropanol, and the absorbance was measured at 563 nm.

Reactive oxygen species (ROS) analysis

Cells treated with the indicated concentrations of butein, with or without pre-treatment with 1 mM N-acetyl cysteine (NAC) for 1 h, were loaded with 5 μM fluorescent probe 2′,7′-dichlorodihydrofluorescein diacetate (H2DCFDA; Molecular Probes Inc., Eugene, OR, USA) at 37°C for 1 h. The fluorescence intensity was analyzed on BD biosciences FACscan system using CellQuest™ Pro software.

Western blot analysis

MDA-MB-231 cells were treated with the indicated concentrations of butein for 48 h and then cell lysate extraction was performed. Protein concentration was detected by using a Bradford protein assay kit (Bio-Rad Laboratories, Hercules, CA, USA). Protein (20 μg) was separated by a 10% polyacrylamide gel and electrotransferred to a nitrocellulose membrane. The membrane was blocked by PBS containing 0.5% non-fat milk for 1 h at room temperature. After being washed with PBS containing 0.1% Tween-20 (PBST), the membrane was probed with primary antibodies at 4°C overnight. The following day, the membrane was washed with PBST and then incubated with HRP-conjugated goat anti-mouse IgG antibody (Santa Cruz Biotechnology; 1:5,000 dilution) at room temperature for 1 h. The membrane was extensively washed with PBS, and the reactive signal was detected using an enhanced chemiluminescence kit (Amersham Pharmacia Biotech, UK). β-actin expression was used as the loading control.

Statistical analysis

Reported data are the means ± standard deviation (SD) of 3 independent experiments and were evaluated by the Student’s t-test with SPSS. A p-value <0.05 was considered to indicate a statistically significant difference.

Results

Butein inhibits cell proliferation in breast cancer cells

Previous reports have shown that butein is a potent anti-proliferative agent for several types of cancer. The present study investigated the cytotoxic effects of butein on the breast cancer cell line, MDA-MB-231. Low doses (6.25 and 12.5 μM) of butein did not affect cell viability, whereas treatment with 25, 50 and 100 μM butein reduced cell viability to 88, 73 and 61% after 24 h and to 66, 49 and 26% after 48 h, respectively (Fig. 1). In addition, a significantly increased sub-G1 population was found in the 50 and 100 μM butein-treated groups (Table I). Taken together, our results suggest that butein induces apoptosis in breast cancer cells.

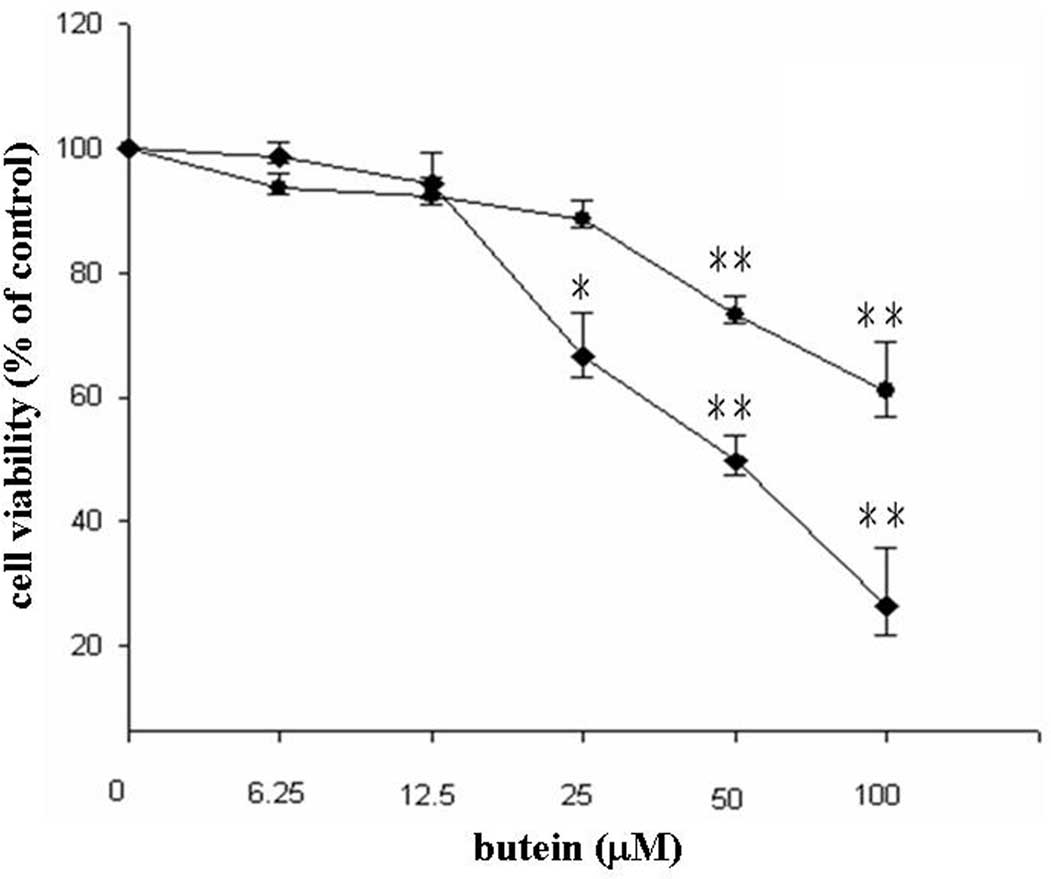

Figure 1 Effects of butein on the cell viability of breast cancer cells. MDA-MB-231 human breast cancer cells were treated with the indicated concentrations of butein for 24 (closed circle) and 48 h (diamond). Cell viability was measured by MTT assay. Data presented are the means ± SD from at least 3 independent experiments. *p<0.05, **p<0.01 compared with the vehicle-treated group.

Table I Cell cycle distribution of butein- and/or NAC-treated MDA-MB-231 cells.

Table I

Cell cycle distribution of butein- and/or NAC-treated MDA-MB-231 cells.

Treatment group	Sub-G1 (%)	G0/G1 (%)	S (%)	G2/M (%)
Control	0.38±0.12	48.93±3.75	9.43±0.73	30.59±7.79
Butein 6.25 μM	0.35±0.1	47.93±5.38	9.57±1.68	32.47±5.69
Butein 12.5 μM	0.39±0.2	49.42±7.84	9.32±1.13	30.39±6.73
Butein 25 μM	0.67±0.37	47.33±8.78	9.54±1.58	44.08±7.04
Butein 50 μM	3.71±0.6a	45.69±6.08	16.26±1.77	24.73±1.69
Butein 100 μM	11.22±2.62a	50.42±11.44	8.53±4.19	24.01±2.71
NAC alone	0.51±0.34	57.82±7.45	9.56±1.23	16.64±4.39
Butien 50 μM + NAC	1.57±0.33b	51.77±8.82	11.43±1.81	24.16±1.98
Butien 100 μM + NAC	3.61±0.79b	52.09±4.82	11.63±3.37	24.01±2.71

a p<0.05 compared to control group;

b p<0.05 compared to 50 and 100 μM butein group.

{ label (or @symbol) needed for fn[@id='tfn3-mmr-06-05-1126'] } NAC, N-acetyl cysteine.

Butein modulates ERK and p38 activity in breast cancer cells

In general, ERK is involved in cell proliferation, whereas JNK and p38 participate in stress-induced apoptosis (22). To detect whether MAPK family proteins are involved in butein-induced apoptosis, the phosphorylation of ERK and p38 was measured by western blot analysis. As shown in Fig. 2A, ERK phosphorylation was significantly decreased in the butein-treated cells (90% at 6.25 μM, 80% at 12.5 μM, 75% at 25 μM, 61% at 50 μM and 45% at 100 μM, compared with 100% in the control group). By contrast, 100 μM butein increased the phosphorylation of p38 up to 1.59-fold compared with the vehicle-treated group (Fig. 2B). No overt alteration in JNK phosphorylation was observed in the presence of butein (data not shown).

Figure 2 Effects of butein on extracellular signal-regulated kinase (ERK) and p38 phosphorylation. MDA-MB-231 cells were treated with the indicated concentrations of butein for 48 h. Cell lysates were harvested and subjected to western blot analysis using (A) phospho-ERK and ERK and (B) phospho-p38 and p38 antibodies. Data represent 1 of at least 3 independent experiments. β-actin was used as the internal control.

Effects of butein on apoptosis-related protein expression

In order to determine whether butein affects apoptosis-related protein expression, cell lysates derived from butein-treated MB-MDA-231 cells were harvested, and the expression of Bcl-2, caspase 3 and poly-(ADP-ribose)-polymerase (PARP) were analyzed by western blot analysis. The expression of the anti-apoptotic protein, Bcl-2, was dramatically decreased in a dose-dependent manner based on the butein concentration. In addition, butein also reduced pro-caspase 3 expression and increased cleavage of PARP in a dose-dependent manner (Fig. 3). However, no significant alteration in Bax expression was found in the presence of butein (data not shown).

Figure 3 Effects of butein on apoptosis-related protein expression. Cell lysates derived from butein-treated MDA-MB-231 cells were subjected to western blot analysis. The expressions of poly(ADP-ribose) polymerase (PARP), Bcl-2 and caspase 3 were measured. Arrow indicates the cleaved form of PARP. β-actin was used as the internal control.

Butein triggers ROS generation

To examine whether butein triggers ROS production, butein-treated MB-MDA-231 cells were stained with 2′-7′-dichlorofluorescin diacetate fluorescent dye and were analyzed by flow cytometry. As shown in Fig. 4A, treatment with 50 and 100 μM butein significantly increased ROS generation. Pre-treatment with NAC significantly decreased ROS production.

Figure 4 Pre-treatment with N-acetyl cysteine (NAC) reverses the effects of butein on: (A) reactive oxygen species (ROS) generation and (B) cell viability. MDA-MB-231 cells were pre-treated with 1 mM NAC and then treated with 50 or 100 μM butein for an additional 48 h. Cells were stained with DCFDA and ROS was analyzed by flow cytometry. X and Y axis denote the DCFDA intensity and cell count, respectively. Line indicates the 102 intensity. (B) Cells were treated as mentioned above and the cell viability was measured by MTT assay. Data are the means ± SD from at least 3 independent experiments. Black bar indicates treatment with butein alone. Gray bar indicates combined treatment of butein and NAC. **p<0.01 compared with the group treated with butein alone.

Pre-treatment with the antioxidant agent, NAC, prevents butein-induced protein expression and cell death

To determine whether the butein-induced apoptosis is mediated by ROS generation, the cells were pre-treated with 1 mM NAC and were subsequently co-treated with the indicated concentrations of butein for an additional 48 h. Cell viability was measured by MTT assay, and the apoptotic population was detected by flow cytometry. Pre-treatment with NAC markedly increased the viability of butein-treated cells as shown by MTT assays (Fig. 4B). Similarly, NAC pre-treatment decreased the sub-G1 population from 3.71–1.57 and 11.22–3.61%, in response to 50 and 100 μM butein treatment, respectively (Table I). Moreover, to address whether the effects of butein on apoptosis-related protein expression are affected by the abrogation of ROS generation, the phosphorylation of ERK and p38 was measured in NAC-pre-treated cells. Notably, as shown in Fig. 5, pre-treatment with NAC significantly blocked the butein-induced phosphorylation of p38. In addition, ERK phosphorylation was upregulated in the presence of NAC. Our findings suggest that the generation of ROS, which may modulate ERK and p38 activities, plays an important role in butein-induced apoptosis.

Figure 5 Effects of N-acetyl cysteine (NAC) on phosphorylation of (ERK) and p38 in the presence of butein. MDA-MB-231 cells were pre-treated with 1 mM NAC and then treated with 50 or 100 μM butein for an additional 48 h. Cell lysates were collected and subjected to western blot analysis using the indicated antibodies. p-ERK/ERK ratio and p-p38/p38 ratios were calculated and compared to the vehicle-treated group. The data represent 1 of 3 independent experiments.

Discussion

Flavonoids, which are compounds found in fruits and vegetables, have received a great deal of attention for their application as chemopreventive and chemotherapeutic agents (23,24). Butein, one of the major constituents of R. verniciflua, has been shown to exert a wide range of biological functions. Butein has been demonstrated to inhibit the proliferation of several human cancer cell lines, including B16 melanoma 4A5 cells (14), lymphoma (3), breast carcinoma (19) and osteosarcoma cells (10). In this study, the molecular mechanisms underlying the role of butein in the cell proliferation of breast cancer cells were delineated for the first time. Our data demonstrate that butein reduces cell viability in a dose- and time-dependent manner. Butein induced cell apoptosis, as evidenced by an increase in the sub-G1 cell population. Treatment with butein elevated ROS generation, enhanced the proteolytic activity of caspase 3, decreased the expression of Bcl-2 protein, decreased the phosphorylation of ERK and stimulated p38 phosphorylation. Pre-treatment with the antioxidant, NAC, significantly abrogated butein-induced apoptosis.

Mitogen-activated protein kinase (MAPK) family proteins have been shown to regulate numerous cellular functions, such as cell proliferation, cell growth and apoptosis, in response to different extracellular stimuli (22,25). In general, ERK-mediated growth factors enhance cell proliferation, whereas JNK and p38 kinases transduce signals from stress and inflammation to promote apoptosis (26). Flavonoid-triggered cancer cells undergo apoptosis through the modulation of MAPK protein kinases (27–29). Epigallocatechin-3-gallate (EGCG) inhibits ERK activation and increases p38 kinases and JNK activity, which subsequently enhances apoptosis in pancreatic cancer cells (30). Treatment with quercetin significantly reduces the phosphorylation of ERK and AKT, which is accompanied by decreased cell viability in glioma and HepG2 cells (31,32). In bladder cancer cells, treatment with butein decreases the phosphorylation of ERK in a time-dependent manner (33). Lau et al showed that butein attenuated COX2 expression induced by PMA, via the inhibition of ERK activities (21). In our study, treatment with butein significantly abrogated ERK activities in MDA-MB-231 breast cancer cells, consistent with previous observations. Unlike other flavonoids that induce p38 activation, Lee et al showed that treatment with butein significantly diminished TNF-α-mediated MMP-7 and interleukin 8 production by decreasing p38 activity in HT-29 cells (34). However, our findings provide the first evidence that treatment with butein significantly elevates p38 activity in a dose-dependent manner. Taken together, our results indicate that treatment with butein attenuates survival signals (ERK) and elevates death signals (p38), which leads to apoptosis in breast cancer cells.

The Bcl-2 family proteins have both anti- and pro-apoptotic functions. The ratio of pro-apoptotic (Bax) to anti-apoptotic (Bcl-2) proteins determines whether a cell lives or dies. An increased Bax/Bcl-2 ratio triggers apoptosis by releasing cytochrome c from mitochondria, which in turn activates caspase 3 (35). As proof of principle, butein induces apoptosis in HL60 leukemia cells through diminished Bcl-2 and elevated Bax expression, which results in stimulated caspase 3 activity (36). Similarly, crude extracts of R. verniciflua, rich in butein, fustin and fisetin have demonstrated apoptotic effects on human osteosarcoma cells through the inhibition of Bcl-2 expression and the activation of Bax expression (10). In the present study, decreased Bcl-2 and pro-caspase 3 levels, accompanied by increased PARP cleavage, were found in butein-treated breast cancer cells.

The production of ROS, which damages DNA, proteins and lipids, has been associated with a number of human diseases, such as atherosclerosis and cancer (37,38). Increased ROS concentrations help facilitate the chemotherapeutic effects of flavonoids. Apigenin triggers prostate cancer cells to undergo apoptosis through the generation of ROS and the activation of the p53 pathway (40). Similarly, kaempferol and catechins also induce apoptosis in glioblastoma and malignant B cells, respectively, via the production of ROS (40,41). Emerging reports have demonstrated that elevated ROS levels trigger signal transduction pathways involved in apoptosis. In hepatoma cells, butein triggers ROS generation, modulates ATM, Chk1 and Chk2 activities, and subsequently causes cell cycle arrest in the G2/M phase (42). Very recently, it has also been shown that butein elevates ROS levels and subsequently triggers apoptosis in neuroblastoma cells (43). Pre-treatment with antioxidants, such as NAC or glutathione, abrogates the effects of butein (41). In our study, concurrent with a previous report, treatment with 50 and 100 μM butein markedly induced ROS generation in MDA-MB-231 breast cancer cells. Pre-treatment with the antioxidant, NAC, counteracted the effects of butein on cell viability and ROS generation. However, G2/M phase arrest was not observed in butein-treated breast cancer cells. Our data reveal that butein triggers apoptosis, but not cell cycle arrest in breast cancer cells, via the generation of ROS.

In conclusion, our results, to our knowledge, provide the first evidence that butein triggers apoptosis in breast cancer cells via multiple mechanisms and the generation of ROS, inhibition of ERK, activation of p38, decreased Bcl-2 expression levels and induced cleavage of caspase 3 and PARP, whereas pre-treatment with the antioxidant, NAC, prevents these butein-induced effects (Fig. 6). In conclusion, our results suggest that butein has anti-proliferative effects and induces apoptosis in breast cancer cells.

Figure 6 Summarization of the molecular mechanisms of butein on the inhibition of cell proliferation of breast cancer cells. Treatment with butein induced reactive oxygen species (ROS) generation, inhibited extracellular signal-regulated kinase (ERK) activity, enhanced p38 activation, decreased Bcl-2 expression, triggered the cleavage of pro-caspase 3 and poly(ADP-ribose) polymerase (PARP) and consequently inhibited cell proliferation in breast cancer cells. Pre-treatment with N-acetyl cysteine (NAC) significantly blocked these butein-induced effects.

Acknowledgements

The present study was supported by grants from the National Science Council of Taiwan (NSC-94-2311-B-040-002 and NSC-93-2311-B-040-009) and from the Chung Shan Medical University (98-CCH-CSMU-05). The authors thank the Instrument Center of the Chung Shan Medical University, supported by the National Science Council of the Ministry of Education and the Chung Shan Medical University for providing the equipment.
