DNA methylation variations in familial female and male breast cancer

  • Authors:
    • Edoardo Abeni
    • Ilaria Grossi
    • Eleonora Marchina
    • Arianna Coniglio
    • Paolo Incardona
    • Pietro Cavalli
    • Fausto Zorzi
    • Pier Luigi Chiodera
    • Carlo Terenzio Paties
    • Marialuisa Crosatti
    • Giuseppina De Petro
    • Alessandro Salvi
  • View Affiliations

  • Published online on: April 12, 2021     https://doi.org/10.3892/ol.2021.12729
  • Article Number: 468
  • Copyright: © Abeni et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Abstract

In total, ~25% of familial breast cancer (BC) is attributed to germline mutations of the BRCA1 and BRCA2 genes, while the rest of the cases are included in the BRCAX group. BC is also known to affect men, with a worldwide incidence of 1%. Epigenetic alterations, including DNA methylation, have been rarely studied in male breast cancer (MBC) on a genome‑wide level. The aim of the present study was to examine the global DNA methylation profiles of patients with BC to identify differences between familial female breast cancer (FBC) and MBC, and according to BRCA1, BRCA2 or BRCAX mutation status. The genomic DNA of formalin‑fixed paraffin‑embedded tissues from 17 women and 7 men with BC was subjected to methylated DNA immunoprecipitation and hybridized on human promoter microarrays. The comparison between FBC and MBC revealed 2,846 significant differentially methylated regions corresponding to 2,486 annotated genes. Gene Ontology enrichment analysis revealed molecular function terms, such as the GTPase superfamily genes (particularly the GTPase Rho GAP/GEF and GTPase RAB), and cellular component terms associated with cytoskeletal architecture, such as ‘cytoskeletal part’, ‘keratin filament’ and ‘intermediate filament’. When only FBC was considered, several cancer‑associated pathways were among the most enriched KEGG pathways of differentially methylated genes when the BRCA2 group was compared with the BRCAX or BRCA1+BRCAX groups. The comparison between the BRCA1 and BRCA2+BRCAX groups comprised the molecular function term ‘cytoskeletal protein binding’. Finally, the functional annotation of differentially methylated genes between the BRCAX and BRCA1+BRCA2 groups indicated that the most enriched molecular function terms were associated with GTPase activity. In conclusion, to the best of our knowledge, the present study was the first to compare the global DNA methylation profile of familial FBC and MBC. The results may provide useful insights into the epigenomic subtyping of BC and shed light on a possible novel molecular mechanism underlying BC carcinogenesis.

Introduction

Breast cancer (BC) is a complex and heterogeneous disease and a leading cause of mortality among women (1). Familial BC accounts for 5–7% of all BC cases (2,3). Within this group, only around 25% of patients are carriers of germ line mutations in the two high susceptibility genes for BC, BRCA1 and BRCA2 (4). The patients with familial BC who do not have mutation of these genes fall under the BRCAX category (5).

Tumorigenesis is a multistep process that results from the accumulation of genetic and epigenetic alterations (6). A total of 40–50% of human genes have CpG islands (CGIs) located in or near the promoter and/or first exon. Their methylation level is critical to regulate the expression of these genes and essential for the development and proper functioning of the cell. Alterations of the DNA methylation status are frequently associated with human cancer. To date, several studies have determined the methylation profile of specific genes in familial and sporadic forms of BC and between the patients carrying mutations in BRCA1, BRCA2 or BRCAX (7). Flanagan et al (8) have reported data about the global DNA methylation variations in some cases of female familial BC characterized by a given mutation status. BC may also affect men albeit more rarely than women with an incidence of 1% of all cases of BC diagnosed annually. It has been suggested by numerous studies that male breast cancer (MBC) is different from female breast cancer (FBC), at both the clinical and molecular levels (912). In fact, even though MBC treatment follows the same indications as postmenopausal FBC, the clinical and pathological characteristics of MBC do not overlap with those of FBC, which could explain why mortality and survival rates are significantly worse in men, as compared to women (13). At present, the epigenetic alterations in MBC have been the focus of a limited number of studies (14). Among them, some investigated the differences in the DNA methylation level of putative genes between FBC and MBC. Kornegoor et al (15), examined the promoter methylation of 25 cancer-related genes in 108 cases of MBC using methylation specific multiplex ligation dependent probe amplification. These authors concluded that the methylation of promoters was common in MBC and that the high methylation status was correlated with the aggressive phenotype and poor outcome (15). Using the same technique, Vermeulen et al (16) studied the promoter methylation of 25 BC-related genes in situ in pure ductal carcinoma of the male breast. Subsequently, Pinto et al (17) identified different expression patterns in RASSF1A, RARβ and in four selected miRNAs studying the differences between MBC and FBC in a set of 56 familial BC cases. Using methylation-sensitive high resolution techniques, Deb et al (18) tested a panel of 10 genes in 60 men, and concluded that BRCA2-related MBC was characterized by high methylation levels of specific genes and that the average methylation index might be a useful prognostic marker. Finally, in a study by Rizzolo et al (19), the results of promoter methylation analysis of genes involved in signal transduction and hormone signaling in 69 men with BC, showed that variations in methylation patterns were common in BC and might identify specific subgroups based on BRCA1/2 mutation status or certain clinicopathologic features.

The aim of the present study was therefore to study DNA methylation pattern using a novel global approach (MeDip-chip; based on human promoter arrays comprising 4.6 million probes tiled through 25,500 human promoter regions) in familiar BC to identify differences between FBC and MBC, as well as among BRCA1, BRCA2 and BRCAX mutations within FBC. In particular, comparisons in DNA methylation levels were performed based on sex and mutation status and the differentially methylated genes in each comparison class were subjected to functional enrichment analysis. The enriched Gene Ontology terms and molecular pathways could be useful for identifying sex and/or mutation related biological differences with a potential clinical impact.

Materials and methods

Clinical and pathological characteristics of BC patients

The present study involved 24 patients with familial BC, including 7 men and 17 women who underwent surgery between May 1997 and February 2012 in 5 different Italian hospital institutes as indicated in Table I. The group of men was between 45 and 79 years (mean 56±13.5) and the group of women was between 33 and 60 years (mean 44.56±7.39). All patients were previously subjected to genomic DNA sequencing from peripheral blood mononuclear cells as requested by the medical genetic counsellors to identify germline mutations of the BRCA1 and BRCA2 genes. Among the men, one patient carried a mutation of the BRCA2 gene while the remaining patients were wild type for BRCA1 or BRCA2 genes and included in the group BRCAX. Among the group of women, four patients carried BRCA1 gene mutations, three carried BRCA2 gene mutations, and ten were included in the BRCAX group (see Table I for the list of mutations). Ethical approval for the study was obtained from Ethic Committee of Spedali Civili of Brescia (approval no. NP 1439). Written informed consent for research purpose in the fields of genomics and epigenomics was obtained from each patient at the original date of the surgery.

Table I.

Clinicopathological characteristics of patients with breast cancer enrolled in the present study.

Table I.

Clinicopathological characteristics of patients with breast cancer enrolled in the present study.

Case numberSexAge, yearsMutationERPRHER2Ki67/MIB1Molecular subtype predictedSurgical resection, yearHospital institutea
Case 01Female41BRCA 2 458stop1997SC-BS
Case 02Female46BRCA X1997SC-BS
Case 03Female42BRCA 2 T703NPositivePositiveNegativeNegativeLuminal A2005FP-BS
Case 04Female43BRCA 1 C64RNegativeNegativeNegativePositive Triple-negative2011FP-BS
Case 05Female49BRCA XPositivePositiveNegativeLuminal A2005SC-BS
Case 06Female38BRCA 1 C64RNegativeNegativeNegativePositive Triple-negative2008SA-BS
Case 07Female33BRCA 2 Q2960XPositivePositivePositivePositiveLuminal B2011FP-BS
Case 08Female51BRCA XPositivePositiveNegativeNegativeLuminal A2005SA-BS
Case 09Female60BRCA XPositivePositiveLuminal A2007SA-BS
Case 10Female59BRCA XPositivePositivePositiveNegativeLuminal B2008SA-BS
Case 11Female36BRCA 1C64RNegativeNegativeNegativePositive Triple-negative2009FP-BS
Case 12Female50BRCA XPositivePositiveNegativeNegativeLuminal A2008FP-BS
Case 13Female38BRCA1 M1652INegativeNegativeNegativePositive Triple-negative2001SC-BS
Case 14Female43BRCA XPositivePositiveNegativePositiveLuminal A2007SC-BS
Case 15Female41BRCA XPositivePositivePositiveNegativeLuminal B2000SC-BS
Case 16Female43BRCA XPositivePositiveNegativeNegativeLuminal A2006SC-BS
Case 17Female43BRCA XPositivePositiveNegativePositiveLuminal A2002SC-BS
Case 18Male49BRCA 2 delA9158FS + 29 stopPositiveNegativePositiveNegativeHER2-enriched2007SC-BS
Case 19Male45BRCA XPositiveNegativeNegativePositiveLuminal A2011FP-BS
Case 20Male46BRCA XPositivePositivePositivePositiveLuminal B2012FP-BS
Case 21Male79BRCA X2007CR
Case 22Male71BRCA X2009CR
Case 23Male54BRCA XNegativeNegativePositiveNegativeHER2-enriched2011CR
Case 24Male48BRCA XPositivePositiveNegativePositiveLuminal A2012PC

a SC-BS, Spedali Civili of Brescia, Brescia, Italy; FP-BS, Fondazione Poliambulanza, Brescia, Italy; SA-BS, Istituto Clinico Sant'Anna, Brescia, Italy; CR, ASST of Cremona, Hospital of Cremona, Cremona, Italy; PC, Guglielmo da Saliceto Hospital, Piacenza, Italy. -, information not available in the histopathological report; ER, estrogen receptor; MIB1, MIB E3 ubiquitin protein ligase 1; PR, progesterone receptor.

DNA isolation from formalin-fixed paraffin-embedded (FFPE) BC tissues

The genomic DNA was extracted from FFPE tissues (10 of 5 µm sections for each patient) using QIAamp DNA FFPE Tissue Kit supplied by Qiagen, Inc.. The genomic DNA was digested using the micrococcal nuclease (New England Biolabs, Inc.), following the manufacturer's specifications, in order to obtain DNA fragments ranging from 200 to 500 bp (labelled input DNA). Agilent Bioanalyzer with the RNA 6000 Nano LabChip Kit was used to check the size, quality and quantity of fragmented DNA.

Methylated DNA immunoprecipitation on chip (MeDip-chip)

The DNA methylome of 24 patients with BC was obtained by MeDip followed by Affymetrix Human Promoter 1.0R Tiling Arrays hybridization (MeDip-chip) using the modified protocol of the Affymetrix chromatin immunoprecipitation assay as previously described (20). The human promoter array is a single array comprising 4.6 million probes tiled through 25,500 human promoter regions. Sequences used in the design of the human promoter arrays were selected from NCBI human genome assembly (BUILD 34). Purified DNA (4 µg), named input DNA, was immunoprecipitated with 10 µl anti-5-MethylCytosine Antibody (cat. no. BI-MECY-0100; Eurogentec) using the MeDip protocol (21), with minor modifications. The antibody-DNA complexes were immunoprecipitated using Dynabeads® Protein G immunoprecipitation kit (Thermo Fisher scientific, Inc.) and the enriched methylated DNA (labelled MeDip DNA) was purified by standard phenol/chloroform procedure and precipitated with isopropanol. A total of 200 ng input or MeDip DNA were amplified using the Affymetrix Chromatin Immunoprecipitation Assay Protocol. Hybridization on Human Promoter 1.0R array was performed using the GeneChip®Hybridization, Wash, and Stain Kit (Thermo Fisher scientific, Inc.) and the GeneChip® 640 hybridization oven. Arrays were washed and stained using the Fluidics Station 450 (Thermo Fisher scientific, Inc.), were scanned with the GeneChip Scanner 3000 7G and raw data were extracted with the GeneChip Operating System (GCOS) software. In total, 2 microarrays were used for each patient (one for MeDip DNA and one for input DNA). Data obtained from MeDip and input DNA microarrays have been deposited in the NCBI Gene 97 Expression Omnibus (GEO) data repository (GSE153636).

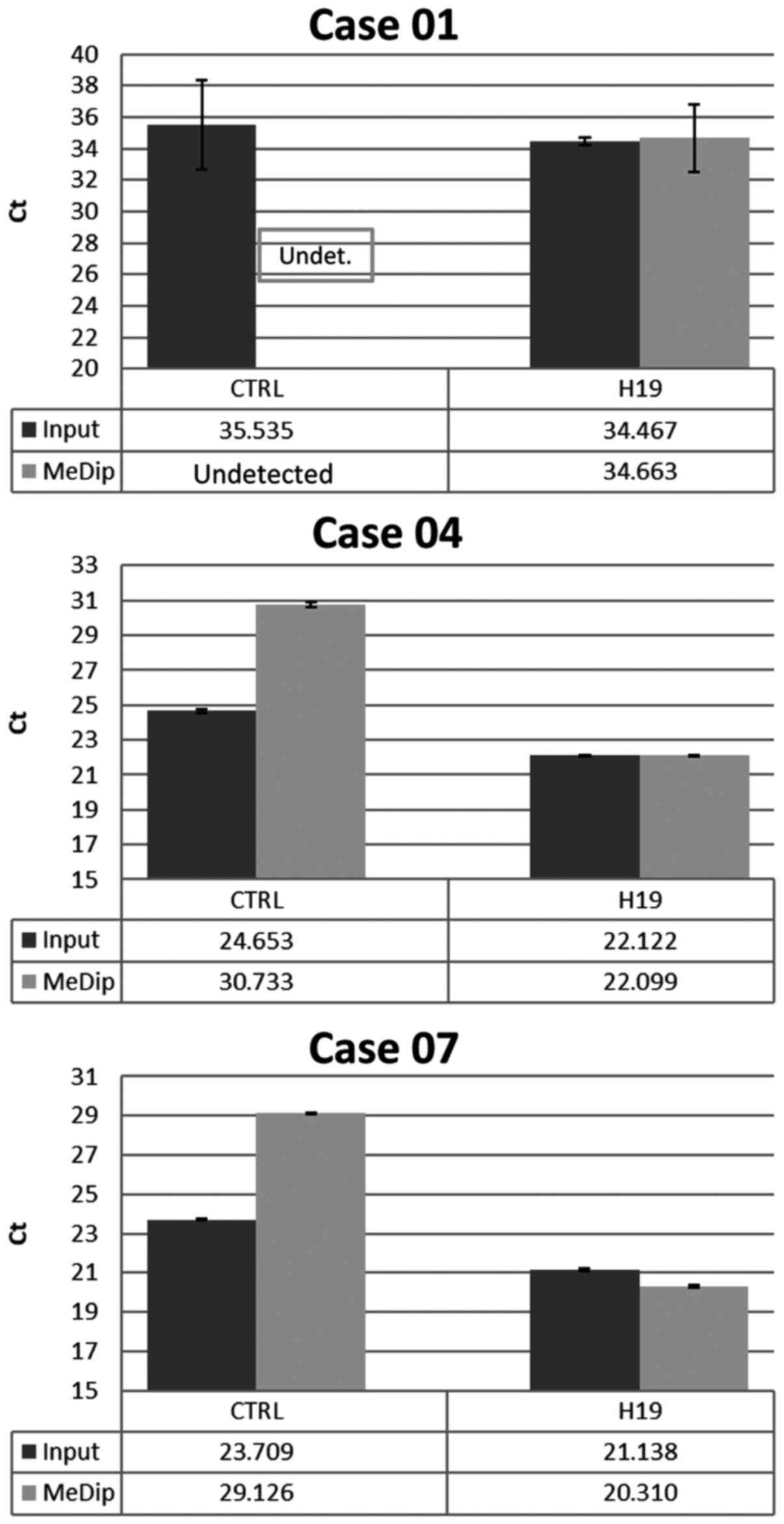

Quantification of methylated DNA by qPCR

To verify the effectiveness of the protocol, the input and MeDip DNA of three random patients with BC were amplified by qPCR. The methylated DNA was amplified using specific primers for the H19 gene, which is known to be hypermethylated (H19, chr11: 1,973,061-1,973,234 hg18) and primers for a control region without CpG dinucleotides (CTRL, chr7: 84,768,017-84,768,155 hg18). H19 forward primer: 5′-CGAGTGTGCGTGAGTGTGAG-3′and reverse primer: 5′-GGCGTAATGGAATGCTTGAA-3′. CTRL forward primer: 5′-GAGAGCATTAGGGCAGACAAA-3′ and reverse primer: 5′-GTTCCTCAGACAGCCACATTT-3′. DNA (25 ng) was used for each reaction and assayed in triplicate. qPCR was run with a first step of denaturation at 95°C for 10 min, then 40 cycles at 95°C for 30 sec, 56°C for 30 sec, 72°C for 30 sec. GoTaq qPCR Master Mix with SYBR Green was used (Promega corporation).

The enrichment level for the methylated regions was calculated using the qPCR threshold cycle (Ct) values applied to the following formula previously described (22,23): 2−[(H19me-H19in)-(CTRLme-CTRLin)] where H19me and H19in are the qPCR Ct values obtained for the H19 gene qPCR primers pair using MeDip and Input DNA as template, respectively; CTRLme and CTRLin are the qPCR Ct values obtained for the control region qPCR primers pair using MeDip and Input DNA as a template, respectively. Samples with low Ct value (<10) were considered as non-enriched and were therefore excluded from the study.

Statistical analysis

The raw data of 48. CEL files (24 from input DNA and 24 from MeDip DNA) were imported into Partek Genomics Suite (PGS) software version 6.6, normalized with the RMA algorithm and converted into log2 values. Hierarchical clustering and Principal Component Analysis were performed to verify that input DNA clustered in the same group compared to the MeDip DNA samples confirming the success of the MeDip protocol. For each patient, the DNA methylation was scored as Δ methylation value: The MeDip. CEL files were normalized against input DNA by subtracting the log2 of the signal intensity value of each of the 4.6 million array probes of the input DNA to the corresponding log2 signal intensity values for MeDip. The association between the DNA methylation levels of keratin genes and the pathological characteristics of the patients was evaluated using Fisher's exact test. For each gene, the median Δ methylation value was selected as the cutoff point to classify keratin methylation levels as ‘high’ or ‘low’. One-way ANOVA and Tukey's pairwise comparison tests were used to determine the statistical differences in the mean Δ methylation values among the different molecular subtypes of BC.

Significant differentially methylated regions (DMRs) were obtained using the model-based analysis of tiling arrays (MAT) algorithm (24) using the parameters described in Data S1. The DMRs of patients grouped based on some of their characteristics (Table II) were analyzed by ANOVA. In each pairwise comparison, the positive or negative MAT score indicated hypermethylation or hypomethylation, respectively of a given DMR compared to the other in the pair. The genomic coordinates of the DMRs were calculated based on UCSC human genomic assembly version 18 and PGS was used for the corresponding DMR gene annotation. The DNA methylation levels of gene promoters and gene bodies were calculated considering the DMRs located between-5,000 bp upstream the transcription start site (TSS) and +5,000 bp downstream the end codon of the nearest gene. Since both FBC and MBC cases were analyzed, DMRs located on chromosome Y were not considered. DAVID (25) was used for functional enrichment analysis to identify gene ontology terms and molecular signaling pathways. The P-value cut-offs used for each comparison have been included in Data S1.

Table II.

Comparisons performed and the relative DMRs found.

Table II.

Comparisons performed and the relative DMRs found.

Groups comparedCases consideredNumber of DMRs foundHypomethylated DMRs, %Hypermethylated DMRs, %Number of DMRs associated with genes
1: FBC vs. MBC (17 cases vs. 7 cases)All cases2,84667.8332.172,486
2: FBC vs. MBC (10 cases vs. 6 cases)BRCAX cases only1,24293.566.441,102
3: BRCAX vs. BRCA1/2 (16 cases vs. 8 cases)All cases36446.7053.30357
4: BRCA1 vs. BRCA2 (4 cases vs. 3 cases)Female cases only80254.7445.26755
5: BRCA1 vs. BRCAX (4 cases vs. 10 cases)Female cases only48460.5439.46464
6: BRCA2 vs. BRCAX (3 cases vs. 10 cases)Female cases only67352.0147.99629
7: BRCA1 vs. BRCA2/X (4 cases vs. 13 cases)Female cases only86143.7956.21819
8: BRCA2 vs. BRCA1/X (4 cases vs. 14 cases)Female cases only1,38038.1961.811,251
9: BRCAX vs. BRCA1/2 (10 cases vs. 7 cases)Female cases only96251.1448.86914

[i] DMRs, differentially methylated regions; FBC, female breast cancer; MBC, male breast cancer.

Results

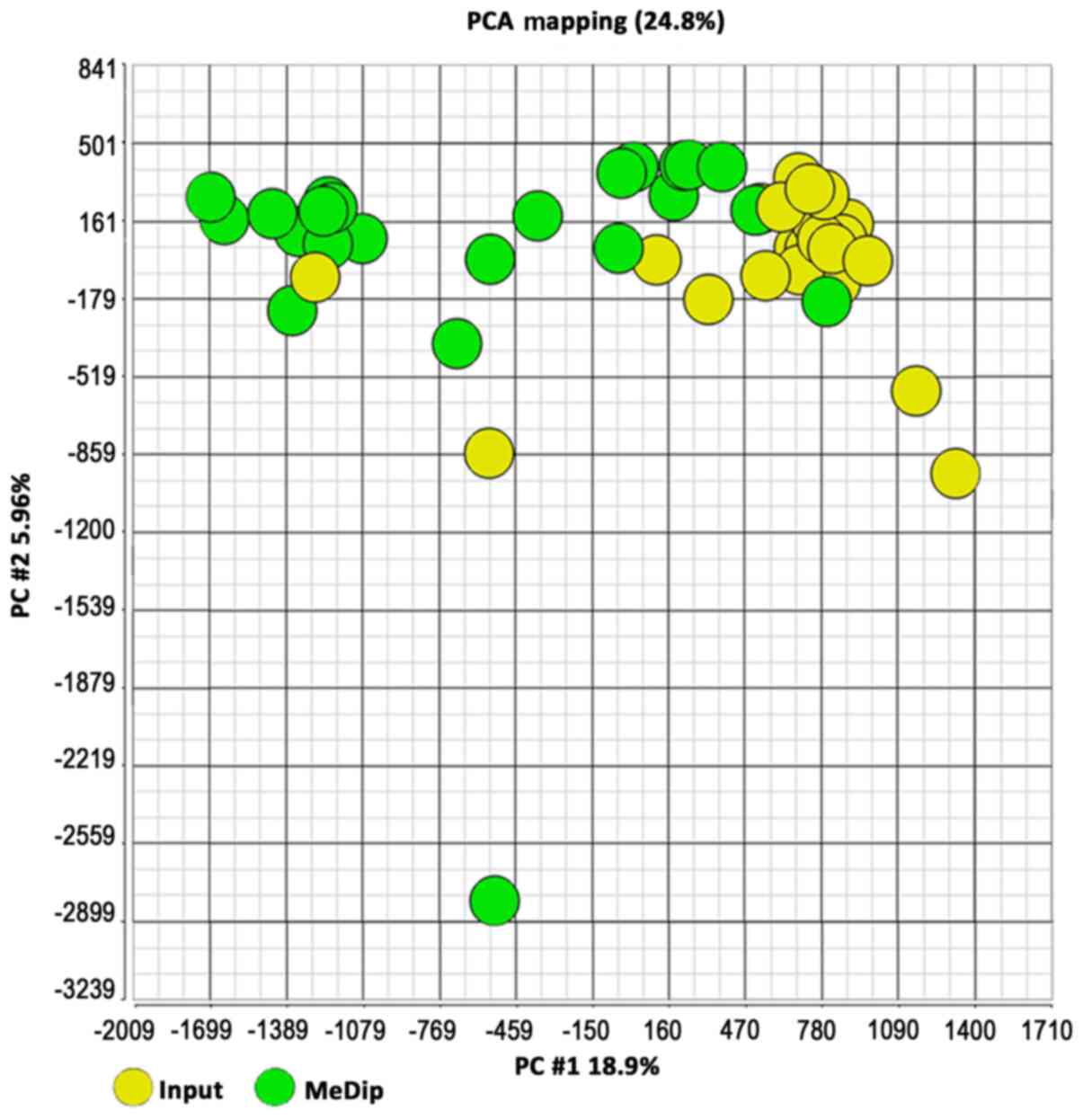

MeDip-chip analysis of BC tissues

The present study was designed to establish the global DNA methylation profile of 24 familial BC cases in order to identify sex-(FBC vs. MBC) and mutation-related differences among women with BRCA1, BRCA2 and BRCAX mutations.

In detail, the DNA methylome was examined in 17 FBC (4 with BRCA1 mutations, 3 with BRCA2 mutations and 10 with BRCAX condition) and 7 MBC (1 with BRCA2 and 6 with BRCAX conditions) (Table I). MeDip was performed followed by hybridization on Affymetrix Promoter 1.0 Tiling arrays to identify genomic regions that were either hypo- or hypermethylated when compared to the same regions in patients from different groups. To quantify the enriched methylated DNA following the MeDip process, a DNA region containing the highly methylated H19 gene and a genomic DNA region without any CpG dinucleotides named CTRL were amplified by qPCR in randomly selected BC cases. The results showed that the average Ct values for H19 in input DNA and MeDip DNA were similar. On the contrary, the average Ct values for CTRL were higher in MeDip DNA samples as compared with DNA input samples. These results indicated the loss of the unmethylated DNA in the MeDip phase and thus an enrichment of methylated DNA (Fig. 1). To further assess the quality of the MeDip-chip protocol, the hierarchical clustering of the raw data was generated using Partek Genomic Suite (PGS) software. The heat map showed two robust clusters: One cluster including MeDip DNA (green) and one including input DNA (yellow; Fig. 2). The same clusters were obtained by Principal Component Analysis (Fig. 3).

Identification of DMRs in FBC as compared to MBC and between groups with different BRCA mutation statuses

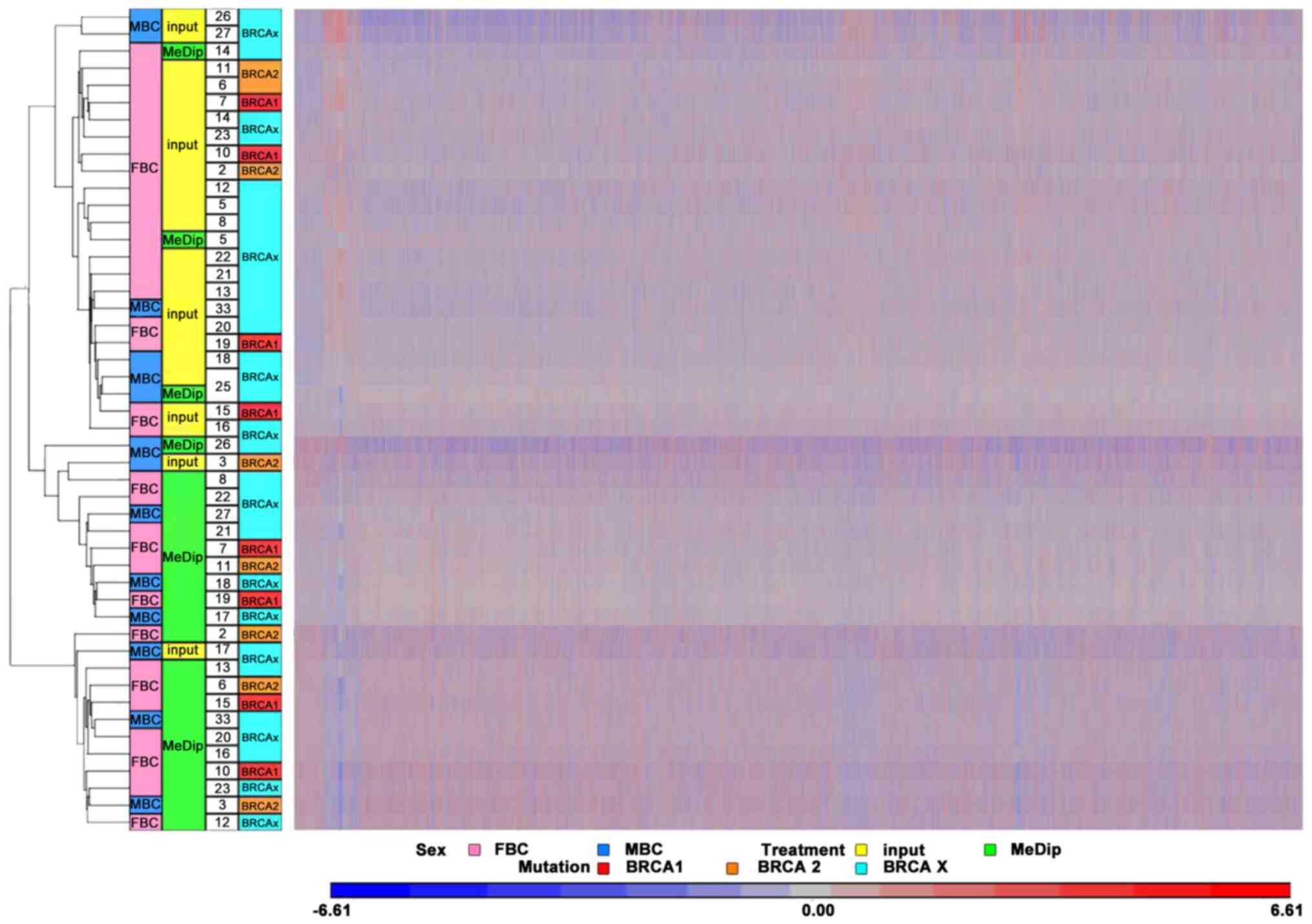

The DNA methylation profiles of the 24 BC cases were achieved by subtracting the mean signal obtained from the Input array from the matching MeDip array for each probe. A total of nine pairwise comparisons were performed according to sex and mutation status (Table II). The number of the significant differentially methylated regions (DMRs) were obtained by Partek Genomics Suite using ANOVA and MAT algorithms with specific parameters (see Materials and methods).

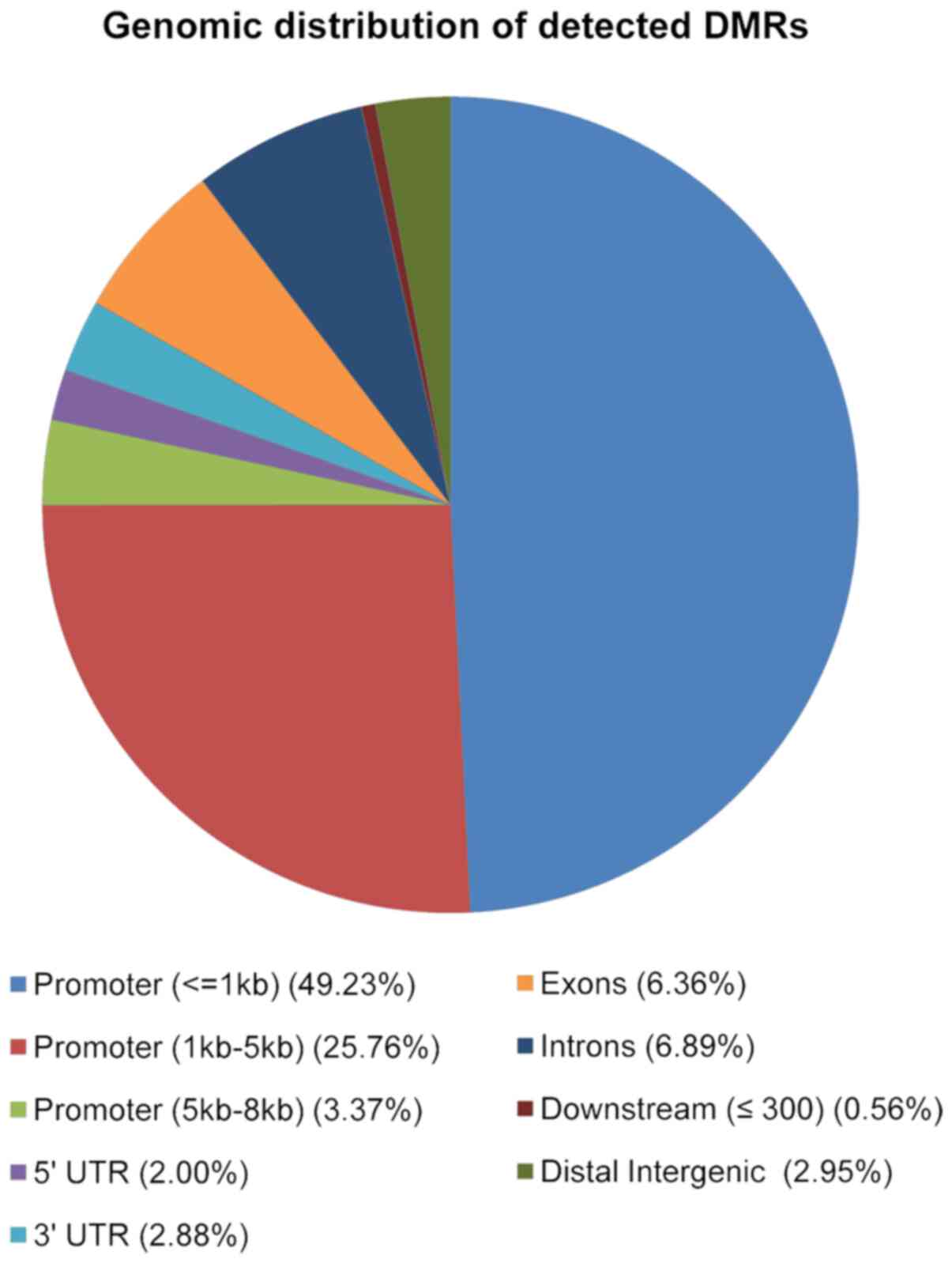

A list of DMRs for each pairwise comparison was obtained (nine lists in total) and their associated genes were identified. The lists of genes associated with the 20 most significant DMRs are described in Table SI A-I and Figs. S1S9. All genes associated with the DMRs of the nine comparisons considered were catalogued using the online repository of HGNC (HUGO gene nomenclature committee) in order to obtain an overview of the gene classes involved (Table SIIA-I) and were analyzed in relation to their genomic location. As shown in Fig. 4, the majority of 2,846 DMRs were located in promoter regions (49% were located in the 1kb region upstream the TSS; 26% in the region 1-5kb upstream the TSS and 3% in the region between 5-8kb upstream the TSS), 7% in introns, 6% in exons, 3% in the 3′UTR and, 2% in the 5′UTR (Fig. 4).

Sex-related DNA methylation differences between FBC and MBC

The methylome of FBC (n=17) was compared with that of MBC (n=7) and 2,846 DMRs associated with 2,486 annotated genes were identified. Functional enrichment analysis performed by DAVID identified nine enriched GO terms (Table III). The most significant enriched terms were the GO Cellular Component (CC) concerning the structure of the cytoskeleton, including ‘GO:0045095: Keratin filament’, ‘GO:0005882: Intermediate filament’ and ‘GO:0044430: Cytoskeletal part’. As indicated by the negative MAT score (Table IV) and the Δ methylation value for each patient (Fig. 5), almost all the genes associated with the ‘GO:0045095: Keratin filament’ term were significantly hypomethylated in FBC, as compared with MBC. This result prompted us to combine the methylation level of keratin (KRT) genes with the pathological characteristics patients with BC. Of note, the DNA methylation levels of KRT14, KRT81, and KRT86 were significantly associated with the progesterone receptor status, and KRT75 was found to be differentially methylated among the BC molecular subtypes (Table SIII). No correlations were found between the methylation level of the remaining KRTs and the other pathological characteristics, including estrogen receptor (ER), HER2, and Ki67 status.

Table III.

Enriched GO terms found by Database for Annotation, Visualization and Integrated Discovery when all female breast cancer cases were compared with all male breast cancer cases.

Table III.

Enriched GO terms found by Database for Annotation, Visualization and Integrated Discovery when all female breast cancer cases were compared with all male breast cancer cases.

CategoryTermGenesCountP-valueBenjamini
GO: CCGO:0045095 Keratin filamentKRT1, KRT14, KRT6A, KRT75, KRT78, KRT80, KRT81, KRT86, KRT8P41, KRTAP10-1, KRTAP10-10, KRTAP10-12, KRTAP10-2, KRTAP10-4, KRTAP10-6, KRTAP10-8, KRTAP12-2, KRTAP1-5, KRTAP4-11, KRTAP4-4, KRTAP4-9, KRTAP5-1, KRTAP5-10, KRTAP5-11, KRTAP5-3, KRTAP5-5, KRTAP5-6, KRTAP5-7, KRTAP5-8, KRTAP5-9300.0000002640.0000156
GO: CCGO:0044430 Cytoskeletal partADORA2A, AKT1, ARHGAP32, ATM, B9D2, BMX, CAMK2N1, CAMSAP1, CAPZB, CC2D2A, CCDC85B, CCIN, CDH23, CEP135, CEP170B, CEP72, CETN2, CHRM1, CLASP2, CNN3, CNTLN, DFNB31, DLG4, DLGAP2, DNAH14, DNAH2, DNAI2, DNAL4, DYNLT1, EML1, EML4, EML6, EVI5, FILIP1L, GAS7, GAS8, HAUS1, HAUS7, HAUS8, HIPK2, HOOK3, IFFO1, JAKMIP1, KATNAL1, KIF13B, KIF16B, KIF21A, KIF24, KIF25, KIF2A, KIFC2, KLC3, KLC4, KRT1, KRT14, KRT15, KRT16P2, KRT17, KRT20, KRT6A, KRT75, KRT78, KRT80, KRT81, KRT86, KRT8P41, KRTAP10-1, KRTAP10-10, KRTAP10-12, KRTAP10-2, KRTAP10-4, KRTAP10-6, KRTAP10-8, KRTAP12-2, KRTAP1-5, KRTAP4-11, KRTAP4-4, KRTAP4-9, KRTAP5-1, KRTAP5-10, KRTAP5-11, KRTAP5-3, KRTAP5-5, KRTAP5-6, KRTAP5-7, KRTAP5-8, KRTAP5-9, LLGL1, LMNB2, MAP1A, MAPT, MC1R, MCPH1, MED12, MYBPH, MYH14, MYH2, MYH6, MYH7, MYH7B, MYL12A, MYL12B, MYL3, MYLPF, MYO15A, MYO1G, MYO7B, MYO9B, NAV1, NDRG2, NEFH, NIN, NTRK2, NUP62, PDE4D, PDE4DIP, PDLIM7, PIN4, PPP1R9A, PPP1R9B, RAB3GAP2, RAB3IP, RANBP1, RHOU, RMDN2, RNF19A, SEPT11, SEPT8, SEPT9, SHANK3, SIRT2, SMEK1, SPAG6, SPDL1, SPTB, SPTBN5, SSNA1, SVIL, SYNM, SYNPO, TACC1, TACC2, TBCD, TNNT3, TPM4, TPX2, TRIM55, TTLL5, TTLL7, TUBA3E, TUBB1, TUBB3, TUBB8, UBXN61530.00001110.0032717
GO: CCGO:0005882 Intermediate filamentADORA2A, DLGAP2, IFFO1, KRT1, KRT14, KRT15, KRT16P2, KRT17, KRT20, KRT6A, KRT75, KRT78, KRT80, KRT81, KRT86, KRT8P41, KRTAP10-1, KRTAP10-10, KRTAP10-12, KRTAP10-2, KRTAP10-4, KRTAP10-6, KRTAP10-8, KRTAP12-2, KRTAP1-5, KRTAP4-11, KRTAP4-4, KRTAP4-9, KRTAP5-1, KRTAP5-10, KRTAP5-11, KRTAP5-3, KRTAP5-5, KRTAP5-6, KRTAP5-7, KRTAP5-8, KRTAP5-9, LMNB2, NEFH, SYNM400.00003010.0044294
GO: CCGO:0045111 Intermediate filament cytoskeletonADORA2A, DLGAP2, IFFO1, KRT1, KRT14, KRT15, KRT16P2, KRT17, KRT20, KRT6A, KRT75, KRT78, KRT80, KRT81, KRT86, KRT8P41, KRTAP10-1, KRTAP10-10, KRTAP10-12, KRTAP10-2, KRTAP10-4, KRTAP10-6, KRTAP10-8, KRTAP12-2, KRTAP1-5, KRTAP4-11, KRTAP4-4, KRTAP4-9, KRTAP5-1, KRTAP5-10, KRTAP5-11, KRTAP5-3, KRTAP5-5, KRTAP5-6, KRTAP5-7, KRTAP5-8, KRTAP5-9, LMNB2, MACF1, NEFH, SYNM410.00002280.0044762
GO: MFGO:0008047 Enzyme activator activityABR, ACAP2, AGAP3, AGAP6, AGAP9, AHSA2, AIFM3, ANGPT4, ANKRD27, APOA2, APOA5, ARAP1, ARAP3, ARFGAP3, ARHGAP11A, ARHGAP19, ARHGAP19-SLIT1, ARHGAP23, ARHGAP32, ARHGAP35, ARHGAP40, BCRP2, CDK5R2, CHM, CTAGE4, CTAGE5, DEPDC1B, DLC1, DOCK2, EVI5, FAM13B, FN1, FZR1, GAPVD1, GDI2, GHRL, GMIP, GPSM3, GRTP1, IGFBP3, IQGAP2, MALT1, MMP15, MMP16, MYO9B, NRG3, PPP1R12B, PRKAG2, PRR5-ARHGAP8, RANBP1, RASA3, RASA4, RASA4CP, RGS12, RGS3, RGS5, RGS6, SEC14L2, SH3BP1, SRGAP1, TBC1D10B, TBC1D16, TBC1D19, TBC1D2, TBC1D22A, TBC1D25, TBC1D29, TBC1D3B, TBC1D3F, TBC1D8B, TBC1D9B, TIAM2, USP6690.00007790.0052097
GO: MFGO:0005096 GTPase activator activityABR, ACAP2, AGAP3, AGAP6, AGAP9, ANKRD27, ARAP1, ARAP3, ARFGAP3, ARHGAP11A, ARHGAP19, ARHGAP19-SLIT1, ARHGAP23, ARHGAP32, ARHGAP35, ARHGAP40, BCRP2, CHM, DEPDC1B, DLC1, DOCK2, EVI5, FAM13B, GAPVD1, GDI2, GMIP, GPSM3, GRTP1, IQGAP2, MYO9B, PRR5-ARHGAP8, RANBP1, RASA3, RASA4, RASA4CP, RGS12, RGS3, RGS5, RGS6, SH3BP1, SRGAP1, TBC1D10B, TBC1D16, TBC1D19, TBC1D2, TBC1D22A, TBC1D25, TBC1D29, TBC1D3B, TBC1D3F, TBC1D3G, TBC1D8B, TBC1D9B, TIAM2, USP6510.00004590.0061401
GO: CCGO:0005856 CytoskeletonABL2, ACTB, ADORA2A, AFAP1, AKT1, ANK1, ARAP3, ARHGAP32, ARHGAP35, ATM, B9D2, BMX, CAMK2N1, CAMSAP1, CAPZB, CC2D2A, CCDC85B, CCIN, CDH23, CDK5, CEP135, CEP170B, CEP72, CETN2, CHRM1, CLASP2, CNFN, CNN2, CNN3, CNTLN, CORO2B, CYLD, DAPK1, DFNB31, DLG4, DLGAP2, DMD, DMTN, DNAH14, DNAH2, DNAI2, DNAL4, DOCK2, DPYSL2, DYNLT1, EDA, EML1, EML4, EML6, EPB41L1, EPPK1, ESPN, EVI5, FAM65B, FARP2, FGD5, FHL2, FILIP1L, FRMD1, FRMD7, GAS7, GAS8, HAUS1, HAUS7, HAUS8, HINT1, HIPK2, HOOK3, HRNR, IFFO1, IQGAP2, JAKMIP1, KALRN, KATNAL1, KIF13B, KIF16B, KIF21A, KIF24, KIF25, KIF2A, KIFC2, KLC3, KLC4, KRIT1, KRT1, KRT14, KRT15, KRT16P2, KRT17, KRT20, KRT6A, KRT75, KRT78, KRT80, KRT81, KRT86, KRT8P41, KRTAP10-1, KRTAP10-10, KRTAP10-12, KRTAP10-2, KRTAP10-4, KRTAP10-6, KRTAP10-8, KRTAP12-2, KRTAP1-5, KRTAP4-11, KRTAP4-4, KRTAP4-9, KRTAP5-1, KRTAP5-10, KRTAP5-11, KRTAP5-3, KRTAP5-5, KRTAP5-6, KRTAP5-7, KRTAP5-8, KRTAP5-9, LLGL1, LMNB2, MACF1, MAP1A, MAP3K1, MAP6D1, MAPT, MC1R, MCPH1, MED12, MICAL3, MYBPH, MYH14, MYH2, MYH6, MYH7, MYH7B, MYL12A, MYL12B, MYL3, MYLPF, MYO15A, MYO1G, MYO7B, MYO9B, NAV1, NDRG2, NEFH, NF2, NIN, NTRK2, NUP62, NXF2B, PDE4D, PDE4DIP, PDLIM7, PIN4, PNP, POTEJ, PPP1R9A, PPP1R9B, RAB3GAP2, RAB3IP, RANBP1, RDX, RHOU, RMDN2, RNF19A, SEPT11, SEPT8, SEPT9, SGCA, SGCE, SHANK3, SIRT2, SLC4A1, SMEK1, SPAG6, SPDL1, SPRR2B, SPTB, SPTBN5, SSNA1, STRBP, SVIL, SYNE2, SYNM, SYNPO, TACC1, TACC2, TBCD, TGM1, TNNT3, TPM4, TPX2, TRADD, TRIM55, TTLL5, TTLL7, TUBA3E, TUBB1, TUBB3, TUBB8, TWF1, UBXN6, ZNF1742030.0001450.0170134
GO: MFGO:0060589 Nucleoside-triphosphatase regulator activityABR, ACAP2, AGAP3, AGAP6, AGAP9, AHSA2, ANKRD27, ARAP1, ARAP3, ARFGAP3, ARHGAP11A, ARHGAP19, ARHGAP19-SLIT1, ARHGAP23, ARHGAP32, ARHGAP35, ARHGAP40, ARHGEF10, ARHGEF25, ARHGEF5, BCRP2, CHM, DEPDC1B, DLC1, DOCK2, DOCK3, DOCK8, EVI5, FAM13B, FARP2, FGD5, GAPVD1, GDI2, GMIP, GPSM3, GRTP1, IQGAP2, ITSN2, KALRN, KNDC1, KRIT1, MINK1, MYO9B, PLEKHG1, PLEKHG4B, PLEKHG7, PRR5-ARHGAP8, PSD4, RAB3IP, RANBP1, RAPGEF3, RASA3, RASA4, RASA4CP, RASGRP2, RGL2, RGS12, RGS3, RGS5, RGS6, RIMS2, RPH3AL, SH3BP1, SRGAP1, SYTL2, SYTL3, TBC1D10B, TBC1D16, TBC1D19, TBC1D2, TBC1D22A, TBC1D25, TBC1D29, TBC1D3B, TBC1D3F, TBC1D3G, TBC1D8B, TBC1D9B, TIAM1, TIAM2, TNK2, USP6780.0005680.0188541
GO: MFGO:0030695 GTPase regulator activityABR, ACAP2, AGAP3, AGAP6, AGAP9, ANKRD27, ARAP1, ARAP3, ARFGAP3, ARHGAP11A, ARHGAP19, ARHGAP19-SLIT1, ARHGAP23, ARHGAP32, ARHGAP35, ARHGAP40, ARHGEF10, ARHGEF25, ARHGEF5, BCRP2, CHM, DEPDC1B, DLC1, DOCK2, DOCK3, DOCK8, EVI5, FAM13B, FARP2, FGD5, GAPVD1, GDI2, GMIP, GPSM3, GRTP1, IQGAP2, ITSN2, KALRN, KNDC1, KRIT1, MINK1, MYO9B, PLEKHG1, PLEKHG4B, PLEKHG7, PRR5-ARHGAP8, PSD4, RAB3IP, RANBP1, RAPGEF3, RASA3, RASA4, RASA4CP, RASGRP2, RGL2, RGS12, RGS3, RGS5, RGS6, RIMS2, RPH3AL, SH3BP1, SRGAP1, SYTL2, SYTL3, TBC1D10B, TBC1D16, TBC1D19, TBC1D2, TBC1D22A, TBC1D25, TBC1D29, TBC1D3B, TBC1D3F, TBC1D3G, TBC1D8B, TBC1D9B, TIAM1, TIAM2, TNK2, USP6770.0004670.0206520

[i] GO, Gene Ontology; CC, cellular component; MF, molecular function.

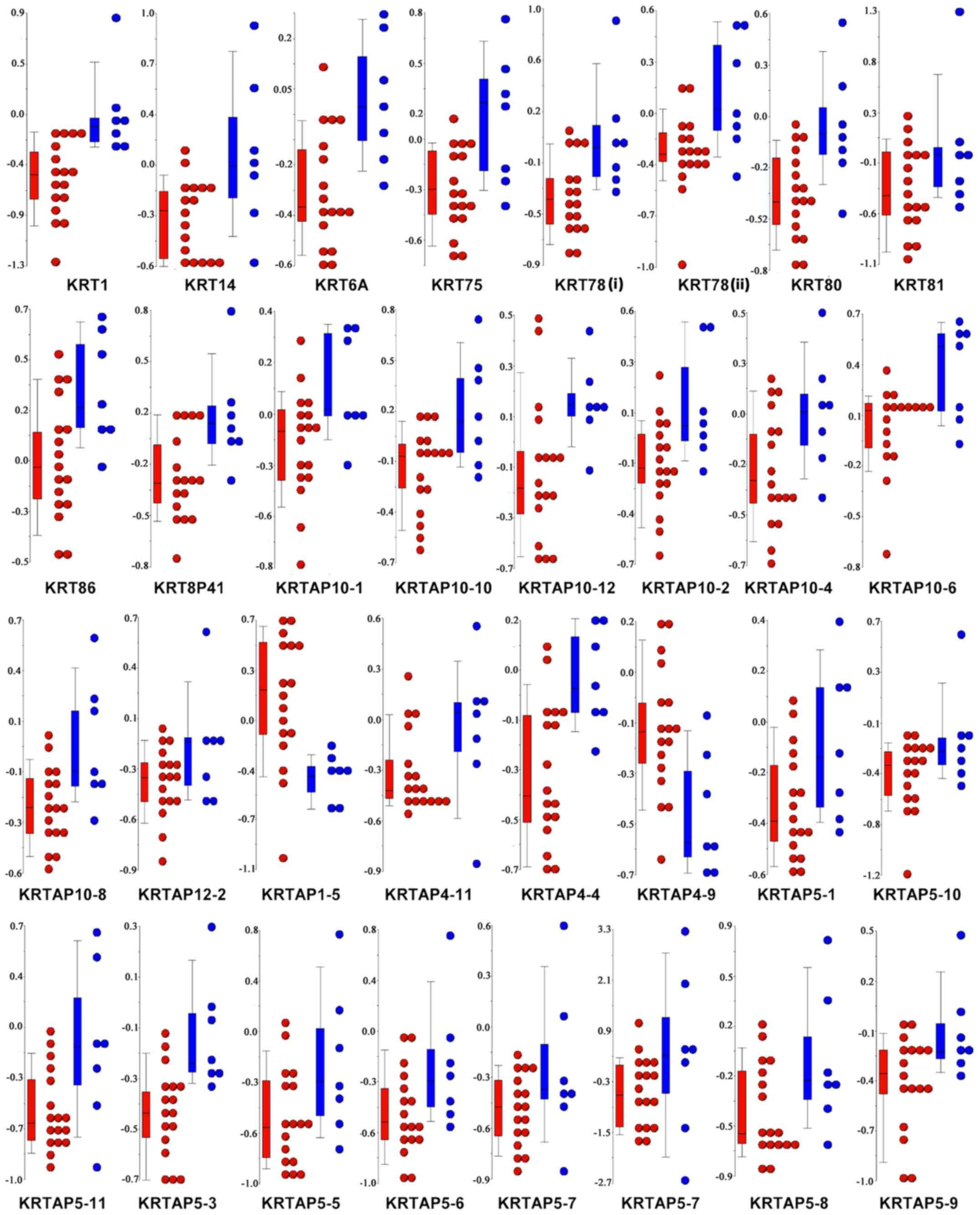

Table IV.

Genes corresponding to the DMRs associated with GO term ‘GO: 0045095: Keratin filament’ when all female breast cancer cases were compared with all male breast cancer cases.

Table IV.

Genes corresponding to the DMRs associated with GO term ‘GO: 0045095: Keratin filament’ when all female breast cancer cases were compared with all male breast cancer cases.

Gene symbolP-valueMAT scoreChromosomeRegion startRegion endDMR length, bpProbes in regionDMR position
KRT1 1.42×10−5−5.317chr1251362805513654852,68148Upstream TSS
KRT14 8.51×10−5−4.142chr1736996508369982311,72442Promoter
KRT6A 2.84×10−5−4.458chr1251172288511738291,54243Promoter
KRT75 8.51×10−5−4.166chr1251117744511199932,25056Upstream TSS
KRT78 8.51×10−5−4.104chr1251516089515175021,41424Downstream CDS end
KRT78 7.09×10−5−4.282chr1251518324515202241,90153Promoter
KRT80 8.51×10−5−4.101chr1250873925508760762,15257Upstream TSS
KRT81 8.51×10−5−4.123chr1250969856509712941,43939Exon
KRT86 8.51×10−5−4.229chr1250981621509836352,01555Promoter
KRT8P41 1.42×10−5−5.508chr11907190490745782,67576Exon
KRTAP10-1 8.51×10−5−4.109chr2144782903447847281,82647Exon
KRTAP10-10 8.51×10−5−4.208chr2144880449448821911,74344Promoter
KRTAP10-12 7.09×10−5−4.255chr2144941119449426421,52438Exon
KRTAP10-2 8.51×10−5−4.224chr2144795043447966291,58743Promoter
KRTAP10-4 7.09×10−5−4.273chr2144817595448198822,28863Exon
KRTAP10-6 8.51×10−5−4.226chr2144835328448367471,42040Promoter
KRTAP10-8 1.42×10−5−6.221chr2144855891448583762,48666Exon
KRTAP12-2 8.51×10−5−4.093chr2144910070449116581,58945Exon
KRTAP1-5 5.68×10−54.200chr1736436999364380481,05029Upstream TSS
KRTAP4-11 8.51×10−5−4.239chr1736526929365287981,87048Exon
KRTAP4-4 8.51×10−5−4.142chr1736569481365713011,82149Promoter
KRTAP4-9 2.84×10−54.518chr1736513351365153351,98550Promoter
KRTAP5-1 1.42×10−5−5.387chr11156155315640202,46854Exon
KRTAP5-10 8.51×10−5−4.180chr1170953946709556931,74845Exon
KRTAP5-11 8.51×10−5−4.225chr1170970806709721211,31633Promoter
KRTAP5-3 7.09×10−5−4.258chr11158478415865471,76446Exon
KRTAP5-5 8.51×10−5−4.222chr11160757116092181,64839Exon
KRTAP5-6 1.42×10−5−5.126chr11167413616759161,78138Exon
KRTAP5-7 8.51×10−5−4.239chr1170915825709173311,50738Exon
KRTAP5-7 1.42×10−5−7.019chr1170909034709123203,28774Upstream TSS
KRTAP5-8 1.42×10−5−5.033chr1170926237709279831,74748Exon
KRTAP5-9 8.51×10−5−4.115chr1170936504709378991,39635Promoter

[i] CDS, coding sequence; DMRs, differentially methylated regions; GO, Gene Ontology; MAT, model-based analysis of tiling arrays; TSS, transcriptional start sites.

Among the most significantly enriched terms, we also found the GO Molecular Function (MF) term concerning GTPase superfamily ‘GO:0005096: GTPase activator activity’ (Table III). Numerous differentially methylated genes belonged to the five RAS GTPase families. In particular, 4 genes from the ARF family were generally implicated in vesicular transport, 9 genes from the RAB family were mainly involved in membrane trafficking, 2 genes from the RAN family were associated with nuclear transport, 6 genes from the RAS family were implicated in cellular proliferation and 25 genes from the RHO family were involved in cytoskeletal dynamics and morphology (Table V). These results pointed towards a different methylation profile of RAS GTPases genes in FBC, as compared with MBC.

Table V.

Ras GTPase superfamily genes identified to be differentially methylated when female breast cancer cases were compared with male breast cancer cases.

Table V.

Ras GTPase superfamily genes identified to be differentially methylated when female breast cancer cases were compared with male breast cancer cases.

Gene symbolRas subfamilyP-valueMAT scoreChromosomeRegion start at:Region end at:DMR length, bpProbes in regionDMR position
ARF1Arf 5.68×10−54.105chr12263361932263381881,99652Promoter
ARF4Arf 7.09×10−54.004chr357557804575592281,42540Promoter
ARFGAP3Arf 8.51×10−5−4.234chr2241520156415223582,20340Downstream CDS end
ARL16Arf 2.84×10−5−4.533chr1777258588772603691,78234Promoter
RAB24Rab 7.09×10−5−4.266chr51766610911766624611,37138Exon
RAB26Rab 8.51×10−5−4.113chr16214135221428061,45526Exon
RAB36Rab 8.51×10−5−4.182chr2221838547218398571,31133Downstream CDS end
RAB3GAP2Rab 2.84×10−54.379chr12185101442185115881,44541Intron
RAB3IPRab 5.68×10−54.103chr1268492976684944981,52342Exon
RAB4ARab 8.51×10−5−4.155chr12274749542274763651,41232Intron
RAB5ARab 4.26×10−54.266chr319963331199654862,15657Promoter
RAB7L1Rab 7.09×10−5−4.254chr12040090732040110812,00948Exon
RABGGTARab 4.26×10−5−4.383chr1423805254238067591,50642Exon
RANBP1Ran 8.51×10−5−4.095chr2218495324184968291,50630Downstream CDS end
RANBP1Ran 8.51×10−5−4.156chr2218491321184931031,78350Exon
RANBP3LRan 5.68×10−54.066chr536282283362834451,16321Downstream CDS end
RANBP3LRan 2.84×10−54.341chr536336981363388261,84652Promoter
HRASRas 1.42×10−5−5.077chr115200235220942,07259Downstream CDS end
RAP1ARas 1.42×10−5−5.056chr11119919701119939331,96451Intron
RASD1Ras 5.68×10−54.214chr1717338882173413512,47065Promoter
RASD2Ras 5.68×10−54.104chr2234265450342668471,39825Upstream TSS
RASGRP2Ras 7.09×10−5−4.299chr1164247878642503752,49868Downstream CDS end
RASL10ARas 8.51×10−5−4.092chr2228041625280431571,53338Promoter
RHOURho 8.51×10−5−4.149chr12268444082268458371,43033Upstream TSS
ARHGAP11ARho-GAP 2.84×10−54.353chr1530718918307204311,51432Promoter
ARHGAP19Rho-GAP 5.68×10−54.068chr1099019196990209551,76041Intron
ARHGAP19-SLIT1Rho-GAP 8.51×10−5−4.172chr1098938793989403261,53433Intron
ARHGAP23Rho-GAP 8.51×10−5−4.181chr1733872823338743711,54943Exon
ARHGAP32Rho-GAP 5.68×10−54.202chr111284440211284454281,40832Intron
ARHGAP32Rho-GAP 5.68×10−54.150chr111284389121284403641,45336Exon
ARHGAP35Rho-GAP 8.51×10−5−4.156chr1952193356521951971,84250Exon
ARHGAP40Rho-GAP 8.51×10−5−4.197chr2036676834366783641,53143Intron
DLC1Rho-GAP 7.09×10−54.005chr813414150134157031,55433Intron
FAM13BRho-GAP 5.68×10−54.186chr51373954341373969441,51141Promoter
GMIPRho-GAP 5.68×10−5−4.377chr1919605567196074971,93149Exon
SH3BP1Rho-GAP 8.51×10−5−4.153chr2236367680363694341,75538Exon
SRGAP1Rho-GAP 5.68×10−5−4.352chr1262522064625235571,49413Upstream TSS
ABRRho-GEF 8.51×10−5−4.159chr179614669631701,70542Intron
ARHGEF10Rho-GEF 1.42×10−5−7.052chr8177307017773634,294103Intron
ARHGEF25Rho-GEF 8.51×10−5−4.212chr1256293862562958692,00855Exon
ARHGEF34PRho-GEF 1.42×10−5−6.205chr71436125401436154232,88480Promoter
ARHGEF35Rho-GEF 8.51×10−5−4.117chr71435185801435209642,38546Intron
ARHGEF5Rho-GEF 8.51×10−5−4.199chr71436838851436855391,65546Intron
ARHGEF5Rho-GEF 1.42×10−5−5.067chr71436929161436951142,19961Exon
ARHGEF5Rho-GEF 1.42×10−5−5.142chr71436904671436929002,43467Exon
FARP2Rho-GEF 7.09×10−54.051chr22419434202419448771,45825Promoter
FGD5Rho-GEF 8.51×10−5−4.214chr314835085148364811,39739Promoter
ITSN2Rho-GEF 2.84×10−54.387chr224334440243360661,62744Exon
KALRNRho-GEF 8.51×10−5−4.138chr31252926341252942211,58844Upstream TSS
PLEKHG1Rho-GEF 8.51×10−5−4.136chr61511850661511864841,41919Exon
TIAM1Rho-GEF 7.09×10−54.004chr2131851782318537291,94853Promoter
TIAM2Rho-GEF 8.51×10−5−4.169chr61555802431555821411,89948Intron

[i] CDS, coding sequence; DMRs, differentially methylated regions; MAT, model-based analysis of tiling arrays; TSS, transcriptional start sites.

We further performed the comparison between FBC (n=10) and MBC (n=6) with BRCAX mutation condition. A total of 1,242 DMRs corresponding to 1,102 genes were reported. A total of 8 GO terms generally associated with RAS GTPase superfamily, particularly RHO-GAP and RHO-GEF proteins and RAB GTPase activity, were identified using the DAVID database, (Table SIVA) as already observed when all cases were considered.

Mutation-related DNA methylation differences in FBC among patients with BRCA1, BRCA2 and BRCAX mutations

Initially, we compared the DNA methylation profile of BRCAX patients (n=16) was compared with that of those with BRCA1 and BRCA2 mutations (n=8), irrespective of their sex. A total of 364 DMRs were reported; however, no significant GO terms associated with these genes were identified by DAVID analysis. Therefore, to limit the intrinsic heterogeneity within the groups, the next comparisons were restricted to women. The mutation classes were compared as follows:

a) BRCA1 vs. BRCA2 (n=4; n=3)

Following the comparison between women with BRCA1 and those with BRCA2 mutations, 802 DMRs associated with 755 genes were reported and the term ‘GO:0019787: Small conjugating protein ligase activity’ was found by DAVID analysis to be highly represented (Table SIVB) Despite the limited number of cases, this result may indicate a different modulation of the ubiquitination pathway between BRCA1 and BRCA2 FBC.

b) BRCA1 vs. BRCAX (n=4; n=10)

Following the comparison between patients with BRCA1 and those with BRCAX conditions, 484 DMRs associated with 464 genes were found and the term ‘GO:0051240: Positive regulation of multicellular organismal process’ (Table SIVC) was identified by DAVID analysis. This term is very broad making it challenging to establish the biological differences between these patient groups. Of note, BRCAX patients were heterogeneous and belonged to different molecular subtypes. On the contrary, patients with BRCA1 mutations were more homogeneous and belonged to the triple-negative molecular subtype (Table I).

c) BRCA2 vs. BRCAX (n=3; n=10)

Following the comparison between patients with BRCA2 mutations and those with a BRCAX condition, 673 DMRs corresponding to 629 genes were reported. Following DAVID analysis, 2 significant GO terms and 1 KEGG pathway (Table SIVD) were identified. These terms were ‘GO:0008047: Enzyme activator activity’, ‘GO: 0060589: Nucleoside-triphosphatase regulator activity’ and ‘hsa05220: Chronic myeloid leukemia’. Some genes found differentially methylated and included in the ‘chronic myeloid leukemia’ KEGG pathway, such as CDKN1B (p27) and PIK3R1, were also found frequently mutated in a very large study on BC (26).

d) BRCA1 vs. BRCA2/BRCAX (n=4; n=13)

Following the comparison between patients with BRCA1 and those with BRCA2/BRCAX mutations, 861 DMRs corresponding to 819 genes were reported. Following DAVID analysis, the term ‘GO:0008092: Cytoskeletal protein binding’ was identified (Table SIVE). Certain genes included in the term are known to interact with microfilaments, microtubules and intermediate filaments. This result indicated that these groups of patients have a different DNA methylation profile of the cytoskeleton-related genes when compared against each other and this probably influences the architecture of the cytoskeleton.

e) BRCA2 vs. BRCA1/BRCAX (n=3; n=14)

Following the comparison between patients with BRCA2 and those with BRCA1/BRCAX mutations, found 1,380 DMRs corresponding to 1,251 genes were reported. Following DAVID analysis, 7 enriched KEGG pathways were identified, most of which were associated with cancer (Table SIVF). Of note, PIK3CA and PIK3R1 were found to be frequently mutated in a very large study on BC (26).

However, it is difficult to make conclusions about the importance of these results in discriminating BRCA2 from BRCA1/BRCAX patients, since BRCA2 group consisted of a limited number of cases (n=3).

f) BRCAX vs. BRCA1/BRCA2 (n=10; n=7)

Following the comparison between BRCAX patients and those with BRCA1/BRCA2 mutations, 962 DMRs corresponding to 914 genes were reported. Following DAVID analysis, 3 enriched GO MF terms associated with GTPase regulatory activity were identified (Table SIVG). These results indicated that the DNA methylation levels of the GTPase genes may be a discriminatory factor between BRCA1/BRCA2 and BRCAX cases.

Discussion

Aberrant DNA methylation is an important and frequent event extensively studied in cancer, including BC. Published data have revealed that such epigenetics modifications are directly associated with tumor onset and progression. To the best of our knowledge, a comprehensive global DNA methylation study exploring differences in the methylome of female and male BC has not been performed by using Affymetrix human promoter arrays. This-omic platform allowed the quantification of the methylation levels of the CpG islands located in 25,500 human promoter regions. The DNA methylation profiles of 24 patients with familial BC were studied. Following the comparison between FBC and MBC, 2,486 significant differentially methylated genes were identified. The enrichment analysis suggested that most of the genes encompassed processes associated with the cytoskeleton composition and architecture such as ‘keratin filament’, ‘intermediate filament’ and ‘cytoskeletal part’. Of note, almost all genes included in the GO term: ‘Keratin filament’ were hypomethylated in FBC, as compared with MBC, suggesting their probable over-expression in the former, as compared to the latter. In particular, the hypomethylation of the cytokeratin genes KRT6A and KRT14 was observed in FBC, as compared with MBC. Keratins are considered to be immunohistochemical diagnostic tumor markers and several studies have provided evidence on active keratin involvement in cancer cell invasion and metastasis, as well as treatment responsiveness (27). The overexpression of these genes has been found to be positively correlated with a high tumor grade in BC and the expression of KRT6A and KRT14 to be frequently associated with basal molecular subtype (28).

Following the comparison between the FBC and MCB methylome, several differentially methylated genes that belonged to the RAS GTPase superfamily and whose role in cancer is well documented, were identified. The same results were obtained by limiting the comparison to FBC and MBC patients with BRCAX condition. The RAS GTPase superfamily is composed of 5 families: RHO, RAS, RAB, ARF and RAN; all these families were represented in our findings with numerous RHO genes found to be differentially methylated. Consequently, a different regulation of the expression of proteins in the RHO pathways in male and female BC may occur affecting cell migration and invasion. In fact, the RHO GTPase family plays an important role in cytoskeleton rearrangements and is a key regulator of processes involved in cellular adhesion, migration, proliferation, survival, differentiation and malignant transformation. The RHO family includes RHO-GEF and RHO-GAP proteins that are often deregulated not only in BC but also in several other tumor types (29).

With regard to other RAS GTPase families, RAB genes were found to be both hyper- and hypo-methylated when comparing FBC and MBC methylomes, which could likely down- or upregulate gene expression, respectively. More specifically, 12 members of the RAB-GAP were found to be differentially methylated in FBC, as compared with MBC. The RAB proteins are involved in a wide range of functions including the trafficking between Golgi and endosomes, phagocytosis and the assembly of adherent junctions and mitochondrial dynamics. Certain studies have reported the involvement of RAB GTPases in different types of cancer (30,31) included BC. In a study by Callari et al (32) the global gene expression of 53 FBC was compared to that of 37 MBC by microarray technology and the dysregulation of members of the RAS GTPase superfamily was observed, in line with the present results. Transcriptional alteration of genes belonging to all 5 families was also identify in that study. The authors hypothesized that there was a sex-related modulation of the cytoskeleton organization in BC cells that influenced the cancer invasion process. In combination, the present results suggested that genes involved in cytoskeleton dynamics such as keratins and genes of the RAS GTPase superfamily, have different DNA methylation levels in FBC, as compared to MBC. According to Callari et al (32), we hypothesized that the expression dysregulation, likely determined by the variations of DNA methylation, may influence these cancer aggressive properties, in which the cytoskeleton plays an essential role (i.e. adhesion, migration and invasion).

To identify novel patterns of DNA methylation specific to the different mutations (BRCA1, BRCA2 or BRCAX) only FBC cases were used, since that was the largest group in our cohort of patients. Below, the salient results found in the different comparison classes are discussed.

Following the comparison between patients with BRCA1 and BRCA2 mutations, variations were observed in the DNA methylation of genes involved in the ubiquitination pathway. BRCA1 works with BARD1 to catalyze the transfer of ubiquitin onto protein substrates. The RING domain contained in the N-terminal region of both BRCA1 and BARD1 is responsible for dimerization and ubiquitin ligase activity, which is required for its tumor suppressor function (33). Moreover, the missense mutations in the BRCA1 RING domain were identified in families with a high risk for BC. Therefore, the BRCA1 mutation could alter the ubiquitination pathway and in turn affects the DNA methylation level of the genes belonging to this pathway. The methylome comparison was performed on a limited number of cases; a larger number of patients may confirm this hypothesis.

Following the comparison between patients with BRCA1 and those with BRCA2 or BRCAX mutations, a hypo/hyper-methylation of genes encoding cytoskeletal binding proteins was observed, which may suggest a different expression modulation of genes involved in cytoskeletal dynamics.

The patients with BRCA1 enrolled in the present study had triple-negative/basal-like tumors while the BRCA2/BRCAX cases had luminal A/B tumors. The basal-like tumors originate from normal mammary myoepithelial cells and express genes associated with the normal myoepithelium such as high molecular weight cytokeratins (CK5/6, CK14 and CK17). Conversely, luminal A/B tumors originate from luminal cells of the breast duct and lobule and they express genes associated with luminal cells such as ER, low molecular weight cytokeratins (CK7, CK8, CK18 and CK19), as well as PGR, GATA3, BCL2 and other ER-induced genes (34). In this context, the different methylation pattern of the cytoskeletal binding proteins may be associated with the expression of distinct cytoskeleton-related proteins in tumors with distinct molecular sub-types.

Following the comparison between patients with BRCAX and those with BRCA1 or BRCA2 mutations, variations in DNA methylation were identified among genes associated with the GTPase regulatory activity. The results may help to obtain a better understanding of the biology of BRCAX groups, as compared to BRCA1/BRCA2 groups. Pending confirmation by a study with a larger number of cases, the evaluation of the GTPase regulatory activity-related genes methylation levels could characterize and distinguish these groups of patients. In conclusion, in the current study for the first time, the global DNA methylation was profiled in FBC and MBC patients with a positive family history by using the Affymetrix human promoter array platform. With regards to MBC, only Johansson et al (35) assessed genome-wide DNA methylation profiles using Illumina 450K Infinium methylation arrays and compared them with the transcriptional subgroups of MBC, luminal M1 and M2. They identified two epitypes through unsupervised clustering (ME1 and ME2) associated with the two transcriptional subgroups and the DNA methylation data underscored the heterogeneity of MBC, suggesting it should not be defined using the conventional criteria applied to FBC. The present data reported different DNA methylation levels of GTPase-related genes (RHO-GAP, RHO-GEF and RAB GTPase) and keratin-related genes, which are important components of cytoskeleton, between FBC and MBC. These results may help elucidate an aspect of the molecular differences between male and female BC. The comparisons of DNA methylation profiles among women with BRCA1, BRCA2 or BRCAX mutations led to several observations and conclusions. In patients with BRCA1 or BRCA2 mutations there may be a different modulation of the ubiquitination pathway. Different DNA methylation levels of genes crucial for cancer pathways were identified in patients with BRCA2, as compared to those with BRCAX or BRCA1/BRCAX mutations. Different DNA methylation levels of genes involved in cytoskeleton architecture were identified in patients with BRCA1, as compared to those with BRCA2/BRCAX mutations; this was consistent with the fact that BRCA1 tumors frequently exhibit a basal-like molecular subtype, while BRCA2/X tumors exhibit a luminal molecular subtype. Finally, different DNA methylation levels in certain GTPase genes were observed in BRCAX patients, as compared to BRCA1/2 cases; these results may help better identify and distinguish groups of patients carrying these mutations in the future. In a next prospective study we will increase the number of patients (especially cases of familial MBC) to carry out the analysis of the methylome. We will collect fresh BC biopsy specimens for gene expression analysis in order to correlate the most relevant hyper/hypo-methylated genes to their expression levels.

Supplementary Material

Supporting Data

Acknowledgements

The authors would like to thank Dr Marialuisa Crosatti (University of Leicester, Leicester, UK) for the linguistic revision of the manuscript, as well as Professor Marina Colombi and Professor Massimo Gennarelli, who were responsible for the Affymetrix platform at the Department of Molecular and Translational Medicine, Division of Biology and Genetics (University of Brescia, Brescia, Italy).

Funding

The present study was supported by funding from Lega Italiana per la Lotta contro i Tumori (LILT) Roma-Brescia (grant no. 2762012), Comitato Nazionale Universitario (CNU)-Brescia, the Italian Ministry of University and Research (FFRB grant), the University of Brescia (local grants). EA was supported by a postdoctoral fellowship from Associazione Davide Rodella Onlus, Brescia. IG was supported by a Postdoctoral fellowship from-Ricerchiamo Onlus-, Brescia, Italy.

Availability of data and materials

The datasets generated and/or analysed during the current study are available in the Gene Expression Omnibus repository (www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE153636).

Authors' contributions

EA, AS and GDP conceived the project. EA performed the experiments, interpreted the results and generated the figures. AS and EA wrote the manuscript. IG contributed to the plotting of the data and their interpretation, as well as the revision of the manuscript. AS and GDP assessed and confirmed the authenticity of all raw data. GDP and MC made their intellectual contribution in the interpretation of the results and the critical revision of the manuscript. The medical doctors, EM and PC, contributed as geneticists; the medical doctors AC, PI, FZ, PLC and CTP provided the formalin-fixed paraffin-embedded tissues sections from patients with breast cancer; all medical doctors contributed to the acquisition of clinical data. Furthermore, EM, PC, AC, PI, FZ, PLC and CTP made substantive contributions to analysis and interpretation of experimental data. All co-authors critically revised the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The present study was approved by the Ethics Committee of Spedali Civili of Brescia (approval no. NP 1439; Brescia, Italy). Written informed consent was obtained from all patients.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

References

1

Harbeck N, Penault-Llorca F, Cortes J, Gnant M, Houssami N, Poortmans P, Ruddy K, Tsang J and Cardoso F: Breast cancer. Nat Rev Dis Prim. 5:662019. View Article : Google Scholar : PubMed/NCBI

2

Kobayashi H, Ohno S, Sasaki Y and Matsuura M: Hereditary breast and ovarian cancer susceptibility genes (Review). Oncol Rep. 30:1019–1029. 2013. View Article : Google Scholar : PubMed/NCBI

3

Marchina E, Fontana MG, Speziani M, Salvi A, Ricca G, Di Lorenzo D, Gervasi M, Caimi L and Barlati S: BRCA1 and BRCA2 genetic test in high risk patients and families: Counselling and management. Oncol Rep. 24:1661–1667. 2010. View Article : Google Scholar : PubMed/NCBI

4

Wang YA, Jian JW, Hung CF, Peng HP, Yang CF, Cheng HCS and Yang AS: Germline breast cancer susceptibility gene mutations and breast cancer outcomes. BMC Cancer. 18:3152018. View Article : Google Scholar : PubMed/NCBI

5

Melchor L and Benítez J: The complex genetic landscape of familial breast cancer. Hum Genet. 132:845–863. 2013. View Article : Google Scholar : PubMed/NCBI

6

Kulis M and Esteller M: DNA methylation and cancer. Adv Genet. 70:27–56. 2010. View Article : Google Scholar : PubMed/NCBI

7

Pinto R, Summa S, Pilato B and Tommasi S: DNA methylation and miRNAs regulation in hereditary breast cancer: Epigenetic changes, players in transcriptional and post-transcriptional regulation in hereditary breast cancer. Curr Mol Med. 14:45–57. 2014. View Article : Google Scholar : PubMed/NCBI

8

Flanagan J, Kugler S, Waddell N, Johnstone CN, Marsh A, Henderson S, Simpson P, da Silva L; kConFab Investigators, ; Khanna K, et al: DNA methylome of familial breast cancer identifies distinct profiles defined by mutation status. Breast Cancer Res. 86:420–33. 2010.

9

Gucalp A, Traina TA, Eisner JR, Parker JS, Selitsky SR, Park BH, Elias AD, Baskin-Bey ES and Cardoso F: Male breast cancer: A disease distinct from female breast cancer. Breast Cancer Res Treat. 173:37–48. 2019. View Article : Google Scholar : PubMed/NCBI

10

Kornegoor R, van Diest PJ, Buerger H and Korsching E: Tracing differences between male and female breast cancer: Both diseases own a different biology. Histopathology. 67:888–897. 2015. View Article : Google Scholar : PubMed/NCBI

11

Moncini S, Salvi A, Zuccotti P, Viero G, Quattrone A, Barlati S, De Petro G, Venturin M and Riva P: The role of miR-103 and miR-107 in regulation of CDK5R1 expression and in cellular migration. PLoS One. 6:e200382011. View Article : Google Scholar : PubMed/NCBI

12

Johansson I, Ringnér M and Hedenfalk I: The landscape of candidate driver genes differs between male and female breast cancer. PLoS One. 8:e782992013. View Article : Google Scholar : PubMed/NCBI

13

Rizzolo P, Silvestri V, Tommasi S, Pinto R, Danza K, Falchetti M, Gulino M, Frati P and Ottini L: Male breast cancer: Genetics, epigenetics, and ethical aspects. Ann Oncol. 24 (Suppl 8):viii75–viii82. 2013. View Article : Google Scholar

14

André S, Nunes SP, Silva F, Henrique R, Félix A and Jerónimo C: Analysis of epigenetic alterations in homologous recombination dna repair genes in male breast cancer. Int J Mol Sci. 21:27152020. View Article : Google Scholar

15

Kornegoor R, Moelans CB, Verschuur-Maes AH, Hogenes MCH, de Bruin PC, Oudejans JJ and van Diest PJ: Promoter hypermethylation in male breast cancer: Analysis by multiplex ligation-dependent probe amplification. Breast Cancer Res. 14:R1012012. View Article : Google Scholar : PubMed/NCBI

16

Vermeulen MA, van Deurzen CHM, Doebar SC, de Leng WWJ, Martens JWM, van Diest PJ and Moelans CB: Promoter hypermethylation in ductal carcinoma in situ of the male breast. Endocr Relat Cancer. 26:575–584. 2019. View Article : Google Scholar : PubMed/NCBI

17

Pinto R, Pilato B, Ottini L, Lambo R, Simone G, Paradiso A and Tommasi S: Different methylation and MicroRNA expression pattern in male and female familial breast cancer. J Cell Physiol. 228:1264–1269. 2013. View Article : Google Scholar : PubMed/NCBI

18

Deb S, Gorringe KL, Pang JM, Byrne DJ, Takano EA; kConFab Investigators, ; Dobrovic A and Fox SB: BRCA2 carriers with male breast cancer show elevated tumour methylation. BMC Cancer. 17:6412017. View Article : Google Scholar : PubMed/NCBI

19

Rizzolo P, Silvestri V, Valentini V, Zelli V, Zanna I, Masala G, Bianchi S, Palli D and Ottini L: Gene-specific methylation profiles in BRCA-mutation positive and BRCA-mutation negative male breast cancers. Oncotarget. 9:19783–19792. 2018. View Article : Google Scholar : PubMed/NCBI

20

Abeni E, Salvi A, Marchina E, Traversa M, Arici B and De Petro G: Sorafenib induces variations of the DNA methylome in HA22T/VGH human hepatocellular carcinoma-derived cells. Int J Oncol. 51:128–144. 2017. View Article : Google Scholar : PubMed/NCBI

21

Omura N, Li CP, Li A, Hong SM, Walter K, Jimeno A, Hidalgo M and Goggins M: Genome-wide profiling of methylated promoters in pancreatic adenocarcinoma. Cancer Biol Ther. 7:1146–1156. 2008. View Article : Google Scholar : PubMed/NCBI

22

Ling G and Waxman DJ: DNase I digestion of isolated nulcei for genome-wide mapping of DNase hypersensitivity sites in chromatin. Methods Mol Biol. 977:21–33. 2013. View Article : Google Scholar : PubMed/NCBI

23

Livak KJ and Schmittgen TD: Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) method. Methods. 25:402–408. 2001. View Article : Google Scholar : PubMed/NCBI

24

Johnson WE, Li W, Meyer CA, Gottardo R, Carroll JS, Brown M and Liu XS: Model-based analysis of tiling-arrays for ChIP-chip. Proc Natl Acad Sci USA. 103:12457–12462. 2006. View Article : Google Scholar : PubMed/NCBI

25

Huang DW, Sherman BT and Lempicki RA: Systematic and integrative analysis of large gene lists using DAVID bioinformatics resources. Nat Protoc. 4:44–57. 2009. View Article : Google Scholar : PubMed/NCBI

26

Cancer Genome Atlas Network, . Comprehensive molecular portraits of human breast tumours. Nature. 490:61–70. 2012. View Article : Google Scholar : PubMed/NCBI

27

Karantza V: Keratins in health and cancer: More than mere epithelial cell markers. Oncogene. 30:127–138. 2011. View Article : Google Scholar : PubMed/NCBI

28

Shao MM, Chan SK, Yu AM, Lam CC, Tsang JY, Lui PC, Law BK, Tan PH and Tse GM: Keratin expression in breast cancers. Virchows Arch. 461:313–322. 2012. View Article : Google Scholar : PubMed/NCBI

29

Wertheimer E, Gutierrez-Uzquiza A, Rosemblit C, Lopez-Haber C, Sosa MS and Kazanietz MG: Rac signaling in breast cancer: A tale of GEFs and GAPs. Cell Signal. 24:353–362. 2012. View Article : Google Scholar : PubMed/NCBI

30

Subramani D and Alahari SK: Integrin-mediated function of Rab GTPases in cancer progression. Mol Cancer. 9:3122010. View Article : Google Scholar : PubMed/NCBI

31

Ishibashi K, Kanno E, Itoh T and Fukuda M: Identification and characterization of a novel Tre-2/Bub2/Cdc16 (TBC) protein that possesses Rab3A-GAP activity. Genes Cells. 14:41–52. 2009. View Article : Google Scholar : PubMed/NCBI

32

Callari M, Cappelletti V, De Cecco L, Musella V, Miodini P, Veneroni S, Gariboldi M, Pierotti MA and Daidone MG: Gene expression analysis reveals a different transcriptomic landscape in female and male breast cancer. Breast Cancer Res Treat. 127:601–610. 2011. View Article : Google Scholar : PubMed/NCBI

33

Wu W, Koike A, Takeshita T and Ohta T: The ubiquitin E3 ligase activity of BRCA1 and its biological functions. Cell Div. 3:12008. View Article : Google Scholar : PubMed/NCBI

34

Bertucci F, Finetti P and Birnbaum D: Basal breast cancer: A complex and deadly molecular subtype. Curr Mol Med. 12:96–110. 2011. View Article : Google Scholar

35

Johansson I, Lauss M, Holm K, Staaf J, Nilsson C, Fjällskog ML, Ringnér M and Hedenfalk I: Genome methylation patterns in male breast cancer-Identification of an epitype with hypermethylation of polycomb target genes. Mol Oncol. 9:1565–1579. 2015. View Article : Google Scholar : PubMed/NCBI

Related Articles

Journal Cover

June-2021
Volume 21 Issue 6

Print ISSN: 1792-1074
Online ISSN:1792-1082

Sign up for eToc alerts

Recommend to Library

Copy and paste a formatted citation
x
Spandidos Publications style
Abeni E, Grossi I, Marchina E, Coniglio A, Incardona P, Cavalli P, Zorzi F, Chiodera PL, Paties CT, Crosatti M, Crosatti M, et al: DNA methylation variations in familial female and male breast cancer. Oncol Lett 21: 468, 2021.
APA
Abeni, E., Grossi, I., Marchina, E., Coniglio, A., Incardona, P., Cavalli, P. ... Salvi, A. (2021). DNA methylation variations in familial female and male breast cancer. Oncology Letters, 21, 468. https://doi.org/10.3892/ol.2021.12729
MLA
Abeni, E., Grossi, I., Marchina, E., Coniglio, A., Incardona, P., Cavalli, P., Zorzi, F., Chiodera, P. L., Paties, C. T., Crosatti, M., De Petro, G., Salvi, A."DNA methylation variations in familial female and male breast cancer". Oncology Letters 21.6 (2021): 468.
Chicago
Abeni, E., Grossi, I., Marchina, E., Coniglio, A., Incardona, P., Cavalli, P., Zorzi, F., Chiodera, P. L., Paties, C. T., Crosatti, M., De Petro, G., Salvi, A."DNA methylation variations in familial female and male breast cancer". Oncology Letters 21, no. 6 (2021): 468. https://doi.org/10.3892/ol.2021.12729
