Effect of Lycopersicon esculentum extract on apoptosis in the rat cerebellum, following prenatal and postnatal exposure to an electromagnetic field

  • Authors:
    • Sibel Köktürk
    • Melda Yardimoglu
    • Saadet D. Celikozlu
    • Elif Gelenli Dolanbay
    • Ali Cimbiz
  • View Affiliations

  • Published online on: May 17, 2013     https://doi.org/10.3892/etm.2013.1123
  • Pages:52-56
0

Abstract

The expansion of mobile phone technology has raised concerns regarding the effect of 900‑MHz electromagnetic field (EMF) exposure on the central nervous system. At present, the developing human brain is regularly exposed to mobile telephones, pre‑ and postnatally. Several studies have demonstrated the acute effects of EMF exposure during pre‑ or postnatal periods; however, the chronic effects of EMF exposure are less understood. Thus, the aim of the present study was to determine the chronic effects of EMF on the pre‑ and postnatal rat cerebellum. The control group was maintained in the same conditions as the experimental groups, without the exposure to EMF. In the EMF1 group, the rats were exposed to EMF during pre‑ and postnatal periods (until postnatal day 80). In the EMF2 group, the rats were also exposed to EMF pre‑ and postnatally; in addition, however, they were provided with a daily oral supplementation of Lycopersicon esculentum extract (~2 g/kg). The number of caspase‑3‑labeled Purkinje neurons and granule cells present in the rats in the control and experimental groups were then counted. The neurodegenerative changes were studied using cresyl violet staining, and these changes were evaluated. In comparison with the control animals, the EMF1 group demonstrated a significant increase in the number of caspase‑3‑labeled Purkinje neurons and granule cells present in the cerebellum (P<0.001). However, in comparison with the EMF1 group, the EMF2 group exhibited significantly fewer caspase‑3‑labeled Purkinje neurons and granule cells in the cerebellum. In the EMF1 group, the Purkinje neurons were revealed to have undergone dark neuron degenerative changes. However, the presence of dark Purkinje neurons was reduced in the EMF2 group, compared with the EMF1 group. The results indicated that apoptosis and neurodegeneration in rats exposed to EMF during pre‑ and postnatal periods may be reduced with Lycopersicon esculentum extract therapy.

Introduction

In recent years, the use of mobile phones has increased substantially; thus, there is a requirement for the potential effects on the central nervous system to be investigated. Numerous studies have demonstrated that electromagnetic field (EMF) exposure does not significantly increase the apoptosis rate in the brain cells of rodents (14). However, there have also been several studies that have revealed evidence to the contrary (58).

Apoptosis occurs in response to a wide range of environmental stimuli (9,10). Caspase-3 is a key protein that is involved in the mechanism for apoptosis in several cell types, including neurons (11), and has been implicated in the processes leading to neurodegeneration (12). An imbalance of caspase-3 levels in the apoptotic pathway may promote certain human diseases. Studies of experimental models have suggested that caspase-3 is a reliable indicator of apoptotic rate (1316). However, data concerning the effects of EMF on apoptosis are limited (1).

Several studies have investigated the acute effects of EMF exposure during the pre- and postnatal periods (1720). By contrast, less is understood regarding the chronic effects of EMF exposure. The developing human brain is now regularly exposed to mobile telephones pre- and postnatally (17). However, a World Health Organization (WHO) symposium (18) concluded that, due to a paucity of relevant research, it remained unclear whether the developing brain exhibited an increased sensitivity to EMF exposure. A key recommendation of the symposium was to study the impact of EMF exposure on the developing nervous system in immature animals (19). Thus, the aim of the present study was to determine the chronic effects of EMF exposure on pre- and postnatal rats.

Lycopersicon esculentum (tomato) and lycopene consumption have been demonstrated to be correlated with reduced incidences of cancer (2123), cardiovascular disease (24) and type 2 diabetes (25). Lycopene is a carotenoid present in high concentrations in tomatoes (26), and has been demonstrated to provide protection against the cellular damage caused by reactive oxygen species (ROS) (2628). Lycopene has a high liposolubility and is capable of passing through the blood-brain barrier (29), suggesting that it may have potential as a treatment for brain diseases (30). Qu et al revealed that lycopene protected against trimethyltin-induced neurotoxicity by inhibiting the mitochondrial apoptotic pathway. These results indicated that tomato and lycopene may act as neuroprotective agents, due to their anti-apoptotic, antioxidant and free radical scavenging effects (30). In the current study, we investigated the protective effects of Lycopersicon esculentum extract on apoptosis and neurodegeneration in the EMF-exposed rat cerebellum, during pre- and postnatal development.

Materials and methods

Animals

Albino Wistar male and female rats were used for the study. The rats were housed individually in cages, maintained under standard conditions, and were fed with standard pelletized food and water ad libitum. The study comprised three groups of rats, one control and two experimental (EMF1 and EMF2) groups. In the control group, the rats were kept in the same conditions as the experimental groups, but without exposure to EMF. In the EMF1 group, the rats were exposed to EMF during pre- and postnatal periods (until postnatal day 80). In the EMF2 group, the rats received the same EMF exposure as the EMF1 group; however, they were also provided with daily oral supplements of Lycopersicon esculentum extract (∼2 g/kg) during the pre- and postnatal periods. All experimental protocols received full approval from the Animal Ethical Committee of Dumlupınar University, Turkey, No. 02.11.2009/9.

EMF exposure

A commercially available cellular telephone with Global System for Mobile communications (GSM)-900 digital technology was used for EMF exposure. The cell phones were placed on the inside walls of the cages, and the rats were exposed to the effects of the cell phones throughout the pre- and postnatal periods, until they were 80 days old. During the study, the exposure procedure comprised the phones being in standby mode for the entire day, with the exception of 30 min per day when they were in talking mode. The control group was kept in the same conditions as the experimental groups, without exposure to GSM, in a separate room. Therefore, the effects of the EMF on the control group were prevented.

Immunohistochemical staining

The rats were perfused first with phosphate-buffered saline under ethyl ether anesthesia, and then with 4% buffered paraformaldehyde. The rat brains were dissected and postfixed in the same fixative. Following fixation, coronal blocks of the cerebellar cortex were embedded in paraffin and sectioned at 5 μm. The paraffin sections were studied with caspase-3 immunostaining, using the avidin-biotin peroxidase (ABC) and horseradish peroxidase-streptavidin methods for anti-caspase-3 rabbit polyclonal antibodies (1:50 dilution; Diagnostic Biosystems, Pleasanton, CA, USA). The paraffin-embedded tissue slices were deparaffinized with xylene, and the endogenous peroxidase activity was prevented by incubation in 0.3% hydrogen peroxide in methanol. The tissue slices were hydrated with graded alcohol, treated with 10% normal serum and then incubated with the primer antibody at 4°C overnight. They were then incubated with biotinylated anti-mouse IgG or biotinylated anti-rabbit IgG for 30 min at room temperature. Subsequently, the tissues were incubated with avidin-biotinylated horseradish peroxidase or streptavidin horseradish peroxidase in 10% normal goat serum for 30 min at room temperature. Following this, the slices were visualized using 3-amino-4-ethylcarbazole (AEC) as a chromogen. The negative controls consisted of tissue sections incubated in the absence of the primary antibody. The sections were then mounted for counting.

Counting of caspase-3-labeled cells

The presence of cells undergoing apoptosis was determined by the immunohistochemical detection of caspase-3. We randomly selected six 200×200 μm2 fields from the three coronal sections through the Purkinje and granule cell layers of the cerebellum for each rat, and the caspase-3-labeled cells were counted.

Cresyl violet staining

The paraffin sections were stained for RNA/DNA with cresyl violet to reveal the dark neurons. The sections were stained with 0.5% cresyl violet (Sigma, St. Louis, MO, USA), dehydrated in graded ethanol and xylene, and then coverslipped with Permount mounting medium (eBioscience, Inc., San Diego, CA, USA).

Statistical analysis

Statistical analysis was performed using the computer software program SPSS for Windows (SPSS Inc., Chicago, IL, USA). The cell count values of the groups were analyzed by analysis of variance (ANOVA) with post hoc Tukey test calculations for intergroup comparisons. P<0.05 was considered to indicate a statistically significant difference. The data of this study are presented as the mean value ± standard error of the mean (SEM).

Results

Cresyl violet staining was used for evaluation of the presence of dark neurons. The staining of the cerebellums of the rats in the control group revealed normal neuronal morphology in the Purkinje neurons. This was indicated by the pale blue appearance of the Purkinje neurons (Fig. 1A). In the EMF1 group, the Purkinje neurons demonstrated dark neuron degenerative changes. This was indicated by the intensively stained (dark), shrunken and irregular neuronal cytoplasms of the grouped dark Purkinje neurons (Fig. 1B). In the EMF2 group, dark Purkinje neurons were dispersed among intact neurons in the cerebellum. There was a reduced number of dark Purkinje neurons in the EMF2 group, in comparison with the EMF1 group (Fig. 1C).

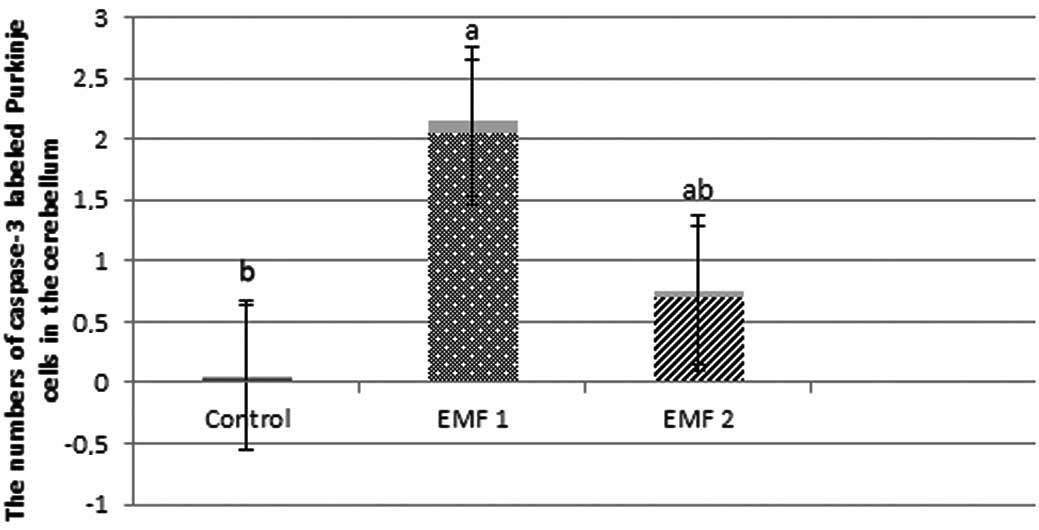

Caspase-3 labeling revealed an absence of cell staining in the control group (Fig. 2A), and positive cell staining in the EMF1 (Fig. 2B) and EMF2 (Fig. 2C) groups. The numbers of caspase-3-labeled neurons were observed to be 0.04±0.02, 2.05±0.09 and 0.69±0.06 for the control, EMF1 and EMF2 groups, respectively (mean ± SEM; Fig. 3). In addition, the numbers of caspase-3-labeled granule cells were observed to be 0.07±0.03, 8.86±0.32 and 2.70±0.12, for the control, EMF1 and EMF2 groups, respectively (mean ± SEM; Fig. 4).The caspase-3-labeled Purkinje neurons and granule cells were more prevalent in the EMF1 and EMF2 groups, compared with the control group (P<0.001; Figs. 3 and 4). There was a significant reduction in the number of caspase-3-labeled Purkinje neurons and granule cells in the EMF2 group, as compared with the EMF1 group (P<0.001; Figs. 3 and 4).

Discussion

EMF exposure has been been demonstrated to induce apoptosis in the human colon (31) and epidermoid cancer cells (32); however, EMF exposure was not observed to induce apoptosis in human peripheral mononuclear blood cells (33) or lymphocytes (34). McNamee et al reported that there was no increase in apoptosis in the cerebellums of immature mice subjected to acute EMF exposure (4), whilst Joubert et al observed that EMF exposure did not significantly increase the apoptosis rates in rat primary neuronal cultures (3). However, Bas et al demonstrated that postnatal exposure to 900-MHz EMF reduced the number of pyramidal cells in the cornu ammonis (CA) of the female rat hippocampus (20). In addition, Sonmez et al determined that long-duration exposure to EMF led to a reduction in the number of Purkinje cells in the female rat cerebellum (8). In the present study, it was demonstrated that there was an increase in the number of caspase-3-labeled Purkinje neurons and granule cells in the cerebellums of 80-day-old rats, following pre- and postnatal exposure to 900-MHz EMF. This indicated that chronic EMF exposure had a greater apoptotic effect on the cerebellar cells than short-duration exposure, even at the same frequency.

Lycopersicon esculentum and lycopene consumption are correlated with certain diseases that are associated with oxidative stress (2123). Lycopene, a carotenoid predominantly present in Lycopersicon esculentum and Lycopersicon esculentum products, has been suggested to exhibit antioxidant activity (35). Several in vitro and in vivo studies have demonstrated the protective potential of lycopene against oxidative damage (36,37). Qu et al observed that lycopene rescued hippocampal neurons from apoptotic cell death induced by trimethyltin, a neurotoxin that partially mimics the pathogenic mechanisms of numerous neurodegenerative disorders (30). Reduced terminal deoxynucleotidyl-transferase-mediated dUTP nick end labeling (TUNEL) staining revealed that pretreatment of the trimethyltin-treated hippocampal neurons with lycopene significantly improved cell viability, by inhibiting neuronal apoptosis. These results indicate that the antioxidant, lycopene, protects against trimethyltin-induced neurotoxicity by inhibiting the ROS-initiated mitochondrial apoptotic pathway. Caspase-3 is considered to be a key protease responsible for a number of the biological and morphological features of apoptosis (38). Türk et al demonstrated that lycopene exhibited anti-peroxidative and -apoptotic effects on cyclophosphamide-induced testicular lipid peroxidation and apoptosis (39). The present study revealed that Lycopersicon esculentum extract reduced apoptosis in the Purkinje neurons and granule cells in the EMF2 group. This study also demonstrated that there were fewer dark Purkinje neurons in the EMF2 group, in comparison with the EMF1 group. The results indicate that Lycopersicon esculentum extract therapy may reduce apoptosis and neurodegeneration in rats exposed to EMF pre- and postnatally.

In conclusion, this study demonstrated that Lycopersicon esculentum exerted a protective effect against EMF-induced apoptosis and neurodeneration in rat Purkinje neurons and granule cells, during pre- and postnatal periods. Further investigation is required to evaluate the neuroprotective efficacy of Lycopersicon esculentum in vivo.

References

1.

Akdag MZ, Dasdag S, Ulukaya E, Uzunlar AK, Kurt MA and Taşkin A: Effects of extremely low-frequency magnetic field on caspase activities and oxidative stress values in rat brain. Biol Trace Elem Res. 138:238–249. 2010. View Article : Google Scholar : PubMed/NCBI

2.

Kim TH, Huang TQ, Jang JJ, et al: Local exposure of 849 MHz and 1763 MHz radiofrequency radiation to mouse heads does not induce cell death or cell proliferation in brain. Exp Mol Med. 40:294–303. 2008. View Article : Google Scholar : PubMed/NCBI

3.

Joubert V, Leveque P, Cueille M, Bourthoumieu S and Yardin C: No apoptosis is induced in rat cortical neurons exposed to GSM phone fields. Bioelectromagnetics. 28:115–121. 2007. View Article : Google Scholar : PubMed/NCBI

4.

McNamee JP, Bellier PV, McLean JR, Marro L, Gajda GB and Thansandote A: DNA damage and apoptosis in the immature mouse cerebellum after acute exposure to a 1 mT, 60 Hz magnetic field. Mutat Res. 513:121–133. 2002. View Article : Google Scholar : PubMed/NCBI

5.

Lai H and Singh NP: Magnetic-field-induced DNA strand breaks in brain cells of the rat. Environ Health Perspect. 112:687–694. 2004. View Article : Google Scholar : PubMed/NCBI

6.

Grassi C, D’Ascenzo M, Torsello A, Martinotti G, Wolf F, Cittadini A and Azzena GB: Effects of 50 Hz electromagnetic fields on voltage-gated Ca2+ channels and their role in modulation of neuroendocrine cell proliferation and death. Cell Calcium. 35:307–315. 2004.

7.

Maskey D, Pradhan J, Aryal B, et al: Chronic 835-MHz radio-frequency exposure to mice hippocampus alters the distribution of calbindin and GFAP immunoreactivity. Brain Res. 1346:237–246. 2010. View Article : Google Scholar : PubMed/NCBI

8.

Sonmez OF, Odaci E, Bas O and Kaplan S: Purkinje cell number decreases in the adult female rat cerebellum following exposure to 900 MHz electromagnetic field. Brain Res. 1356:95–101. 2010. View Article : Google Scholar : PubMed/NCBI

9.

MacKenzie SH and Clark AC: Death by caspase dimerization. Adv Exp Med Biol. 747:55–73. 2012. View Article : Google Scholar : PubMed/NCBI

10.

Wickman G, Julian L and Olson MF: How apoptotic cells aid in the removal of their own cold dead bodies. Cell Death Differ. 19:735–742. 2012. View Article : Google Scholar : PubMed/NCBI

11.

Folch J, Alvira D, López-Querol M, et al: Evaluation of transcriptional activity of caspase-3 gene as a marker of acute neurotoxicity in rat cerebellar granular cells. Toxicol In Vitro. 24:465–471. 2010. View Article : Google Scholar : PubMed/NCBI

12.

Snigdha S, Smith ED, Prieto GA, et al: Caspase-3 activation as a bifurcation point between plasticity and cell death. Neurosci Bull. 28:14–24. 2012. View Article : Google Scholar : PubMed/NCBI

13.

Pace V, Bellizzi D, Giordano F, et al: Experimental testing of a mathematical model relevant to the extrinsic pathway of apoptosis. Cell Stress Chaperones. 15:13–23. 2010. View Article : Google Scholar : PubMed/NCBI

14.

Duran-Vilaregut J, Del Valle J, Manich G, et al: Systemic administration of 3-nitropropionic acid points out a different role for active caspase-3 in neurons and astrocytes. Neurochem Int. 56:443–450. 2010. View Article : Google Scholar : PubMed/NCBI

15.

Hwang IK, Ahn JH, Yoo DY, et al: Increased immunoreactivities of cleaved αII-spectrin and cleaved caspase-3 in the aged dog spinal cord. Neurochem Res. 37:480–486. 2012.

16.

Liu J, Lu Y and Liang J: A novel fluorescence derivatization method combined with HPLC for determining the activities of endogenous caspase. Analyst. 137:5097–5104. 2012. View Article : Google Scholar : PubMed/NCBI

17.

Hossmann KA: Effects of electromagnetic radiation of mobile phones on the central nervous system. Bioelectromagnetics. 24:49–62. 2003. View Article : Google Scholar : PubMed/NCBI

18.

The sensitivity of children to EMF exposure. In: Proceedings of the 2004 EPRI-Cosponsored World Health Organization Workshop; EPRI, Palo Alto, NC, USA. 1011147(3): pp. 3–13. 2004

19.

Rodier PM: Chronology of neuron development: animal studies and their clinical implications. Dev Med Child Neurol. 22:525–545. 1980. View Article : Google Scholar : PubMed/NCBI

20.

Bas O, Odaci E, Kaplan S, et al: 900 MHz electromagnetic field exposure affects qualitative and quantitative features of hippocampal pyramidal cells in the adult female rat. Brain Res. 1265:178–185. 2009. View Article : Google Scholar : PubMed/NCBI

21.

Giovannucci E: Tomato products, lycopene, and prostate cancer: a review of the epidemiological literature. J Nutr. 135:2030S–2031S. 2005.PubMed/NCBI

22.

Ford NA, Elsen AC, Zuniga K, Lindshield BL and Erdman JW Jr: Lycopene and apo-12′-lycopenal reduce cell proliferation and alter cell cycle progression in human prostate cancer cells. Nutr Cancer. 63:256–263. 2011.PubMed/NCBI

23.

Teodoro AJ, Oliveira FL, Martins NB, Maia Gde A, Martucci RB and Borojevic R: Effect of lycopene on cell viability and cell cycle progression in human cancer cell lines. Cancer Cell Int. 12:362012. View Article : Google Scholar : PubMed/NCBI

24.

Rissanen TH, Voutilainen S, Nyyssönen K, Salonen R, Kaplan GA and Salonen JT: Serum lycopene concentrations and carotid atherosclerosis: the Kuopio Ischaemic Heart Disease Risk Factor Study. Am J Clin Nutr. 77:133–138. 2003.PubMed/NCBI

25.

Coyne T, Ibiebele TI, Baade PD, Dobson A, McClintock C, Dunn S, et al: Diabetes mellitus and serum carotenoids: findings of a population-based study in Queensland, Australia. Am J Clin Nutr. 82:685–693. 2005.PubMed/NCBI

26.

Agca CA, Tuzcu M, Gencoglu H, Akdemir F, Ali S, Sahin K and Kucuk O: Lycopene counteracts the hepatic response to 7,12-dimethylbenz[a]anthracene by altering the expression of Bax, Bcl-2, caspases, and oxidative stress biomarkers. Pharm Biol. 50:1513–1518. 2012.PubMed/NCBI

27.

Kelkel M, Schumacher M and Dicato M: Antioxidant and anti-proliferative properties of lycopene. Free Radic Res. 45:925–940. 2011. View Article : Google Scholar : PubMed/NCBI

28.

Kong KW, Rajab NF, Prasad KN, Ismail A, Markom M and Tan CP: Lycopene-rich fractions derived from pink guava by-product and their potential activity towards hydrogen peroxide-induced cellular and DNA damage. Food Chem. 123:1142–1148. 2010. View Article : Google Scholar

29.

Khachik F, Carvalho L, Bernstein PS, Muir GJ, Zhao DY and Katz NB: Chemistry, distribution, and metabolism of tomato carotenoids and their impact on human health. Exp Biol Med (Maywood). 227:845–851. 2002.PubMed/NCBI

30.

Qu M, Zhou Z, Chen C, et al: Lycopene protects against trimethyltin-induced neurotoxicity in primary cultured rat hippocampal neurons by inhibiting the mitochondrial apoptotic pathway. Neurochem Int. 59:1095–1103. 2011. View Article : Google Scholar : PubMed/NCBI

31.

Maeda K, Maeda T and Qi Y: In vitro and in vivo induction of human LoVo cells into apoptotic process by non-invasive microwave treatment: A potentially novel approach for physical therapy of human colorectal cancer. Oncol Rep. 11:771–775. 2004.

32.

Caraglia M, Marra M, Mancinelli F, et al: Electromagnetic fields at mobile phone frequency induce apoptosis and inactivation of the multi-chaperone complex in human epidermoid cancer cells. J Cell Physiol. 204:539–548. 2005. View Article : Google Scholar

33.

Capri M, Scarcella E, Bianchi E, et al: 1800 MHz radiofrequency (mobile phones, different Global System for Mobile communication modulations) does not affect apoptosis and heat shock protein 70 level in peripheral blood mononuclear cells from young and old donors. Int J Radiat Biol. 80:389–397. 2004. View Article : Google Scholar

34.

Capri M, Scarcella E, Fumelli C, et al: In vitro exposure of human lymphocytes to 900 MHz CW and GSM modulated radio-frequency: studies of proliferation, apoptosis and mitochondrial membrane potential. Radiat Res. 162:211–218. 2004. View Article : Google Scholar

35.

Aydın S, Tokaç M, Taner G, et al: Antioxidant and antigenotoxic effects of lycopene in obstructive jaundice. J Surg Res. Nov 7–2012.(Epub ahead of print). View Article : Google Scholar

36.

Saada HN, Rezk RG and Eltahawy NA: Lycopene protects the structure of the small intestine against gamma-radiation-induced oxidative stress. Phytother Res. 24(Suppl 2): S204–S208. 2010. View Article : Google Scholar : PubMed/NCBI

37.

Tang Y, Parmakhtiar B, Simoneau AR, Xie J, Fruehauf J, Lilly M and Zi X: Lycopene enhances docetaxel’s effect in castration-resistant prostate cancer associated with insulin-like growth factor I receptor levels. Neoplasia. 13:108–119. 2011.PubMed/NCBI

38.

Gervais FG, Xu D, Robertson GS, et al: Involvement of caspases in proteolytic cleavage of Alzheimer’s amyloid-beta precursor protein and amyloidogenic A beta peptide formation. Cell. 97:395–406. 1999.

39.

Türk G, Ceribaşi AO, Sakin F, Sönmez M and Ateşşahin A: Antiperoxidative and anti-apoptotic effects of lycopene and ellagic acid on cyclophosphamide-induced testicular lipid peroxidation and apoptosis. Reprod Fertil Dev. 22:587–596. 2010.PubMed/NCBI
