Differential proteomic analysis of tibial subchondral bone from male and female guinea pigs with spontaneous osteoarthritis

  • Authors:
    • Ying Wang
    • Chengai Wu
    • Jianfeng Tao
    • Danhui Zhao
    • Xu Jiang
    • Wei Tian
  • View Affiliations

  • Published online on: April 15, 2021
  • Article Number: 633
  • Copyright: © Wang et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


A proteomic study on the tibial subchondral bone in guinea pigs with spontaneous osteoarthritis was performed to investigate the molecular alterations that occur in early osteoarthritis. A total of 132 healthy Hartley guinea pigs (aged 1 month; 66 female and 66 male) were randomly divided into 11 groups of six. Changes in articular cartilage and tibial subchondral bone were assessed using macroscopic examinations and micro‑computed tomography. iTRAQ‑integrated liquid chromatography‑tandem mass spectrometry was used to identify differentially altered proteins in the tibial subchondral bone between 1‑ and 3‑month‑old guinea pigs, which were then validated using western blotting. A gradual progression of cartilage degeneration was observed in the knee joints of the subject animals from 5‑11 months. With aging, the tibial subchondral trabecular bone acquired more plate‑like and less anisotropic properties, with increased bone mineral density, bone volume, trabecular thickness and numbers. The proteomic study identified 138 and 113 proteins significantly differentially expressed between 3‑ and 1‑month old guinea pigs in both the male and female animals, respectively. Western blotting confirmed the increased expression of osteoblast‑associated protein S100 calcium‑binding protein A8 (S100A8) and the deregulated expression of osteoclast‑associated proteins coronin 1A (CORO1A) and T‑cell immune regulator 1 (TCIRG1) in the 3‑month old guinea pigs in comparison to the 1‑month old guinea pigs. Spontaneous cartilage degeneration in the knee joints of male Hartley guinea pigs tended to be more serious compared with the females during the development of osteoarthritis. Together, the results suggest that osteoblast‑associated protein S100A8 and osteoclast‑associated proteins CORO1A and TCIRG1 are potentially key regulators of early osteoarthritic development in tibial subchondral bone.


Osteoarthritis (OA) is a chronic and progressive disorder of the joints, characterized by a gradual loss of articular cartilage and remodeling of the underlying bone. OA of the knee, the most common type of OA, is one of the fastest growing causes of disability, and affected >250 million individuals worldwide (1). Despite its high prevalence, there is a lack of effective pharmacological interventions for treatment or management of OA at present and the most common treatment strategies are pain relief or total knee replacement (2). Thus far, pharmaceutical treatment strategies for OA have relied on the use of analgesics and non-steroidal anti-inflammatory drugs (3). Whilst research into disease-modifying drugs for OA that may delay disease progression by targeting various signaling pathways involved in the pathogenesis of OA is currently underway (2,4), the development of tissue-specific disease-modifying treatments for knee OA has been plagued with difficulties (5), primarily due to a lack of clear understanding of the molecular mechanisms underlying the initiation and development of this disease.

Knee OA is a multifactorial joint disease that involves various anatomical structures of the joint, including the articular cartilage, subchondral bone, synovial membrane, ligaments and menisci (6,7). A key factor that may contribute to OA onset and development is the biomechanical characteristics of the subchondral bone. Indeed, changes in the architecture and composition of the subchondral bone have been frequently recognized in animal OA models and patients with OA. These changes include abnormal bone turnover, sclerosis of the subchondral plate, osteophyte formation, thinning of the trabecular bone, subchondral cysts and bone marrow lesions (8,9). These microstructural changes are highly associated with subchondral bone stiffening and degeneration of the overlying cartilage (10). Amelioration of the abnormalities in subchondral bone may not only alleviate joint pain but may also delay cartilage degeneration (11), making subchondral bone-targeted treatment a promising approach for the treatment of OA. However, a comprehensive investigation into the potential role of subchondral bone changes in OA and the related underlying molecular mechanisms is still required.

Due to the difficulties in monitoring the initiation and progression of OA in human patients, animal models with naturally occurring articular disorders similar to human OA are instead widely used to investigate the pathogenesis of this disease (12). The Hartley strain of guinea pigs can spontaneously develop an OA-related phenotype of the knee joint. In Hartley guinea pigs, the articular cartilage exhibits age-dependent degenerative changes, for example, a gradual decrease in the number of chondrocytes and amount of proteoglycan that closely resembles what is observed in human OA. In addition, Hartley guinea pigs share certain OA risk factors with humans, such as age, sex and body weight (13,14). All of these advantages make Hartley guinea pigs a suitable animal model for studying the molecular mechanisms underlying OA initiation and progression. Previous studies have focused on altered gene-expression patterns in osteoarthritic articular cartilage, whereas research concerning the association of subchondral bone with OA remains limited (15,16). Thus, determining the molecular mechanisms underlying abnormal alterations in the subchondral bone in a Hartley guinea pig model of knee OA may not only increase knowledge of the pathogenesis of OA, but also highlight potential therapeutic targets for novel OA disease-modifying drugs.

Liquid chromatography tandem-mass spectrometry (LC-MS/MS) combined with iTRAQ technology is widely used to identify new biomarkers and pathways involved in several diseases. However, to the best of our knowledge, there are no studies examining the molecular changes in subchondral bone in OA using large-scale proteomic analysis. To address this gap in the literature, the objective of the present study was to identify potentially novel molecular biomarkers associated with the early pathological process of OA using the established Hartley guinea pig model of spontaneous knee OA. Differentially expressed proteins were analyzed and three candidates in subchondral bone tissues derived from male and female Hartley guinea pigs in the very early phase of OA were identified by performing iTRAQ-based LC-MS/MS. The proteomic characterization of osteoarthritic subchondral bone allowed for a deeper understanding of this disease and may facilitate future development of nonsurgical treatments for OA.

Materials and methods

Animal handling and gross examination

Male (n=66) and female (n=66) Hartley guinea pigs (age, 1 month old; mean weight, 328 g for female animals, 374 g for male animals) were obtained from Beijing Vital River Laboratory Animal Technology Co., Ltd.. Animals were randomly assigned to groups of six and housed together in plastic cages, measuring 90x60x15 cm with a stainless-steel grid lid, and maintained at a temperature of 25˚C, a relative humidity of 55±10% and a 12 h light/dark cycle. The animals were provided with ad libitum access to water and standard rodent chow. All animal experiments were approved by the Beijing Jishuitan Hospital Animal Care and Use Committee and were performed in accordance with the institutional guidelines for care and use of animals.

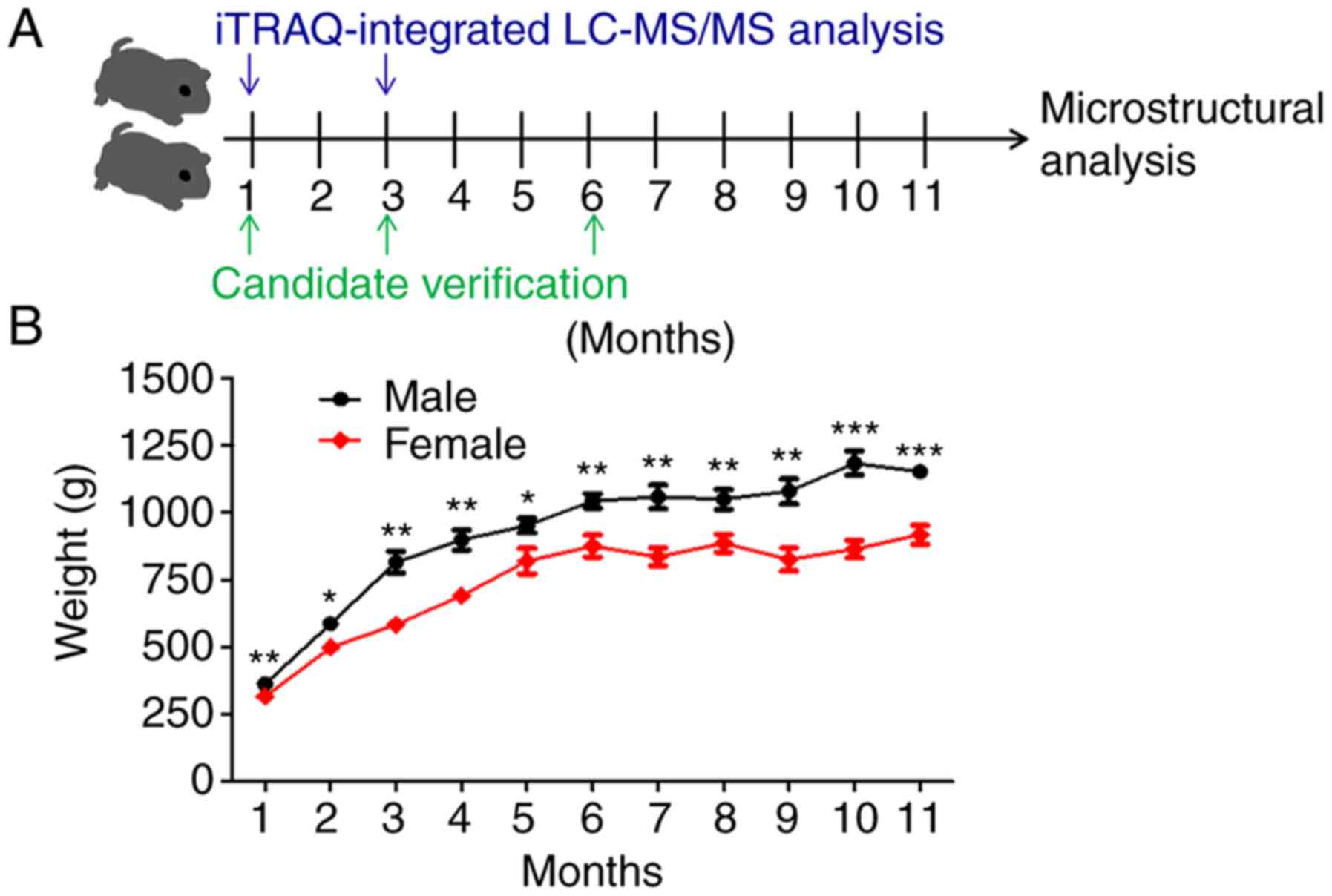

The general design of the study is shown in Fig. 1A. Animals were randomly selected for sacrifice at 1-month intervals for 11 months, 6 animals at a time. The body weights of all animals were recorded before sacrifice. Articular cartilage was collected immediately after guinea pigs were sacrificed by cervical dislocation under anesthesia using 3% sodium pentobarbital (30 mg/kg body weight) intraperitoneally. After sacrifice the knee-joints were disarticulated, the femurs and tibias were separated, the articular cartilage of the femur and the tibia were cleaned with 0.9% normal saline and the gross visual appearance of the articular cartilage was recorded using a Canon EOS 40D digital camera with a 50-mm lens (Canon Inc.).

Microstructural analysis of subchondral bone

The microarchitecture of whole knee-joint specimens was analyzed using a SkyScan 1172 micro-computed tomography (CT) system (SkyScan; Bruker Corporation). The microfocus X-ray source was set at 86 kV and 116 µA, with a pixel size of 12 µm. After scanning, 3D reconstructions with a voxel size of 12 µm were acquired using NRecon version (SkyScan; Bruker Corporation). For analysis of the subchondral trabecular bone, a cuboid of trabecular bone measuring 2.05x2.05x0.6 mm3 was selected as the volume of interest (VOI). After VOI selection, the images were binarized using the following gray-level thresholds in Hounsfield units: 105-252 for ages 1-2 months; 120-252 for ages 3-6 months; 125-252 for age 7 months; and 130-252 for ages 8-11 months. The binarized images were used to calculate morphological parameters using CTAn version 1.14.4 (SkyScan; Bruker Corporation). The bone volume fraction (BV/TV as a percentage), trabecular thickness (Tb. Th, mm), trabecular number (Tb. N, 1/mm), structure model index (SMI), trabecular bone pattern factor (Tb. Pf, 1/mm), degree of anisotropy (DA) and trabecular separation (Tb. Sp, mm) were calculated. Additionally, the bone mineral density (BMD, g/cm3) was calibrated using the attenuation coefficients of two hydroxyapatite phantom materials with known mineral densities of 0.25 and 0.75 g/cm3.

Protein digestion and iTRAQ labeling

Protein digestion was performed using the filter-aided sample-preparation procedure described by Wisniewski et al (17). The mixture of peptides generated was labeled with 4-plex iTRAQ reagents, according to the manufacturer's protocol (Applied Biosystems; Thermo Fisher Scientific, Inc.). Briefly, 200 µg total protein for each tibial subchondral bone sample was incorporated into a 30 µl solution containing 4% sodium dodecyl sulfate, 100 mM dithiothreitol, and 100 mM Tris-HCl (pH 8.0). After heating at 95˚C for 5 min and then cooling to room temperature, each sample was filtered using an ultrafiltration filter (pore size, 10 kDa; Sartorius AG) and treated with 200 µl UT buffer (8 M urea and 150 mM Tris-HCl at pH 8.0). Subsequently, 100 µl 50 mM iodoacetamide in UT buffer was added to block reduced cysteines, and the samples were incubated at room temperature for 20 min in the dark. The filters were washed three times with 100 µl UT buffer and then twice with 100 µl dissolution buffer (50 mM triethylammonium bicarbonate at pH 8.5). Finally, the protein suspensions were digested overnight with 40 µl trypsin (Promega Corporation) buffer (2 µg trypsin in 40 µl dissolution buffer) at 37˚C. The generated peptide concentrations were estimated using UV light spectral density at 280 nm. For labeling, each iTRAQ reagent was dissolved in 70 µl ethanol and added to the respective mixture of peptides. The peptides obtained from the tibial subchondral bone samples from the guinea pigs were named as follows: 1-month-old male guinea pigs (1MM)-1, -2 and -3; 1-month-old female guinea pigs (1MF)-1, -2 and -3; 3-month-old male guinea pigs (3MM)-1, -2 and -3; and 3-month-old female guinea pigs (3MF)-1, -2 and -3. Tibial subchondral bone samples from the 1MM, 1MF, 3MM and 3MF groups were labeled with isobaric iTRAQ tags of masses 114, 115, 116 and 117 Da, respectively, and were multiplexed and vacuum dried.

Peptide fractionation using strong cationic-exchange chromatography

The iTRAQ-labeled peptides were fractionated using strong cationic-exchange (SCX) chromatography performed on the AKTA Purifier system (GE Healthcare). The dried peptide mixture was reconstituted and acidified with 2 ml buffer A consisting of 10 mM KH2PO4 in 25% (v/v) of acetonitrile (pH 2.7), and then subjected to SCX fractionation on a PolySULFOETHYL column (4.6x100 mm, 5 µm, 200 Å; PolyLC Inc.). The peptides were eluted at a flow rate of 1 ml/min with a gradient of 0-10% buffer B (buffer A with 500 mM KCl added) for 2 min, 10-20% buffer B for 25 min, 20-45% buffer B for 5 min and 50-100% buffer B for 5 min. The elution was monitored using the absorbance at 214 nm and fractions were collected every min. Finally, ~30 collected fractions were combined into 10 pools and desalted on C18 Cartridges [Empore SPE Cartridges C18 (standard density), bed inner diameter 7 mm, volume 3 ml; Sigma-Aldrich; Merck KGaA]. Each SCX salt step fraction was concentrated by vacuum centrifugation and then reconstituted in 40 µl 0.1% (v/v) acetic acid. All samples were stored at -80˚C until required for LC-MS/MS analysis.

LC-MS/MS analysis

Experiments were performed on a Q Exactive mass spectrometer coupled with an Easy nLC (Proxeon Biosystems; Thermo Fisher Scientific, Inc.). For each fraction, 5 µg peptide mixture was subjected to nano-LC-MS/MS analysis. The peptide mixture was loaded onto a reverse phase trap column (Thermo Fisher Scientific, Inc.; Acclaim PepMap100, 100 µm x 2 cm, nanoViper C18) connected to a C18-reversed phase analytical column (Thermo Fisher Scientific, Inc.; Easy Column; 10-cm long, 75-µm inner diameter, 3-µm resin) in buffer C (0.1% formic acid) and separated with a linear gradient of buffer D (buffer C with 84% acetonitrile added) at a flow rate of 300 nl/min controlled using IntelliFlow technology over 120 min. MS data were acquired using a data-dependent top 10 method that dynamically selected the most abundant precursor ions from the survey scan (300-1,800 m/z) for higher energy collisional dissociation (HCD) fragmentation. The target value was determined based on predictive automatic gain control. The dynamic exclusion duration was 40 sec. Survey scans were acquired at a resolution of 70,000 at m/z 200, and the resolution for HCD spectra was set to 17,500 at m/z 200; the isolation width was 2 m/z. The normalized collision energy was 30 eV, and the underfill ratio was defined as 0.1% on Q Exactive.

Sequence database examination and data analysis

MS/MS spectra were searched using the MASCOT engine (Matrix Science; version 2.2) embedded into Proteome Discoverer version 1.4 (Thermo Fisher Scientific, Inc.) against the Uniprot Cavia porcellus database (20,415 sequences, downloaded on October 10th, 2015) and a decoy database. For protein identification, the following parameters were used: Peptide mass tolerance, 20 ppm; fragment mass tolerance, 0.1 Da; enzyme, trypsin; maximum missed cleavages, 2; fixed modifications, carbamidomethyl (C), iTRAQ4plex (K), and iTRAQ4plex (N-term); variable modification, oxidation (M); peptide false discovery rate (FDR)≤0.01.

Gene ontology (GO) annotation and Kyoto encyclopedia of genes and genomes (KEGG) pathway analysis

GO analysis was performed to annotate the identified differentially expressed proteins. Firstly, the protein sequences of the differentially expressed proteins identified were retrieved in batches from the UniProtKB database ( in the FASTA format. Then, the functional GO annotations and classifications of all the differentially expressed proteins were applied using the Blast2GO program. Biological pathway enrichment analysis was performed based on KEGG pathway analysis. The FASTA sequences of all the differentially expressed proteins were compared against the online KEGG database ( and mapped to the pathways included in KEGG. The corresponding KEGG pathways were subsequently extracted.

Western blot analysis

At sacrifice, samples of the right tibial subchondral bone were collected for western blot analysis. For coronin 1A (CORO1A), S100 calcium-binding protein A8 (S100A8) and TCIRG1 protein expression studies, 100 µg total protein from tibial subchondral bone was resolved using a 4-12% SDS-PAGE gel. After transfer to PVDF membranes, the membranes were blocked for 1 h at room temperature in 1X PBS containing 0.15% Tween-20 (1X PBST) and 5% non-fat dry milk, and subsequently immunoblotted with the indicated primary antibodies in 1X PBST with 5% non-fat dry milk at 4˚C overnight. The primary antibodies included anti-CORO1A (Aviva Systems Biology, Corp; cat. no. ARP38899_T100; 1:400), anti-S100A8 (Abcam; cat. no. ab92331; 1:1,000) and anti-TCIRG1 (Santa Cruz Biotechnology, Inc.; cat. no. sc-162300; 1:500). Signals were visualized using enhanced chemiluminescence reagent (Thermo Fisher Scientific, Inc.) and horseradish peroxidase HRP-conjugated goat anti-rabbit IgG (Abcam; cat. no. ab97051; 1:5,000), HRP-conjugated rabbit anti-mouse IgG (Abcam; cat. no. ab6728; 1:5,000) and HRP-conjugated rabbit anti-goat IgG (Abcam; cat. no. ab6741; 1:5,000) secondary antibodies for 2 h at room temperature. β-actin (Abcam; cat. no. ab6276; 1:1,000) was used as the internal control.

Statistical analysis

SAS version 9.2 (SAS Institute, Inc.) was used for statistical analyses for between-group differences. GraphPad Prism version 8.0 (GraphPad Software, Inc.) was used for statistical analyses of differences between sexes. Differences between ages in BMD, BV/TV, Tb. Th, Tb. N, SMI, Tb. Pf, DA and Tb. Sp values of the subchondral trabecular bone were analyzed using a non-parametric Kruskal-Wallis test, and a pair-wise comparison among 11 ages was performed for each parameter based upon Dunn's post hoc test. Sex differences in BMD, BV/TV, Tb. Th, Tb. N, SMI, Tb. Pf, DA and Tb. Sp values were analyzed using a Student's t-test or non-parametric Mann Whitney U test. P<0.05 was considered to indicate a statistically significant difference.


Gross morphological observation of spontaneous degeneration of articular cartilage

After an initial sharp increase from 1 to 5 months, the weight of all guinea pigs remained relatively stable over time. Compared with the female guinea pigs, male animals showed a significantly faster growth rate until the age of 11 months (Figs. 1B and S1). Macroscopic articular cartilage lesions initially appeared in the region of the medial tibial plateau not covered by the meniscus in both male and female Hartley guinea pigs at the age of 5 and 11 months (red circle; Fig. 2). The degeneration of the articular cartilage worsened with age, starting at 5 months. By the age of 11 months, the degenerative cartilage lesions were noticeable and had invaded all aspects of the medial and lateral compartments of the tibial plateau in addition to the condyles and patellar fossa of the femur. Moreover, spontaneous cartilage degeneration in the knee joints tended to be more serious in male Hartley guinea pigs compared with female Hartley guinea pigs.

Micro-CT analysis of subchondral trabecular bone

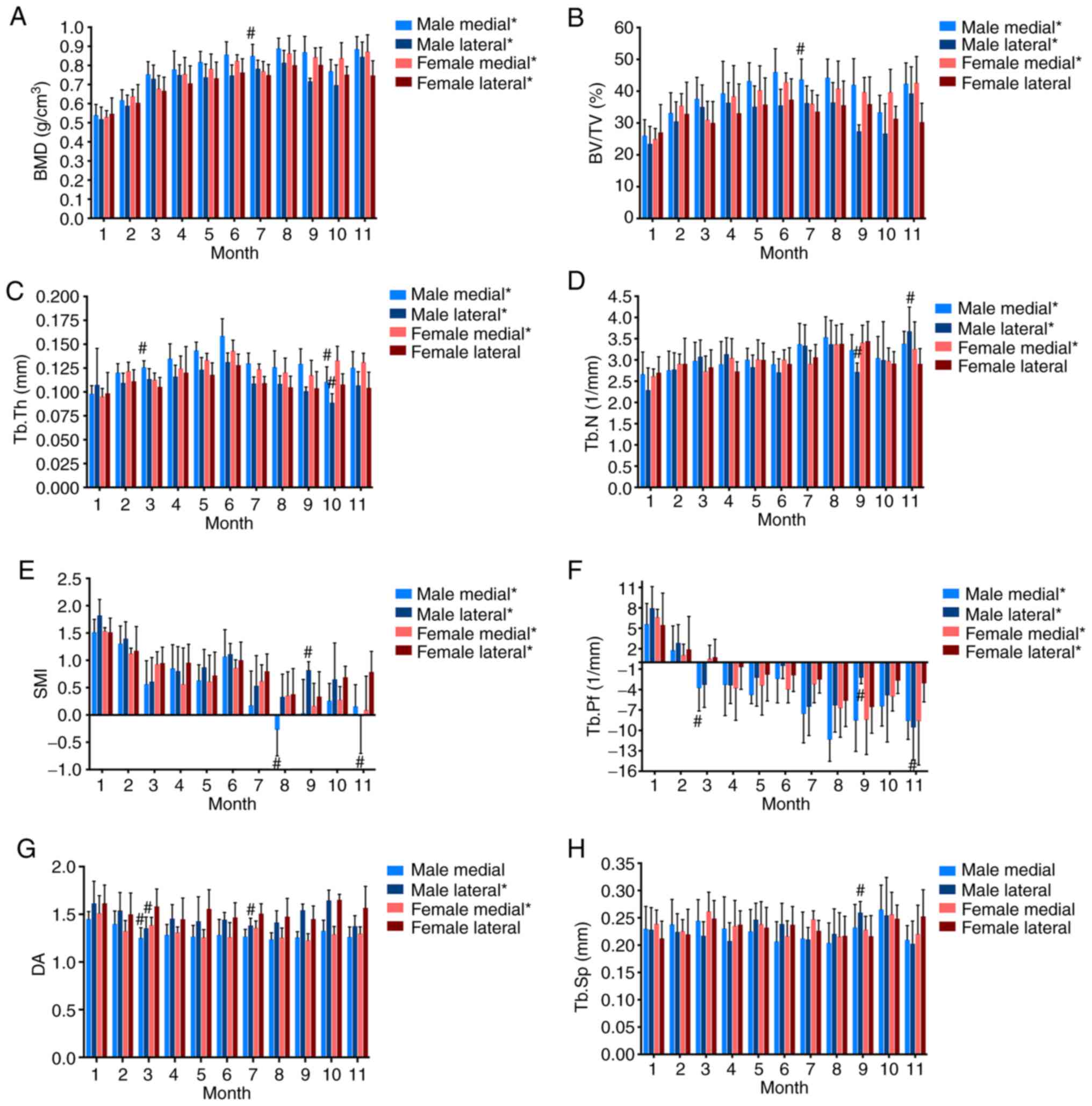

To further characterize the microarchitecture of the subchondral trabecular bone in the guinea pigs, Micro-CT analysis for both sexes was performed (Fig. 3). The BMD of the medial tibial trabecular bone showed an age-related increase in both male and female guinea pigs from 1 to 6 months of age (Fig. 3A). After 6 months, BMD values exhibited slight fluctuations; however, the differences between ages were not significant (Fig. 3A). A similar tendency was observed for the lateral tibial trabecular bone in female guinea pigs. However, the BMD of the lateral tibial trabecular bone in male animals showed a gradual upward trend from ages 1 to 4 months, followed by temporary fluctuations. The BV/TV increased over time on both the medial and lateral sides in the female animals, peaking at 6 months (Fig. 3B). The pattern of BV/TV variation in the medial trabecular bone of male animals was consistent with that in the female animals. In both male and female guinea pigs, the thickness of the trabecular bone gradually increased from 1 to 6 months, and then declined. The trabecular number in the subchondral trabecular bone showed a slight increasing trend (Fig. 3C and D). Trabecular SMI and Tb. Pf exhibited a general decreasing trend with a slight increase during the middle stage of growth (Fig. 3E and F). With age, the subchondral trabecular bone became less anisotropic. No significant changes were observed for trabecular separation as the animals aged (Fig. 3G and H). These results showed that spatial and temporal ultrastructural changes occur in the subchondral trabecular bone of both male and female guinea pigs during aging (detailed comparison results are shown in Tables SI and II).

Identification of differentially expressed proteins in tibial subchondral bone

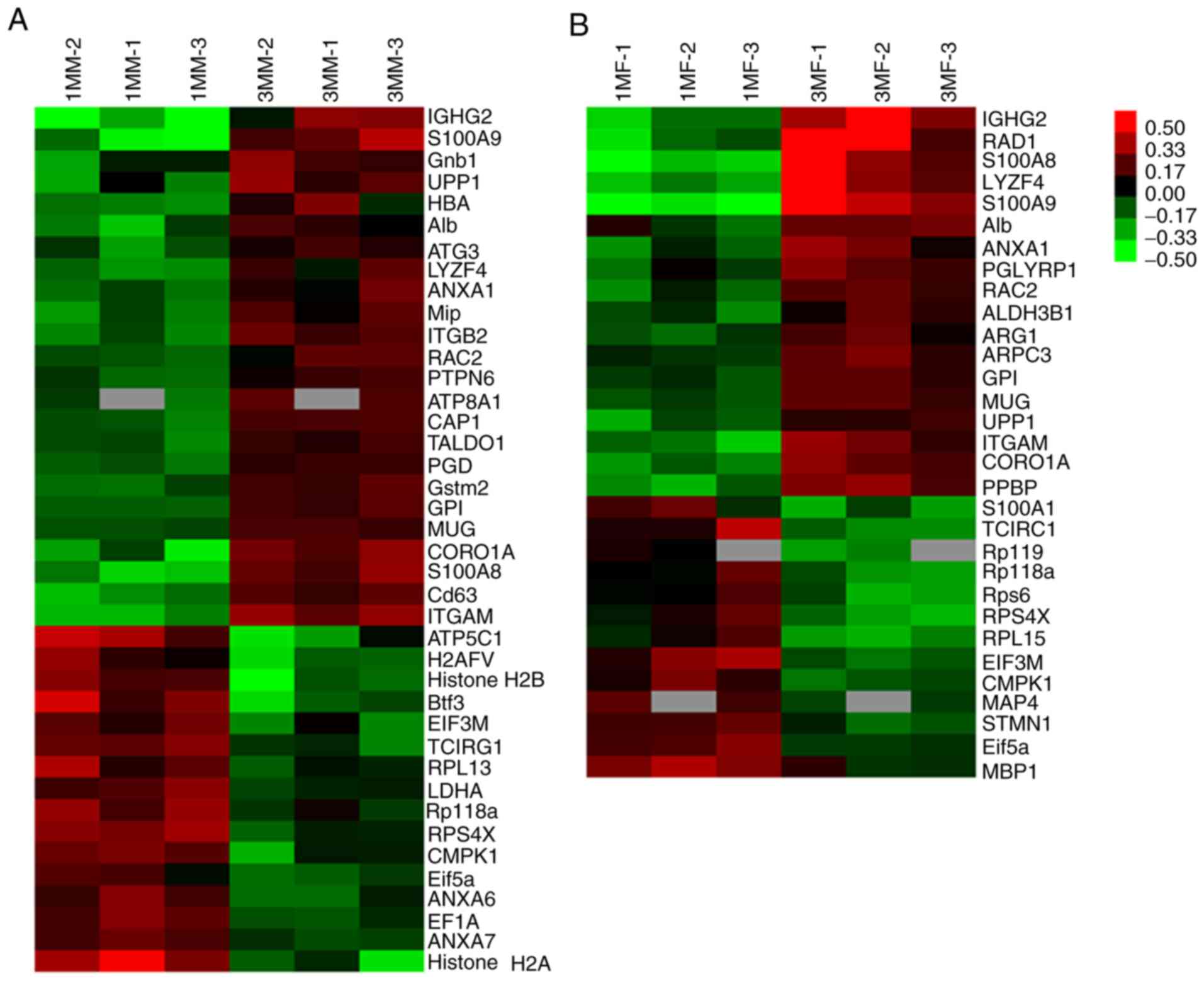

To identify proteomic differences in the tibial articular subchondral bone of both male and female guinea pigs during the early growth stages, high-accuracy LC-MS/MS integrated with iTRAQ analysis was used to determine which proteins were differentially expressed between 1 and 3 months of age. A total of 12,313 unique peptides matching 2,316 non-redundant proteins were identified in the tibial articular subchondral bone of guinea pigs with high confidence (≥1 unique peptide with an FDR ≤1%). The list of candidates was narrowed down to 138 proteins in male guinea pigs and 113 proteins in female guinea pigs using a threshold of >1.2-fold change and P<0.05. After characterizing the expression patterns of these differentially expressed proteins, the proteins were further grouped into two clusters: Upregulated and downregulated expression. Amongst these, half of them were upregulated (69/138) and the other half (69/138) downregulated in the male animals, whereas 60 out of 113 proteins were upregulated and 53 proteins (53/113) were downregulated in the female animals (Fig. S2). Two independent heat maps were produced to show the accumulation patterns of these differentially modulated identity-determined proteins found in the tibial articular subchondral bone tissues from both male and female guinea pigs between different age groups (Fig. 4).

Functional classification and Kyoto encyclopedia of genes and genomes (KEGG) analysis of differentially regulated proteins

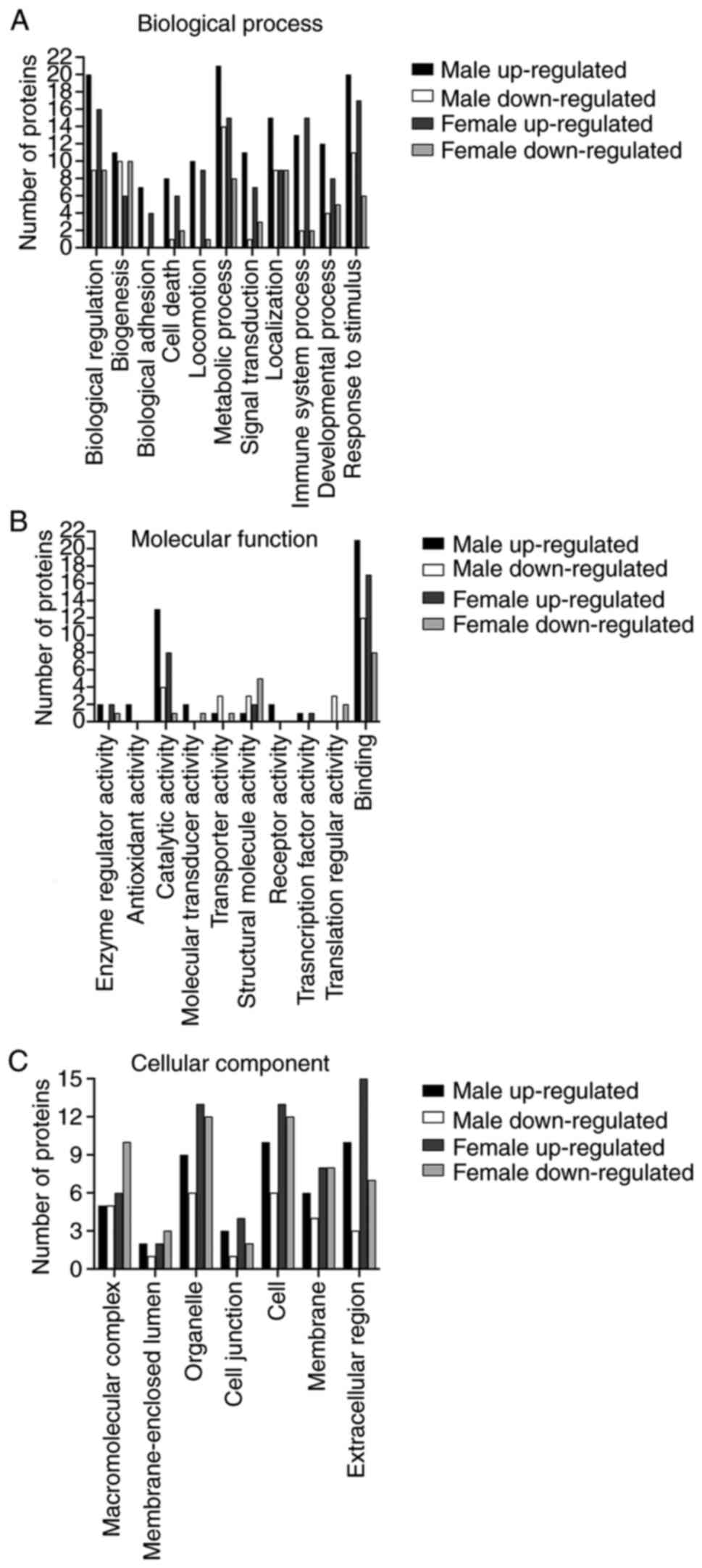

To further understand these differentially expressed proteins identified by the iTRAQ analysis, the proteomic results were analyzed using Gene Ontology (GO), a universally recognized and standardized classification system for gene function. However, since only a small percentage of the guinea pig proteome has been characterized in the Uniprot database, this classification places a particular emphasis on proteins with definite identities. With this caveat, 40 proteins (24 upregulated and 16 downregulated) were identified in male guinea pigs and 31 proteins (18 upregulated and 13 downregulated) were identified in female animals. These proteins were subsequently annotated as three key categories; namely, biological processes, molecular function and cellular components based on GO enrichment analysis. These proteins were mapped onto 11 biological functional categories and annotated with 10 molecular functional terms (Fig. 5A and B). These differentially expressed proteins were also mapped onto 7 cellular components annotations: ‘Macromolecular complex’ (male, 10, 25.0%; female, 16, 51.6%), ‘membrane-enclosed lumen’ (male, 3, 7.5%; female, 5, 16.1%), ‘organelle’ (male, 15, 37.5%; female, 25, 80.6%), ‘cell junction’ (male, 4, 10.0%; female, 6, 19.4%), ‘cell’ (male, 16, 40.0%; female, 25, 80.6%), ‘membrane’ (male, 10, 25.0%; female, 16, 51.6%), and ‘extracellular region’ (male, 13, 32.5%; female, 22, 71.0%) (Fig. 5C). The numbers of upregulated and downregulated proteins for each category are shown in Fig. 5.

To further investigate the functions and signaling pathways in which these identified proteins were involved in, KEGG-based pathway analysis was performed. Several important biological pathways that may be potentially affected by the differentially expressed proteins with definite identities are summarized in Table I. These results reveal that protein signature can be alerted in tibial subchondral bone.

Table I

Kyoto Encyclopedia of Genes and Genomes analysis of the differentially regulated proteins with known identities in the tibial articular subchondral bone of guinea pigs.

Table I

Kyoto Encyclopedia of Genes and Genomes analysis of the differentially regulated proteins with known identities in the tibial articular subchondral bone of guinea pigs.

Pathway termAssociated proteins
‘Ribosome’H0W636, H0VST8, H0W953, H0V1L6, H0VUY3, H0UY44
‘Phagosome’H0V1Y3, H0VVX0, P11578, H0UW57
‘Carbon metabolism’H0VLR7, H0UXA8, H0VCM3, H0VZ24
‘Rap1 signaling pathway’H0VVP9, H0VVX0, P11578
‘Natural killer cell mediated cytotoxicity’H0VVP9, H0VDD2, H0VVX0
‘Glycolysis / Gluconeogenesis’H0VCM3, H0VKB0
‘Ras signaling pathway’A9LS48, H0VVP9
‘Chemokine signaling pathway’A9LS48, H0WD04
‘PI3K-Akt signaling pathway’A9LS48, H0V1L6
‘Lysosome’H0VDY4, H0UW57
‘Regulation of autophagy’H0V7Z3
Verification of differentially expressed proteins using western blotting

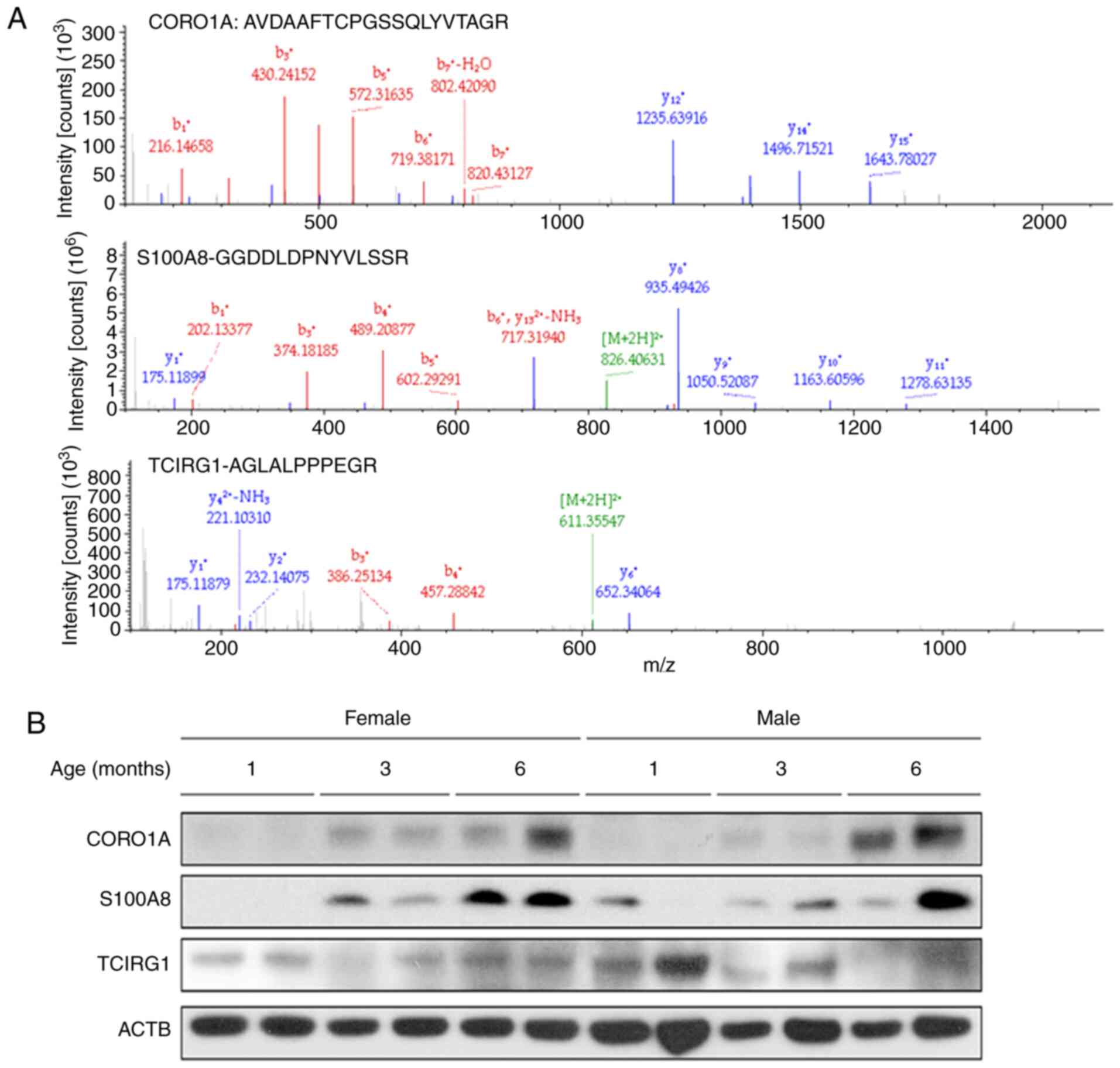

To validate the key proteomic changes identified by the untargeted iTRAQ-based proteomic analysis, western blotting was used to assess the expression of selected candidates. Specific attention was given to those proteins involved in the processes of bone formation and resorption, as these may serve a major role in OA bone remodeling (18). Expression of S100A8, CORO1A and TCIRG1, possibly affect the process of bone remodeling (19-21) (Fig. 6A). As shown in Fig. 6B, the western blotting analysis results precisely mirrored the proteomic findings. During OA progression, there was a continued increase in the expression of CORO1A and S100A8 in the subchondral bone in both male and female guinea pigs from 1 to 6 months. Following an initial decrease, the abundance of TCIRG1 increased from months 3 to 6 in female guinea pigs, whereas its expression levels remained relatively stable in male guinea pigs. Together the data suggest that these proteins may serve a role in subchondral bone homeostasis during spontaneous OA.


Involvement of the subchondral bone in the pathogenesis of OA has been increasingly recognized by recent advances in research. Alterations in the metabolic properties of the subchondral bone during OA progression are more poignant than secondary manifestations and may serve as the potential cause of the disease (18,22-25). In the present study, it was confirmed that both male and female Hartley guinea pigs could be used as a suitable model to investigate the etiology and pathogenesis of OA, consistent with previous studies (26-28). More importantly, to the best of our knowledge, the present study was the first to document a differentially modulated proteome in the tibial articular subchondral bone in male and female guinea pigs using an unbiased proteomic approach followed by western blotting for confirmation. The identification of critical proteins using mass spectrometry-based strategies will serve a key role in elucidating the underlying mechanism of OA, which will not only facilitate further investigation of the pathological process of OA development, but also help develop novel nonsurgical treatment strategies for management of this disease.

In patients with OA, the degree of subchondral trabecular remodeling is correlated with body weight (13). A similar positive correlation between body weight and BMD of subchondral trabecular bone was observed in our 11-month longitudinal study of cartilage degeneration and bone remodeling in male and female guinea pigs. Additionally in the present study, whilst cartilage degeneration occurred in both male and female guinea pigs, male animals tended to exhibit more severe pathological alterations, which may be attributable to their faster growth rate, resulting in their reaching greater body weights earlier than the female counterparts (26).

Research findings from both clinical and animal studies indicate that the pathological remodeling of the subchondral bone occurs in the early stage of OA progression, prior to cartilage degeneration (13,29-32). Consistent with these findings, it was shown that elevated bone turnover occurred as early as 2 months of age, prior to cartilage degeneration in both male and female Hartley guinea pigs. In the early growth stage, it is normally expected that the tibial subchondral trabecular bone shows an age-related increase in BMD, bone volume, trabecular thickness and trabecular number, indicating continual bone remodeling. However, the subchondral trabecular bone in the present study was shown to be more plate-like, as indicated by the continuous decrease in SMI and Tb. Pf., unlike what is observed during the normal aging process (33). Changes from rod-like to plate-like morphology may increase the stiffness of the subchondral trabecular bone (34), which is detrimental to the overlying articular cartilage. Additionally, the subchondral trabecular bone was found to be inferior in its ability to transfer load from cartilage, based on the evidence of lower DA. Moreover, the medial side of the subchondral trabecular bone had a lower SMI and Tb. Pf compared with the lateral sides in both male and female guinea pigs. Such differences between the medial and lateral compartments of the tibial plateau indicate increased mechanical strength on the medial side, which may explain why cartilage degeneration initially occurred in the medial tibial plateau, particularly in the region not covered by the meniscus, as observed in both our current and previous study (26).

A decrease in Tb. N and an increase in Tb. Sp in subchondral trabeculae have been reported in OA (35). However, an increasing trend in Tb. N and no significant difference in Tb. Sp was observed based on the micro-CT analysis in the present study. This discrepancy could be due to factors such as individual variances between animals, or differences in diet and housing conditions (36). Such variations can interfere with disease development and lead to inconsistencies between OA animal experiments (36). In the present study, this issue was circumvented by employing a non-targeted proteomic approach using iTRAQ-integrated LC-MS/MS technology. Instead of investigating only one or a few specific proteins at a time, it was possible to simultaneously identify multiple proteins with this unbiased approach. Non-targeted methods not only directly determine the expression levels of proteins but also provide insights into the functional properties of a larger number of potential candidates under both physiological and pathological conditions. Whilst previous studies (15,16,37) have revealed a large number of cytokines and proteases in the articular cartilage, synovial fluid and serum in patients with OA and in animal models, limited information is currently available regarding the protein profile in the osteoarthritic subchondral bone (38). Microarray technology has revealed the gene-expression profile of the subchondral bone obtained from the knee joint of an experimental rat OA model (39), demonstrating the importance and necessity of research on subchondral bone using high-throughput protein analysis. In the present study, iTRAQ-based LC-MS/MS technology was used to identify proteins involved in the development of OA in the subchondral bone using a spontaneous guinea pig OA model.

The present proteomic analysis showed that 6.6 and 8% of all proteins were significantly altered in the tibial subchondral bone of female and male guinea pigs, respectively, suggesting that further analysis of these differentially expressed proteins may increase our understanding of the role these subchondral bone microstructural changes may serve in OA. Owing to the lack of information on the proteome of guinea pigs, it was only possible to identify 40 proteins (24 upregulated and 16 downregulated) and 31 proteins (18 upregulated and 13 downregulated) with characterized identity, amongst these significantly altered proteins in male and female guinea pigs, respectively.

Bone remodeling is a physiological process governed by an equilibrium between bone formation through osteoblast activity and bone resorption through osteoclast activity (40). Disruption of this balance, which may be caused by chronic inflammation (41), may lead to abnormal changes in bone architecture and quality. OA subchondral bone impairment is characterized by abnormal bone remodeling and altered osteoblast-osteoclast coupling. Based on the present and previous studies (13,29-31), during the pathogenesis of OA, abnormal remodeling of the subchondral bone occurs in the early stage prior to cartilage degeneration, suggesting a vital role of subchondral bone remodeling in OA onset and development. As a result, proteins that are associated with either bone formation or bone resorption have been the subjects of extensive research. From the analysis of differentially expressed proteins identified in the proteomic profiling in the present study, it was decided to focus on three particular proteins, S100A8, CORO1A and TCIRG1, which exhibited a high association with biological processes GO terms, including ‘bone formation’ and ‘bone resorption’. The expression of these proteins was first verified using western blotting. S100A8, which is associated with osteoblast differentiation (19) and osteoarthritic osteophyte formation (42), was upregulated in the osteoarthritic subchondral bone of both male and female guinea pigs. CORO1A, a negative regulator of bone resorption activity through inhibition of the release of cathepsin K, is an important factor in bone resorption by degrading bone matrix proteins (20). The abundance of CORO1A was shown to continuously increase with age in the present study. TCIRG1, a component of the osteoclast vacuolar proton pump, was downregulated at 3 months of age in both male and female guinea pigs, followed by a distinct expression pattern at 6 months of age in guinea pigs of both sexes. Increasing evidence has shown that mutational inactivation of TCIRG1 causes autosomal recessive osteopetrosis, a disorder of bone metabolism caused by subnormal osteoclast function (43-45). In addition, osteoclast function can be restored via lentiviral vector-mediated overexpression of TCIRG1(21). These results further add to the increasing amount of evidence that these proteins may mediate the abnormal formation of subchondral bone in the early growth stage. In future studies, it will be both interesting and important to elucidate their specific functions in initiation and progression of OA.

In conclusion, the results of the present study provide novel insights into the potential mechanisms underlying the malformation of subchondral bone during OA development and progression. Future studies using various cell lines, animal models and human osteoarthritic specimens are required to further elucidate the roles of these differentially expressed proteins in the osteoarthritic subchondral bone identified in the present study, as they may provide a mechanistic basis for development of novel OA treatments.

Supplementary Material

Detailed body weight comparisons of male and female animals from 1 to 11 months of age. There was a significantly higher growth rate in male guinea pigs compare with the female guinea pigs. n=6 per group.
Heat maps of identified proteins with definite identities detected in the subchondral bone of (A) male and (B) female Hartley guinea pigs. Amongst these, half of the proteins were upregulated (69/138) and the other half (69/138) were downregulated in the male animals, whereas 60 out of 113 proteins were upregulated and 53 proteins were downregulated in the female animals. 1MM, 1-month-old male guinea pig; 1MF, 1-month-old female guinea pig; 3MM, 3-month-old male guinea pig; 3MF, 3-month-old female guinea pig.
Medial or lateral microarchitecture of the subchondral trabecular bone alterations between ages.
Raw values of microarchitecture factors of the subchondral trabecular bone.


Not applicable.


Funding: This study was supported by grants from the National Natural Science Foundation of China (grant nos. 81330043 and 81071499).

Availability of data and materials

The datasets generated and/or analyzed during the current study are not publicly available due to compliance with the Inner Confidentiality Policy of Scientific Data by Beijing Research Institute of Traumatology and Orthopedics but are available from the corresponding author on reasonable request.

Authors' contributions

CW, XJ and WT designed the experiments. YW performed the animal experiments. YW, XJ and CW analyzed the data. DZ facilitated animal breeding, acquired images and interpreted the data. JT performed image analysis. YW and CW wrote the manuscript. CW, YW and XJ confirm the authenticity of all the raw data. All authors read and approved the final manuscript.

Ethics approval and consent to participate

All animal experiments were approved by the Beijing Jishuitan Hospital Animal Care and Use Committee, Beijing, China.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
