Curcumin inhibits advanced glycation end product‑induced oxidative stress and inflammatory responses in endothelial cell damage via trapping methylglyoxal
Affiliations: Department of Pharmacognosy, Xi'an Medical University, Xi'an, Shaanxi 710021, P.R. China, Key Laboratory of New Drug Delivery System of Chinese Materia Medica, Affiliated Hospital of Integrated Traditional Chinese and Western Medicine, Nanjing University of Chinese Medicine, Nanjing, Jiangsu 210028, P.R. China, Key Laboratory of New Drug Delivery System of Chinese Materia Medica, Jiangsu Provincial Academy of Chinese Medicine, Nanjing, Jiangsu 210028, P.R. China, Department of Pharmacology, Shaanxi University of Chinese Medicine, Xianyang, Shaanxi 712046, P.R. China
- Published online on: December 28, 2015 https://doi.org/10.3892/mmr.2015.4725
- Pages: 1475-1486
Copyright: © Sun et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
This article is mentioned in:
Endothelial dysfunction has similar early pathological alterations and risk factors to those in vascular diseases, such as cardiovascular disease and diabetic vascular complications (1). Endothelium-dependent damage arises from metabolic abnormalities in the glucose metabolism that lead to vascular dysfunction (2). Carbonyl compound-induced stress and pro-inflammatory responses lead to the formation of advanced glycation end products (AGEs) (3). Methylglyoxal (MGO), a key precursor for AGEs and a reactive dicarbonyl compound, is suggested to be an intermediate derived from the metabolism of glucose (4). Numerous previous studies support a role for MGO in triggering two distinct signaling cascades leading to oxidative damage and pro-inflammatory responses in HUVECs (5,6). The trapping of dicarbonyl compounds like MGO represents an effective strategy for attenuating carbonyl stress-induced endothelial injury (3).
Curcumin (Cur) is the most active component of the curcuminoids extracted from Curcuma longa L. and has been demonstrated to protect against AGE-induced cellular inflammatory responses and oxidative stress in vascular complications (7,8). Increasing evidence has suggested that Cur possesses a potential protective effect against MGO-induced endothelial dysfunction via scavenging reactive oxygen species (ROS) and attenuating the levels of inflammatory mediators (9). Previous studies have indicated that Cur may prevent MGO-induced endothelial dysfunction by directly trapping MGO to form a curcumin-MGO adduct at the electron-dense carbon atom (C10) between the two keto carbon groups (10). However, Cur-MGO adducts have not been studied in depth at present and it remains to be investigated whether Cur-MGO adducts are able to attenuate cytotoxicity in HUVECs.
In the present study, the trapping capacity of Cur was investigated through examining the optimal reaction parameters and analyzing the Cur-MGO adducts by high-performance liquid chromatography-diode-array detection (HPLC-DAD) coupled with liquid chromatography-electrospray ionization-tandem mass spectrometry (LC-ESI-MS/MS). Furthermore, the differences in the levels of oxidative damage and pro-inflammatory cytokines as a result of the formation of AGEs in the presence or absence of Cur were compared in HUVECs to investigate the protective mechanisms of Cur on endothelial dysfunction.
Materials and methods
Chemicals and materials
MGO, 40% aqueous solution), aminoguanidine hydrochloride (AG; purity ≥98%), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT), 1,2-diaminobenzene (DB) and 2-methylquinoxaline were purchased from Sigma-Aldrich (St. Louis, MO, USA). Human serum albumin (HSA) was obtained from Amresco LLC (Solon, OH, USA). Human AGEs ELISA kit, SABC kit, transforming growth factor-β1 (TGF-β1; cat. no. sc-1672; 1:200) and intercellular adhesion molecule-1 (ICAM-1; cat. no. sc-1506; 1:200) antibodies were obtained from Santa Cruz Biotechnology, Inc., (Dallas, TX, USA). The ROS kit was purchased from Beyotime Institute of Biotechnology (Nantong, China). Curcumin (purity ≥98%) was obtained from the National Institute for the Control of Pharmaceutical and Biological Products (Beijing, China). HPLC-grade methanol was purchased from Tedia (Fairfield, OH, USA). HPLC-grade water was prepared using a Millipore Milli-Q purification system (EMD Millipore, Billerica, MA, USA). Other reagents were analytical grade and from Nanjing Chemical Reagent Co., Ltd. (Nanjing, China).
Human umbilical vein endothelial cells (HUVECs), were selected to model endothelial disease in vitro and were purchased from the American Type Culture Collection (Manassas, VA, USA). HUVECs were cultured in low-glucose Dulbecco's modified Eagle's medium supplemented with 10% fetal bovine serum (FBS; Gibco Life Technologies, Carlsbad, CA, USA), 80 U/ml penicillin and 80 U/ml streptomycin. The cells were maintained in a humidified incubator at 37°C containing 5% CO2. The culture medium was replaced every 2 days. HUVECs used in the study were passaged 3–5 times prior to use.
Reaction of Cur or DB with MGO
DB (1 mM) and MGO (1 mM) were incubated in 2 ml phosphate-buffered saline (PBS; 0.2 M, pH 7.4; Nanjing KeyGen Biotech Co., Ltd., Nanjing, China). The mixtures were agitated at 40 rpm at 37°C for 30, 90, 240 and 720 min. A PBS solution was used as the blank control. Cur (1 mM) and MGO (1 mM) were incubated in 0.2 M PBS. The mixtures were agitated at 40 rpm at 37°C for 720 min. MGO alone (1 mM) or Cur (1 mM) was used as the control. Following the reaction, the samples were dried using high purity nitrogen overnight. The residue was redissolved in 1 ml HPLC-grade methanol and vortexed for 30 sec. The sample solutions were filtered through a 0.45 µm microporous membrane prior to HPLC analysis.
Kinetic study of the trapping of MGO by Cur
In order to optimize the incubation ratio of Cur and MGO, Cur (0.2, 0.33, 1, 3 and 5 mM) was incubated with 1 mM MGO in 3 ml PBS (0.2 M, pH 7.4) at 37°C and agitated at 40 rpm. Subsequently, 200 µl reaction mixture was collected at each time point, 1 µl acetic acid (Nanjing Chemical Reagent Co., Ltd.) added to stop the reaction and 100 mM DB (14.6 mmol) added to react with the remaining MGO, as previously described (11).
HPLC analysis of the reaction mixture of Cur or DB with MGO
HPLC-DAD was conducted to analyze the reaction mixture of Cur or DB with MGO. This analysis was conducted on an Agilent 1200 system (Agilent Technologies, Inc., Santa Clara, CA, USA) which was equipped with a quaternary pump, DAD detector, an autosampler and Agilent ChemStation B.0401 software. The analysis conditions were as follows: An Alltima C18 (4.6×150 mm, 5 µm) column was used for this analysis; the flow rate was set at 1.0 ml/min and the column temperature maintained at 30°C. For the reaction of Cur and MGO, the mobile phase consisted of methanol (eluent A) and water (eluent B) with a gradient program of 0–45 min, 2–80% A, conducted for component separation with a linear gradient elution, and the determination wavelength set at 425 nm. For the reaction of DB and MGO, methanol (eluent A) and water (eluent B), (0–9 min, 5–50% A) was used for the mobile phase with a wavelength of 280 nm set. In total, a 20 µl sample was injected into the HPLC system.
An Agilent 1200 HPLC system combined with an LCQ-Fleet Ion Trap Mass Spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) was used to identify the chemical structure of the Cur-MGO adducts. The detailed conditions and parameters were as follows: The ionization was achieved using the electrospray in positive mode; helium was used as the collision gas and nitrogen (N2) as the nebulizing gas; spray voltage was set at 4.5 kV and capillary voltage at 5 V; the capillary temperature was kept at 300°C; N2 was selected as the sheath gas and its pressure was set at 90 arbitrary units. In addition, the isolation width of the precursor ions was set at 1.5 Th. The mass range of compounds scanned was from 50–1,200 m/z.
MGO derived-AGEs preparation in the presence or absence of Cur
MGO-AGEs were prepared with a modified reaction quantity of HSA and MGO as previously described (12). Briefly, 4 mg HSA and 50 mM MGO were incubated in 1 ml PBS (0.2 M, pH 7.4) in the presence or absence of Cur (10−7, 10−6 and 10−5 M) under sterile conditions and maintained in 95% air/5% CO2 at 37°C. For the kinetic study, the mixture was agitated for 0, 4, 12, 24, 48, 72, 96, 120, 144 and 168 h. Similarly, HSA in the absence of MGO was incubated in the same conditions. AG (10−6 M) was selected as the positive control. The fluorescent intensity of MGO-AGEs was determined using a fluorescent microplate reader with the excitation/emission wavelength set at 370/440 nm (Gemini EM™; Molecular Devices, LLC, Sunnyvale, CA, USA) (13). In addition, the level of MGO-AGEs was measured using an AGEs ELISA kit and a SpectraMax 190 microplate reader at 450 nm (Molecular Devices, LLC). The obtained MGO-AGEs were stored at 4°C for further experimental use. MGO-AGEs containing 1 mM MGO were used for the cell experiments.
ELISA assay for MGO-AGEs
In order to measure the inhibitory effect of Cur on the formation of MGO-AGEs, an Human AGE ELISA kit (cat. no. sc-1609; Santa Cruz Biotechnology, Inc.) was used to measure the level of MGO-AGEs, according to the manufacturer's instructions. The optical density (OD) value of samples was measured using an MK-3 microplate reader (Thermo Fisher Scientific, Inc.) at 450 nm.
Dihydroethidium (DHE) staining and flow cytometry for the level of ROS
MGO-AGEs may induce intracellular ROS generation and lead to endothelial injury. Therefore, in the current study, DHE (Nanjing KeyGen Biotech Co., Ltd.) staining was conducted to measure the level of ROS as previously described (14). Cells were incubated with 5 µM DHE at 37°C for 30 min according to the manufacturer's instructions. The free DHE molecules were then removed by washing with PBS. Fluorescent images of ROS were captured by fluorescence microscopy (Olympus IX73; Olympus Corporation, Tokyo, Japan). In addition, the level of intracellular ROS was measured using flow cytometery (FACSCalibur; BD Biosciences, Franklin Lakes, NJ, USA) at an excitation/emission wavelength of 488/530 nm (15). The fluorescence intensity of DHE was analyzed in 10,000 cells using CellQuest software (BD Biosciences).
MTT assay for cell viability
To investigate the cytotoxicity of the Cur-MGO adducts, an MTT assay was used to measure the cell viability of HUVECs. Cells (1×105 cells/well) were seeded into 96-well plates and incubated for 24 h. Once 80% confluent, cells were stimulated with Cur-MGO adducts for 48 h. Subsequently MTT (5 mg/ml, 10 µl) was added in FBS-free media to each well to replace the original media and then incubated for 4 h at 37°C in an incubator. Following this, the supernatant was removed and the formazan crystals were dissolved in 100 µl dimethyl sulfoxide (Nanjing Chemical Reagent Co., Ltd.). Following agitation for 10 min, the OD of each sample was measured using the microplate reader at 550 nm. Cell viability was calculated according to the relative difference in OD value.
Immunocytochemistry for ICA M-1 and TGF-β1
Immunocytochemistry was conducted to investigate the effect of Cur-MGO adducts on the expression levels of ICAM-1 and TGF-β1 in HUVECs (16). Cells were grown on glass coverslips in 24-well plates. Following 48 h stimulation with Cur-MGO adducts, HUVECs were fixed in fresh 4% formaldehyde (Nanjing Chemical Reagent Co., Ltd.) and washed three times in PBS. Cells were treated with 3% H2O2 for 10 min to block endogenous peroxidase activity. Subsequently, cells were blocked with 5% bovine serum albumin (BSA; Roche Diagnostics, Basel, Switzerland) for 30 min and then incubated with ICAM-1 (1:500) or TGF-β1 (1:500) antibodies for 120 min at 37°C. Cells were then incubated with biotin-conjugated secondary antibodies ICAM1 and TGF-β1 for 120 min at room temperature, and the staining was visualized using 3,3-diaminobenzidine (Nanjing KeyGen Biotech Co., Ltd.). The cells were counterstained with hematoxylin (Nanjing KeyGen Biotech Co., Ltd.) and images were captured using a microscope (Olympus IX71; Olympus Corporation) and Image-Pro Plus 6.0 software (Media Cybernetics, Inc., Rockville, MD, USA). As a control, the primary antibodies were replaced with PBS.
Western blot analysis for ICAM-1 and TGF-β1 levels
Following treatment with Cur-MGO adducts, protein was extracted from HUVECs using lysis buffer containing 1% Triton X-100 (Nanjing Chemical Reagent Co., Ltd.), 150 mM NaCl (Nanjing Chemical Reagent Co., Ltd.), 1 mM EDTA (Nanjing KeyGen Biotech Co., Ltd.), 20 mM Tris-HCl (Nanjing KeyGen Biotech Co., Ltd.), 5 µg/ml pepstatin A (Nanjing KeyGen Biotech Co., Ltd.), 2 mM diisopropyl fluorophosphate (Nanjing Chemical Reagent Co., Ltd.) and 1 mM phenylmethylsulfonyl fluoride (Nanjing Chemical Reagent Co., Ltd.). Equal amounts of protein (50 µg) were loaded and then separated using 10% SDS-PAGE (Nanjing KeyGen Biotech Co., Ltd.). Subsequently, the proteins were transferred to polyvinylidene difluoride membranes (EMD Millipore). Following blocking with 5% BSA in Tris-buffered saline containing 0.1% Tween-20 (Nanjing KeyGen Biotech Co., Ltd.) for 1 h, the membranes were incubated with primary antibodies against ICAM-1 (1:500) or TGF-β1 (1:500) at 37°C for 2 h. Following three washes with PBS, the membranes were incubated with horseradish peroxide-conjugated ICAM1 and TGF-β1 secondary antibodies (1:1,000) for 2 h at 37°C. Bands were visualized using enhanced chemiluminescence (Nanjing KeyGen Biotech Co., Ltd.) and imaged using a minicamera (Olympus IX71). The experiment was repeated a minimum of three times.
All data were taken from three individual experiments and presented as the mean ± standard deviation. SPSS software, version 16.0 (SPSS, Inc., Chicago, IL, USA) was used to conduct statistical analyses using a one-way analysis of variance and Tukey's test. P<0.05 was considered to indicate a statistical significance difference.
The reliability of the reaction system
To ensure the reliability of the reaction system, DB was reacted with MGO. The aldehyde groups of MGO and the amino groups of DB form −CH=N- through a Schiff base reaction, forming 2-methylquinoxaline (Fig. 1A). Following the reaction, the 2-methylquinoxaline generated by the reaction system was analyzed by HPLC-DAD at 280 nm. As presented in Fig. 1B, the reaction product matched the 2-methylquinoxaline standard according to the UV spectra and retention times. In order to investigate the optimal reaction time, 30, 90, 240 and 720 min were selected as reaction time points. The HPLC-DAD indicated that the level of 2-methylquinoxaline in the reaction system increased gradually and that the content reached the maximum level at 720 min (content at later time points was measured in preliminary experiments). Therefore, 720 min was selected as the optimal reaction time. The results indicated that the reaction system was suitable for trapping dicarbonyl compounds.

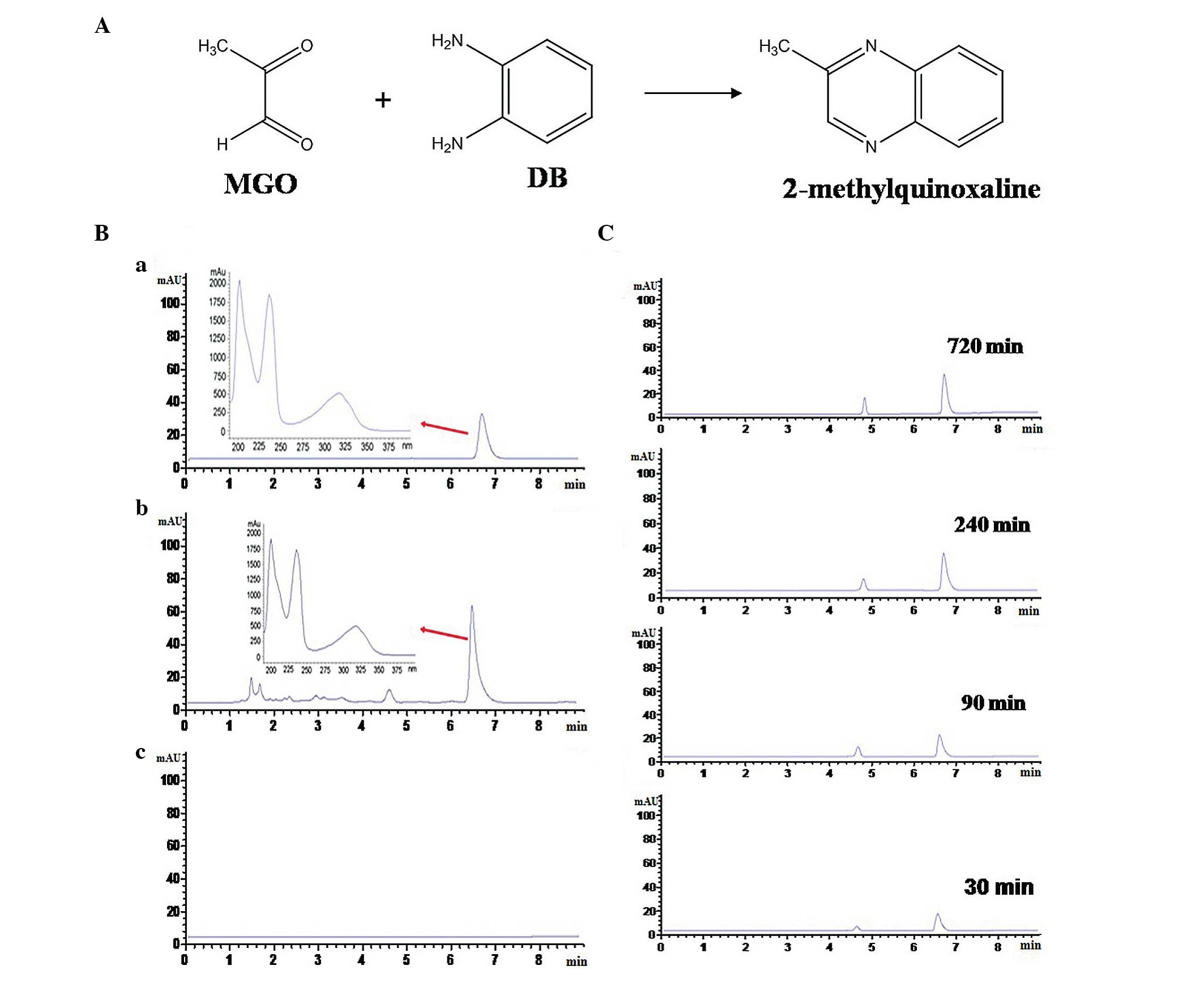

Reliability of the reaction system of MGO and Cur. DB (1 mM) was reacted with MGO (1 mM) in PBS solution to form 2-methylquinoxaline. (A) The chemical reaction of MGO and DB. (B) High-performance liquid chromatography analysis (280 nm wavelength) of 2-methylquinoxaline derived from MGO and DB (a, the reaction product; b, 2-methylquinoxaline standard; c, PBS). (C) The formation of 2-methylquinoxaline in the reaction system at different time points. MGO, methylgloxal; Cur, curcumin; DB, 1,2-diaminobenzene; PBS, phosphate-buffered saline.
The optimal reaction ratio for the trapping of MGO by Cur
In order to identify the optimal reaction conditions, the ratio of MGO:Cur (1:5, 1:3, 1:1, 3:1 and 5:1) was investigated. As presented in Fig. 2, the content of Cur in the reaction system was reduced and three novel peaks were increased with the increasing MGO:Cur ratio. When the ratio of MGO:Cur was 1:1, the content of Cur was not further reduced while the formation of MGO-Cur adducts was not increased. This indicated that the 1:1 ratio of MGO:Cur resulted in a complete chemical reaction.

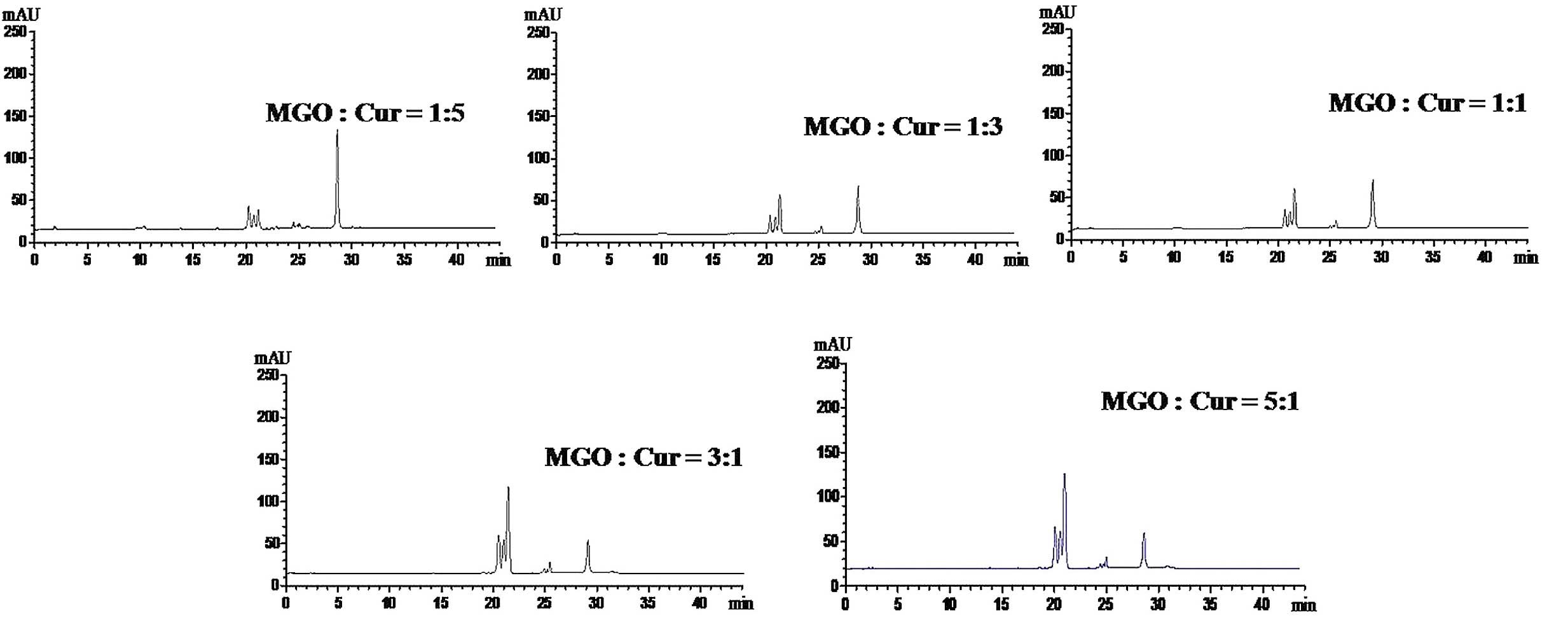

Screening for the optimal reaction ratio of Cur and MGO. The reaction was conducted in the phosphate-buffered saline solution system (pH 7.4, 37°C) containing MGO:Cur at ratios of 1:5, 1:3, 1:1, 3:1 and 5:1 for 720 min. Cur, curcumin; MGO, methylgloxal.
Identification of Cur-MGO adducts by HPLC/electrospray ionization tandem mass spectrometry (HPLC-ESI-MS/MS)
The ability of Cur to capture the carbonyl compound MGO was investigated in the reaction system. MGO (1 mM) and Cur (1 mM) were reacted together for 720 min. As presented in Fig. 3A, compared with Cur alone or MGO alone, three new peaks were formed on the chromatogram along with a reduction in the Cur peak. The retention time of Cur was 29.16 min while the three Cur-MGO adducts were 20.17, 20.94 and 21.37 min. These results demonstrated that Cur is able to trap MGO to form three Cur-MGO adducts.
Trapping ability of Cur on MGO in (A) the reaction system and (B) the proposed formation pathway. MGO (1 mM) was reacted with Cur (1 mM) in phosphate-buffered saline solution for 720 min. The compounds formed from the reaction system were detected by high-performance liquid chromatography/diode-array detection at 425 nm. MGO or Cur alone were selected to be compared with the generated compounds. Cur, curcumin; MGO, methylgloxal.
To identify the Cur-MGO adducts, HPLC-ESI-MS/MS was conducted to analyze the molecular ion composition. As presented in Fig. 4, Cur-MGO adducts exhibited similar retention times of pure Cur and the molecular ion mass to charge ratios (m/z) of 339, 309, 293 and 217 [(M+H)−]. Peak 1 was identified as Cur-MGO adduct 1 according to the fragment ion m/z of 411, 381, 364, 289 and 217 [(M+H)−]. Adduct 1 is the same as a previously reported adduct, with a β-hydrogen shift to the double bond of one of the diketones of deprotonated Cur (10). In addition, the current study identified two novel Cur-MGO adducts, adducts 2 and 3. Based on the fragment ion m/z of 411, 381, 365, 349, 273 and 217, and 381, 365, 349, 273 and 201, adducts 2 and 3 were suggested to be present due to the observation of the loss of one or two −OCH3 groups, respectively. The formation of these adducts may be associated with the structural instability of Cur and Cur-MGO adducts. The potential formation pathway under physiological conditions of Cur-MGO adducts is presented in Fig. 3B (pH 7.4, 37°C).

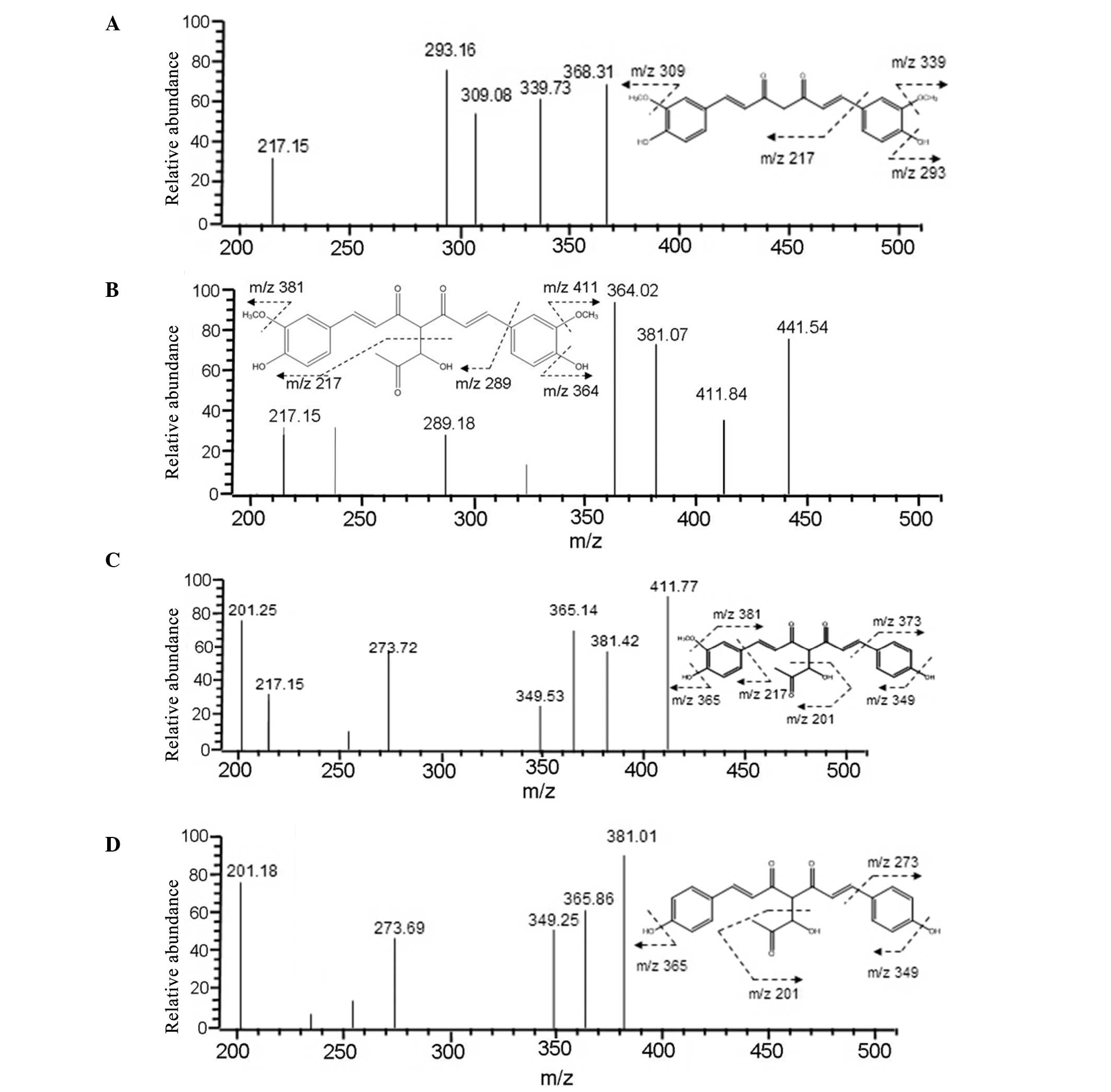

Identification of curcumin-methylglyoxal adducts using high-performance liquid chromatography/electrospray ionization tandem mass spectrometry. (A) Curcumin; (B) adduct 1; (C) adduct 2; (D) adduct 3.
Inhibitory effect of Cur on the formation of AGEs
In order to further investigate the inhibitory effect of Cur on the formation of AGEs through the trapping of dicarbonyl compounds, Cur was incubated with MGO and HSA and the reaction kinetics were measured. As presented in Fig. 5A, there was a reduction in the formation of MGO-AGEs with increasing concentrations of Cur (10−7–10−5 M). Following incubation for 24 h, the relative fluorescence units of the samples in the presence or absence of Cur were stable. Furthermore, AG, the positive control (10−6 M), demonstrated a significant inhibition of the formation of MGO-AGEs. In addition, the results of the ELISA demonstrated that Cur was able to significantly inhibit the formation of MGO-AGEs in a concentration-dependent manner, compared with the MGO and MGO + HSA groups (P<0.01; Fig. 5B and C). These results indicate that Cur inhibits the formation of MGO-AGEs in the reaction system.

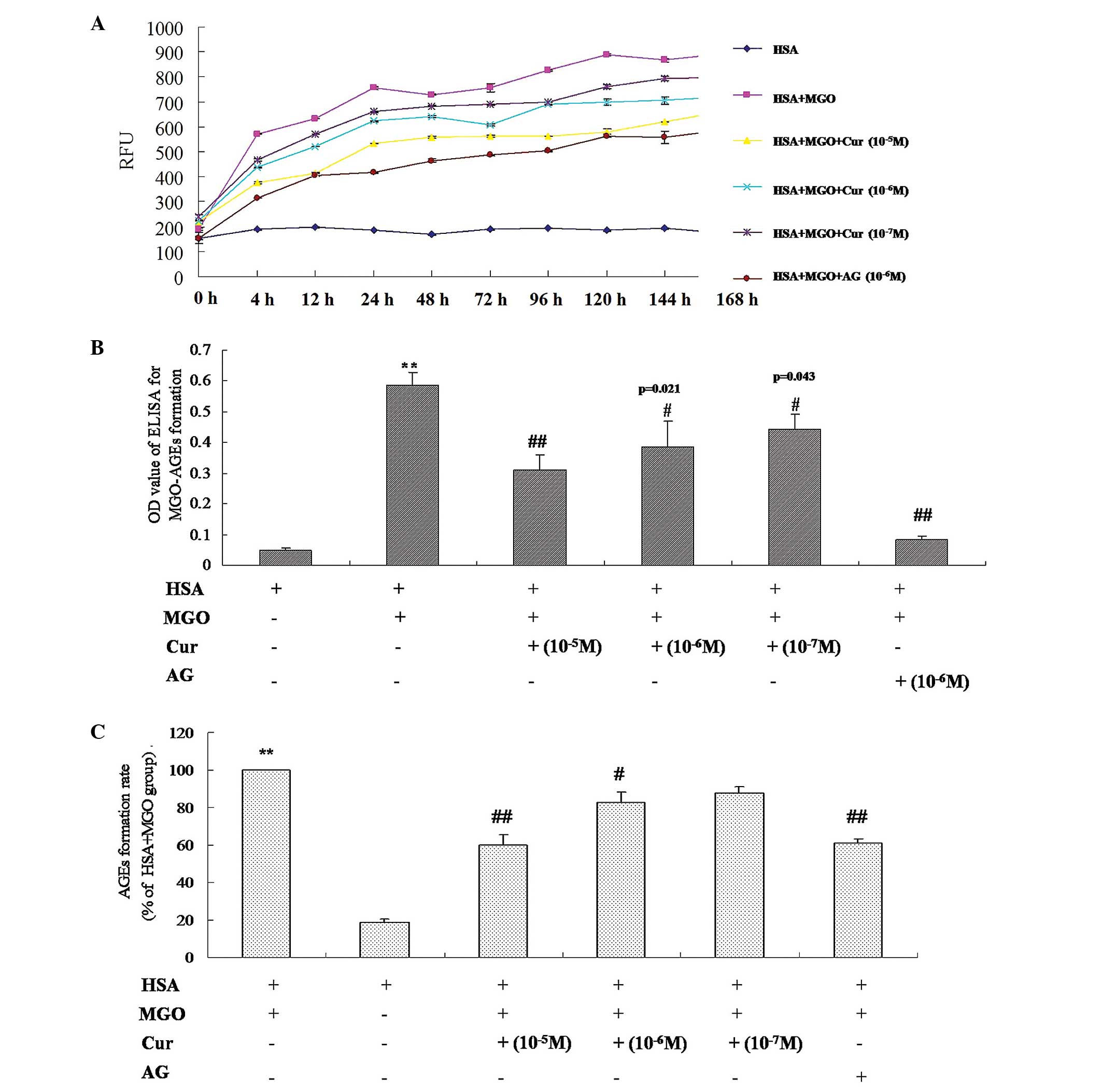

Inhibitory effect of Cur on the formation of AGEs in the MGO and HSA reaction system. Cur (10−7, 10−6 and 10−5 M) was co-incubated with MGO (50 mM) and HSA (4 mg) in 1 ml phosphate-buffered saline solution for 0, 4, 12, 24, 48, 74, 96, 120, 144 and 168 h. (A) The fluorescent intensity of MGO-AGEs was determined at the excitation/emission wavelengths of 370/440 nm. (B) The level of MGO-AGEs was measured using ELISA and (C) the relative formation rate of MGO-AGEs was calculated. The formation rate of MGO-AGEs was calculated according to the following formula: The formation rate= [(OD MGO & HSA - OD MGO & HSA & Cur)/OD MGO & HSA] × 100. AG (10−6 M) was used as the positive control. The data are presented as the mean ± standard deviation (n=6). **P<0.01, vs. HSA or vs. MGO + MGO; #P<0.01, ##P<0.01, vs. MGO + HSA. Cur, curcumin; AGEs, advanced glycation end products; MGO, methylgloxal; HSA, human serum albumin; OD, optical density; AG, aminoguanidine hydrochloride; RFU, relative fluorescence units.
Attenuation of ROS generation by Cur-MGO adducts in HUVECs
The level of ROS in HUVECs was measured using a ROS kit and flow cytometry. As presented in Fig. 6A, the production of ROS was significantly induced by MGO or MGO + HSA (P<0.01). However, the generation of ROS was inhibited following incubation with Cur-MGO adducts in a concentration-dependent manner. Quantification of the flow cytometry results demonstrated that the Cur-MGO adducts resulted in a significant reduction in the generation of ROS (P<0.05 or P<0.01) (Fig. 6B and C). These data demonstrate that Cur may attenuate MGO-induced endothelial dysfunction via the trapping of MGO.
Effect of Cur-MGO adducts on ROS generation in HUVECs. (A) Intracellular ROS was stained with 5 µM DHE and imaged using fluorescence microscopy. (B) The level of intracellular ROS was measured using flow cytometry and (C) the fluorescence intensity was calculated. a, HSA; b, MGO; c, MGO + HSA; d, MGO + HSA + Cur (10−7 M); e, MGO + HSA + Cur (10−6 M); f, MGO + HSA + Cur (10−5 M); g, MGO + HSA + AG (10−6 M); h, negative control. The experiments were repeated three times and the data are presented as the mean ± standard deviation (n=3). **P<0.01, vs. HSA; #P<0.05, ##P<0.01, vs. MGO; $$P<0.01, vs. HSA + MGO. Cur, curcumin; MGO, methylgloxal; ROS, reactive oxygen species; HUVECs, human umbilical vein endothelial cells; DHE, dihydroethidium; HSA, human serum albumin; AG, aminoguanidine hydrochloride.
Reduced cytotoxicity of HUVECs treated with Cur-MGO adducts
An MTT assay was conducted to measure the cell viability of HUVECs in order to investigate the role of Cur in the protection against MGO-induced cell injury. Following exposure to MGO or MGO + HSA, the cell viability of HUVECs was reduced compared with HSA treatment only (P<0.05). Notably, this reduction was restored to normal levels by Cur-MGOs (10−7, 10−6 and 10−5 M). In addition, the Cur-MGO adducts resulted in reduced cytotoxicity compared with MGO + HSA. Furthermore, the effect of Cur was similar to that of the AG postive control (10−6 M; Fig. 7). These data suggest that Cur may attenuate MGO-induced cell damage and this effect may be associated with its ability to trap MGO.

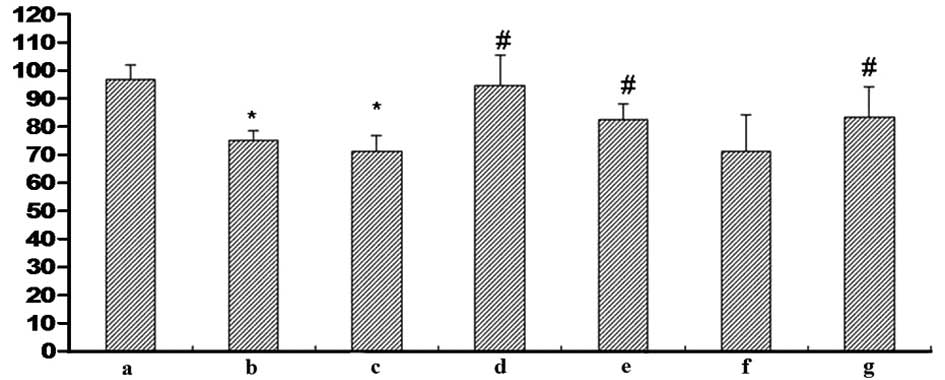

Effect of Cur-MGO adducts on the cell viability of HUVECs. Cells were treated with the reaction solution and the optical density value was determined using an MTT assay. a, HSA; b, MGO; c, MGO + HSA; d, MGO + HSA + Cur (10−7 M); e, MGO + HSA + Cur (10−6 M); f, MGO + HSA + Cur (10−5 M); g, MGO + HSA + AG (10−6 M). The data are presented as the mean ± standard deviation (n=3). *P<0.01, vs. HSA; #P<0.05, vs. MGO or MGO + HSA. Cur, curcumin; MGO, methylgloxal; HUVECs, human umbilical vein endothelial cells; HSA, human serum albumin; AG, aminoguanidine hydrochloride.
Reduced upregulation of the expression of ICAM-1 and TGF-β1 with Cur-MGO adducts
The expression levels of ICAM-1 and TGF-β1 in HUVECs were measured by immunocytochemistry and western blot analysis. As presented in Figs. 8 and 9, MGO (1 mM) or MGO + HSA upregulated the expression levels of ICAM-1 and TGF-β1 in HUVECs following stimulation for 48 h. In addition, incubation with Cur-MGO adducts (10−7, 10−6 and 10−5 M) resulted in reduced upregulation in the expression levels of ICAM-1 and TGF-β1 in HUVECs compared with MGO or MGO + HSA (P<0.05 or P<0.01). These data indicate that Cur is able to attenuate the effect of MGO on the expression of ICAM-1 and TGF-β1 in HUVECs. The effect of Cur may be associated with its ability to trap the carbonyl compound MGO.
Regulation of Cur-MGO adducts on inflammatory cytokines (A and B) ICAM-1 and (C and D) TGF-β1 expression in HUVECs by immunocytochemistry. a, Control; b, HSA; c, MGO; d, MGO + HSA; e-g, MGO + HSA in the presence of 10−7, 10−6 and 10−5 M Cur, respectively; h, MGO + HSA in the presence of 10−6 M AG. This experiment was performed three times. The data are presented as the mean ± standard deviation (n=3). **P<0.01, vs. HSA; #P<0.05 and ##P<0.01, vs. MGO and HAS+MGO. Cur, curcumin; MGO, methylgloxal; ICAM-1, intercellular adhesion molecule-1; TGF-β1, transforming growth factor-β1; HUVECs, human umbilical vein endothelial cells; HSA, human serum albumin; AG, aminoguanidine hydrochloride.

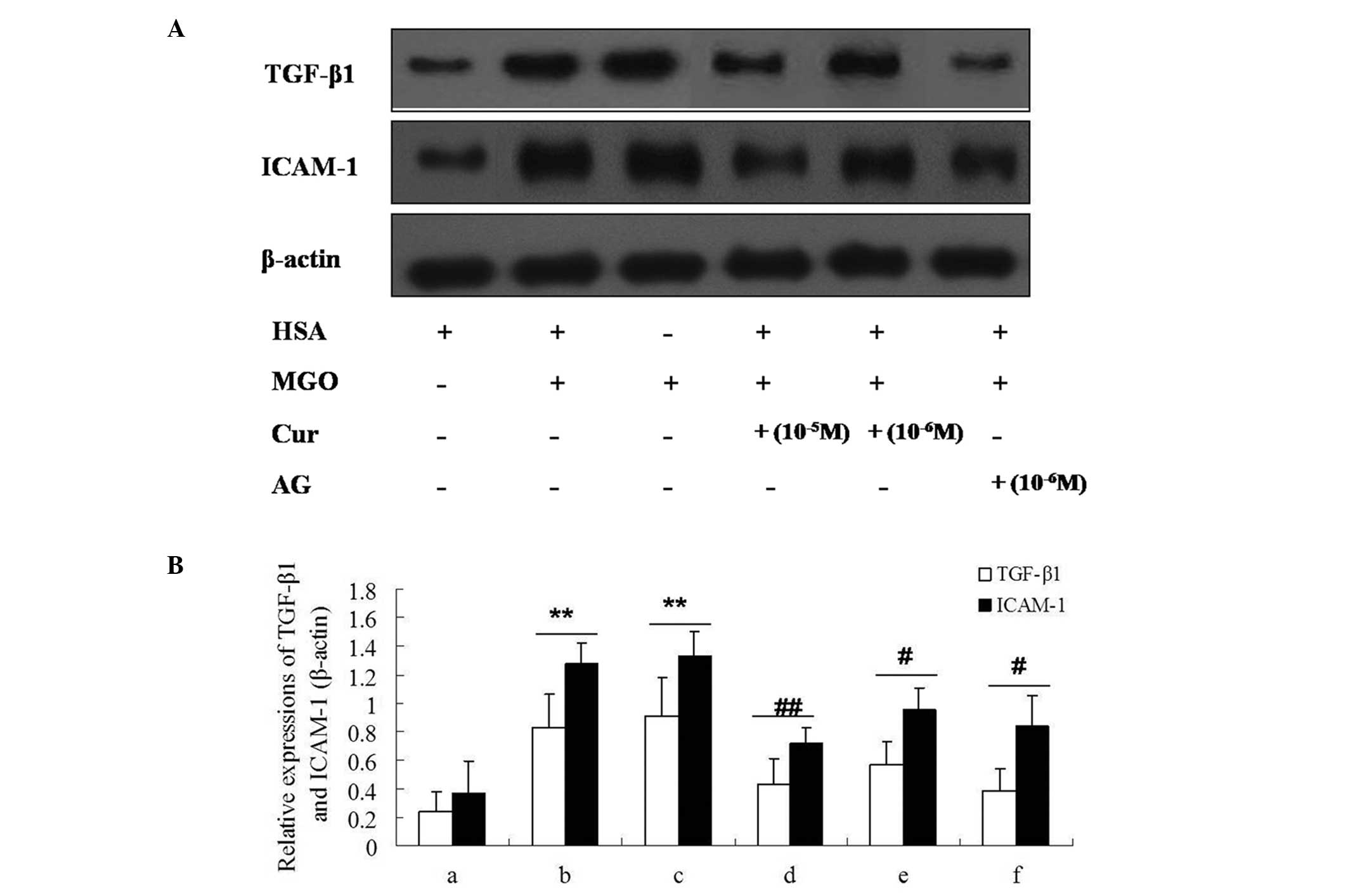

Effect of Cur-MGO adducts on the expression of the inflammatory cytokines ICAM-1 and TGF-β1 in HUVECs by western blot analysis. (A) The bands of ICAM-1 and TGF-β1; (B) the relative expression levels of ICAM-1 and TGF-β1. a, HSA; b, MGO; c, MGO + HSA; d, MGO + HSA + Cur (10−6 M); e, MGO + HSA + Cur (10−5 M); f, MGO + HSA + AG (10−6 M). Data are presented as the mean ± standard deviation (n=3). **P<0.01, vs. HSA; #P<0.05, ##P<0.01, vs. MGO or MGO + HSA. Cur, curcumin; MGO, methylgloxal; ICAM-1, intercellular adhesion molecule-1; TGF-β1, transforming growth factor-β1; HUVECs, human umbilical vein endothelial cells; HSA, human serum albumin; AG, aminoguanidine hydrochloride.
Carbonyl stress-induced oxidative damage and inflammatory responses have been suggested as a potential mechanism contributing to endothelial cell dysfunction (5). Under hyper-glycemic conditions, the glucose metabolism may accelerate the abnormal accumulation of the reactive dicarbonyl compound MGO (2). This induces oxidative stress and inflammatory responses, resulting in the initiation and development of diabetic vascular complications (17). Previous studies have demonstrated that natural products are able to attenuate endothelial damage via the capture of carbonyl compounds (3,7,10). Cur, a major active component of Curcuma longa L., has been demonstrated to possess beneficial effects on carbonyl stress-induced endothelial damage (18). Although the trapping ability of Cur on MGO is known, the effects of Cur-MGO adducts remain to be fully elucidated. In the present study, due to the instability of the chemical structure of Cur, additional Cur-MGO adducts were identified by LC-ESI-MS/MS. In addition, the Cur-MGO adducts were demonstrated to result in a reduction in cell injury compared with MGO alone. These data demonstrate that Cur may attenuate MGO-induced endothelial damage via the trapping of MGO to form a number of Cur-MGO adducts.
Cur is a highly active and unstable compound which is easily oxidized. The rate of degradation of curcuminoids increases with increasing pH in media (18). In the current study, in order to ensure the reliability of the reaction system, DB was used to investigate the ability of Cur to trap the dicarbonyl compound, MGO. These data demonstrate that the reaction product of DB and MGO matched the 2-meth-ylquinoxaline standard, according to the UV spectra and retention time. These results demonstrate that the reaction system is suitable for trapping the dicarbonyl compound MGO using natural products.
The present study investigated the optimal reaction ratio of MGO and Cur. The reaction of MGO and Cur at the ratios of 1:5, 1:3, 1:1, 3:1 and 5:1 were analyzed using HPLC-DAD, which indicated that a 1:1 ratio of MGO and Cur was best suited for the reaction. The structure of the Cur-MGO adducts which were derived from the condensation of one molecule Cur and one molecule MGO confirmed this was the optimal reaction ratio. Although the reaction time of Cur and MGO was not investigated, the reaction was maintained for 720 min according to the investigation of the reaction time of DB and MGO. These conditions were established to be suitable for the reaction of Cur and MGO.
The −OH and −OCH3 groups on the phenyl ring of Cur possess strong electron-donating abilities and increase the electron density of the benzene ring, resulting in an increase in the electrophilic reactivity of the carbon chain (19). However, the electrophilic reactivity of the carbon chain of Cur is reduced by the loss of the −OCH3 group on the benzene ring with a reduction in electronic capacity. Following the reaction with MGO under experimental conditions, adduct 1 was identified in the reaction system based on the fragment ions. The condensation reaction between Cur and the aldehyde group of MGO resulted in the loss of one molecule of H2O. The results of the current study are in agreement with previous studies (6,7,10,18,19). In addition, the current study identified two further compounds, adducts 2 and 3. Analysis using HPLC/ESI-MS-MS demonstrated that these two compounds have lost two −OCH3 groups, with 441, 411 and 381 m/z fragments ions. These data provide evidence that adduct 1 was unstable and easily formed adducts 2 and 3 in the reaction system. However, it remains unclear whether Cur condensates with MGO prior to or following the loss of the −OCH3 groups.
The formation and accumulation of AGEs has been suggested to contribute to endothelial dysfunction. Trapping the dicarbonyl compound MGO has been demonstrated to inhibit the formation of AGEs to attenuate carbonyl stress-induced cell injury (20). In the current study, the inhibition of the formation of AGEs by Cur (10−7, 10−6, 10−5 M) was investigated from 0–168 h. The kinetic curves of the formation of AGEs indicated that the formation was stable from 24–168 h. Furthermore, the rate of AGE formation was reduced by the Cur-MGO adducts in a concentration-dependent manner, further supported by the ELISA results. The present study provides further evidence for the effect of Cur on the attenuation of endothelial dysfunction via the trapping of MGO to inhibit the formation of AGEs.
In order to investigate the effect of Cur on the inhibition of the formation of MGO-AGEs by the trapping of MGO, the oxidative damage and inflammatory responses of the reaction product of MGO and HSA in the presence or absence of Cur were compared in the current study. The data collected demonstrate that the cytotoxicity of MGO + HSA in presence of Cur is reduced compared with MGO + HSA alone. The present study provides further evidence for the Cur-mediated attenuation of the pathogenesis and development of endothelial damage via MGO trapping.
Carbonyl stress may induce oxidative stress which is associated with endothelial cell dysfunction. The oxidative modification of HSA by MGO is a causative factor in oxidative injury (21). Increasing evidence demonstrates that MGO stimulated super-oxide production from mitochondria and partially stimulated ROS generation in HUVECs (22,23). In the current study, MGO was modified by Cur to form Cur-MGO adducts which were observed to reduce the cytotoxicity of MGO. Notably, there was a significant reduction in the oxidative damage resulting from incubation with Cur-MGO compared with MGO or MGO + HSA. DHE staining and flow cytometry indicated that the trapping of MGO by Cur is a potential mechanism by which carbonyl stress-induced endothelial damage may be ameliorated.
ICAM-1 and TGF-β1 serve important roles in the systemic inflammatory response in generalized endothelial dysfunction (24). In the current study, following exposure of HUVECs to MGO or MGO + HSA, the expression levels of ICAM-1 and TGF-β1 were significantly increased, compared with HSA alone. However, following stimulation with Cur-MGO, the expression levels of ICAM-1 and TGF-β1 were reduced compared with MGO + HSA without Cur. These data indicate that the cytotoxicity of MGO was attenuated due to the trapping of MGO by Cur.
Taken together, these data provide evidence demonstrating that Cur attenuates the cytotoxicity of the dicarbonyl compound MGO in endothelial damage through the trapping of MGO. In the current study, the coreaction of Cur with MGO resulted in the formation of Cur-MGO adducts, two of which have not previously been described. The results of LC-ESI-MS/MS indicated that the two novel adducts may be formed due to the instability of adduct 1 or Cur. The differences in oxidative damage and the inflammatory responses to Cur-MGO and MGO + HSA indicate that the attenuation of endothelial damage by Cur may be associated with its ability to trap dicarbonyl compounds, such as MGO. The current study provides further evidence for the protective role of Cur against carbonyl stress-induced endothelial damage.
The current study was supported by grants from the National Natural Science Foundation of China (grant no. 81202906) and the Education Department of Shaanxi Province (grant no. 12JK1019).
Sabayan B, Westendorp RG, Grond J, Stott DJ, Sattar N, van Osch MJ, van Buchem MA and de Craen AJ: Markers of endothelial dysfunction and cerebral blood flow in older adults. Neurobiol Aging. 35:373–377. 2014. View Article : Google Scholar
Žižek B, Žižek D, Bedenčič K, Jerin A and Poredoš P: Effect of metabolic abnormalities on endothelial dysfunction in normotensive offspring of subject with hypertension. Int Angiol. 32:386–393. 2013.PubMed/NCBI
Lo CY, Li S, Tan D, Pan MH, Sang S and Ho CT: Trapping reactions of reactive carbonyl species with tea polyphenols in simulated physiological conditions. Mol Nutr Food Res. 50:1118–1128. 2006. View Article : Google Scholar : PubMed/NCBI
van Eupen MG, Schram MT, Colhoun HM, Hanssen NM, Niessen HW, Tarnow L, Parving HH, Rossing P, Stehouwer CD and Schalkwijk CG: The methylglyoxal-derived AGE tetrahy-dropyrimidine is increased in plasma of individuals with type 1 diabetes mellitus and in atherosclerotic lesions and is associated with sVCAM-1. Diabetologia. 56:1845–1855. 2013. View Article : Google Scholar : PubMed/NCBI
Akhand AA, Hossain K, Mitsui H, Kato M, Miyata T, Inagi R, Du J, Takeda K, Kawamoto Y, Suzuki H, et al: Glyoxal and methylglyoxal trigger distinct signals for map family kinases and caspase activation in human endothelial cells. Free Radic Biol Med. 31:20–30. 2001. View Article : Google Scholar : PubMed/NCBI
Santel T, Pflug G, Hemdan NY, Schäfer A, Hollenbach M, Buchold M, Hintersdorf A, Lindner I, Otto A, Bigl M, et al: Curcumin inhibits glyoxalase 1: A possible link to its anti-inflammatory and anti-tumor activity. PLoS One. 3:e35082008. View Article : Google Scholar : PubMed/NCBI
Liu JP, Feng L, Zhu MM, Wang RS, Zhang MH, Hu SY, Jia XB and Wu JJ: The in vitro protective effects of curcumin and demethoxycurcumin in Curcuma longa extract on advanced glycation end products-induced mesangial cell apoptosis and oxidative stress. Planta Med. 78:1757–1760. 2012. View Article : Google Scholar : PubMed/NCBI
Hu TY, Liu CL, Chen JY and Hu ML: Curcumin ameliorates methylglyoxal-induced alterations of cellular morphology and hyperpermeability in human umbilical vein endothelial cells. J Funct Foods. 5:745–754. 2013. View Article : Google Scholar
Lip H, Yang K, MacAllister SL and O'Brien PJ: Glyoxal and methylglyoxal: Autoxidation from dihydroxyacetone and polyphenol cytoprotective antioxidant mechanisms. Chem Biol Interact. 202:267–274. 2013. View Article : Google Scholar
Hu TY, Liu CL, Chyau CC and Hu ML: Trapping of methylglyoxal by curcumin in cell-free systems and in human umbilical vein endothelial cells. J Agric Food Chem. 60:8190–8196. 2012. View Article : Google Scholar : PubMed/NCBI
Lv L, Shao X, Chen H, Ho CT and Sang S: Genistein inhibits advanced glycation end product formation by trapping methylglyoxal. Chem Res Toxicol. 24:579–586. 2011. View Article : Google Scholar : PubMed/NCBI
Schmitt A, Bigl K, Meiners I and Schmitt J: Induction of reactive oxygen species and cell survival in the presence of advanced glycation end products and similar structures. Biochim Biophys Acta. 1763:927–936. 2006. View Article : Google Scholar : PubMed/NCBI
Feng L, Zhu M, Zhang M, Gu J, Jia X, Tan X, Gao C and Zhu Q: The protection of 4,4′-diphenylmethane-bis(methyl) carbamate from Cortex Mori on advanced glycation end product-induced endothelial dysfunction: Via inhibiting AGE formation or blocking AGEs-RAGE axis? Fitoterapia. 89:239–249. 2013. View Article : Google Scholar : PubMed/NCBI
Feng L, Zhu MM, Zhang MH, Wang RS, Tan XB, Song J, Ding SM, Jia XB and Hu SY: Protection of glycyrrhizic acid against AGEs-induced endothelial dysfunction through inhibiting RAGE/NF-κB pathway activation in human umbilical vein endothelial cells. J Ethnopharmacol. 148:27–36. 2013. View Article : Google Scholar : PubMed/NCBI
Li Y, Gu JF, Zou X, Wu J, Zhang MH, Jiang J, Qin D, Zhou JY, Liu BX, Zhu YT, et al: The anti-lung cancer activities of steroidal saponins of P polyphylla Smith var chinensis (Franch) Hara through enhanced immunostimulation in experimental Lewis tumor-bearing C57BL/6 mice and induction of apoptosis in the A549 cell line. Molecules. 18:12916–12936. 2013. View Article : Google Scholar : PubMed/NCBI
Feng L, Zhu M, Zhang M, Jia X, Cheng X, Ding S and Zhu Q: Amelioration of compound 4,4′-diphenylmethane-bis(methyl) carbamate on high mobility group box1-mediated inflammation and oxidant stress responses in human umbilical vein endothelial cells via RAGE/ERK1/2/NF-κB pathway. Int Immunopharmacol. 15:206–216. 2013. View Article : Google Scholar
Li W, Maloney RE, Circu ML, Alexander JS and Aw TY: Acute carbonyl stress induces occludin glycation and brain microvascular endothelial barrier dysfunction: Role for gluta-thione-dependent metabolism of methylglyoxal. Free Radic Biol Med. 54:51–61. 2013. View Article : Google Scholar :
Singh R, Kristensen S and Tønnesen HH: Influence of vehicle properties and excipients on hydrolytic and photochemical stability of curcumin in preparations containing Pluronics: Studies of curcumin and curcuminoids XLVIII. Pharmazie. 68:160–169. 2013.PubMed/NCBI
Okouchi M, Okayama N and Aw TY: Preservation of cellular glutathione status and mitochondrial membrane potential by N-acetylcysteine and insulin sensitizers prevent carbonyl stress-induced human brain endothelial cell apoptosis. Curr Neurovasc Res. 6:267–278. 2009. View Article : Google Scholar : PubMed/NCBI
Tatsunami R, Oba T, Takahashi K and Tampo Y: Methylglyoxal causes dysfunction of thioredoxin and thioredoxin reductase in endothelial cells. J Pharmacol Sci. 111:426–432. 2009. View Article : Google Scholar : PubMed/NCBI
Miyazawa N, Abe M, Souma T, Tanemoto M, Abe T, Nakayama M and Ito S: Methylglyoxal augments intracellular oxidative stress in human aortic endothelial cells. Free Radic Res. 44:101–107. 2010. View Article : Google Scholar
Szarka A, Rigó J Jr, Lázár L, Beko G and Molvarec A: Circulating cytokines, chemokines and adhesion molecules in normal pregnancy and preeclampsia determined by multiplex suspension array. BMC Immunol. 11:592010. View Article : Google Scholar : PubMed/NCBI
