Introduction

The human spalt-like transcription factor 4 (SALL4; OMIM no. 607343) gene was cloned and named by Kohlhase et al (1). It is located on chromosome 20q13.2 and consists of 3,162 bp and four exons (2). The protein consists of 1,053 amino acids. SALL4 is a transcription factor that is widely expressed in the early stage of embryo development (3). It is a master regulator that contributes to the growth and differentiation of cancer stem cells (4). Homozygous loss-of-function SALL4 mutations are embryo lethal. The SALL4 protein has multiple zinc finger motifs (ZFMs) of the C2H2 type. The fragments near the amino and carboxyl terminals each encode one ZFM, while the middle fragment encodes two ZFMs (5). These ZFMs serve an important role in maintaining protein function (6). Variants of SALL4 cause Okihiro syndrome [also known as Duane radial-ray syndrome (DRRS); OMIM no. 607323], which is an autosomal dominant genetic disease (7). Okihiro syndrome was first discovered by Okihiro et al (8) in 1977. This syndrome is characterized by radial malformation associated with the Duane anomaly, which is defined as a limitation of abduction and narrowing of the palpebral fissure with retraction of the globe on adduction (7). Patients with Okihiro syndrome exhibit different degrees of radial line hypoplasia and other types of deformity, which include hypoplasia of the thenar, radius and forearm, spinal and external ear deformity, hearing impairment and heart and kidney abnormality (9–11). SALL4 is highly expressed in the developing midbrain, branchial arch and limbs in healthy individuals, but also serves an important role in the development of skeletal and ocular structures associated with Okihiro syndrome (1,12). The present study investigated the clinical characteristics of a case of Okihiro syndrome. Gene sequencing and bioinformatics analysis were performed to determine whether a SALL4 variant was the molecular cause of the syndrome.

Materials and methods

Case data

The proband was from Yunnan, China, had profound congenital sensorineural deafness and went to the hospital in July 2020. He received a cochlear implant from Kunming Children's Hospital (KCH). Clinical data from the proband (male, 23 months old) and his father (28 years old) and mother (29 years old) were collected via questionnaires. The patient underwent examination of audiology, ophtalmology, hair, skin, limb joints, blood and digestive system. Otoacoustic emission, acoustic immittance, auditory brain stem response (ABR), multiple steady-state response and verbal hearing aid tests were performed to assess audition of the proband. In addition, temporal CT and cranial MRI scans were also performed prior to cochlear implant. Other routine imaging examinations were performed on the patient: These included color duplex ultrasonography of the liver, bile, pancreas, spleen and kidney, in addition to cardiac ultrasonography and brain MRI. Genetic diagnoses were performed with consent from the proband and his parents. The present study was approved by the Medical Ethics Committee of KCH.

DNA library preparation

Genomic DNA was extracted from proband and his parents whole blood (3 ml) using QIAamp DNA Mini kit (Qiagen GmbH), in accordance with the manufacturer's instructions. DNA was quantified using Nanodrop 2000 (Thermo Fisher Scientific, Inc.). A total of ≥3 µg DNA was used for the indexed Illumina libraries, in accordance with the manufacturer's instructions (Generic DNA Library preparation Kit v5.0; cat. no. MG0126; MyGenostics, Inc.). DNA fragments 350–450 bp in length and included adapter sequences were selected for DNA libraries. The final libraries were qualified using an Agilent 2100 Bioanalyzer system using the Agilent High Sensitivity DNA kit (cat. no. 5067-4626).

Whole-exome sequencing

Before sequencing, the molar mass of the library was calculated according to its concentration and fragment size from the 2100 Bioanalyzer system, using the formula as following: Library molar concentration (nM)=Library concentration (ng/µl) × 106/656.6 × Length. The loading concentration of the final library was 2 pmol. The enriched libraries were sequenced on NovaSeq6000 sequencer (Illumina, Inc.) using NovaSeq6000 S4 Reagent Kit v1.5 (300 cycles; cat. no. 20028312) to obtain paired-end reads with a length of 150 bp.

Data analysis and interpretation

The output data from Illumina NovaSeq were converted from bcl to fastq files by Bcl2Fastq software (Bcl2Fastq 2.18.0.12; Illumina, Inc.). Both Illumina sequencing adapters and low-quality reads (<80 bp) were filtered using fastp (13). The clean reads were mapped to the UCSC hg19 human reference genome using BWA software (v0.7.12-r1044; http://bio-bwa.sourceforge.net/) (14). The duplicated reads were removed using Picard (v2.2.3; http://broadinstitute.github.io/picard/) and mapped reads were used for the detection of variants. Single nucleotide polymorphism (SNP) and insertion/deletion variants were detected using HaplotypeCaller from the GATK software (v4.1.4.0; http://software.broadinstitute.org/gatk/). The data were converted to VCF format. Variants were annotated using ANNOVAR software (16 Apr 2018; http://annovar.openbioinformatics.org/en/latest/). Multiple databases, including 1000 Genomes (201508 collection v5b), ESP6500 (esp6500siv2), dbSNP (dbSNP150), EXAC (http://exac.broadinstitute.org/) and Human Gene Mutation Database (HGMD, http://www.hgmd.cf.ac.uk/ac/index.php) were used to annotate variants to estimate their frequency. Variants were predicted using SIFT (http://provean.jcvi.org/index.php), PolyPhen-2 (http://genetics.bwh.harvard.edu/pph2/), MutationTaster (http://www.mutationtaster.org/) and GERP++ (http://mendel.stanford.edu/SidowLab/downloads/gerp/). Both the CNVKit (CNVkit 0.9.8 documentation) and the delly software (v0.9.1; www.korbel.embl.de/software.html) were used to call copy number and structural variation across all regions. Candidate copy number variations (CNVs) were annotated by analyzing the genes contained in the CNVs and the CNV intervals themselves with the databases Decipher (v11.9, http://decipher.sanger.ac.uk/), dbVar (http://www.ncbi.nlm.nih.gov/dbvar), ClinGen (https://www.clinicalgenome.org/), and OMIM (http://www.ncbi.nlm.nih.gov/omim). The candidate CNVs were then filtered using the normal frequency databases, such as DGV (http://dgv.tcag.ca/dgv/app/home) and gnomAD (https://macarthurlab.org/2017/02/27/the-genome-aggregation-database-gnomad/). CNVs carried by the normal population that are not pathogenic were filtered out to look for rare CNVs which may being pathogenic. Each database had the size of the pathogenic CNVs and is automatically updated. The variants were interpreted in accordance with the American College of Medical Genetics and Genomics guidelines (15) and patient phenotype.

Sanger sequencing

Venous blood (3.5 ml) was collected form the proband and his parents. Genomic DNA was extracted using QIAamp DNA Mini kit (Qiagen GmbH) and used for Sanger sequencing. The data from high-throughput sequencing were used to design primers for suspected pathological variants using PRIMER3 (version 0.4.0, http://bioinfo.ut.ee/primer3-0.4.0/), (forward, 5′-CGTGATTGTAGCACTTGCCTG-3′ and reverse, 5′-GAATGTGGACCCTGTTGTGTG-3′). PCR was performed using KAPA 2G Fast PCR kit (Roche, cat. no. KK5009), as follows: Initial denaturation at 95°C for 5 min, followed by 32 cycles of denaturation at 94°C for 30 sec, annealing at 60°C for 30 sec and extension at 72°C for 45 sec and final extension at 72°C for 5 min. PCR products (length, 412 bp) were analyzed by gel electrophoresis and purified. Capillary electrophoretic sequencing was performed using an ABI PRISM 3730 sequencer (Thermo Fisher Scientific, Inc.) and variants were analyzed. The Sanger sequencing results were aligned with SALL4 reference sequence (NM_020436, http://www.ncbi.nlm.nih.gov/nuccore/NM_020436) using SeqMan 7.1 software (16).

Protein structure prediction

The amino acid sequence of SALL4 was obtained from National Center for Biotechnology Information. The structure of SALL4 protein and mutant was predicted using zhanglab.dcmb.med.umich.edu/I-TASSER website. Spbdv (https://spdbv.unil.ch/) was used to visualize and label the results of the I-TASSER predictions.

Results

Clinical features of proband with Okihiro syndrome

The proband (Table I) was a 23-month-old boy of Han nationality (height, 86.5 cm; weight, 12.0 kg) who presented to KCH because he was born deaf. The patient was severely affected (Table II): Both hands flexed to the radial side and he had missing radii and thumbs (Fig. 1A-C). His forearms were short and there was dysplasia of the left humerus. Nasal obstruction without respiratory distress was described. Radiographs of the upper limbs showed that the bilateral radius, first palm and phalanx were absent. The bilateral humerus and ulna were curved, with a slightly short and thick ulna. The junction of the ulna and the humerus did not join correctly (data not shown). The bilateral cochlea and vestibule had not developed and showed cystic changes (Fig. 1D and E). The proband presented with severe bilateral sensorineural hearing loss. Clinical audiological examination showed failed bilateral otoacoustic emission (Fig. 1F and G), auditory steady-state response threshold >110 dB hearing level (HL; Fig. 1H) under 500-4,000 Hz and with bilateral ABR threshold >95 dB HL (Fig. 1I). There was no evidence of Duane abnormality on ophthalmologic evaluation. Abdomen B-scan ultrasounds did not identify any abnormalities. The results of the intelligence developmental assessment were normal except for delayed speech development. Red and white blood cell and platelet counts were normal (data not shown). The proband with the aforementioned clinical manifestations was diagnosed as a probable Okihiro syndrome patient (1,9). Both parents of the patient were healthy and non-consanguineous marriage. There was no genetic history of Okihiro syndrome in the family. The proband received a cochlear implant in his right ear at the KCH on 17 August 2020.

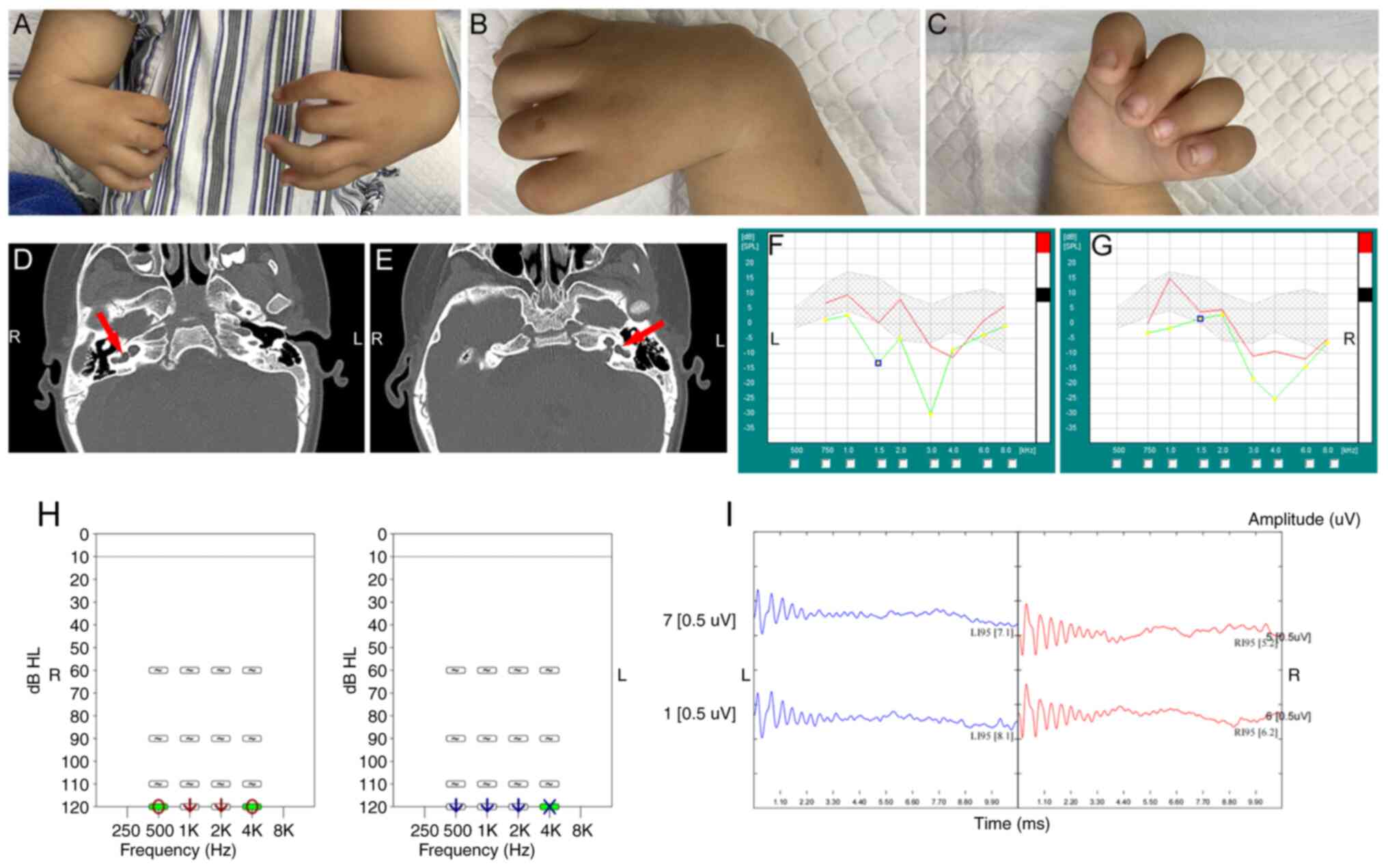

Figure 1. Clinical information of the proband. (A) Both hands were flexed to the radial side. (B) Absence of the thumb. (C) Bilateral radial ray defect. (D) CT, right cochlea and vestibule were underdeveloped and cystic changes (red arrow). (E) CT, left cochlea and vestibule were underdeveloped and cystic changes (red arrow). (F) The left ear fails the otoacoustic emission. (G) The right ear fails the otoacoustic emission. (H) Multiple steady-state response. Auditory steady-state response confirmed profound bilateral congenital sensorineural hearing loss. (I) Auditory brain stem response. Profound bilateral congenital sensorineural hearing loss. CT, computed tomography.

Table I. Sociodemographic information of the proband.

Table I.

Sociodemographic information of the proband.

Characteristic	Description
Sex	Male
Age	23.0 months
Height	86.5 cm
Weight	12.0 kg
Cochlear implant	Right ear

Table II. Clinical characteristics of the proband.

Table II.

Clinical characteristics of the proband.

Characteristic	Description
Upper limb deformity	Both hands flexed to the radial side; absent radii and thumbs; short forearms; dysplasis of the left humerus
Upper limb X-ray	Absent bilateral radius, first palm, and phalanx were absent; curved humerus and ulna; short, thick ulna; poor match between ulna and ulnohumeral joint
Temporal CT	Undeveloped bilateral cochlea and vestibule
Ophthalmic assessment	Normal
Otoacoustic emission assessment	Failed
Auditory steady-state response	>110 dB HL
Auditory brain stem response	>95 dB HL
Abdomen B-scan ultrasound	Normal

[i] HL, hearing level.

Identification of a de novo SALL4 frameshift mutation

A heterozygous variant, c.3060delG, in exon 4 of SALL4 (NM_020436) was detected in the proband and resulted in a Gln(Q) to His(H) (p. Q1020Hfs*57) change at amino acid 1,020, which is a frameshift mutation. Sanger sequencing showed that this site was wild-type in the parents (Fig. 2A and B), which indicated that the variant was a de novo variant of the proband. From the point of the variation (amino acid 1,020), the gene encoded the following amino acids: R V S V Q M W K N Q V L T A F P N T S F L T S W K K T R L R S A K G E L A W K E Q C R H S E I S R I C F V L. Translation was then terminated and the resulting mutant protein was 1,076 amino acids in length (Fig. 2C). This variant was predicted to exhibit PVS1_PM4 + PS2 + PM2 pathology, based on ACMG guidelines (15). PVS1_PM4 is a frameshift mutation, which may cause loss of function (15). There were no variants at PS2 locus in the parents of the proband. PS2 variant is a spontaneous variant. The mean of PM2 was variant frequency is extremely low, even was not included in the normal population databases 1,000 Genomes and gnomAD. To the best of our knowledge, this variant site has not previously been reported in the literature or ClinVar database (15). The amino acid sequence at position (p. Q1020) was conserved between multiple homologous species (Fig. 2D). The amino acid variant was located in the final 10% of the protein (red box; Fig. 2F). The configuration of the mutant SALL4 protein showed multiple changes compared with the wild-type (Fig. 2E and F). Due to the change of the amino acid sequence, the α-helix primary structure and β-sheet, irregular coil and other secondary structures of the mutant protein have been changed, the protein cannot be folded correctly, and the spatial configuration was changed.

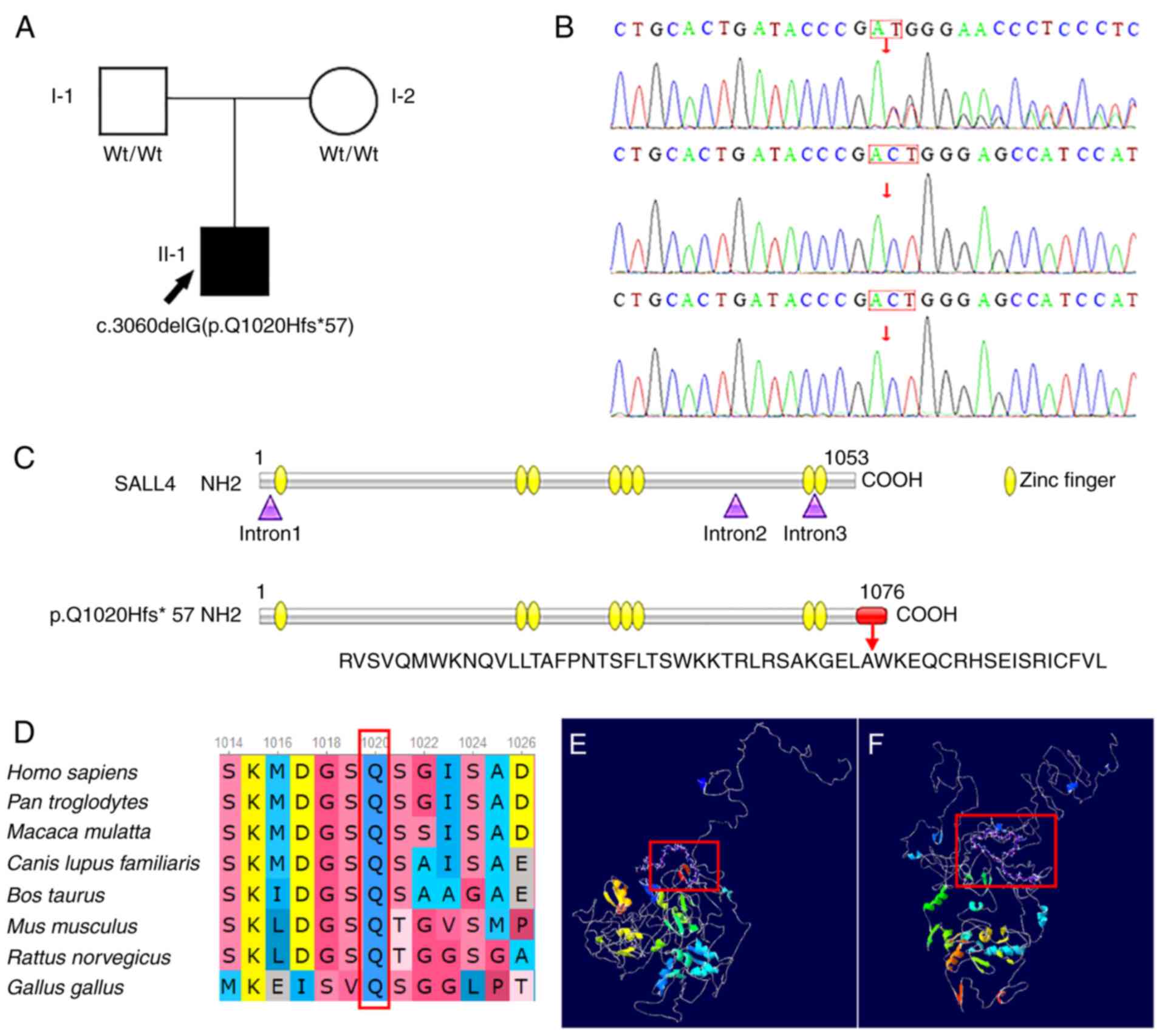

Figure 2. Family pedigree, results of gene sequencing, and bioinformatics analysis. (A) Family pedigree. WT, wild-type; I-1, father of the proband; I-2, mother of the proband; II-1, proband; Q, Gln, glutamine; H, His, histidine; black, patient; white, normal; box, male; circle, female. (B) De novo variant in SALL4 (NM_033326; variant c.3060delG). (C) Schematic representation of SALL4 protein and mutant. (D) Conservation analysis of mutation site. Predicted structure of (E) SALL4 protein and (F) mutant. SALL4, spalt-like transcription factor 4; Wt, wild-type.

Discussion

Okihiro syndrome is rare, with previous reports indicating that most cases are sporadic (17,18). Poznanski indicated that the familial incidence is 5% in Okihiro syndrome patients (19). The phenotype of patients with variants in SALL4 is highly variable: Certain patients show the full range of clinical phenotypes, while others exhibit only partial clinical manifestations (11). The phenotypes may be different between patients within a family, which means family members may be mistakenly thought to have two different diseases when phenotypes are considered in isolation (7). Duane anomaly is considered to be one of the primary symptoms of Okihiro syndrome but approximately one third of patients with variant SALL4 do not exhibit this abnormality; in affected families, at least one family member may not have this defect (20). Alves et al (9) showed that five out of 28 patients with variant SALL4 did not exhibit Duane abnormality. Similarly, the proband in the present study did not exhibit Duane abnormality. Patients with Okihiro syndrome present with upper limb deformity, such as hypoplasia of the thumb, three-phalanged thumb, inward flexion of the radii or absence of the forearm (7,12). In a simple, speculative model, it has been predicted that loss of ZFM domains results in more severe upper limb deformity (5). However, it has also been predicted that truncated protein retains more ZFMs, which leads to a more severe phenotype (21). Therefore, the size of the truncated protein or number of ZFMs does not correspond to the phenotypical severity of upper limb abnormality in the upper limb. Okihiro syndrome causes face, ear, heart, kidney, vertebral body and lower limb abnormality (11). In addition, Parentin et al (22) reported a case of Okihiro syndrome with developmental delay in 2003. The SALL4 missense variant is predicted to result in increased DNA binding affinity and causes Okihiro syndrome with holoprosencephalic features (5). Dental abnormality has also been reported (5). The association of autosomal recessive missense/nonsense variants with mild mental retardation has been demonstrated (23,24). However, mental retardation has not been described in SALL4 genetic syndromes. The phenotype caused by Okihiro syndrome involves multiple systems and certain clinical phenotypes overlap with Townes-Brocks, Holt-Oram, acro-reno-ocular, oculo-oto-radial and cervico-oculo-acoustic syndrome (7,25). Diagnosis of Okihiro syndrome is therefore difficult. As it is rare and certain phenotypical features of SALL4 variant may be due to chance, the syndrome needs to be investigated in further pedigree studies. All affected members of a family should undergo clinical examination to obtain greater understanding of the phenotype of the SALL4 variant.

As of December 2021, HGMD (hgmd.cf.ac.uk/ac/index.php) comprises 53 SALL4 variants associated with Okihiro syndrome. Of these, 40 are point variants (Fig. 3) in exons 2 and 3. The variant site of the present proband was located in exon 4 of SALL4 (Fig. 3); to the best of our knowledge, this is the first variant to be reported in this exon. Only four of the 40 point variants are missense variants; the rest are nonsense/frameshift variants. There are also 13 types of copy number variation of SALL4 that have been included in HGMD (hgmd.cf.ac.uk/ac/index.php). The phenotype of patients with Okihiro syndrome with SALL4 exon deletion is no more severe than the phenotype of patients with point variants (20). To the best of our knowledge, previous case studies have not found a clear association between genotype and phenotype (1,10,21).

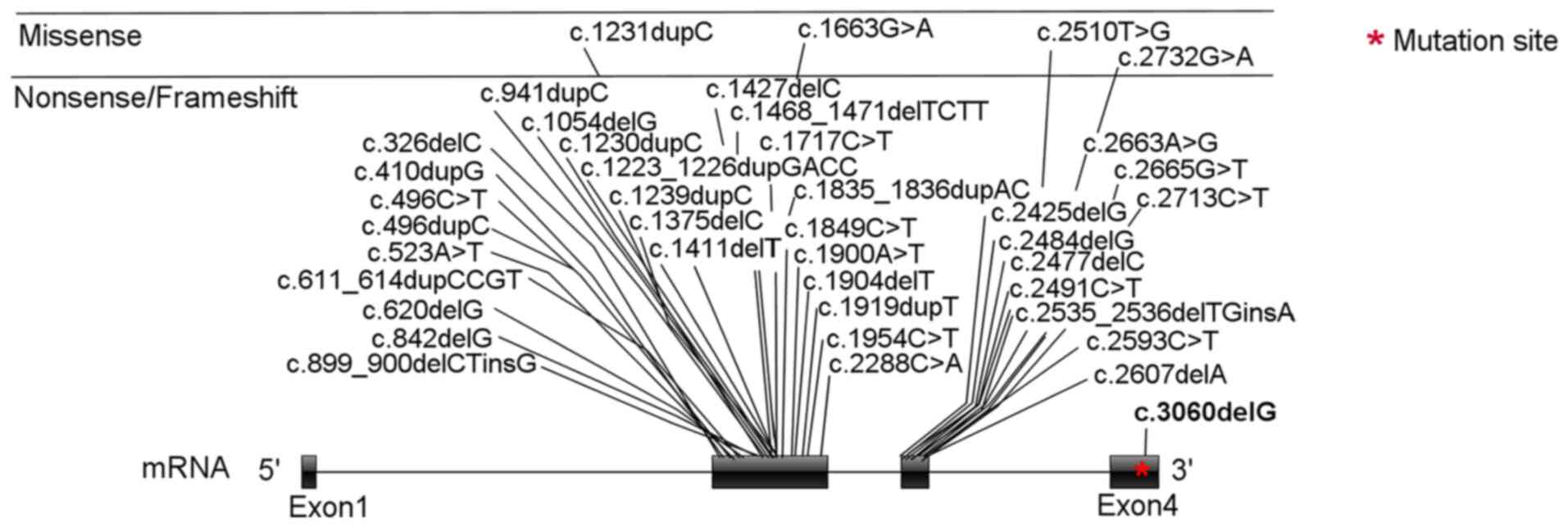

Figure 3. Schematic representation of spalt-like transcription factor 4 gene and localization of all variants identified. Bold text indicates novel variants reported in the present study.

Nonsense and frameshift mutations or exon deletions of SALL4 are the primary types of variant that lead to production of truncated proteins (19). Studies have shown that truncated proteins may inhibit the expression of wild-type SALL4 protein in a dominant negative manner (7,12,26,27). The lack of SALL4 protein or production of non-functional ZFMs causes haploinsufficiency, which results in Okihiro syndrome (27). Nonsense-mediated decay (NMD) degrades mRNA of nonsense mutations and decreases accumulation of truncated proteins in the body (28). However, NMD may not effectively eliminate all SALL4 variants that contain premature stop codons (29,30). SALL4 is only expressed in germ cells in adult tissue, which hinders the study of the molecular mechanism underlying SALL4-associated limb defect (31). Here, the SALL4 c.3060delG (p. Q1020Hfs*57) variant did not cause the protein to be truncated. By contrast, the mutant protein was longer and the variant was located in the final exon, which did not stimulate NMD. It was hypothesized that the variant sequence at the carboxyl terminal affected configuration of the protein, which caused the Okihiro syndrome.

The current understanding of Okihiro syndrome is not comprehensive and there is no clinical diagnostic standard; further case studies are required to improve clinical understanding and establish a diagnostic standard. However, more attention should be given to the role of genetic testing for rare genetic diseases, which can be accurately diagnosed via genetic testing combined with clinical phenotypes. Okihiro syndrome leads to acral deformities, with upper limb deformity being the most common (21). These deformities may be detected during prenatal check-ups, allowing for early intervention (32).

Sanger sequencing can identify patients with clinical features suspected to be associated with Okihiro/DRRS. To the best of our knowledge, there are few reports on Okihiro syndrome and there may be novel genes that lead to the occurrence of the disease. Whole-exome sequencing may be used to quickly obtain genetic information to diagnose and rule out other potential disease-causing genes (33). Here, a de novo variant of SALL4, c.3060delG (p. Q1020Hfs *57), was the molecular cause of Okihiro syndrome in the proband. Gene sequencing should be used to help clinicians in the diagnosis of rare disease.
