Open Access

Adrenomedullin promotes intrahepatic cholangiocellular carcinoma metastasis and invasion by inducing epithelial-mesenchymal transition

  • Authors:
    • Chuang Zhou
    • Yan Zheng
    • Lin Li
    • Wenlong Zhai
    • Renfeng Li
    • Zhiwen Liang
    • Longshuan Zhao
  • View Affiliations

  • Published online on: June 5, 2015
  • Pages: 610-616
  • Copyright: © Zhou et al. This is an open access article distributed under the terms of Creative Commons Attribution License [CC BY_NC 3.0].

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Intrahepatic cholangiocellular carcinoma (ICC) is the second most common type of primary liver cancer. However, its etiology and molecular pathogenesis remain largely unknown. The present study aimed to investigate the association between adrenomedullin (ADM) and epithelial-mesenchymal transition (EMT) in ICC and to elucidate the underlying signaling pathway. We evaluated the clinical significance of ADM in 133 ICC patients using tissue microarray analysis of ICC tissues. We also investigated the mechanisms of ADM in ICC EMT-mediated metastasis in cholangiocarcinoma cell lines in vitro. The results revealed that ADM was upregulated in human ICC tissues (73/133) compared with that in healthy controls. ADM expression was positively correlated with shorter overall survival (P<0.01). The characteristics of EMT were induced in vitro by adenoviral transduction of ADM into HuCCT1 cells, resulting in the downregulation of E-cadherin and ZO-1, and the concomitant upregulation of N-cadherin and vimentin. Knockdown of ADM by short hairpin RNA in HUH28 cells expressing high levels of ADM was associated with the reversal of EMT. Functional studies revealed that ADM regulated the activation of ZEB1, which subsequently mediated EMT. The results of the present study suggest that ADM plays an important role in ICC metastasis, and that ADM signaling of EMT may represent a valuable therapeutic target in cancer patients.


Intrahepatic cholangiocarcinoma (ICC) is defined as a chol-angiocarcinoma located proximally to the second-degree bile ducts. It is an aggressive neoplasm associated with extremely poor survival. The incidence and mortality of ICC have increased worldwide over the past two decades (13). Surgical treatment is the only curative treatment option for ICC, and the 5-year survival rate for patients with unresectable ICC is currently <5% (4), compared with 20–44% in patients undergoing resection at early T1–T2 stages. Tumor recurrence and metastasis are common in ICC (5), and the prevention of recurrence is thus the key to improving patient overall survival (OS). Adrenomedullin (ADM) is a multifunctional regulatory and vasoactive peptide originally isolated from human pheo-chromocytoma (6). ADM overexpression has been detected in human breast, lung, ovarian, pancreatic, prostate and renal cancers (79). However, the physiologic significance of ADM in ICC metastasis and its underlying molecular mechanism are largely unknown. A better understanding of the biological characteristics of ICC that contribute to tumor invasion and metastasis is paramount for developing novel strategies to treat this cancer.

Materials and methods

Clinical samples and cell lines

This study included 80 men and 53 women with an average age of 55.6±12.8 years (range, 27–84 years), who had undergone curative resection at the First Affiliated Hospital of Zhengzhou University (Zhengzhou, Henan, China) from January 2005 to December 2008. The diagnosis of ICC was confirmed by morphological criteria, immunohistochemical (IHC) staining and clinical findings. None of the patients had received any preoperative anticancer treatment. The present study was approved by the Human Ethics Committee of the First Affiliated Hospital of Zhengzhou University, and informed consent was obtained from all patients according to the committee’s regulations and the Declaration of Helsinki. The clinical characteristics of the patients with ICC are presented in Table I. Functional studies were performed using HuCCT1 and HUH28 cholangiocarci-noma cell lines (Shanghai Institutes for Biological Sciences, Chinese Academy of Sciences, Shanghai, China). The cell lines were cultured in RPMI-1640 medium supplemented with 10% fetal bovine serum (FBS), 100 U/ml penicillin, 0.1 mg/ml streptomycin and 2 mmol/l L-glutamine.

Table I

Clinicopathological characteristics of the 133 patients with ICC.

Table I

Clinicopathological characteristics of the 133 patients with ICC.

DemographicsRecurrence group A
Non-recurrence group B
Age (years)
CA19–9 (U/ml)
Lymph node metastasis
Tumor size (cm)
 Low ≤623500.01848

a Tumor differentiation was assigned by Edmondson’s grading system.

b P-value for the comparison of cohort B with cohort A; ADM, adre-nomedullin; CA19–9, carbohydrate antigen 19–9; ICC, intrahepatic cholangiocellular carcinoma.

Total RNA extraction, cDNA synthesis, RNA isolation and real-time polymerase chain reaction (RT-PCR)

Total RNA was extracted from ICC and liver tissues using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). The quality and concentration of the isolated RNA were measured with a NanoDrop ND-1000 spectrophotometer (NanoDrop Technologies, Montchanin, DE, USA). First-strand cDNA was synthesized using both oligo-dT primers and random 6-mers and PrimeScript RT Enzyme Mix I according to the manufacturer’s instructions (Takara, Otsu, Shiga, Japan).

RT-PCR was performed using specific TaqMan probes and primer sets to examine ADM RNA expression levels. TATA-box-binding protein (TBP), which is considered to be a reliable reference gene for quantitative PCR normalization in HCC specimens, was used as a control (10). Commercialized probes and primer sets specific for ADM and TBP were purchased from Applied Biosystems (Foster City, CA, USA). TaqMan primers and probes for ADM and TBP were designed using Primer Express (Applied Biosystems). The transcripts were amplified with the TaqMan One-Step RT-PCR Master Mix reagent and ABI Prism 7900HT sequence detection system (both from Applied Biosystems). The expression levels of the tested genes were quantified in relation to the expression of TBP using sequence detector software and the relative quantification method (Applied Biosystems). The relative ADM mRNA levels were determined using the 2−ΔΔCT method (11).

Tissue microarray (TMA) and IHC

A tissue microarray was constructed as described previously (12). Samples were taken from each representative tumor tissue and from liver tissue adjacent to the tumor (within 10 mm) to construct TMA slides (in collaboration with the Shanghai Biochip Company Ltd., Shanghai, China). Duplicate tissue cylinders were obtained from intratumoral and peritumoral areas (a total of 4 punches for each patient). Tissues were incubated with primary rabbit anti-ADM monoclonal antibody (1:200; Abcam, Cambridge, MA, USA), according to previously described IHC protocols (13), using the EnVision Plus detection system (EnVision; Dako, Carpinteria, CA, USA). Reaction products were visualized by incubation with 3,3-diaminobenzidine. Semi-quantitative analysis of IHC staining was performed by two experienced pathologists in two sections of each specimen in 10 fields from each section (magnification, ×200). Immunostaining scoring was based on the intensity of staining and the percentage of positively stained cells: negative (−), 0–5%; intermediate (+), >5–10%; moderate (++), >10–25%; strong (+++), >25%. ADM staining ≥5% was considered positive.

Construction of recombinant plasmids and transfection

Full-length human ADM cDNA was amplified by PCR and cloned into the pEGFP-N1 expression vector (Clontech, Palo Alto, CA, USA) to construct pEGFP-N1-ADM, and then transfected into HuCCT1 cells using Lipofectamine 2000 (Invitrogen) according to the manufacturer’s instructions. Cells transfected with pEGFP-N1 were used as a negative control. Stable ADM-expressing clones were selected using geneticin (Roche Diagnostics, Indianapolis, IN, USA) at a concentration of 500 µg/ml.

Establishment of ADM-knockdown cells

Lentivirus containing short hairpin RNAs targeting ADM was purchased from GeneCopoeia (Rockville, MD, USA) and transfected into HUH28 cells using Lipofectamine 2000 (Invitrogen) according to the manufacturer’s instructions. Cells transfected with the empty vector were used as controls. Stable clones were selected using puromycin (final concentration, 2 µg/ml).

In vitro cell behavior assay

Cellular proliferation was assayed in cells seeded at a density of 5×103 cells/well in 96-well plates. The proliferation of the transfected cells was measured using a CyQUANT Cell Proliferation Assay kit (Invitrogen). Each assay was repeated 3 times. For wound-healing assays, monolayers of cells were wounded by scraping with a plastic pipette tip followed by rinsing several times with medium to remove dislodged cells. Cells that had migrated into the wound area were photographed. For invasion assays, 2×105 cells were plated into the upper chamber of a polycarbonate Transwell filter chamber coated with Matrigel (BD Pharmingen, San Diego, CA, USA) and incubated for 48 h. The cells that migrated to the underside of the membrane were stained with Giemsa (Sigma-Aldrich, St. Louis, MO, USA) and counted under a microscope (Olympus, Japan).

Statistical analysis

Survival was analyzed using the Kaplan-Meier estimate, and values were compared using the log-rank test. Independent prognostic factors were identified by multivariate survival analysis using a Cox proportional hazards model. The median value was used to determine the cut-off value for high vs. low expression of ADM. Statistical analyses were performed with SPSS 16.0 for Windows (SPSS software; SPSS Inc., Chicago, IL, USA). Statistical significance was accepted for P<0.05 for all tests.


Expression of ADM in human ICC

The significance of ADM expression in ICC patients was investigated by IHC (Fig. 1). ADM staining was mainly located in the cytoplasm of tumor cells. Most stromal cells were negative for ADM. As shown in Fig. 2, ADM mRNA expression was significantly higher in the ICC tumor tissues compared with that in the peritumoral and healthy liver tissues, according to RT-PCR.

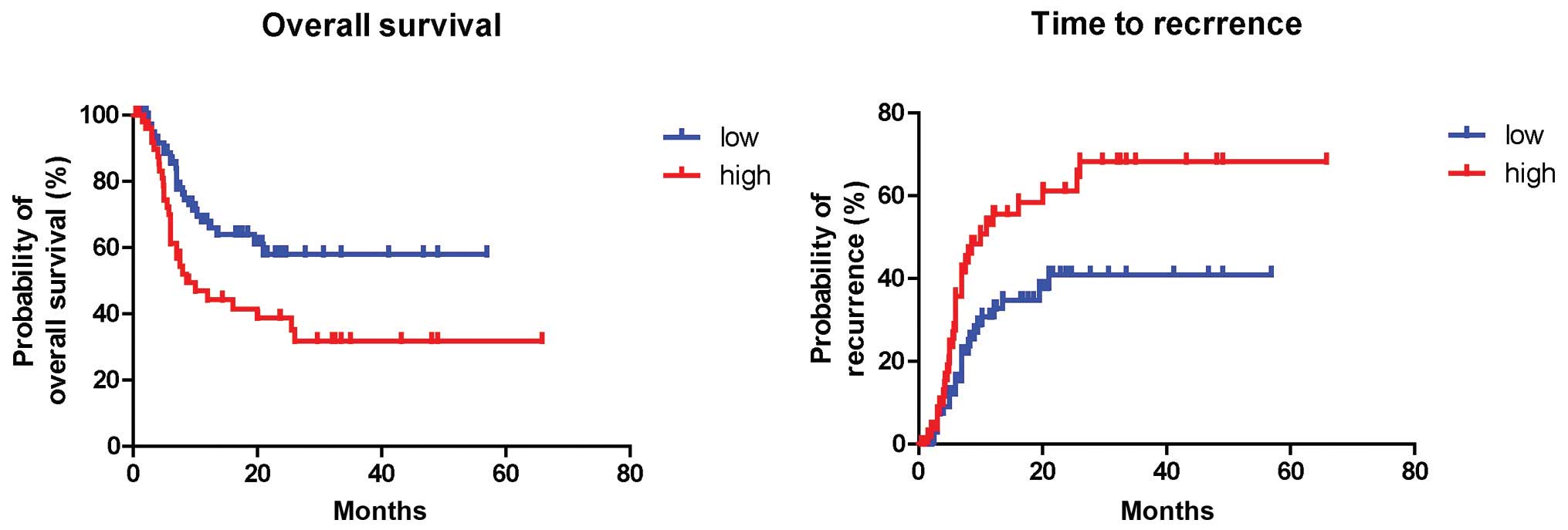

We investigated the clinical significance of ADM overex-pression in ICC by tissue microarray analysis of ICC tissues from 133 patients who underwent resection (Table I). Kaplan-Meier analysis revealed that patients with high ADM expression had poorer OS and shorter time to recurrence (TTR) (both P<0.01, Fig. 3). Univariate Cox regression analysis identified differentiation, encapsulation and ADM overexpression as factors significantly associated with OS, while multivariate Cox proportional hazards regression analysis identified differentiation and ADM overexpression as independent prognostic factors for OS in ICC patients (Table II).

Table II

Univariate and multivariate analyses of factors associated with survival and recurrence.

Table II

Univariate and multivariate analyses of factors associated with survival and recurrence.

Hazard ratio (95% CI) P-valueaHazard ratio (95% CI) P-valuea
Gender (female vs. male)0.782 (0.430–1.423)0.421
Age (>60 vs. ≤60 years)0.899 (0.472–1.713)0.746
Tumor size (>5 vs. ≤5 cm)0.902 (0.493–1.650)0.738
Differentiation (I–II vs. III–IV)2.581 (1.216–5.481)0.0142.177 (1.016–4.665)0.045
CA19–9 (>37 vs. ≤37 U/ml)0.779 (0.409–1.480)0.445
Encapsulation (complete vs. none)2.609 (0.921–7.338)0.0411.497 (0.503–4.456)0.469
ADM (positive vs. negative)2.869 (1.453–5.665)0.0022.412 (1.207–4.823)0.013

[i] ADM, adrenomedullin; CA19–9, carbohydrate antigen 19–9.

Effect of ADM on ICC cell growth

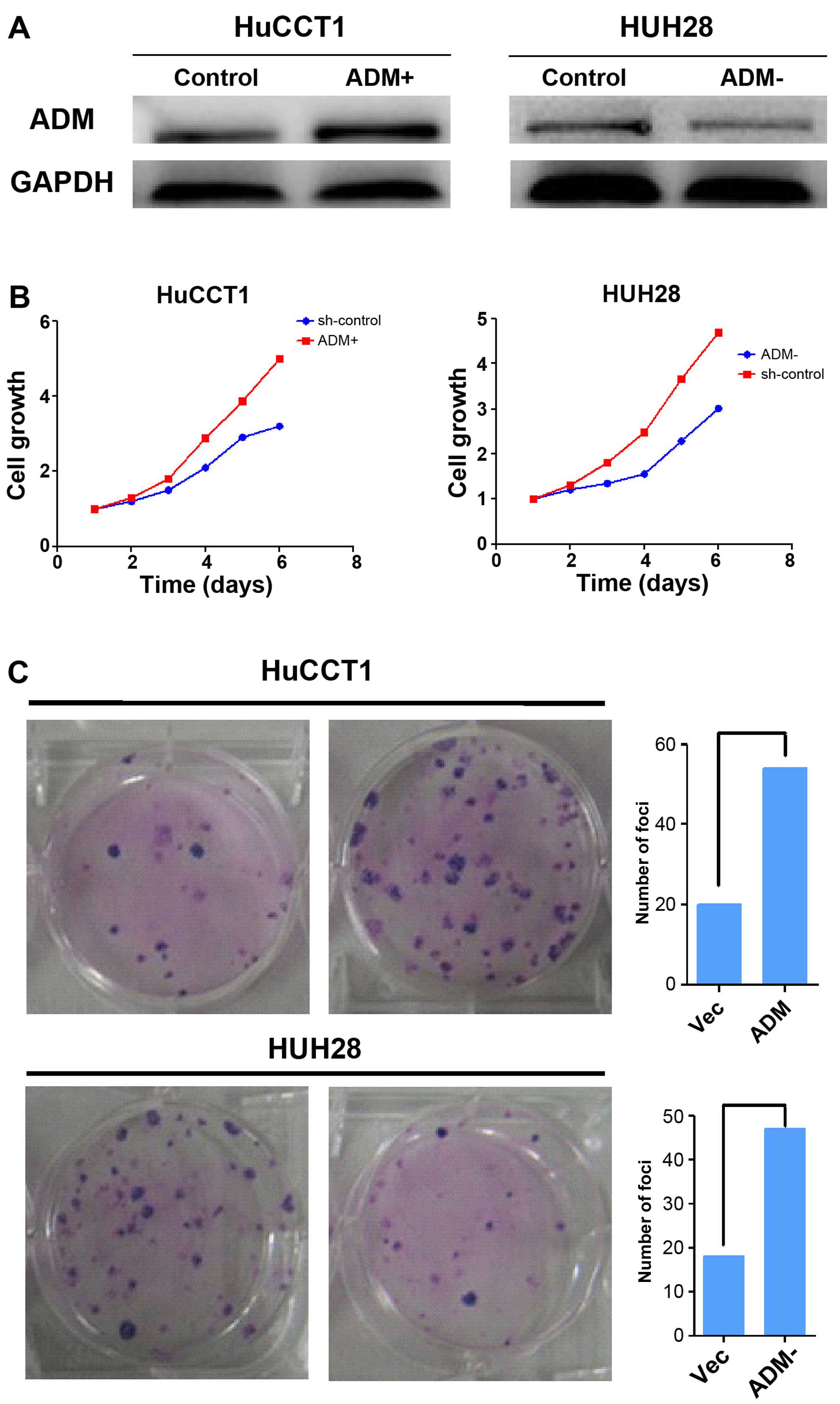

To confirm the involvement of ADM in the growth of ICC cells, we transfected HuCCT1 cells with ADM and silenced HUH28 cells with short hairpin RNA, respectively. ADM expression was determined by western blotting (Fig. 4A). The tumorigenicity of ADM was determined by functional assays. The cell growth rates in the ADM-transfected cells were significantly higher than the rates in the control cells (P<0.01, Fig. 4B). ADM-transfected cells also formed significantly more and larger colonies (P<0.01) than the control cells (Fig. 4C).

Effects of ADM on ICC cell migration and tumor metastasis

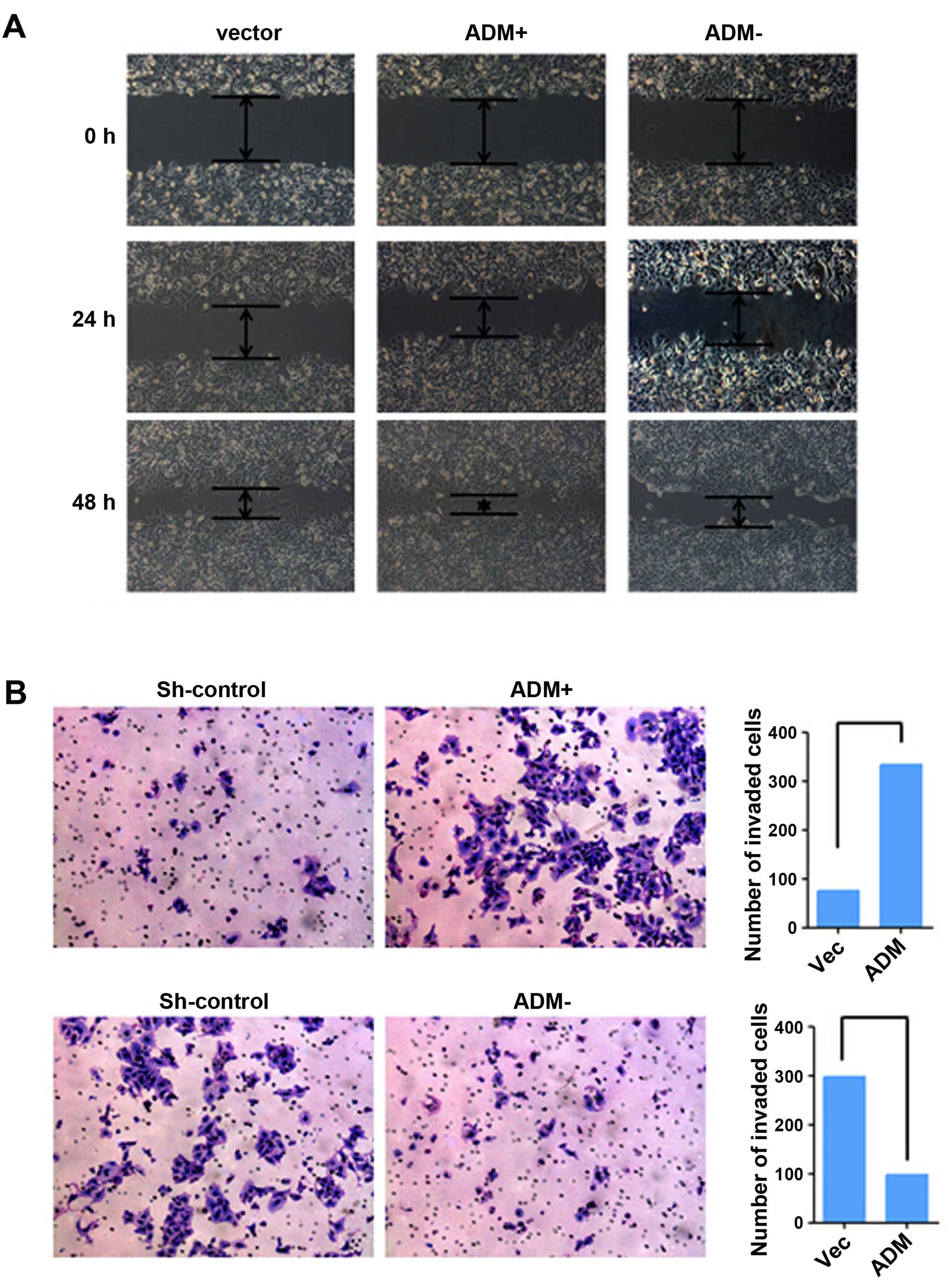

The roles of ADM in tumor cell migration and invasion were investigated by wound-healing and Transwell invasion assays. ADM-transfected cells achieved faster closure of the scratched ̔wounds’ than this rate in the control cells (Fig. 5A). Furthermore, cell motility and invasion in the Transwell invasion assays were significantly increased by ADM transfection (P<0.05, Fig. 5B). Opposite results were obtained in the ADM-silenced cells.

Effect of ADM on epithelial-mesenchymal transition (EMT) in ICC

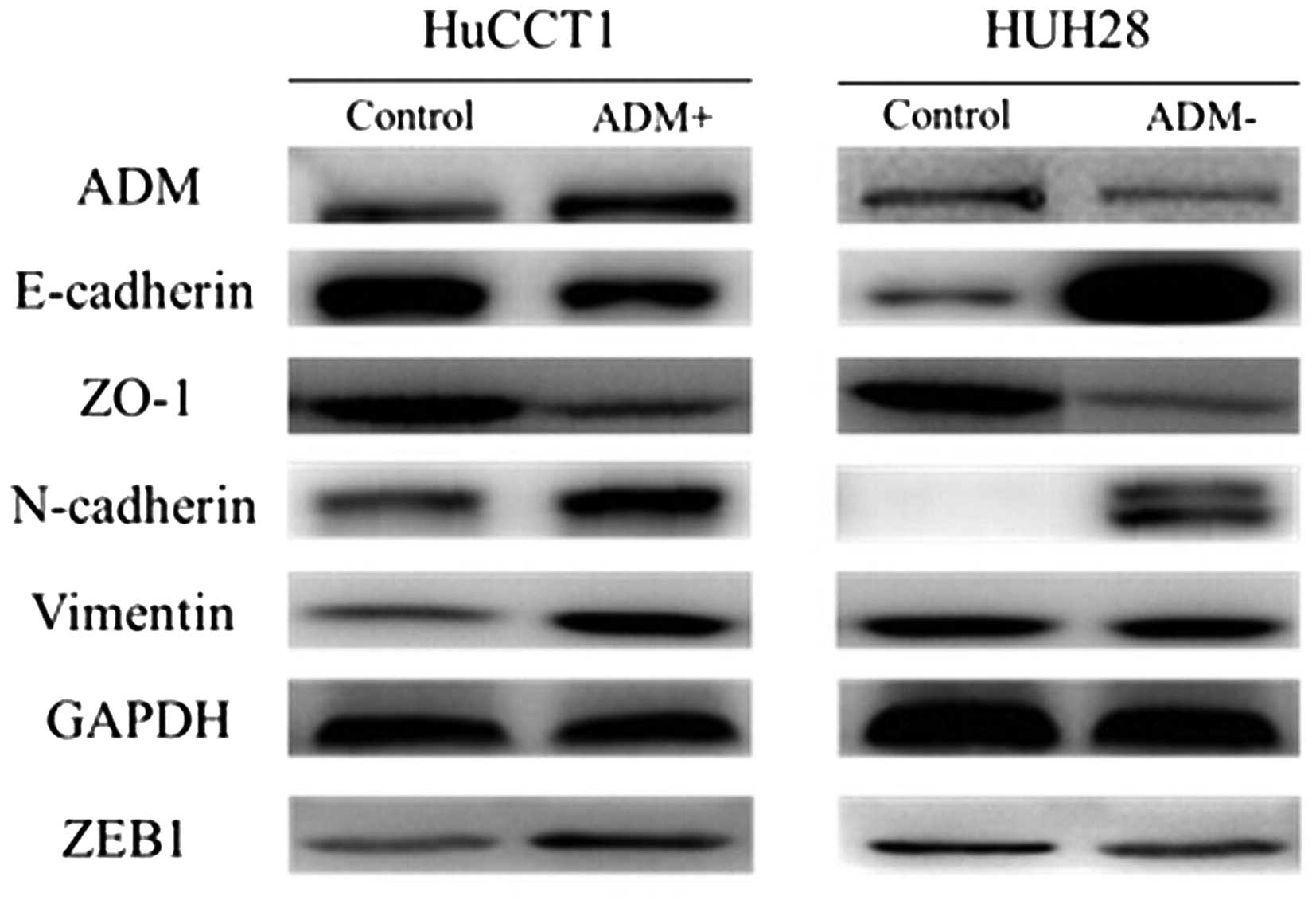

EMT is one of the key events in tumor invasion and metastasis. We therefore investigated the effects of ADM on EMT by analyzing the expression levels of EMT markers and EMT-related transcription factors, and by morphological changes in the ICC cell lines. Western blotting demonstrated decreased expression levels of the epithelial markers E-cadherin and ZO-1, and increased expression of the mesenchymal markers vimentin and N-cadherin, and the EMT-related transcription factors ZEB1 and ZEB2 in the ADM-transfected cells (Fig. 6), compared with the control cells. Opposite expression patterns of these genes were observed in the ADM-silenced cells.


ADM expression has been demonstrated in many human malignant cells (14,15), but to the best of our knowledge, the present study is the first to report ADM expression and its specific mechanisms in ICC. ADM protein was highly expressed in ICCs according to IHC, while ADM mRNA expression levels were higher in the tumor tissues compared with that in the peritumoral and healthy tissues. Overexpression of ADM was significantly associated with poorer OS (P<0.001) and tumor recurrence (P<0.01). These results suggest that ADM acts as an oncogene with an important role in ICC progression.

EMT is considered to be a critical mechanism involved in cancer metastasis (16,17); however, compared with other types of human cancers, few studies have focused on the significance of EMT in ICC (18,19). Our functional studies demonstrated that ADM had strong tumorigenicity, with its overexpression promoting cell growth, migration and invasion. These results were in agreement with those of previous studies (8,20). The two main types of primary liver cancer are HCC and ICC. Although ADM may promote metastasis in both ICC and HCC, the mechanisms appear to differ, possibly because of the different origins of the two tumors. ICC results from the malignant transformation of cholangiocytes. Gene expression profiles analyzed by microarray identified ADM as a metastasis-associated gene. Previous IHC analysis showed that HCC samples with intra-hepatic metastasis expressed strong ADM immunoreactivity in the cytoplasm of tumor cells (21). ADM signaling has been reported to be hypoxia-inducible and functionally active in HCCs (20). In the present study, morphological changes in ICC cells suggest a link between the biological function of ADM and EMT induction. As anticipated, mesenchymal markers were significantly upregulated in stable ADM transfectants, whereas epithelial markers were significantly downregulated. In addition, ADM silencing was associated with increased expression of epithelial markers and decreased levels of mesenchymal markers. ZEBl is the most important transcription factor in the regulation of EMT in epithelial cells (22,23). The present study provides the first evidence demonstrating that ADM induces EMT through ZEB1.

Our study had some limitations. First, although animal models offer an opportunity to bridge the gap between in vitro findings and clinical applicability, such animal experiments were not performed in the present study because of a lack of time and experimental conditions. Second, we focused mainly on patients with resectable ICC at a single institution, and further multicenter studies are needed to validate the findings.

In conclusion, overexpression of ADM in human ICC cells led to increased growth, invasion and metastasis in vitro. High ADM levels in clinical ICC specimens correlated with poor prognosis. These findings suggest that ADM should be evaluated as a potential novel therapeutic target in ICC with the aim of improving the currently poor outcome of this disease.


This study was supported by the Science and Technology Department of Henan Province Science Projects, China (grant no. 132300410004).



Patel T: Increasing incidence and mortality of primary intra-hepatic cholangiocarcinoma in the United States. Hepatology. 33:1353–1357. 2001. View Article : Google Scholar : PubMed/NCBI


Razumilava N and Gores GJ: Cholangiocarcinoma. Lancet. 383:2168–2179. 2014. View Article : Google Scholar : PubMed/NCBI


Rizvi S and Gores GJ: Pathogenesis, diagnosis, and management of cholangiocarcinoma. Gastroenterology. 145:1215–1229. 2013. View Article : Google Scholar : PubMed/NCBI


Shaib Y and El-Serag HB: The epidemiology of cholangiocar-cinoma. Semin Liver Dis. 24:115–125. 2004. View Article : Google Scholar : PubMed/NCBI


Pascher A, Jonas S and Neuhaus P: Intrahepatic cholangiocar-cinoma: Indication for transplantation. J Hepatobiliary Pancreat Surg. 10:282–287. 2003. View Article : Google Scholar


Kitamura K, Kangawa K, Kawamoto M, Ichiki Y, Nakamura S, Matsuo H and Eto T: Adrenomedullin: A novel hypotensive peptide isolated from human pheochromocytoma. Biochem Biophys Res Commun. 192:553–560. 1993. View Article : Google Scholar : PubMed/NCBI


Martínez A, Vos M, Guédez L, Kaur G, Chen Z, Garayoa M, Pío R, Moody T, Stetler-Stevenson WG, Kleinman HK, et al: The effects of adrenomedullin overexpression in breast tumor cells. J Natl Cancer Inst. 94:1226–1237. 2002. View Article : Google Scholar : PubMed/NCBI


Ramachandran V, Arumugam T, Hwang RF, Greenson JK, Simeone DM and Logsdon CD: Adrenomedullin is expressed in pancreatic cancer and stimulates cell proliferation and invasion in an autocrine manner via the adrenomedullin receptor, ADMR. Cancer Res. 67:2666–2675. 2007. View Article : Google Scholar : PubMed/NCBI


Berenguer C, Boudouresque F, Dussert C, Daniel L, Muracciole X, Grino M, Rossi D, Mabrouk K, Figarella-Branger D, Martin PM, et al: Adrenomedullin, an autocrine/paracrine factor induced by androgen withdrawal, stimulates ‘neuroendocrine phenotype’ in LNCaP prostate tumor cells. Oncogene. 27:506–518. 2008. View Article : Google Scholar


Zhu HT, Dong QZ, Wang G, Zhou HJ, Ren N, Jia HL, Ye QH and Qin LX: Identification of suitable reference genes for qRT-PCR analysis of circulating microRNAs in hepatitis B virus-infected patients. Mol Biotechnol. 50:49–56. 2012. View Article : Google Scholar


Schmittgen TD and Livak KJ: Analyzing real-time PCR data by the comparative C(T) method. Nat Protoc. 3:1101–1108. 2008. View Article : Google Scholar : PubMed/NCBI


Simon R, Mirlacher M and Sauter G: Tissue microarrays. Biotechniques. 36:98–105. 2004.PubMed/NCBI


Zhou H, Huang H, Shi J, Zhao Y, Dong Q, Jia H, Liu Y, Ye Q, Sun H, Zhu X, et al: Prognostic value of interleukin 2 and interleukin 15 in peritumoral hepatic tissues for patients with hepatitis B-related hepatocellular carcinoma after curative resection. Gut. 59:1699–1708. 2010. View Article : Google Scholar : PubMed/NCBI


Aggarwal G, Ramachandran V, Javeed N, Arumugam T, Dutta S, Klee GG, Klee EW, Smyrk TC, Bamlet W, Han JJ, et al: Adrenomedullin is up-regulated in patients with pancreatic cancer and causes insulin resistance in β scells and mice. Gastroenterology. 143:1510–1517. 2012. View Article : Google Scholar


Chen P, Huang Y, Bong R, Ding Y, Song N, Wang X, Song X and Luo Y: Tumor-associated macrophages promote angiogenesis and melanoma growth via adrenomedullin in a paracrine and autocrine manner. Clin Cancer Res. 17:7230–7239. 2011. View Article : Google Scholar : PubMed/NCBI


Rhim AD, Mirek ET, Aiello NM, Maitra A, Bailey JM, McAllister F, Reichert M, Beatty GL, Rustgi AK, Vonderheide RH, et al: EMT and dissemination precede pancreatic tumor formation. Cell. 148:349–361. 2012. View Article : Google Scholar : PubMed/NCBI


Ding W, You H, Dang H, LeBlanc F, Galicia V, Lu SC, Stiles B and Rountree CB: Epithelial-to-mesenchymal transition of murine liver tumor cells promotes invasion. Hepatology. 52:945–953. 2010. View Article : Google Scholar : PubMed/NCBI


El Khatib M, Kalnytska A, Palagani V, Kossatz U, Manns MP, Malek NP, Wilkens L and Plentz RR: Inhibition of hedgehog signaling attenuates carcinogenesis in vitro and increases necrosis of cholangiocellular carcinoma. Hepatology. 57:1035–1045. 2013. View Article : Google Scholar


Oishi N, Kumar MR, Roessler S, Ji J, Forgues M, Budhu A, Zhao X, Andersen JB, Ye QH, Jia HL, et al: Transcriptomic profiling reveals hepatic stem-like gene signatures and interplay of miR-200c and epithelial-mesenchymal transition in intra-hepatic cholangiocarcinoma. Hepatology. 56:1792–1803. 2012. View Article : Google Scholar : PubMed/NCBI


Park SC, Yoon JH, Lee JH, Yu SJ, Myung SJ, Kim W, Gwak GY, Lee SH, Lee SM, Jang JJ, et al: Hypoxia-inducible adreno-medullin accelerates hepatocellular carcinoma cell growth. Cancer Lett. 271:314–322. 2008. View Article : Google Scholar : PubMed/NCBI


Nakata T, Seki N, Miwa S, Kobayashi A, Soeda J, Nimura Y, Kawasaki S and Miyagawa S: Identification of genes associated with multiple nodules in hepatocellular carcinoma using cDNA microarray: Multicentric occurrence or intrahepatic metastasis? Hepatogastroenterology. 55:865–872. 2008.PubMed/NCBI


Sánchez-Tilló E, Siles L, de Barrios O, Cuatrecasas M, Vaquero EC, Castells A and Postigo A: Expanding roles of ZEB factors in tumorigenesis and tumor progression. Am J Cancer Res. 1:897–912. 2011.PubMed/NCBI


Joseph JV, Conroy S, Tomar T, Eggens-Meijer E, Bhat K, Copray S, Walenkamp AM, Boddeke E, Balasubramanyian V, Wagemakers M, et al: TGF-β is an inducer of ZEB1-dependent mesenchymal transdifferentiation in glioblastoma that is associated with tumor invasion. Cell Death Dis. 5:e14432014. View Article : Google Scholar
