Open Access

HaCaT‑conditioned medium supplemented with the small molecule inhibitors SB431542 and CHIR99021 and the growth factor PDGF‑AA prevents the dedifferentiation of dermal papilla cells in vitro

  • Authors:
    • Dongjie Sun
    • Zhehao Huang
    • Jinying Xu
    • Yiqing Wang
    • Lin Chen
    • Yi Hou
    • Guangfan Chi
  • View Affiliations

  • Published online on: March 8, 2021     https://doi.org/10.3892/mmr.2021.11965
  • Article Number: 326
  • Copyright: © Sun et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Abstract

Hair loss, including alopecia, is a common and distressing problem for men and women, and as a result, there is considerable interest in developing treatments that can prevent or reverse hair loss. Dermal papillae closely interact with epidermal cells and play a key role during hair follicle induction and hair morphogenesis. As dermal papilla cells (DPCs) lose their hair‑inducing ability in monolayer cultures in vitro, it is difficult to obtain de novo hair follicle structures following DPC transplantation in vivo. The present study aimed to explore culture conditions to maintain DPC characteristics using conditioned media (CM) from the supernatant of cultured HaCaT keratinocyte cells supplemented with other components. Initially, it was observed that during passaging of in vitro monolayer DPC cultures, the Wnt/β‑catenin pathway was repressed, while the TGF‑β/Smad pathway was activated, and that HaCaT cells cultivated in 1% fetal bovine serum had higher levels of expression of Wnt3a and Wnt10b compared with normal keratinocytes. Culturing of high‑passage (P7) DPCs in CM from HaCaT cells (HaCaT‑CM) actively stimulated cell proliferation and maintained Sox2 and Versican expression levels. Supplementation of HaCaT‑CM with SB431542 (SB, a TGF‑β receptor inhibitor), CHIR99021, (CHIR, a GSK3α/β inhibitor and activator of Wnt signaling) and platelet‑derived growth factor (PDGF)‑AA further increased the expression levels of Sox2, Versican and alkaline phosphatase (ALP) in P7 DPCs. Three‑dimensional culture of P7 DPCs using hanging drop cultures in HaCaT‑CM supplemented with SB, CHIR and PDGF‑AA resulted in larger cell aggregates and a further significant upregulation of Sox2, ALP and Versican expression levels. Taken together, these findings demonstrated that HaCaT‑CM supplemented with SB, CHIR and PDGF‑AA may preserve the hair‑inducing ability of high‑passage DPCs and may therefore be useful in reconstructing new hair follicles in vivo.

Introduction

Hair loss, including alopecia, is a common and distressing problem for men and women, and as a result there is considerable interest in developing treatments that can prevent or reverse this hair loss. Currently, treatment with drugs and hair transplantation are the conventional treatments for hair loss or alopecia. However, drug treatments only delay hair loss and cannot prevent further hair loss (1). While autologous hair follicle transplantation is an effective treatment for hair loss, the area for extracting intact hair follicles (HFs) is limited in a patient's scalp, and so the available number of hair follicles that can be extracted is also limited (1,2). Thus, hair follicle regeneration through bioengineering is now considered to be a promising alternative strategy for treating hair loss.

In scalp tissue, dermal papilla (DP) cells (DPCs), which are derived from neural crest stem cells, are specialized fibroblast-like cells and are hypothesized to play crucial roles in hair follicle morphogenesis and cycling (3,4). Therefore, DPCs are essential for the successful construction of bioengineered HFs to treat hair loss. Although freshly dissociated fully intact DPCs have hair-inducing characteristics, they rapidly lose this capability following serial sub-cultivation due to a process of cell dedifferentiation, which is characterized by changes in their morphology and a downregulation of their characteristic genes (59). As such, obtaining a large number of DPCs through modification of ex vivo culture conditions remain a challenge.

In vivo, DPCs congregate and form a three-dimensional (3D) DP structure, which is located at the base of the hair follicle bulb and are surrounded by a dermal sheath and the hair matrix (7). In addition to DPCs, other cellular components of the hair bulb include keratinocytes and melanocytes (5). Thus, in the bulb, DPCs are closely in contact with each other and exist in a specialized 3D environment. Furthermore, their cellular properties are strictly controlled by complex elements, including cell-cell interactions, the extracellular matrix (ECM) and various factors, such as growth factors and cytokines that are secreted by DPCs and surrounding cells (2,10). According to reports, the DPC phenotype is tightly regulated by various signaling pathways, including the Wnt/β-catenin, platelet-derived growth factor (PDGF) and bone morphogenetic protein (BMP) pathways (1115). In particular, DPCs and keratinocytes interact with each other in a reciprocal manner, suggesting that signals from keratinocytes are vital for maintaining the biological function of DPCs (2). Therefore, during in vitro culture, culture conditions that mimic the in vivo environment should be used in order to provide a more favorable environment that is able to preserve DPC trichogenicity.

The present study explored new culture conditions using conditioned media (CM) derived from the supernatant of cultured HaCaT cells supplemented with SB431542 (SB, an inhibitor of the TGFβ/Smad pathway), CHIR99021 (CHIR, a GSK3α/β inhibitor and activator of Wnt signaling), and PDGF-AA. Using this media, high-passage (P7) DPCs were cultured under both two-dimensional (2D) and 3D culture conditions and changes in morphology and gene expression patterns associated with the trichogenic phenotype of DPCs were examined.

Materials and methods

Isolation of DPCs and cell culture

Full-thickness skin samples were obtained from the occipital human scalp of three individuals undergoing corrective surgery for the treatment of androgenetic alopecia. The experimental protocol was established according to the ethical guidelines of the Helsinki Declaration and was approved by the Human Ethics Committee of China-Japan Union Hospital of Jilin University (approval no. 2020042606; Changchun, China). Written informed consent was obtained from individual patients. Follicles were removed from the fine scalp. Collagen capsules surrounding the scalp follicles were then removed to expose the follicle bases, and DPs were dissected using thin needles. Isolated DPs were placed on the bottom of the cell culture dishes. DPCs were cultured for 10–14 days, harvested using 0.25% trypsin-EDTA (Sigma-Aldrich; Merck KGaA), and transferred to fresh culture dishes. DPCs were cultured in DMEM-F12 (Gibco; Thermo Fisher Scientific, Inc.) supplemented with 10% fetal bovine serum (FBS; Gibco; Thermo Fisher Scientific, Inc.) and fibroblast growth factor-basic (bFGF; 10 ng/ml; PeproTech, Inc.). In total, 4×104 cells/ml DPCs were cultured in T75 culture flasks. Cells were subcultured or harvested upon reaching 80–90% confluence. The culture medium was exchanged every three days. The cells were examined under a bright-field microscope (magnification, ×40) (Olympus Corporation), the cell aspect ratio (measured as the length of the long axis divided by that of the narrow axis) and cell areas were analyzed using cellSens Dimension software (version 1.12; Olympus Corporation).

Keratinocyte culture

The foreskin of children (discarded tissue after circumcision) was obtained from China-Japan Union Hospital of Jilin University. Procedures were explained and written informed consent was obtained from participants' guardians in accordance with Declaration of Helsinki guidelines. The experimental procedures were officially approved by the Human Ethics Committee as described above (approval no. 2020042606). The epidermis was separated from the foreskin after overnight incubation with 2 g/ml dispase II (Gibco; Thermo Fisher Scientific, Inc.) at 4°C, and keratinocytes were isolated after trypsinization for 7 min by thorough pipetting. Keratinocytes were cultured at 37°C in Epidermal Keratinocyte Medium (Gibco; Thermo Fisher Scientific, Inc.). After cells reached 90% confluence, the medium was completely replaced with DMEM-F12 supplemented with 1% FBS (v/v) and cultured for 24 h, followed by harvesting the media for further analysis.

HaCaT cell culture and HaCaT-CM preparation

HaCaT cells were obtained from The Cell Bank of Type Culture Collection of the Chinese Academy of Sciences. Cells were cultured to 80–90% confluence in T75 culture flasks and treated with 10% FBS (v/v). Following this, the medium was replenished with 10 ml DMEM-F12 supplemented with different concentrations of FBS (0, 1 and 10% by volume) at 37°C. For HaCaT-CM preparation, the cells were cultured at 37°C for 24 and 48 h with 1% FBS (v/v) before harvesting. The collected supernatant samples were filtered through a 0.2-µm filter and stored at −20°C. Then, the supernatant was used to culture DPCs at different concentrations (0, 25, 50 and 100% by volume).

Alkaline phosphatase (ALP) activity

ALP levels were assessed using the BCIP/NBT Alkaline Phosphatase Color Development Kit (Beyotime Institute of Biotechnology), according to the manufacturer's instructions. Human DPCs were plated in 12-well plates at 8×104 cells per well. After growing for 24 h, the cells were fixed in 4% paraformaldehyde at room temperature for 10 min and then washed with phosphate-buffered saline (PBS). Cells were then incubated in BCIP/NBT buffer at room temperature for 30 min. The reaction was stopped by washing with PBS, and the cells were examined under a bright-field microscope (magnification, ×40). Dark blue staining indicated a positive signal for ALP.

Reverse transcription (RT)-polymerase chain reaction (PCR) and RT-quantitative (q)PCR analyses

To examine the expression of genes in DPCs, total RNA (1 µg) was isolated using TRIzol® reagent (Invitrogen; Thermo Fisher Scientific, Inc.), and first-strand cDNA was synthesized using SuperScript™ III Reverse Transcriptase (Invitrogen; Thermo Fisher Scientific, Inc.) and oligo-dT (Promega Corporation), according to the manufacturer's instructions. For RT-PCR, the amplification included initial denaturation at 95°C for 10 sec, 35 cycles of denaturation at 95°C for 10 sec, and annealing at 60°C for 30 sec. The GAPDH mRNA level was used for sample standardization. The PCR products were separated by electrophoresis on a 1.5% agarose gel (Beyotime Institute of Biotechnology) and were stained with GelRed® (Beyotime Institute of Biotechnology), each band was quantified using ImageJ 1.53a software (National Institutes of Health). For RT-qPCR, a TransStart Tip Green qPCR SuperMix (Beijing TransGen Biotech Co., Ltd.) was used, and the thermocycling program was as follows: 94°C for 30 sec, followed by 40 cycles at 94°C for 5 sec, 55°C for 15 sec and 72°C for 10 sec. At least three independent biological replicates were performed for the RT-qPCR. The amount of PCR product was calculated relative to the internal control GAPDH, and then compared between the experimental and control groups using the 2−ΔΔCq method (16). Primer sequences were as follows: Sox2 sense, 5′-CGGATTATAAATACCGGCCC-3′ and antisense, 5′-GTGTACTTATCCTTCATGAGC-3′; ALP sense, 5′-CAGGTCCCACAAGCCCGCAA-3′ and antisense, 5′-CCCGGTGGGCCACAAAA-3′; Versican sense, 5′-TGAGCATGACTTCCGTTGGACTGA-3′ and antisense, 5′-CCACTGGCCATTCTCATGCCAAAT-3′; Wnt3a sense, 5′-AGATTGGCATCCAGGAGTG-3′ and antisense, 5′-CTCCCTGGTAGCTTTGTCC-3′; Wnt10a sense, 5′-CTAAGGACTTTCTGGACTCCC-3′ and antisense, 5′-TGTTCTCCATCACTGCCTG-3′; Wnt10b sense, 5′-GAGGTCCTGATCGATCTGC-3′ and antisense, 5′-ATTGCTTAGAGCCCGACTG-3′; EGF sense, 5′-GAGAAACTGTTGGGAGAGGAATC-3′ and antisense, 5′-TCACAGAGTTTAACAGCCCTGC-3′; BMP6 sense, 5′-TCAGCACAGAGACTCTGAC-3′ and antisense, 5′-ATGTCAAATTCCAGCCAGC-3′; GAPDH sense, 5′-CGCTCTCTGCTCCTGTT-3′ and antisense, 5′-CCATGGTGTCTGAGCGATGT-3′.

Western blot analysis

Cells were lysed in RIPA buffer [150 mM NaCl, 10 mM Tris, pH 7.2, 0.1% sodium dodecyl sulfate (SDS), 1.0% Triton X-100, 1% sodium deoxycholate, 5 mM EDTA]. Protein concentrations were determined by the Bradford assay (Beyotime Institute of Biotechnology). Samples (25 µg/lane) were separated via SDS-PAGE on 10–12% gels, following which, proteins were electrophoretically transferred onto a nitrocellulose membrane. After blocking in sterile PBS containing 5% non-fat dry skimmed milk and 0.05% (v/v) Tween-20 at room temperature for 1 h, the blots were incubated with the following primary antibodies overnight at 4°C: Sox2 (cat. no. 3579; 1:1,000; Cell Signaling Technology, Inc.), ALP (cat. no. ab108337; 1:2,000; Abcam), Versican (cat. no. ab19345; 1:1,000; Abcam), phosphorylated (p)-Smad2/3 (cat. no. 8828; 1:1,000; Cell Signaling Technology, Inc.), Smad2/3 (cat. no. 5678; 1:1,000; Cell Signaling Technology, Inc.), β-catenin (cat. no. 8480; 1:1,000; Cell Signaling Technology, Inc.), lymphoid enhancer-binding factor 1 (Lef-1) (cat. no. 2230; 1:1,000; Cell Signaling Technology, Inc.) and β-actin (cat. no. AT0001; 1:1,000; Engibody Biotechnology, Inc.). Horseradish peroxidase-conjugated anti-mouse (cat. no. 7076; 1:1,000; Cell Signaling Technology, Inc.) and anti-rabbit (cat. no. 7074; 1:1,000; Cell Signaling Technology, Inc.) antibodies were used as secondary antibodies at room temperature for 1 h. The immune complexes were assayed with an enhanced chemiluminescence kit (Invitrogen; Thermo Fisher Scientific, Inc.) and the blots were analyzed with densitometry using ImageJ 1.53a software (National Institutes of Health).

Cell proliferation assay

The cell proliferation assay was carried out using a Cell Counting Kit-8 (CCK-8) cell proliferation assay kit (Dojindo Molecular Technologies, Inc.) according to the manufacturer's instruction. DPCs were placed into 96-well plates (2×103 cells/well). After culturing for 1, 2, 3, 4, 5, 6 or 7 days, 10 µl CCK-8 assay solution was added to each well. Subsequently, after incubation for 2 h, the optical density (OD) at 450 nm was measured with an enzyme immunoassay analyzer (Thermo Fisher Scientific, Inc.) to estimate cell proliferation.

Histological and immunocytochemical analyses

DPC spheres were harvested for histological and immunocytochemical analyses. The treated spheres were fixed in 4% paraformaldehyde at room temperature for 24 h, dehydrated with sucrose and embedded in optimum cutting temperature compound. The frozen sections (6-µm thick) were visualized using hematoxylin and eosin (H&E) stain at room temperature and observed under a bright-field microscope (Olympus Corporation). For immunocytochemical analysis, cells were washed with PBS, fixed in 4% paraformaldehyde at room temperature for 30 min, and incubated in PBS for 20 min at 4°C. Subsequently, the cells were permeabilized using 0.1% Triton X-100 for 15 min, followed by blocking with 5% FBS at room temperature for 30 min. The frozen sections were incubated with ALP (cat. no. ab108337; 1:100; Abcam) and Versican (cat. no. ab19345; 1:100; Abcam) or Sox2 (cat. no. 3579; 1:100; Cell Signaling Technology, Inc.) at 4°C overnight. The sections were then washed in PBS with 0.05% (v/v) Tween-20 and incubated with Alexa Fluor® 594-conjugated goat anti-rabbit IgG (cat. no. R37117; 1:200; Invitrogen; Thermo Fisher Scientific, Inc.) at room temperature for 1 h. The frozen sections were stained with DAPI (1:2,000; Sigma-Aldrich; Merck KGaA) at room temperature for 10 min and observed via fluorescence microscopy (Olympus Corporation).

Hanging drop aggregation assay

DPCs at P7 (3×103 cells/ml; 40 µl) were disseminated and pipetted into each well of the 96-well hanging drop dishes (Sigma-Aldrich; Merck KGaA). The medium for the HaCaT-CM + 3D group was HaCaT-CM supplemented with 10 mM SB (TGF-β receptor inhibitor; Tocris Bioscience), 3 mM CHIR (GSK3 inhibitor and activator of the Wnt pathway; Peprotech, Inc.), and 5 ng/ml growth factor PDGF-AA (Peprotech, Inc.). The medium of the control group was DMEM-F12 supplemented with 1% FBS (v/v). Culture media were changed every 24 h. The cultures were placed at 37°C in a humidified incubator with a 5% CO2 atmosphere. Subsequently, the cells from both groups were harvested throughout the culture period of 5 days and evaluated in terms of morphology and gene expression. The diameter and surface area of DPC spheres were analyzed using the cellSens Dimension software (version 1.12; Olympus Corporation).

Statistics

The results are expressed as the mean ± SEM. All experiments were repeated three times with independent cultures, and similar results were obtained. Statistical tests were carried out with SPSS (version 22.0; SPSS, Inc.). Statistical significance was determined using one-way analysis of variance (ANOVA), followed by Tukey's post hoc test. For comparisons between two treatment groups unpaired Student's t-test was used. P<0.05 was considered to indicate a statistically significant difference.

Results

Isolation of human DPs and ALP staining

First, HFs were separated, and their morphology was examined under a microscope following histochemical staining. In addition, DPCs (from micro-dissected DPs) were characterized by ALP staining. The results showed that DPs were located in the hair bulb at the bottom of the HFs (Fig. 1A and B), and that they had a very high cell density in the follicular growth phase (Fig. 1C and D). Next, DPs were isolated from the HFs and placed in dishes, after which the DPCs were observed to spread out and underwent proliferation after ~14 days (Fig. 1E). It was also observed that there was high ALP activity in the cultured DPs and DPCs (Fig. 1E).

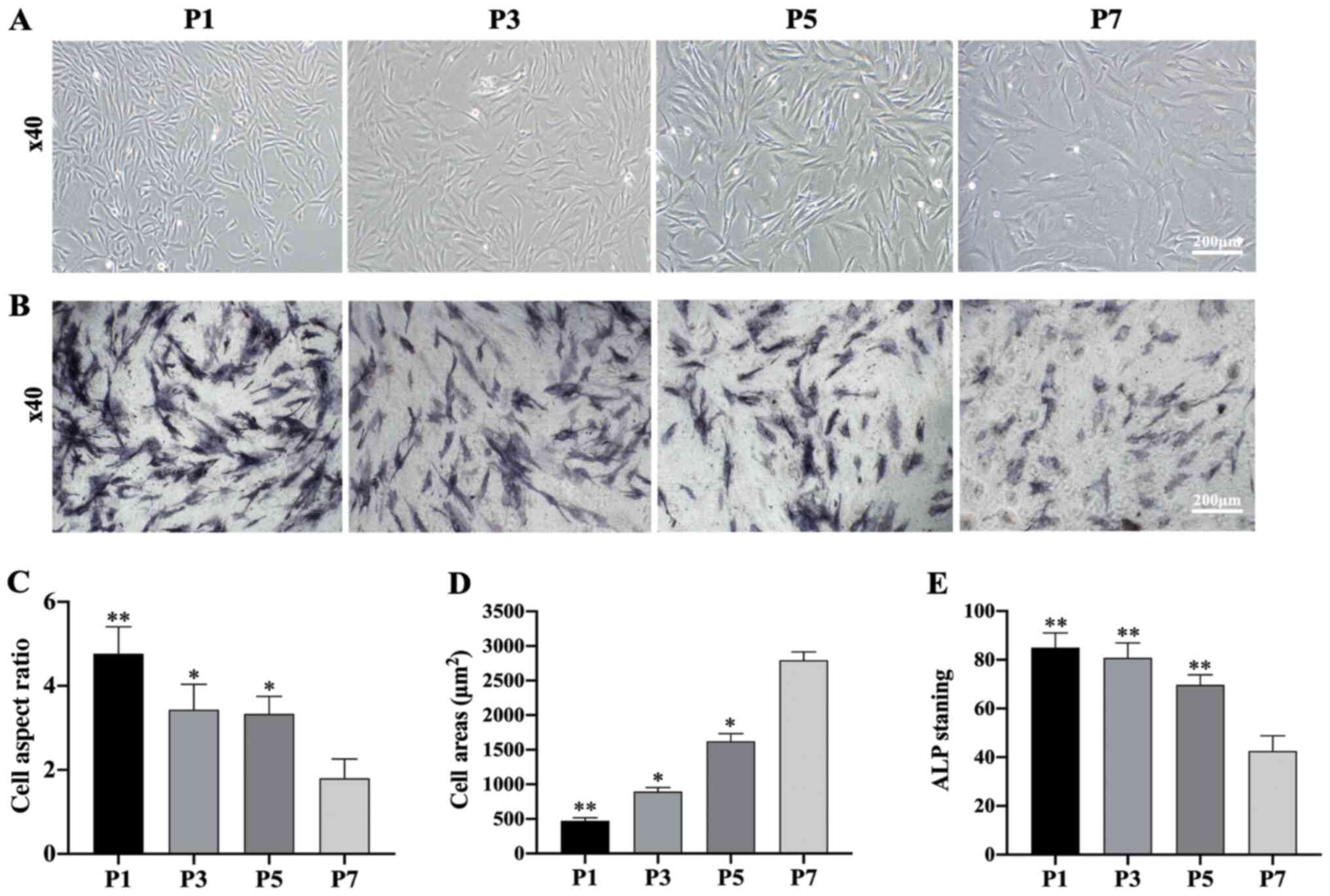

Morphological observation and specific ALP staining of subcultured DPCs

Upon observing the subcultured DPCs, the morphology of DPCs was found to change notably during subculture. Specifically, the morphology of DPCs gradually shifted from long-spindle shaped cells to polygonal shaped cells at higher cell generations (Fig. 2A). Furthermore, the amount of ALP-stained cells decreased over the culture period (Fig. 2B and E). A statistical analysis showed that the aspect ratio of the cells decreased at higher cell generations, while the cell surface area gradually increased (Fig. 2C and D).

Expression of specific genes and proteins in DPCs during subculture

Changes in the expression of hair induction-related genes and proteins were examined during DPC culture. The results showed that the expression levels of hair-inducing genes Sox2, ALP and Versican were decreased significantly compared with P1-DPCs (Fig. 3A and B). Western blotting was used to measure the protein expression levels of DPCs during subculture, including the hair-inducing proteins Sox2, ALP and Versican, the Wnt pathway proteins β-catenin and Lef-1, and the TGF-β/Smad pathway protein p-Smad2/3. The results showed that Sox2, ALP and Versican expression levels decreased rapidly during subsequent passaging. Moreover, the expression levels of β-catenin and Lef-1 also gradually decreased, while the levels of p-Smad2/3 gradually increased with passaging (Fig. 3C and D).

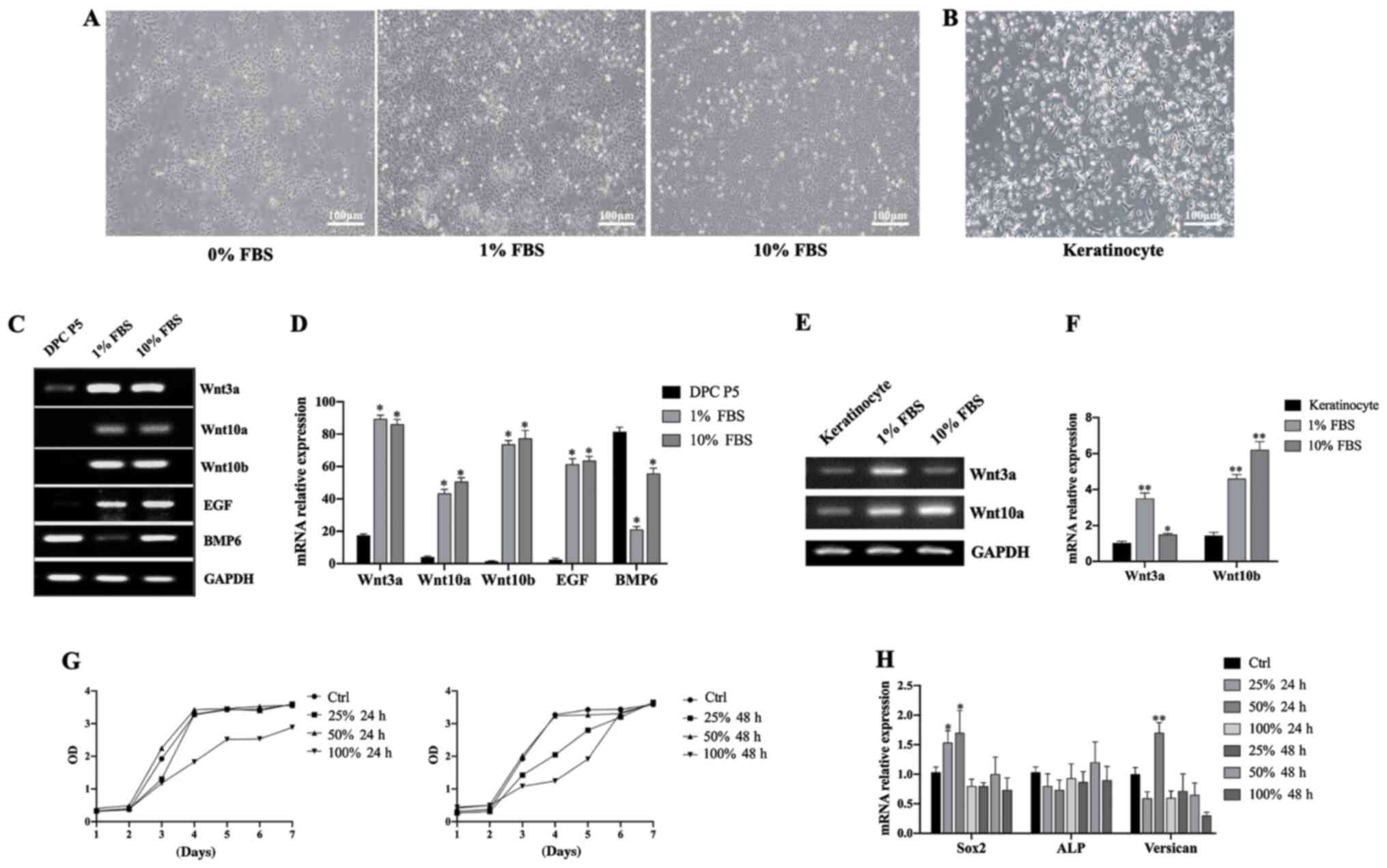

Preparation and evaluation of HaCaT-CM

HaCaT cells were cultured with different concentrations of FBS (0, 1 and 10% by volume) and the gene expression levels of a number of key genes were measured. HaCaT cells cultured in 0% FBS were found to grow more slowly than those cultured in 1% or 10% FBS. Cells cultured in the presence of 1% and 10% FBS showed no notable differences in growth rate and morphology (Fig. 4A). Keratinocytes were also isolated and cultured (Fig. 4B). HaCaT cells also showed higher mRNA expression levels of Wnt3a, Wnt10a, Wnt10b and EGF than DPCs (Fig. 4C and D), as well as higher expression levels of Wnt3a and Wnt10b than primary keratinocytes isolated from human foreskin (Fig. 4E and F). To reduce the interference of exogenous serum cytokines, the supernatant of HaCaT cells cultured with 1% FBS at different time points (24 or 48 h) were collected. Subsequently, the supernatant was used to culture DPCs at different concentrations (0, 25, 50 and 100%). Cell proliferation and gene expression of the DPCs in each group were measured and it was found that DPCs had a higher growth rate and higher expression levels of Sox2 and Versican in a 24 h culture with a 50% volume fraction of the supernatant (Fig. 4G and H). As such, the supernatant under this condition was designated as HaCaT-CM.

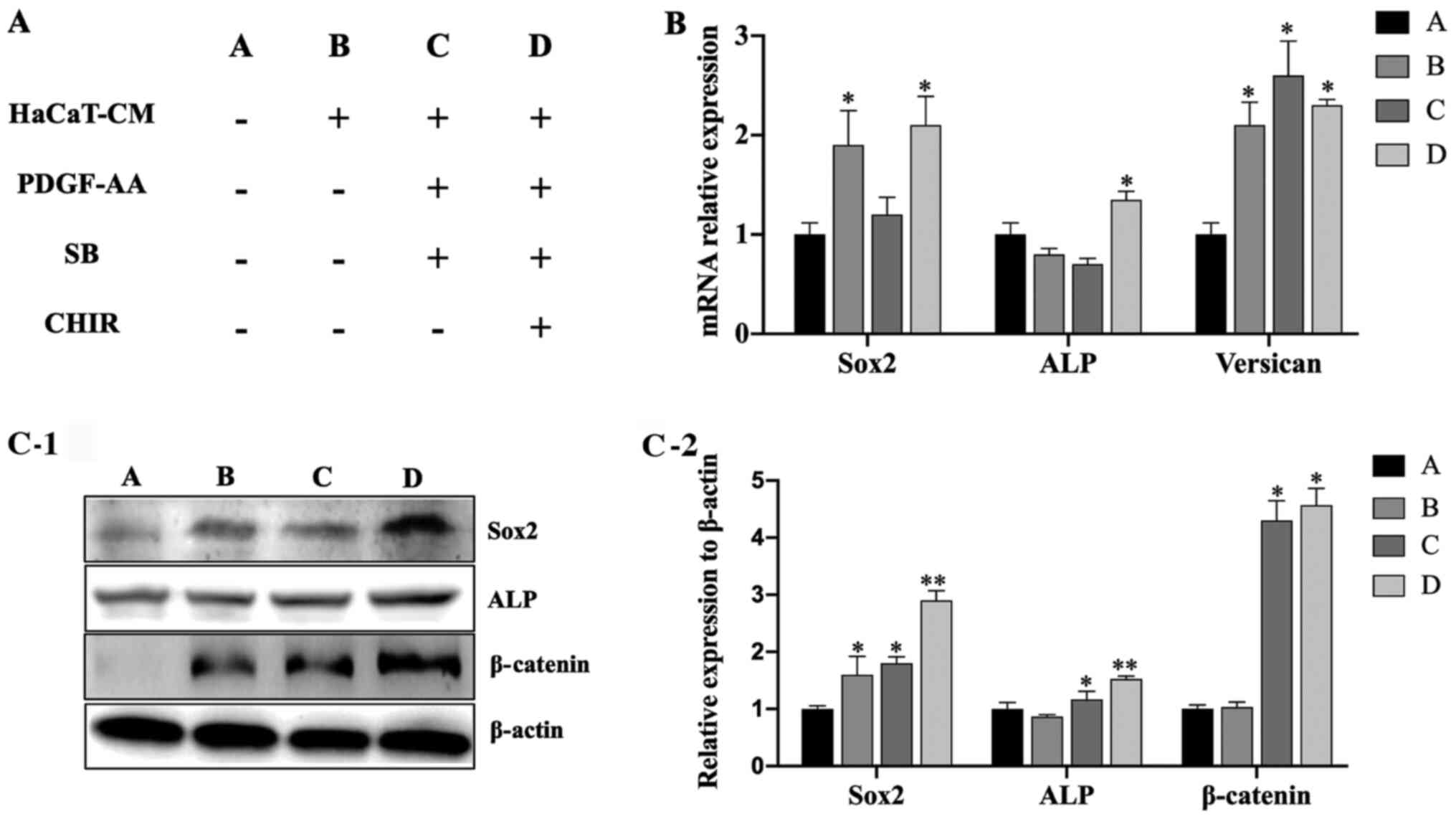

HaCaT-CM supplemented with SB, CHIR and PDGF-AA maintains the hair-inducing capacity of DPCs

To further promote the characteristics of DPCs in vitro and maintain their expression of hair-inducing genes and proteins, HaCaT-CM was supplemented with small molecule inhibitors namely 10 mM SB and 3 mM CHIR, as well as 5 ng/ml PDGF-AA, and then the growth and differentiation of the DPCs at P7 were observed. The medium components in each group are listed in Fig. 5A. The results showed that treatment with HaCaT-CM containing SB, CHIR and PDGF-AA significantly upregulated the mRNA expression levels of Sox2, ALP and Versican in DPCs compared with other treatment combinations (Fig. 5B). In addition, a western blot analysis showed that Sox2, ALP and β-catenin expression levels were all upregulated after treatment with HaCaT-CM containing SB, CHIR and PDGF-AA compared with other treatment combinations (Fig. 5C).

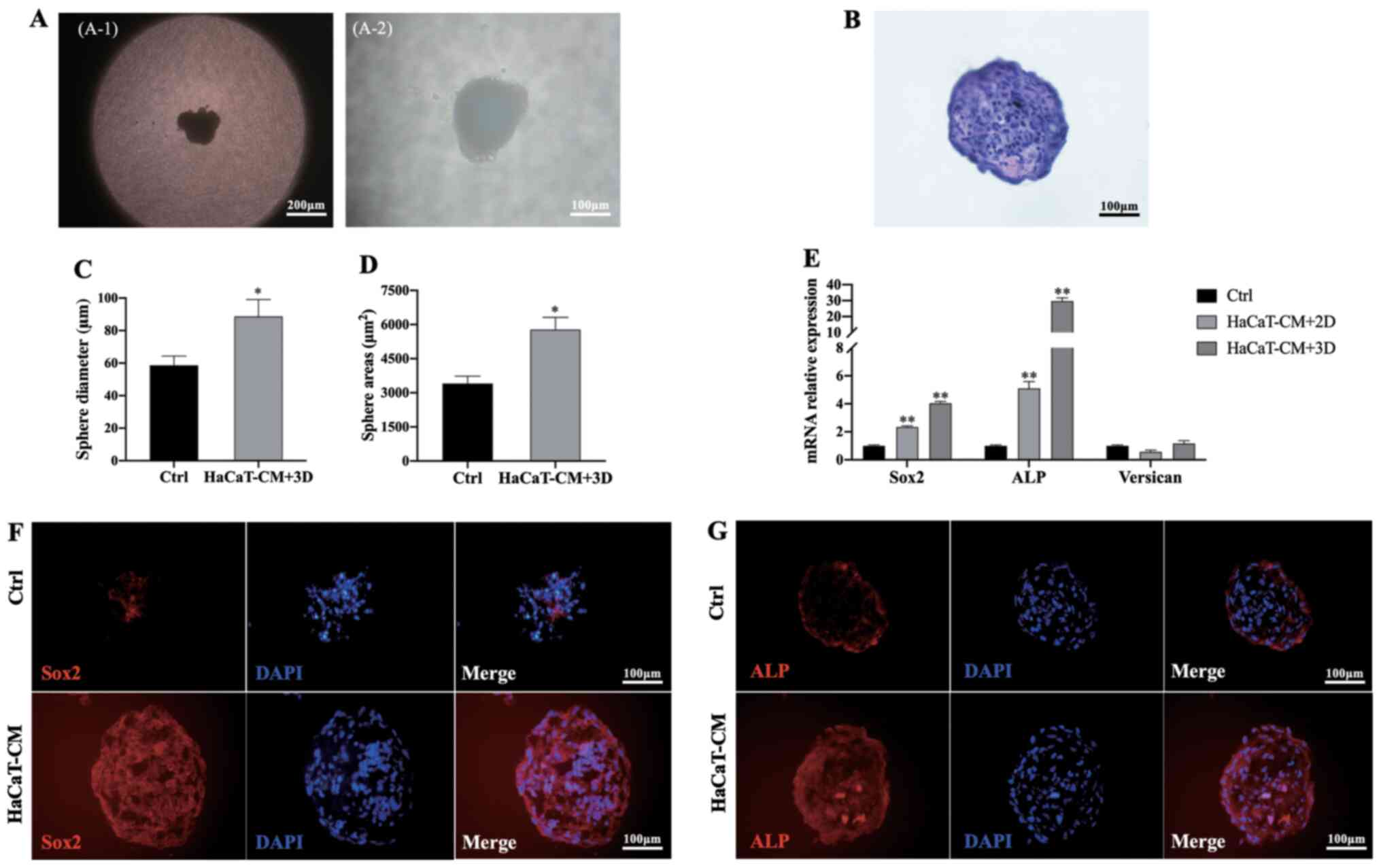

HaCaT-CM supplemented with SB, CHIR and PDGF-AA increases DPC characteristics in a hanging drop culture system

DPCs at P7 were seeded into hanging drop dishes, and after 7 days of culture, DPC aggregates were observed (Fig. 6A and B). The average diameter and surface area of DPC sphere cultures in HaCaT-CM supplemented with SB, CHIR and PDGF-AA were significantly larger than those cultured in control medium (Fig. 6C and D). Additionally, the expression levels of Sox2 and ALP in DPCs cultured in HaCaT-CM supplemented with SB, CHIR and PDGF-AA in the hanging drop culture were significantly increased compared with those cultured in control medium (Fig. 6E). Moreover, higher expression levels of Sox2 and ALP were also found by immunofluorescent staining following culture in HaCaT-CM supplemented with SB, CHIR and PDGF-AA compared with those cultured in control medium (Fig. 6F and G).

Discussion

DPs are located in the bulb area of HFs, and it is here that DPCs receive crucial signals from surrounding keratinocytes. Numerous studies have proven that keratinocytes are indispensable cellular components during hair regeneration for their role of interacting with DPCs (2,6). Keratinocytes secrete a variety of bioactive molecules that are necessary for preserving DPC characteristics in vivo (17,18). Accordingly, we speculated that the co-culture of DPCs with keratinocytes or using keratinocyte-CM (containing bioactive molecules) can induce the redifferentiation of DPCs and preserve their hair formation properties after long-term 2D subculture. However, co-cultivation with keratinocytes has some disadvantages, including donor-to-donor variability in the characteristics of the keratinocyte cells, and the cells differentiate quickly during cultivation (19), so it is difficult to harvest enough cells to produce high-quality CM for DPC cultures. As a means of addressing this, HaCaT cells were used in the present study. These cells are a spontaneously immortalized human keratinocyte cell line from adult skin that maintain a stable phenotype during in vitro passaging, which can proliferate in FBS-supplemented medium without the addition of growth factors for continuous growth (19). In the present study, it was found that the mRNA expression levels of Wnt3a and Wnt10b in HaCaT cells were significantly higher than in primary cultured keratinocytes, indicating a potential ability of these cells to secrete Wnt. Wnt signaling has been demonstrated to regulate HF induction and promote hair growth. The expression of Wnt ligands (Wnt1a, 3a, 7a, 10b and 11) has also been reported in HFs isolated from postnatal skin, suggesting that HaCaT cells could be utilized to produce CM for DPC culture (11,2022). Therefore, unlike normal keratinocytes, a sufficient quantity of CM with stable quality could be collected from the HaCaT cell line for long-term cultivation of DPCs in vitro. To the best of our knowledge, the present study is the first report to explore the HaCaT cell-CM combined with small molecular compounds to inhibit the dedifferentiation of DPCs in vitro.

The present study examined changes in gene and protein expression levels during 2D cell culture of DPCs. The results showed that there were significant decreases in the levels of Sox2, Versican and ALP during the normal culture (DMEM-F12 with 10% FBS and 10 ng/ml bFGF). Furthermore, β-catenin expression levels were also significantly decreased, indicating that the activity of the Wnt/β-catenin pathway is downregulated in DPC cultures. These results are consistent with previous reports (10,11,14), demonstrating that downregulation of the Wnt/β-catenin pathway can lead to DPC dedifferentiation.

There are numerous reports that small molecule compounds can be used to inhibit or activate signaling pathways and have been extensively used in numerous cell proliferation and differentiation studies (2325). For example, recently, Yoshida et al (24) found that treating DPCs with the canonical Wnt/β-catenin signaling activator CHIR99021, a potent inhibitor of GSK3α and GSK3β, significantly enhanced the expression of DP signature genes associated with their hair-inducing ability (24). For these reasons, in the present study, DPCs were cultured in the presence of HaCaT-CM supplemented with the Wnt signaling activator CHIR. FGF2/bFGF has also been reported to enhance DPC proliferation (13). Accordingly, in addition to Wnt, bFGF was added as an elemental component in the DPC culture medium.

PDGF is a potent mitogen for cells of mesenchymal origin (12,13). It has been suggested that PDGF-AA expression by immature adipocytes regulates the activity of follicular stem cells and that PDGF receptor α is activated in the DP during the anagen phase (13). Hair reconstitution assays have also revealed that DPCs treated with both PDGF-AA and FGF2 show an improved ability to maintain their hair inductive activity compared with those treated with FGF2 alone (12). PDGF has also been revealed to contribute to the induction and maintenance of the anagen phase in HFs in vivo (12,13,26). Based on these findings, PDGF was considered to be essential factor to promote the growth of DPCs and to maintain hair follicle inductive ability in vivo. For all of these reasons PDGF was also added to the HaCaT-CM in the present study.

During the skin healing process that occurs following skin injury, DPCs dedifferentiate into fibroblast-like cells and participate in the wound healing process. It has been reported that TGF-β1 induces DPC dedifferentiation to the fibroblast-like phenotype (27,28). In the present study, it was observed that the expression levels of p-Smad2 and p-Smad3 in the TGF-β/Smad signaling pathway gradually increased with passage time, suggesting that TGF-β/Smad pathway activation causes DPC dedifferentiation during DPC sub-cultivation. SB is a potent small molecule inhibitor of the TGF-β/Smad pathway that blocks the type I receptor ALK5 (29). For this reason, SB was also included in the CM to inhibit the TGF-β/Smad pathways.

Culture of DPCs in HaCaT-CM supplemented with SB, CHIR and PDGF-AA increased the expression levels of Sox2, ALP and β-catenin more significantly at both the mRNA and protein levels compared with other culture conditions. The mRNA expression levels of Versican were also upregulated ~2-fold by culturing in HaCaT-CM supplemented with SB, CHIR and PDGF-AA compared with those in the control medium; however, the protein levels did not show a significant change (data not shown). The reason for this is unclear, but it does suggest that Versican protein expression is inhibited at the post-transcriptional stage through an unknown mechanism. Additionally, the functional role of Versican in hair follicle development and hair growth is also unclear; however, several researchers have suggested that Versican functions as an inhibitor of cell-cell or cell-ECM adhesion (9,30). As DPCs are densely packed in the postnatal skin, Versican could selectively prevent the incorporation of dermal fibroblasts (non-DP-destined cells) into the DP. It is possible that continuous Versican expression in condensed mesenchymal cells may be required to exclude the additional surrounding dermal fibroblasts from condensation, thus maintaining the purity of the induced DPC population (1). We hypothesized that without signals or stimulation from fibroblasts or other dermal components, the Versican levels in DPCs may not rise significantly. However, this will require further investigation to uncover the specific underlying mechanism.

In the hair follicle bulb, DPCs are assembled in a 3D organization, where cell-cell and cell-ECM interactions are crucial for maintaining the biological functions of DPC (4,5,9,18). However, in vitro, 2D cell culture systems do not reflect the in vivo environment and may cause DPCs to rapidly lose their distinctive features and inductive function. Previous studies have reported that in vitro conditions mimicking in vivo-like conditions, specifically DPCs grown into a 3D microtissue, can preserve the natural functions of DPCs and enhance their hair-inducing potential after in vivo transplantation (31,32). In both human and murine hair, the DP size specifies the hair size, shape and cycling (33). Moreover, the DP size mainly depends on DPC number. The average volume of DP in the human scalp is ~536×103 (µm3), and the total number of DPCs within the DP is ~1.3×103 (34). Accordingly, in the present study, the hanging drop technique was utilized to create cell-aggregated 3D spheroids. It was found that 3×103 cells formed tightly aggregated spheroids in HaCaT-CM supplemented with SB, CHIR and PDGF-AA, and that the average volume was ~523×103 (µm3) (data not shown), which was similar to the size of hair follicle DPs in a healthy human scalp. Furthermore, increased Sox2 and ALP gene and protein expression levels were found in the spheroids formed, indicating that the combination of the hanging drop 3D culture and the supplemented HaCaT-CM is favorable for reconstructing an artificial DP structure in vitro. In future studies, we plan to conduct in vivo transplantation to evaluate the hair regenerative capacity of these artificial DP structures using these culture conditions.

To the best of our knowledge, this is the first study to demonstrate the development of a novel DPC culture medium comprising HaCaT-CM supplemented with defined small molecules and growth factors, which has significant synergetic effects in restoring the expression of signature DPC genes. Furthermore, combining this with the hanging drop 3D culture was demonstrated to be more effective in reconstructing DP-like structures with high expression of hair follicle-inducing proteins than 2D cultures.

In conclusion, cultured and expanded DPCs can change their morphology and lose their hair-inducing ability. However, HaCaT-CM was successfully used to reverse the signature gene expression patterns of high-passage DPCs by culturing in the presence of small molecule inhibitors, including SB, CHIR, and the growth factor PDGF-AA. The present study showed that this culture method could possibly maintain the hair induction ability of DPCs after several passages in expansion cultures. Therefore, this strategy could be used to potentially improve DPC culture methods to provide high-quality and high-quantity DPCs for both the construction of tissue engineered HFs for hair loss treatment and for skin wound repair.

Acknowledgements

Not applicable.

Funding

This study was supported by the Projects of International Cooperation and Exchanges Jilin Province (grant no. 20170414058GH), Science and Technology Research Project of the 13th five-year plan of Jilin Province Department of Education (grant no. JJKH20180194KJ) and by the Frontier Interdisciplinary Program of Norman Bethune Health Science Center of Jilin University (grant no. 2013101002).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

GC and YH conceived and designed the experiments. DS and JX performed the experiments. LC, YW and ZH prepared specimens from the hospital. GC and DS confirmed the authenticity of the raw data and analyzed the results. GC, YH and DS wrote the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The experimental protocol was established according to the ethical guidelines of the Helsinki Declaration and was approved by the Human Ethics Committee of China-Japan Union Hospital of Jilin University (approval no. 2020042606). Written informed consent to participate in this study was provided by the patients or participants' guardians.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

References

1

Xiao SE, Miao Y, Wang J, Jiang W, Fan ZX, Liu XM and Hu ZQ: As a carrier-transporter for hair follicle reconstitution, platelet-rich plasma promotes proliferation and induction of mouse dermal papilla cells. Sci Rep. 7:11252017. View Article : Google Scholar : PubMed/NCBI

2

Ohyama M and Veraitch O: Strategies to enhance epithelial-mesenchymal interactions for human hair follicle bioengineering. J Dermatol Sci. 70:78–87. 2013. View Article : Google Scholar : PubMed/NCBI

3

Biernaskie J, Paris M, Morozova O, Fagan BM, Marra M, Pevny L and Miller FD: SKPs derive from hair follicle precursors and exhibit properties of adult dermal stem cells. Cell Stem Cell. 5:610–623. 2009. View Article : Google Scholar : PubMed/NCBI

4

Wu JJ, Zhu TY, Lu YG, Liu RQ, Mai Y, Cheng B, Lu ZF, Zhong BY and Tang SQ: Hair follicle reformation induced by dermal papilla cells from human scalp skin. Arch Dermatol Res. 298:183–190. 2006. View Article : Google Scholar : PubMed/NCBI

5

Ohyama M, Kobayashi T, Sasaki T, Shimizu A and Amagai M: Restoration of the intrinsic properties of human dermal papilla in vitro. J Cell Sci. 125:4114–4125. 2012. View Article : Google Scholar : PubMed/NCBI

6

Higgins CA, Chen JC, Cerise JE, Jahoda CAB and Christiano AM: Microenvironmental reprogramming by three-dimensional culture enables dermal papilla cells to induce de novo human hair-follicle growth. Proc Natl Acad Sci USA. 110:19679–19688. 2013. View Article : Google Scholar : PubMed/NCBI

7

Driskell RR, Clavel C, Rendl M and Watt FM: Hair follicle dermal papilla cells at a glance. J Cell Sci. 124:1179–1182. 2011. View Article : Google Scholar : PubMed/NCBI

8

Yang CC and Cotsarelis G: Review of hair follicle dermal cells. J Dermatol Sci. 57:2–11. 2010. View Article : Google Scholar : PubMed/NCBI

9

Kishimoto J, Ehama R, Wu L, Jiang S, Jiang N and Burgeson RE: Selective activation of the versican promoter by epithelial- mesenchymal interactions during hair follicle development. Proc Natl Acad Sci USA. 96:7336–7341. 1999. View Article : Google Scholar : PubMed/NCBI

10

Millar SE: Molecular mechanisms regulating hair follicle development. J Invest Dermatol. 118:216–225. 2002. View Article : Google Scholar : PubMed/NCBI

11

Ouji Y, Nakamura-Uchiyama F and Yoshikawa M: Canonical Wnts, specifically Wnt-10b, show ability to maintain dermal papilla cells. Biochem Biophys Res Commun. 438:493–499. 2013. View Article : Google Scholar : PubMed/NCBI

12

Rezza A, Sennett R, Tanguy M, Clavel C and Rendl M: PDGF signalling in the dermis and in dermal condensates is dispensable for hair follicle induction and formation. Exp Dermatol. 24:468–470. 2015. View Article : Google Scholar : PubMed/NCBI

13

Kiso M, Hamazaki TS, Itoh M, Kikuchi S, Nakagawa H and Okochi H: Synergistic effect of PDGF and FGF2 for cell proliferation and hair inductive activity in murine vibrissal dermal papilla in vitro. J Dermatol Sci. 79:110–118. 2015. View Article : Google Scholar : PubMed/NCBI

14

Gemayel R and Chenette EJ: β-catenin signalling in dermal papilla cells leads to a hairy situation. FEBS J. 283:2820–2822. 2016. View Article : Google Scholar : PubMed/NCBI

15

Soma T, Fujiwara S, Shirakata Y, Hashimoto K and Kishimoto J: Hair-inducing ability of human dermal papilla cells cultured under Wnt/β-catenin signalling activation. Exp Dermatol. 21:307–309. 2012. View Article : Google Scholar : PubMed/NCBI

16

Livak KJ and Schmittgen TD: Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) method. Methods. 25:402–408. 2001. View Article : Google Scholar : PubMed/NCBI

17

Moore GP, Du Cros DL, Isaacs K, Pisansarakit P and Wynn PC: Hair growth induction: roles of growth factors. Ann N Y Acad Sci. 642:308–325. 1991. View Article : Google Scholar : PubMed/NCBI

18

Inamatsu M, Matsuzaki T, Iwanari H and Yoshizato K: Establishment of rat dermal papilla cell lines that sustain the potency to induce hair follicles from afollicular skin. J Invest Dermatol. 111:767–775. 1998. View Article : Google Scholar : PubMed/NCBI

19

Schürer N, Köhne A, Schliep V, Barlag K and Goerz G: Lipid composition and synthesis of HaCaT cells, an immortalized human keratinocyte line, in comparison with normal human adult keratinocytes. Exp Dermatol. 2:179–185. 1993. View Article : Google Scholar : PubMed/NCBI

20

Dong L, Hao H, Liu J, Tong C, Ti D, Chen D, Chen L, Li M, Liu H, Fu X, et al: Wnt1a maintains characteristics of dermal papilla cells that induce mouse hair regeneration in a 3D preculture system. J Tissue Eng Regen Med. 11:1479–1489. 2017. View Article : Google Scholar : PubMed/NCBI

21

Shimizu H and Morgan BA: Wnt signaling through the β-catenin pathway is sufficient to maintain, but not restore, anagen-phase characteristics of dermal papilla cells. J Invest Dermatol. 122:239–245. 2004. View Article : Google Scholar : PubMed/NCBI

22

Kishimoto J, Burgeson RE and Morgan BA: Wnt signaling maintains the hair-inducing activity of the dermal papilla. Genes Dev. 14:1181–1185. 2000.PubMed/NCBI

23

Fujimori K, Matsumoto T, Kisa F, Hattori N, Okano H and Akamatsu W: Escape from pluripotency via inhibition of TGF-β/BMP and activation of Wnt signaling accelerates differentiation and aging in hPSC progeny cells. Stem Cell Reports. 9:1675–1691. 2017. View Article : Google Scholar : PubMed/NCBI

24

Yoshida Y, Soma T, Matsuzaki T and Kishimoto J: Wnt activator CHIR99021-stimulated human dermal papilla spheroids contribute to hair follicle formation and production of reconstituted follicle-enriched human skin. Biochem Biophys Res Commun. 516:599–605. 2019. View Article : Google Scholar : PubMed/NCBI

25

Lu J, Liu H, Huang CT, Chen H, Du Z, Liu Y, Sherafat MA and Zhang SC: Generation of integration-free and region-specific neural progenitors from primate fibroblasts. Cell Rep. 3:1580–1591. 2013. View Article : Google Scholar : PubMed/NCBI

26

Osada A, Iwabuchi T, Kishimoto J, Hamazaki TS and Okochi H: Long-term culture of mouse vibrissal dermal papilla cells and de novo hair follicle induction. Tissue Eng. 13:975–982. 2007. View Article : Google Scholar : PubMed/NCBI

27

Bin S, Li HD, Xu YB, Qi SH, Li TZ, Liu XS, Tang JM and Xie JL: BMP-7 attenuates TGF-β1-induced fibroblast-like differentiation of rat dermal papilla cells. Wound Repair Regen. 21:275–281. 2013. View Article : Google Scholar : PubMed/NCBI

28

Hou-dong L, Bin S, Ying-bin X, Yan S, Shao-hai Q, Tian-zeng L, Xu-sheng L, Jin-ming T and Ju-lin X: Differentiation of rat dermal papilla cells into fibroblast-like cells induced by transforming growth factor β1. J Cutan Med Surg. 16:400–406. 2012. View Article : Google Scholar : PubMed/NCBI

29

Zheng Y, Zhao YD, Gibbons M, Abramova T, Chu PY, Ash JD, Cunningham JM and Skapek SX: Tgfbeta signaling directly induces Arf promoter remodeling by a mechanism involving Smads 2/3 and p38 MAPK. J Biol Chem. 285:35654–35664. 2010. View Article : Google Scholar : PubMed/NCBI

30

Lebaron RG: Versican. Perspect Dev Neurobiol. 3:261–271. 1996.PubMed/NCBI

31

Huang YC, Chan CC, Lin WT, Chiu HY, Tsai RY, Tsai TH, Chan JY and Lin SJ: Scalable production of controllable dermal papilla spheroids on PVA surfaces and the effects of spheroid size on hair follicle regeneration. Biomaterials. 34:442–451. 2013. View Article : Google Scholar : PubMed/NCBI

32

Tan JJY, Common JE, Wu C, Ho PCL and Kang L: Keratinocytes maintain compartmentalization between dermal papilla and fibroblasts in 3D heterotypic tri-cultures. Cell Prolif. 52:e126682019. View Article : Google Scholar : PubMed/NCBI

33

Chi W, Wu E and Morgan BA: Dermal papilla cell number specifies hair size, shape and cycling and its reduction causes follicular decline. Development. 140:1676–1683. 2013. View Article : Google Scholar : PubMed/NCBI

34

Elliott K, Stephenson TJ and Messenger AG: Differences in hair follicle dermal papilla volume are due to extracellular matrix volume and cell number: Implications for the control of hair follicle size and androgen responses. J Invest Dermatol. 113:873–877. 1999. View Article : Google Scholar : PubMed/NCBI
