ND‑09 inhibits chronic myeloid leukemia K562 cell growth by regulating BCR‑ABL signaling

  • Authors:
    • Yan-Hong Liu
    • Man Zhu
    • Pan-Pan Lei
    • Xiao-Yan Pan
    • Wei-Na Ma
  • View Affiliations

  • Published online on: May 20, 2021     https://doi.org/10.3892/or.2021.8087
  • Article Number: 136
  • Copyright: © Liu et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Abstract

Chronic myeloid leukemia (CML) accounts for approximately 15% of new adult leukemia cases. The fusion gene BCR‑ABL is an important biological basis and target for CML. In the present study, a novel compound, ND‑09, was developed and its inhibitory effect and mechanism of action on CML growth were evaluated using RT‑PCR and western blot analysis. The results showed that ND‑09 demonstrated a high level of inhibitory action toward CML cells overexpressing BCR‑ABL and induced K562 cell apoptosis through the mitochondrial pathway. Notably, combined ND‑09 and BCR‑ABL siRNA treatment could better inhibit cell proliferation and induce apoptosis in K562 cells. Furthermore, this growth effect of BCR‑ABL siRNA could be fully rescued by transfection with BCR‑ABL. ND‑09 exhibited a good fit within BCR‑ABL and occupied its ATP‑binding pocket, thus altering BCR‑ABL kinase activity. Therefore, ND‑09 downregulated the phosphorylation of BCR‑ABL and ABL, ultimately inhibiting the downstream signaling pathways in K562 cells. These findings suggest that ND‑09 induces growth arrest in CML cells by targeting BCR‑ABL.

Introduction

Chronic myeloid leukemia (CML) is a hematopoietic stem cell disorder that affects the blood and bone marrow and accounts for about 15% of newly diagnosed adult leukemia cases (1). CML is a myeloproliferative disease comprising three stages, including a chronic phase, accelerated phase, and lymphatic/myeloid blast phase, and is characterized by the Philadelphia chromosome. The Ph chromosome is a specific CML diagnostic marker and is present in more than 95% of patients (2,3). This chromosome is the result of a translocation between chromosomes 9 and 22, leading to the generation of a chimeric gene product of the breakpoint cluster region (BCR) and the Abelson murine leukemia (ABL), a fusion gene known as BCR-ABL (4,5). The BCR-ABL fusion gene can form a chimeric protein, resulting in a constitutively active ABL kinase, which can transform hematopoietic stem cells into leukemic stem cells and actuate the overproduction and expansion of leukocytes in the bone marrow (6,7). Thus, the BCR-ABL fusion protein is an important molecular basis for CML pathogenesis.

The oncogenic BCR-ABL fusion protein has persistent kinase activity, resulting in the uncontrolled proliferation of myeloid cells through multiple downstream pathways (2). BCR-ABL phosphorylates several substrates that activate a number of aberrant kinase-dependent pathways, including the Ras-mitogen-activated protein kinase (MAPK) pathway, which results in increased proliferation; the Janus-activated kinase/signal transducer and activator of transcription (JAK/STAT) pathway, which impairs transcriptional activity, and the phosphatidylinositide 3-kinase/protein kinase B (PI3K/AKT) pathway, which leads to enhanced survival (810). Thus, BCR-ABL has been recognized as the most important target for CML treatment.

CML therapy has seen impressive advances with the development of tyrosine kinase inhibitors (TKIs) against the BCR-ABL pathway (11), revolutionizing CML management and resulting in a 10-year overall survival rate of more than 90% (12). In terms of CML treatment, nilotinib (a second-generation TKI) has certain advantages over the first-generation TKI imatinib, such as improved response kinetics, a significant progression rate reduction, and deeper molecular responses (13,14). Although existing TKIs are highly effective in CML patients, many patients develop drug resistance. Therefore, the development of novel kinase inhibitors in an effort to overcome drug resistance is crucial (15).

ND-09 (4-methoxyl-3-[[4-(3-pyridyl)-2-pyrimidinyl]amino] benzoic acid pyrimidin-2-ylamino-benzamides) is a novel compound developed by our group (16). The aim of the present study was to investigate whether ND-09 could regulate BCR-ABL signaling to suppress CML growth.

Materials and methods

Chemicals and reagents

ND-09 (Fig. 1A) was developed in the Research and Engineering Center for Natural Medicine, Xi'an Jiaotong University (Shaanxi, China). K562, HUT78 and JURKAT cells were obtained from the Shanghai Institute of Cell Biology in the Chinese Academy of Sciences (Shanghai, China). Iscove's modified Dulbecco's medium (IMDM) and RPMI-1640 medium were purchased from Sigma-Aldrich. 3-(4,5-Dimethylthiazol-2-yl)-2.5-diphenyl-2H-tetrazolium brom-ide (MTT) were purchased from Sigma-Aldrich. Fetal bovine serum (FBS) was obtained from ExCell Bio Co., Ltd.

Thermal Cycle Dice Real time system, PrimeScript RT Master Mix Perfect Real Time kit, and SYBR® Premix Ex Taq™ II were obtained from Takara Biotechnology. Annexin V-FITC cell apoptosis detection kit was obtained from Pioneer Biotechnology Co., Ltd. RNase and propidium iodide (PI) were obtained from Sigma-Aldrich. Opti-MEM medium was purchased from Gibco. Lipofectamine 2000 reagent was obtained from Invitrogen. Phosphatase and protease inhibitors were obtained from Roche Tech. The BCA kit, RNAfast200 kit, and RIPA lysis buffer were obtained from Pioneer Biotechnology Co., Ltd. BCR-ABL and control siRNA were obtained from Shanghai GenePharma Co., Ltd.

The mcl-1 (monoclonal, 66026-1-Ig), Bad (monoclonal, 67830-1-Ig), Bcl-2 (monoclonal, 60178-1-Ig), Bak (polyclonal, 14673-1AP), Bax (monoclonal, 60267-1-Ig), CDC2 (monoclonal, 67575-1-Ig), Cyclin D1 (monoclonal, 60186-1-Ig), Cyclin E (polyclonal, 11554-1-AP), CDK2 (monoclonal, 60312-1-Ig), Cyclin A2 (monoclonal, 66391-1-Ig), and Cyclin B1 (monoclonal, 67686-1-Ig) antibodies were purchased from Protein Technology Group. The phospho-BCR-ABL (polyclonal, Tyr177), BCR-ABL (monoclonal, L99H4), phospho-ABL (monoclonal, 73E5), ABL (polyclonal, 2862), phospho-BCR (polyclonal, Tyr177), and BCR (polyclonal, 3902) antibodies were obtained from Cell Signaling Technology. The JAK2 (monoclonal, D2E12), phospho-JAK2 (monoclonal, D15E2), JAK3 (monoclonal, D1H3), phospho-JAK3 (monoclonal, D44E3), STAT3 (monoclonal, D3Z2G), phospho-STAT3 (monoclonal, D3A7), STAT5 (monoclonal, D3N2B), and phospho-STAT5 (monoclonal, D47E7) antibodies were obtained from Cell Signaling Technology. The p53 (polyclonal, 10442-1-AP), p38 (monoclonal, 66234-1-Ig), and PTEN (monoclonal, 60300-1-Ig) antibodies were obtained from the Protein Technology Group. The phospho-p38 (monoclonal, D3F9), PI3K-p110α (monoclonal, C73F8), PI3K-p110β (monoclonal, C33D4), PI3K-p110γ (monoclonal, D55D5), PI3K-p85 (monoclonal, 19H8), and phospho-PI3K-p85/p55 (monoclonal, E3U1H) antibodies were obtained from Cell Signaling Technology. The AKT (monoclonal, C67E7), phospho-AKT (monoclonal, D9E), PLCγ (monoclonal, D9H10), phospho-PLCγ (monoclonal, D6M9S), Erk1/2 (monoclonal, 137F5), phospho-Erk1/2 (monoclonal, Tyr202/204), MEK1/2 (monoclonal, D1A5), phospho-MEK1/2 (monoclonal, 166F8), mTOR (monoclonal, 7C10), and phospho-mTOR (monoclonal, D9C2) antibodies were obtained from Cell Signaling Technology. Rabbit anti-GAPDH (monoclonal, 60004-1-lg) was obtained from Protein Technology Group. The working solution for the primary antibodies was 1:1000, except for the Bad and Cyclin E antibodies, which was 1:500. HRP-conjugated goat anti-rabbit IgG (secondary antibody, dilution: 1:20,000) was obtained from Pierce Biotechnology. Enhanced Chemiluminescent Plus Reagent was obtained from Biotech Co., Ltd.

Cell culture

K562 and HUT78 cells were cultured in IMDM medium containing 10% FBS, 100 U/ml penicillin, and 100 U/ml streptomycin. JURKAT cells were cultured in RPMI-1640 medium containing 10% FBS, 100 U/ml penicillin, and 100 U/ml streptomycin. All cell lines were grown at 37°C in a 95% humidified atmosphere with 5% CO2.

Cell viability assay

K562, JURKAT and HUT78 cells were seeded in 96-well plates and cultivated in complete medium for 24 h. Then cells were treated with ND-09 (0.39, 0.78, 1.56, 3.12, 6.25, 12.5, 25, and 50 µM) for 48 h. Then, 20 µl MTT solution (5 mg/ml) was added to each well and incubated at 37°C for 4 h. Subsequently, the cells were enriched at the bottom of each well using a plate spinner (4,192.5 × g for 5 min at 25°C) and the medium was slowly removed from each well. Then, 150 µl DMSO was added in each well for 15 min. The absorbance was recorded by a microplate reader (Bio-Rad) at 490 nm.

Flow cytometric analysis of cell apoptosis

Cells were seeded in 6-well plates and treated with ND-09 for 48 h, after which the cells were collected by centrifugation (4,192.5 × g for 5 min at 25°C), washed, and resuspended in PBS. According to the instructions, Annexin V-FITC and PI double staining were used to detect the apoptotic rate. Then, Cell Quest software was used for flow cytometry and data analysis.

Determination of mitochondrial transmembrane potential (Δψm)

Cells were seeded in 6-well plates and treated with ND-09 for 48 h, after which the cells were washed with complete medium, followed by incubation with 1 mM Rhodamine 123 at 37°C in the dark for 30 min. Then BD FACSCalibur Flow cytometer was used to perform flow cytometric analysis and analyze data.

Flow cytometric analysis of cell cycle

Cells were seeded in 6-well plates, treated with ND-09 for 48 h, and then fixed in ice-cold 70% ethanol at 4°C overnight. Then, the cells were washed with cold PBS and stained with RNase and PI for 30 min in the dark. Cell Quest software was used to perform flow cytometric analysis and analyze data.

RNA extraction and RT-PCR assay

Cells were seeded in 6-well plates and treated with ND-09 for 48 h. According to the manufacturer's protocol, total RNA from K562, JURKAT and HUT78 cells was extracted using RNAfast200 kit (Pioneer Biotechnology Co., Ltd). RT-PCR was performed using PrimeScript RT Master Mix Perfect Real Time kit and was performed using SYBR® Premix Ex Taq™ II and Thermal Cycle Dice Real time system. GAPDH was considered the reference gene. The primer sequences used were: GAPDH forward: 5′-GCACCGTCAAGGCTGAGAAC-3′ and reverse: 5′-TGGTGAAGACGCCAGTGGA-3′; BCR-ABL forward: 5′-CATTCCGCTGACCATCAATAAG-3′ and reverse: 5′-GATGCTACTGGCCGCTGAAG-3′.

Threshold cycle (Ct) values of BCR-ABL in each sample were normalized with the GAPDH expression. The ratio of BCR-ABL versus the corresponding GAPDH of each sample was determined on the basis of the equation BCR-ABL/GAPDH=2Cq(GAPDH)-Cq(BCR-ABL).

SiRNA transfection

K562 cells were seeded in cell culture dishes at a density of approximately 50%. According to the manufacturer's protocol, Lipofectamine 2000 reagent was used to transfect anti-BCR-ABL siRNA or control siRNA (100 nM) into cells for 24 h. Then, transfected cells were immediately seeded to perform subsequent assays.

Plasmid transfection

K562 cells were seeded into 6-well plates at the density of 2×105 per well. After 24 h, transfection of EphB4 plasmid into BCR-ABL-depleted K562 cells was performed using Lipofectamine 2000 reagent. The ratio of Lipofectamine 2000 (µl) to BCR-ABL plasmid (µg) was 2:1.

Molecular docking (MD)

SYBYL-X 1.1 was used to conduct docking studies to understand the binding mode of ND-09 and BCR-ABL domain (PDB ID: 1IEP). The substrate was constructed by Sybyl/Sketch modul and optimized by Powell's method. Tripos force field and Gasteiger-Hückel charges were used to minimize energy, the convergence criterion was set at 0.005 kcal/(Å mol), and the maximum value was set at 1,000 iterations. To explore intramolecular interactions, the non-bonded cut-off distance was set to 8 Å.

Kinase assay

Firstly, BCR-ABL kinase (2 µl, 5 ng/µl) and substrate (2 µl, 10 µM) were added to 384-well plates, and then drugs (4 µl) were added to the test plate at different concentrations (0.016, 0.008, 0.040, 0.20, 1.02, 5.12, 25.60, 128.00, and 640 nM). ATP solution (2 µl, 1 mM) was added and the system was incubated at 37°C for 30 min. TK-Antibody (5 µl, 1,000 tests, reconstituted with 5 ml of HTRF® detection buffer) and streptavidin-XL665 (5 µl, 125 nM) were then added to the test plate at room temperature for 1 h.

Western blot analysis

Cells treated with ND-09 were seeded in 6-well plates. RIPA buffer with protease and phosphatase inhibitor were used to extract protein from cells. The cell lysate was then concentrated at 12,000 × g for 10 min at 4°C. Protein (40 µg) quantified by using BCA kit was then loaded to 10% SDS-PAGE gel, after which protein was transferred to polyvinylidene difluoride membranes. The membranes with protein were blocked with Tris-buffered saline for 1 h at room temperature. Subsequently, the primary antibody was incubated overnight at 4°C, and the secondary antibody was incubated at room temperature for 1 h. The blot was then exposed to the Enhanced Chemiluminescent substrate. Band intensity was quantified by densitometric analysis using an image quantitative analysis system (Image-Pro Plus 5.1; Media Cybernetics Inc.).

Statistical analysis

Statistical analyses were performed using SPSS 18.0. All the experiments were performed at least three times, and the results are expressed as mean ± SD. Statistical analyses of differences between the groups were performed with ANOVA followed by the Tukey post-hoc test. P<0.05 was considered statistically significant, and P<0.01 was considered extremely significant.

Results

Inhibitory effect of ND-09 on the proliferation of hematologic cancer cells

In order to evaluate the inhibitory effect of ND-09 on hematologic tumor cell growth, CML K562 cells, cutaneous T-cell lymphoma HUT78 cells, and acute T-cell lymphoma JURKAT cells were treated with ND-09. As BCR-ABL is a key factor in the myeloproliferative disorder of CML, BCR-ABL expression was investigated in all three cell lines. The results indicated that the expression of BCR-ABL in K562 cells was higher than that in JURKAT and HUT78 cells (Fig. 1B). As seen in Fig. 1C, K562 cells were more sensitive to ND-09 than JURKAT and HUT78 cells. The IC50 values of ND-09 for K562, JURKAT, and HUT78 cells were 6.08, 7.81, and 14.43 µM, respectively. Furthermore, ND-09 inhibited the proliferation of K562 cells in a dose- and time-dependent manner (Fig. 1D). Thus, the inhibitory effect of ND-09 on K562 cell growth may be related to BCR-ABL.

ND-09 induces cell apoptosis

Following ND-09 treatment of 1.56, 3.12, and 6.25 µM, the percentage of apoptotic K562 cells increased to 10.17±1.03, 16.40±1.41, and 49.50±1.25%, respectively, compared to control cells (5.55±0.93%) (Fig. 2A). In addition, ND-09 could induce JURKAT and HUT78 cell apoptosis (Fig. 2B and C). The percentage of apoptotic JURKAT cells increased to 7.27±0.95, 9.03±0.83, and 54.39±1.79%, respectively, compared to control cells (7.29±1.02%). The percentage of apoptotic HUT78 cells increased to 12.14±1.15, 17.10±1.34, and 23.98±1.67%, respectively, compared to control cells (11.02±0.96%). The above data indicated that the apoptosis-inducing effect of ND-09 in the two cell lines was relatively weaker than that in K562 cells.

Subsequently, the effect of ND-09 on mitochondrial transmembrane potential was examined. Rhodamine 123 fluorescence intensity of K562 cells exposed to ND-09 decreased significantly from 74.82±2.58% in the control group to 64.26±2.15% (1.56 µΜ), 49.98±1.69% (3.12 µΜ), and 23.25±1.76% (6.25 µΜ) (Fig. 2D and E).

To explore the mechanism of ND-09-induced cell apoptosis, western blot analysis was performed to detect the levels of apoptosis-related proteins. Results indicated that Bak, Bax, and Bad levels significantly increased after ND-09 treatment, while Bcl-2 and Mcl-1 levels decreased in a dose-dependent manner (Fig. 2F).

ND-09 induces G0/G1 phase arrest in K562 cells

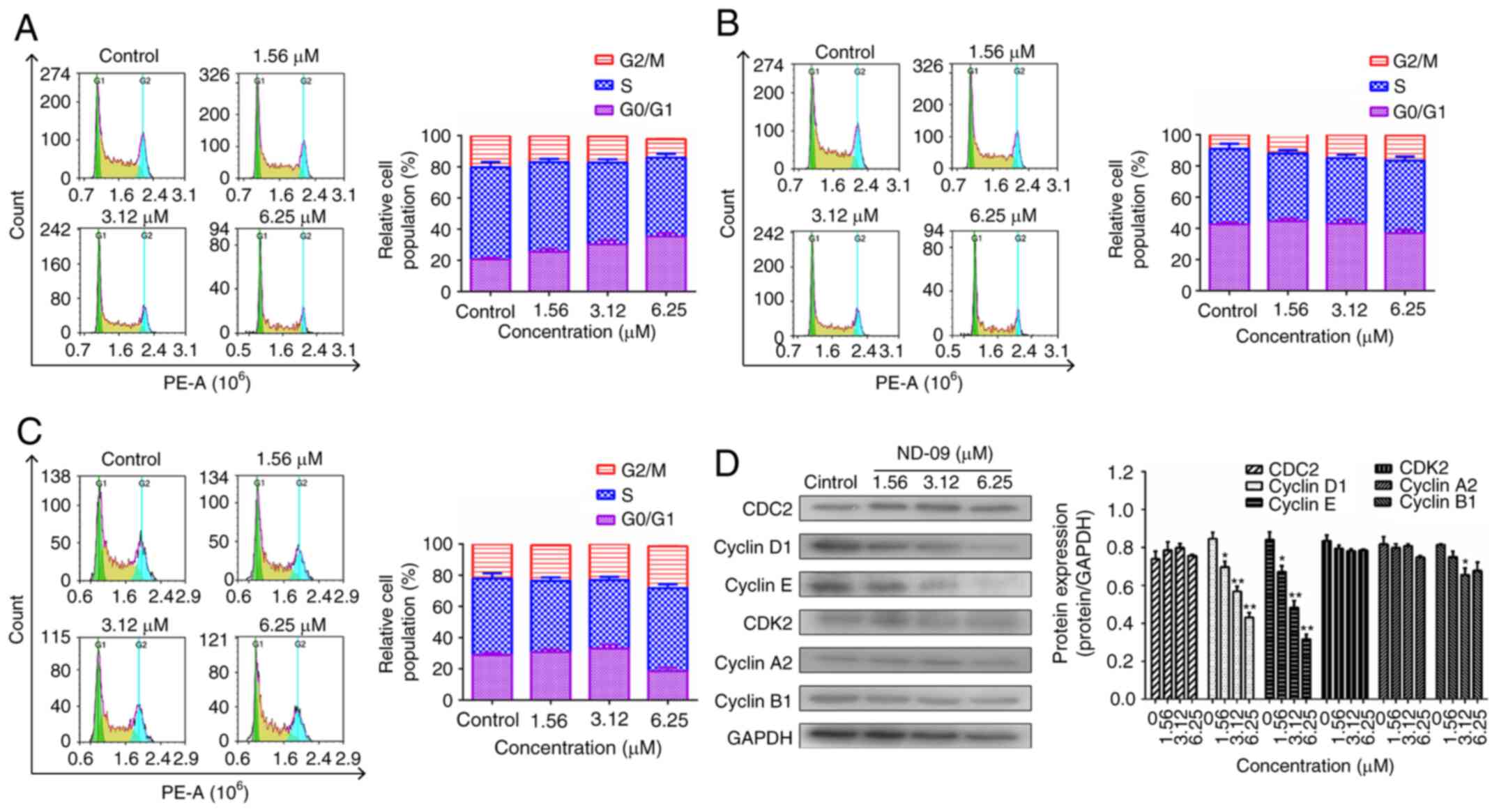

ND-09 treatment led to a significant increase in G0/G1 phase cells (Fig. 3A). At increasing ND-09 concentrations of 1.56, 3.12 and 6.25 µM, the K562 cell population in G0/G1 phase increased by 25.56±1.15, 30.29±1.43, and 35.31±1.37% compared to the untreated cells (20.61±1.26%). A different mode of cell cycle arrest induction was observed in JURKAT and HUT78 cells, as these were arrested in the G2/M phase (Fig. 3B and C).

As ND-09 arrested the K562 cell cycle in the G0/G1 phase, levels of CDK/cyclin proteins were evaluated through western blot analysis. Fig. 3D revealed that cyclin E and cyclin D1 levels decreased in ND-09-treated K562 cells.

Role of BCR-ABL on the effects of ND-09 on cell growth

A siRNA assay was carried out to determine whether BCR-ABL was a key factor for the ND-09-induced inhibition of K562 cell growth. First, BCR-ABL knockdown and BCR-ABL rescue of K562 cells were successfully established (Fig. 4A and B).

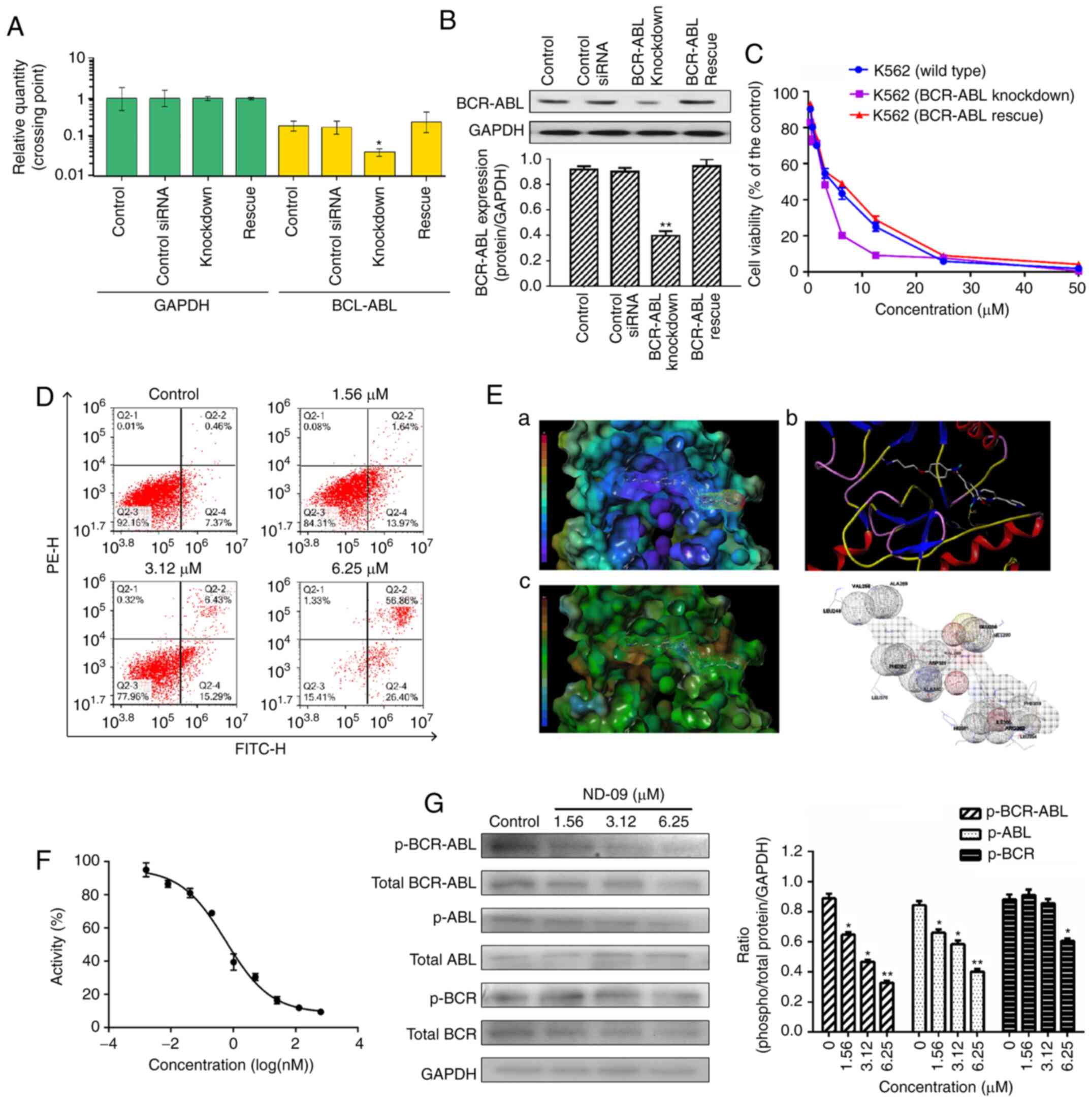

Figure 4.

The role of BCR-ABL in the biological activity of ND-09 treatment. (A) BCR-ABL mRNA expression and (B) protein expression in wild-type, BCR-ABL knockdown, and BCR-ABL rescue K562 cells were determined by RT-PCR analysis and western blot analysis, respectively. Cells transfected with a control siRNA construct served as negative controls. Samples are derived from the same experiment, and blots were processed in parallel. (C) An MTT assay was used to evaluate the effect of ND-09 on cell proliferation in wild-type, BCR-ABL knockdown, and BCR-ABL rescue cells. (D) Effect of ND-09 on apoptosis in BCR-ABL-depleted K562 cells. Values represent the average of three independent experiments. Data are presented as mean ± SEM (n=3). *P<0.05, **P<0.01 compared to the untreated control group. (E) The binding mode of ND-09 to BCR-ABL (PDB ID: 1IEP). a, ND-09 in the crystal structure of BCR-ABL with electrostatic coloring; b, Hydrogen bonds are depicted by dashed yellow lines; c, ND-09 in the crystal structure of BCR-ABL with hydrophobic coloring. (F) Effect of ND-09 on BCR-ABL kinase activity. Values represent the average of three independent experiments. Values are presented as mean ± SEM (n=3). (G) Levels of BCR-ABL, p-BCR-ABL, ABL, p-ABL, BCR, and p-BCR in K562 cells treated with ND-09 were examined by western blot analysis. Results were quantified by densitometric analysis of the bands and were normalized to GAPDH (internal control). Samples were derived from the same experiment, and blots were processed in parallel. Values represent the average of three independent experiments. Data are presented as the mean ± SEM (n=3). *P<0.05, **P<0.01 compared to the untreated control group.

Then, to assess the role of BCR-ABL in ND-09-induced cell growth inhibition, wild-type and BCR-ABL-depleted K562 cells were treated with ND-09. ND-09 had a dose-dependent inhibitory effect on the proliferation of the two groups, and combined ND-09 and siRNA treatment resulted in an enhanced inhibitory effect (Fig. 4C). The IC50 values of ND-09 in wild-type and BCR-ABL-depleted K562 cells were 6.08 and 3.61 µM, respectively. Furthermore, this growth effect of BCR-ABL siRNA could be fully rescued by transfection with BCR-ABL. In addition, BCR-ABL knockdown by siRNA led to increased K562 cell apoptosis, and combined ND-09 and siRNA treatment enhanced this effect (Fig. 4D). These observations suggested that BCR-ABL was a key target for ND-09.

Effect of ND-09 on BCR-ABL

An MD assay was performed to evaluate the affinity characteristics of ND-09 binding to the active site of BCR-ABL. The binding energy of ND-09 with BCR-ABL was −7.07. ND-09 bound to the BCR-ABL ATP-binding pocket through an electrostatic interaction (Fig. 4E-a), hydrogen-bond interaction (Fig. 4E-b), and hydrophobic interaction (Fig. 4E-c). Furthermore, ND-09 may interact with VAL256, ALA269, LEU248, GLU288, VET290, VAL299, ASP381, PHE382, ALA380, LEU370, PHE359, ILE360, ARG362, LEU354, and HIS361 amino acid residues of BCR-ABL (Fig. 4E-d). The docking assay results demonstrated that ND-09 fit well within BCR-ABL.

Accordingly, we examined the inhibitory effect of ND-09 on BCR-ABL kinase activity. ND-09 inhibited BCR-ABL kinase activity with an IC50 value of 0.57 nM (Fig. 4F). Furthermore, ND-09 markedly inhibited the phosphorylation of BCR-ABL and ABL in K562 cells (Fig. 4G). These data indicate that ND-09 could inhibit BCR-ABL phosphorylation and kinase activity.

ND-09 regulates the BCR-ABL downstream signaling pathway

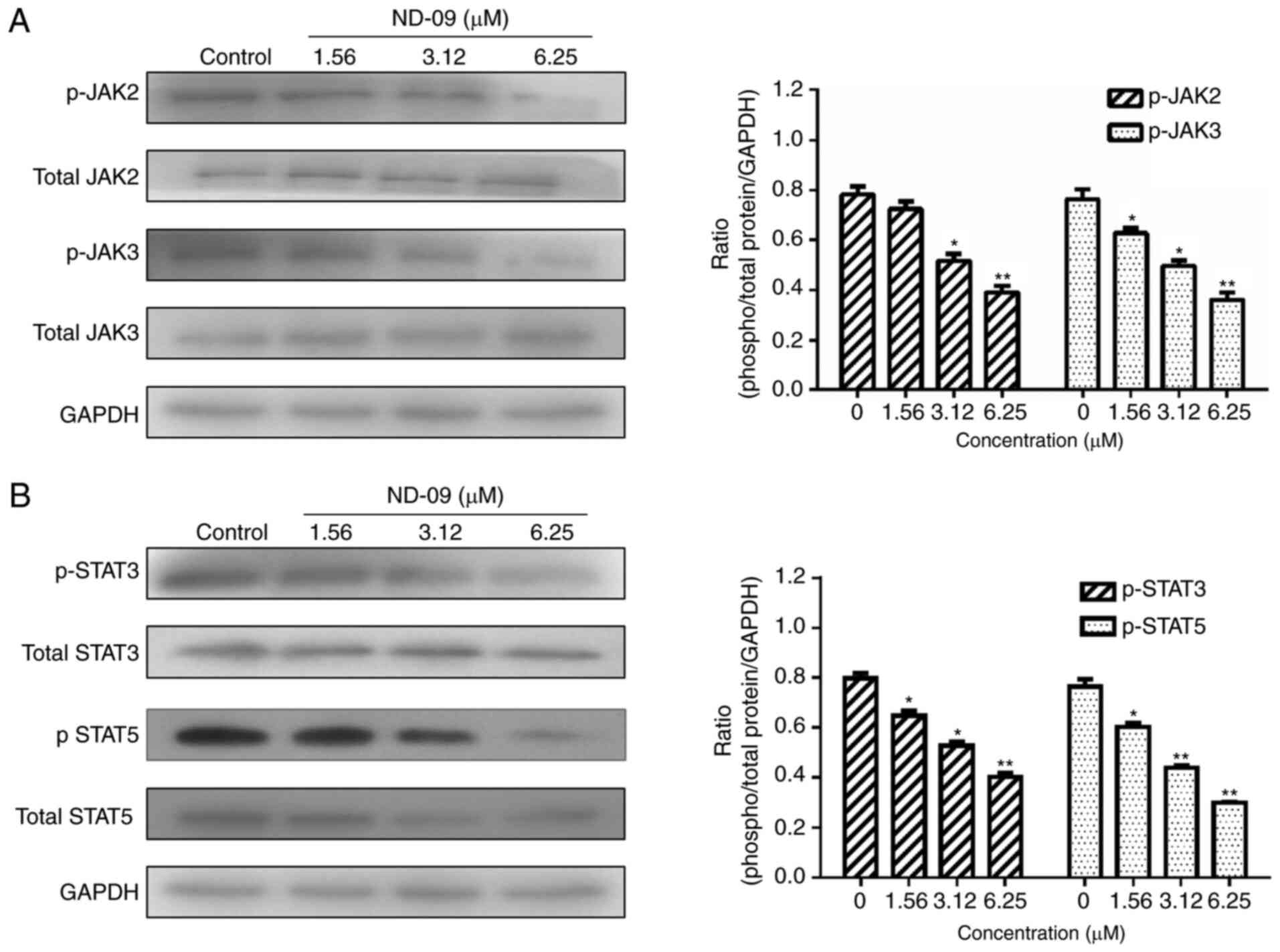

As shown in Fig. 5, ND-09 was found to significantly inhibit the phosphorylation of JAK/STAT signaling pathway members (JAK2, JAK3, STAT3, and STAT5). Furthermore, ND-09 treatment led to an increase in the amount of PTEN and a decrease in the amount of PI3K subunits (110α, 110β, p-p85/p55 and p85), as well as decreased phosphorylation of downstream molecules (AKT and mTOR) in K562 cells (Fig. 6). ND-09 upregulated p-p38 and p53 levels and significantly inhibited the phosphorylation of PLC-γ, which in turn inhibited MEK1/2 and ERK1/2 phosphorylation (Fig. 7).

Discussion

CML, a myeloproliferative malignancy driven by the constitutively active BCR-ABL1 tyrosine kinase, is currently treated with TKIs that have proven to be clinically effective (17). However, while TKI treatment was initially successful, the emerging development of TKI resistance presents a considerable challenge (18,19). In this study, we developed ND-09, which exhibited potent anticancer activity against CML by targeting BCR-ABL.

K562 cells, which express high levels of BCR-ABL, were most sensitive to ND-09, suggesting that ND-09 potentially inhibits cell proliferation via targeting BCR-ABL (Fig. 1). Furthermore, ND-09 inhibited the growth of K562 cells in a dose- and time-dependent manner. We proceeded to verify whether BCR-ABL is the target of ND-09. The results revealed that combining ND-09 with BCR-ABL siRNA knockdown led to an enhanced inhibitory effect on cell proliferation, and this growth effect of BCR-ABL siRNA could be fully rescued by transfection with BCR-ABL (Fig. 4A-C). Taken together, ND-09 appears to inhibit K562 cell proliferation via targeting BCR-ABL.

As ND-09 targets BCR-ABL to inhibit cell proliferation, MD was used to simulate the binding properties of ND-09 and BCR-ABL. Notably, ND-09 fit well within BCR-ABL and occupied the BCR-ABL ATP-binding pocket (Fig. 4E). As a consequence, ND-09 could alter BCR-ABL kinase activity and inhibit the phosphorylation of BCR-ABL and ABL (Fig. 4F and G). Our data strongly support the hypothesis that ND-09 is a BCR-ABL-specific inhibitor.

Apoptosis is a major mechanism of programmed cell death. Findings have shown that BCR-ABL exerts anti-apoptotic effects that play an important role in the development of CML (20). Furthermore, the intrinsic mitochondrial pathway is one of the two main apoptotic pathways (21). In the current study, ND-09 was found to induce apoptosis in K562 cells, an effect that was relatively higher in K562 cells than in JURKAT and HUT78 cells (Fig. 2A-C). More importantly, combined ND-09 and BCR-ABL siRNA treatment led to an enhanced induction of apoptosis in K562 cells (Fig. 4D), indicating that ND-09 could induce cell apoptosis by targeting BCR-ABL. ND-09 treatment significantly reduced Δψm in K562 cells (Fig. 2D and E). The mitochondrial apoptotic pathway is mainly regulated by the Bcl-2 protein family, which includes the anti-apoptotic members Bad, Bak, and Bax, and pro-apoptotic members Mcl-1 and Bcl-2. Findings have shown that p53 could activate the expression of proapoptotic Bcl-2 proteins, thus triggering apoptosis (12). In the present study, we found that ND-09 could significantly upregulate p53 protein levels (Fig. 7C). Accordingly, ND-09 increased the protein levels of Bad, Bax, and Bak, and downregulated Mcl-1 and Bcl-2 protein levels (Fig. 2F).

Previous findings have shown that the BCR-ABL oncoprotein plays an important role in regulating the cell cycle of cancer cells (22). Furthermore, silencing BCR-ABL causes CML cell cycle arrest in the G0/G1 phase (23,24). Our data revealed that ND-09 treatment arrested K562 cell cycle in the G0/G1 phase (Fig. 3A). As CDK/cyclin proteins play a critical role in cell cycle regulation, we examined whether ND-09 regulated CDK/cyclin protein levels. Results revealed that ND-09 treatment resulted in a decrease in the protein levels of cyclin D1 and cyclin E in K562 cells (Fig. 3D).

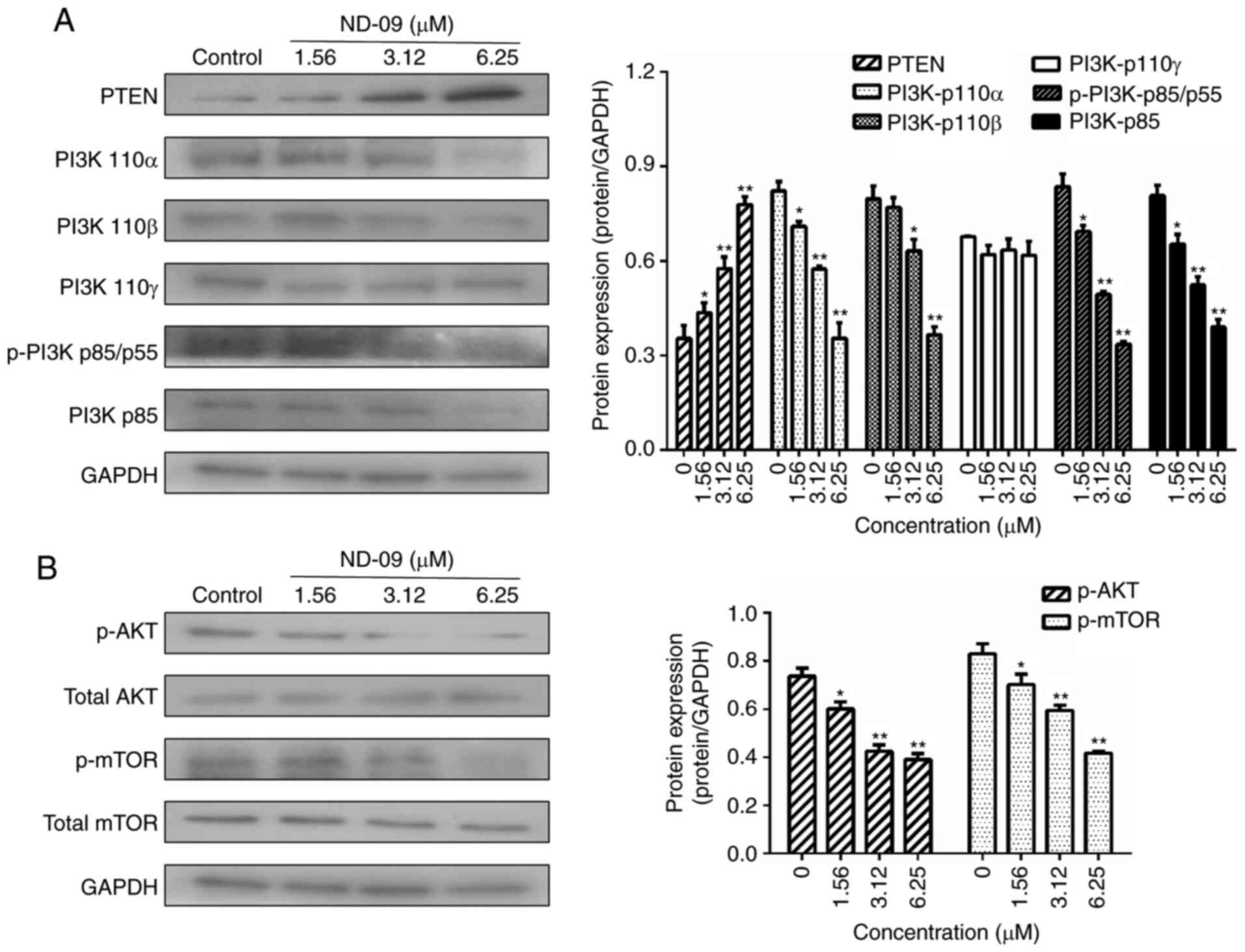

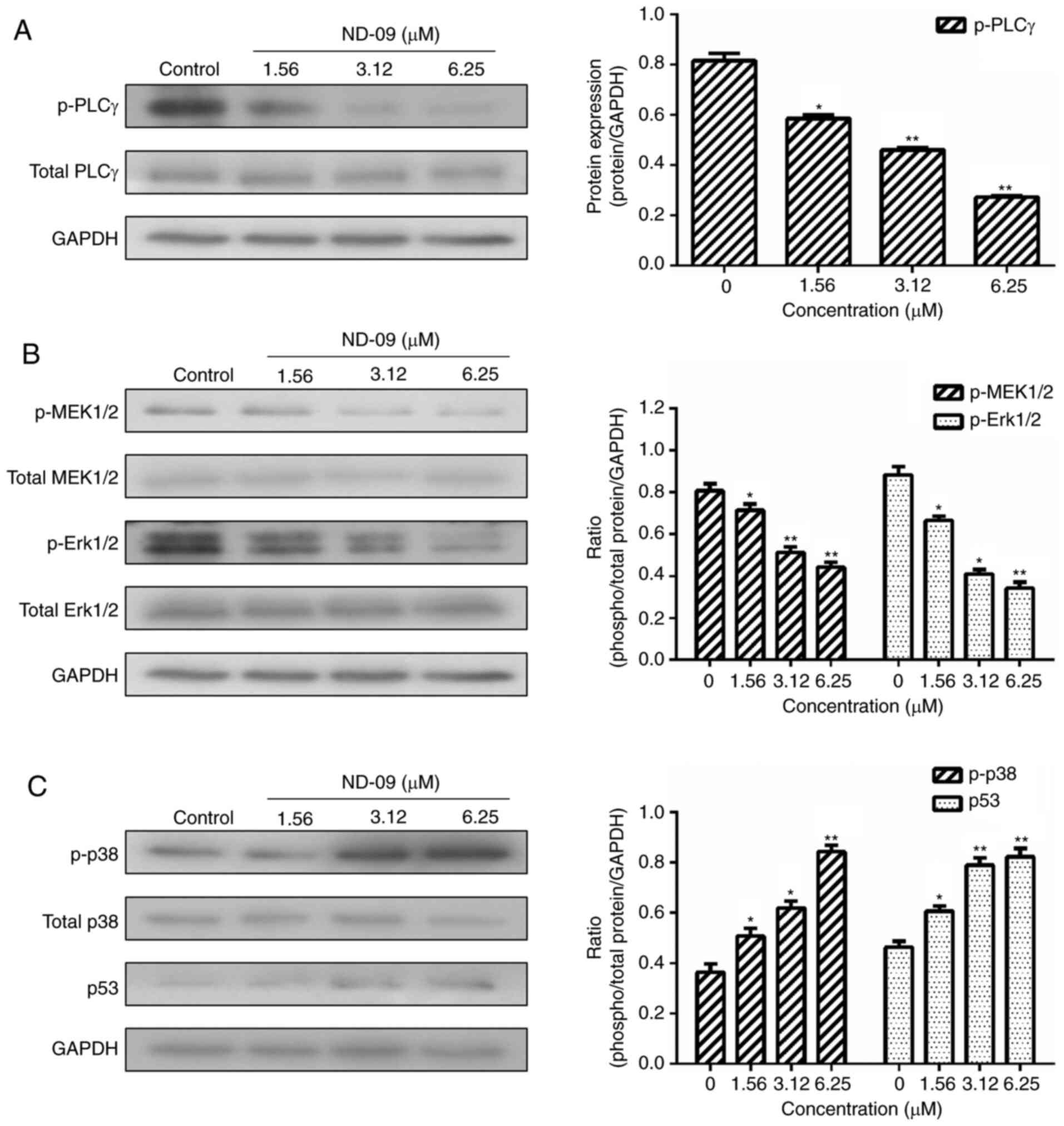

As BCR-ABL is a key factor for K562 cell growth, major downstream molecules of the BCR-ABL pathway were evaluated. BCR-ABL activates a number of signaling pathways (JAK/STAT, PI3K/AKT, and MAPK), promotes the proliferation of hematopoietic stem cells, and prevents cell apoptosis (25). Inhibition of JAK/STAT and PI3K/AKT signals can inhibit CML cell growth, indicating JAK/STAT and PI3K/AKT are both involved in BCR-ABL-driven leukemias (26). BCR-ABL reportedly induces Grb2-mediated MAPK activation, which regulates cell proliferation, cell cycle progression, cell survival, differentiation, and induces leukemogenesis (27). Our data revealed that ND-09 could downregulate the phosphorylation of JAK/STAT signaling members, including JAK2, JAK3, STAT3, and STAT5 (Fig. 5). In addition, ND-09 treatment led to an increase in the amount of PTEN. The main PI3K subunit proteins (110α, 110β, p-p85/p55, and p85) and phosphorylated AKT and mTOR were significantly decreased (Fig. 6). Furthermore, ND-09 treatment led to the decreased phosphorylation of PLC-γ and subsequently inhibited the phosphorylation of MEK1/2 and Erk1/2, while upregulating the amount of p-p38 and p53 in K562 cells (Fig. 7). The aforementioned results suggest that ND-09 regulated cell proliferation through modulation of JAK/STAT, PI3K/AKT, and MAPK/ERK signaling.

In conclusion, our study has established ND-09 as a selective inhibitor of BCR-ABL. The findings suggest that BCR-ABL pathway downregulation by ND-09 drives growth arrest in CML.

Acknowledgements

Not applicable.

Funding

This study was supported by the Natural Science Basic Research Program of Shaanxi Province (grant no. 2018JQ8019), the Fundamental Research Funds for the Central Universities (grant no. xzy012019078).

Availability of data and materials

The authors declare that all the data supporting the results in this study are available within the article.

Authors' contributions

WNM was responsible for the conceptualization, collection of material, and writing and reviewing the manuscript. YHL was responsible for data collection, curation and analysis, as well as writing the original draft. MZ contributed to the curation and interpretation of data. PPL contributed to the design and data analysis, and writing of the manuscript. XYP was responsible for the synthesis of compound ND-09. All authors read and approved the study.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Glossary

Abbreviations

Abbreviations:

CML

chronic myeloid leukemia

BCR

breakpoint cluster region

ABL

Abelson murine leukemia

MAPK

mitogen-activated protein kinase

JAK/STAT

Janus-activated kinase/signal transducer and activator of transcription

PI3K/AKT

phosphatidylinositide 3-kinase/protein kinase B

TKIs

tyrosine kinase inhibitors

IMDM

Iscove's modified Dulbecco's medium

MTT

3-(4,5-dimethylthiazol-2-yl)-2.5-diphenyl-2H-tetrazolium bromide

FBS

fetal bovine serum

PI

propidium iodide

References

1

Chen Y, Wang TT, Du J, Li YC, Wang X, Zhou Y, Yu XX, Fan WM, Zhu QJ, Tong XM and Wang Y: The critical role of PTEN/PI3K/AKT signaling pathway in shikonin-induced apoptosis and proliferation inhibition of chronic myeloid leukemia. Cell Physiol Biochem. 47:981–993. 2018. View Article : Google Scholar : PubMed/NCBI

2

Kaleem B, Shahab S, Ahmed N and Shamsi TS: Chronic myeloid leukemia-prognostic value of mutations. Asian Pac J Cancer Prev. 16:7415–7423. 2015. View Article : Google Scholar : PubMed/NCBI

3

Yu CJ, Gorantla SP, Müller-Rudorf A, Muller TA, Kreutmair S, Albers C, Jakob L, Lippert LJ, Yue ZY, Engelhardt M, et al: Phosphorylation of BECLIN-1 by BCR-ABL suppresses autophagy in chronic myeloid leukemia. Haematologica. 105:1285–1293. 2020. View Article : Google Scholar : PubMed/NCBI

4

Yin XL, Zhou MR, Fu Y, Yang L, Xu M, Sun T, Wang XM, Huang T and Chen CY: Histone demethylase RBP2 mediates the blast crisis of chronic myeloid leukemia through an RBP2/PTEN/BCR-ABL cascade. Cell Signal. 63:1093602019. View Article : Google Scholar : PubMed/NCBI

5

Valencia-Serna J, Kucharski C, Chen M, Remant KC, Jiang XY, Brandwein J and Uludag H: siRNA-mediated BCR-ABL silencing in primary chronic myeloid leukemia cells using lipopolymers. J Control Release. 310:141–154. 2019. View Article : Google Scholar : PubMed/NCBI

6

Burslem GM, Schultz AR, Bondeson DP, Eide CA, Stevens SL, Druker BJ and Crews CM: Targeting BCR-ABL1 in chronic myeloid leukemia by PROTAC-mediated targeted protein degradation. Cancer Res. 79:4744–4753. 2019. View Article : Google Scholar : PubMed/NCBI

7

Bugler J, Kinstrie R, Scott MT and Vetrie D: Epigenetic reprogramming and emerging epigenetic therapies in CML. Front Cell Dev Biol. 7:1362019. View Article : Google Scholar : PubMed/NCBI

8

De Rosa V, Monti M, Terlizzi C, Fonti R, Del Vecchio S and Iommelli F: Coordinate modulation of glycolytic enzymes and OXPHOS by imatinib in BCR-ABL driven chronic myelogenous leukemia cells. Int J Mol Sci. 20:31342019. View Article : Google Scholar : PubMed/NCBI

9

Wang XF, Yang JL, Guo GJ, Feng RY, Chen K, Liao Y, Zhang LF, Sun LP, Huang SL and Chen JL: Novel lncRNA-IUR suppresses Bcr-Abl-induced tumorigenesis through regulation of STAT5-CD71 pathway. Mol Cancer. 18:842019. View Article : Google Scholar : PubMed/NCBI

10

Zhu ZW, Yang C, Wen LL, Liu L, Zuo XB, Zhou FS, Gao JP, Zheng XD, Shi YJ, Zhu CH, et al: Bach2 regulates aberrant activation of B cell in systemic lupus erythematosus and can be negatively regulated by BCR-ABL/PI3K. Exp Cell Res. 365:138–144. 2018. View Article : Google Scholar : PubMed/NCBI

11

Kumar H, Chattopadhyay S, Das N, Shree S, Patel D, Mohapatra J, Gurjar A, Kushwaha S, Singh AK, Dubey S, et al: Leprosy drug clofazimine activates peroxisome proliferator-activated receptor-γ and synergizes with imatinib to inhibit chronic myeloid leukemia cells. Haematologica. 105:971–986. 2020. View Article : Google Scholar : PubMed/NCBI

12

Carter BZ, Mak PY, Mu H, Wang XM, Tao WJ, Mak DH, Dettman EJ, Cardone M, Zernovak O, Seki T and Andreeff M: Combined inhibition of MDM2 and BCR-ABL1 tyrosine kinase targets chronic myeloid leukemia stem/progenitor cells in a murine model. Haematologica. 105:1274–1284. 2020. View Article : Google Scholar : PubMed/NCBI

13

Miura M: Therapeutic drug monitoring of imatinib, nilotinib, and dasatinib for patients with chronic myeloid leukemia. Biol Pharm Bull. 38:645–654. 2015. View Article : Google Scholar : PubMed/NCBI

14

Huguet F, Cayuela JM, Cambier N, Carpentier N, Tindel M, Violet I, Zunic P, Lascaux A, Etienne G and AdheRMC Investigators: Nilotinib efficacy, safety, adherence and impact on quality of life in newly diagnosed patients with chronic myeloid leukaemia in chronic phase: A prospective observational study in daily clinical practice. Br J Haematol. 187:615–626. 2019. View Article : Google Scholar : PubMed/NCBI

15

Minson AG, Cummins K, Fox L, Costello B, Yeung D, Cleary R, Forsyth C, Tatarczuch M, Burbury K, Motorna O, et al: The natural history of vascular and other complications in patients treated with nilotinib for chronic myeloid leukemia. Blood Adv. 3:1084–1091. 2019. View Article : Google Scholar : PubMed/NCBI

16

Pan X, Wang F, Zhang Y, Gao HP, Hu ZG, Wang SC and Zhang J: Design, synthesis and biological activities of Nilotinib derivates as antitumor agents. Bioorg Med Chem. 21:2527–2534. 2013. View Article : Google Scholar : PubMed/NCBI

17

Braun TP, Eide CA and Druker BJ: Response and resistance to BCR-ABL1-targeted therapies. Cancer Cell. 37:530–542. 2020. View Article : Google Scholar : PubMed/NCBI

18

Clapper E, Wang S, Raninga PV, Di Trapani G and Tonissen KF: Cross-talk between Bcr-abl and the thioredoxin system in chronic myeloid leukaemia: Implications for CML treatment. Antioxidants (Basel). 9:2072020. View Article : Google Scholar : PubMed/NCBI

19

Maiti A, Franquiz MJ, Ravandi F, Cortes JE, Jabbour EJ, Sasaki K, Marx K, Daver NG, Kadia TM, Konopleva MY, et al: Venetoclax and BCR-ABL tyrosine kinase inhibitor combinations: Outcome in patients with philadelphia chromosome-positive advanced myeloid leukemias. Acta Haematol. 14:1–7. 2020.

20

Sun H, Kapuria V, Peterson LF, Fang DX, Bornmann WG, Bartholomeusz G, Talpaz M and Donato NJ: Bcr-Abl ubiquitination and Usp9× inhibition block kinase signaling and promote CML cell apoptosis. Blood. 117:3151–3162. 2011. View Article : Google Scholar : PubMed/NCBI

21

Zhu M, Yang L, Shi XP, Gong ZY, Yu RZ, Zhang DD, Zhang YM and Ma WN: TPD7 inhibits the growth of cutaneous T cell lymphoma H9 cell through regulating IL-2R signalling pathway. J Cell Mol Med. 24:984–995. 2020. View Article : Google Scholar : PubMed/NCBI

22

Steelman LS, Pohnert SC, Shelton JG, Franklin RA, Bertrand FE and McCubrey JA: JAK/STAT, Raf/MEK/ERK, PI3K/Akt and BCR-ABL in cell cycle progression and leukemogenesis. Leukemia. 18:189–218. 2004. View Article : Google Scholar : PubMed/NCBI

23

Rangatia J and Bonnet D: Transient or long-term silencing of BCR-ABL alone induces cell cycle and proliferation arrest, apoptosis and differentiation. Leukemia. 20:68–76. 2006. View Article : Google Scholar : PubMed/NCBI

24

Fathi E, Farahzadi R, Valipour B and Sanaat Z: Cytokines secreted from bone marrow derived mesenchymal stem cells promote apoptosis and change cell cycle distribution of K562 cell line as clinical agent in cell transplantation. PLoS One. 14:e02156782019. View Article : Google Scholar : PubMed/NCBI

25

Chen CW, Lee YL, Liou JP, Liu YH, Liu CW, Chen TY and Huang HM: A novel tubulin polymerization inhibitor, MPT0B206, downregulates Bcr-Abl expression and induces apoptosis in imatinib-sensitive and imatinib-resistant CML cells. Apoptosis. 21:1008–1018. 2016. View Article : Google Scholar : PubMed/NCBI

26

Moriyama K and Hori T: BCR-ABL induces tyrosine phosphorylation of YAP leading to expression of Survivin and Cyclin D1 in chronic myeloid leukemia cells. Int J Hematol. 110:591–598. 2019. View Article : Google Scholar : PubMed/NCBI

27

Ma L, Xu Z, Wang J, Zhu ZC, Lin GB, Jiang LJ, Lu XZ and Zou C: Matrine inhibits BCR/ABL mediated ERK/MAPK pathway in human leukemia cells. Oncotarget. 8:108880–108889. 2017. View Article : Google Scholar : PubMed/NCBI
