Activation of the KEAP1‑NRF2‑ARE signaling pathway reduces oxidative stress in Hep2 cells

  • Authors:
    • Changjiang Li
    • Lei Cheng
    • Haitao Wu
    • Peijie He
    • Yanping Zhang
    • Yue Yang
    • Jian Chen
    • Min Chen
  • View Affiliations

  • Published online on: July 16, 2018
  • Pages: 2541-2550
  • Copyright: © Li et al. This is an open access article distributed under the terms of Creative Commons Attribution License.

Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


At present there are no studies investigating the effects of the kelch‑like ECH‑associated protein 1 (KEAP1)‑nuclear factor erythroid 2‑related factor 2 (NRF2)‑antioxidant response element (ARE) signaling pathway on Hep2 cell line. The present study aimed to investigate this topic through knockdown of the KEAP1 gene. A stable Hep2 cell line specifically silencing the human KEAP1 gene was initially constructed. Hydrogen peroxide (H2O2) was added to the culture medium at various concentrations for various durations to interact with the short hairpin (sh)KEAP1‑transfected Hep2 cells. Subsequently, the gene and protein expression levels of KEAP1, NRF2, NAD(P)H quinone oxidoreductase1 (NQO1) and heme oxygenase 1 (HO1) in experimental and control cells were measured by reverse transcription‑quantitative polymerase chain reaction and western blotting, respectively. Furthermore, the viability and apoptotic rate of the shKEAP1‑transfected Hep2 cells were detected by a Cell Counting‑Kit 8 assay and flow cytometry, respectively. In the shKEAP1 Hep2 cell line, the mRNA and protein expression levels of NRF2, NQO1 and HO1 were markedly higher compared with the scramble control‑transfected Hep2 and parent Hep2 cell lines. Immunofluorescence staining indicated that NRF2 was primarily located in the cytoplasm of scHep2 and parent Hep2 cell lines, but was present in the nuclei and cytoplasm of the shKEAP1 Hep2 cell line, where it translocates into the nuclei in response to H2O2. Following knockdown of the KEAP1 gene Hep2 cells, the apoptosis rates were 31.8 and 45.3% in scHep2 cells at 0.1 and 0.25 mmol/l H2O2 respectively and 14.1 and 27.9% in shKEAP1 cells. The present study indicated that the KEAP1‑NRF2‑ARE signaling pathway may exhibit an antioxidative effect within Hep2 cells and may be used for clinical treatment of cancer.


There is an increasing body of evidence demonstrating that oxidative stress may be associated with cancer. Oxidative stress triggers the modification of DNA bases, DNA fragmentation and strand breaks, which contribute to the development of numerous cancer types as well as various other diseases (1). Numerous studies concerning the association between oxidative stress and cancer have been previously conducted (24). When confronted with external oxidative damage, the body will have evolved numerous defense systems to remove the stimulus. The kelch-like ECH-associated protein 1 (KEAP1)/nuclear factor erythroid 2-related factor 2 (NRF2) system is one of the most important cell defense systems and survival pathways in vivo (5). NRF2 serves a core role in this pathway. NRF2 is anchored in the cytoplasm by KEAP1 in the resting state and translocates into the nucleus to activate the antioxidant response element (ARE) under oxidative stress conditions, which may lead to an increase in the expression of downstream antioxidative proteins, including NAD(P)H quinone oxidoreductase 1 (NQO1) and heme oxygenase 1 (HO1) (6). NQO1 and HO1 are regarded as inducible phaseIIdetoxifying enzymes. NQO1 is a flavoprotein that protects the body from oxidative damage via stabilization of the p53 tumor suppressor (7). HO1 catalyzes the initial and rate-limiting steps in heme catabolism and exhibits a protective effect by decreasing the intracellular pro-oxidant levels (8). However, it has been reported that as well as protecting normal cells from oxidative damage, NRF2 also protects tumor cells. This finding has been confirmed within numerous cell lines and tissues, including non-small cell lung carcinoma, pancreatic cancer and ovarian cancer (7,911). Selective knockdown of KEAP1 with small interfering (si)RNA was reported to promote the nuclear migration and expression of NRF2 and its downstream genes in human umbilical vein endothelial cells (12). Furthermore, research by Wakabayashi et al reported that KEAP1−/− mice are more likely to die postnatally due to malnutrition resulting from hyperkeratosis in the esophagus and forestomach; however, simultaneous ablation of NRF2 may reverse KEAP1 deficiency-associated phenotypes (13).

To the best of our knowledge, no previous studies concerning an association between the Hep2 cell line and the KEAP1/NRF2 signaling pathway have been reported. Therefore, in the present study, the effects of KEAP1 knockdown on NRF2 and its downstream elements were investigated using RNA interference (RNAi) to reveal the integrity of the KEAP1/NRF2 system and the effect on oxidative stress in the Hep2 cell line following the addition of hydrogen peroxide (H2O2).

Materials and methods

Cell lines and cell culture

The Animal Ethics Committee of the Eye, Ear, Nose and Throat Hospital of Fudan University (Shanghai, China) reviewed and approved the study protocol. The Hep2 cell line employed in the present study was from our own laboratory (Laboratory Center, Eye, Ear, Nose and Throat Hospital of Fudan University, Shanghai, China). Cells were maintained in RPMI-1640 (Hyclone; GE Healthcare Life Sciences, Logan, UT, USA) with 10% fetal bovine serum (Gibco; Thermo Fisher Scientific, Inc., Waltham, MA, USA) and penicillin (50 U/ml)-streptomycin (50 µg/ml) solution (Gibco; Thermo Fisher Scientific, Inc.). The cell line was incubated at 37°C in a humidified atmosphere of 95% air and 5% CO2. The mixed cancer Hep2 cell line, which was originally considered to be of the laryngeal carcinoma type but was later reported to be contaminated with cervical carcinoma HeLa cells, was used as a cancer cell model in the current study (1416).

Construction of lentivirus vectors

According to the human KEAP1 transcript in GenBank (; NM_203500), three target RNA interference sequences that silence the KEAP1 gene were identified. Lentiviral vectors expressing RNAi specific for the KEAP1 gene and a scrambled sequence encoding a green fluorescent protein (GFP) sequence were designed and constructed by Obio Technology Co., Ltd. (Shanghai, China). The following sequences were used: 5′-GCAAGGACTACCTGGTCAAGA-3′ (shKEAP1), 5′-CGGGAGTACATCTACATGCAT-3′ (shKEAP1-1), 5′-GTGGCGAATGATCACAGCAAT-3′ (shKEAP1-2) and 5′-TTCTCCGAACGTGTCACGT-3′ (scRNA). Pairs of complementary oligonucleotides with these sequences were synthesized, annealed and cloned into the lentiviral plasmid vector [pLKD-CMV-G&PR-U6-short hairpin (sh)RNA] (Obio Technology, Ltd., Shanghai, China) using the AgeI and EcoRI enzymes (Takara Bio, Inc., Otsu, Japan). The recombinant plasmid vectors (32 µg) containing shRNA were co-transfected into 293T cells along with the helper plasmids psPAX2 and pHCMV-VSV-G (Takara Bio, Inc.) using Lipofectamine® 2000 (Invitrogen; Thermo Fisher Scientific, Inc.). Subsequently, the supernatants were collected and purified after 48 h of transfection and then titrated.

The constructed lentiviral vectors contained a green fluorescence gene that emits green fluorescence in response to excitation with blue light. This characteristic may be utilized to optimize the transfection conditions. Following the screening of a series of preliminary experiments using 2 µg/ml puromycin, the optimal transfection efficiency was determined. Briefly, for cell transfection, Hep2 cells in the exponential growth phase were collected, counted and seeded in 24-well tissue culture plates (Corning Incorporated, Corning, NY, USA) at a density of 2×104 cells/well to attain 30% confluence on the day of transfection. The lentivirus containing specific KEAP1 shRNA and the negative control lentivirus were applied to Hep2 cells with the multiplicity of infection of 10 or 20. In addition, polybrene was added into each well with a final concentration of 5 µg/ml. At 12–20 h post-transfection, the medium was completely replaced and the cells were incubated at 37°C in a 5% CO2 incubator for an additional 72 h. The transfection rate was evaluated by counting GFP-positive cells under an inverted fluorescence microscope; silencing efficacy was verified using real-reverse transcription-quantitative polymerase chain reaction (RT-qPCR), western blotting and an immunofluorescence technique. Hep2 cells that exhibited the highest degree of KEAP1 silencing following transfection with lentivirus containing KEAP1-shRNA were selected for the establishment of a stable cell line in the presence of puromycin at a final concentration of 2 µg/ml. The media containing puromycin were changed every 2–3 days, for 2 weeks. Parent Hep2 and scHep2 cells served as the controls.

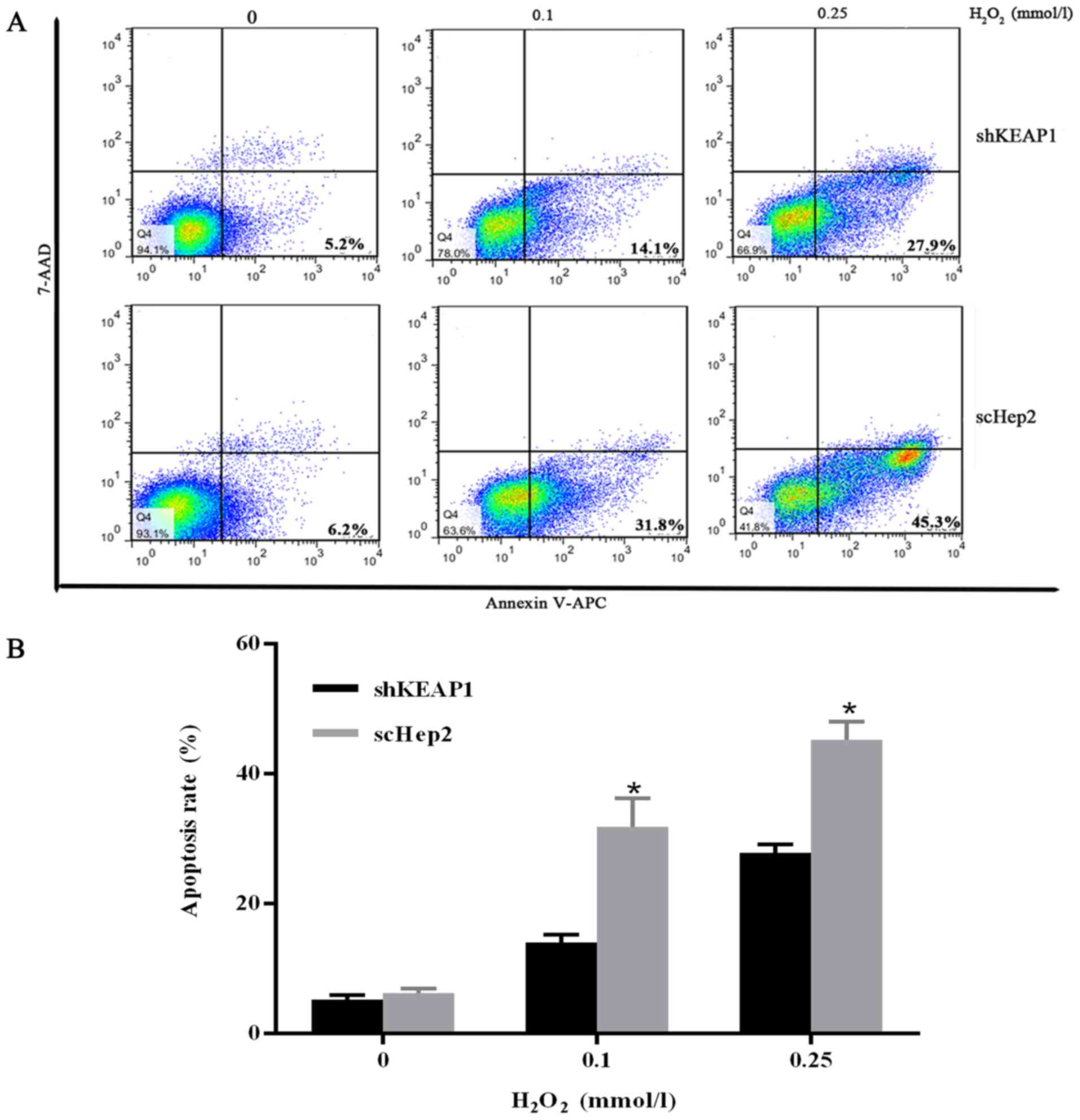

Detection of apoptosis by flow cytometry

Cells were seeded in 6-well plates (Corning Incorporated) at a density of 4×105 cells/well and cultured for 24 h. Subsequently, cells were treated with two different concentrations of H2O2 (0.1 and 0.25 mmol/l) for 24 h at 37°C. The floating original medium was collected and the cells were digested with 0.25% trypsin without EDTA (Hyclone; GE Healthcare Life Sciences) at 37°C for 1 min. Cell suspensions were centrifuged for 5 min at 1,000 × g at room temperature. Cells were resuspended and gently washed twice with ice-cold phosphate-buffered saline (PBS; pH 7.2–7.4; Hyclone; GE Healthcare Life Sciences). Finally, the cells were collected in 1.5 ml Eppendorf tube. Cell density was adjusted to 1×106 cells/tube. According to the operating instructions of an Annexin V-allophycocyanin (APC)/7-aminoactinomycin D (7-AAD) double staining apoptosis detection kit (Nanjing KeyGen Biotech Co., Ltd., Nanjing, China), 500 µl binding buffer was added to suspend cells. A total of 5 µl Annexin V-APC and 7-AAD was subsequently added respectively for flow cytometry within 1 h using a Beckman MoFlo XDP flow cytometer with Summit 5.2 (Beckman Coulter, Inc., Brea, CA USA). Cells not treated with any H2O2 served as the controls.

Cell viability assay

shKEAP1 Hep2 and scHep2 cell lines in the logarithmic growth phase were trypsinized, counted, resuspended and plated at a density of 2×103 cells/well in a volume of 200 µl RPMI-1640 medium per well in a 96-well plate in triplicate. After 6, 24, 48, 72 and 96 h incubation individually (data not shown), cell proliferation was measured using a Cell Counting Kit-8 (CCK-8; Dojindo Moleular Technologies Inc., Kumamoto, Japan) according to the manufacturer's protocols. The absorbance value was recorded at 450 nm using a microplate spectrophotometer. To quantify the ability of H2O2 to inhibit the shKEAP1 Hep2 cell line, a cell growth assay was also performed using CCK-8. Briefly, cells were seeded in a 96-well tissue culture plate (2×104/well), incubated overnight at 37°C and subsequently treated with 0, 0.25, 0.5, 0.75 and 1.0 mmol/l of H2O2 for 24 h. CCK-8 was subsequently added to each well to detect the inhibitory effect of H2O2 on the cells using a microplate spectrophotometer at a wavelength of 450 nm.

Immunofluorescence staining

Cells in the exponential growth phase were digested with trypsin, resuspended and the cell density was adjusted to 1×106 cells/ml with culture media. Prior to cell density adjustment, one glass coverslip (22×22 mm) was placed into each well of a 6-well dish. A total of 5 µl cell suspensions was seeded onto the glass coverslip in order to grow up to 30–50% confluence 24 h later. H2O2 was added into the wells at final concentrations of 0.25 and 0.5 mmol/l for 6 and 9 h. Equal volumes of PBS were added into the wells that were not treated with H2O2 for the same aforementioned durations. Following incubation for the specified durations, the media were removed and cells were washed three times with ice-cold PBS. The slides of cells were fixed in fresh 4% formaldehyde for 20 min at room temperature. Subsequently, the cells were washed three times with PBS and incubated in PBS containing 1% (v/v) Triton X-100 and 1% bovine serum albumin (Beyotime Institute of Biotechnology) for 1 h on ice to permeabilize the cells and block non-specific protein-protein interactions. The glass coverslips were removed from the 6-well plates and subsequently incubated with 30 µl NRF2 primary antibody (cat. no. ab31163; Abcam, Cambridge, UK) diluted at 1:100 and placed in a humidified chamber overnight at 4°C. The secondary antibody used was cyanine 3-conjugated goat anti-rabbit IgG (H+L; cat. no. A01516; Beyotime Institute of Biotechnology) used at a 1:1,000 dilution for 1 h. DAPI was used to stain the cell nuclei for 5 min at room temperature (cat. no. C1002; Beyotime Institute of Biotechnology). Finally, the coverslips were sealed with antifade mounting medium (Beyotime Institute of Biotechnology) and observed under fluorescence microscopy (magnification, ×40). The immunofluorescence detection of NRF2 without H2O2 and the staining of KEAP1 were performed as described above but using a KEAP1-specific antibody (cat. no. ab139729; Abcam) also diluted at 1:100 and the same secondary antibody (cyanine 3-conjugated goat anti-rabbit IgG; H+L; cat. no. A01516).


Cells were seeded in 6-well plates and treated with 0, 0.5 and 1.0 mmol/l H2O2 Total RNA was extracted from cells using TRIzol reagent (Invitrogen; Thermo Fisher Scientific, Inc.). RNA quality and quantity was measured using a NanoDrop 2000 spectrophotometer (NanoDrop Technologies; Thermo Fisher Scientific, Inc.). A total of 1 µg RNA was reverse transcribed into cDNA using the PrimeScript RT reagent kit (Perfect Real Time; Takara Bio, Inc.) in a final 20 µl volume reaction, according to the manufacturer's protocol. A volume of 1 µl RT reaction mixture and 9 µl qPCR mixture were mixed and SYBR Green I-based RT-qPCR analyses of human KEAP1, NRF2, NQO1 and HO1 were performed by using the SYBR Premix Ex Taq system (Tli RNaseH Plus; Takara Bio, Inc.), according to the manufacturer's protocol in triplicate on an ABI 7500 system (Applied Biosystems; Thermo Fisher Scientific, Inc.). Negative RT controls were included in each assay. All primers were designed and synthesized by Sangon Biotech Co., Ltd. (Shanghai, China), as presented in Table I. GAPDH was used as a reference gene. Relative quantitative levels of samples were determined by the 2−∆∆Cq method (17).

Table I.

Sequences of reverse transcription-quantitative polymerase chain reaction oligonucleotide primers.

Table I.

Sequences of reverse transcription-quantitative polymerase chain reaction oligonucleotide primers.

GeneForward sequenceReverse sequence

[i] NRF2, nuclear factor erythroid 2-related factor 2; KEAP1, kelch-like ECH-associated protein; NQO1, NAD(P)H quinone oxidoreductase 1; HO1, heme oxygenase 1.

Western blot analysis

Total protein was acquired by lysing cells in a radioimmunoprecicpitation assay buffer containing phenylmethylsulfonyl fluoride with a final concentration of 1 mmol/l (Beijing Cowin Biotech Co., Ltd., Beijing, China). The cytosolic and nuclear fractions of NRF2 were prepared using a NE-PER Nuclear and Cytoplasmic Extraction Reagents kit (Pierce; Thermo Fisher Scientific, Inc.). Protein extracts were obtained via centrifugation at 4°C and 10,000 × g for 10 min; proteins were quantified using a Bicinchoninic Acid Protein assay kit (Beyotime Institute of Biotechnology). A total of 40 µg total protein was electrophoretically separated via 10% SDS-PAGE and transferred to polyvinylidene fluoride membranes. To block the membranes, 5% non-fat milk in Tris-buffered saline containing 0.1% Tween-20 (TBST; pH 7.4–7.5) was applied at room temperature for 1 h. Membranes were subsequently incubated overnight with anti-NRF2 (cat. no. ab31163; Abcam), anti-KEAP1 (cat. no. ab139729; Abcam), anti-NQO1 (cat. no. A180; Cell Signaling Technology, Inc., Danvers, MA, USA), anti-HO1 (cat. no. ab68477; Abcam), and anti-β-actin (cat. no. GB13001-3; Servicebio, Inc.) or lamin B primary antibodies (GB11408; Servicebio, Inc.) in blocking buffer at 4°C at 1:1,000 dilution. Subsequently, membranes were washed three times in TBST followed by incubation for 1 h with HRP-labeled goat anti-rabbit/mouse IgG (H+L) (GB23303/GB23301; Servicebio, Inc.) at a 1:2,500 dilution and washed in TBST again. Bands were visualized using hypersensitive enhanced chemiluminescence kit (cat. no. G2020; Servicebio, Inc. Wuhan China). β-actin was used for cytoplasmic extracts and lamin B used for nuclear extracts.

Statistical analysis

The significance of intergroup differences among the multiple groups was determined using one-way analysis of variance. The Least Significant Difference test was used for the post hoc test. P<0.05 was considered to indicate a statistically significant difference. The comparisons of the cell viability among the groups were performed by Bonferroni following one-way analysis of variance. All statistical analyses were conducted using the SPSS 17.0 statistical package (SPSS, Inc., Chicago, IL, USA). The experiments were repeated at least three times and data are presented as the mean ± standard deviation.

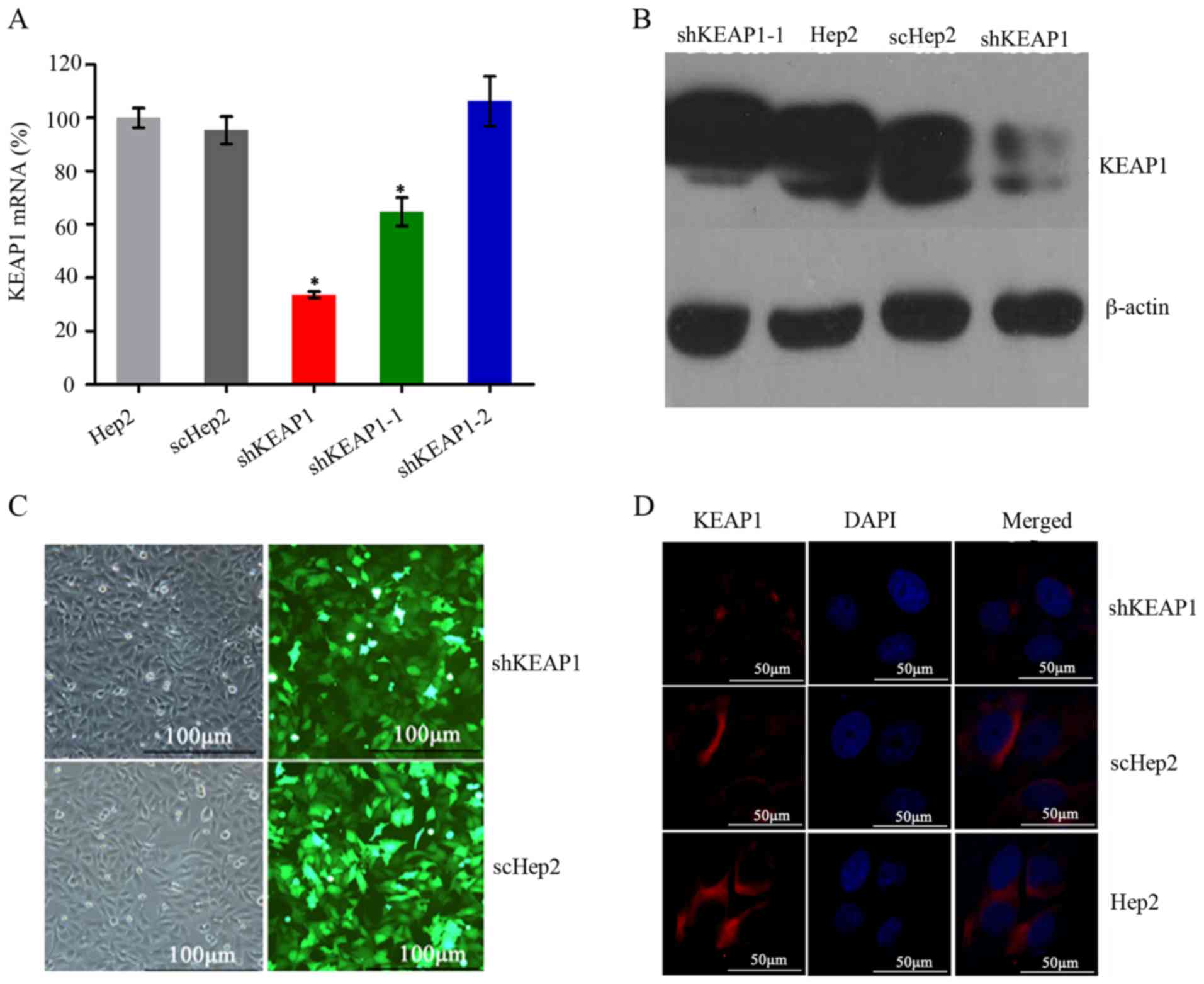

Confirmation of efficient KEAP1 knockdown

In order to establish a stable shKEAP1 Hep2 cell line with effective knockdown of the KEAP1 gene, Hep2 cells were transfected with three KEAP1 shRNAs and one scrambled shRNA expression lentiviral plasmids bearing GFP, which was used to assess the efficacy of transfection. RT-qPCR was performed on exponentially growing cells to determine the expression levels of KEAP1 following 72 h transduction. Of the three shKEAP1 sequences, one exhibited the highest knockdown efficiency, which reduced KEAP1 mRNA expression levels by up to 67±1% compared with the Hep2 cells transfected with the other shRNAs (P<0.05; Fig. 1A). Based on this, this sequence was selected to establish a stable shKEAP1 Hep2 cell line with puromycin for 2 weeks. Subsequently, the protein expression levels of KEAP1 in shKEAP1 Hep2 and scHep2 cell lines were measured by western blotting. KEAP1 protein expression levels were markedly reduced following KEAP1 knockdown using the shKEAP1 construct (Fig. 1B). Furthermore, the transfection efficiency of scHep2 cells was demonstrated to be equivalent to that of shHep2, which was ~80% (Fig. 1C). Immunofluorescence staining demonstrated that KEAP1 protein was primarily expressed in the cytoplasm. Weak fluorescence and bands were detected within the shKeap1 group, which were markedly lower compared with in scHep2 and Hep2 cells; however, within the control groups, expression levels were similar (Fig. 1D), indicating that a stable and effective shKEAP1 Hep2 cell line was established.

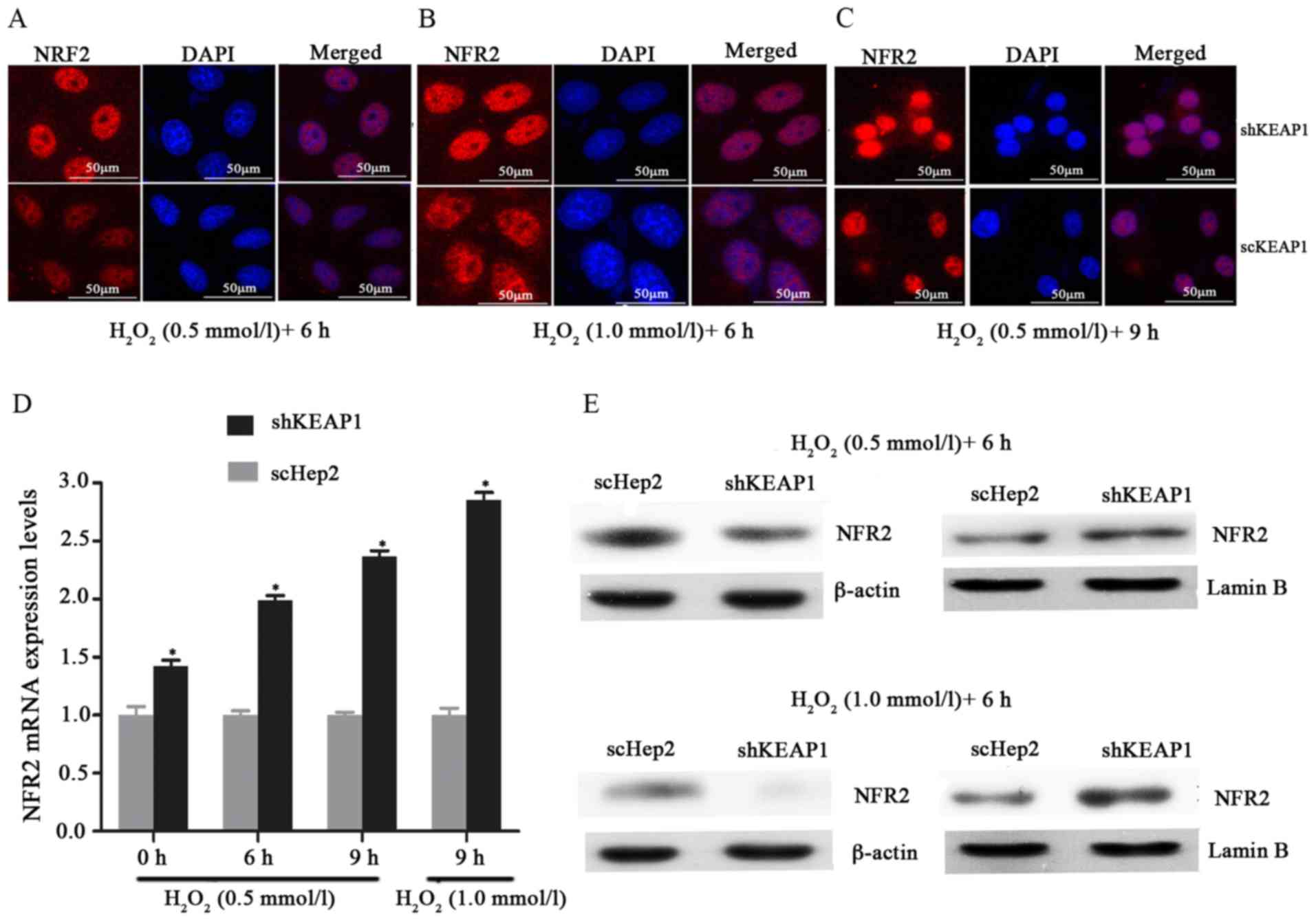

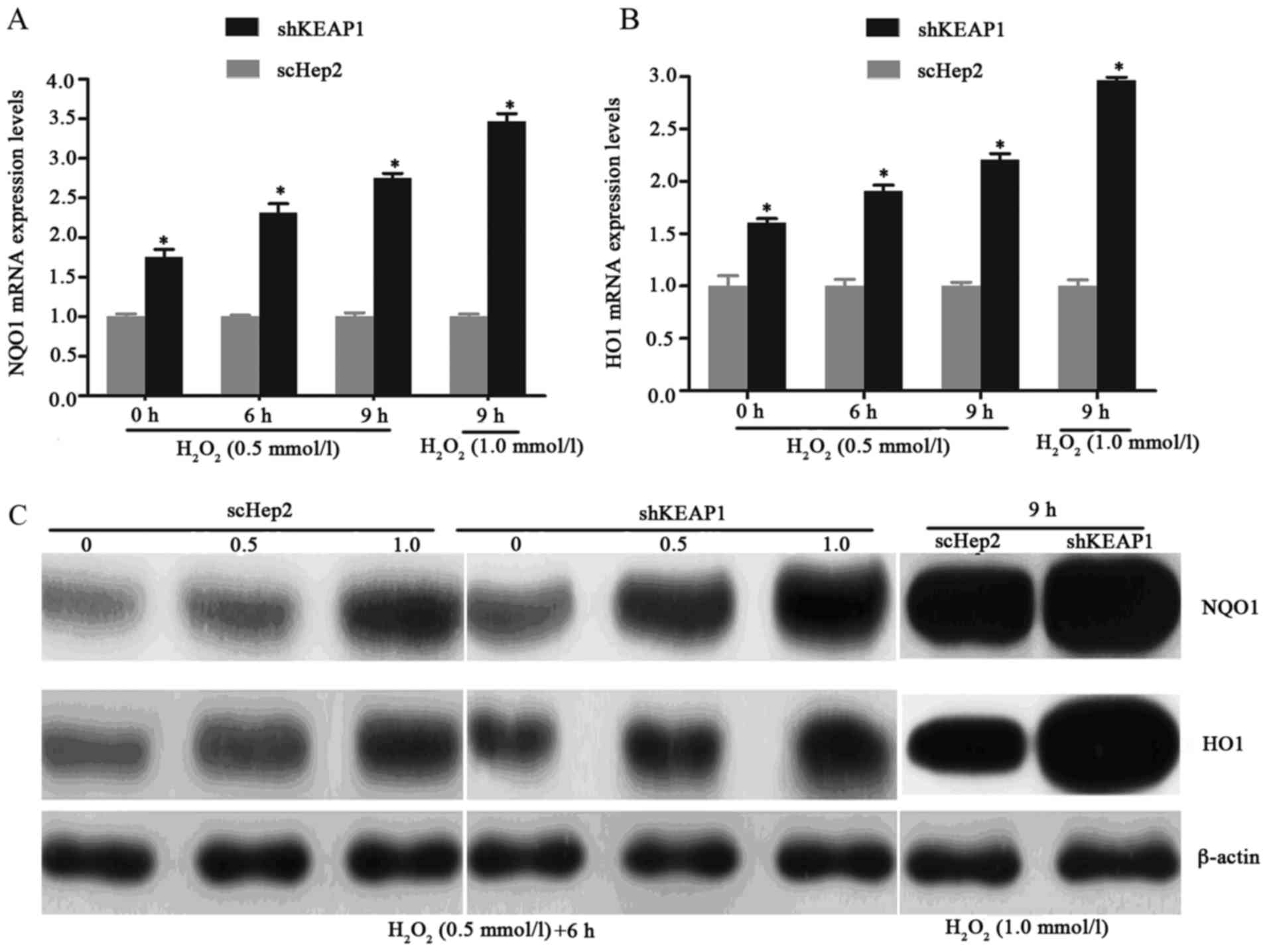

KEAP1 knockdown increases the expression of NRF2, NQO1 and HO1 in Hep2 cells

The effects of KEAP1 knockdown on the mRNA and protein expression of NRF2 and NRF2-associated genes were investigated. The results demonstrated that shRNA-mediated depletion of KEAP1 was associated with significant increases in the mRNA expression levels of NRF2, NQO1 and HO1 by 1.42±0.05-, 1.75±0.10- and 1.59±0.07-fold, respectively, compared with the scHep2 group (Fig. 2A). Notably, immunofluorescence staining demonstrated that the expression levels of nuclear NRF2 were low, with NRF2 primarily located in the cytoplasm within parent Hep2 cells; however, NRF2-reactive fluorescent signals were observed within the nucleus of shKEAP1 cells, indicating that KEAP1 knockdown may cause NRF2 migration into the nuclei (Fig. 2B). Furthermore, western blot analysis demonstrated that delivery of specific shKEAP1 by lentiviral transduction reduced the cytosolic levels of NRF2, which was observed alongside a marked increase in nuclear NRF2 levels (Fig. 2C). Total protein levels of NQO1 and HO1 were markedly elevated in shKEAP1 Hep2 cells compared with the scHep2 cell line and the blank control Hep2 group (Fig. 2D).

Effect of KEAP1 knockdown on oxidative damage in Hep2 cells

To investigate the role of KEAP1 knockdown against oxidative damage in the Hep2 cell line, the expression of this system and the resistance of the cells to oxidative stresses induced by H2O2 were analyzed. Immunofluorescence analysis demonstrated that when cultured shKEAP1 Hep2 cells were treated with 0.5 and 1 mmol/l H2O2 for 6 h, NRF2 markedly migrated into the cell nucleus compared with in scHep2 cells. In addition, the expression of NRF2 appeared to be markedly higher in response to the concentration of 1 mM/l l H2O2 for 6 h compared with 0.5 mmol/l (Fig. 3A-C). As presented in Figs. 3D and E, and 4, the results of RT-qPCR analysis and western blotting demonstrated consistencies with immunofluorescence analysis; the increases in the NRF2, NQO1 and HO1 transcript and protein levels demonstrated time- and dose-dependency within the knockdown cell line. Knockdown of KEAP1 via shRNA in Hep2 cells increased the NRF2, NQO1 and HO1 mRNA expression levels by 1.99, 2.32 and 1.91-fold respectively, compared with scHep2 cells when treated with 0.5 mM/l H2O2 for 6 h (Figs. 3D, 4A and B). At the concentration of 1 mM/l H2O2 for 9 h, NRF2, NQO1 and HO1 mRNA levels were 2.85, 3.47 and 2.96-fold higher in the KEAP1 knockdown group, respectively, compared with in the scHep2 cells. mRNA expression levels were analyzed upon exposure to 0.5 mmol/l H2O2 for 6 and 9 h. NRF2, NQO1 and HO1 were all expressed highly within shKEAP1 cells compared with in scHep2 cells at both concentrations. Western blot analyses revealed that the protein expression levels of nuclear NRF2, and total NQO1 and HO1, were markedly upregulated in shKEAP1 Hep2 cells compared with in scHep2 control cells at the concentration of 0.5 and 1 mmol/l H2O2 for 6 h (Figs. 3E and 4C). Supporting the results of immunofluorescence, KEAP1 knockdown led to a reduction in the protein expression levels of NRF2 within the cytoplasm and an increase within the nuclei at 0.5 and 1 mM/l H2O2 concentrations, compared with scHep2 cells (Fig. 3E). The expression patterns of NQO1 and HO1 were similar to the nuclear NRF2 in shKEAP1 Hep2 cells upon exposure to H2O2 (Fig. 4C).

Effects of KEAP1 knockdown on Hep2 cell function

As the expression levels of NRF2, NQO1 and HO1 were altered within NRF2-activated Hep2 cells, the effects of KEAP1 knockdown on cell function were subsequently investigated. Cell viability decreased in a dose-dependent manner within the shKEAP1 and scHep2 cell lines with increasing doses of H2O2 with the range of final concentrations from 0–1 mM/l for 24 h. At concentrations of 0.25, 0.5 and 0.75 mM/l, the mean relative viabilities of shKEAP1 and scHep2 cells were 75 and 51, 33 and 12, and 18 and 6%, respectively. It was observed that transfected shKEAP1 Hep2 cells demonstrated significantly higher cell viabilities following H2O2 treatment compared with in the scHep2 group, as demonstrated in Fig. 5. To validate the results obtained from the CCK-8 assay and to investigate whether apoptosis served a role against oxidative stress injury, the percentage of the apoptotic cells was analyzed by flow cytometry. Cells were cultured with varying concentrations of H2O2 (0, 0.1 and 0.25 mmol/l) for 24 h. Marked increases were observed in the apoptosis rates of scHep2 cells at 0.1 and 0.25 mmol/l H2O2 from 31.8 and 45.3%, while 14.1 and 27.9% in shKEAP1 cells (Fig. 6).


The association between oxidative damage and cancer has been increasingly emphasized. High antioxidant levels have been reported within the serum and tissue samples of numerous patients with cancer. Suzuki et al reported that increasing the intake of antioxidants, such as renieratene, vitamin C and vitamin E, may not only reduce the risk of developing head and neck cancer of the general population, but also those who smoke and consume alcohol (18). One study demonstrated that cells exhibit elevated sensitivity to the external harmful materials, when the activities of antioxidants and enzymes are inhibited (19). These findings have demonstrated that oxidative damage may exert notable effects in the process of the cancer occurrence, progression and treatment.

When confronted with oxidative stress, antioxidative systems within the body are activated to remove oxidative stress-inducing substances. Knockout of the NRF2 gene in mice revealed a reduction of antioxidant enzymes, including glutathione S-transferase and HO1, and an increased sensitivity of mice to carcinogens as knockout mice exhibited higher incidences of cancer compared with wild-type mice (20). Research has also indicated that interfering with KEAP1 gene expression may upregulate the expression of NRF2; Singh et al reported that within lung cancer cells with low expression levels of KEAP1, the nuclear NRF2 expression levels were significantly higher compared with lung cancer cells with high KEAP1 expression. NQO1 expression was increased in lung cancer cells with lower KEAP1 expression, compared with cells with high KEAP1 expression. In addition, NRF2 and its downstream genes were demonstrated to be downregulated via transfection of NRF2-siRNA into cells or through increasing KEAP1 expression (10). These findings have also been observed within pancreatic cancer cell lines, where KEAP1 was also inversely associated with NRF2 and its downstream genes, including NQO1 and HO1. Therefore, high expression levels of KEAP1 may lead to low expression levels of NRF2 and antioxidants. Elevated levels of KEAP1 expression may cause the expansion ability of cells to decrease (21). In addition, these findings were also verified within ovarian carcinoma cells. Following the introduction of KEAP1-siRNA into ovarian carcinoma cells, the expression levels of KEAP1 mRNA decreased by 60% and the target protein NQO1 was markedly lowered, which accelerated the cell growth (11). Jung and Kwak identified the same phenomenon within colorectal cells. Specific KEAP1-shRNA was transfected into colorectal cells to reduce the expression levels of KEAP1 mRNA by 50%, resulting in the marked upregulation of nuclear translocation of NRF2 and the expression of its target proteins, including NQO1 and HO1 (22).

In the present study, the experimental results regarding the role of the KEAP1-NRF2-ARE signaling pathway within Hep2 cells were consistent with the above motioned studies. A highly effective shKEAP1 stable Hep2 cell line was established in the present study. Low expression levels of NQO1 and HO1 were detected within normal Hep2 cells, while shKEAP1 cells exhibited increased expression levels. Importantly, the findings of the present study confirmed that the downregulation of KEAP1 was associated with the migration of NRF2 from the cytoplasm to the nuclei. This demonstrated that the activation of NRF2 was associated with high expression levels of NQO1 and HO1. In addition, the effects of KEAP1 knockdown on the proliferation of Hep2 cells were analyzed. The results demonstrated that the cells of the shKEAP1 group exhibited a marked increase in their proliferation compared with the scHep2 control group. Notably, the cell viability of shKEAP1 Hep2 cells was greater compared with in scHep2 cells from 48 to 96 h following the transfection of KEAP1-shRNA (data not shown). This indicated that the effects of KEAP1 knockdown via lentiviral transfection may be long lasting. To investigate the mechanisms involved in this process, the apoptotic rate was measured within the scHep2 and shKEAP1 Hep2 cell lines. Marked alterations 24 h post-transfection between the shKEAP1 and control groups were not observed at 0 mmol/l H2O2; however, at 0.1 and 0.25 mmol/l H2O2 the apoptosis rate was higher within scHep2 cells compared with in shKEAP1 Hep2 cells. These results demonstrated that the inhibition of KEAP1 expression within Hep2 cells may reduce cell apoptosis to improve survivability. In addition, similar findings have been observed in other cell types. Li et al reported that NRF2 was primarily located within nuclei and that overexpression of NRF2 may promote proliferation in endometrial cancer cells (23). Ma et al revealed that the downregulation of NRF2 reduced the expression levels of NQO1 and HO1 within cervical cancer cells. Furthermore, the volume of shNRF2-transfected cervical cancer cell xenograft tumors was lower compared with wild-type NRF2 expression cell xenograft tumors (24).

Numerous studies have demonstrated that there are close associations between H2O2 and the KEAP1-NRF2-ARE signaling pathway. Following the addition of H2O2 to astrocyte cells, the KEAP1/NRF2 system was activated and NRF2 migrated into the nuclei from the cytoplasm. The expression levels of NRF2 and its target protein, NQO1, were notably upregulated, which was positively associated with increasing H2O2 concentrations and the duration of treatment (25,26). Pi et al (27) also demonstrated that H2O2 markedly induced nuclear NRF2 expression and reduced cytoplasmic NRF2 expression. The longer the duration of treatment and the higher the concentration was, the higher expression levels of NQO1 and nuclear NRF2 (27). Additionally, an in vivo study revealed that nuclear NRF2 accumulated within living tissues induced by H2O2 in a dose-dependent manner. Collectively, these previous studies revealed that H2O2 may activate the KEAP1-NRF2-ARE signaling pathway and affect NRF2 nuclear transfer in a time- and dose-dependent manner. In the present study, research into NRF2 nuclear migration was performed using varying H2O2 concentrations and durations of treatment. As expected, marked nuclear transfer of NRF2 was observed in response to H2O2, and this phenomenon was more profound within shKEAP1 Hep2 cells compared with scHep2 cells. The upregulation of nuclear NRF2, NQO1 and HO1 may have reinforced the antioxidant capacity in Hep2 cells. Habib et al reported that following the addition of varying concentrations of H2O2 to a breast carcinoma cell line, NQO1 and HO1 expression, and nuclear NRF2 expression, were notably increased in a time- and dose-dependent manner (28).

The present study identified the typical KEAP1-NRF2-ARE signaling pathway within Hep2 cells. Suppression of KEAP1 may lead to a decline in cytoplasmic NRF2 and migration of NRF2 to the nuclei, which is a core factor promoting the expression of antioxidants, including NQO1 and HO1. It may be advantageous to inhibit the antioxidant activity of the Hep2 cells via the inactivation of the KEAP1-NRF2-ARE signal transduction pathway (29). Once the signaling pathway was inactivated, the cytoprotective proteins, including NQO1 and HO1 are downregulated and survival of cells decreased. This may be useful for inhibiting the growth of cancer. The results of the present study may contribute to the prevention, diagnosis and treatment of cancer.


The present study was supported by Science and Technology Commission of Shanghai Municipality (grant no. 15401971600).


No funding was received.

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Authors' contributions

LC, CL, HW and PH conceived and designed the study. CL, YZ, JC, YY and MC performed the experiments, and completed the acquisition, analysis and interpretation of data for the work. LC and CL wrote the paper. HW and PH reviewed and edited the manuscript. All authors read and approved the manuscript.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
