Sensitivity of human papillomavirus‑positive and ‑negative oropharyngeal cancer cell lines to ionizing irradiation
Affiliations: HPV Research Group, Cardiff University, School of Medicine, Cardiff CF14 4XN, UK, Ear Nose/Throat/Head and Neck Surgery Department, University Hospital of Wales, Cardiff and Vale University Health Board, Cardiff CF14 4XW, UK, Wales Gene Park, Cardiff University, Cardiff CF14 4XN, UK, Velindre Cancer Centre, Cardiff CF14 2TL, UK, Division of Cancer and Genetics, Cardiff University, School of Medicine, Cardiff CF14 4XN, UK
- Published online on: July 31, 2020 https://doi.org/10.3892/or.2020.7709
- Pages: 1717-1726
This article is mentioned in:
The incidence of human papillomavirus-positive (HPV+) tonsillar and base of tongue squamous cell carcinomas (TSCC/BOTSCC), the major subsites of oropharyngeal squamous cell cancer (OPSCC), (but not other OPSCC subsites) is still increasing in most western countries (1–4). Together they account for an increasing proportion of head and neck squamous cell carcinomas (HNSCC), especially in countries where smoking, a main HNSCC risk factor is decreasing (4,5).
Patients with HPV+ TSCC/BOTSCC usually respond well to treatment and have better long-term survival compared to HPV− TSCC/BOTSCC and HNSCC in general, irrespective if they receive radiotherapy alone, or radio-chemotherapy (i.e. 80 vs. 40–50% 5-year overall survival) (1,5–9). However, over recent decades, treatment for HNSCC, as well as for HPV+ TSCC/BOTSCC, has gradually been intensified with radiotherapy and induction or concomitant chemotherapy, and the numbers of side effects have increased (5). Most likely this intensified therapy could be de-escalated for most patients with HPV+ TSCC/BOTSCC, but to facilitate this, greater knowledge of the responsiveness of these tumours to different treatment strategies is required, both through clinical and preclinical studies (10).
Previous in vitro studies have investigated response to ionizing irradiation (IR) in a range of HNSCC cell lines. These studies describe differences in sensitivity to IR correlating with HPV status (11–17). Some of these reports suggest an association between a greater intrinsic cellular radio-sensitivity and increased survival in HPV+ HNSCC cell lines (11–13). However, in these studies the numbers of HPV+ OPSCC cell lines have been limited, making it difficult to assess the generalizability of these observations (11–17). There is a clear need to assess the correlation between HPV status and radiosensitivity in a greater number of cell lines, but HPV+ OPSCC cell lines are relatively scarce and are notoriously difficult to establish.
In 2014, to our knowledge, there are eight published HPV+ HNSCC cell lines: UPCI-SCC-90, UPCI-SCC-154, UPCI-SCC-152, UM-SCC-104, UM-SCC-47, 93-VU-147T, UD-SCC-2 and UT-SCC-45 (11–18). In 2018, we established and characterised two new HPV+ cell lines CU-OP-2 and CU-OP-3 (18). In this report, two additional cell lines CU-OP-17 and CU-OP-20 have been derived and characterised. We have used these 4 novel lines, and 6 established OPSCC lines to investigate the effects of IR on surviving fraction (SF), cell cycle distribution, and global transcription patterns, similar to studies performed by others (11–13). In addition, circos plots were established, to identify possible changes in HPV integration sites.
Materials and methods
Patients, cell lines, and sample collection
Five HPV+ and five HPV− OPSCC cell lines were included in this study.
To derive novel lines, TSCC biopsies were obtained, during the diagnostic procedure (where ultimately diagnosis is finalised by multidisciplinary meetings) from patients, prior to treatment at Cardiff and Vale University Health Board, in concordance with Ethical and NHS R&D approval (reference number 13/WA/0002), by written consent. The derivation of HPV+ CU-OP-2 and CU-OP-3 has been described previously (18). CU-OP-17 and CU-OP-20, described here for the first time, were established using the same processes (18), and were shown below to be HPV− and HPV+ respectively. The identity of all CU-OP cell lines included in this report was established by short tandem repeats (STR) as described previously for CU-OP-2 and CU-OP-3 (18), and by Public Health England (Promega, Southampton, UK) for CU-OP-17 and CU-OP-20. The characteristics of the patients from which CU-OP-17 and CU-OP-20 were derived and their tumours are shown in Table I. For CU-OP-2 and CU-OP-3 these details have been published previously (18). All CU-OP cell lines were grown on 60 Gy irradiated J2 3T3 feeder layers (a kind gift from Dr Sally Roberts, University of Birmingham, UK) in GMEM medium with 10% FBS, and further details have been described previously (18).
HPV+ UM-SCC-47 and HPV− UM-SCC-6, UM-SCC-19, UM-SCC-74a and UM-SCC-4 were obtained from Professor Thomas Carey at the University of Michigan USA. HPV+ UPCI-SCC-90 was purchased from Deutsche Sammlung von Mikoorganismen und Zellkulturen (DSMZ), Leibniz, Germany. All these cell lines are described in the data base https://web.expasy.org/cellosaurus/. These cell lines were all cultured in DMEM (Sigma-Aldrich; Merck KGaA), with 1% L-glutamine, 100 U/ml of penicillin, and 100 µg/ml streptomycin and 10% foetal bovine serum (Sigma-Aldrich; Merck KGaA).
Human epithelial keratinocytes (HEKn) were purchased from Thermo Fisher Scientific, Inc. and grown as described previously in EpiLife media (18).
All cell lines were tested for absence of mycoplasma, by standardised PCR, using the Venor®GeM detection kit (Minerva Biolabs), which is specific to the highly conserved 16s rRNA coding region, thereby detecting a wide range of mycoplasma species.
The presence of HPV in CU-OP-17 and CU-OP-20 was confirmed by a bead-based multiplex assay for 27 HPV types as described in detail previously (19). This PCR uses BSG5+/G6+ primers targeting the L1 region, as well as primers targeting the HPV16 E6 region, and includes the analysis of all high-risk HPV types using a PCR-based bead-based multiplex-assay on a MagPix instrument (Luminex Corp.) as previously described (19). A mean fluorescence intensity (MFI) value above 1.5× background + 8 for specific HPV primers were considered as HPV-positive as previously described (19).
Clonogenic assay and analysis
Cells were cultured at low cell densities, more specifically in ranges of 2,500-12,500 cells per plate on 6-cm culture dishes (VWR) and incubated at 37°C with 5% CO2 for 24 h. Cell density per cell line, was defined before the initiation of clonogenic assays. Cell density, was defined by individual cell line density tests (using ranges of cells between 1,000-20,000 cells/well lasting for ~10-15 days depending on the cell line. After 24 h the cells were irradiated with 0–6 Gy (Gammacell-1000 MDS Nordion; a caesium-137 source) and the media were changed after 7 days. The assays were stopped 10–15 days later (depending on the growth of the cell lines) and the cells stained with crystal violet, and the colonies counted using a Colony counter (ColonyDoc-It Imaging Station, UVP).
Data analysis and statistical evaluation of clonogenic assay
All experiments were performed in triplicates. The plating efficiency (PE) and survival fraction (SF) of each cell line per IR dose was calculated. Cells were classified as radiosensitive SF <0.40 or radio-resistant SF >0.40 as described before (20). The mean value was calculated and standard deviations (SD) are indicated as error bars. Statistical evaluation was performed using GraphPad Prism (GraphPad Version 7, GraphPad Software), by using a two-way ANOVA with a Sidak post-test. Strength of significance is indicated as follows: *P<0.05, **P<0.01, ***P<0.01 and ****P<0.001). ns stands for not significant.
Sample preparation and collection
Cells were cultured without feeder cells in 6-cm culture dishes (VWR) and treated with 0–6 Gy 24 h after seeding. Untreated cells were collected 24 h after seeding, while irradiated cells were collected 8, 24 and 48 h after treatment. Approximately 500,000 cells/cell line were fixed in 1 ml of 70% ethanol in fluorescence-activated cell sorting (FACS) tubes and stored at −20°C for at least 1 h. Cells were then washed with PBS, incubated with 100 µl of RNase A (10 µg/ml) (Sigma-Aldrich; Merck KGaA) for 45 min at 37°C, centrifuged at 270 × g, and resuspended in 200 µl propidium iodide (PI) solution (50 µg/ml) (Sigma-Aldrich; Merck KGaA) and incubated for 15 min at 37°C.
Cell cycle measurement and statistical analysis
The PI-stained cells were analysed using a BD Accuri C6 (BD Biosciences) low-pressure flow cytometer (absorbance 488 nm). Data were extracted as FCS files and the cell cycle distribution was analysed with FlowJo analysis software (version 10; FlowJo LLC), using the cell cycle tool, based on the Watson pragmatic algorithm (21). For each cell cycle phase the mean value was calculated based on a total of three experimental runs. Each IR dose and time point were compared to the non-treated sample ‘time zero’, to quantify changes in cell cycle distribution after IR treatments. Excel 2016 was used to generate 100% stacked bar charts. Statistical analysis was performed in GraphPad Prism 7 (GraphPad Software, Inc.) using a two-way ANOVA with a Sidak post-test to the panel of cell lines (treatment dose and time points). Strength of significance is indicated as follows: *P<0.05, **P<0.01, ***P<0.01 and ****P<0.001). ns stands for not significant.
Experimental set up
Cells (untreated and 2 Gy) were collected 24 h after treatment and RNA was extracted with QiaAMP Mini kit (Qiagen) according to the manufacturer's instructions.
Library preparation and validation for mRNA sequencing was performed through a commercial service/collaboration with Wales Gene Park (Cardiff University, UK). Library preparation, including depletion of ribosomal RNA was carried out using the Illumina® TruSeq® Stranded Total RNA with Ribo-Zero Gold™ kit (Illumina Inc.) according to the instructions of the manufacturer.
Sequencing and data analysis
A 75-base paired-end dual index read format was used on the Illumina® HiSeq2500 in high-output mode by the Wales Gene Park (Cardiff University, UK). Sequencing data were analysed by the bioinformatics service by Dr Peter Giles at the Wales Gene Park (Cardiff University, UK). Trimmed reads were mapped against a combined human sequence genome hg19 and an HPV16 genome reference sequence NC_001526 using STAR (Alex Dobin, Git Hub) to generate circos plots. For both exons and transcripts, gene expression counts were calculated, using Subread feature Counts Version 1.5.1 (22). Data were visualised using The Integrative Genomics Viewer (IGV) downloaded from the Broad Institute (23) and Geneview software (written by Dr Peter Giles of the Wales Gene Park).
Differential gene expression
The DEseq2 analysis tool was used to identify differentially expressed genes (statistical analysis of count matrices for systematic changes between conditions) (24). For multiple testing and false discovery issues, the generated P-values were corrected using the FDR method (25). The data are shown in heatmaps in 3 colour patterns, where green represents underexpressed (compared to median); black represents values approximately median expression; and red represents overexpressed values.
Human viral fusion transcript plots (circos plots)
Circos plots were used to visualise and identify human (hg19) and viral (HPV-16) mRNA fusion transcripts (26).
Derivation of novel OPSSC cell lines CU-OP-17 and CU-OP-20
Explant cultures using fresh primary biopsies from two patients with TSCC were attempted as described previously (18). In addition, and the identity of the cell lines CU-OP-17 and CU-OP-20 to the tumour biopsies was confirmed by STR. Details of these two patients and their tumours are shown in Table I. The HPV status of the biopsy and resulting cell line was assessed by PCR-based bead-based multiplex-assay on a MagPix instrument and the obtained MFIs calculated as described above: CU-OP-20 tested positive for HPV-16; CU-OP-17 was HPV−. TP53 status assessed by RNA sequencing was considered as being wild-type in both cell lines.
Surviving fraction (SF) of HPV+ and HPV−
OPSCC cell lines after ionising irradiation (IR)
The sensitivity of the panel of 10 OPSCC cell lines to IR was assessed using clonogenic survival assays. The SFs of all OPSCC cell lines to 0.5–6 Gy respectively are shown in Fig. 1, and Tables II and III, respectively.

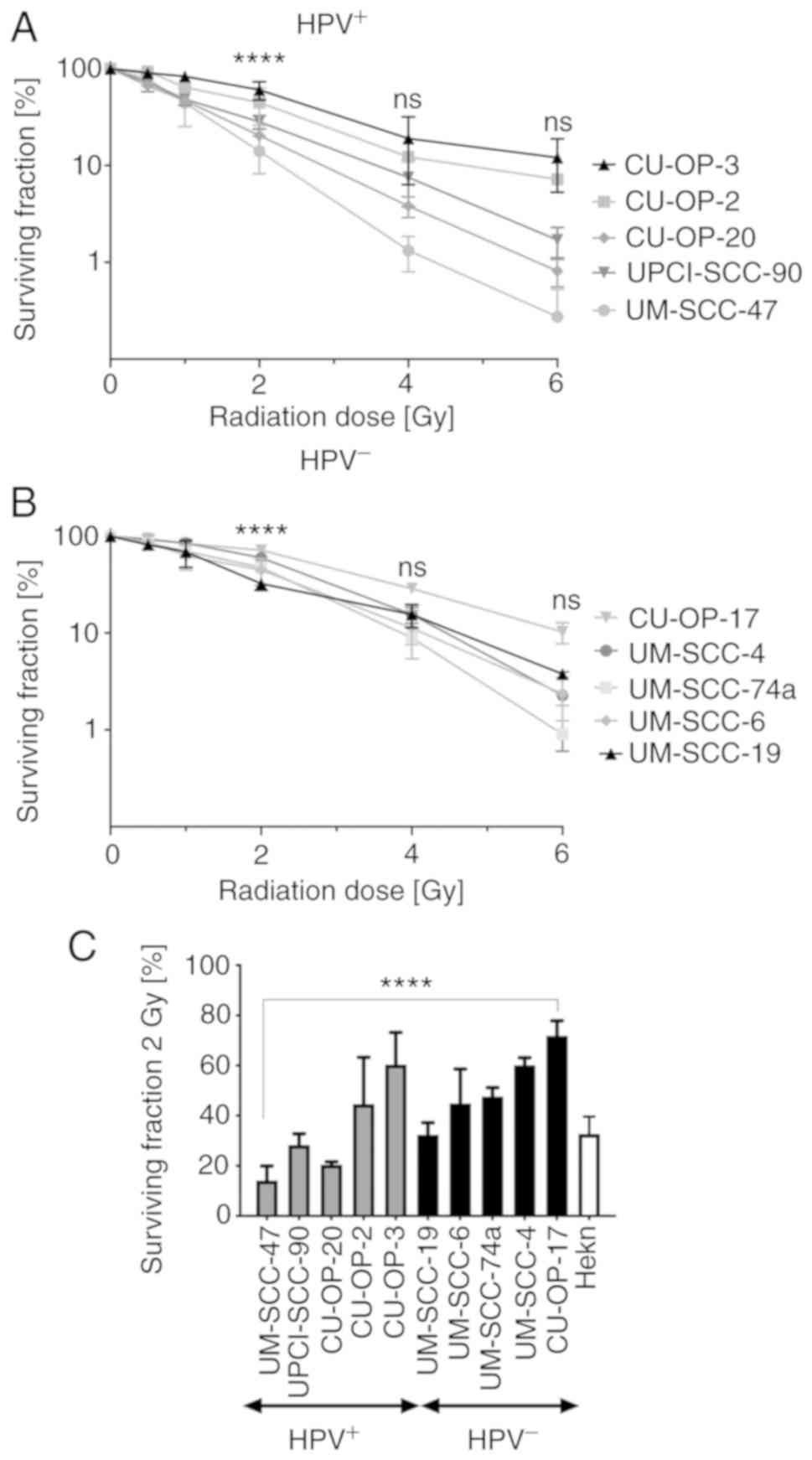

Surviving fraction (SF) of HPV+ and HPV− cell lines following ionizing irradiation. (A) SF of HPV+ cell lines. At 2 Gy the difference in survival between the most radiosensitive (UM-SCC-47) and the most radioresistant (CU-OP-3) cell lines was significant (****P<0.0001). Additional significant differences are noted only in the text of the results section. ns, not significant. Error bars indicate standard deviations. (B) SF of HPV− cell lines to IR. At 2 Gy the difference in survival between the most radiosensitive (UM-SCC-19) and the most radioresistant (CU-OP-17) cell lines was significant (****P<0.0001). Additional significant differences are noted only in the text of the results section. ns, not significant. Error bars indicate standard deviations. (C) SF after treatment with 2 Gy for all HPV+ and HPV− SCC cell lines and the human epithelial keratinocyte cell line HEKn. As example of statistical significance, the comparison of UM-SCC-47 to CU-OP-17 is presented (****P<0.0001). For this specific comparison a one-way ANOVA with a Sidak post-test was used. HPV, human papillomavirus.
Special focus was put on an indicated clinically relevant dose of 2 Gy (20), which identified three HPV+ OPSCC cell lines UM-SCC-47 (SF=14.1) UPCI-SCC-90 (SF=28.3) and CU-OP-20 (SF=20.4) and only one HPV− OPSCC cell line UM-SSC-19 (SF=32.4) as radiosensitive, Tables II and III, respectively. All other cell lines were by definition radioresistant (20). Furthermore, for 2 Gy, HPV+ OPSCC cell lines tended to be more sensitive and showed a wider variability in SF values (14.1–60.4, mean 33.6) than the HPV− OPSCC cell lines (32.4–71.8, 51.4) P=0.0754 (Mann-Whitney one-tailed t-test as conducted in (13) (Fig. 1, Tables II and III, respectively).
There were significant differences in SF within the HPV+ and HPV− groups after IR with 2 Gy. HPV+ UM-SCC-47 and CU-OP-20 were more radiosensitive to 2 Gy compared to CU-OP-2 and CU-OP-3, and UPCI-SSC-90 was more radiosensitive than CU-OP-3 (for all at least P<0.05) (Fig. 1A). Among the HPV− OPSCC cell lines, UM-SCC-19 was more radiosensitive than CU-OP-17 (P<0.0001) (Fig. 1B). Fig. 1C shows the SF values in more detail after treatment with 2 Gy for all OPSCC cell lines as well as HEKn. Fig. 1C demonstrates that HPV+ OPSCC cell lines have a variable sensitivity to IR, as well as an evident overlap with HPV− OPSCC cell lines, but still tend to be more radiosensitive than the HPV− OPSCC cell lines.
Effects of IR on cell cycle distribution in HPV+ and HPV− OPSCC cell lines
To gain insight into the mechanisms underlying the differences in sensitivity to IR, the cell lines were treated with IR and the effects on cell cycle distribution were assessed by flow cytometry. IR induced cell cycle effects primarily on HPV+ OPSCC as compared to HPV− OPSCC and mainly in the proportion of cells in G2, and the data are presented in detail below.
Changes in G2 arrest in HPV+ OPSCC cell lines
No significant changes were observed in cell cycle distribution 8 h after 2–6 Gy for any cell line. However, after 24 h (2 Gy), a significant increase in cells in G2 phase was observed for two HPV+ OPSCC cell lines: UM-SCC-47 (the most radiosensitive line, P=0.0135) and CU-OP-3 (the most radioresistant line, P=0.0075) (Fig. 2A and E). For the 6 Gy treatment after 24 h, all HPV+ OPSCC cell lines showed a significant increase in G2 arrest (UM-SCC-47, P<0.0001; UPCI-SCC-90, P<0.0001; CU-OP-20, P=0.0004; CU-OP-2, P=0.0019; and CU-OP-3, P<0.0001) (Fig. 2). After 48 h post 6 Gy treatment the proportion of cells in G2 was generally reduced. In UM-SCC-47, UPCI-SSC-90 and CU-OP-2, the reduction in G2 fraction was significant (P<0.05) (Fig. 2A-C).
Distribution of cells in G1, S-phase and G2 at different time points after ionizing irradiation (2 and 6 Gy) for HPV+ cell lines: (A) UM-SCC-47, (B) UPCI-SCC-90, (C) CU-OP-2, (D) CU-OP-20 and (E) CU-OP-3. All indicated statistical significance values in the figure apply only to cells in G2 phase. The statistics present visually the significance between the untreated G2 phase and the treated G2 phases at the presented time points (*P<0.05, **P<0.01, ***P<0.01 and ****P<0.001). Untreated samples presented represent time zero. N/A, not available; ns, not signifcant. All other statistical differences for G1 and S are presented in the text of the results section. HPV, human papillomavirus.
Changes in G2 arrest in HPV−
OPSCC cell lines
Compared to untreated controls, at 2 Gy after 24 h, a significant increase in cells in G2 was observed in one HPV− OPSCC cell line, UM-SCC-4, P=0.0222 (Fig. 3C). With 6 Gy after 24 h, an increase in G2 arrest was only observed in two lines, and these were the two most IR resistant ones of the five HPV− cell lines: UM-SCC-4, P=0.0027 and CU-OP-17, P=0.0052 (Fig. 3C and E). It was notable that in contrast to the HPV+ lines, neither UM-SCC-4, nor CU-OP-17 showed a reduction in G2 fraction after 48 h.

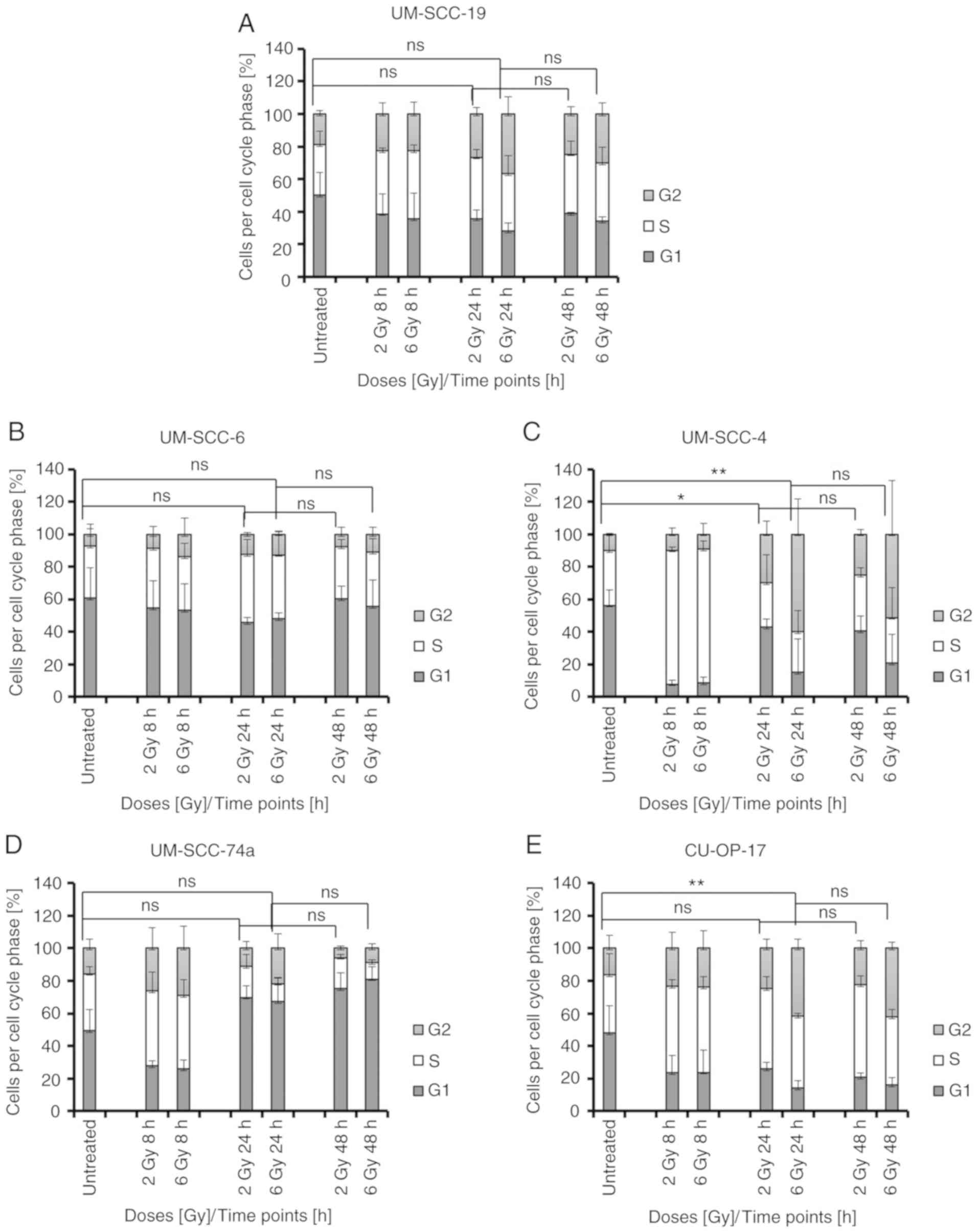

Distribution of cells in the G1, S-phase and G2 at different time points after ionizing irradiation of HPV− cell lines with 2 and 6 Gy: (A) UM-SCC-19, (B) UM-SCC-6, (C) UM-SCC-4, (D) UM-SSC-74a and (E) CU-OP-17. All indicated statistical significance values in the figure apply only to cells in G2 phase. The statistics present visually the significance between the untreated G2 phase and the treated G2 phases at the presented time points (*P<0.05 and **P<0.01). Untreated samples presented represent time zero. ns, not signifcant. All other statistical differences for G1 and S are presented in the text of the results section. HPV, human papillomavirus.
Changes in G1 in HPV+ and HPV−
OPSCC cell lines
Roughly, 50–60% of HPV+ and HPV− OPSCC cells were initially in G1, and few changes occurred 8–48 h after IR (Figs. 2 and 3). Compared to controls, with 2 Gy after 8 h, decreases in the proportion of cells in G1 were noted in HPV+ UM-SCC-47, P=0.0031; HPV− UM-SCC-4, P<0.0001; and HPV− UM-SCC-74a, P=0.0168; (Figs. 2A and 3C and D), and this was the case after 24 h for CU-OP-17, P=0.0402; (Fig. 3E), while instead an increase in G1 was seen at 24 h in UM-SCC-74a, P=0.0037; (Fig. 3D). At 6 Gy, after 24 h, a decrease in G1 could be seen for HPV+ UM-SCC-47, P<0.0001; and UPCI-SCC-90, P<0.0001; (Fig. 2A and B) and HPV− UM-SCC-19, P=0.0312; and UM-SCC-4, P=0.0305 (Fig. 3A and C).
Changes in S-phase in HPV+ and HPV−
OPSCC cell lines
Compared to untreated controls some changes in the proportion of cells in S phase occurred early (8 h), but not later (24–48 h) after IR in both HPV+ and HPV− OPSCC cell lines (Figs. 2 and 3). Compared to controls, with 2 Gy after 8 h an increase in the proportion of cells in S-phase was observed in HPV+ UM-SCC-47; P=0.0002; (Fig. 2A) and HPV− UM-SCC-4, P<0.0001; (Fig. 3C). Compared to controls, with 6 Gy after 8 h, HPV+ UM-SCC-47, P=0.0004; UPCI-SCC-90, P=0.0123; CU-OP-2; P=0.0144; (Fig. 2A-C) and HPV− UM-SCC-4, P=0.0061; (Fig. 3C) showed increases in the proportion of cells in S-phase.
No changes in the cell cycle after IR of HEKn
No significant changes were observed in the cell cycle of HEKn between the non-treated samples and the 2 Gy and 6 Gy samples (8, 24 and 48 h) (Fig. S1). One representative flow cytometry plot of each cell line is presented in Figs. S2 and S3.
Influence of IR on HPV integration
RNA sequencing was used to identify the presence on human: Viral fusion transcripts before and after treatment with 2 Gy IR. This data was visualised using circos plots, which demonstrated fusion transcripts as described previously for UM-SCC-47, UPCI-SCC-90, CU-OP-2 and CU-OP-3 (18). The main integration sites were: UM-SCC-47-chromosome 3 to TP63 from E6/E7; UPCI-SCC-90-C9orf156 (chromosome 9 open reading frame 156 and 200 bp before FOXE1 from E7; CU-OP-2-chromosome 10 to E2 (YME1L1 gene at introns 6 and 7); CU-OP-3-chromosome 20 at the gene CEBPB (CCAT/enhancer binding protein β) (Fig. S4) (18). Novel minor HPV integration sites were identified for CU-OP-20, but a high incidence of fusion transcripts above 5 mapped reads, as described previously (18) were not disclosed (Fig. S4). Treatment with 2 Gy did not change the main integration sites of UM-SCC-47, UPCI-SCC-90, CU-OP-2 and CU-OP-3 (Fig. S4). However, the frequency of additional minor chromosomal integration sites per chromosome increased after 2 Gy IR, i.e. for the radiosensitive lines: UM-SCC-47, from 3 to 16; UPCI-SCC-90, from 17 to 20; and CU-OP-20; from 7 to 20; as well as for the radioresistant lines: CU-OP-3, from 6 to 21 and CU-OP-2, from 1 to 10 (Fig. S4A and B, respectively).
Changes in gene expression in HPV+ and HPV−
OPSCC cell lines after IR with 2 Gy
The RNA-sequencing data was also examined to determine whether there were consistent differences in response to IR between the HPV+ and HPV− cell lines. An unsupervised analysis comparing treated and untreated cells was initially performed. After correction for multiple testing, 519 transcripts or genes were indicated as significant (data not shown). This indicated 2 Gy had a significant effect on transcription of multiple genes. The top 19 genes with significant differences after treatment of the OPSCC lines with 2 Gy are presented in Table SI. None of the genes however, showed an obvious link to DNA repair, DNA damage or stress mechanisms, while transcription of the HPV oncogenes, E6 and E7, was noted in all HPV+ cell lines (data not shown).
The present study investigated responses to ionising irradiation (IR) in five human papillomavirus-positive (HPV+) and five HPV− oropharyngeal squamous cell carcinoma (OPSCC) cell lines. Clonogenic survival assays, flow cytometry and RNA sequencing were used to assess survival, cell cycle distribution and HPV integration. We also report derivation and characterisation of two novel OPSCC cell lines. HPV+ OPSCC cell lines showed greater variation in radiosensitivity than was apparent among the HPV− cell lines, and we observed a tendency for greater sensitivity to IR in HPV+ lines, although the correlation between radiosensitivity and HPV status was not perfect. HPV+ cells more frequently demonstrated an increase in G2 arrest following IR as compared to the HPV− OPSCC cell lines. It was interesting and potentially clinically relevant to note that radiation treatment resulted in a marked increase in novel HPV: Human fusion transcripts, which may suggest that radiation could facilitate integration of HPV DNA into novel genomic sites. However, due to the limited number of available cell lines and without further studies, a definite conclusion cannot be made after the current study. RNA sequencing did not indicate major changes in transcription of genes associated with DNA repair, DNA damage or stress mechanisms.
Following irradiation of HPV+ cell lines (UM-SCC-47, UPCI-SCC-90, CU-OP-2, CU-OP-3, and CU-OP-20) and the HPV− cell lines (UM-SCC-6, UM-SCC-4, UM-SCC-19, UM-SCC-74a and CU-OP-17), our observations show some important differences from earlier reports (11–13). These data are based on an expanded panel of cell lines, since three more HPV+ and two HPV− OPSCC cell lines (HPV+ CU-OP-2, CU-OP-3, CU-OP-20 and HPV− CU-OP-17 and UM-SCC-74a) were added to the previously relatively limited panel of IR tested OPSCC cell lines (11–18). Notably, in this report we did not find that HPV+ OPSCC cell lines were consistently and significantly more sensitive to IR relative to HPV− OPSCC cells (11–13), although this trend was evident in a limited number of lines. We suggest that it would be more accurate to state that HPV+ OPSCC cell lines show wider variation in radio-sensitivity than is observed among the HPV− OPSCC cell lines.
The wider variability in sensitivity to IR in the HPV+ group is in line with one previous report, where the authors also therefore suggest caution in de-intensification of therapy via dose reduction (13). An example of this in the present study was that the HPV+ CU-OP-2 and CU-OP-3 cell lines were relatively radioresistant as compared to the other HPV+ cell lines.
Of note, the HPV+ CU-OP-20, which according to our circos plots lacked major integrated HPV sites, was among the most radiosensitive HPV+ OPSCC cell line. The data are of course very limited, but would be consistent with suggestions that HPV+ OPSCC with episomal HPV DNA may have an even better prognosis (27,28).
Similar to other publications, we found that upon IR the proportion of HPV+ cell lines often exhibited an increase in G2 arrest as compared to HPV− OPSCC lines, while changes in the proportion of cells in G1 and S-phase were not as apparent for any of the OPSCC cell lines (11–13). In two of the previous studies it was hypothesised that due to HPV16 E6-mediated degradation of p53, a greater G2 arrest should be expected in the HPV+ OPSCC cell lines (12,13). Notably, an increase in G2 arrest was the case for the HPV+ OPSCC cell lines in this study, irrespective as to whether the cell lines were radiosensitive or radioresistant. The data would still be in line with the hypothesis above indicating that it is due to HPV16 E6-mediated degradation of p53 rather than a correlation to radiosensitivity per se (12,13). This would be consistent with the observation that the most radiosensitive line, UM-SCC-47, and the most radioresistant CU-OP-3 were the two cell lines with the highest proportion of G2 arrest. To our knowledge this has not been demonstrated before. In fact, in an earlier report the numbers of cells arrested in G2 correlated to the radiosensitivity of the HPV+ OPSCC cell lines (13). The differences in the data reported between the present study and the study by Rieckmann et al (13) reflects the difficulties in drawing generalised conclusions on limited numbers of HPV+ OPSCC cell lines.
In this study, we also demonstrated an increase in HPV minor integration sites upon IR. We suggest that this could be due to an increase in DNA lesions following IR, and that this promotes integration of HPV DNA (possibly previously episomal) into new genomic locations.
mRNA sequencing IR treated and untreated cells also allowed investigation of changes in transcription of genes correlated to DNA repair, cell cycle arrest and apoptosis. Our data did not indicate an increase in transcription of specific DNA repair genes after IR, which could be interpreted as consistent with the suggestion that the IR sensitivity of HPV+ OPSCC cell lines could be due to impaired capability to repair double-stranded DNA breaks (13). However, it may equally reflect the limitation of an experiment involving a single dose at a single time point. Other factors may better explain the better prognosis of HPV+ OPSCC patients. One report suggests e.g. that IR increases the levels of MHC class I in HPV+ OPSCC, thereby allowing for better immune recognition, while another study implies the necessity of an immune system to benefit from IR or chemotherapy (29,30). The role of CD47 has also been investigated, showing that this protein is downregulated upon IR, and that this in turn enhances immune recognition of HPV+ OPSCC (31).
There are limitations inherent in our study; only 10 OPSCC cell lines were assessed. Nonetheless this is a larger sample than investigated in several previous studies. By including five OPSCC cell lines previously not tested with IR, we could show a tendency, but not a significantly increased sensitivity to IR in HPV+ as compared to HPV− OPSCC cell lines, and this may challenge a previous dogma (12,13). Nevertheless, caution is still warranted to draw any major conclusions, since the numbers of cell lines in each category were limited.
Furthermore as already mentioned, another limitation was the special focus on one irradiation dose 2 Gy. However, we could confirm that upon IR, the proportion of cells in G2 increased much more in HPV+ OPSCC cell lines as compared to HPV− OPSCC, but in this study the increase in G2 was not correlated to radiosensitivity as reported previously (13). Whether this is due to unique features of the CU-OP-3 cell line, or whether caution should be exercised in regarding G2 arrest as a measure of radiosensitivity, remains to be established.
To summarise, in this report five HPV+ and five HPV− OPSCCs cell lines, including five lines not previously assessed, were examined for radiosensitivity. HPV+ OPSCC lines demonstrated a wide range of sensitivity to IR, and importantly not all cell lines were radiosensitive, although they still tended to be more sensitive to irradiation than HPV− OPSCC lines. Furthermore, upon IR, HPV+ OPSCCs more often increased the proportion of cells in G2 arrest as compared to HPV− OPSCC cell lines, but the increases in G2 arrest were not correlated to radiosensitivity. Lastly, upon treatment with 2 Gy some increases in minor HPV integration sites were noted and changes in gene expression were demonstrated, but not in genes primarily associated with DNA repair.
To conclude, our data suggest that HPV+ OPSCC cell lines may possibly vary more in radiosensitivity than previously anticipated, and despite they are generally more sensitive than HPV− OPSCC cell lines, individual variations may exist within both the HPV+ and the HPV− OPSCC groups. Furthermore, in spite of the fact that 10 cell lines were tested, the data are limited and additional studies are warranted.
We are very thankful for the support provided by Cancer Research Wales as well as the patients who took part in this study. Tina Dalianis and Nicole Wild are acknowledged for carefully reading the manuscript and providing valuable suggestions, and Ramona Ursu for technical help with the bead based multiplex assay.
Grant funding from Cancer Research Wales (grant no. CRW14-506688) supported this study. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Availability of data and materials
RNA-seq data discussed in this publication is available in the NCBIs Gene Expression Omnibus (GEO) and is accessible through GEO series accession number GSE153966 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE153966). The remaining datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
SH performed the majority of the experiments, interpreted the data, calculated the statistics and contributed to the writing of the manuscript. EP and JJ collaborated with SH and performed some experiments. PG contributed by analyzing and providing the raw data. DO, AAH and ME contributed by identifying and consenting patients and by providing the biopsy samples for the establishment of the cell lines. NP and SM assisted all the authors, with the planning of some experiments, performed combinational analyses, and assisted in final interpretation and presentation of the data. NP and SH were involved in the work from its initiation and bringing into completion and were involved in writing and finalizing the work and the manuscript. All authors critically read and approved the manuscript.
Ethics approval and consent to participate
The study with regard to patient material was performed according to permission from the Cardiff and Vale University Health board, in concordance with Ethical and NHS R&D approval (reference no. 13/WA/0002).
Patient consent for publication
Authors report no competing interests to disclose.
